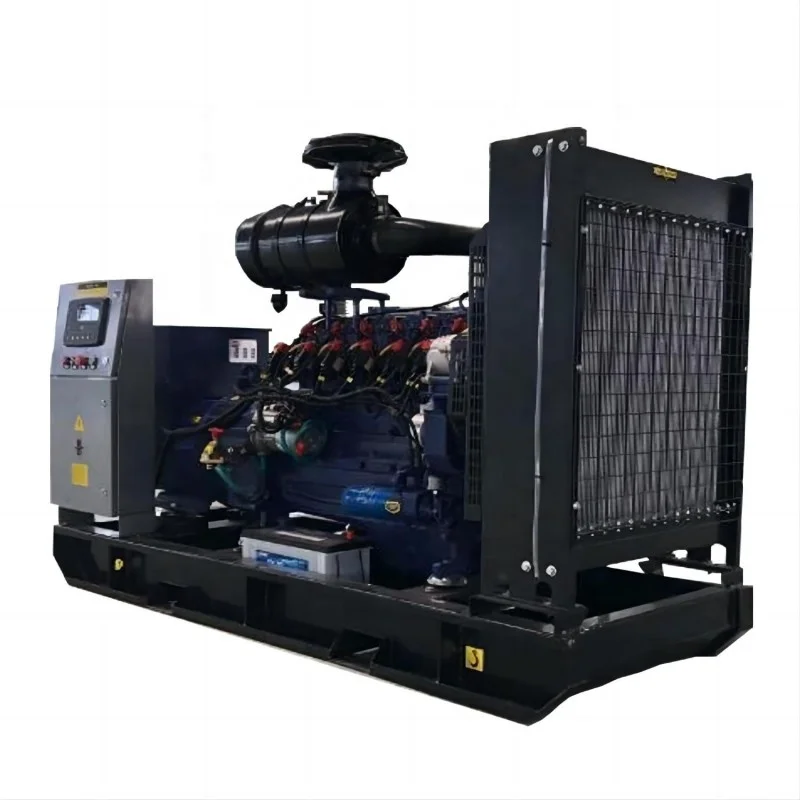

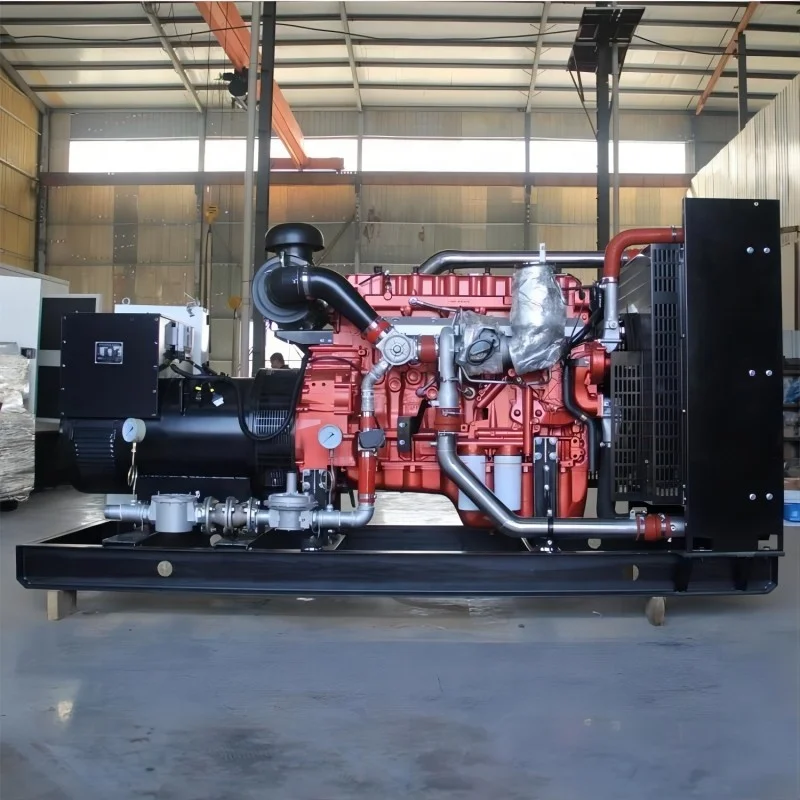

HOT SALES 30kw 37.5kva Best Silent Diesel Generator to lpg natural gas generator Conversion Kit Brand in China Price
- Category: >>>
- Supplier: Qingdao Moore Golden International Trade Co. Ltd.
Share on (1601281618299):
Product Overview
Description

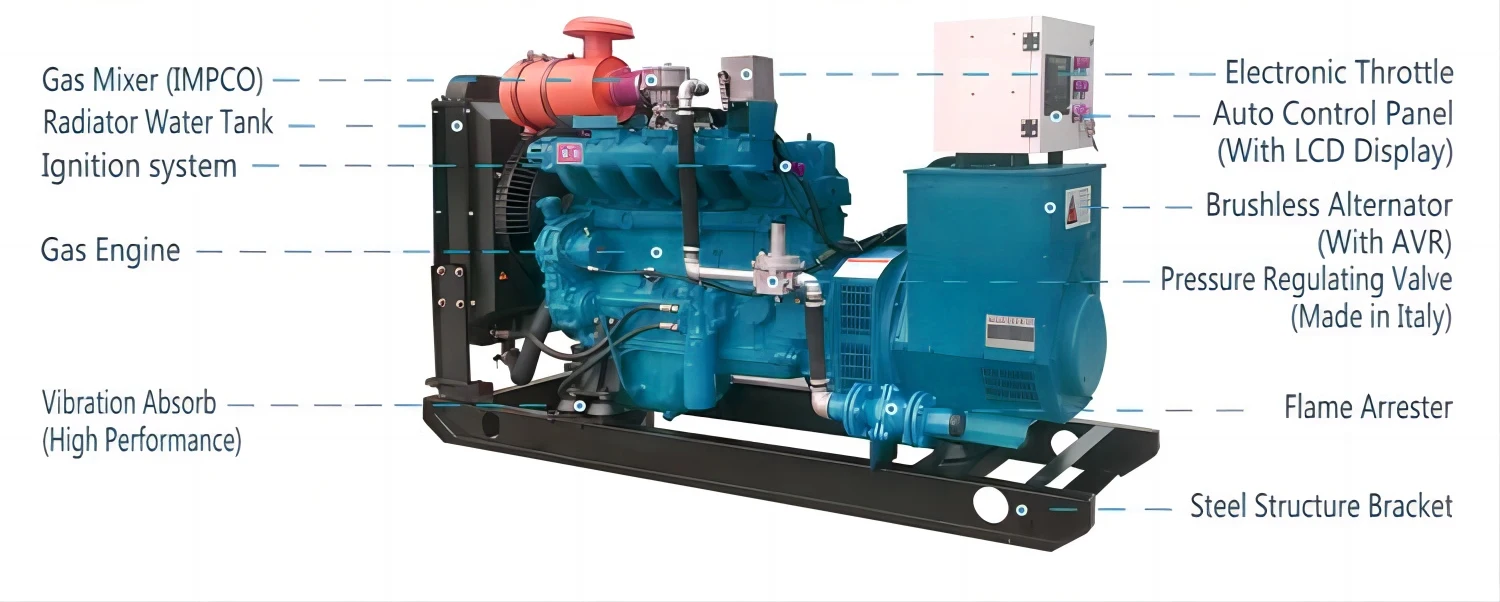

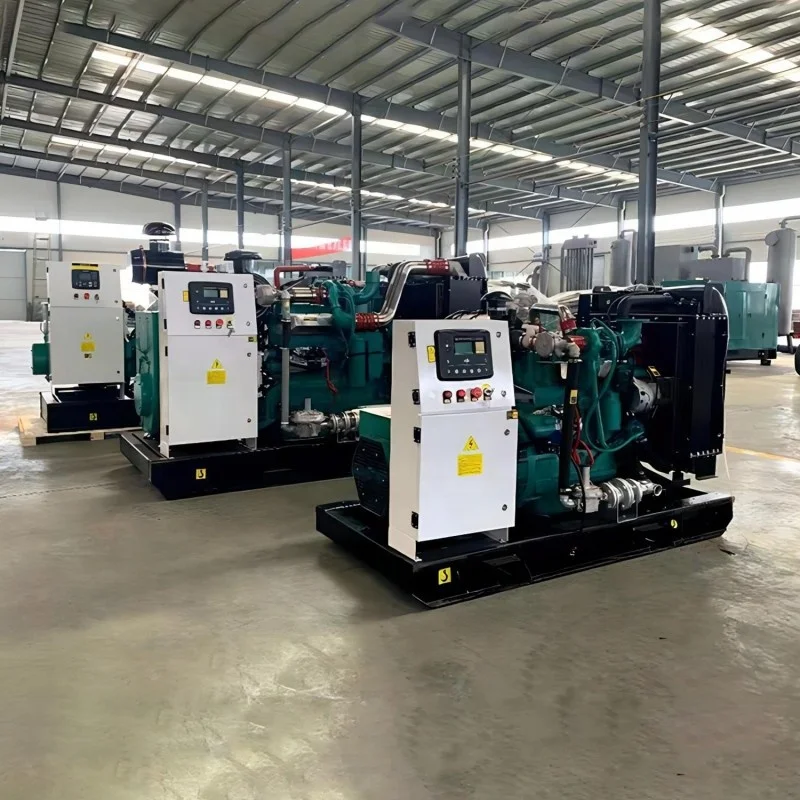

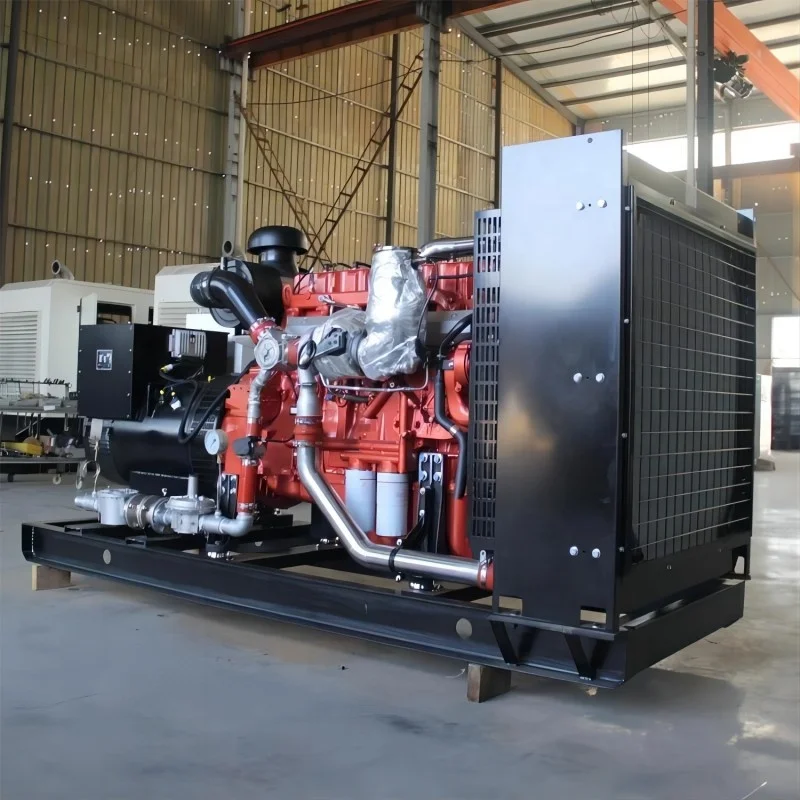

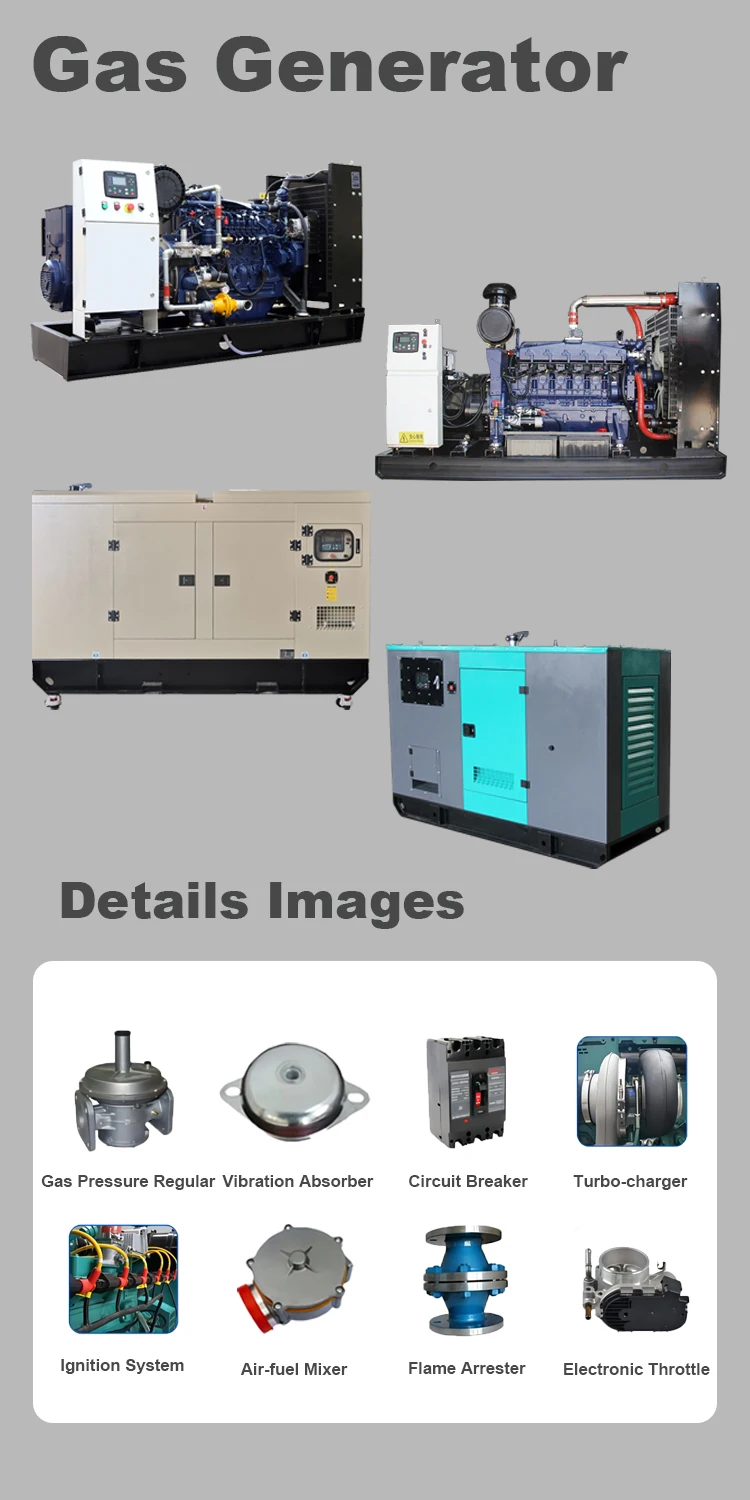

25KVA-2500KVA Gas Generator Sets
Application Scenarios
Gas Generator Classification

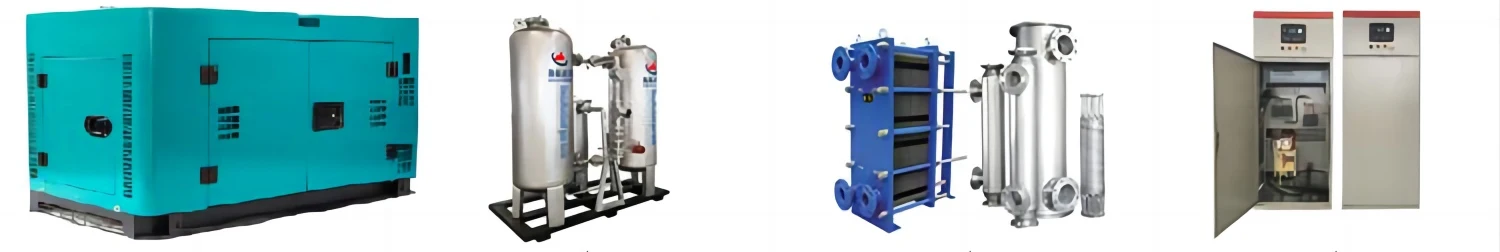

Optional Series
Silent Canopy(65dB-78dB) Gas Desulfurization & Dehydration CHP System Grid Connection Cabinet
Color Customization DSE ComAP SmartGen
Specification

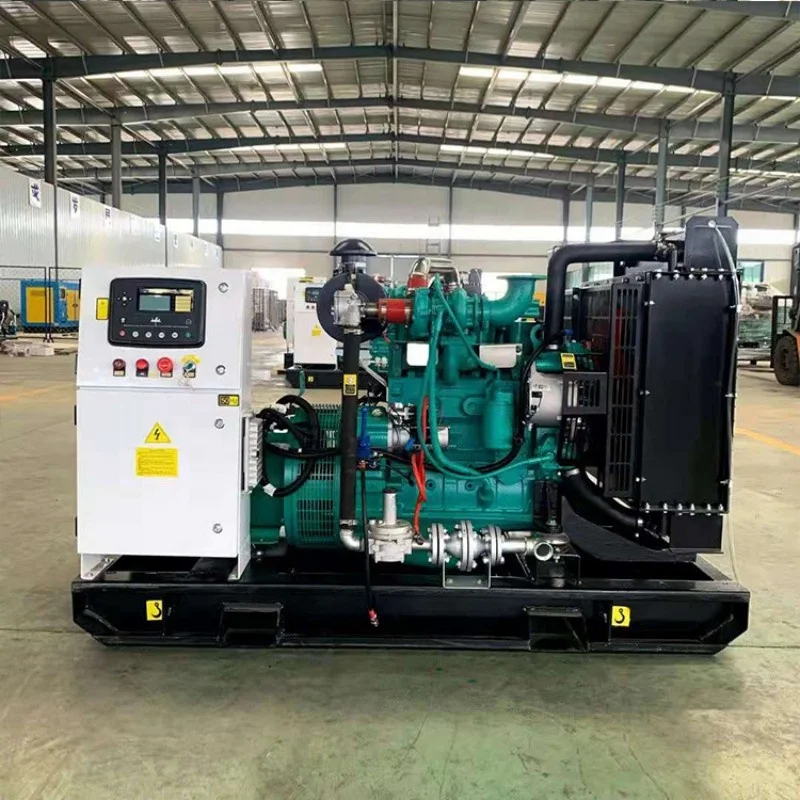

30KW Weifang Series Gas Generator Set | ||||||
Technical parameters of generator set: | ||||||
Unit model: | MG30GF | Steady state voltage adjustment rate (%): | ≤± 1 | |||
Output power: | 30Kw | Voltage fluctuation rate (%): | ≤ ± 0.5 | |||
Power factor: | COSΦ = 0.8 (lagging) | Transient voltage adjustment rate (%): | + 20 ~ -15 | |||
Output voltage: | 400V / 230V | Voltage stabilization time (s): | ≤1 | |||
Output current: | 54A | Steady state frequency adjustment rate (%): | ≤ ± 1 | |||
Rated frequency: | 50Hz | Frequency fluctuation rate (%): | ≤ ± 0.5 | |||
Rated speed: | 1500rpm | Transient frequency adjustment rate (%): | + 10 ~ -7 | |||
Gas grade: | LNG/CNG | Frequency stabilization time (S): | ≤3 | |||
Dimensions: | 1850×750×1380(L×W×H mm) | Gas consumption (100% load): | 18m³/h | |||
Weight: | 650kg | Acoustic noise (LP7m): | ≤75dB(A) | |||
Technical parameters of gas engine: | ||||||
Brand/origin: | Weifang Gas Engine | Cooling method: | closed water circulation cooling | |||
model: | 4105ID-NG | Ignition method: | Spark plug ignition | |||
Number of cylinders / Dare to mention structure: | 4 / L Type | control method: | ECU control | |||
Bore stroke: | 100 × 115 mm | Intake method: | inhale naturally | |||
Compression ratio: | 16.5:1 | Gas consumption. | 18m³/h | |||
Start mode: | DC 12V Electric start | Intake pressure: | 2.5-8kpa | |||
Technical parameters of generator: | ||||||
Brand: | LY brushless generator | Protection level: | IP22 | |||
Model: | LY-30 | Wiring mode: | Three-phase four-wire, Y-connection | |||
Rated power: | 30kW | Adjustment method: | AVR (Automatic Voltage Regulator) | |||
Rated voltage: | 400V / 230V | Output frequency: | 50Hz | |||
Insulation class: | H class | Output factor: | COSΦ = 0.8 (lag) | |||
The standard configuration of the generator set is as follows: | ||||||
Ø EFI internal combustion engine (gas); | ||||||
Ø AC synchronous generator (single bearing); | ||||||
ØSuitable for ambient temperature 40 ℃ -50 ℃ radiator water tank, belt driven cooling fan, fan safety shield; | ||||||
Ø Power generation output air switch, standard control screen; | ||||||
Ø Unit steel common base (including: unit vibration damping rubber pad); | ||||||
Ø Dry air filter, fuel oil, lubricating oil filter, start motor, and equipped with self-charging generator; | ||||||
Ø Random information: original technical documents of gas engine and generator, generator set manual, test report, etc. | ||||||

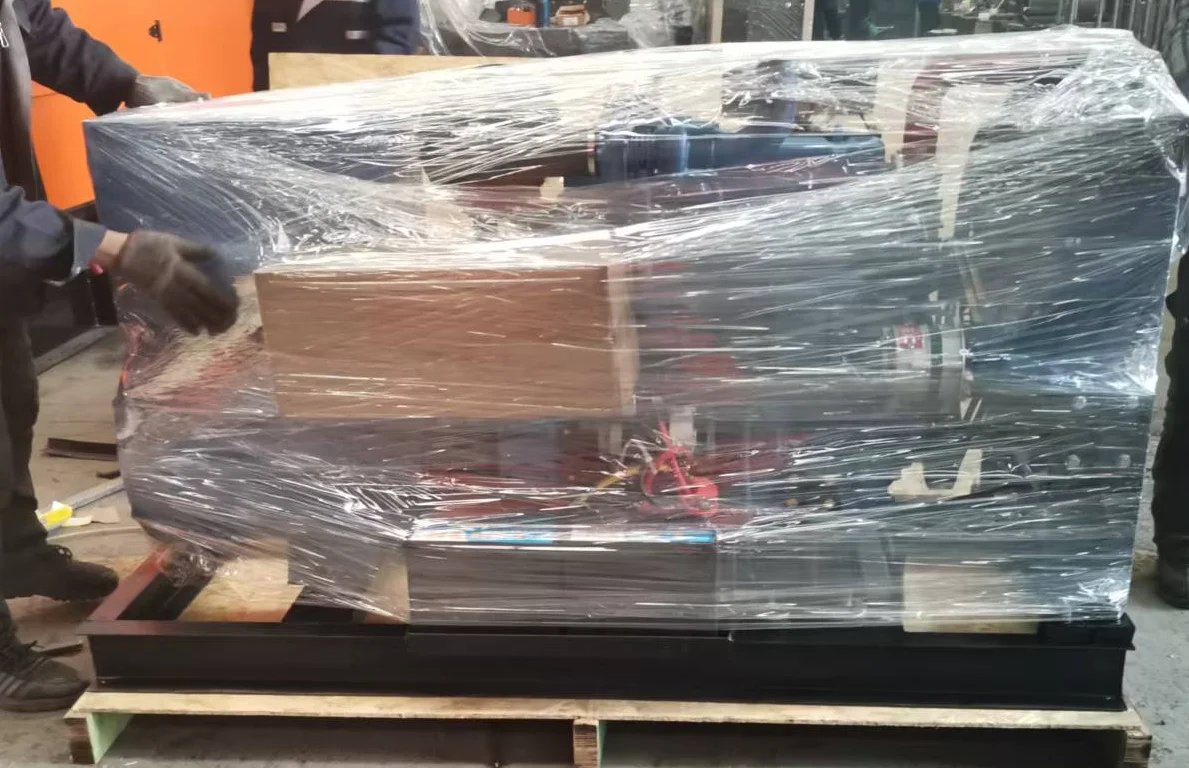

Packaging & Shipping

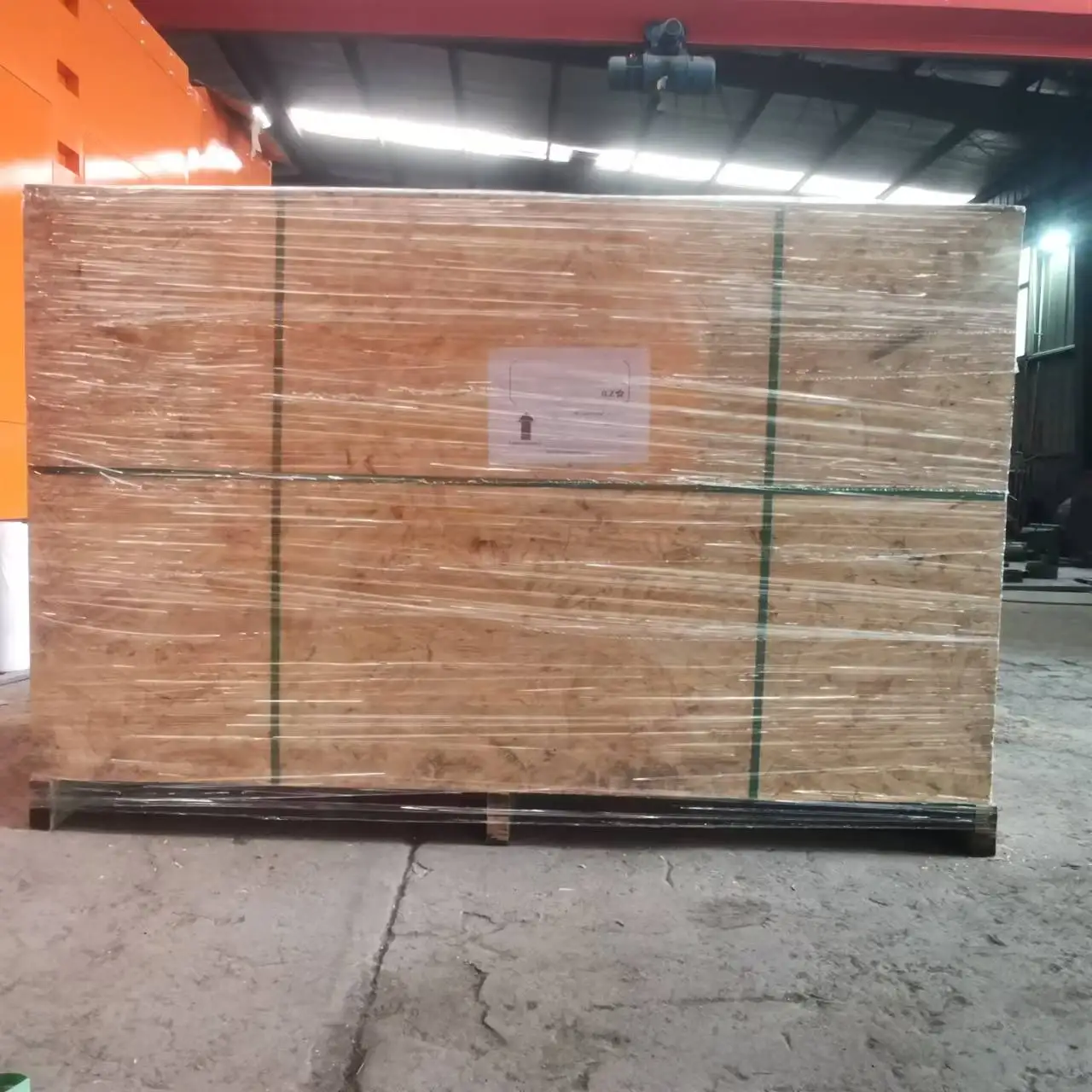

plywood case packing

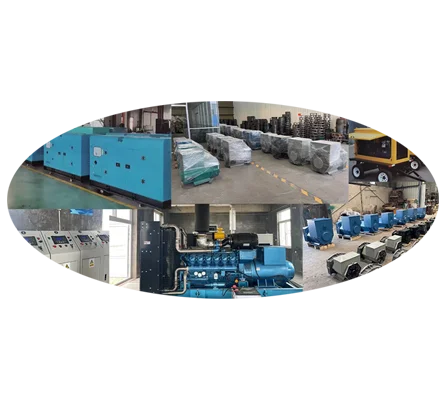

About Us
Qingdao Moore Golden International Trade Co., Ltd. is a comprehensive enterprise integrating industry and trade.
Its factory,Weifang Longyuan Generator is located in Weifang City, the center of diesel engine production.The geographical location is superior and the transportation and shipping conditions are unique.
The company focuses on the R&D, manufacturing and sales of generator sets, covering land-based, silent, mobile trailer, marine, rainproof, container and other types.And equipped with advanced intelligent control system.
The company focuses on the R&D, manufacturing and sales of generator sets, covering land-based, silent, mobile trailer, marine, rainproof, container and other types.And equipped with advanced intelligent control system.
Why Choose Us
Cooperation Brand
Certification
Contact Us
FAQ
1. Are you a factory or trader ?
We are factory,it is located in Weifang city which is the biggest area of power manufacturing in China. And we get the import and export right by QingDao Moore Golden trading in order to supply one-stop service which can save lots of cost and time for our customers.
2. What is our warranty for the machine? How about our warranty?
We will provide 1-year warranty for each machine. If some parts of the machine cannot work, just send a small video to us, and we will be able to judge which parts cannot work, and mail the non working parts to you for free, vividly instructing you to replace them.
3.How about your design ability? Do you provide OEM service?
We have our own design department and provide design services for thousands of partners. OEM accepts that we provide
aconfidentiality agreement "trade secret contract" for your design security.
4. How to operate the disel generator set?
a. Add water/antifreeze (depending on temperature)
b. Add oil, recommend CD/CF grade
c. Add No. 0 diesel
d. Connect the output wire
e.Connect the cables
f. Start the generator to output electricity
2. What is our warranty for the machine? How about our warranty?
We will provide 1-year warranty for each machine. If some parts of the machine cannot work, just send a small video to us, and we will be able to judge which parts cannot work, and mail the non working parts to you for free, vividly instructing you to replace them.
3.How about your design ability? Do you provide OEM service?
We have our own design department and provide design services for thousands of partners. OEM accepts that we provide
aconfidentiality agreement "trade secret contract" for your design security.
4. How to operate the disel generator set?
a. Add water/antifreeze (depending on temperature)
b. Add oil, recommend CD/CF grade
c. Add No. 0 diesel
d. Connect the output wire
e.Connect the cables
f. Start the generator to output electricity
