Product Overview

Description









Product introduction

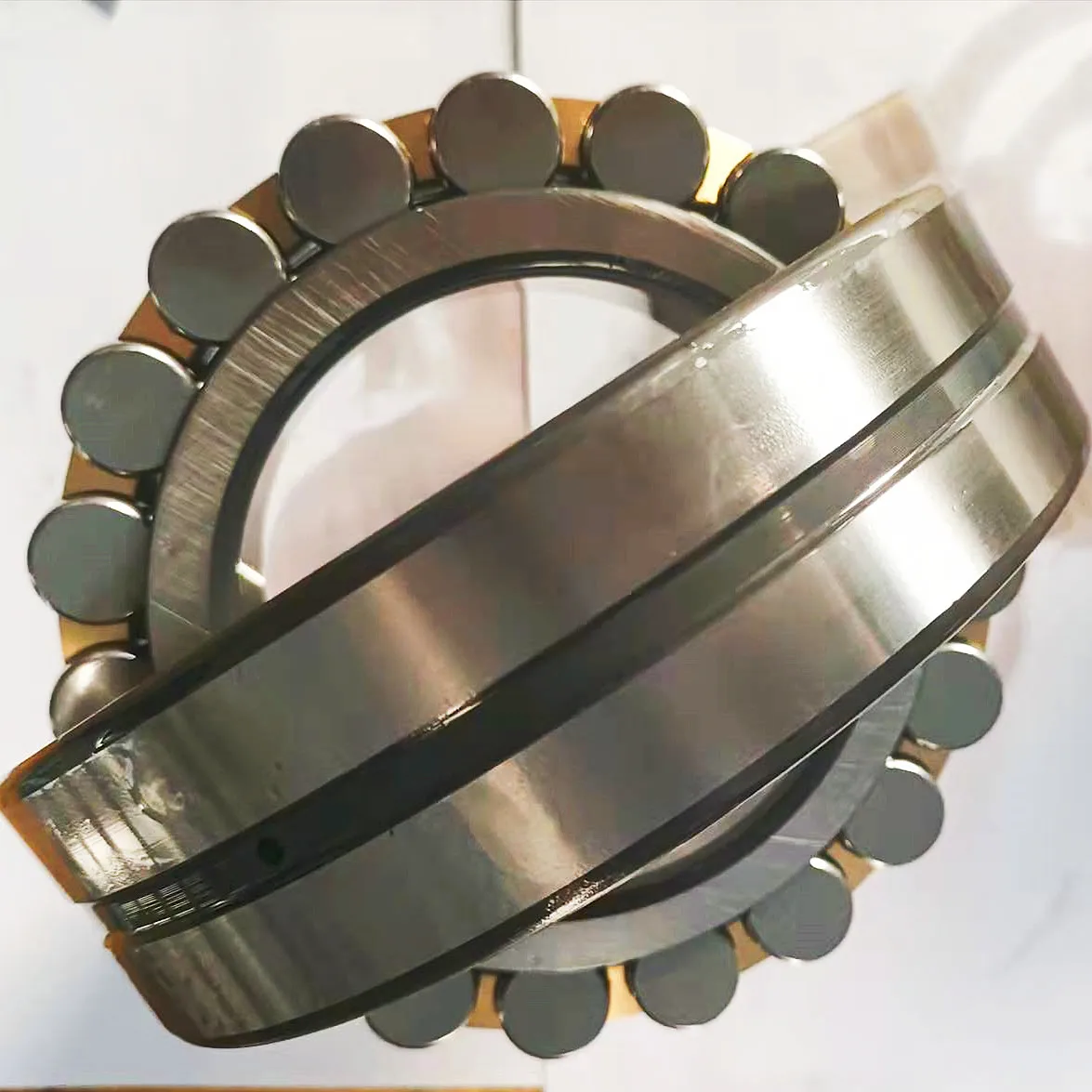

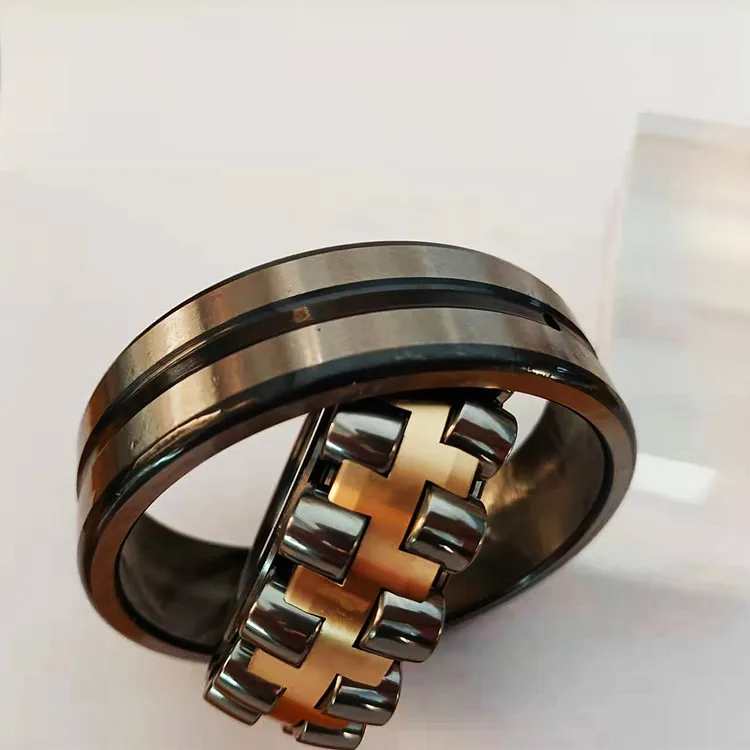

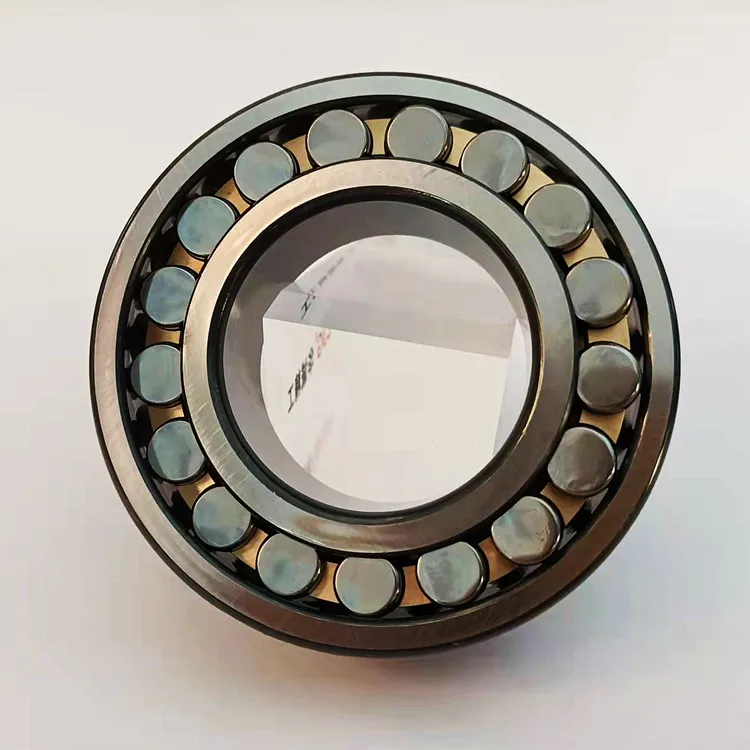

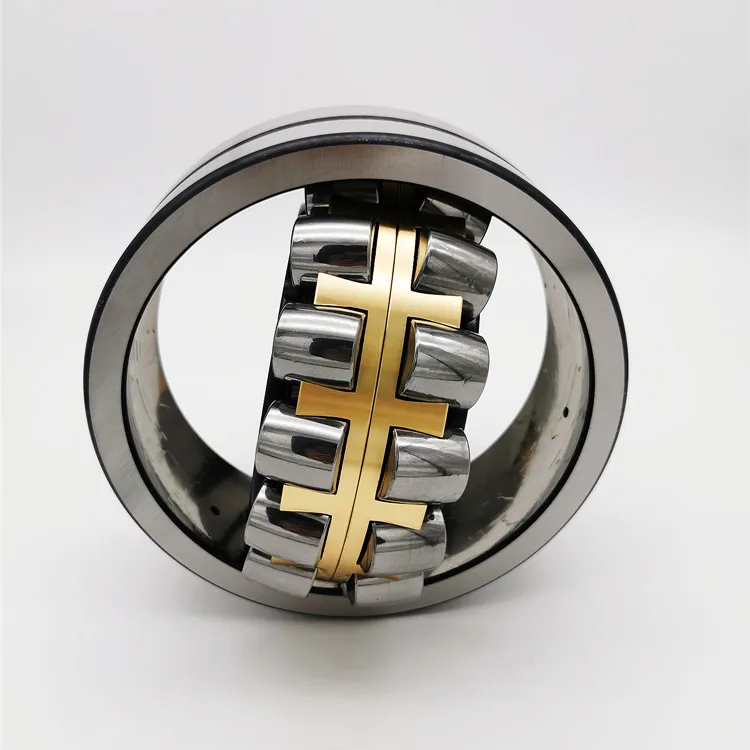

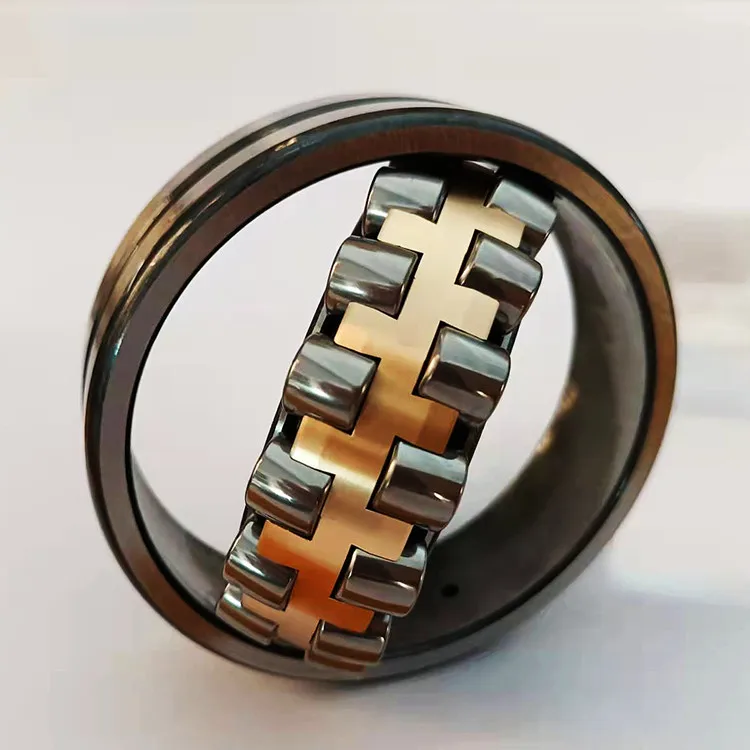

With the same center as the bearing, the spherically formed outer ring raceway can make self-alignment. Their rolling elements linearly come into contact with the raceways of inner ring and outer ring. The bearings can take greatly radial load, suitable for heavy machinery used in mining, metallurgical, paper - making and instructing, etc.


Bearing No.
Dimensions(mm)
Weight
d
D
T
KG
21306CA/C3W33
30
72
19
0.412
21307CA/C3W33
35
80
21
0.542
21308CA/C3W33
40
90
23
0.743
21309CA/C3W33
45
100
25
1
21310CA/C3W33
50
110
27
1.3
21311CA/C3W33
55
120
29
1.65
21312CA/C3W33
60
130
31
2.08
21313CA/C3W33
65
140
33
2.57
21314CA/C3W33
70
150
35
3.11
21315CA/C3W33
75
160
37
3.76
21316CA/C3W33
80
170
39
4.47
21322CA/C3W33
110
240
50
11.8
23024CA/C3W33
120
180
46
3.98
23026CA/C3W33
130
200
52
5.85
23028CA/C3W33
140
210
53
6.31
23030CA/C3W33
150
225
56
7.74
23032CA/C3W33
160
240
60
9.43
23034CA/C3W33
170
260
67
12.8
23036CA/C3W33
180
280
74
16.9
23038CA/C3W33
190
290
75
17.7
23040CA/C3W33
200
310
82
22.7
23044CA/C3W33
220
340
90
29.7
23048CA/C3W33
240
360
92
32.4




Using excellent high-purity bearing steel, the bearing life is up to about 80%.
Low friction coefficient faster rotational speed, lower sound, not easy to burn.


Quenching process, bearing inner and outer ring hardness is more stable, longer service time.
Bearing steel, uniform material, stable chemical properties, not easy to corrosion, not easy to damage.










The alternative design of the second generation, these bearings feature a precision-machined brass cage and strengthened symmetric roller and are equivalent to CC design in load ratings. They are used to exchange with C design. particularly for large size.






Features a stamped steel cage and strengthened symmetric roller. As a second generation design, these bearing designs are optimized to offer considerably higher load ratings than conventional designs for a broad range of applications and long service life.




The E type middle baffle ring near the outer ring can improve the lubrication of the contact between the end face of the roller and the baffle ring, its role is to reduce bearing friction, help guide the roller in the non-load area, and assist the roller into the load area,and the length of the roller increases, so the rated load has been greatly improved. Usually the rated load can be increased by 20%-35%.








Feature a two piece precision-machined brass cage. These bearings incorporate strengthened symmetric rollers and are equivalent to CC design in load capacity.






Production categories






OEM&ODM




Customer feedback




Company Profile




Shandong Shuangyoulong Bearing Co., Ltd. is an enterprise focusing on industrial bearings and integrating science, industry and trade. The company's product range is complete. Based on more than 30 years of bearing production background and practice, in order to further meet customer market needs, we established a foreign trade department in Jinan in 2019. Our long history and experience, strict quality control system, extremely high delivery speed, appropriate usage suggestions and other advantages make our company's products sell well all over the country all year round and exported to Russia, Turkey, Brazil, the United States, Malaysia, South Africa and other countries. and region, and received unanimous praise.




Certifications




Packaging & Shipping




FAQ


Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q:Could you accept OEM and customize?
A:YES,we can customize for you according to sample or drawing.
Q:Is you company factory or Trade Company?
A:We have our own factory ;our type is factory +trade.
Q:Could you offer door to door service?
A:Yes,by express(DHL,FEDEX,TNT,EMS,4-10 days to your city.)
Q.Are you trading company or manufacturer ?
A:Yes we are factory.
Q.How long is your delivery time?
A:Generally it is 5-10 days if the goods are in stock.
Q.What is your terms of payment ?
A:We can accept any way payment.
