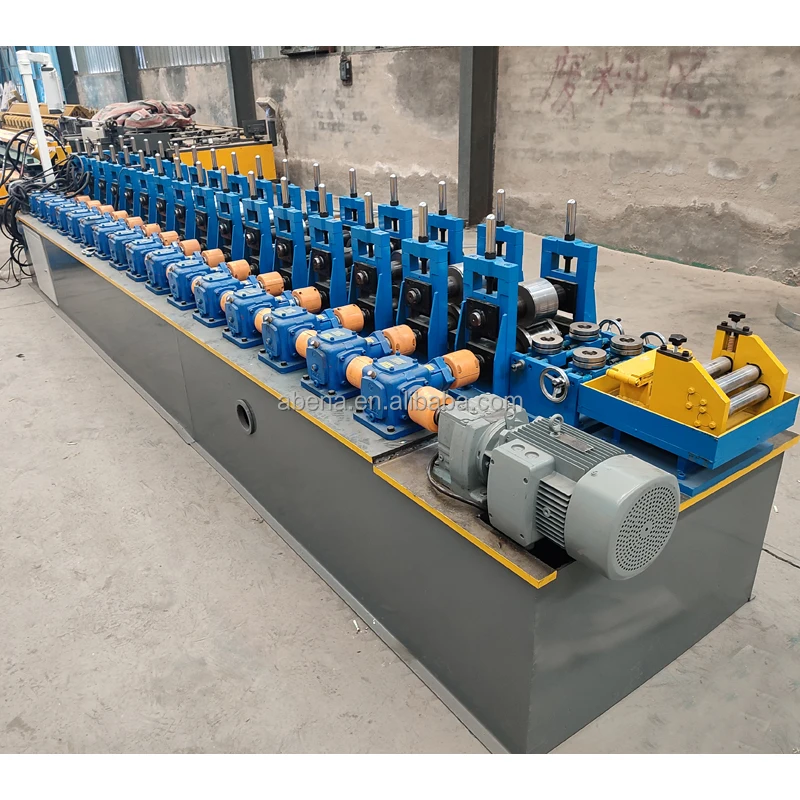

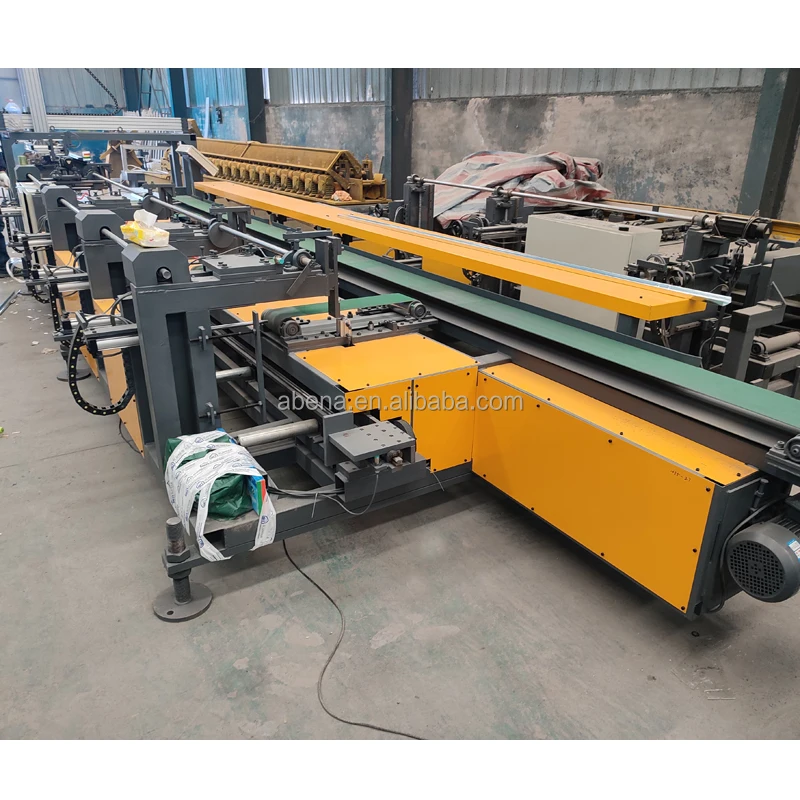

Light gauge steel truss roll forming machine and light steel keel frame machine
- Category: >>>
- Supplier: Cangzhou Abena Industry Co. Ltd.
Share on (1601282155348):
Product Overview
Description
Products Description
Product descriptions from the supplier
Video Description
Product Specification | ||||||||
No. | Item | Specification |
Material | Raw material | Galvanized steel or PPGI |
Thickness | 0.3-0.6mm | |
Machine | Roller station | 16 roller stations or depend on customer' drawing |
Shaft diameter | 75mm | |
Solid shaft material | High grade 45# steel with Cr12 mov coated, quenching & tempering & treatment | |
Roller material hardness 30-40 HRC | Cr12 | |
Machine dimension | 11500*1350*1750mm | |
Machine weight | About 3.0T | |
Working speed | 25-35m/min | |
Cutter | Hardness | 50-65 HRC |
Cutting tolerance | ± 1mm | |
Material | Cr12 | |
Operate | Hydraulic cutting | |
Power | Driving way | Chain 1 inch |
Main motor | 4KW | |
Pump motor for cutter | 3 KW | |
Voltage | 380v,50hz ,3ph or Customized as customer' request | |
Control system | PLC brand | Touchable screen |
Screen | Touchable screen | |
Language | Chinese and English or add customer need language | |

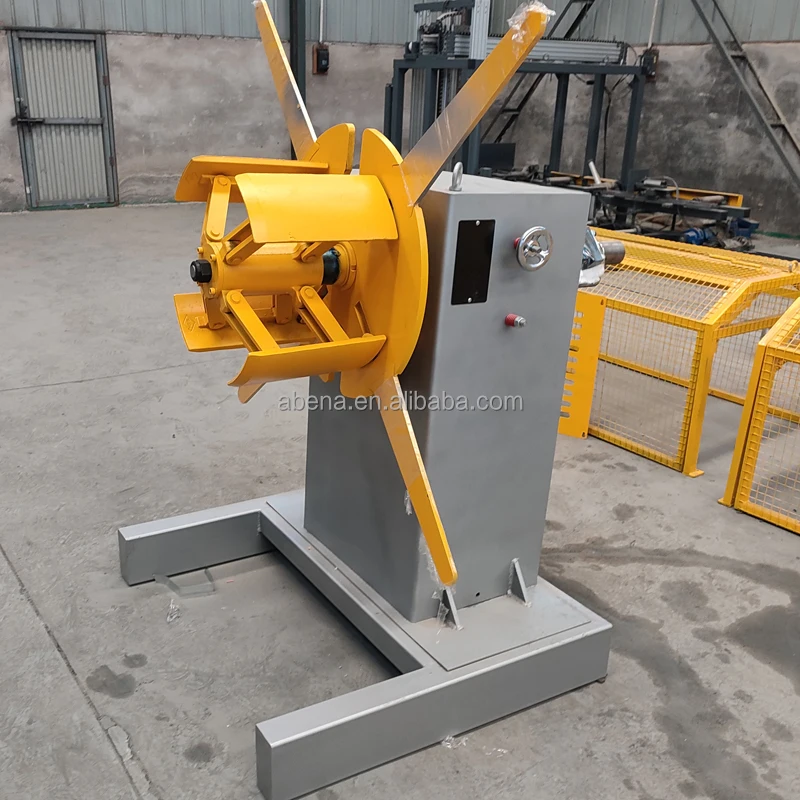

Decoiler | Operation | Manual |
Weight capacity | 5 Tons | |
Price | Free as gift | |
Receive table | Operation | Manual |
Length | 3m | |
Price | Free as gift |
product display | ||||||||
Details Images
Machine Frame
U Channel Roll Forming Machine Light Gauge Steel Framing Machine adopts welded steel frame structure, it make sure roof sheet machine can operation more stable
AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and chrome coating.

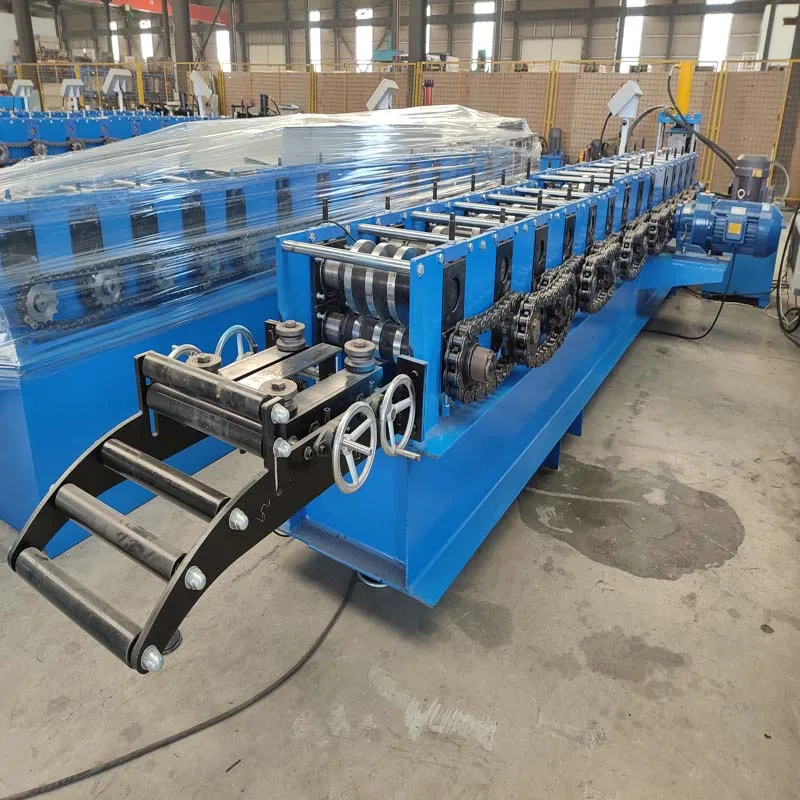

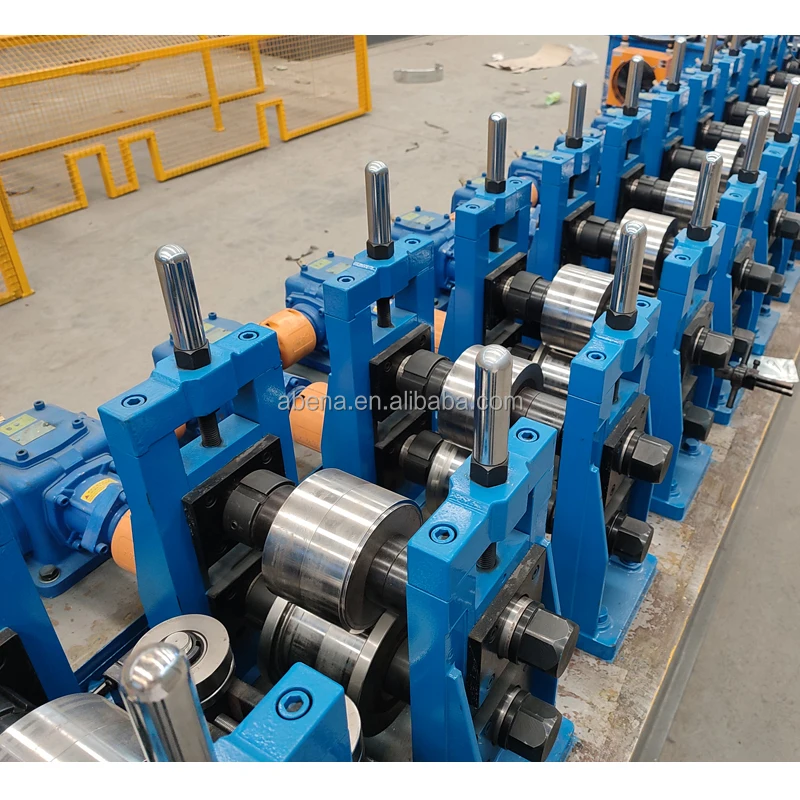

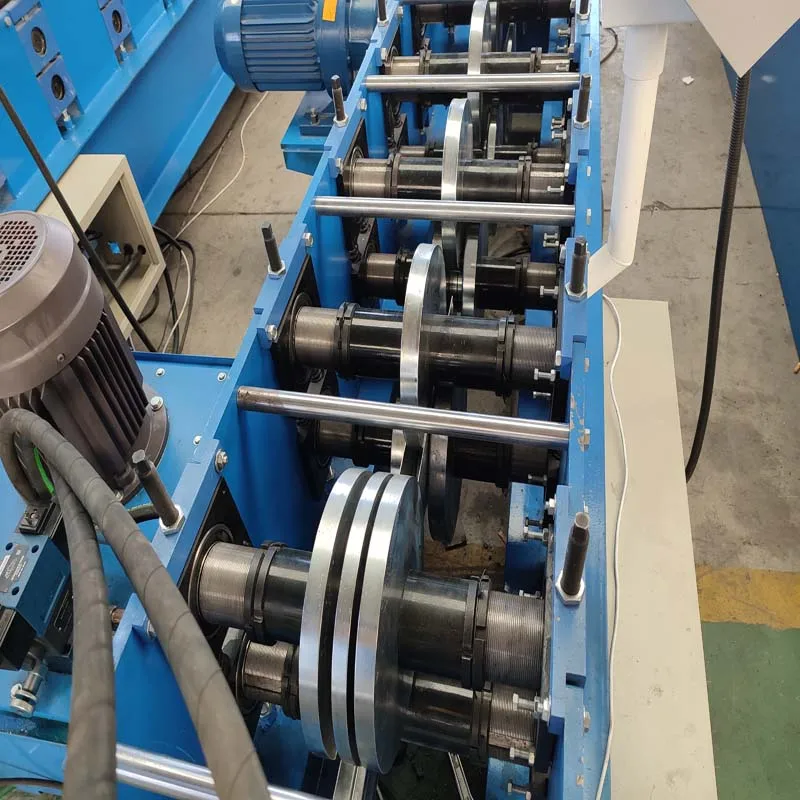

Forming Roller Of Roll Forming Machine
U Channel Roll Forming Machine quality will decide roof sheet shapes, we can according to your local roof shape
customized different type rollers
Roller chrome coated thickness: 0.05 mm
Roller material: Forging Steel 45# heat treatment.
customized different type rollers
Roller chrome coated thickness: 0.05 mm
Roller material: Forging Steel 45# heat treatment.

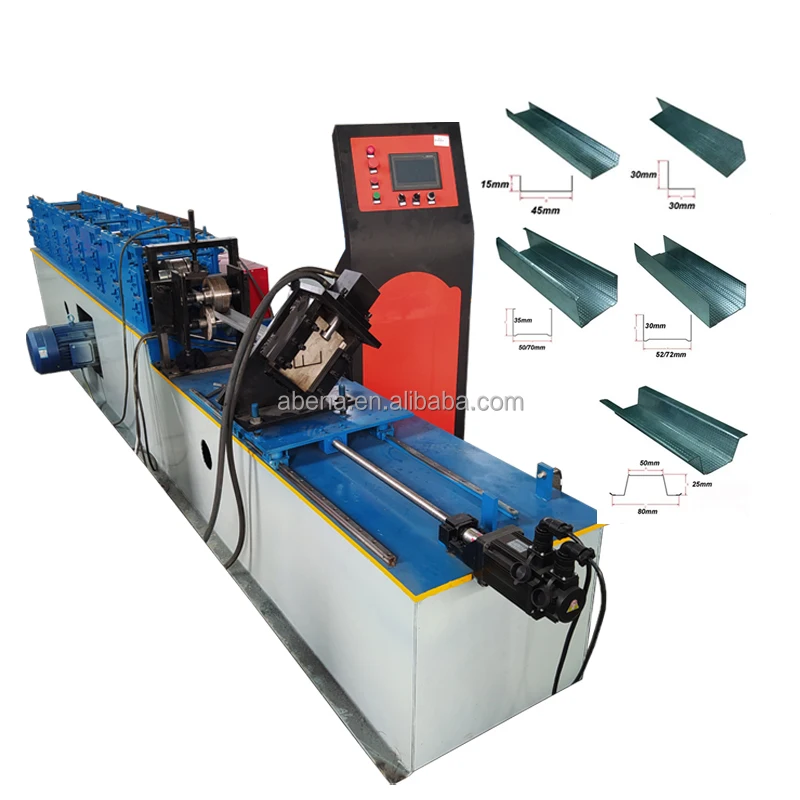

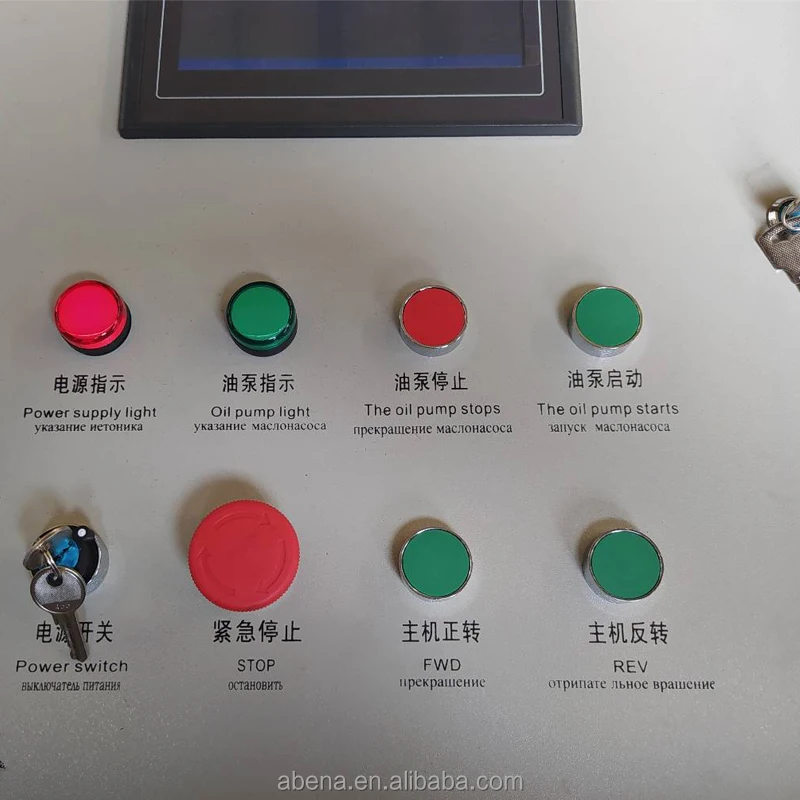

Control Part
U Channel Roll Forming Machine control parts have different types, standard type are button control, through press buttons to
realize different function.
PLC touch screen type can setting data on the screen, its price is little higher, but is more intelligent and automatic.
realize different function.
PLC touch screen type can setting data on the screen, its price is little higher, but is more intelligent and automatic.
Recommend Products
Company Profile
Abena is a professional cold roll forming machine manufacturer, We have been focusing on this field for 19 years. Our equipment includes Construction machine, garden machinery, hardware products, cold forming machine, environmental protection machine and other related construction equipment.Abena has employed a team of engineers for more than 19 years. At the same time, our machines use branded electrical components, raw materials from branded steel factories, strict process control, two-year warranty, installation and training services.Our customers are all over the world, such as 65 countries in Germany, the United States, Mexico, Chile, Bolivia, Italy, Australia, Kuwait, Saudi Arabia, South Korea, Japan, South Africa, Kenya and other different regions. We have extensive experience in the needs of different countries, such as profile, thickness range, use, installation, etc.Company tenet: technological innovation, customer center, win-win situation. Thank you for your trust and choice, we will provide you with the best service support and help you achieve greater success.Looking forward to more cooperation with new and old friends from all over the world.
Certifications
Packing
FAQ
Q:How to visit our company:
A: 1. Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
2. Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
Q: Can you customize the machine from your company? A: 1. Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
2. Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
A: Of course, we can manufacture the machine according to your customized size demand.
Q: How to play order?
A: Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit
Q:How to visit our company:
A: 1. Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
2. Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
A: Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit
Q:How to visit our company:
A: 1. Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
2. Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
Q: How is the quality? Is there any department related to quality control?
A: All raw materials we use are quality controlled. Workers will take care of every detail when handling production and packaging. The quality control department is responsible for the quality of each process.
Q: Is the packaging form?
A: Yes, of course! All our machines will be packaged in dust and water proof, and they can be reinforced after loading to fully meet export packaging standards.
Q: How about after-sales service?
A: TM is online 24 hours a day, and you can also contact them via email, Skype, MSN, whatsapp. and many more Two-year
warranty and parts replacement.
