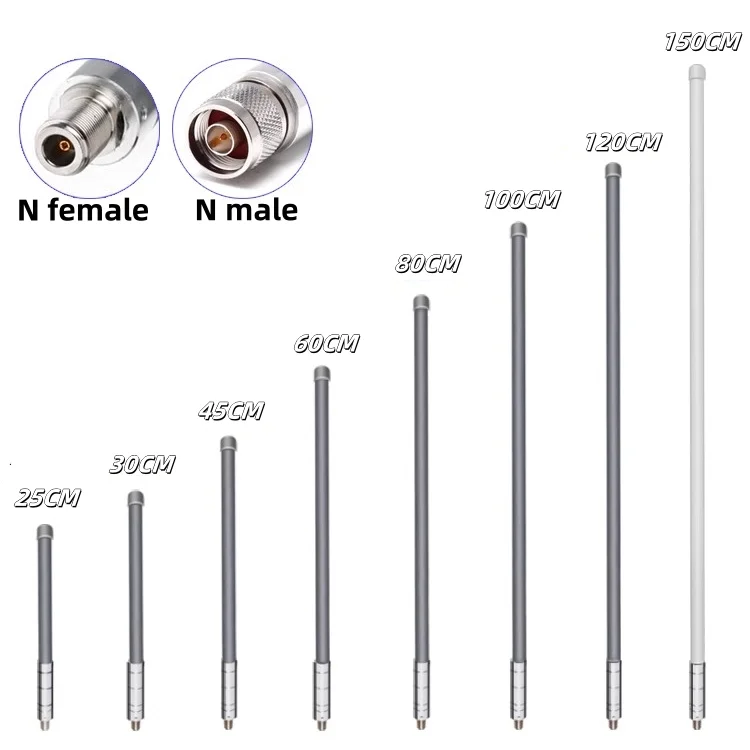

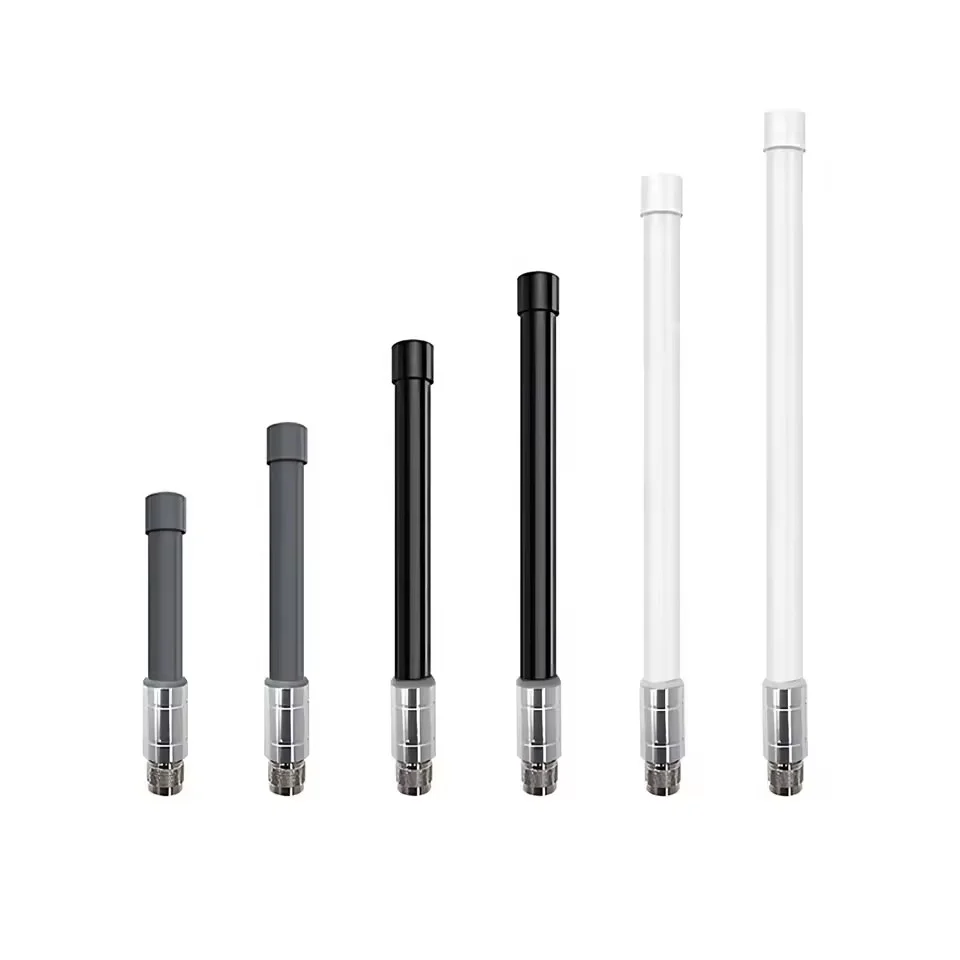

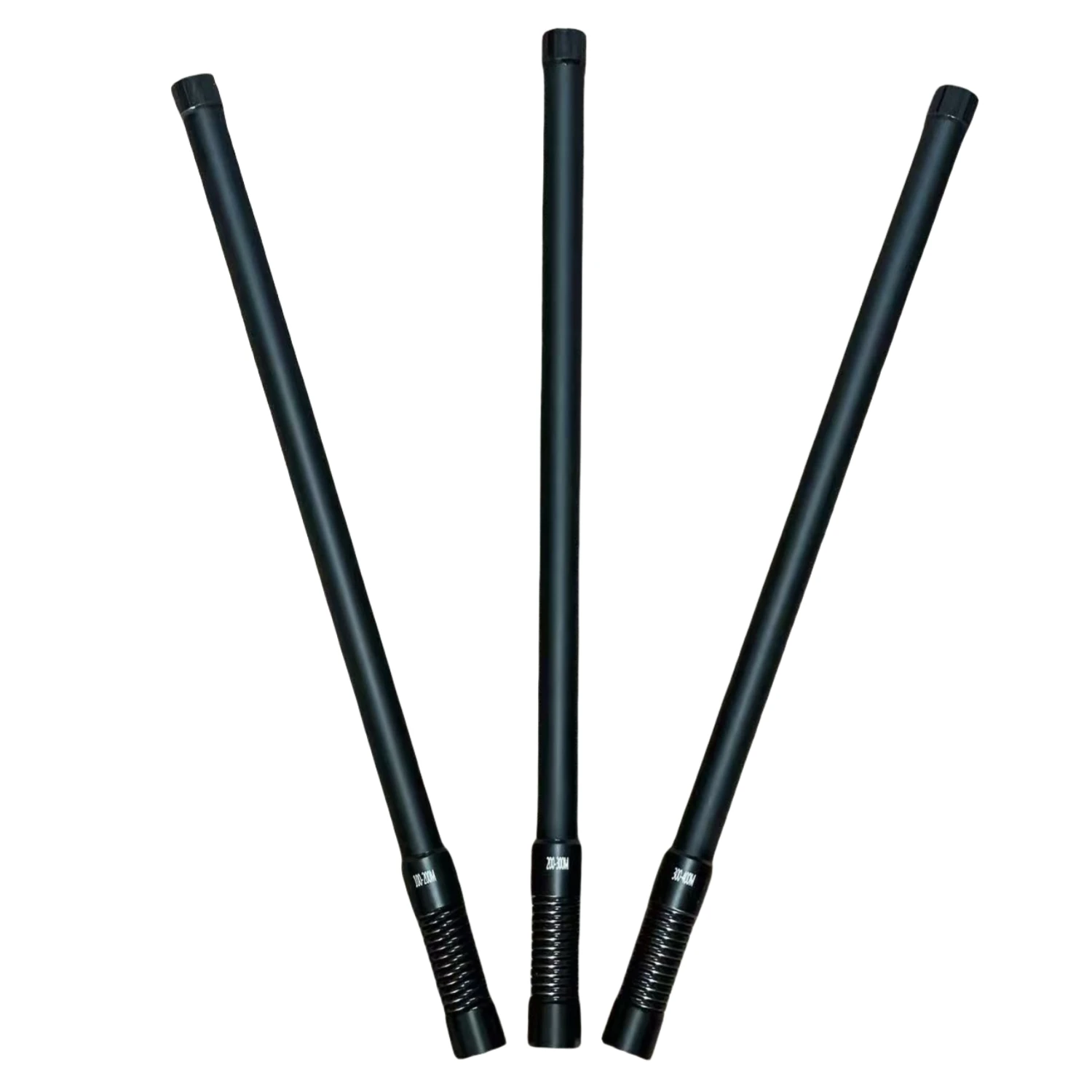

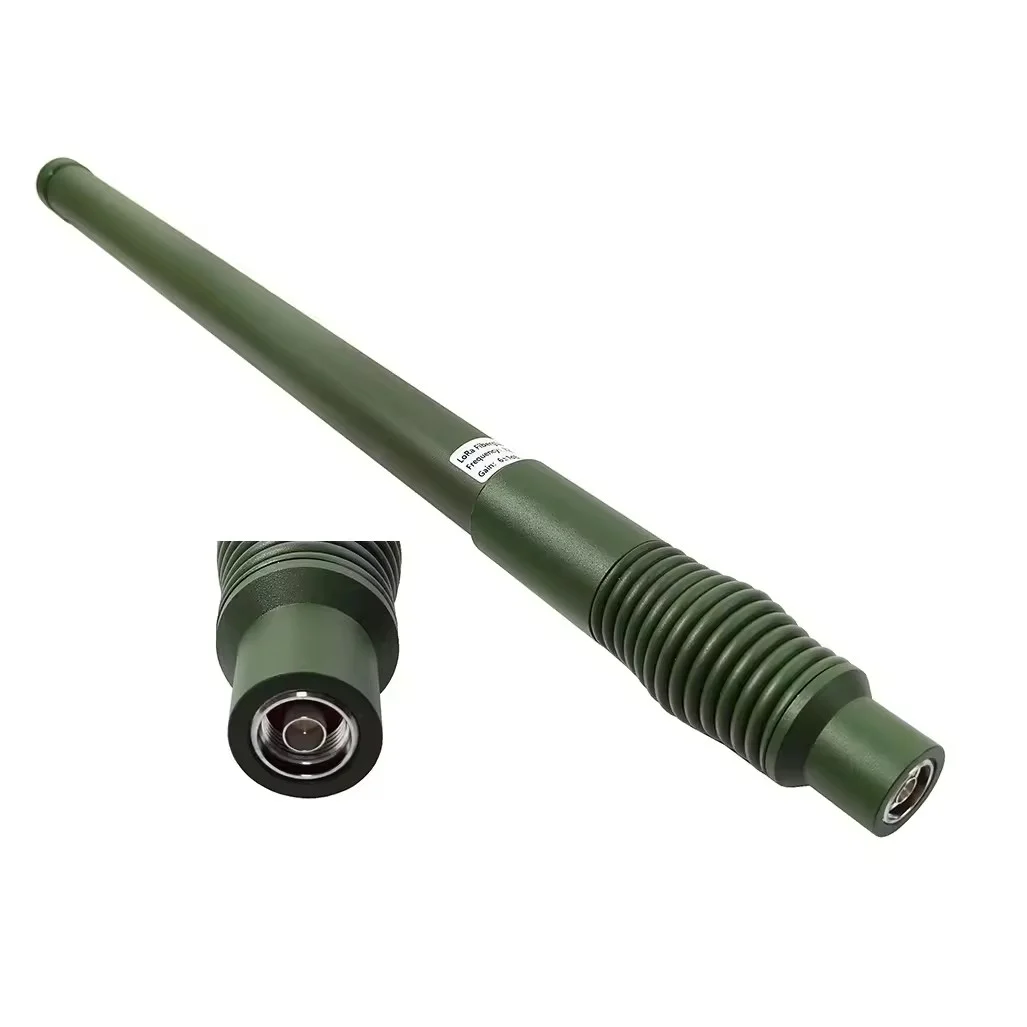

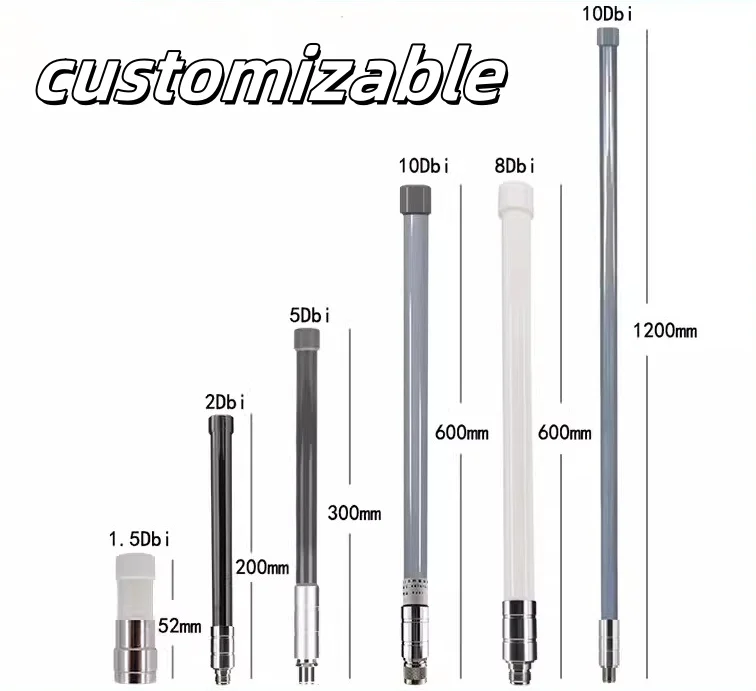

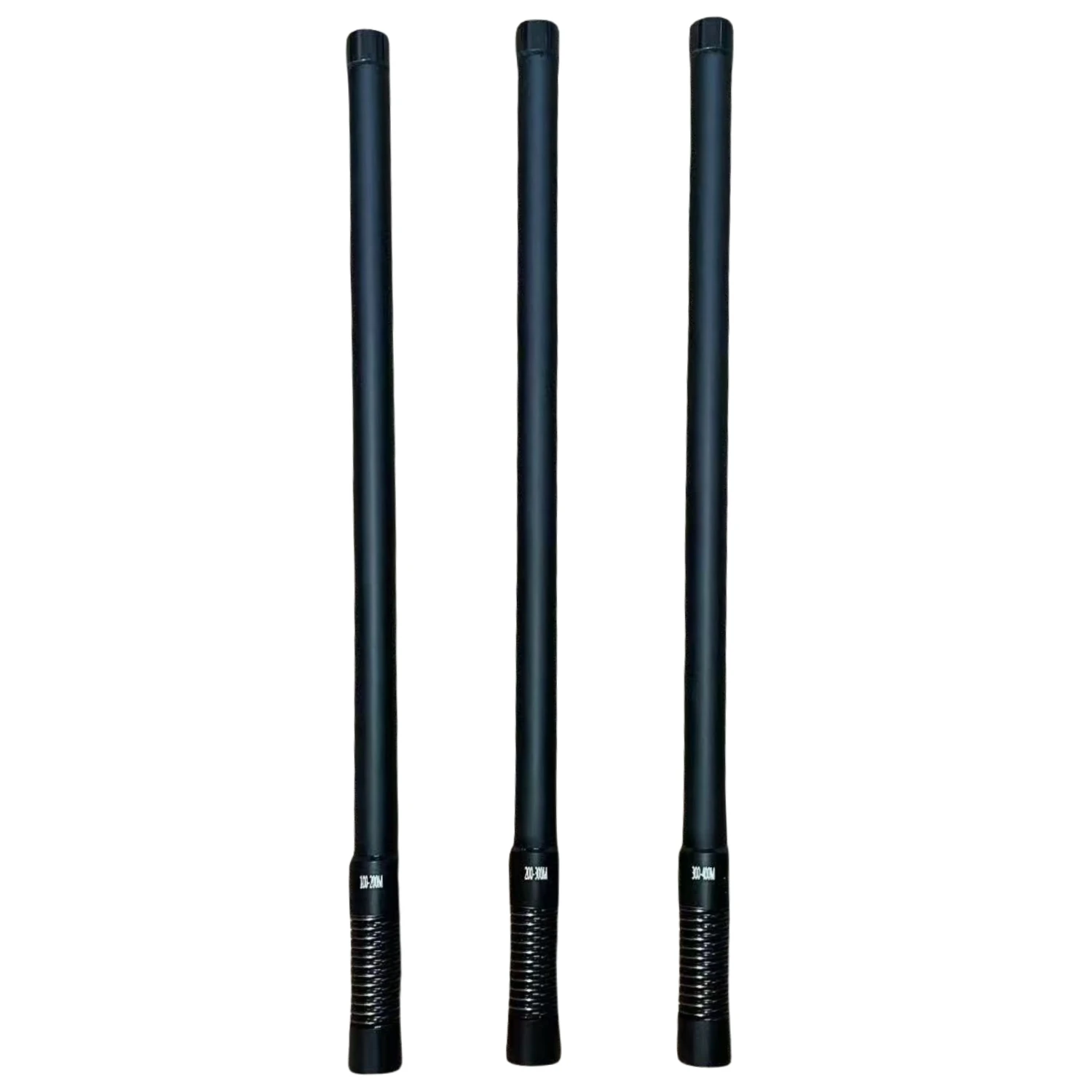

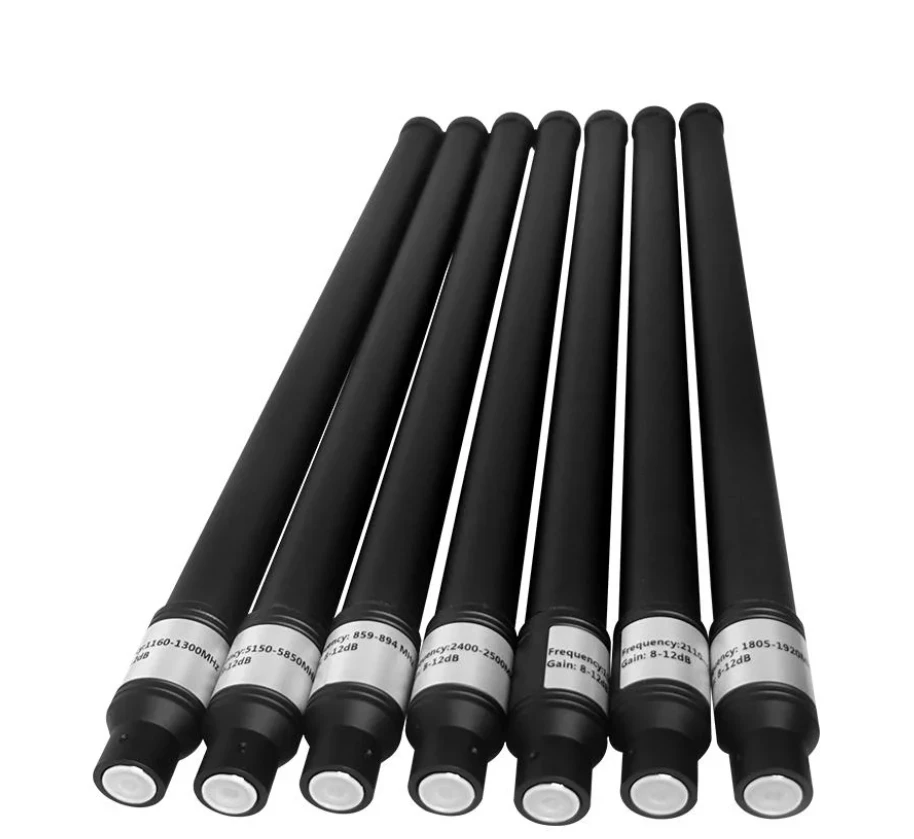

100M 200M 300M 400M 500M High gain Antenna for Drone Defense System FPV UAV drone detector antenna Fiberglass Rod Antenna Yagi
- Category: >>>
- Supplier: Shenzhen Beyontique Technology Co. Ltd.
Share on (1601282236699):
Product Overview
Description
Product Description

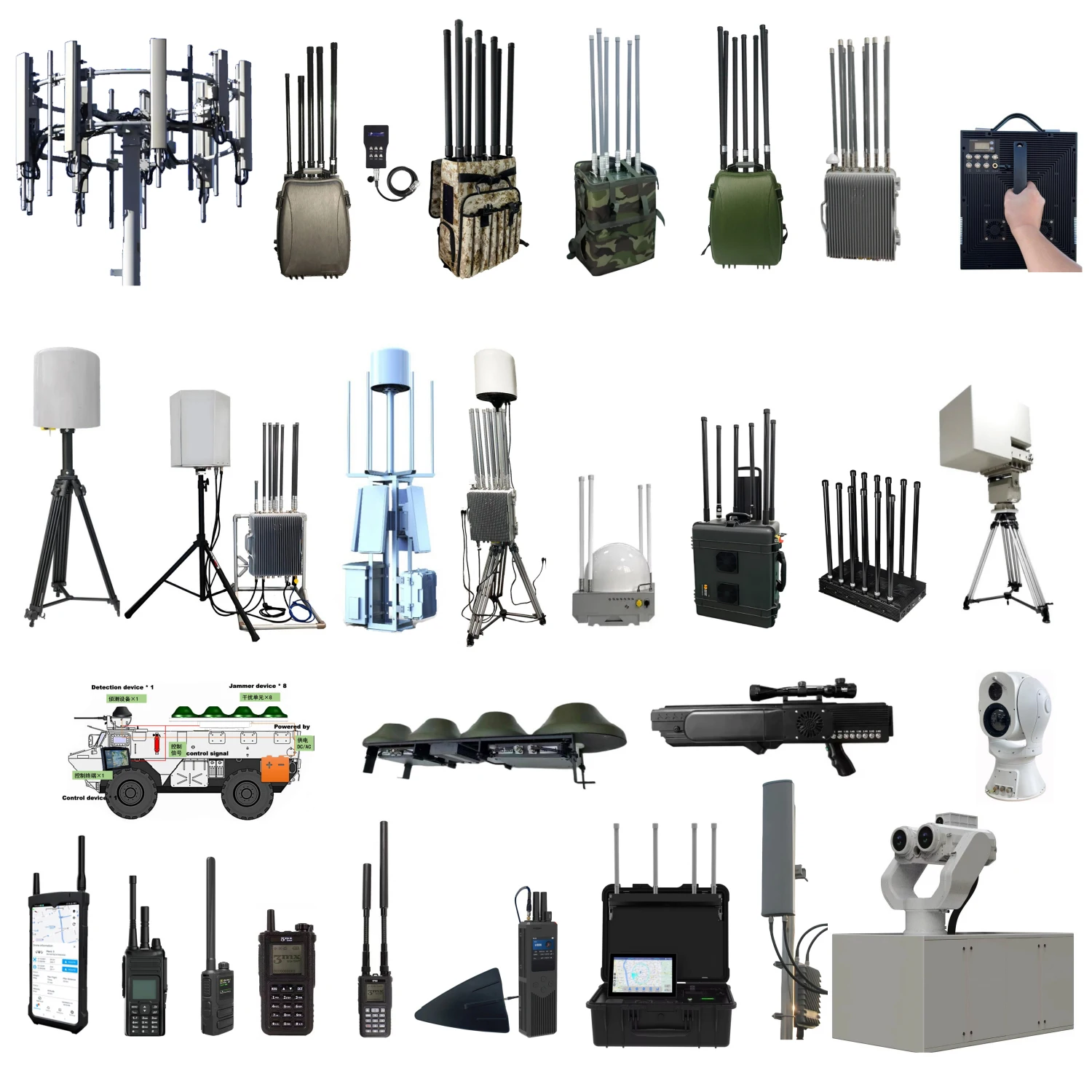

We are a manufacturer of drone defense equipment. We have various types of drone detection and countermeasure equipment. Please contact us for a product list.
| Item | Specifications | |

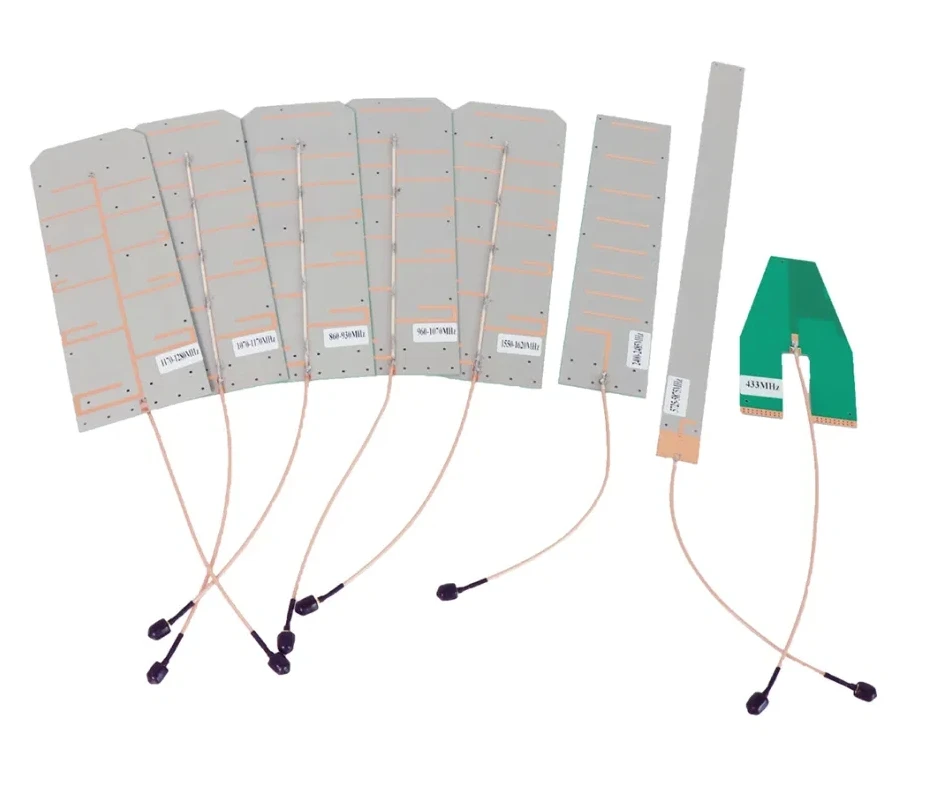

| PCB Antenna | Frequency Range (Support frequency band customization) | 425-455MHZ |
| 860-930MHZ | ||
| 1550-1620MHZ | ||
| 2400-2485MHZ | ||
| 5725-5875MHZ | ||
| 960-1070MHZ | ||
| 1070-1170MHZ | ||
| Gain | 2/6/10/8/14/8/8dBi | |
| V.S.W.R | ≤2.0 | |
| Inpendance | 50Ω | |
| Antenna size | Customize | |
| Polarization | Vertical | |
| Mechanical | Inner Material | PCB |
| Connector type | IPEX or customizable | |
| Mounting Method | IPEX Connector | |
| Environmental | Operating Temperature | -20ºC~+60ºC |
| Storage Temperature | -20ºC~+65ºC | |
| Environmentally Friendly | ROHS Compliant | |

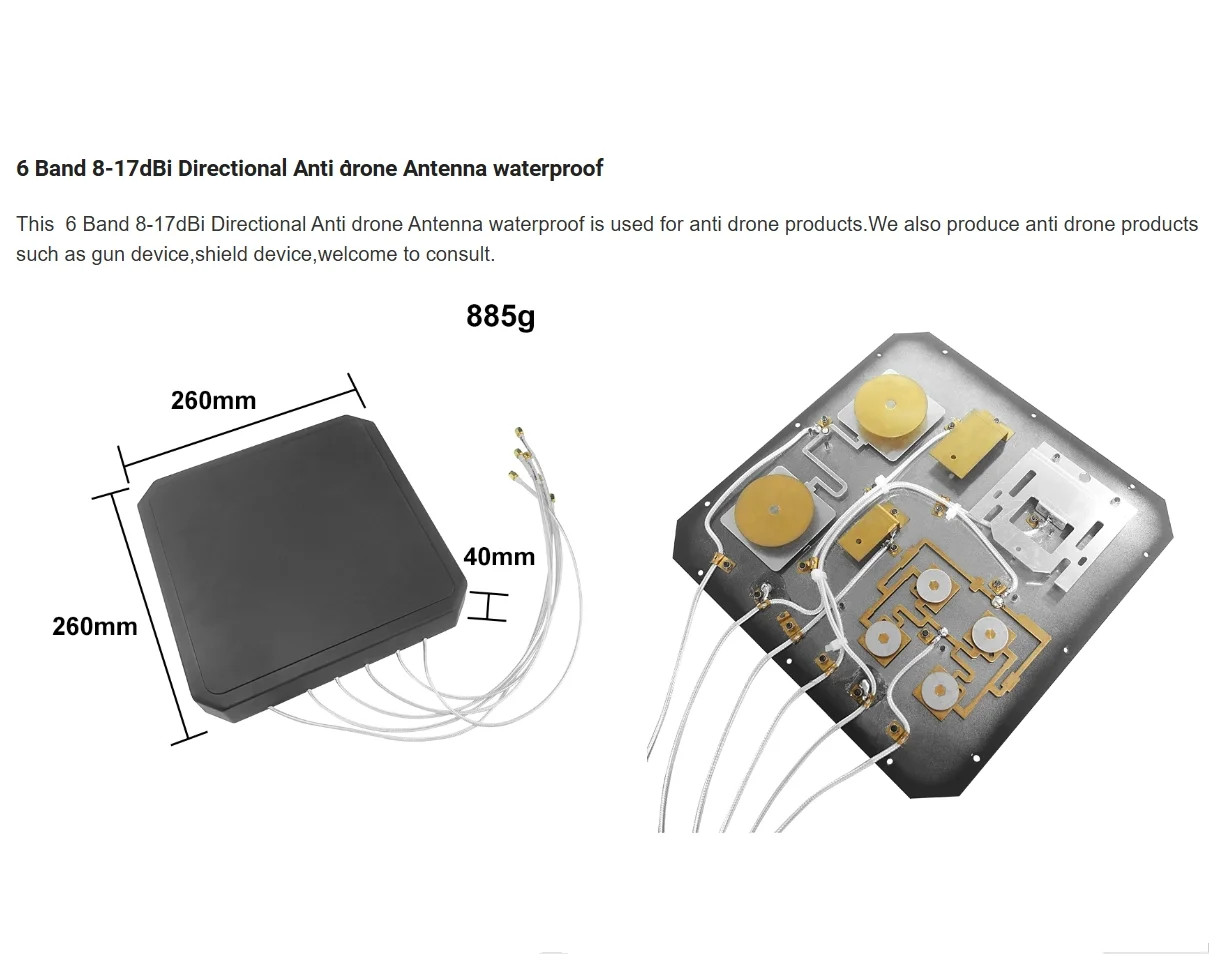

Customized Frequency& Gain (dBi) | 840-920MHz 8dbi |
1100-1300MHz 12dbi (410-485MHz 7dbi) | |
1560-1620MHz 12dbi | |
2400-2500MHz 14.5dbi | |
5150-5350MHz 17dbi | |
5700-5900MHz 17dbi | |
VSWR | ≤1.5 |
Maximum input power(W) | 50W (100W is customized not standard ) |
Input connector type | N*J or customized (Wire length customized too ) |
Lightning Protection | DC Ground |
Dimensionsmm(Height/Width/Depth) | 260*260*40mm |
Antenna weight(kg) | 885g |
Rated Wind Velocity(m/s) | 60m/s |
Operational Humidity(%) | 10- 95 |
Radome Color | Black color |
Radome material | ABS |
Operating temperature(ºC) | -30~70 º |
Installution Method | Handheld |
Mounting hardware(mm) | ¢30~¢75 |
Mechanical tilt(º) | 0-10º |
Our Services
Custom Development:
1. Support frequency band customization;
2. Support shape and material customization;
3. Support function customization;
4. Support antenna customization;
5. Support RF module customization
6. Support customer language customization;
Company Information
FAQ
1, Q: Who we are?
A: We are a Global leading high-tech enterprise engaged in R&D development and production of RF wireless communication systems for the broadcast, public surveillance and defense industries.We focus on the R&D and manufacturing of UAV countermeasures systems, technological innovation and systems for UAV detection, UAV countermeasures, UAV radar, low-altitude defense systems, UAV detection spectrum, navigation decoy systems and other products Developed to meet the needs of different protection levels in different scenarios.
2, Q: Could you support OEM&ODM ?
A: We are able to offer you the best solutions on market by providing you OEM/ODM service.
3, Q:How long is the delivery time ?.
A: Normally small quantity orders will be dispatched within 2-5 working days after receiving payment. For bulk order, we will ship out within 10-15 days.
4, Q:How do we make a business long term and good relationship with you?
A:We will protect our partner's profit by providing them with good quality products and competitive prices. We treat every customer as a friend and do business with everyone sincerely. no matter where they come from.
5, Q: How can you guarantee quality?

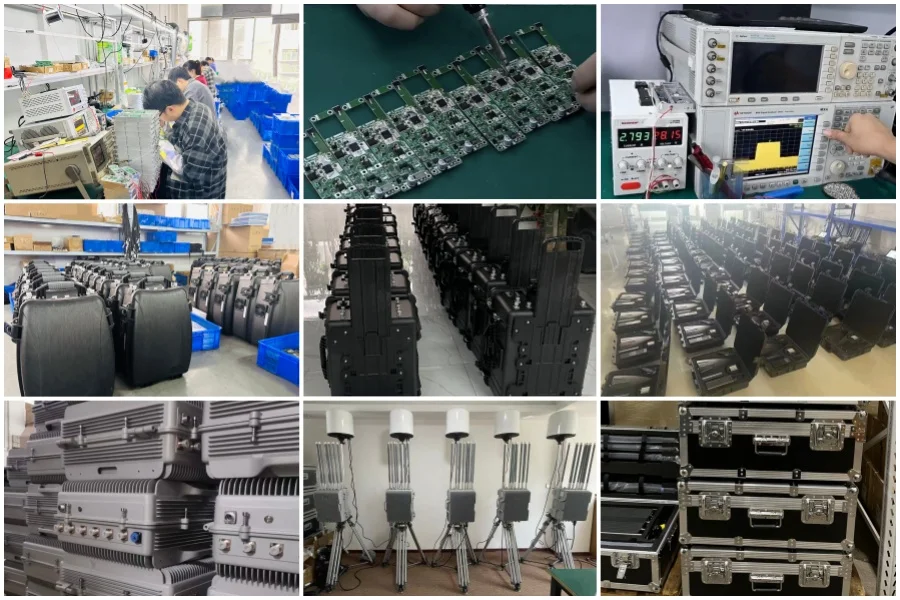

A: For all systems before shipment, will undergo a series of tests, including vibration testing, test for functional interface&RF indicators&sensitivity¶meter settings, high and low temperature testing, trial aging testing, test the interface and all wiring, field testing outsides etc.
6, Q:What's the means of transport?
A:Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
