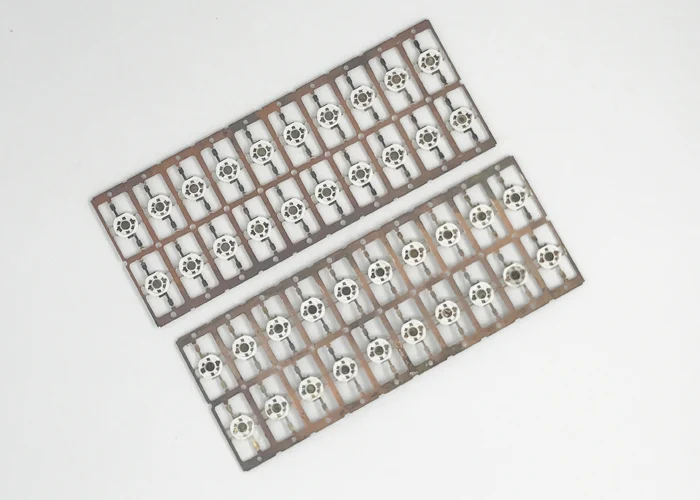

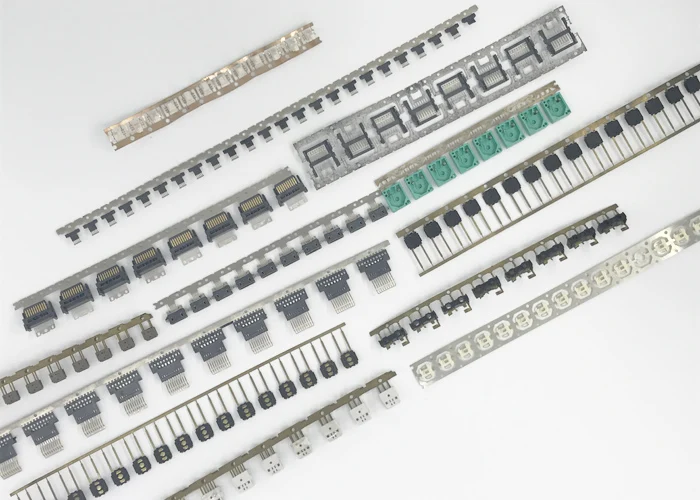

55T Vertical clamping hydraulic drive st connector Injection machinery plastic injection molding machine price
- Category: >>>
- Supplier: Dongguan Hommar Machinery Co. Ltd.
Share on (1601282539906):
Product Overview
Description
Products Description
55T Vertical clamping hydraulic drive st connector Injection machinery plastic injection molding machine price
Clamping Force | 55T |
Plastic Type | Thermoplastic |
Machine Type | Vertical Plastic Injection Molding Machine |
Screw Diameter | 28-32mm |
Screw Stroke | 140mm |
Machine Dimesions | 2240mm*1520mm*2455mm |
Injection Unit:①Use high-quality screw; ② Double cylinder injection system, reliable and stable.
Clamping Unit:①Use mechanical direct-locking structure, longer mold service life and lower energy consumption; ②High positioning accuracy.
Position transducer:①Gefra Electronic parts; ②High precise control.
Position transducer:①Gefra Electronic parts; ②High precise control.
Infrared sensor: double infrared sensor. It has a greater range of induction which can protect the safety of the works better.

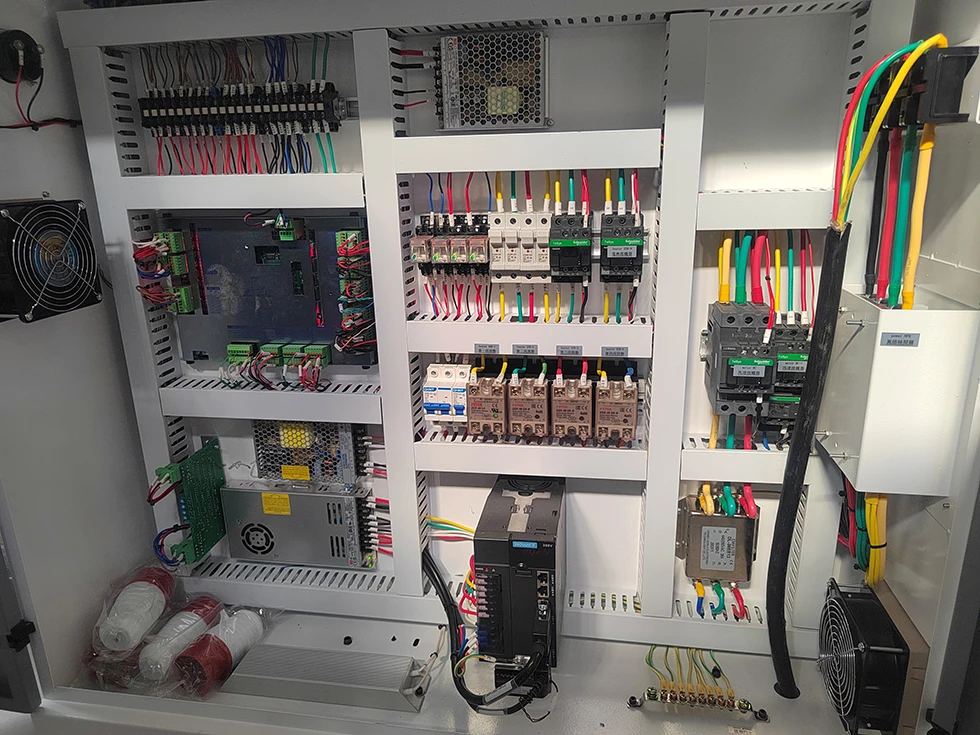

Electronic parts: Schneider, Fuji, Fotek Electronic part. High sensitive and more stable.
Framework: Reinforced and rugged steel construction.
Electronic parts: Schneider, Fuji, Fotek Electronic part. High sensitive and more stable.
Framework: Reinforced and rugged steel construction.
Specification
Mold | Unit | HM-V25 | HM-V35 | HM-V55R2 | HM-V85 | HM-V120 | |
注射装置 Injection Unit | Screw Diameter | mm | 26-28 | 28-32 | 28-32 | 30-36 | 40-45 |
Screw Stroke | mm | 119 | 110 | 140 | 140 | 200 | |
Theoretical Shot Volume | cm³ | 58-73 | 67-77 | 86-112 | 99-142 | 251-318 | |
Injection Molding Quality | g | 63-67 | 62-71 | 80-103 | 91-131 | 231-292 | |
oz | 2.0-2.4 | 2.2-2.5 | 2.8-3.6 | 3.2-6.4 | 8.23-10.3 | ||
Max.Injection Pressure | Mpa | 164-141 | 141-123 | 212-162 | 185-128 | 186-146 | |
kgf/cm² | 1677-1446 | 1446-1259 | 2169-1661 | 1890-1312 | 1890-1493 | ||
Injection Rate | cm³/s | 29-36 | 44-71 | 51-67 | 72-104 | 106-135 | |
Screw Speed | r.p.m | 0-175 | 0-240 | 0-190 | 0-230 | 0-210 | |
合模装置 Mold Clamping Unit | Clamping Force | KN(tf) | 245(25) | 343(35) | 539(55) | 833(85) | 1176(120) |
Clamping Stork | mm | 200 | 200 | 200 | 250 | 260 | |
Min.Mold Thickness | mm | 60(100） | 150(210) | 180(260) | 230(310) | 280(380) | |
Max.Open Distance | mm | 260(300） | 350(410) | 380(460） | 480(560) | 540(640) | |
Space between columns | mm | 370*200 | 370*210 | 445*350 | 500*340 | 640*380 | |
Max.Size of Mold | mm | 300*250 | 350*300 | 400*350 | 450*400 | 550*500 | |
Plate size | mm | 380*350 | 440*350 | 500*420 | 680*520 | 890*630 | |
Distance of Product Out of Mold | mm | 70 | 100 | 100 | 100 | 70 | |
Ejector Force | KN(tf) | 21.5(2.2) | 21.5(2.2) | 21.5(2.2) | 21.5(2.2) | 21.5(2.2) | |
QTY of Ejector | pcs | 1 | 3 | 3 | 1 | 3 | |
其他 General | System Pressure | Mpa (kgf/cm²) | 13.7(140) | 13.7(140) | 13.7(140) | 13.7(140) | 13.7(140) |
Motor Power | kw(HP) | 3.7(5) | 5.5(7.5) | 7.5(10) | 11(15) | 18.5(25) | |
Electric Power | kw | 2.8 | 3.6 | 5.5 | 6.4 | 10.7 | |
Temperature Stage | 2+1 | 3+1 | 3+1 | 3+1 | 3+1 | ||
Mechanine Dimesions | mm | 1560*1050*2490 | 1770*1100*2610 | 2010*1185*2385 | 1895*1330*2565 | 2540*1810*3340 | |
Machine Weight | tf | 1.1 | 1.5 | 2.3 | 2.9 | 6 |
Mold | Unit | HM-V160 | HM-V200 | HM-V250 | HM-V320 | HM-V400 | |
注射装置 Injection Unit | Screw Diameter | mm | 40-45 | 55-65 | 55-65 | 60-70 | 70-80 |
Screw Stroke | mm | 200 | 240 | 240 | 300 | 360 | |
Theoretical Shot Volume | cm³ | 251-318 | 570-796 | 570-796 | 848-1154 | 1385-1890 | |
Injection Molding Quality | g | 231-292 | 524-732 | 524-732 | 780-1062 | 1274-1664 | |
oz | 8.23-10.3 | 18.5-26 | 18.5-26 | 27.5-37.5 | 45-58.8 | ||
Max.Injection Pressure | Mpa | 186-146 | 203-145 | 203-145 | 185-136 | 168-128 | |
kgf/cm² | 1890-1493 | 2073-1484 | 2073-1484 | 1890-1388 | 1714-1312 | ||
Injection Rate | cm³/s | 106-135 | 147-206 | 147-206 | 226-306 | 307-402 | |
Screw Speed | r.p.m | 0-210 | 0-210 | 0-210 | 0-190 | 0-180 | |
合模装置 Mold Clamping Unit | Clamping Force | KN(tf) | 1176(120) | 1960(200) | 2450(250) | 3136(320) | 3920(400) |
Clamping Stork | mm | 300 | 350 | 350 | 400 | 400 | |
Min.Mold Thickness | mm | 300(400) | 350(450) | 400(500) | 500(600) | 600(700) | |
Max.Open Distance | mm | 600(700) | 700(800) | 750(850) | 900(1000) | 1000(1100) | |
Space between columns | mm | 680*420 | 780*450 | 870*480 | 970*510 | 1120*550 | |
Max.Size of Mold | mm | 650*600 | 750*700 | 850*700 | 950*800 | 1100*1000 | |
Plate size | mm | 960*730 | 1120*790 | 1260*910 | 1380*970 | 1580*1040 | |
Distance of Product Out of Mold | mm | 100 | 150 | 180 | 180 | 180 | |
Ejector Force | KN(tf) | 45(4.6) | 51.9(5.3) | 51.9(5.3) | 51.9(5.3) | 51.9(5.3) | |
QTY of Ejector | pcs | 1 | 5 | 5 | 5 | 5 | |
其他 General | System Pressure | Mpa (kgf/cm²) | 13.7(140) | 13.7(140) | 13.7(140) | 13.7(140) | 13.7(140) |
Motor Power | kw(HP) | 18.5(25) | 22(30) | 22(30) | 30(40） | 37(50) | |
Electric Power | kw | 13.8 | 20.2 | 20.2 | 24 | 26 | |
Temperature Stage | 4+1 | 4+1 | 4+1 | 4+1 | 4+1 | ||
Mechanine Dimesions | mm | 2230*1750*3430 | 3060*2810*4440 | 3340*2460*4560 | 3660*2780*4750 | 2790*2490*4850 | |
Machine Weight | tf | 6.2 | 9.1 | 13.2 | 16.2 | 18.1 |

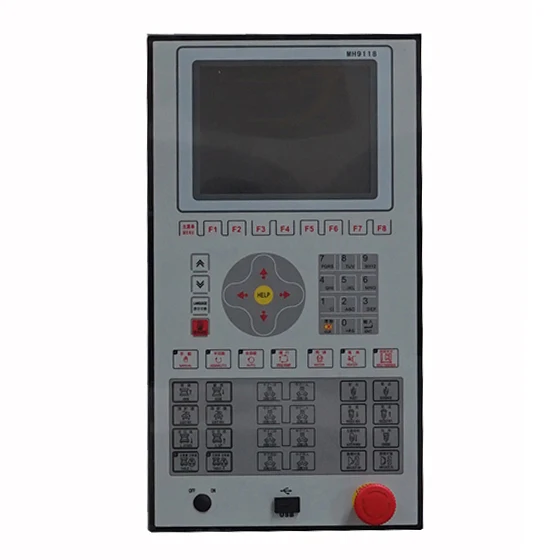

PLC | Electronic Parts | ||||||
Brand: MIRLE | Brand:Fuji/ Schineider/Fotec | ||||||
Original: China | Original: Japan/France/Taiwan,China | ||||||
Features: High Precise Control,High Sensitive Response ,TFT Color Display,Language:Portugal,English,Chinese | Features: Stable high sensitive | ||||||

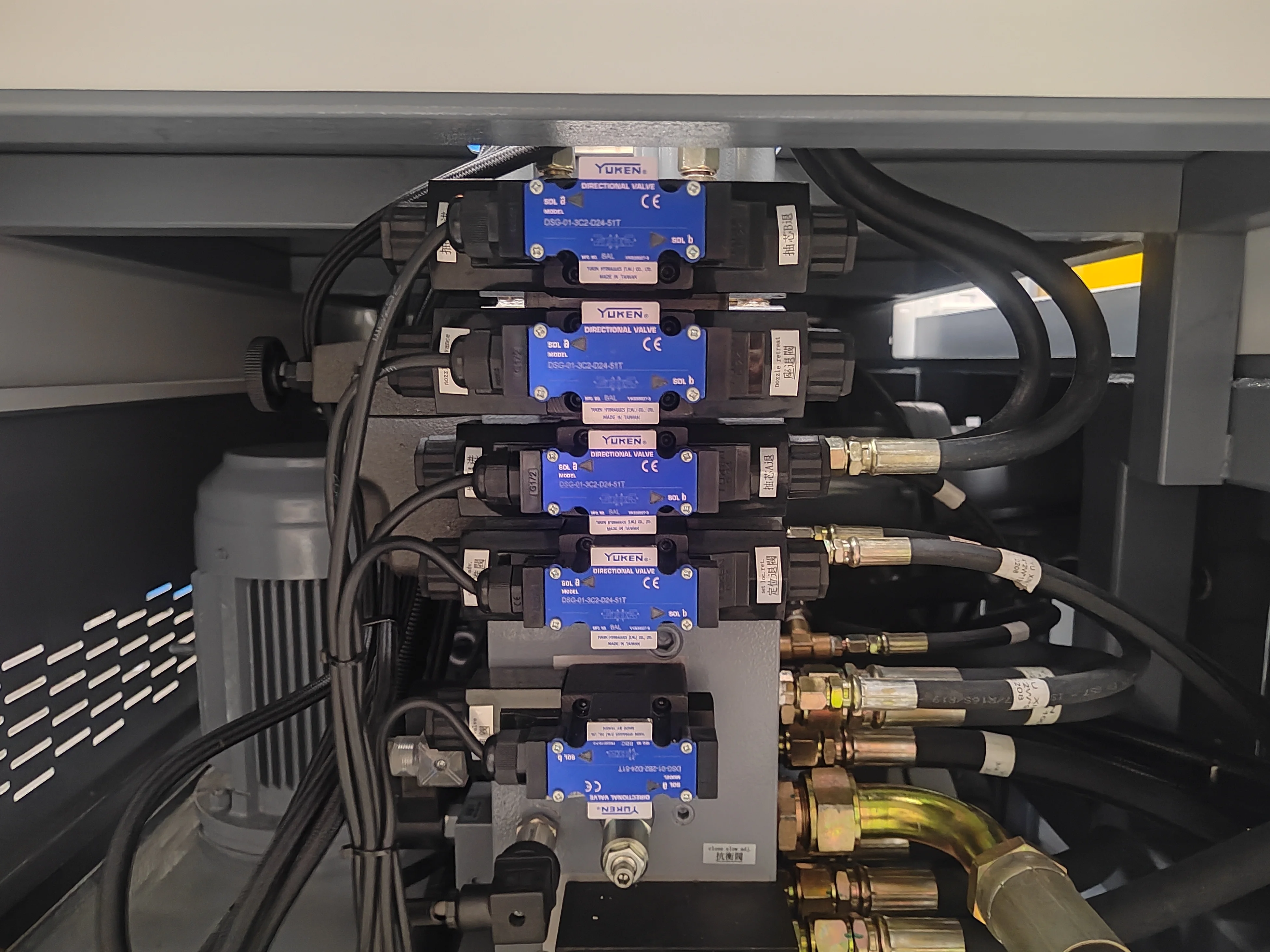

Hydraulic Drive | Directional Valve | ||||||
Brand: Yuken | Brand: Turken | ||||||
Original: Japan | Original: Japan | ||||||
Features: Long span life | Features: High sensitive response | ||||||
Performance&Features
GENERAL PERFORMANCE

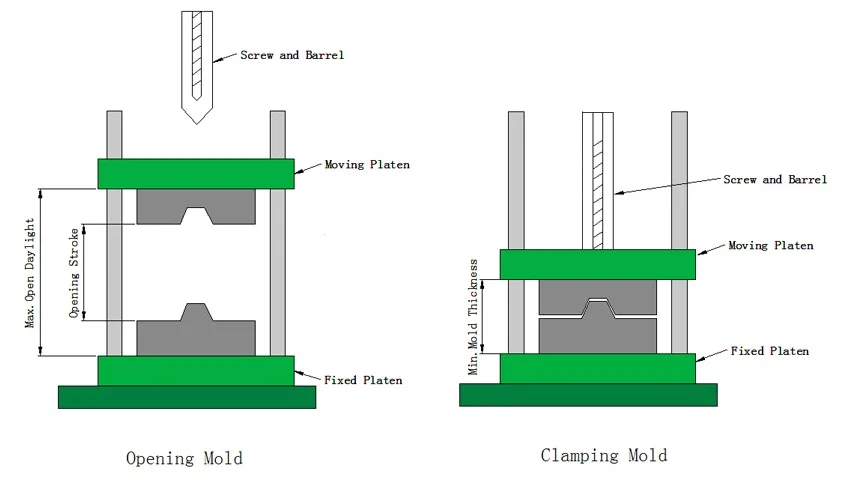

1.Fixed lower platen and movable upper platen. Suitable for insert molding.
2.Nitrided steel screw and barrel,high-torque hydraulic motor-driven,multi-stage injection pressure,excellent plasticizing performance.3.Vertical hydraulic clamping system with two cylinders,high-speed and low-pressure mold closing,multi-stage pressure control, longer mold life and more safety.
4.Protective devices of electrical components to avoid malfunction and maintain personal safety.
5.Movable injection carriage for easy replacement of material and mold.
STANDARD FEATURES
1.Screw cold start protection.
2.Emergency stop safety switch.
3.PID proportional temperature control.
4.Automatic fault display and shutdown.
5.Double-way safety starting switch.
6.High-speed low-pressure safety clamping device.
6.High-speed low-pressure safety clamping device.

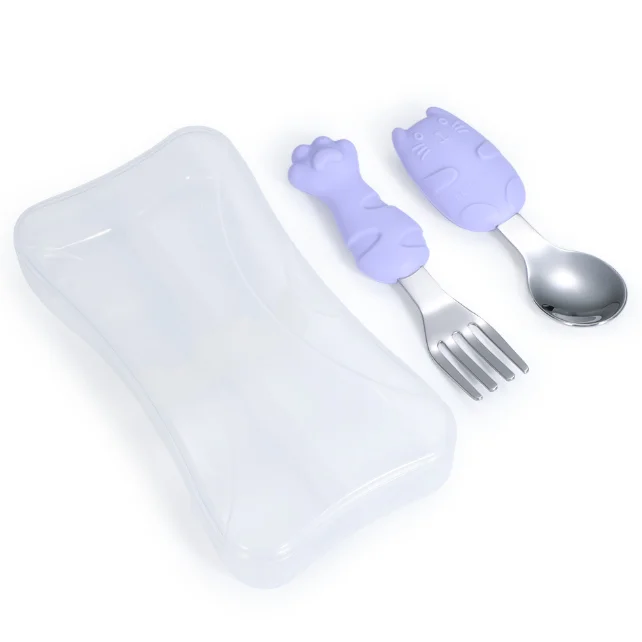

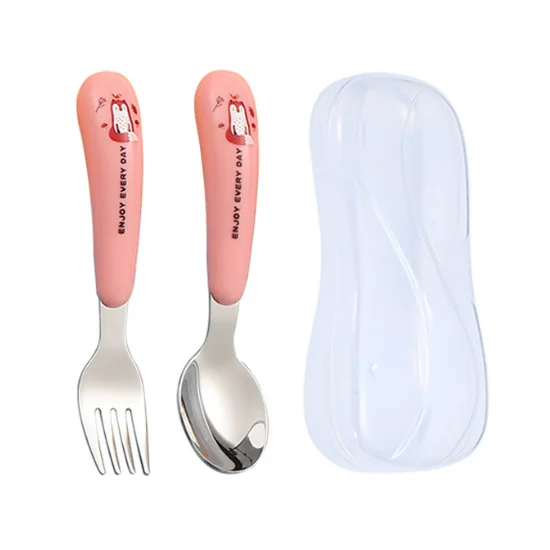

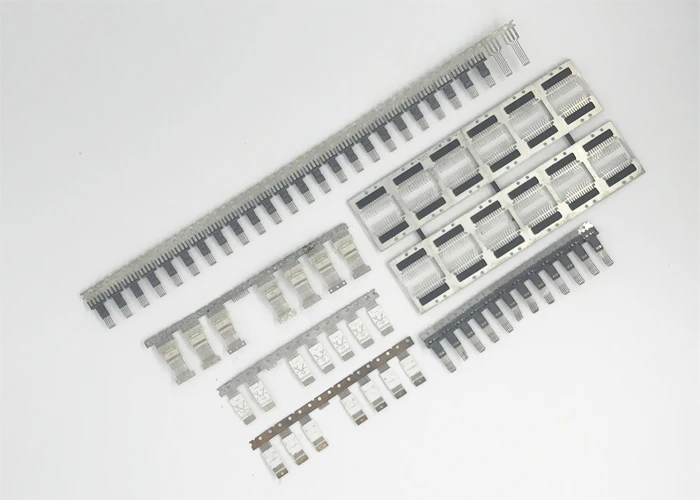

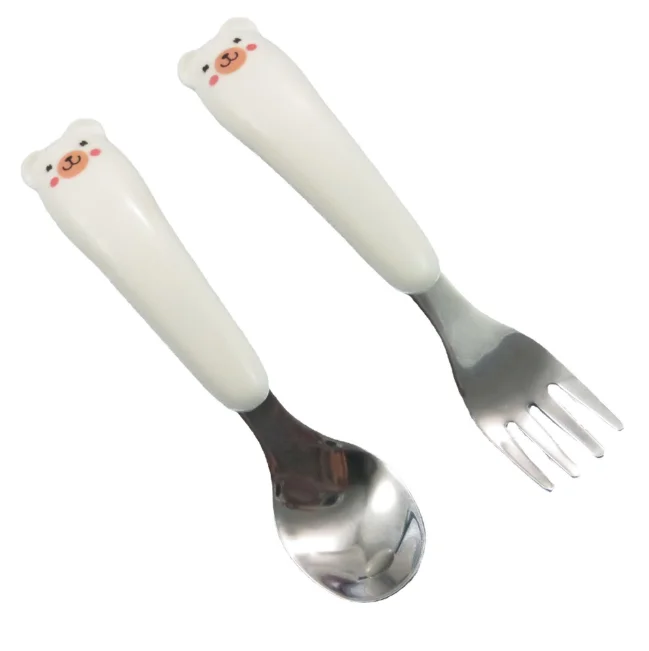

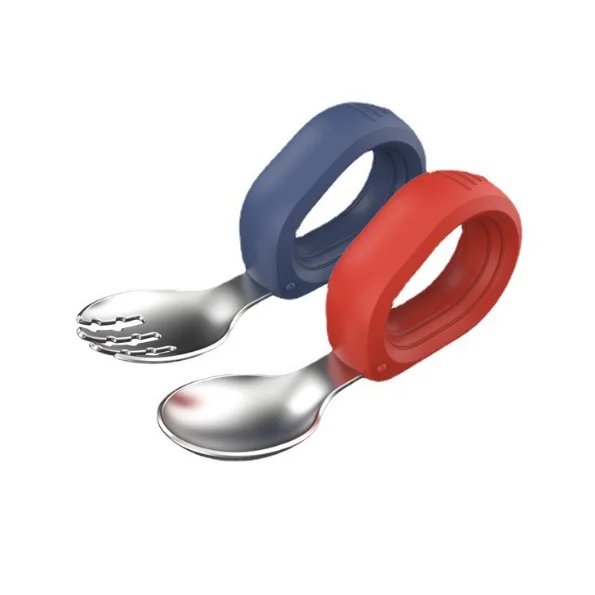

Applications
Recommend Products
Certifications

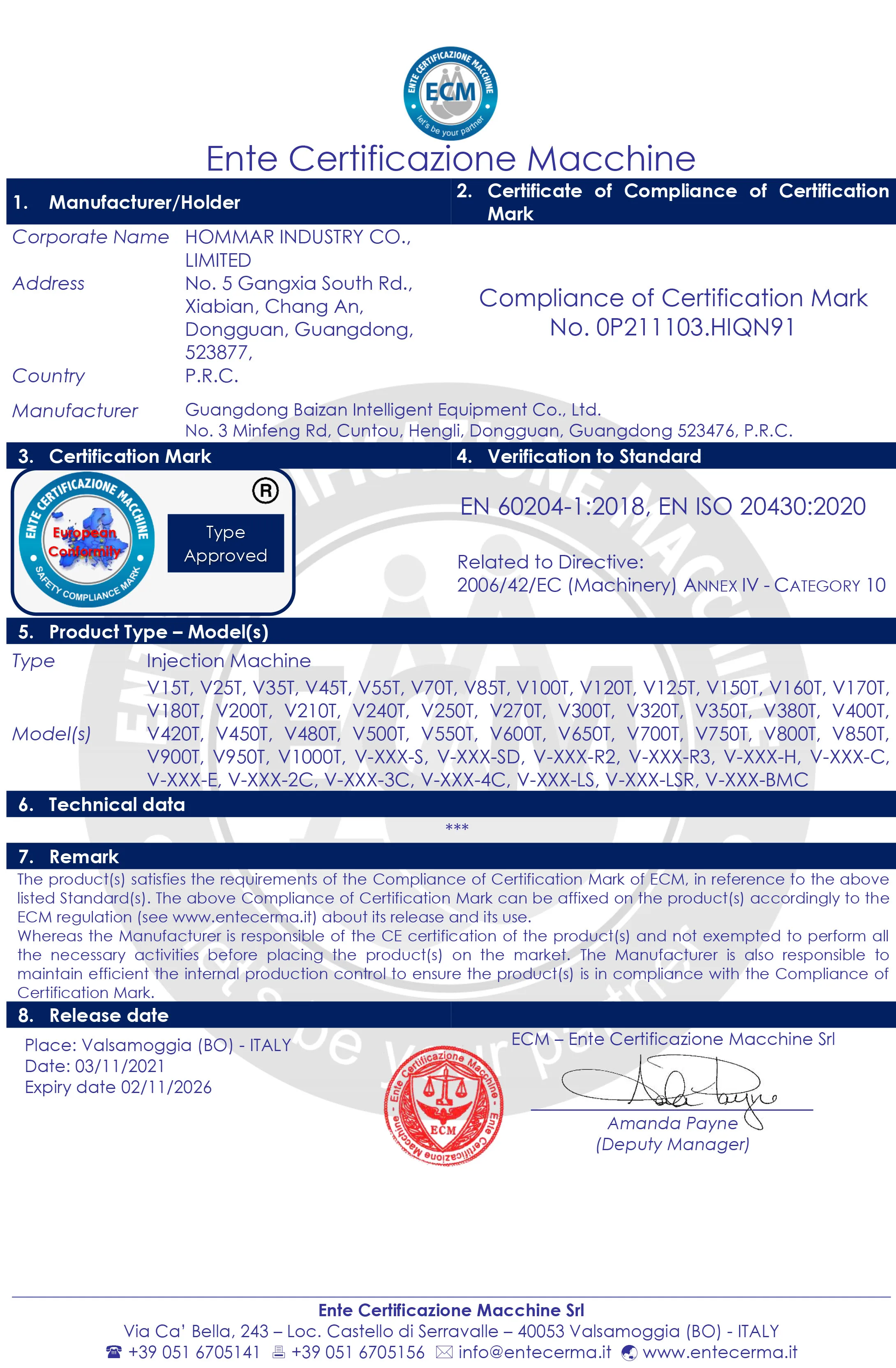

Ente Certificazione Macchine
Hommar is a professional manufacturer of vertical injection molding
machine since 1998.
machine since 1998.
Always focus on upper-class quality machines .
Developing at least 15 new machines every year.
CE certification
Company Profile
FAQ
1. What's your special service?
We provide one-stop service, from injection molding machines to auxiliary machines to molds, things of which allow you to purchase in China.
2.Can the machine customized for my products?
We provide one-stop service, from injection molding machines to auxiliary machines to molds, things of which allow you to purchase in China.
2.Can the machine customized for my products?
We have special machines for some special products.We also can customized the screw and barrel, base height and structure, hydraulic system, electric design , machine colors and others.
3.What is the delivery time of the machine?
3.What is the delivery time of the machine?
Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be with in 25-30 days.
4. What is the warranty of the machine ?
4. What is the warranty of the machine ?
The whole machine’s warranty period is 12 months.
5.Mold trial will be available in Our factory ?
5.Mold trial will be available in Our factory ?
Yes, Customer can send the mold to our factory and test.
6. Can I trust you?
We're Alibaba verified supplier & Alibaba Trade Assurance Supplier. We manufactured injection machine for about 20 years and have many clients all of the world.
6. Can I trust you?
We're Alibaba verified supplier & Alibaba Trade Assurance Supplier. We manufactured injection machine for about 20 years and have many clients all of the world.
