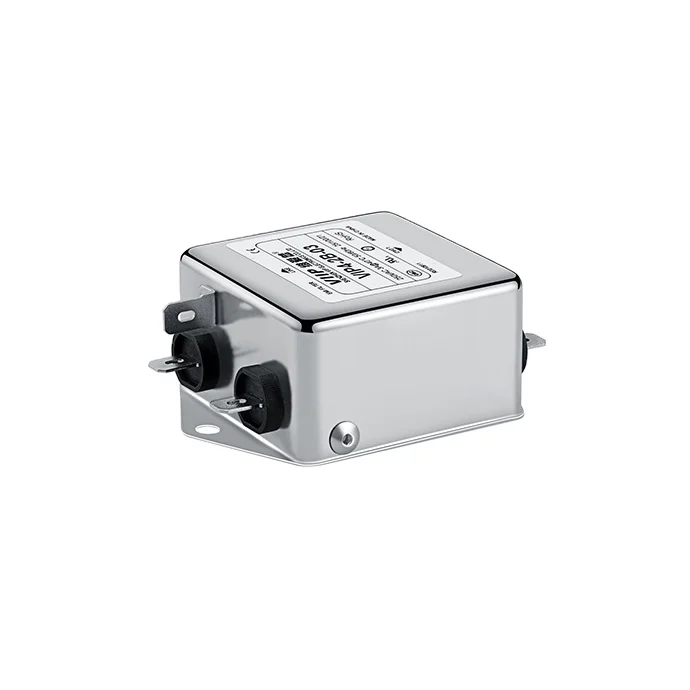

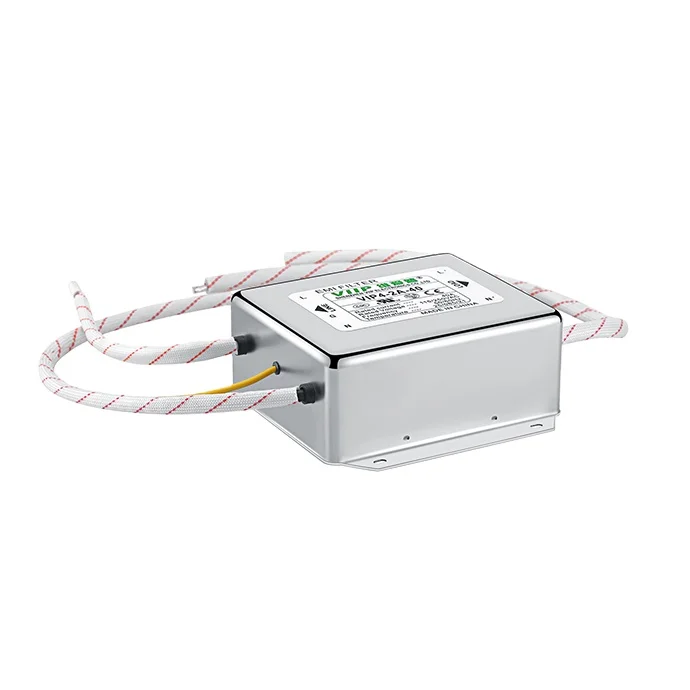

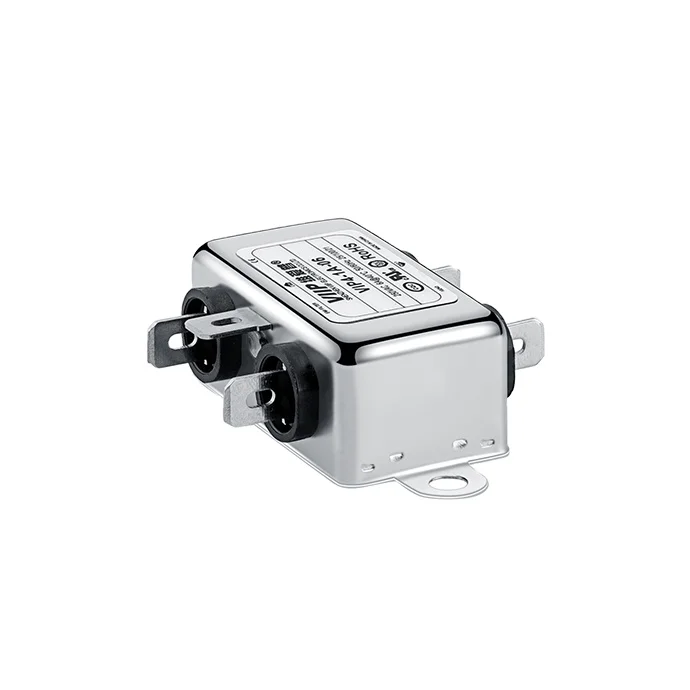

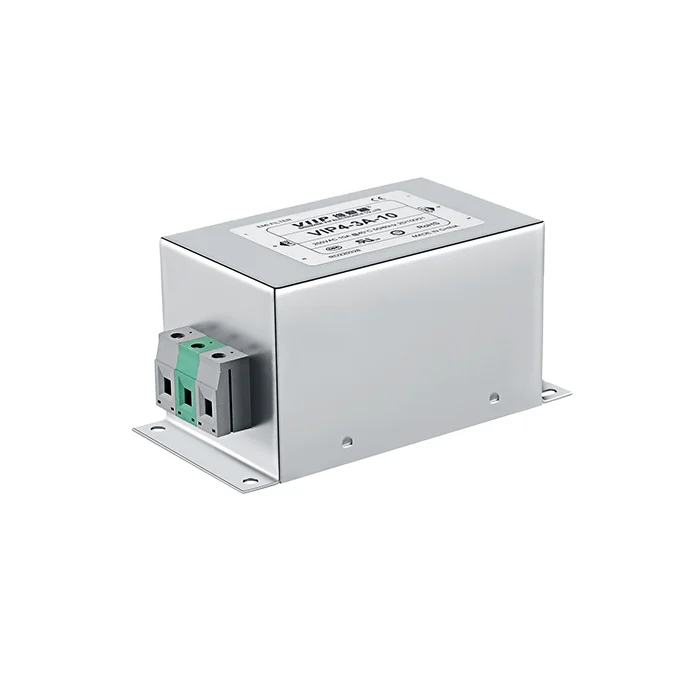

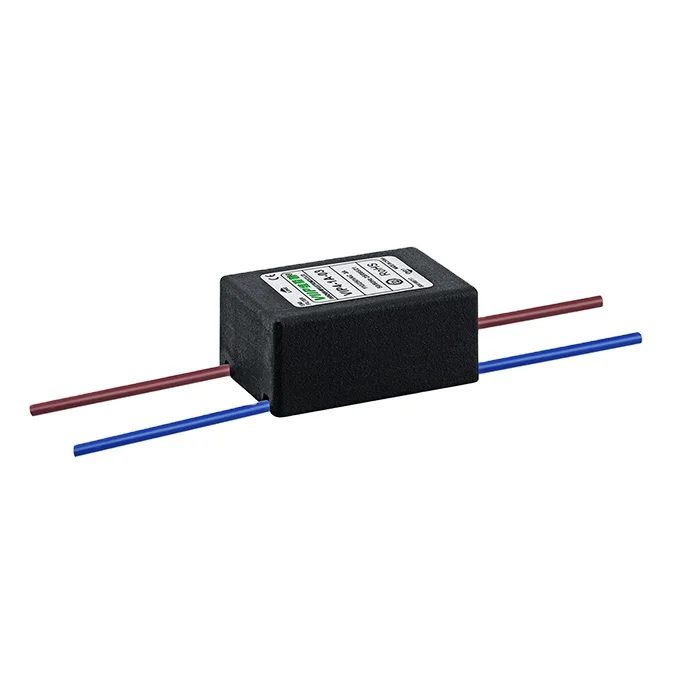

Enhance Electrical Performance of Charging Posts with AC Single Phase 250VAC EMI Power Filter
- Category: >>>
- Supplier: Shenzhen VIIP Electronics Co. Ltd.
Share on (1601282866414):
Product Overview
Description
Sample orders | Support |
Certification | CQC、UL、VDE、CE |
Current | 0.1A-3000A For your choice |
OEM | Support |
Single phase emi filters .
features for single phase emi filters
1. Rated current: 0.5A-300A
2.Various terminals: wire, solder lug,stud, terminal block ,etc
3.Optional medical versions(H type)
4.Custom specific versions are available on request
General purpose AC filters with good attenuation frequency range 150KHz-30MHzCompact structure, high performance-cost ratio, easy to install,safe and reliable
VIP4 -1A and VIP4 -1B series are one - stage commonmode filters with almost the same filtering fleet, only slight differen
different currentHigh voltage versions above 380VAC are also available
different currentHigh voltage versions above 380VAC are also available
Part No. | Rated Current [A] | 250VAC/50Hz @ 20C Leakage Current [mA] | Physical Dimensions | Electrical Schematics | Terminals | Weight [g] | ||||
screw | terminal block | wires | ||||||||
VIP4-1A-01 | 1A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 | ||
VIP4-1A-03 | 3A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 | ||
VIP4-1A-06 | 6A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 | ||
VIP4-1A-10 | 10A | <0.5mA | Fig 2 | Fig 1 | - - - | 0 | - - - | 75 | ||
VIP4-1B-06 | 6A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 140 | ||
VIP4-1B-10 | 10A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 170 | ||
VIP4-1B-20 | 20A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 170 | ||
VIP4-1B-30 | 30A | <1.0mA | Fig 5 | Fig 2 | M6 | - - - | - - - | 320 | ||
VIP4-1B-50 | 50A | <2.0mA | Fig 5 | Fig 2 | M6 | - - - | - - - | 600 | ||
VIP4-1B-100 | 100A | <2.0mA | Fig 5 | Fig 2 | M8 | - - - | - - - | 1380 | ||
VIP4-1B-150 | 150A | <2.0mA | Fig 5 | Fig 2 | M10 | - - - | - - - | 1900 | ||
VIP4-1B-200 | 200A | <2.0mA | Fig 5 | Fig 2 | M10 | - - - | - - - | 1900 | ||

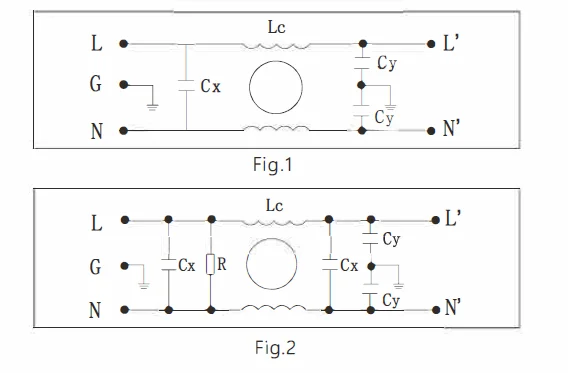

Electrical schematic:

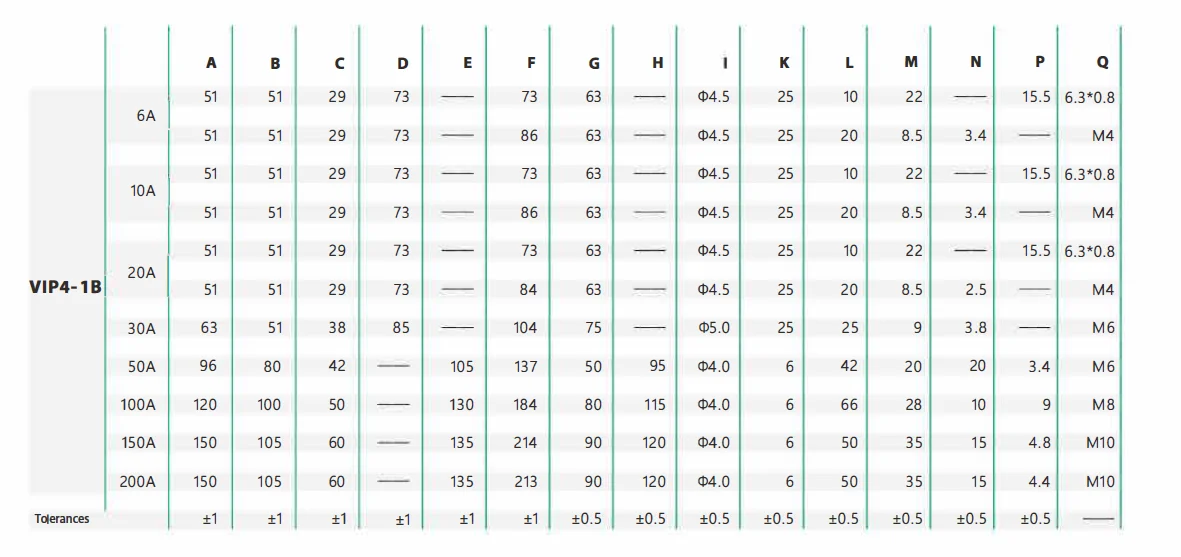

Mechanical Dimension(Unit: mm)
Mechanical Dimension(Unit: mm)
Features
√Designed for IEC standard connectors, easy installation, high cost performance
√Can be used in IT, communication equipment, instruments, household appliances, medical equipment, UPS, industrial air conditioning, electronic and electrical equipment, new energy equipment and military electronic equipment
√Customized and sample orders are available
√Designed for IEC standard connectors, easy installation, high cost performance
√Can be used in IT, communication equipment, instruments, household appliances, medical equipment, UPS, industrial air conditioning, electronic and electrical equipment, new energy equipment and military electronic equipment
√Customized and sample orders are available
Product Description
Company Profile
Shenzhen VIIP Electronics Co., Ltd. is a professional electromagnetic compatible service provider, mainly focus on EMC
anti-interference components R & D, production and sales. Belonging to the state-level high-tech enterprises. The main products are: EMI FILTER, EMI FERRITE CORE, the amorphous magnetic inductance series and EMC shielding material. Our products are widely used in the sizes of household appliances, IT, AV products, indoor and outdoor display products, a variety of new energy power,communications,power supply, solar photovoltaic power, industrial and medical equipment, communications and communications products, digital industrial Products, precision instruments, electric tools, fitness equipment, elevator equipment, machinery and equipment, 3D printing equipment, all kinds of laser equipment, artificial intelligence products and intelligent furniture products, military and aviation products. At the same time, in order to more effective service customers, we set up a professional EMC rectification service department, to provide customers with effective EMC rectification program.
anti-interference components R & D, production and sales. Belonging to the state-level high-tech enterprises. The main products are: EMI FILTER, EMI FERRITE CORE, the amorphous magnetic inductance series and EMC shielding material. Our products are widely used in the sizes of household appliances, IT, AV products, indoor and outdoor display products, a variety of new energy power,communications,power supply, solar photovoltaic power, industrial and medical equipment, communications and communications products, digital industrial Products, precision instruments, electric tools, fitness equipment, elevator equipment, machinery and equipment, 3D printing equipment, all kinds of laser equipment, artificial intelligence products and intelligent furniture products, military and aviation products. At the same time, in order to more effective service customers, we set up a professional EMC rectification service department, to provide customers with effective EMC rectification program.
Our company anti-interference magnetic core production, the international advanced automatic magnetic material production testing line. EMI FERRITE CORE products a total of more than 300 kinds of specifications models to meet the needs of different products. All products are in line with ROHS,REACH environmental requirements. Most of the products are exported to Europe, America, Japan and South Korea, Southeast Asia and other countries and regions.
Our Advantages
(1) Sales Network
Products are exported to Europe, the United States, South Korea, Southeast Asia and other countries and regions.
(2) Hardware Equipmen
The company has fully automatic magnetic material detection equipment and production lines, and has an anti-interference magnetic core production base.
(3) Integrated Technical Service
Our company is an electromagnetic compatibility company integrating R&D, production and sales of anti-interference (EMC) electronic components and EMC testing services.
(4) Excellent Corporate Culture
The company organizes and implements quality management in strict accordance with standards, follows eight principles, and continuously improves work, with all employees as the first task to meet customer requirements.
(1) Sales Network
Products are exported to Europe, the United States, South Korea, Southeast Asia and other countries and regions.
(2) Hardware Equipmen
The company has fully automatic magnetic material detection equipment and production lines, and has an anti-interference magnetic core production base.
(3) Integrated Technical Service
Our company is an electromagnetic compatibility company integrating R&D, production and sales of anti-interference (EMC) electronic components and EMC testing services.
(4) Excellent Corporate Culture
The company organizes and implements quality management in strict accordance with standards, follows eight principles, and continuously improves work, with all employees as the first task to meet customer requirements.
Exhibition
Certifications
Packing & Delivery
FAQ
Q: Can you provide some samples before ordering formally?
A:Yes, samples can be provided.
Q: How can I pay?
A:T/T
Q:Do you provide customized products?
A:Yes, we can provide customized products.
Q:Do you test all products before shipping?
A:All the products will be 100% checked before the shipment.
A:Yes, samples can be provided.
Q: How can I pay?
A:T/T
Q:Do you provide customized products?
A:Yes, we can provide customized products.
Q:Do you test all products before shipping?
A:All the products will be 100% checked before the shipment.
