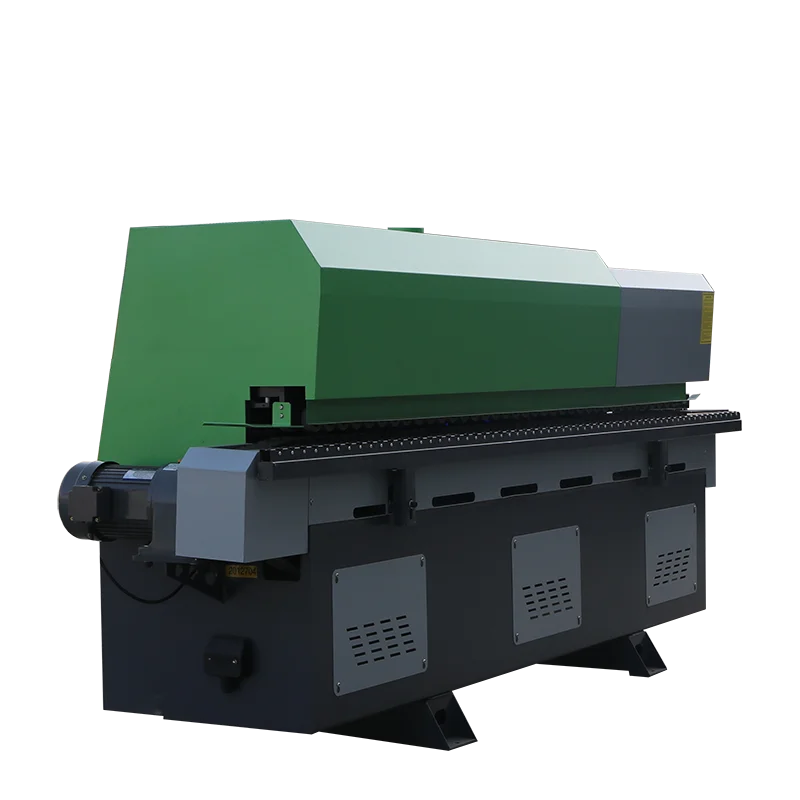

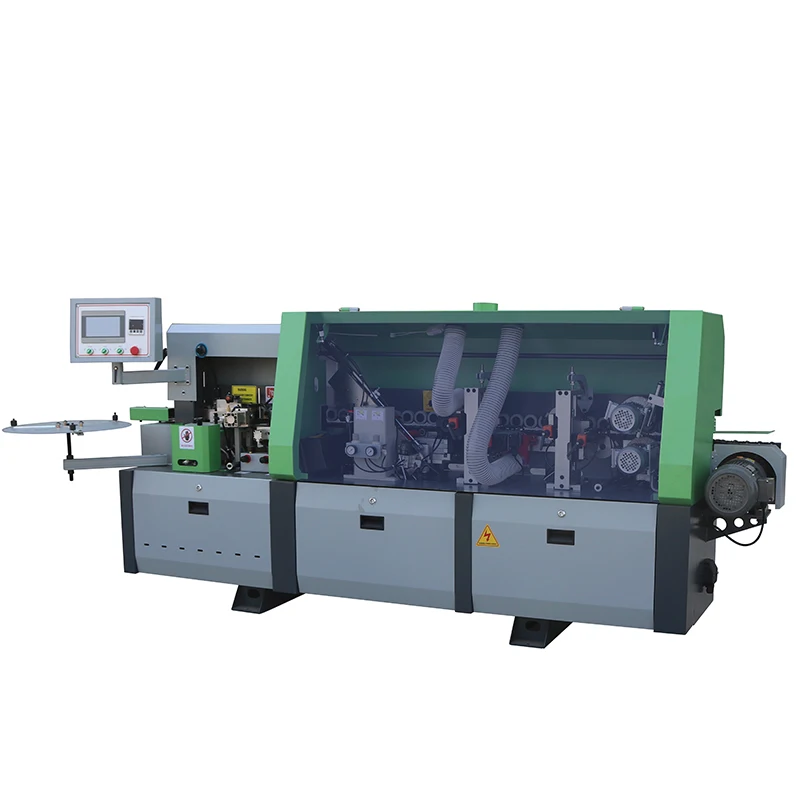

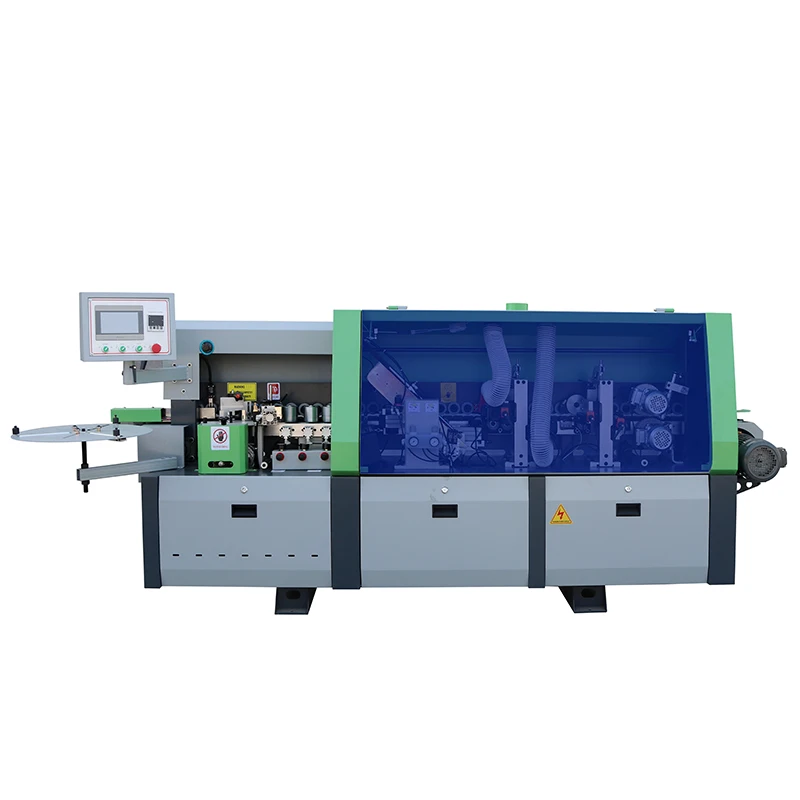

Automatic edge banding machine bevel good price pvc automatic edging machine high efficiency for wood furniture
- Category: >>>
- Supplier: Qingdao Allison Machinery Technology Co. Ltd.
Share on (1601282924948):
Product Overview
Description
Products Description
Details Images
1.Gluing and snaping
Through the special structure, the double-sided gluing of edge sealing plate and edge sealing material is uniform to ensure more firm adhesion.
2.End cutting:
Through precise linear guide motion, automatic mold tracking and high-frequency high speed motor fast cutting structure are used to ensure that the cut surface is flat and smooth.
3.Fine trimming:
The finishing knife is an R-shaped knife. It is mainly used for PVC and acrylic edge banding of panel furniture, and the edge banding with a thickness of more than 0.8mm is preferred.
4.Scraping:
It is used to eliminate the ripple marks caused by the cutting process of non-linear movement of trimming, so as to make the upper and lower parts of the plate more smooth and tidy.
The guide rail is made of aluminum alloy and the pressure beam is made of cast iron to ensure the stability of the machine
Laser cutting fuselage, increase stability and precision of equipment
PLC control system, adjustable parameters, simple operation
1. PLC control system, adjustable parameters, simple operation,
2. Computer touch screen display. When a fault occurs, the screen will show the fault problem.
3. You can set the display language and boot screen as required
2. Computer touch screen display. When a fault occurs, the screen will show the fault problem.
3. You can set the display language and boot screen as required
Separate frequency converter control for trimming
1. The amount of hot melt glue can be adjusted
2. Three round pressure paste, glue after the sealing tape and plate bonding one, the adhesive force is more firm
3. Enlarging the cylinder can effectively cut off the thickening edge sealing strip
Taiwan guide slide block, effectively ensure the precision
Product Paramenters
Functions | Gluing edge,Snipping,End cutting, Fine trimming, Scraping, Buffing |
3600*750*1500mmOverall Size | 3600*800*1600mm |
Total Weight | 1000kg |
Total Power | 6.63KW |
Min edge band Width | ≧50mm |
Min edge band Length | ≧60mm |
Plate thickness | 10-60mm |
Edge band width | 10-65mm |
Edge band thickness | 0.4-3mm |
Conveyor Speed | 15m\\min |
Working pressure | 0.7Mpa |
Popular Machine
Company Profile
Design
Blanking cutting
Bend
Weld
Polish
Spray, Paint
Install
Install
Debugging
Product packaging
Package：Protective film and plywood case
Shipping：Wthin 5-20 days after recevice
clean machine
rust prevention
Packing film
Packed in LCL reinforced wooden cases
Packed in LCL reinforced wooden cases
FCL can be stacked as long as the machine length allows, saving space and saving freight
