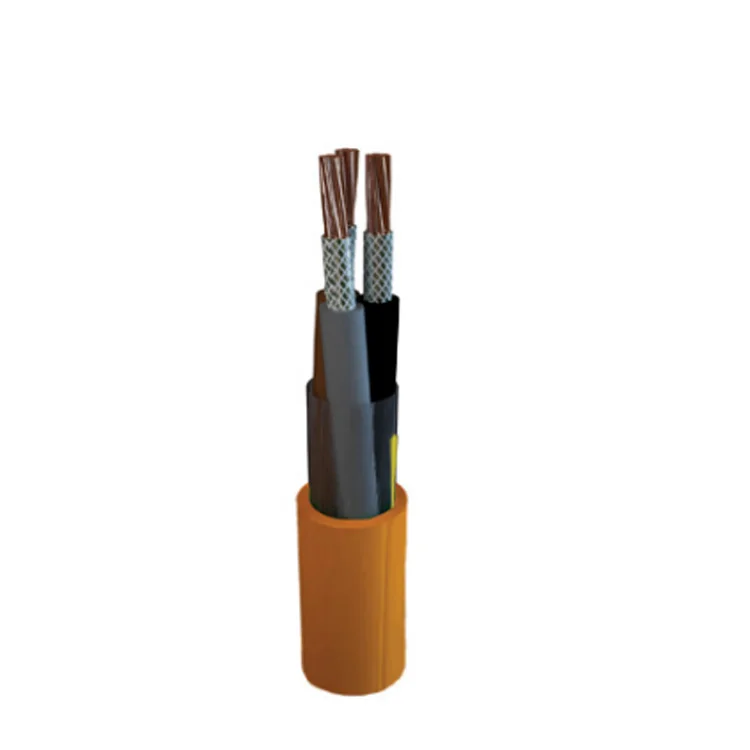

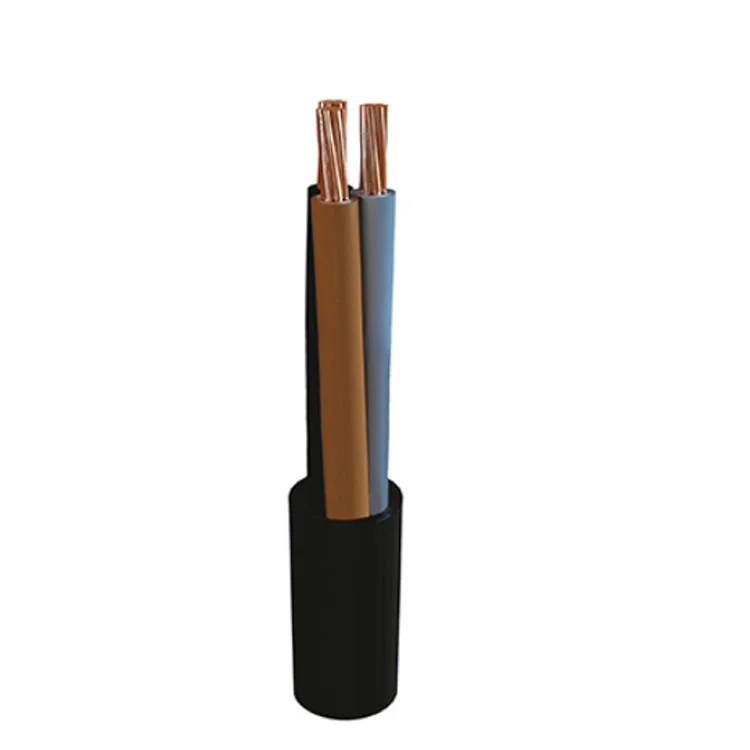

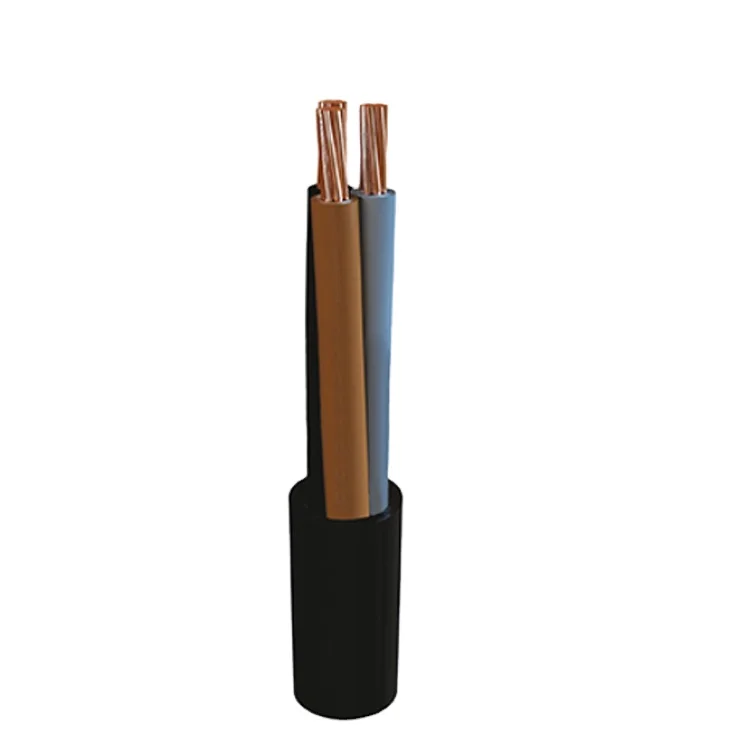

MarineLine YZp YZp X-FR 0,6/1 kV Shipboard Cable
Application:
Lightweight, fire-resistant, unarmoured, reduced diameter low voltage
power cables for power and lighting applications in all ship areas.
Characteristics:
* Class 2 conductors
* Lightweight, reduced diameter
* Halogen-free and low smoke
* Fire-resistant according to IEC 60331 1/2
* Tinned copper wire braid armouring
* Different colour outer sheaths, other than orange, available on

request
* DC voltage: 0,9/1,5 kV (if voltage to earth does not exceed 0,9 kV)

Core identification:
* HD308 S2







Specification


Construction
Net weight (kg/m)
Outer diameter approx. (mm)
Min. bending radius during installation (mm)
Min. bending radius after installation (mm)
Colour insulated wires
2 x 1,5 mm² Black
0.117
8.8
60
35
Blue - Brown
3 G 1,5 mm² Black
0.123
8.8
60
35
Green/Yellow - Blue- Brown
3 x 1,5 mm² Black
0.123
8.8
60
35
Brown - Black - Grey
4 G 1,5 mm² Black
0.142
9.4
65
35
Green/Yellow - Brown - Black - Grey
4 x 1,5 mm² Black
0.142
9.7
68
39
Blue - Brown - Black - Grey
5 x 1,5 mm² Black
0.176
10.4
70
40
Blue - Brown - Black - Grey - Black
5 G 1,5 mm² Black
0.176
10.4
73
42
Green/Yellow - Blue- Brown - Black - Grey
7 x 1,5 mm² Black
0.262
12.9
82
47
Black, with white printed numbers
2 x 2,5 mm² Black
0.136
9.2
65
37
Blue - Brown
3 G 2,5 mm² Black
0.169
10
70
40
Green/Yellow - Blue- Brown
3 x 2,5 mm² Black
0.167
10
70
40
Brown - Black - Grey
4 x 2,5 mm² Black
0.195
10.7
75
45
Blue - Brown - Black - Grey
4 G 2,5 mm² Black
0.197
10.7
75
45
Green/Yellow - Brown - Black - Grey
5 x 2,5 mm² Black
0.251
12.1
85
50
Blue - Brown - Black - Grey - Black
5 G 2,5 mm² Black
0.252
12.1
85
50
Green/Yellow - Blue- Brown - Black - Grey
2 x 4 mm² Black
0.188
10.4
73
42
Blue - Brown
3 x 4 mm² Black
0.236
11.4
80
46
Brown - Black - Grey
3 G 4 mm² Black
0.236
11.4
80
46
Green/Yellow - Blue- Brown
4 x 4 mm² Black
0.289
12.4
87
50
Blue - Brown - Black - Grey
2 x 6 mm² Black
0.256
11.8
83
49
Blue - Brown
3 x 6 mm² Black
0.308
12.4
87
50
Brown - Black - Grey
3 G 6 mm² Black
0.309
12.4
87
50
Green/Yellow - Blue- Brown
4 x 6 mm² Black
0.372
13.3
94
54
Blue - Brown - Black - Grey
2 x 10 mm² Black
0.364
13.4
94
54
Blue - Brown
3 x 10 mm² Black
0.463
14.5
102
58
Brown - Black - Grey
4 G 10 mm² Black
0.576
15.8
111
64
Green/Yellow - Brown - Black - Grey
4 x 10 mm² Black
0.575
15.8
111
64
Blue - Brown - Black - Grey
2 x 16 mm² Black
0.532
15.9
110
65
Blue - Brown
3 x 16 mm² Black
0.66
16.8
120
65
Brown - Black - Grey
4 x 16 mm² Black
0.811
18.1
125
75
Blue - Brown - Black - Grey
5 G 16 mm² Black
0.999
20
140
80
Green/Yellow - Blue- Brown - Black - Grey
2 x 25 mm² Black
0.829
19.8
140
80
Blue - Brown
3 x 25 mm² Black
1.027
20.9
145
85
Brown - Black - Grey
3 G 25 mm² Black
1.048
21.2
150
85
Green/Yellow - Blue- Brown
4 G 25 mm² Black
1.312
23.2
160
95
Green/Yellow - Brown - Black - Grey
4 x 25 mm² Black
1.289
22.9
160
90
Blue - Brown - Black - Grey
