Factory Direct Sale Small Diesel Pump Multifunctional Mobile Concrete Pump Truck For Construction Industry
- Category: >>>
- Supplier: Yimei Machinery Equipment Manufacturing Co. Ltd.Yimei Ltd.
Share on (1601283944600):
Product Overview
Description
Welcome To Yimei Machinery Equipment Manufacturing Co.Ltd
This price is the deposit price for product production
We adhere to the business philosophy of customer first, all products have been strictly inspected before leaving the factory to ensure that they meet the highest safety standards, we believe you will be very satisfied with its quality after receiving the goods.
If you don't find the product you need, you can tell us, we will provide diverse styles for you to choose, please feel free to buy! Thanks again.
Company Profile
Products Description

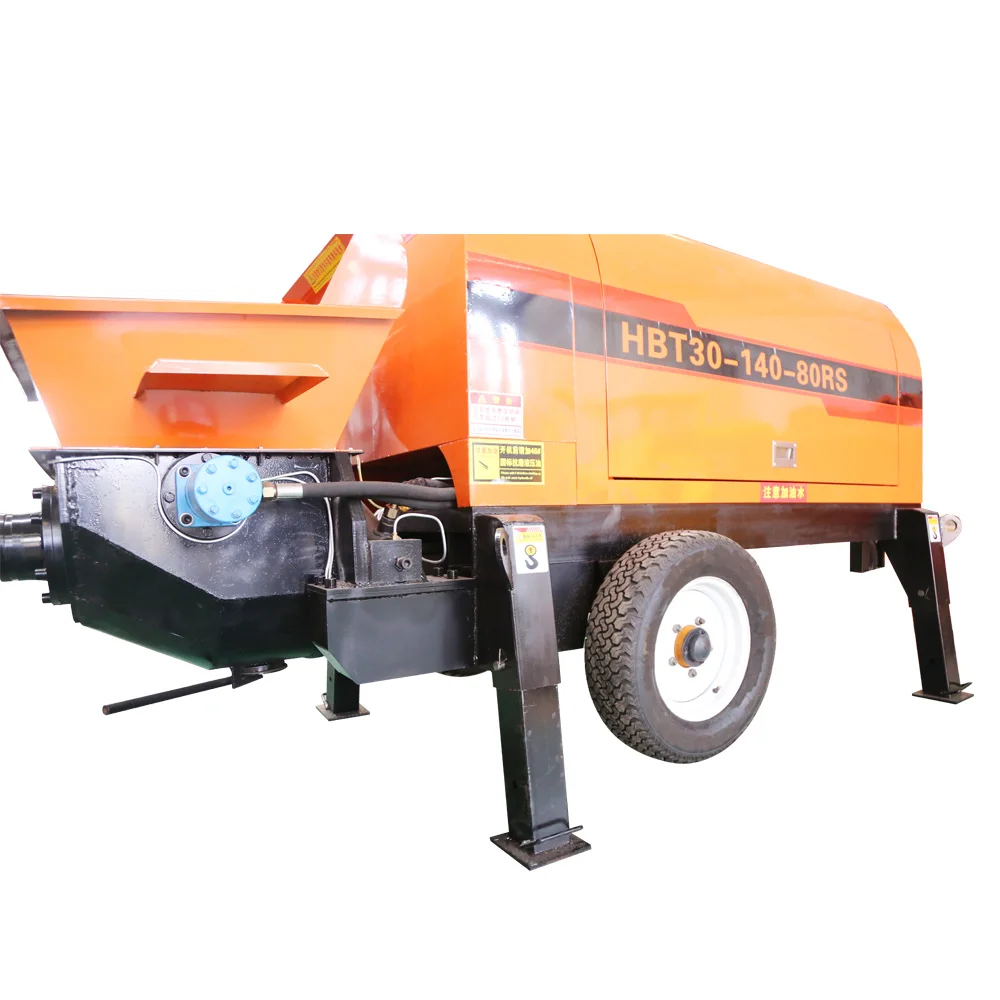

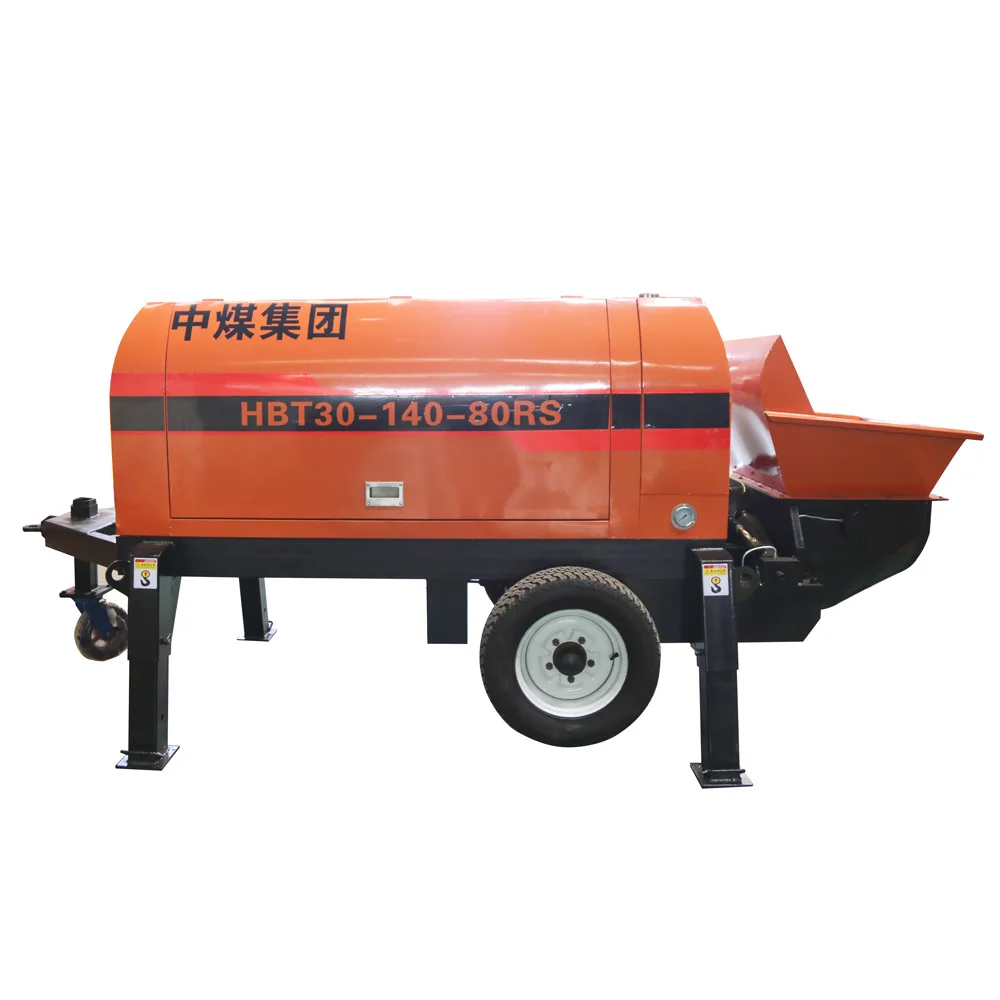

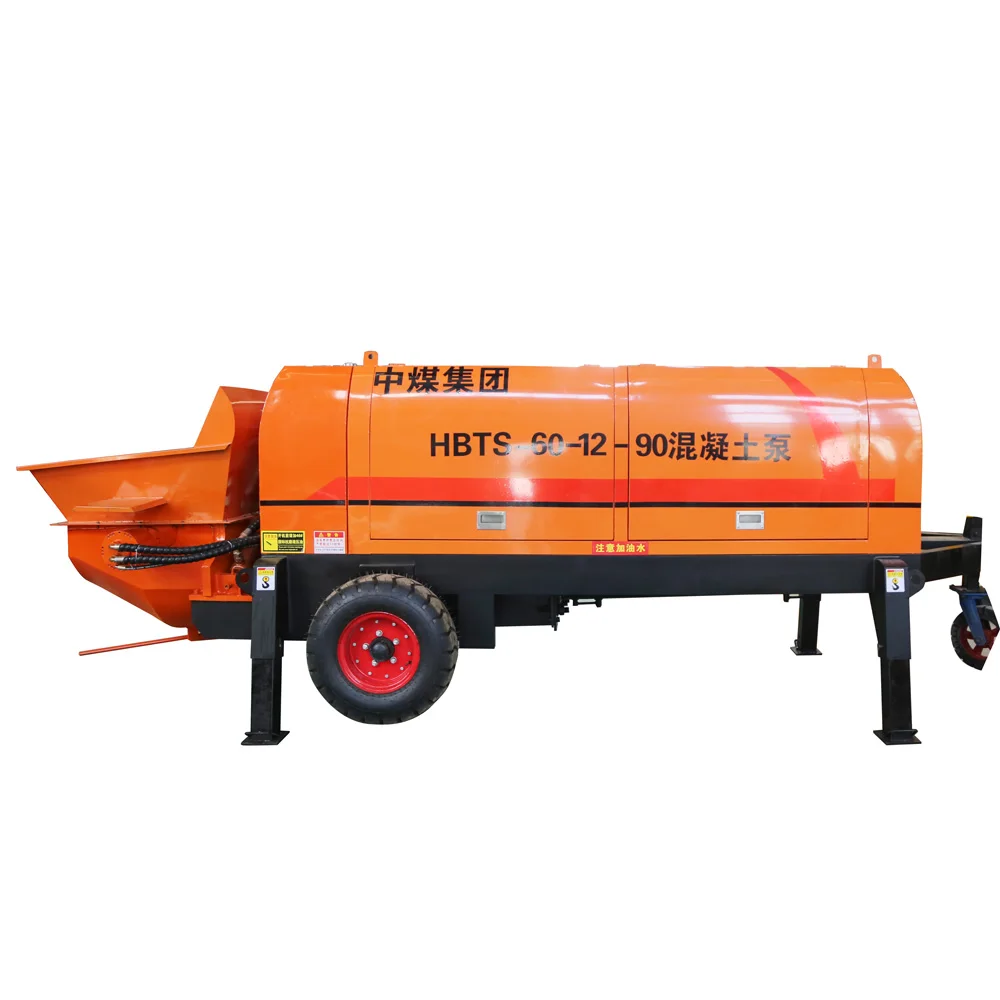

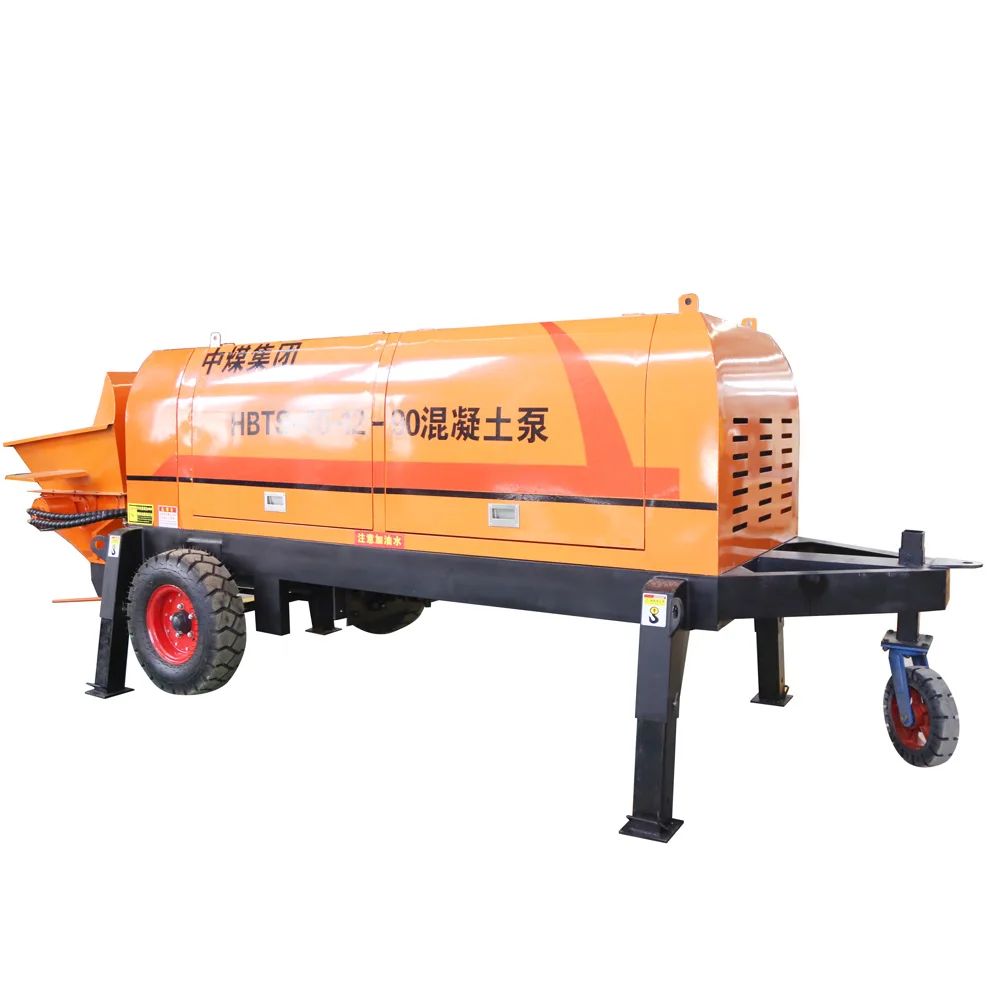

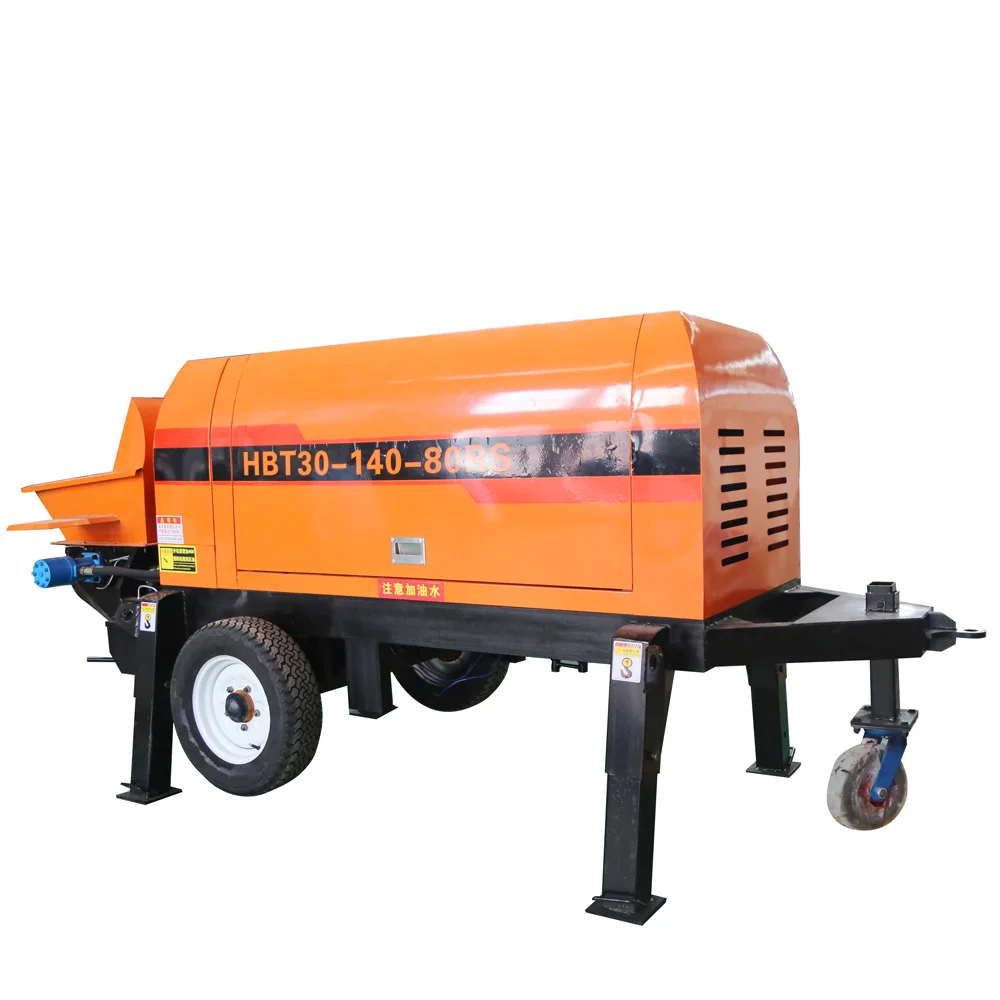

Stone concrete pump is a motor-driven high-pressure S pipe valve fine stone concrete pump. The machine system is reliable, low failure rate, easy maintenance, is the ideal fine stone (mortar) concrete conveying equipment. Can be applied to water conservancy,electricity, railways, highways, tunnels, bridges and culverts, ports, mines, high-rise buildings, national defense projects. This machine is especially suitable for large-scale and high-efficiency construction of fine-grained concrete filled layer or mortar filled layer in floor heating project. zmwm24
Product Paramenters
Model | CPZM10D | CPZM15D | CPZM20D | CPZM30D | CPZM40D | CPZM50D | CPZM60D | CPZM80D |
Working capacity: | 5-10m³/H | 8-15m³/H | 15-20m³/h | 25-30m³/h | 40m³/h | 45- 50m³/h | 60m³/h | 75-80m³/h |
Outlet pressure: | 8Mpa | 10-15Mpa | 10MPa | 10MPa | 10MPa | 10MPa | 13MPa | 18MPa |
Distribution valve type | S pipe valve | S pipe valve | S pipe valve | S pipe valve | S pipe valve | S pipe valve | S pipe valve | S pipe valve |
Conveying cylinder size: | Φ 140*500mm | Φ 120*540mm | Φ140*650mm | Φ160*750mm | Φ160*1200mm | Φ180*1000mm | Φ200*1600mm | Φ230*1800mm |
Diameter of discharge port | Φ80mm | Φ80mm | Φ100mm | Φ125mm | Φ150mm | Φ150mm | Φ200mm | Φ200mm |
Power | 17.8KW/28HP | 22KW/28HP diesel | (30KW MOTOR) | 40.1KW(4102weichai ) | 76KW/(4108 weichai) | 90KW (4108 weichai) | 110KW/380V (weichai) | 110KW(6108 weichai |
Working vertical Height: | Max 80m | Max 80m | 120m(<20mm); 50m(20-30mm) | 120m | 150m | 150m | 150m | 250m |
Working horizontal distance: | Max 80m | Max 80m | 250m(<20mm); 80m(20-30mm) | 250m | 350m | 350m | 350m | 800m |
Max Granules diameter: | 20-25mm | 20-25mm | 30mm | 30mm | 40mm | 40mm | 50mm | 60mm |
Machine Size:L*W*H mm | 2480-1140-1400 | 2500*1250*1350 | 3400*1100*1700 | 3600*1650*1800 | 4300*1750*1850 | 4500*1750*1850 | 6000*2160*2300 | 6200*1800*2000 |
Machine Weight | Weight: | 850KG | 1100KG | 1500KG | 3300KG | 3500KG | 6200KG | 5800KG |
We have a variety of concrete pump models for you to choose, you can also send us your requirements, we will provide you with the right concrete pump models, engines and other mechanical original parts, we can also provide you with customized services.
Details Images
FAQ
Are you the manufacuturer or trade company ?
We are the manufacturer for producing tunnel grilled slag machine,rock mucking loader , mining transport car ,and verious attachments With mining equipment.
And we have owned trading company to do the International Business,
So that :
1)-We can supply good service with professional international trade experience.
2)-The price is much more competitive.
Can you do the ODM or OEM, what is MOQ?
Yes, it is possible as both discussed, MOQ: 1unit.
What about delivery time, how long can I get the machine since order.
The producing time fast to 15-20 workings if you will customerized machine.
The standard machine in stock, can delivery as soon as possible after ordering.
How to pay for you ?
30% down payment, then producing start, the balance 70% paid before
shipping.
If the machines in stock, pay 100% then delivery.
We are the manufacturer for producing tunnel grilled slag machine,rock mucking loader , mining transport car ,and verious attachments With mining equipment.
And we have owned trading company to do the International Business,
So that :
1)-We can supply good service with professional international trade experience.
2)-The price is much more competitive.
Can you do the ODM or OEM, what is MOQ?
Yes, it is possible as both discussed, MOQ: 1unit.
What about delivery time, how long can I get the machine since order.
The producing time fast to 15-20 workings if you will customerized machine.
The standard machine in stock, can delivery as soon as possible after ordering.
How to pay for you ?
30% down payment, then producing start, the balance 70% paid before
shipping.
If the machines in stock, pay 100% then delivery.
