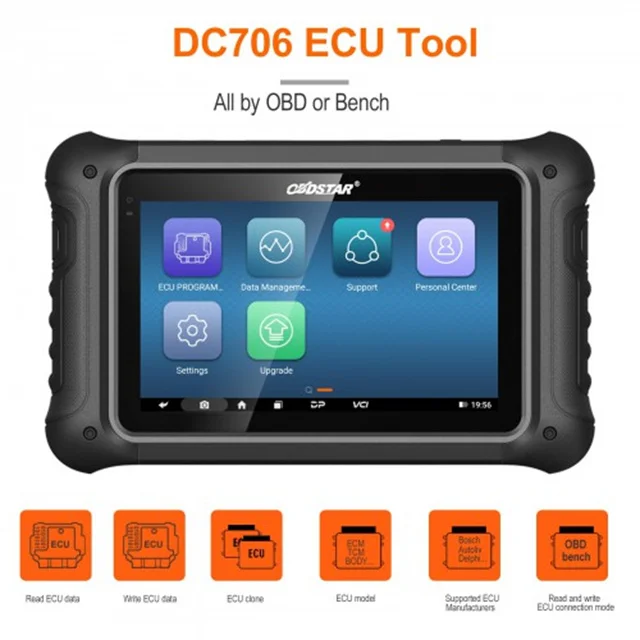

2024 single software original OBDSTAR DC706 ECU Tool for Car and Motorcycle ECM/ TCM/ BODY ECU Cloning by OBD or Bench mode
- Category: >>>
- Supplier: Shenzhen Talentcar Electronic Co. Ltd.
Share on (1601284037154):
Product Overview
Description
2024 single software original OBDSTAR DC706 ECU Tool for Car and Motorcycle ECM/ TCM/ BODY ECU Cloning by OBD or Bench mode
Product Description
OBDSTAR DC706 ECU Tool Basic Version for Car and Motorcycle ECM/ TCM/ BODY ECU Cloning by OBD or Bench mode
OBDSTAR DC706 ECU tool is designed for vehicle ECM, TCM and body/other system for ECU flasher. It can read ECU info, R/W Eeprom/Dflash/Pflash/MAP, reset ECU(Virgin), calibrate mileage, read IMMO pincode, ECU recovery... It's all by OBD or bench mode and makes ECU cloning easy.
Product Function:
OBDSTAR DC706 ECU tool is designed for vehicle ECM, TCM and body/other system for ECU flasher. It can read ECU info, R/W Eeprom/Dflash/Pflash/MAP, reset ECU(Virgin), calibrate mileage, read IMMO pincode, ECU recovery... It's all by OBD or bench mode and makes ECU cloning easy.
Product Function:
ECU Clone/ All by OBD or Bench
Single Software only,Three standard versions for selection
Single Software only,Three standard versions for selection

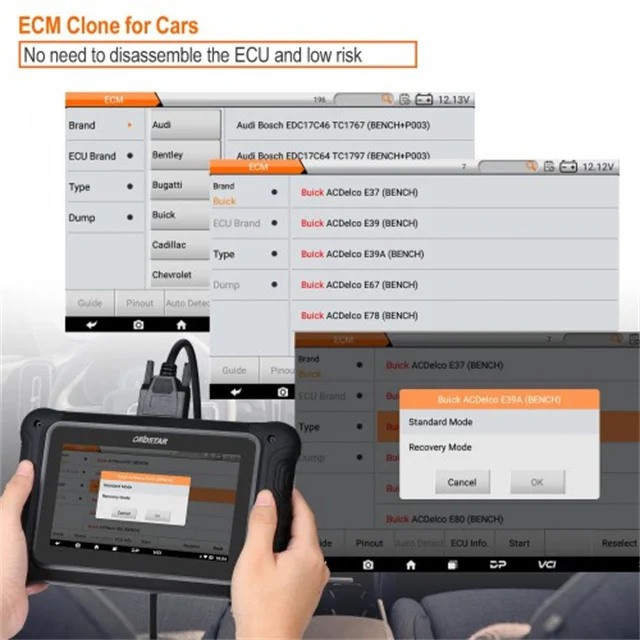

1. ECM clone for cars(Bosch, Continental, Delphi, Denso, Magneti Marelli, Siemens...)
ECM clone for motorcycles(Bosch, Delphi, EFI...)
2. TCM clone(Ac Delco, Bosch, Continental, Getrag, GM, Kefico, Siemens, Temic, ZF...)
3. Body/Other clone(FCA, FIAT, FORD, GM/OPEL, LAND ROVER/jagu -ar, PSA, SMART, VOLVO...)
Notice: Versions of DQ250 models before 2008 are not supported, and the protocols are different.
3. Body/Other clone(FCA, FIAT, FORD, GM/OPEL, LAND ROVER/jagu -ar, PSA, SMART, VOLVO...)
Notice: Versions of DQ250 models before 2008 are not supported, and the protocols are different.
OBDSTAR DC706 Configurations
| Configuration | Software |
| DC706_ EN A | ECM |
| DC706_ EN_ B | TCM |
| DC706_ EN_ C | BODY |
| DC706_ EN D | ECM+TCM |
| DC706_ EN E | ECM+B0DY |
| DC706_ EN F | TCM+B0DY |
| DC706_ EN_ FULL | ECM+TCM+BODY |
Supported ECU Manufacturers:
ALPS
Autoliv
Bosch
Continental
Delphi
Denso
Johnson Controls
Lear
Magneti Marelli
Siemens
Temic
Valeo
Supported Brands:
Car
ASTON MARTIN
BMW
FAW
FCA(ALFA ROMEO, CHRYSLER, DODGE, FIAT...)
FORD/LINCOLN
GM/OPEL
HYUNDAI/ki-a
LAND ROVER/jagu -ar
LUXGEN
MASERATI
MAZDA
MITSUBISHI
niss -an
OPEL
PSA
SMART
SUBARU
SUZUKI
VOLVO
VW/AUDI/SEAT/SKODA
Motorcycle:
APRILIA
BRP
CFMOTO
DERBI
GILERA
GUZZI
PEUGEOT
PIAGGIO
QJBENELLI
VESPA
Advanced Functions:

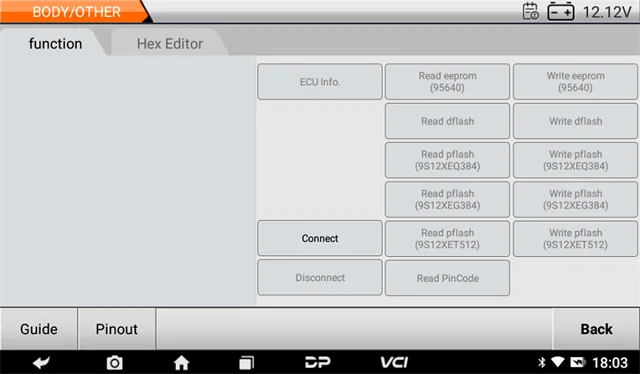

1. R/W eeprom/dflash/pflash/Map, reset ECU(Virgin), calibrate mileage, read IMMO pincode, ECU recovery...
2. Support 710+ ECM types(Partial functions require P003 adapter.)
3. Support 120+ other ECU types(AIRBAG, BCM, BSI, CEM, DDM/PDM, DIM, EPS, KeyLess(RFHUB/RFHM), KVM, RFA, SAM...)
4. Support VW DQXXX (TCM) calibrate mileage
5. Support motorcycle Delphi MT05, MT05.2, MT05.3 ECU clone
6. Support motorcycle BRP ME17.8.5 ECU clone (works with P003 adapter)
7. Support Piaggio series engine ECU clone(such as MIU G4 (M4G1))
8. Support intelligent search by brand, model, part No., ECU manufacturer, MCU controller type
9. Support automatic identification
10. Strong help data files
11. All by OBD or Bench mode
2. Support 710+ ECM types(Partial functions require P003 adapter.)
3. Support 120+ other ECU types(AIRBAG, BCM, BSI, CEM, DDM/PDM, DIM, EPS, KeyLess(RFHUB/RFHM), KVM, RFA, SAM...)
4. Support VW DQXXX (TCM) calibrate mileage
5. Support motorcycle Delphi MT05, MT05.2, MT05.3 ECU clone
6. Support motorcycle BRP ME17.8.5 ECU clone (works with P003 adapter)
7. Support Piaggio series engine ECU clone(such as MIU G4 (M4G1))
8. Support intelligent search by brand, model, part No., ECU manufacturer, MCU controller type
9. Support automatic identification
10. Strong help data files
11. All by OBD or Bench mode
More functions are in developing...
Product Specifications:

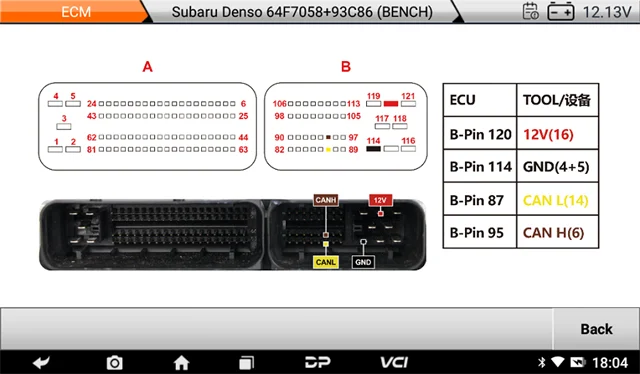

OBDSTAR DC706 ECU Tool + For ECM

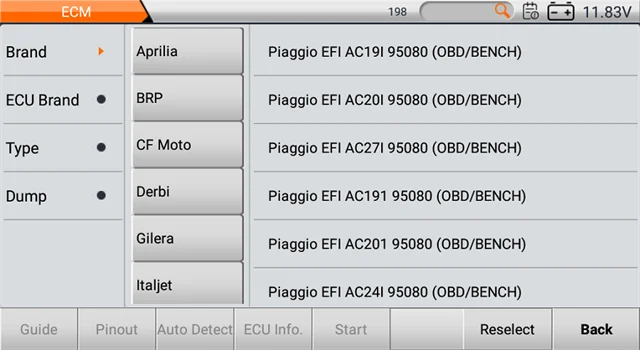

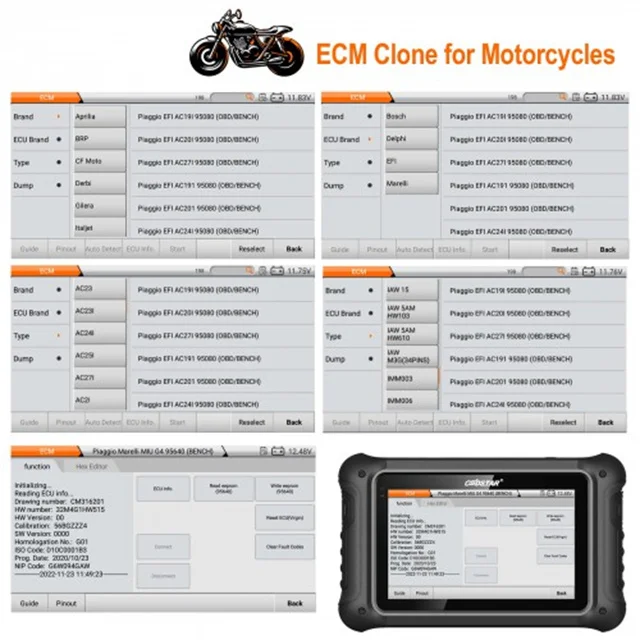

OBDSTAR DC706 ECU Tool + ECM Clone for Motorcycles
OBDSTAR DC706 ECU Tool + For TCM Clone

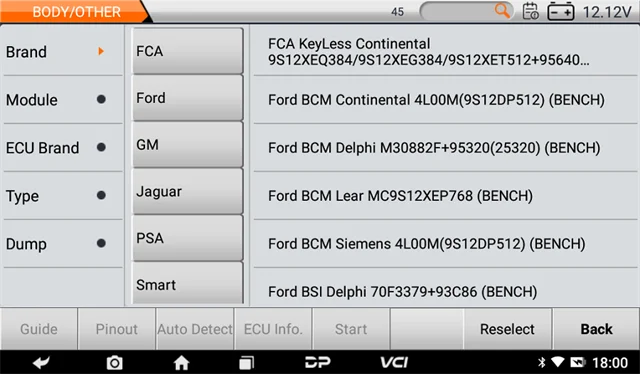

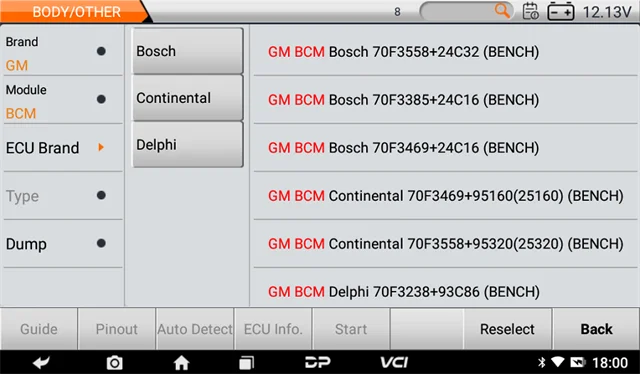

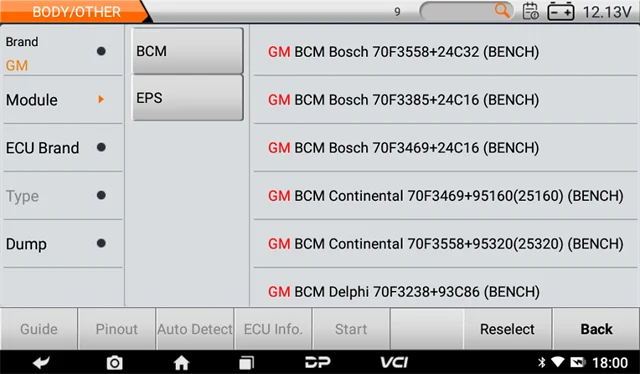

OBDSTAR DC706 ECU Tool + For Body/Other Clone

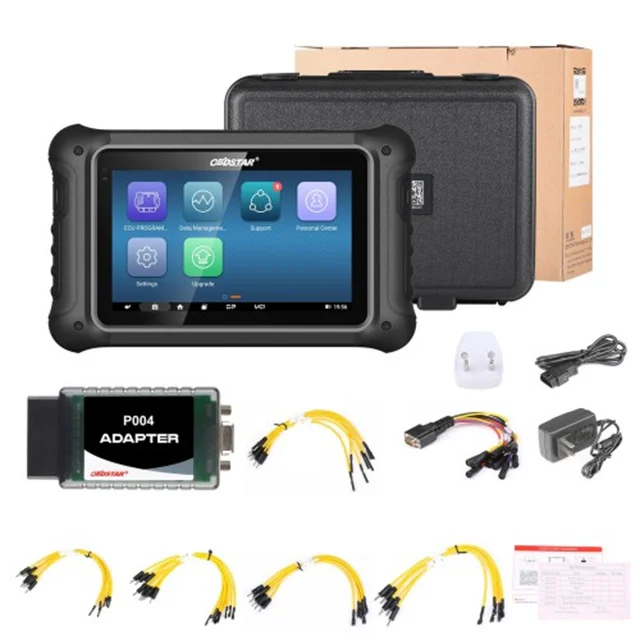

Package Includes:

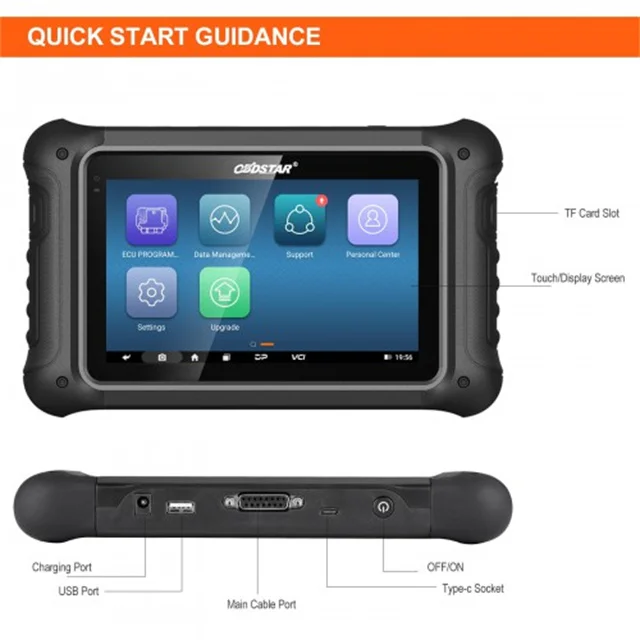

1pc x DC706 Main Unit
1pc x main cable
1pc x P004 adapter
1pc x P004 ECU clone jumper
1pc x 12V2A charger
Product Specifications:
| Operation system | Android 5.1.1 |
| CPU | RK3128 quad-core ARM cortex A7 |
| Battery | 3700mA, rechargeable polymer lithium battery |
| Extension memory card | 32G micro SD (TF) card supported |
| Storage capacity | 16GB |
| LCD | 7.0 inch |
| LCD resolution | 1024*600 |
| Touch screen | Capacitive touch screen |
| Wifi | Supported |
| Working temperature | -20℃~55℃ (14℉~131℉) |
| Storage temperature | -20℃~70℃ (-4℉~158℉) |
| Weight | About 1.3kg |
| Dimension | 243mm*148mm*36mm |
Function Display:

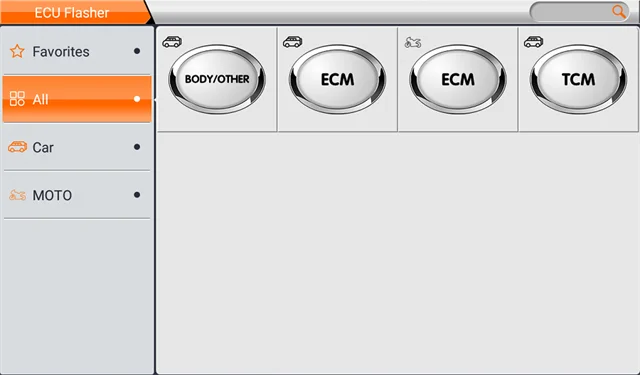

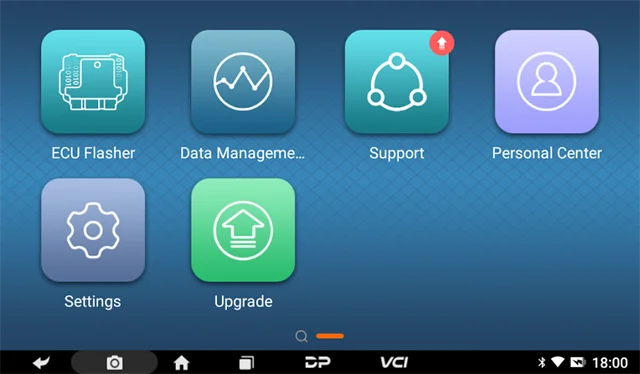

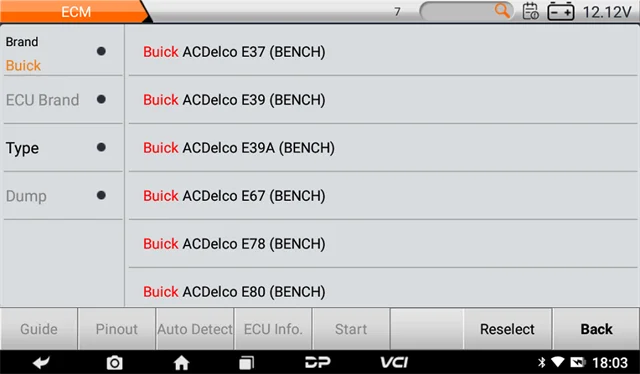

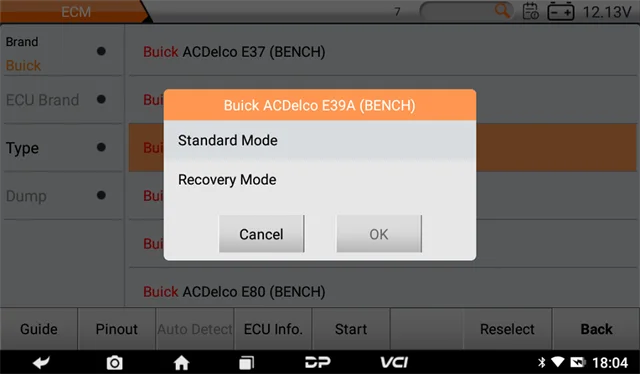

1) Main Page/Brand Supported
OBDSTAR DC706 ECU Tool + For ECM
OBDSTAR DC706 ECU Tool + ECM Clone for Motorcycles
OBDSTAR DC706 ECU Tool + For TCM Clone
OBDSTAR DC706 ECU Tool + For Body/Other Clone
Package Includes:
1pc x DC706 Main Unit
1pc x main cable
1pc x P004 adapter
1pc x P004 ECU clone jumper
1pc x 12V2A charger
