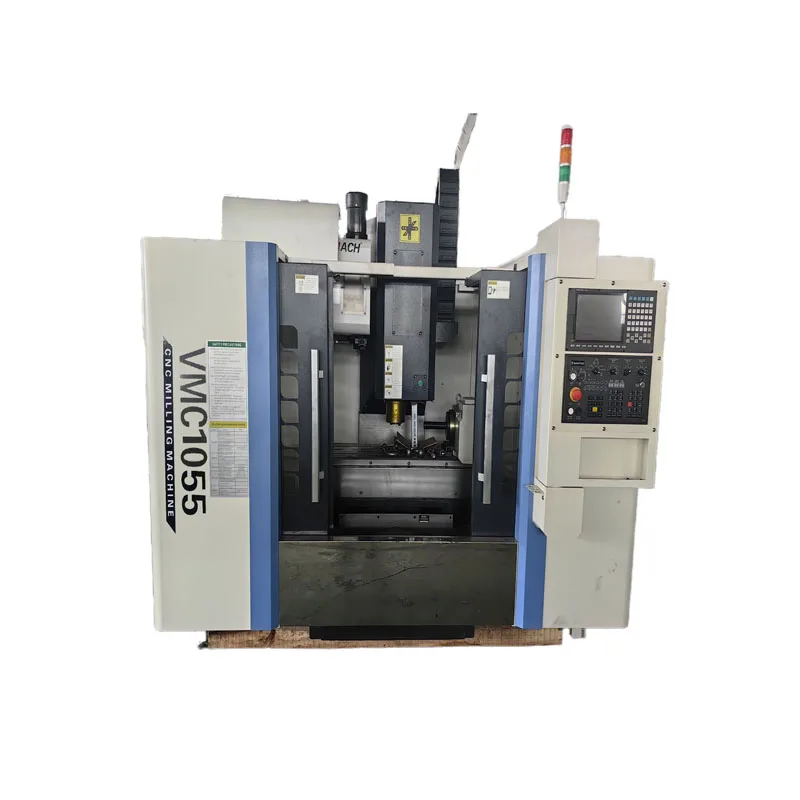

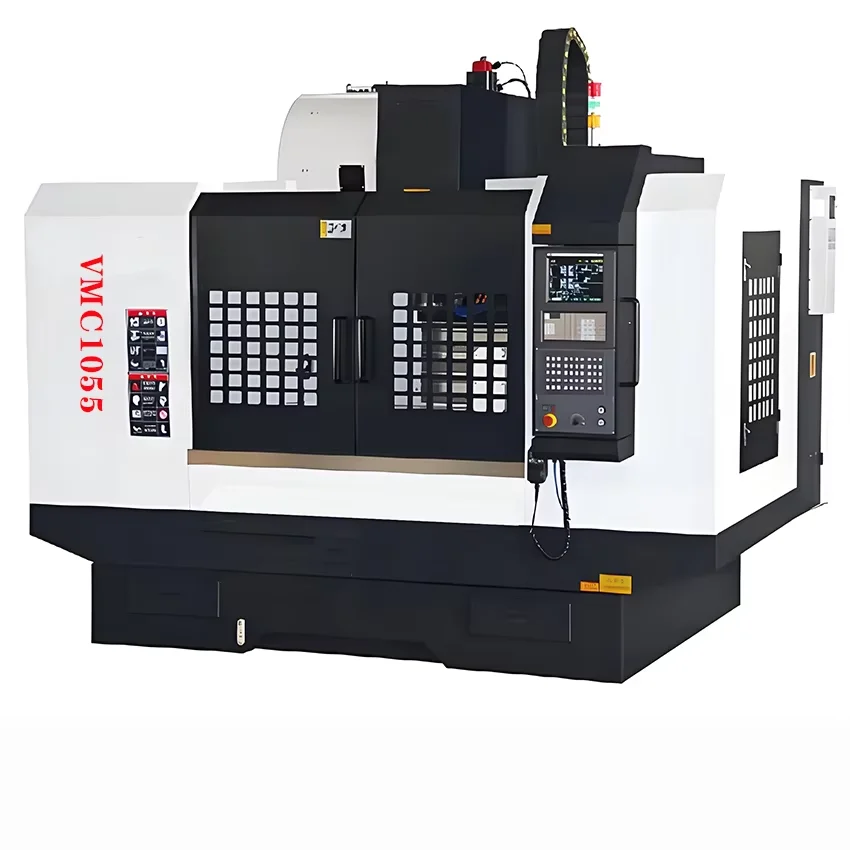

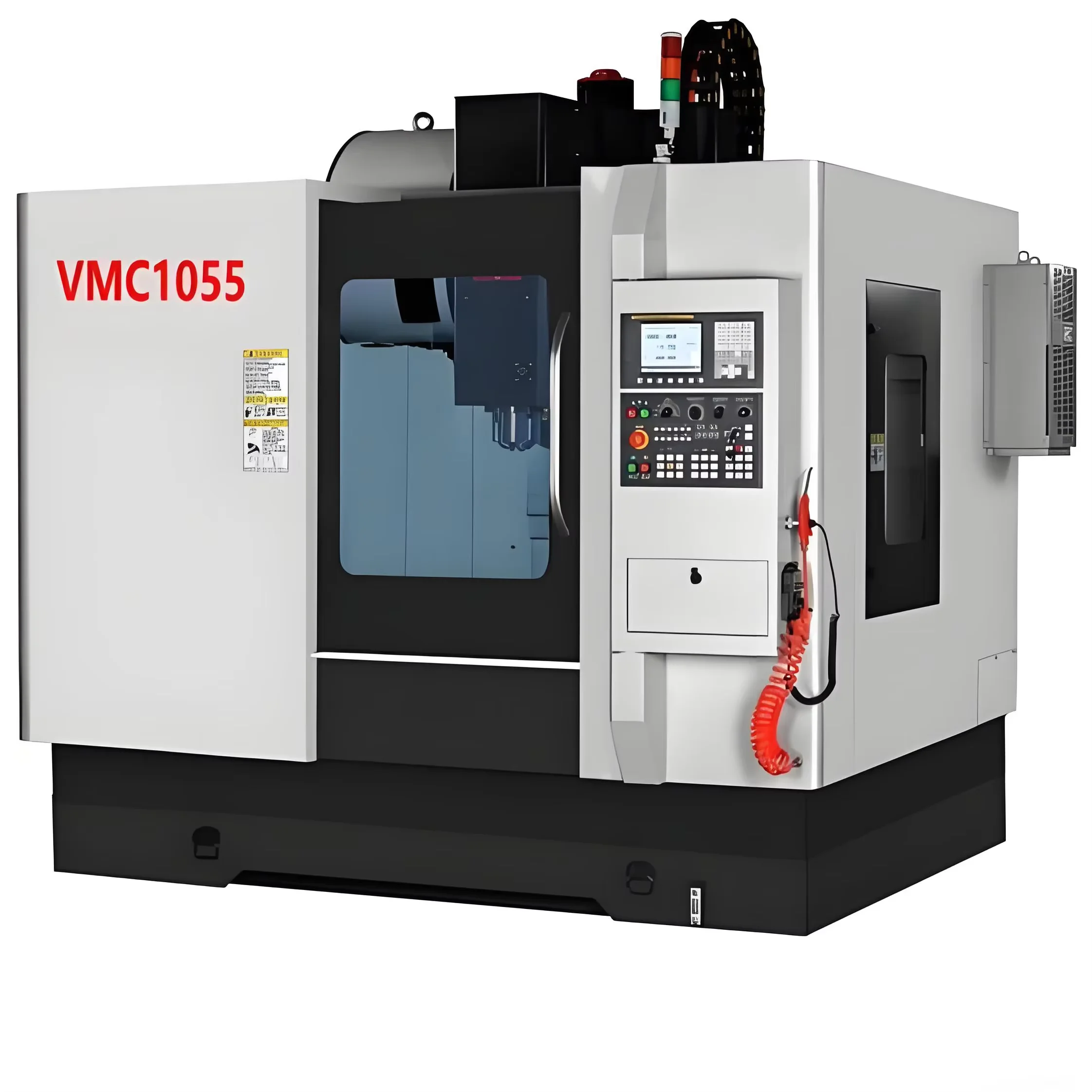

High speed and low cost 3/4/5 axis CNC vertical machining center VMC1055 fully automatic milling CNC machining center
- Category: >>>
- Supplier: Shandong Yijin Cnc Machine Tool Co. Ltd.
Share on (1601284055082):
Product Overview
Description
Machine optional configuration
VMC1055
This product is a vertical machining center with X, Y, and Z three-axis servo direct control. All three axes are steel ball rolling linear guides, with high guide rail load, wide span, and high precision. The structure and external dimensions are compact and reasonable, and the spindle is driven by a servo motor through a synchronous belt. It can achieve one-time clamping of various complex parts such as disks, plates, shells, camshafts, molds, etc. It can complete various processes such as drilling, milling, boring, expanding, reaming, and rigid tapping, suitable for the production of multiple varieties and small to medium batch products, and can meet the processing of complex and high-precision parts. Can be equipped with a fourth rotation axis to meet the processing requirements of special parts.
item | value |
Table Size (mm) | 1000x500 |
Table Travel (X) (mm) | 1000 |
Table Travel (Y) (mm) | 580 |
Condition | New |
Spindle Taper | BT40 |
No. of Spindles | Single |
Type | VERTICAL |
Weight (T) | 5 |
Table Travel (Z) (mm) | 600 |
Positioning Accuracy (mm) | ±0.001 |
Repeatability (X/Y/Z) (mm) | ±0.005 |
Range of Spindle Speed(r.p.m) | 1r.p.m - 8000r.p.m |
Min. Time of Tool Change(s) | 2 |

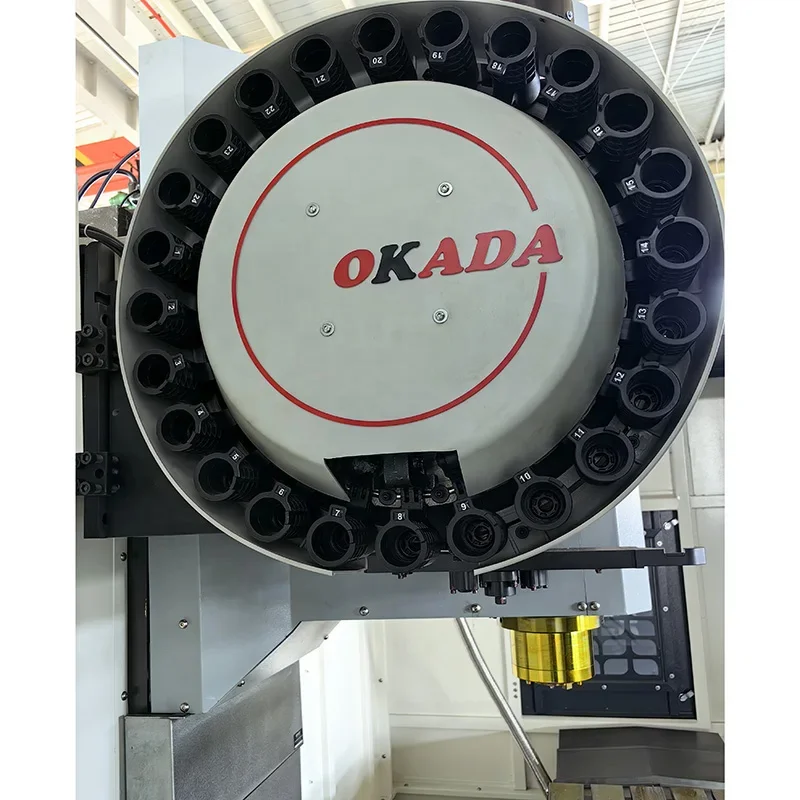

Tool Magazine Capacity | 24 |
Warranty | 3 years |
Place of Origin | China |
Marketing Type | New Product 2024 |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Warranty of core components | 3 years |
Machining Capacity | Heavy Duty |
Rapid Feed Speed(mm/min) | 1mm/min - 10000mm/min |
Dimension(L*W*H) | 2800*2400*2400 |
CNC Control System | FANUC |
Key Selling Points | Multifunctional, Automatic, Competitive Price, High Safety Level, High-accuracy, Energy saving, Sustainable, High Productivity, Long Service Life, Other, Easy to Operate, Flexible Manufacturing, IoT, Remote Monitoring, Digital |
Brand Name | yicnc |
X/Y/Z axis travel | 1000/580/600 |
Product name | CNC Vertical Machining Center |
CNC or Not | CNC Systemn |
Spindle taper | BT40 |
Spindle diameter | 150mm |

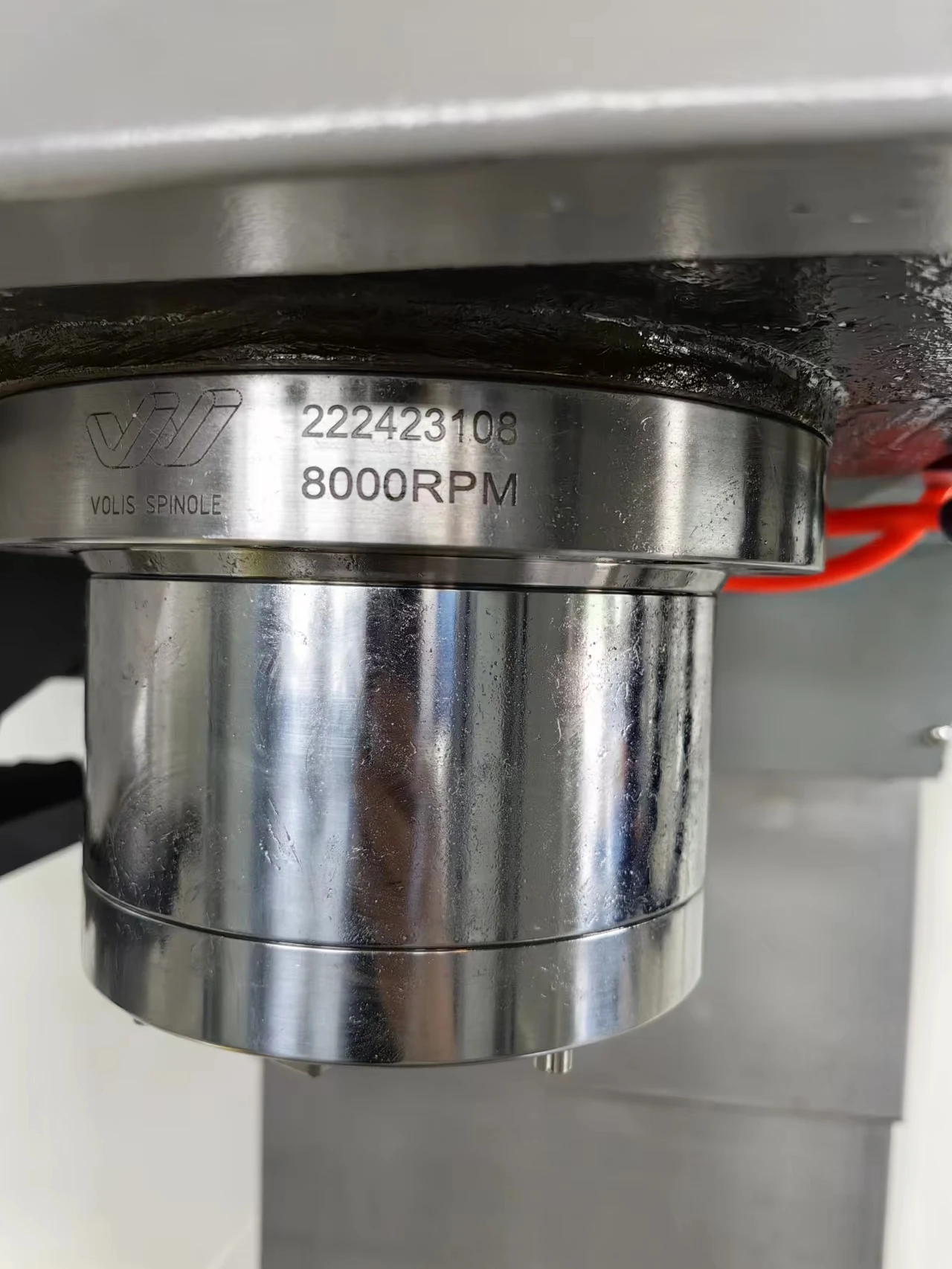

Spindle speed | 100-8000r/min |
Rapid moving speed (X, Y, Z) linear rail | 24/24/18m/min |
Cooling motor | 250w |
Machine weight | 5000kg |
Machine Type | Vertical Milling Machine Centers |
Quality is the lifeblood of the enterprise, grasp the details, open innovation. The company invites to join and agent, willing to
work with our customers and strategic partners to create a better future together.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services
will be provided.
FAQ
1. who are we?
We are based in Shandong, China, start from 2022,sell to Domestic Market(00.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
CNC Machining Center, CNC Lathe, CNC Milling Machine
4. why should you buy from us not from other suppliers?
Our main products include 5 series, including CNC machining centers, horizontal CNC machining centers, CNC inclined test lathes, CNC gantry machining centers, CNC vertical lathes, and more than 50 specifications
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:null;
Accepted Payment Type: null;
Language Spoken:null
