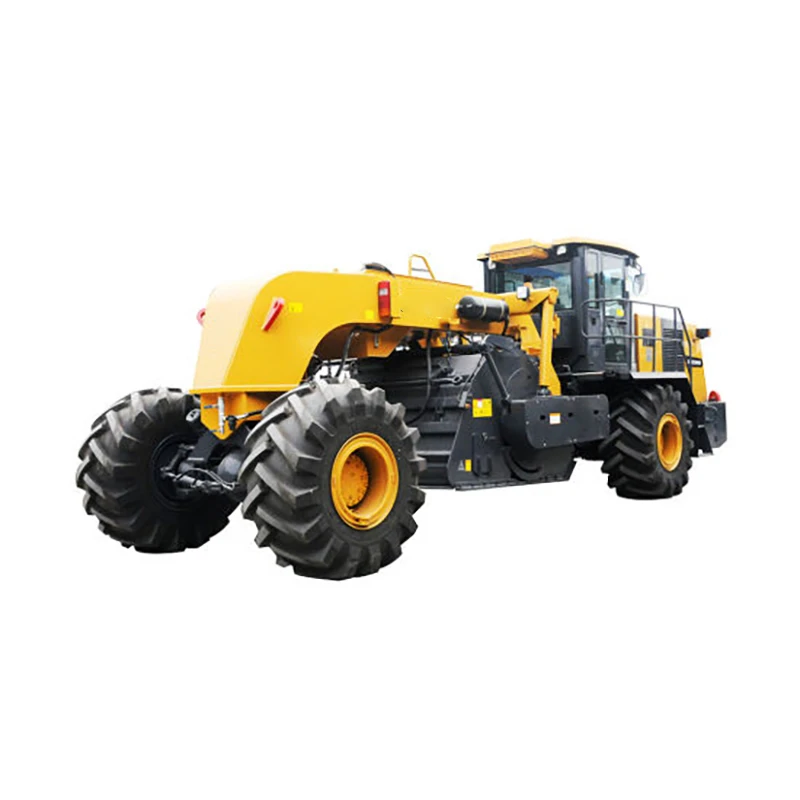

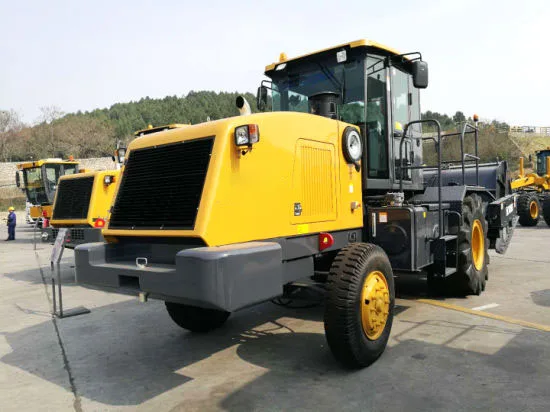

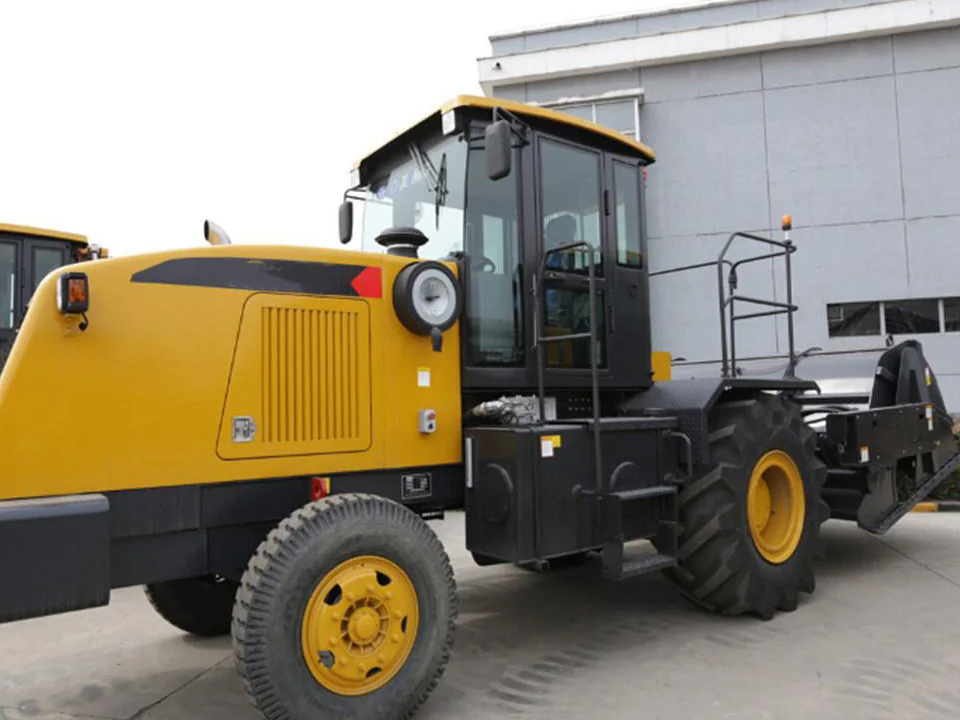

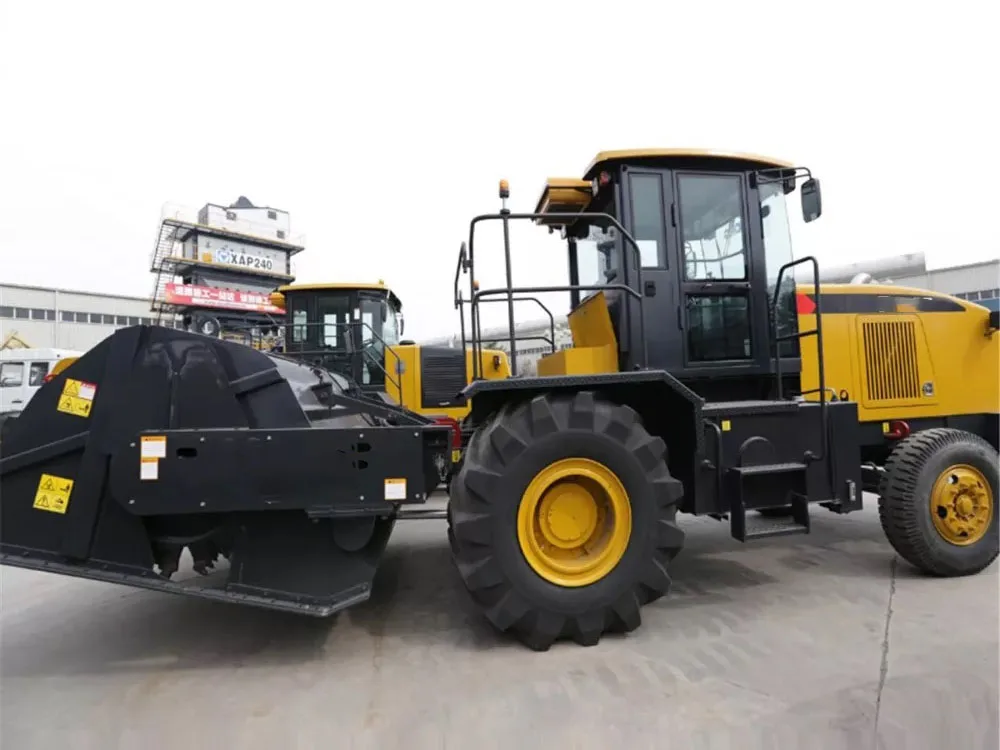

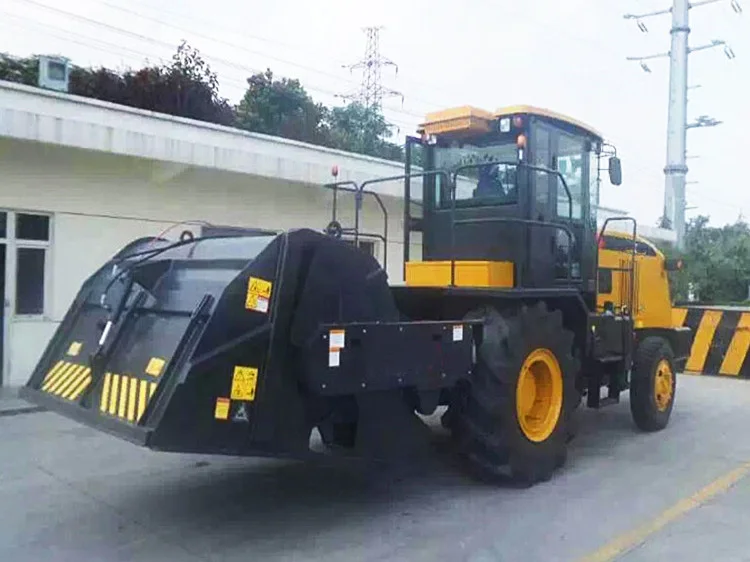

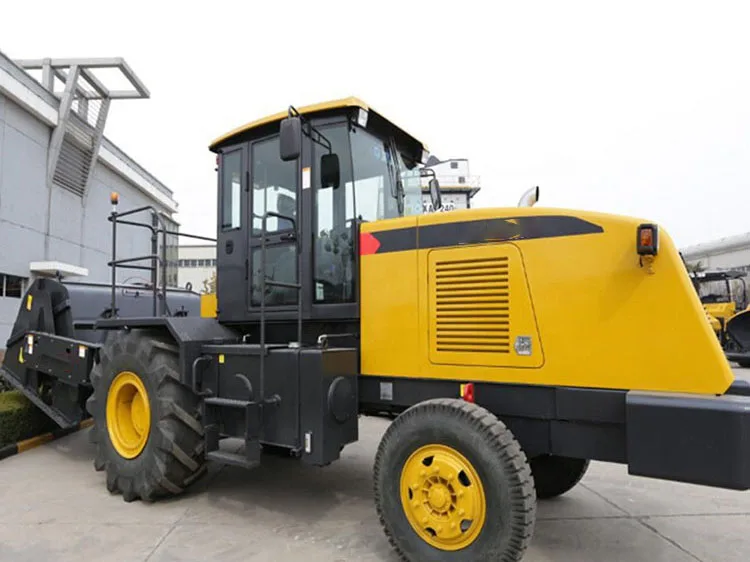

China Official XL2503 Road Renewing Soil Stabilizer Machine for Civil Engineering
- Category: >>>
- Supplier: Oriemac Machinery & Equipment (Shanghai) Co. Ltd.Oriemac Ltd.
Share on (1601284776534):
Product Overview
Description
Please Contact
ABOVE is our full line machinery and truck catalog, welcome to inquiry.
If you need any information, welcome to contact me.Name: Ricky Chen
whatsapp/mobile phone/Wechat: +86 18221888506
Email: ricky@oriemac.com
Please leave a message at the bottom of the details page.
whatsapp/mobile phone/Wechat: +86 18221888506
Email: ricky@oriemac.com
Please leave a message at the bottom of the details page.
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.
Add: 21F Gubei International Fortune Center,No.1438 Hongqiao Road, Changning District, 201103 Shanghai, China
Website: www.oriemac.com
FEATURES AT A GLANCE
Road construction machine Soil Stabilizer XL2103 XL2503 XLZ250
* High-strength U-shaped cross section boom.
* Luffing telescopic operation controlled independently by advanced post-compensate hydraulic technology.
* Ultra-long outrigger span ensures increasing stability.
* Effective mirror and rear view camera combinations improve overall visibility.
PRODUCT SPECIFICATIONS
roduct Model | XLZ250 | |||
Max. milling & mixing width | mm | 2450 | ||
Max. milling & mixing depth | mm | 450 | ||
Milling & mixing rotor | No. of blades | 208 | ||
Rotor diameter | mm | 1530 | ||
Engine | Model | KTA19-C600 | ||
Rated power | kW | 448 | ||
Rated revs | rpm | 2100 | ||
Parameters | Work speed | m/min | 0-2.5 | |
Travel speed | km/h | 0-10 | ||
Gradeability | % | ≥20%(11,3°) | ||
Ground clearance | mm | 400 | ||
Work weight | Kg | 29000 | ||
Capacity | Fuel tank | L | 800 | |
Hydraulic oil tank | L | 350 | ||
Water tank | L | 600 | ||
Working devices | Installed in the middle | |||
Travel system | Tire | |||
Min. turning radius | m | 7.5 | ||
Dimension (L*W*H) | mm | 9963×3231×3539 | ||
