TAIWAN SPINDLE
Using Taiwan famous brand high-speed, high-precision, high-rigidity spindle unit, strong axial and radial bearing capacity, speed
up to 8000rpm.
up to 8000rpm.
WORKBENCH
Experienced high frequencyQuenching heat treatmentEnsure that Workbenchhas hardness。

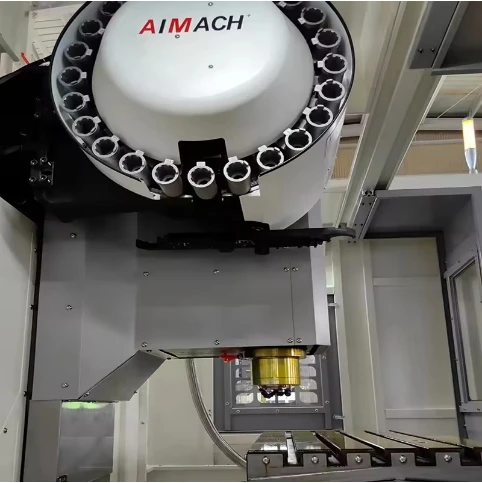

A library of 24 disc knives
Taiwan famous brand high speed, high precision, high rigidity spindle unit
Precision casting and precision machining
Precision assembly precision detection
Precision assembly precision detection

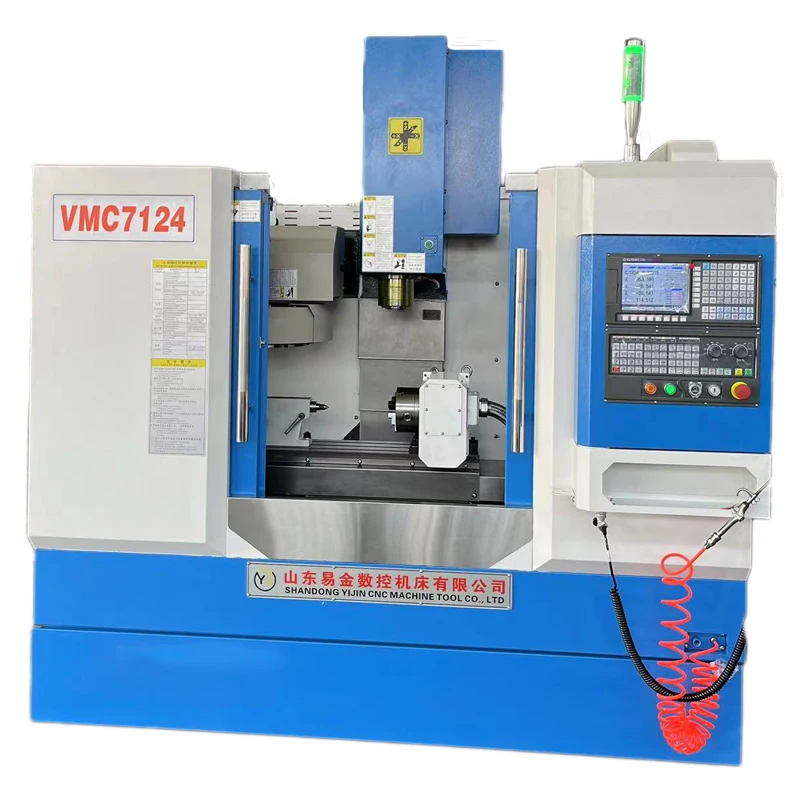

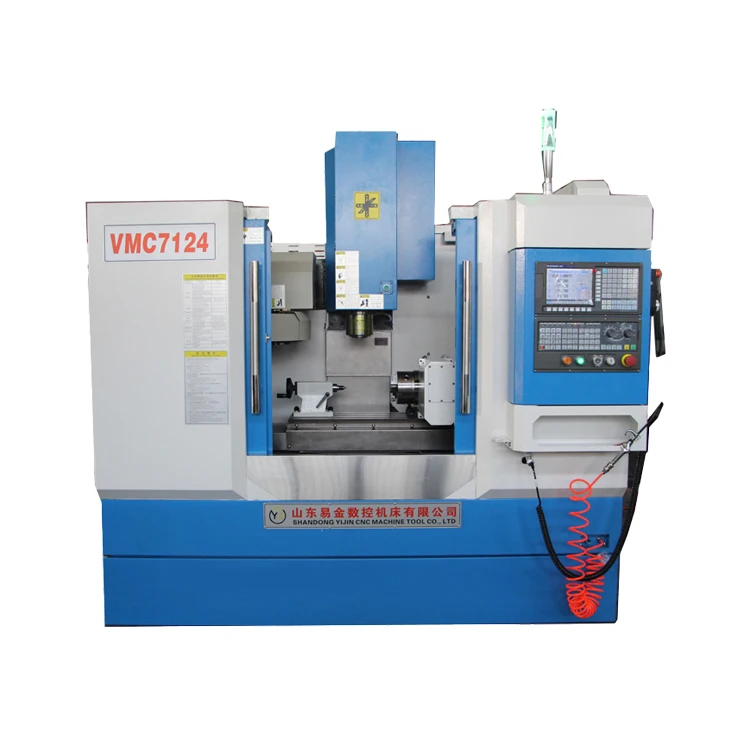

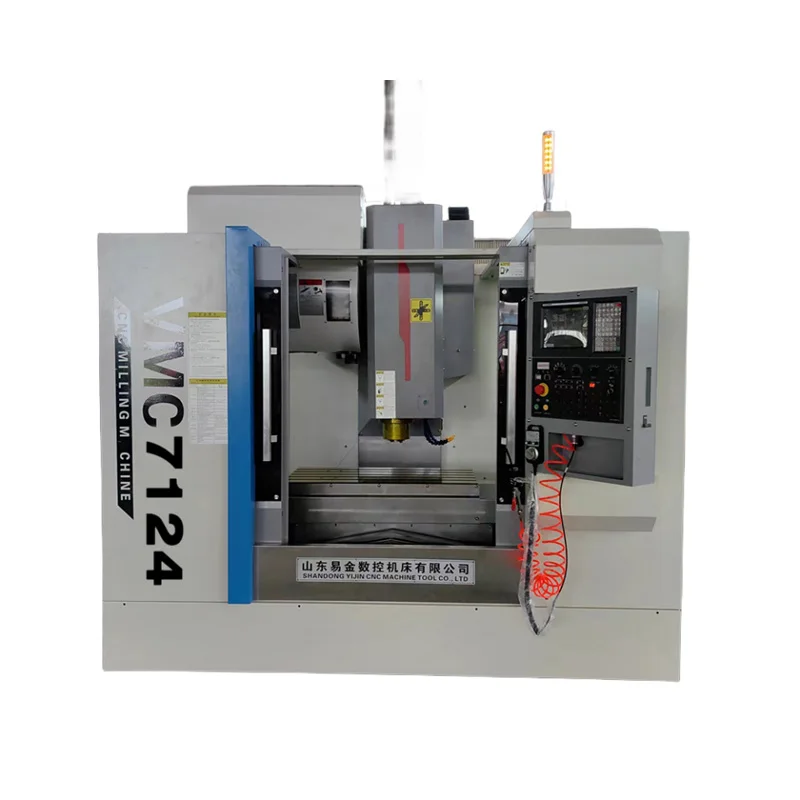

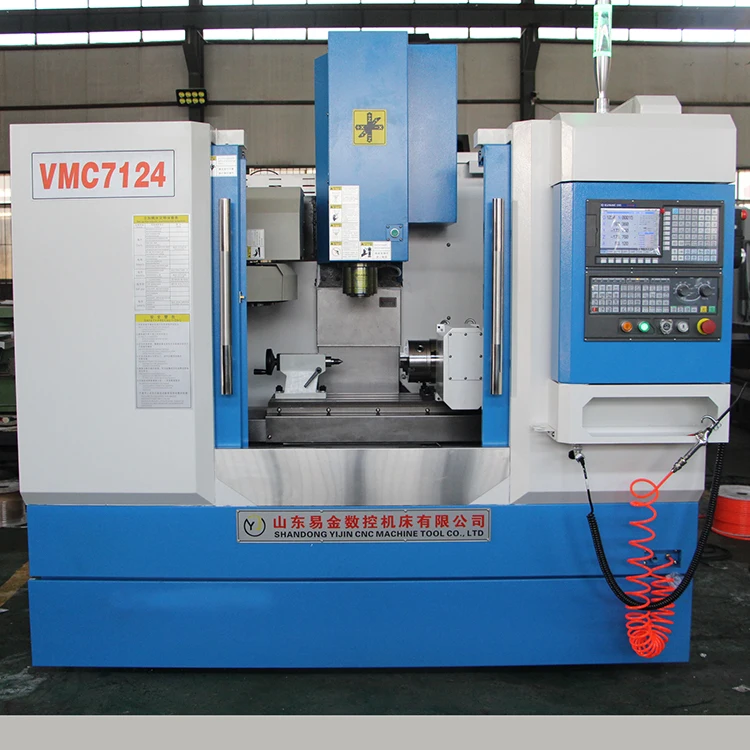

VMC7124
The feed axis of this machining center is controlled by X, Y, and Z coordinates, The spindle is driven by servo motor power, and
the capacity of the tool magazine is 24 disc type toolmagazines. Can achieve one-time clamping of complex parts such as various
discs, plates, shells, cams, molds, etc, Complete various processes such as drilling, milling, boring, expanding, reaming,
tapping, etc, Suitable for the production of multiple varieties, small and medium-sized batch products, it can demonstrate its
superiority in the processing of complex and high-precision parts.
the capacity of the tool magazine is 24 disc type toolmagazines. Can achieve one-time clamping of complex parts such as various
discs, plates, shells, cams, molds, etc, Complete various processes such as drilling, milling, boring, expanding, reaming,
tapping, etc, Suitable for the production of multiple varieties, small and medium-sized batch products, it can demonstrate its
superiority in the processing of complex and high-precision parts.
VMC7124 | VMC640 | VMC650 | |||
X/Y/Z axis travel (mm) | 520/320/430 | 600/400/400 | 900/460/480 | ||
Table size (mm) | 800*260 | 800*360 | 1000*420 | ||
Spindle end face to workbench (mm) | 80-510 | 80-510 | 120-600 | ||
Spindle center to column surface(mm) | 420 | 420 | 430 | ||
X/Y/Z axis rapid movement(m/min) | 24/24/20 | 24/24/20 | 24/24/20 | ||
Cutting feed mm/min | 1-10000 | 1-10000 | 1-10000 | ||
Max load (kg) | 200 | 400 | 400 | ||
t-slot (mm) | 3-18-90 | 3-16-90 | 3-16-90 | ||
Spindle diameter(mm) | 120 | 120 | 120 | ||
Spindle taper | BT40-120 | BT40-120 | BT40-120 | ||
Main motor power(kw) | 3.7 | 5.5 | 5.5 | ||
Weight (kg) | 2100 | 2100 | 3200 | ||
Dimensions(L*W*H)(mm) | 2200*1800*2250 | 1650*1390*1950 | 2400*2800*2550 | ||
Positioning accuracy(mm) | ±0.005/300 | ±0.005/300 | ±0.005/300 | ||
Repeat positioning accuracy(mm) | ±0.003 | ±0.003 | ±0.003 | ||
Spindle speed(RPM) | 8000/10000/12000 | ||||
Quality is the lifeblood of the enterprise, grasp the details, open innovation. The company invites to join and agent, willing to
work with our customers and strategic partners to create a better future together.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services
will be provided.
