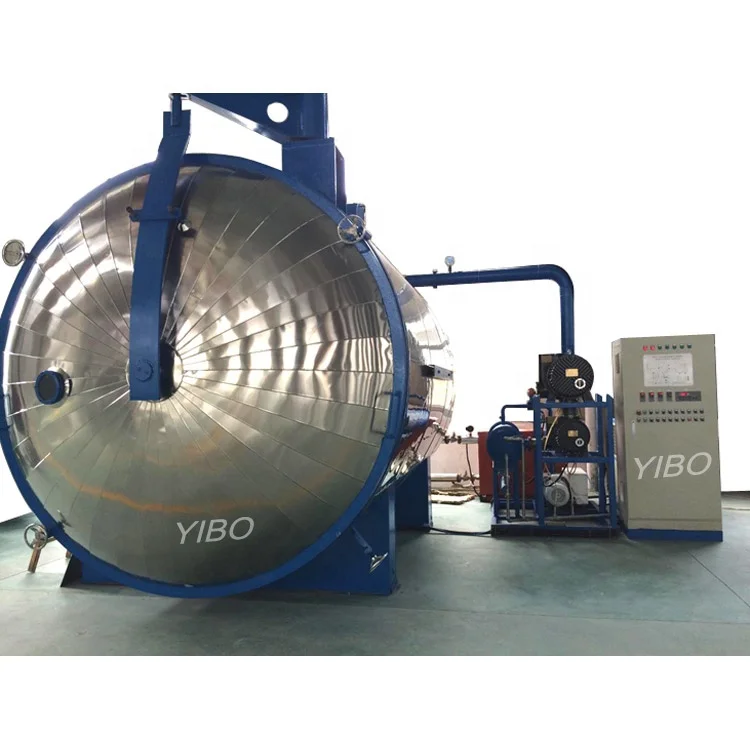

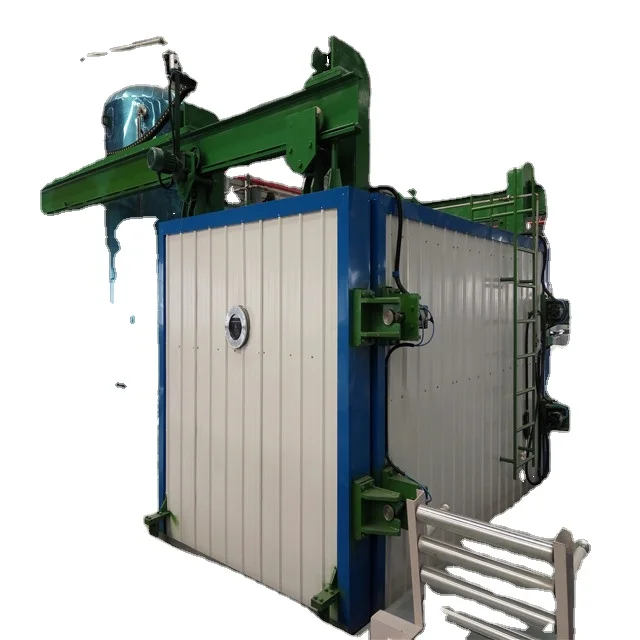

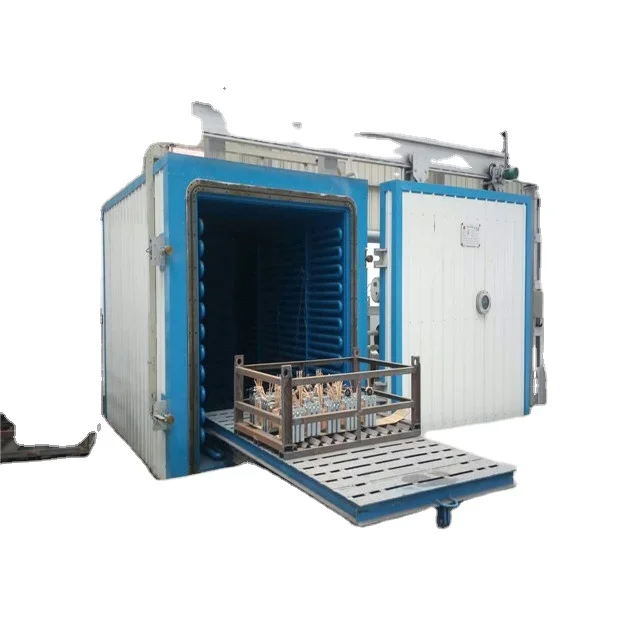

Custom Variable pressure vacuum drying furnace for transformer with less drying time and electric consumption

Vacuum Pressure Impregnation(V.P.I) is a process by which a fully wound electric apparatus stator of rotor is completely submerged in a Resin. Through a combination of dry and wet vacuum and pressure cycles, the resin is assimilated throughout the insulation system. Once thermally processed, the impregnated windings become a monolithic and homogenous structure.

The resulting benefits are;

Higher dielectric strength;

Increased mechanical strength;

Greater thermal inductivity;

Superior protection against the ingress of water, chemical and containments.

A proper global vacuum pressure impregnated winding will have superior characteristics, which will support a longer and more maintenance free life span.

III Main illustrations and parameters

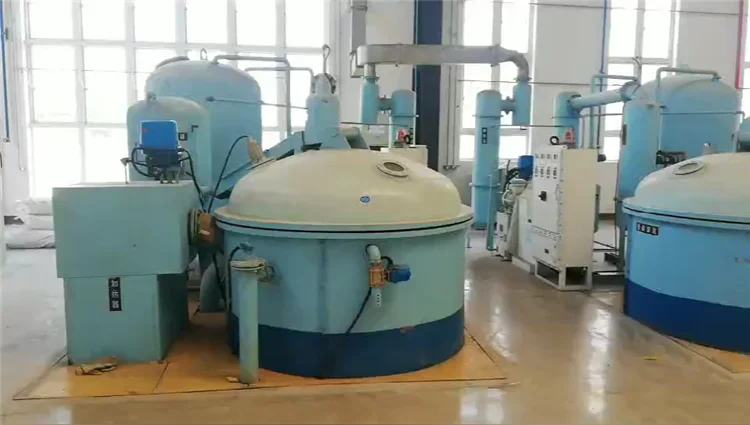

3.1 Vacuum-pressure impregnating tank system (2500 x 2500mm) vertical

3.1.1 Main parameters

3.1.2 Tank structure:

l Vertical type with inspection hole lamp and inspection window.

l Liquid level display

l Air inlet and safety valve.

l Temperature: Room temperature 80℃

l DN108 unloading mouth on the bottom

l Safety interlocking system, one set

l overpressure alarm and automatic decompression valve device, one set

3.2 Paint storage tank system

 Tank structure

l Vertical type with inspection hole lamp and inspection window.

l Liquid level display

l DN20 stainless steel ball valve on the sample outlet and inlet parts,

l Magnetism paint filter 200 mesh.

 V.P.I. PROCESS EXPLAINED

1. Place stator or rotor inside impregnation vessel.

2. Securely lock tank and initate vacuum process .

3. Once pressure is develped to 50mbar, the vacuum pump allows resin to enter impregnation vessel.

4. Once the unit is submerged in resin, a wet vacuum is created.

5. Upon completion of vacuum, the electrical apparatus is pressurised at 6 bar/84psi.

6. VPI process duration is relative to the number of units of rotor/stator/coils and sizes.

7. Once the VPI process is completed , a reverse vacum is created in the resin tank to empty the impregnation vessel.

8. The impregnation unit is then left to drip, pre-curing.

9. A full printout of the process is generated including time, date, duration of process, pressure applied , etc.

10. The information is stored in AIMS( avonmore information management system)

Permanent magnet motor paint dipping equipment, electric vehicle motor paint dipping equipment, new energy motor vacuum pressure paint dipping machine, hydrogen energy graphite board vacuum dip equipment, hydrogen energy graphite sheet dip equipment.vacuum dipping equipment.

YIBO after-sale service system:

Field installation, commissioning and training

Online support Free spare parts Video guidance
