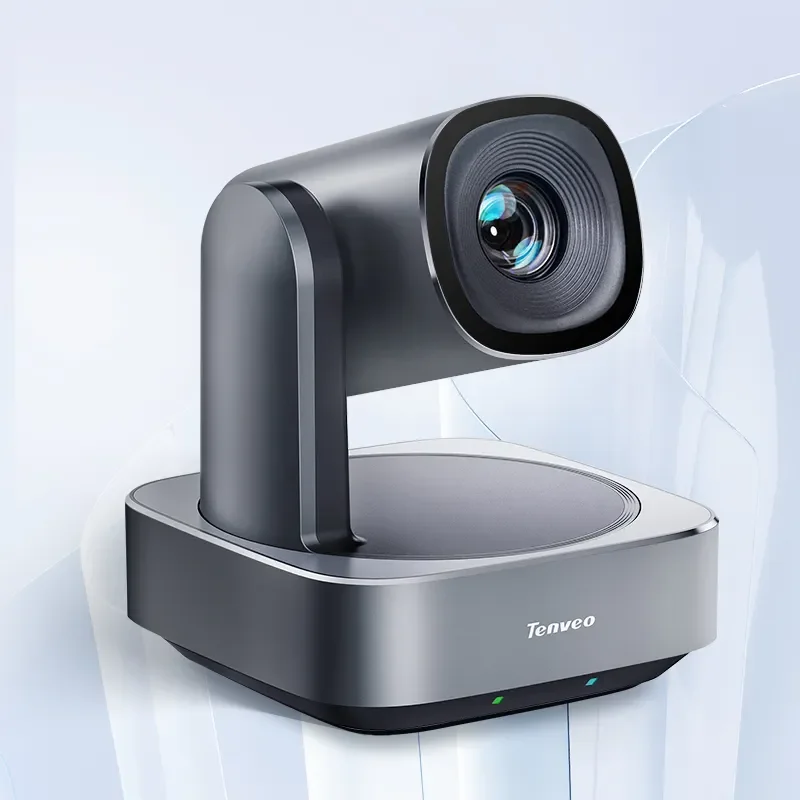

Tenveo video conference system VL12U KB200 ptz optics 12x camera 8.29MP HDMI, USB3.0 C, RJ45 and 4D joystick controller for live
- Category: >>>
- Supplier: Sz Tenveo Video Technology Co. Ltd.
Share on (1601287979303):
Product Overview
Description
Products Description
Main Features
* 4K UHD SONY Sensor
* 12X optical zoom
* Multi- interfaces: USB/HDM1/POE
* Wide Horizontal Angle

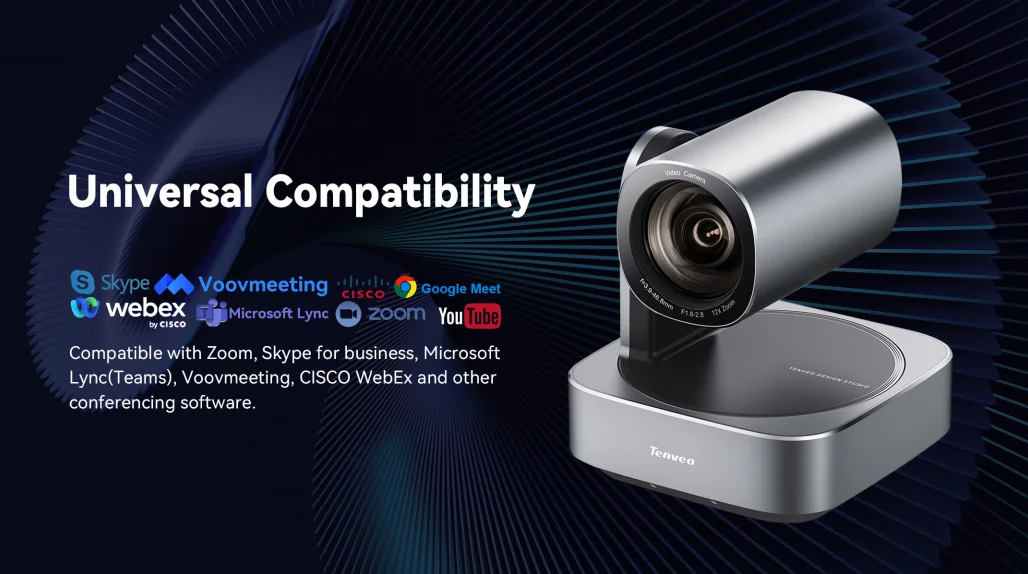

* Universal Compatibility
Product Paramenters
CAMERA | USB3.0/HDM1 PTZ camera with 12x zoom | |
Tenveo Vloop 4K camera | TEVO-VL12U | |
Image Sensor | SONY IMX415 1/2.8'' CMOS | |
Effective pixels | 8.29MP, 16:9 | |
Lens | f=3.9-46.8mm | |
Aperture | F1.6-F9.6 | |
Video Format | HDMI(4KP@30/25fps, 1080P@60/50/30/25fps, 720P@60/50/30/25fps), USB3.0(3840*2160P@30fps, 2560*1440P@30fps, 1920*1080P@30fps, 1280*720P@30fps, 640*480P@30fps, 320*240P@30fps) YUV2/NV12/H.264/H.265/MJPG | |
Optical zoom | 12x optical zoom | |
Horizontal Angle | 70.82°(W)-6.48°(T) | |
Vertical Angle | 47.72°(W)-73.66°(T) | |
Diagonal Angle | 78.58°(W)-7.42°(T) | |
Backlight Compensation | Support | |
PTZ Parameter | ||
Pan/Tilt Rotation | ±175°， -90°~+90° | |
Pan Control Speed | 0.1-80°/Sec | |
Tilt Control Speed | 0.1-60°/Sec | |
Preset Number | 255 presets by Pelco D, 32 presets by Pelco-P, 7 presets by Visca(10 presets by remote controller) | |
SNR | >50dB | |
Focus | Auto/Manual | |
General Parameter | ||
Operation Systems | Windows 7/8.1/10/11; Andriod, Mac OS 10.10 or higher Linux(Require to support UVC) | |
Input Voltage | DC 12V | |
Input Current | 1.0A(max.) | |
Power Consumption | 13W(max.) | |
Store Temperature | -10℃~+60℃ | |
Store Humidity | 20%~90% | |
Working Temperature | -10℃~+50℃ | |
Working Humidity | 20%~80% | |
Dimension | 260*217*197mm(After Packing) | |
N.W./G.W. | 1.5kg/2.5kg | |
Accessory | 1*camera, 1*USB cable, 1* powder adapter, 1*wall mount, 1* manual | |
Warranty | 3 years | |
I/O Interface | ||
Video interfaces | HDM1, Type-C, Ethernet | |
Video Compression Format | H.264, H.265, MJPG, YUV2, NV12 | |
LAN | 10M/100M adaptive Ethernet port, Support POE IEEE802.3af | |
Network Protocol | RTSP, RTMP, ONVIF, GB28181, Support Visca Over IP | |
Control Protocol | VISCA/Pelco-D, Pelco-P; Baud Rate: 9600/4800/38400/2400 | |
Control Interface | RS232(Input & Output), RS485, Type-C(UVC1.1) | |
Digital Noise Reduction | 2D&3D Noise Reduction | |
Exposure | Auto/Manual | |

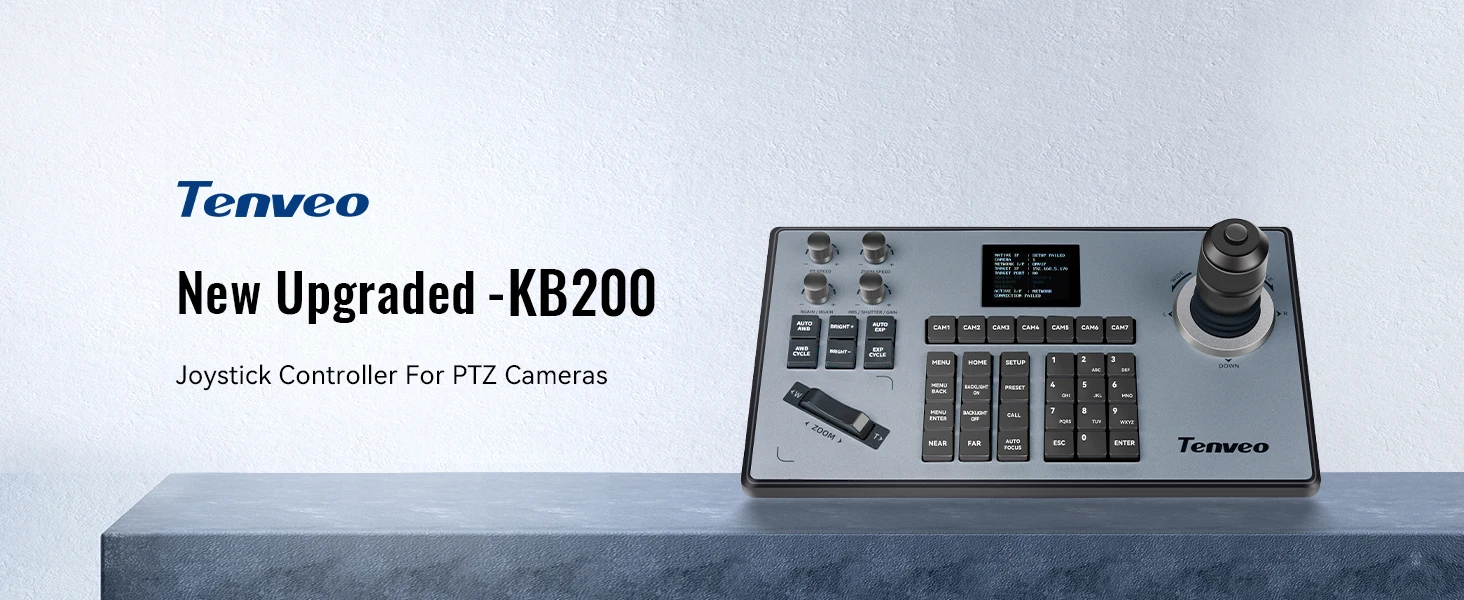

Product Model No. | KB200 | KB200PRO | |
CHIP | HIS3536DV100 | HIS3536DV100 | |
SYSTEM | Linux | Linux | |

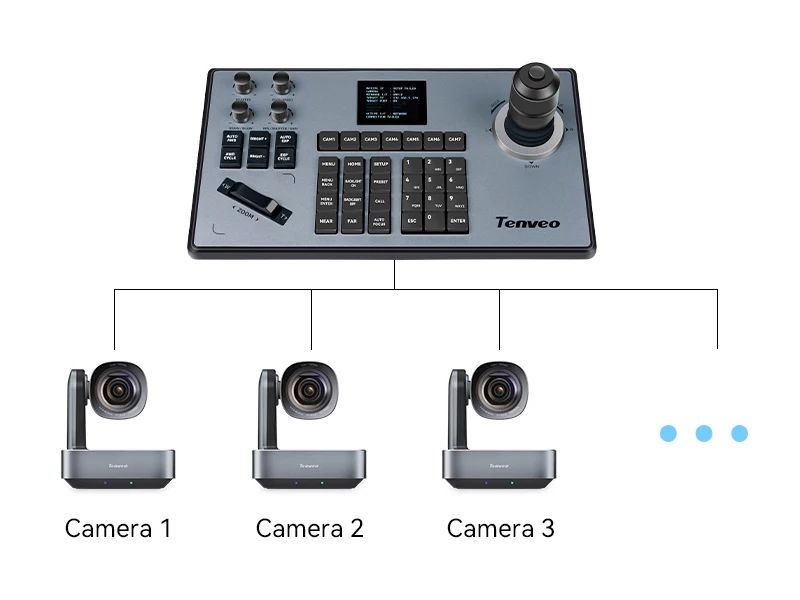

Max equipment | 999 | 999 | |
Decoding | / | H.265, H.264 | |
RESOLUTION | MAX 1080P for 1 channel:1920*1080@30fps | MAX 1080P for 1 channel:1920*1080@30fps | |
PROTOCOL | ONVIF, Full VISCA,NDI,Pelco-P,Pelco-D | VISCA over IP, NDI Control,Pelco-P,Pelco-D, Sony VISCA Compatible, ONVIF | |
Camera Control | / | Exposure Selection: YES White Balance: YES Backlight Control: YES Display status of WB, Iris, Gain, Shutter, Focus: YES Focus Model Selection: YES Auto Focus/Manual Focus: YES | |
User Interfaces | / | Display: LED Speed Control: YES Zoom Rocker: Yes Joystick Zoom Ring: Yes Programmable function buttons: 6 | |

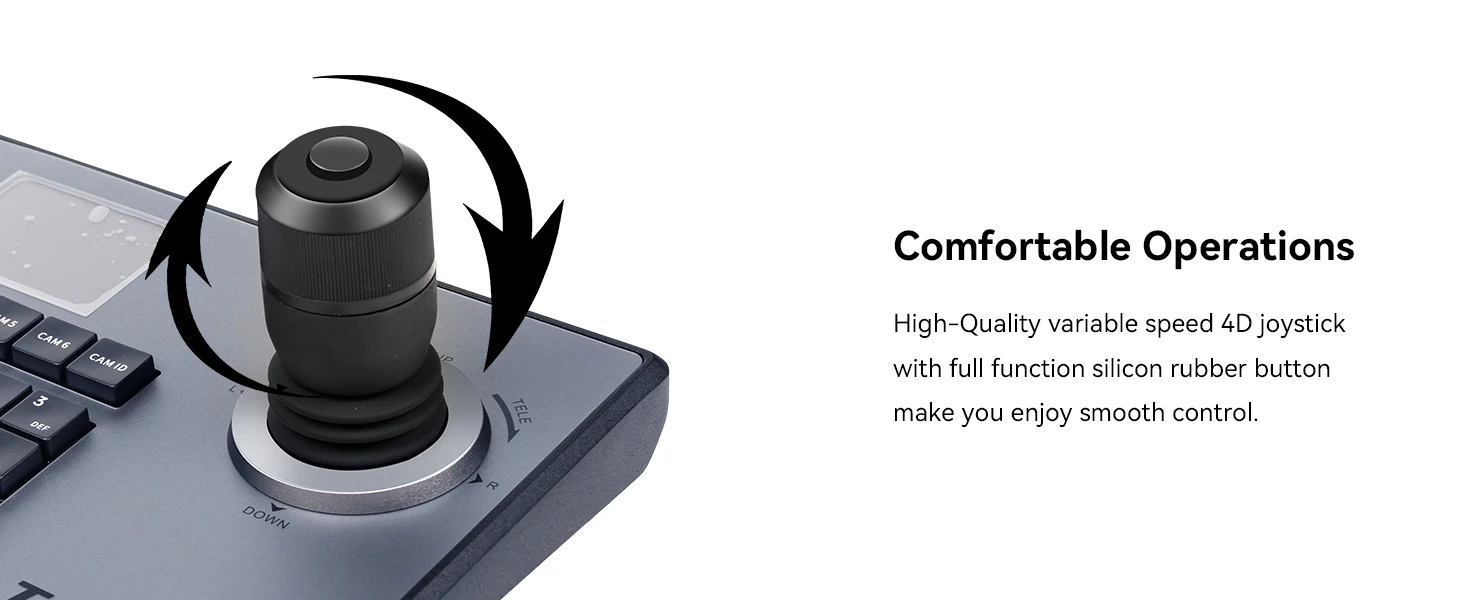

Joystick | 4D | 4D | |

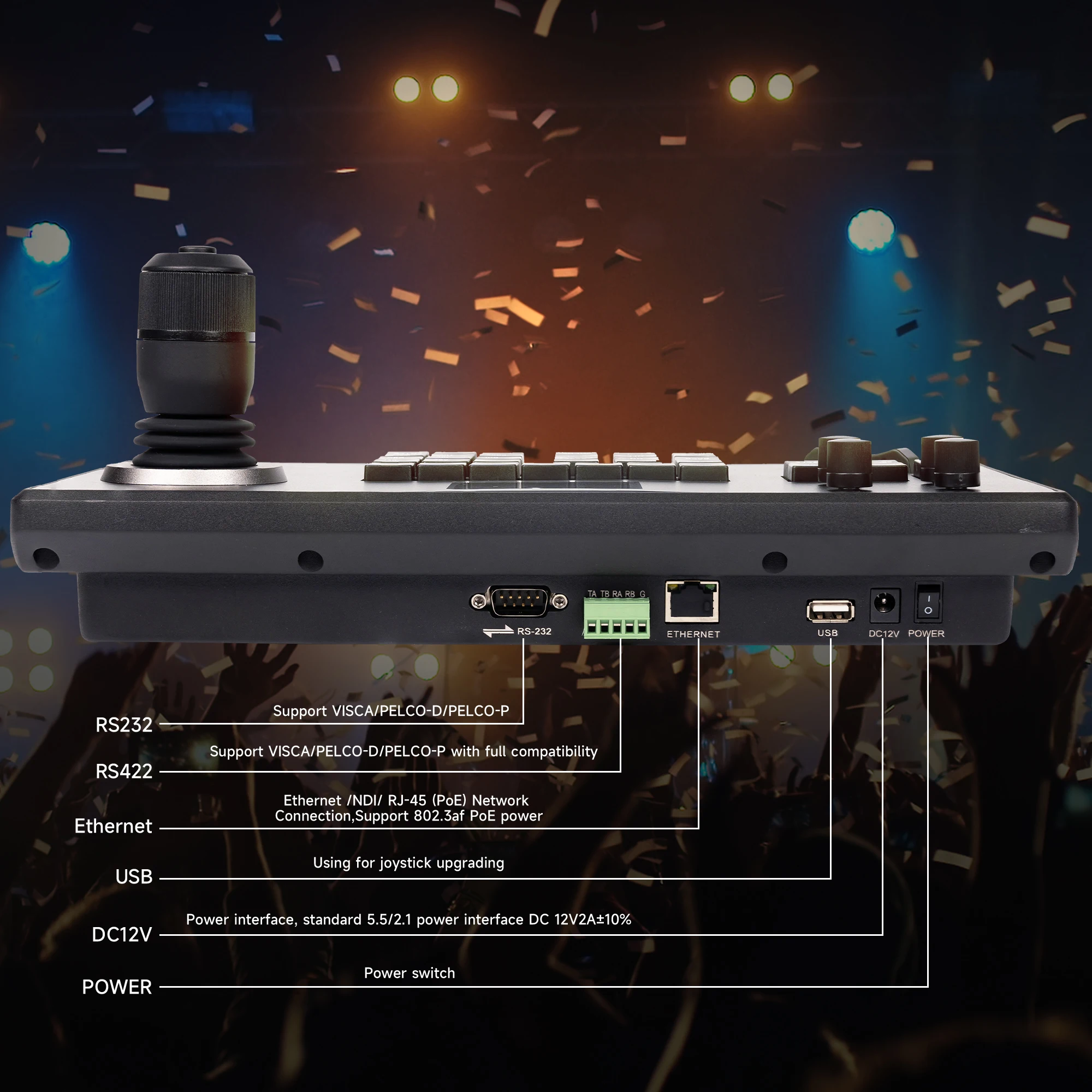

Output | RS232, RS422, RJ45 | RS422(Reserved), RS232(Development port), RJ45 | |
Accessories | Knob, Silicone button | Knob, Silicone button | |
Beep | On/off | On/off | |
Display | TFT LCD 320*240 | TFT LCD 720*1280 | |
Max camera control | Max 255 | Max 255 with multiple protocols including NDI/IP | |
Power consumption | ≤5W | ≤5W | |
POWER | DC12V-2A POE | DC12V-2A POE | |
Product Size | 321*181*116mm/354*221*135mm (before/after packing) | ||
Product Weight | 1.68kg/2.26kg( (net / gross weight)) | 1.83kg/2.45kg( (net / gross weight)) | |
Details Images

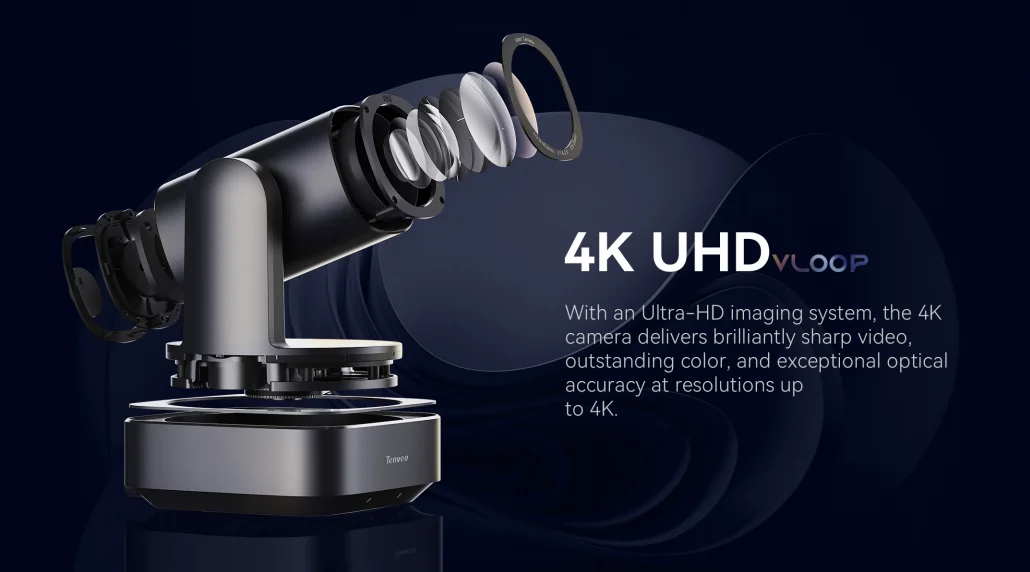

4K UHD
With an Ultra-HD imaging system, the 4K camera delivers brilliantly sharp video, outstanding color, and exceptional optical accurancy at resolutions up to 4K.

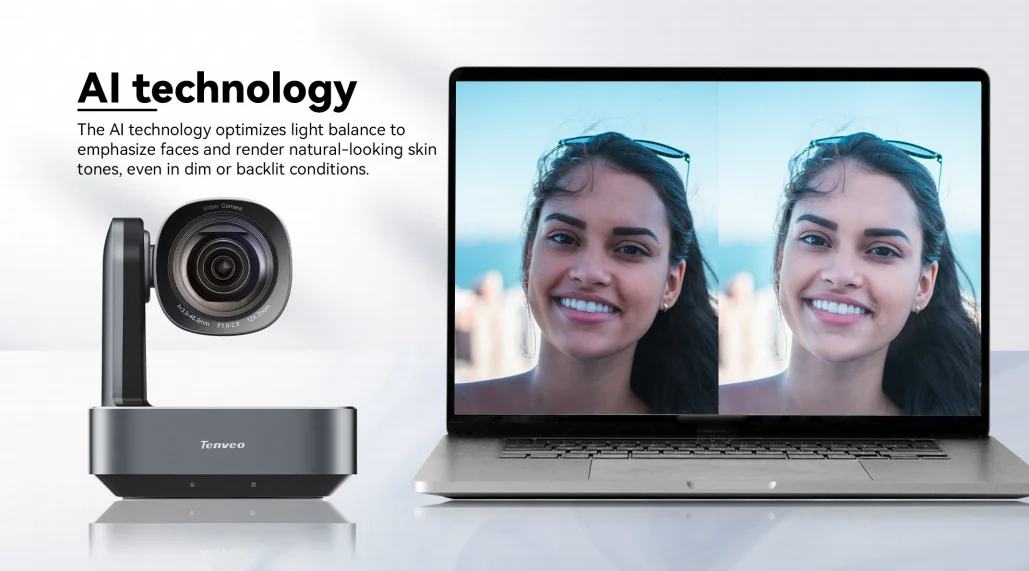

AI Technology
The AI technology optimizes light balance to emphasize faces and render natural-looking skin tones, even in dim or backlight conditions.

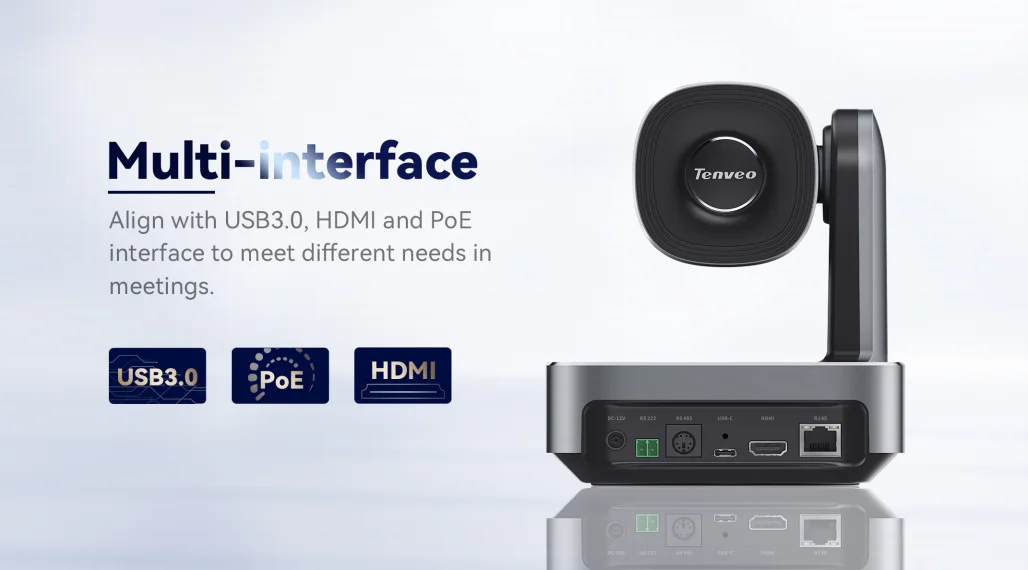

Multiple Interfaces
Align with USB3.0, HDM1 and POE interface to meet different needs in meetings.

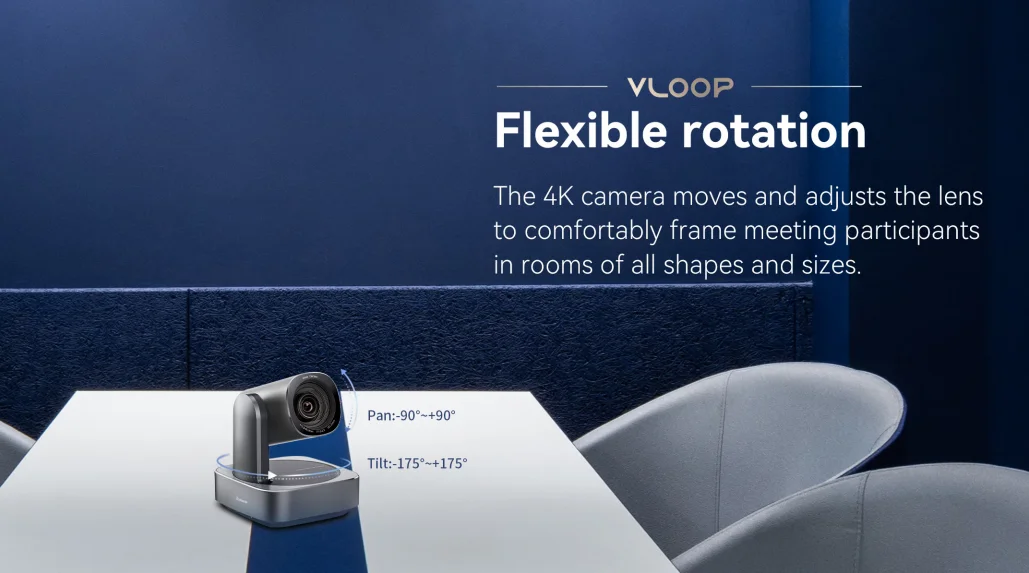

Flexible Rotation
The 4K camera moves and adjusts the lens to comfortably frame meeting participants in rooms of all shapes and sizes.
Application Scenarios
Application Scenarios & Installations
Product Packaging & Shipping
Company Profile
FAQ
Q1: Which kind of software does your camera compatible with?
A:Our cameras are compatible with WebEx, Skype for business ,Zoom, Join me, Vidyo, Lync, Gotomeeting, Blue Jeans, Cisco, Vmix, etc.
Q2: Is your video conferencing camera quality certified?
A: Yes. We can provide the professional certificates for our video conferencing camera, like FCC, CE, ROHS, CSA, etc.
Q3:What kind of cameras should I use?
A: It depends on your meeting room spaces, we provide entry-level cameras for huddle rooms,and we also provide 3x, 10x, 20x and 30x PTZ cameras for larger meeting rooms.
Q4:Is it easy to operation?
A:Yes, easy to Plug-in, Driver free, Plug&Play
Q5 :What is your payment term?
A: We accept Paypal, WU, T/T, L/C at Sight and Alibaba Trade Assurance.
Q6:What is your warranty period?
A: The warranty period is 2 years
Q7:Can I put my own logo on products?
A:Yes,We Provide OEM/ODM service, We accept customer’s design, logo,lable,package .etc
Q8: How about your delivery time?
A: We have Samples in stock for the same day shipping, For bulk order, Please contact us for the delivery time.
Q9:Do you test all your video conferencing camera before delivery?
A: Yes, We have a complete quality assurance control system to ensure full-quality products before delivery.
Q10: Can the camera be mounted upside down on the ceiling?
A: The PTZ conference camera is designed for an upright, vertical orientation and installation on a flat, level surface or tripod. The webcam support the desktop, tripod and PC.
A:Our cameras are compatible with WebEx, Skype for business ,Zoom, Join me, Vidyo, Lync, Gotomeeting, Blue Jeans, Cisco, Vmix, etc.
Q2: Is your video conferencing camera quality certified?
A: Yes. We can provide the professional certificates for our video conferencing camera, like FCC, CE, ROHS, CSA, etc.
Q3:What kind of cameras should I use?
A: It depends on your meeting room spaces, we provide entry-level cameras for huddle rooms,and we also provide 3x, 10x, 20x and 30x PTZ cameras for larger meeting rooms.
Q4:Is it easy to operation?
A:Yes, easy to Plug-in, Driver free, Plug&Play
Q5 :What is your payment term?
A: We accept Paypal, WU, T/T, L/C at Sight and Alibaba Trade Assurance.
Q6:What is your warranty period?
A: The warranty period is 2 years
Q7:Can I put my own logo on products?
A:Yes,We Provide OEM/ODM service, We accept customer’s design, logo,lable,package .etc
Q8: How about your delivery time?
A: We have Samples in stock for the same day shipping, For bulk order, Please contact us for the delivery time.
Q9:Do you test all your video conferencing camera before delivery?
A: Yes, We have a complete quality assurance control system to ensure full-quality products before delivery.
Q10: Can the camera be mounted upside down on the ceiling?
A: The PTZ conference camera is designed for an upright, vertical orientation and installation on a flat, level surface or tripod. The webcam support the desktop, tripod and PC.
