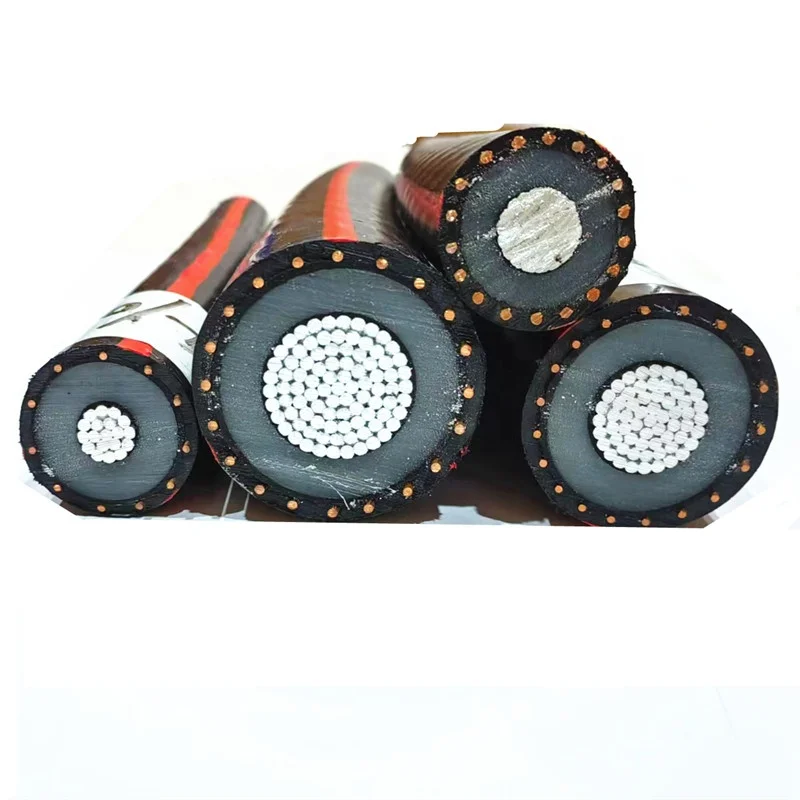

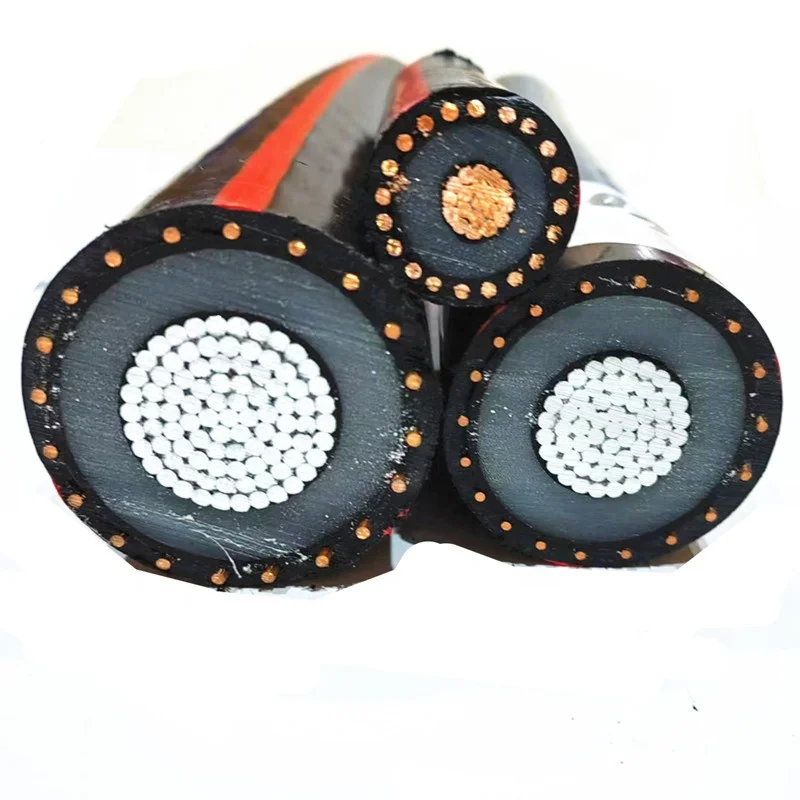

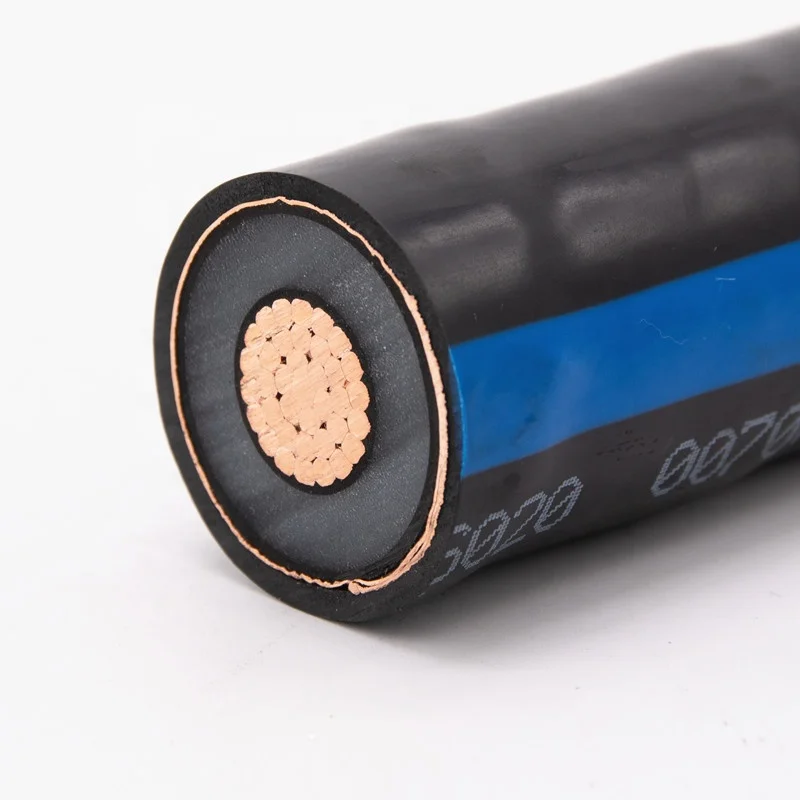

UL CSA 5KV 46KV MV Primary Shielded and Concentric Neutral Power Cable Underground Use 133% 100% 1/0 2/0 awg 250mcm

Top 10 Cable manufactuer in China.
Largest Rubber cable manufacturer in China.
Leading ESP cable manufacturer.
Professional OEM manufacturer.
With UL,cUL, CSA TUV,KEMA,CE,BV,PSB,SABS,MSHA,GL,NKK,KR,DNV,CCS certifications.
With TUV TYPE TESTING REPORT.

With ISO9001,ISO14001,ISO45001 syetem certifications.
ISO 17025 standard and CNAS approval laboratory.

APPLICATIONS

URD - TRXLPEMLPE insulated cables are designed and manufactured to meet the applications of primary underground distribution suitable for use in wet or dry location, direct burial, underground duct, and exposed to sunlight, To be used at 15kV upto 35kV at conductor temperatures not to exceed 90 deg. C for normal operation.

SPECIFICATIONS

TRXLPEMLP insulated URD cables meets or exceeds all applicable requirements of thefollowing standards, and guaranteed all cables manufactured and tested under this standards.

- ANSIIICEA S94-649

- AEIC CS-8

- ASTM B-3, ASTM B-8, ASTM B-230 & ASTM B-231

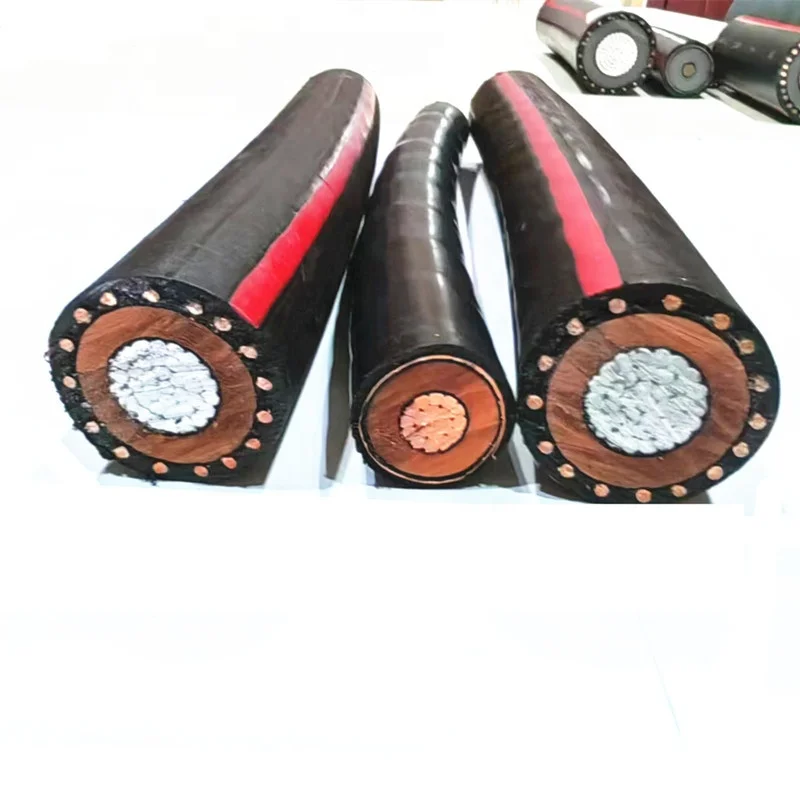

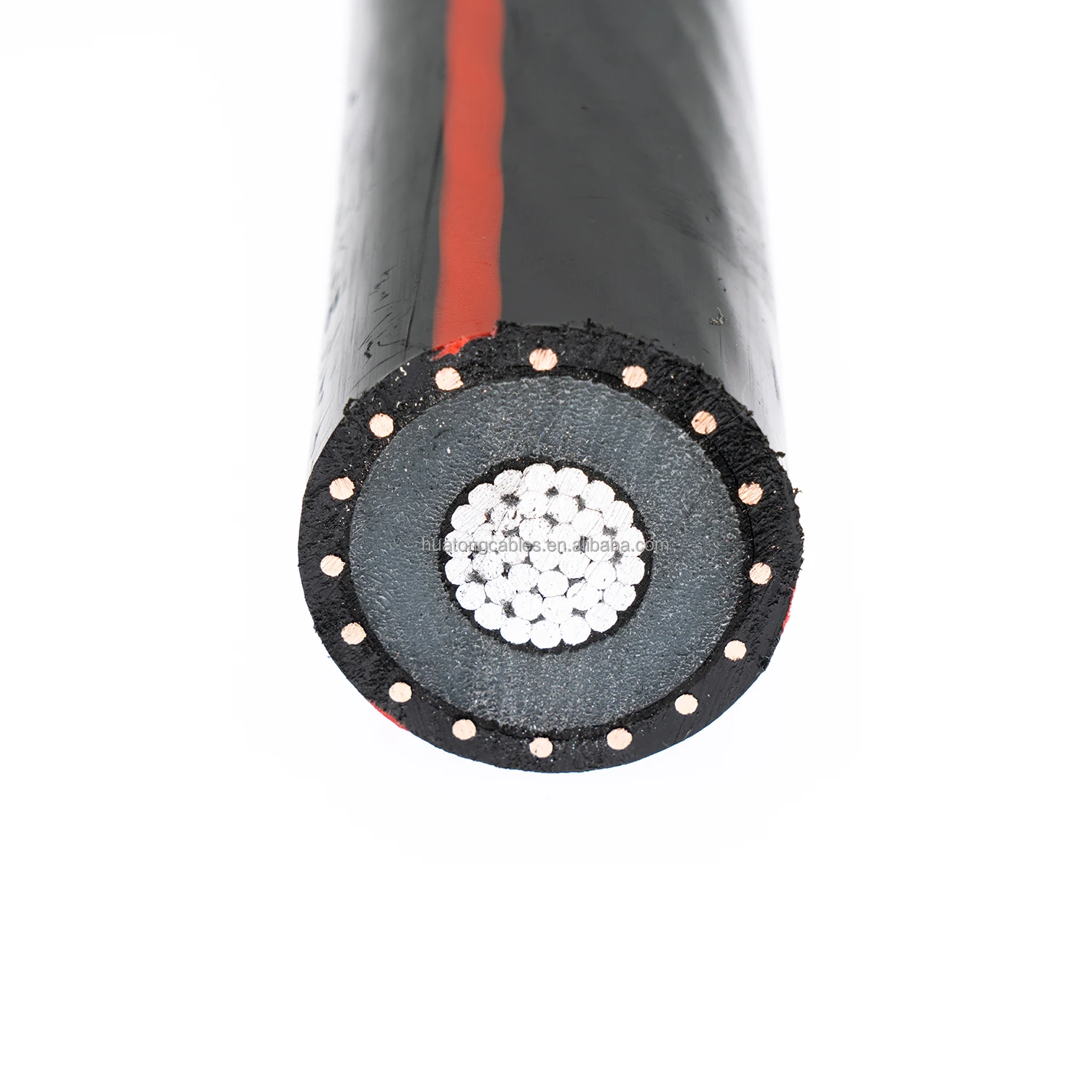

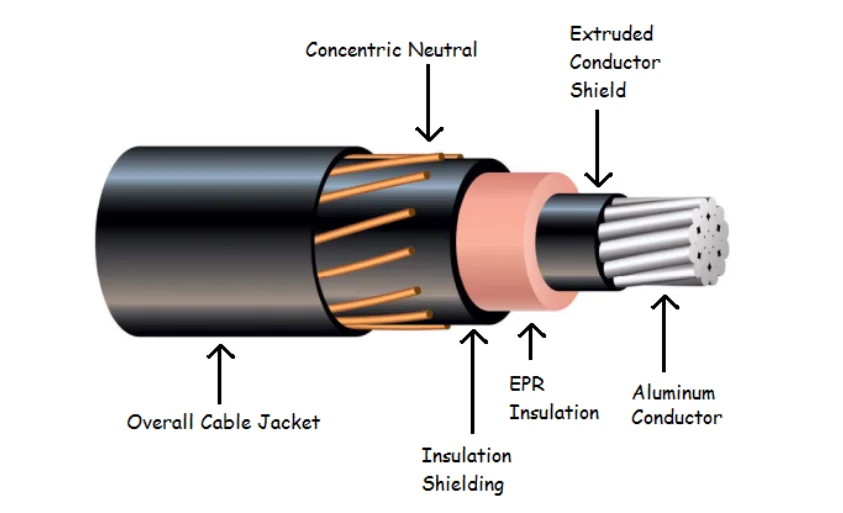

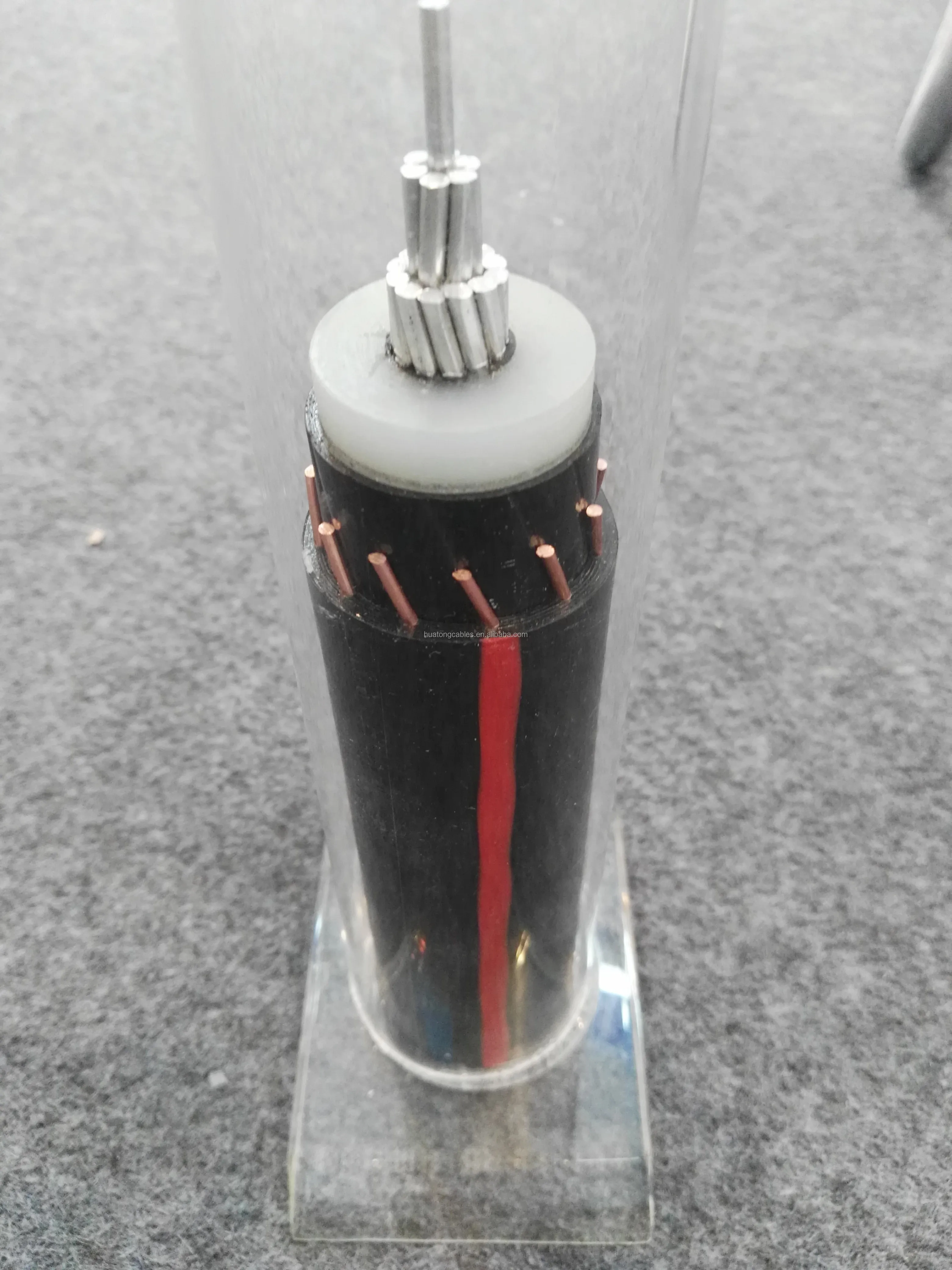

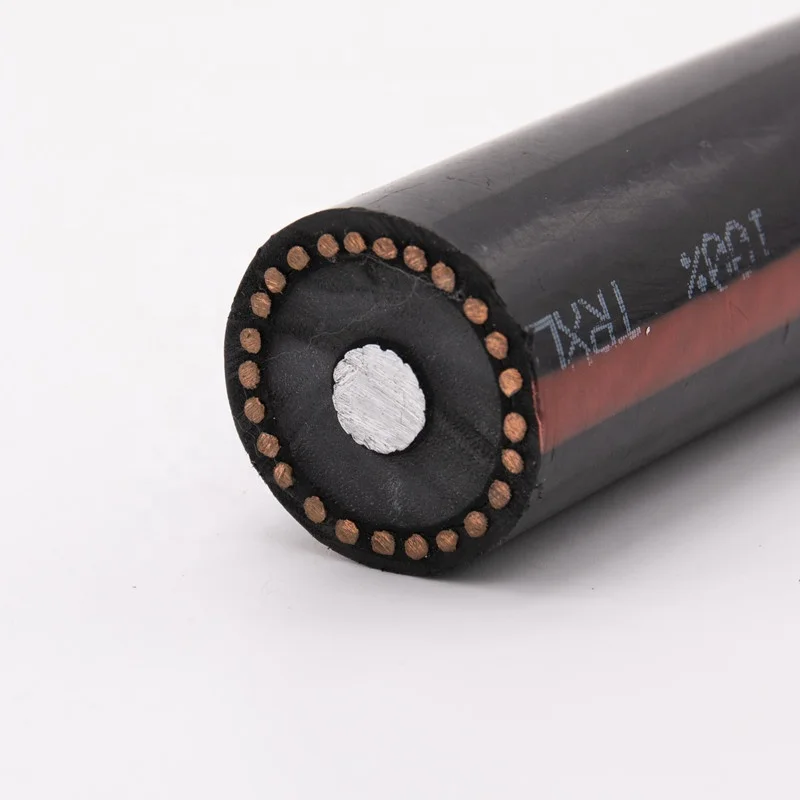

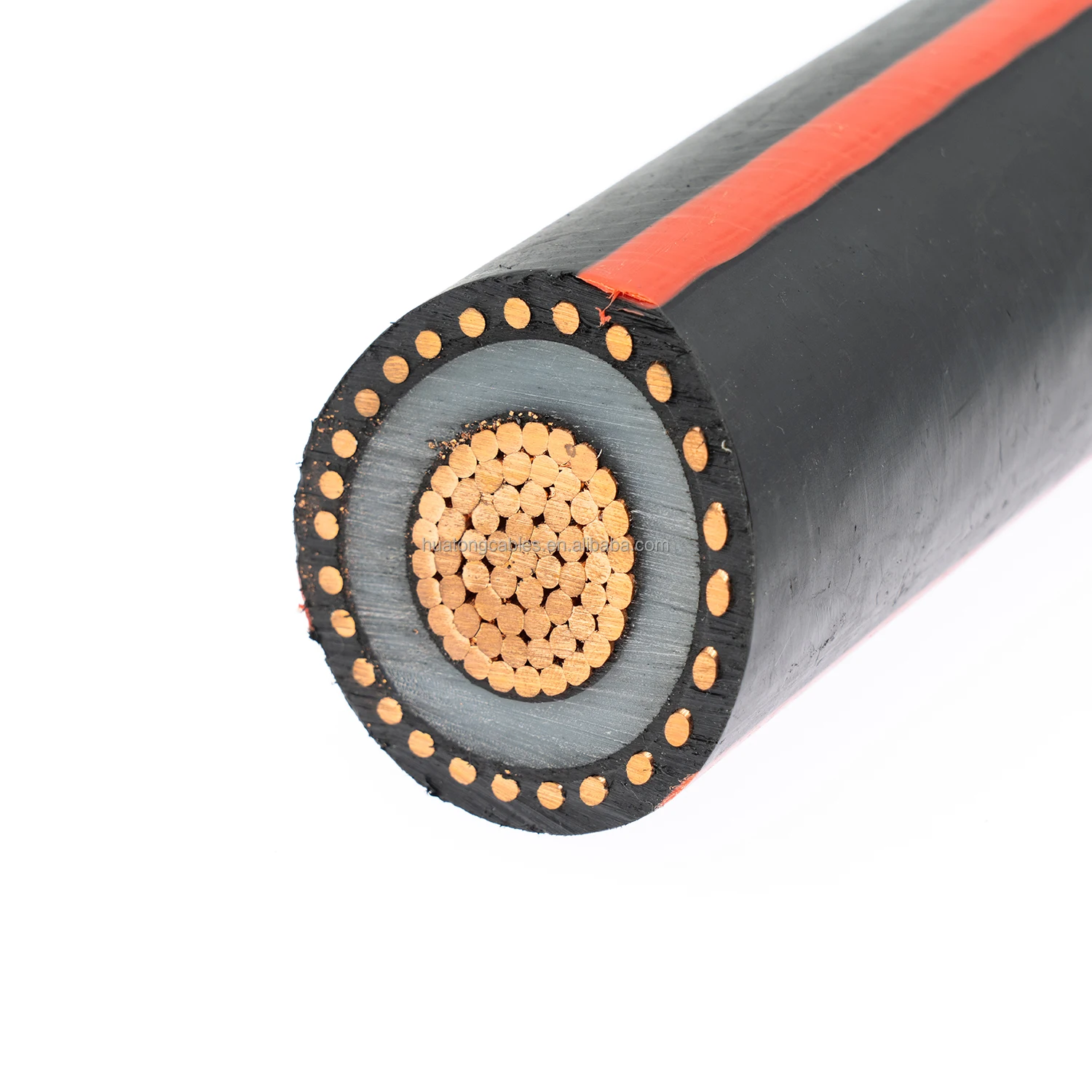

CONSTRUCTION

Conductor : Bare aluminium or copper, stranded class B compressed stranding

Conductor Shield :Extruded semi-conducting compound

Insulation : TRXLP (TreeRetardant XLPE) or XLPE

Insulation Shield : Extruded semi-conducting compound

Concentric Neutral : Uncoated copper concentric neutral wires (coated copper are optional)

Encapsulated Jacket : Non-conducting LLDPE embedded jacket with extruded red stripes.

PVC or Semi-conducting jacket are available upon request

MAXIMUM CONDUCTOR TEMPERATURE

Normal continuous at 90 ℃, Overload at 130  ℃ and Short circuit at 250   ℃

FEATURES & BENEFITS, OPTIONS

- Triple extruded construction by dry curing process guarantees excellent quality of cables

- TRXLPE insulation offers proven superior life span than conventional XLPE cables

- Triplex type is optional, it brings you saving installation cost

- Strand-filled conductor & Water-blocking jacket is available upon request

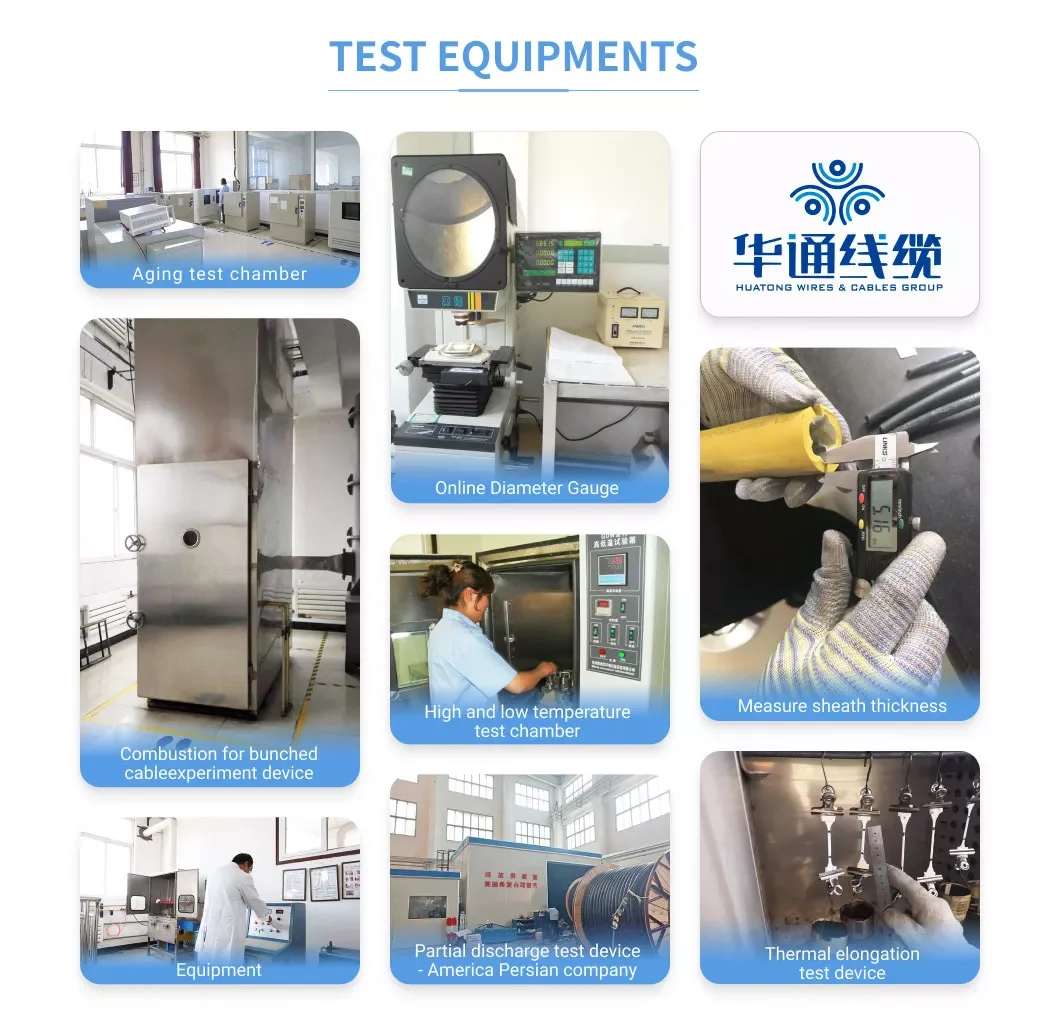

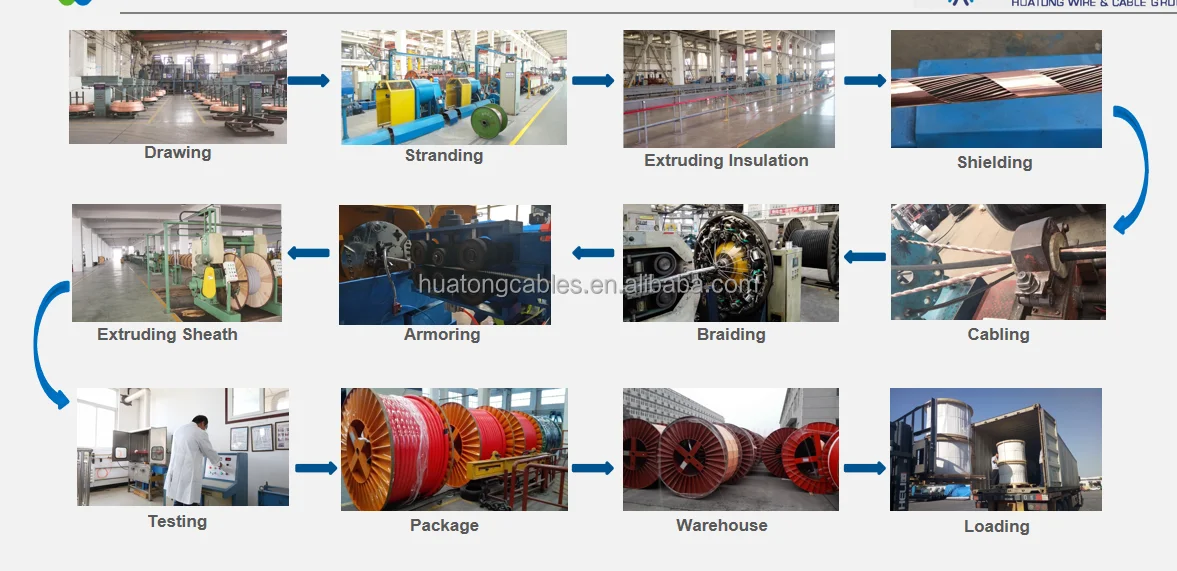

Strict Quality Control

Process

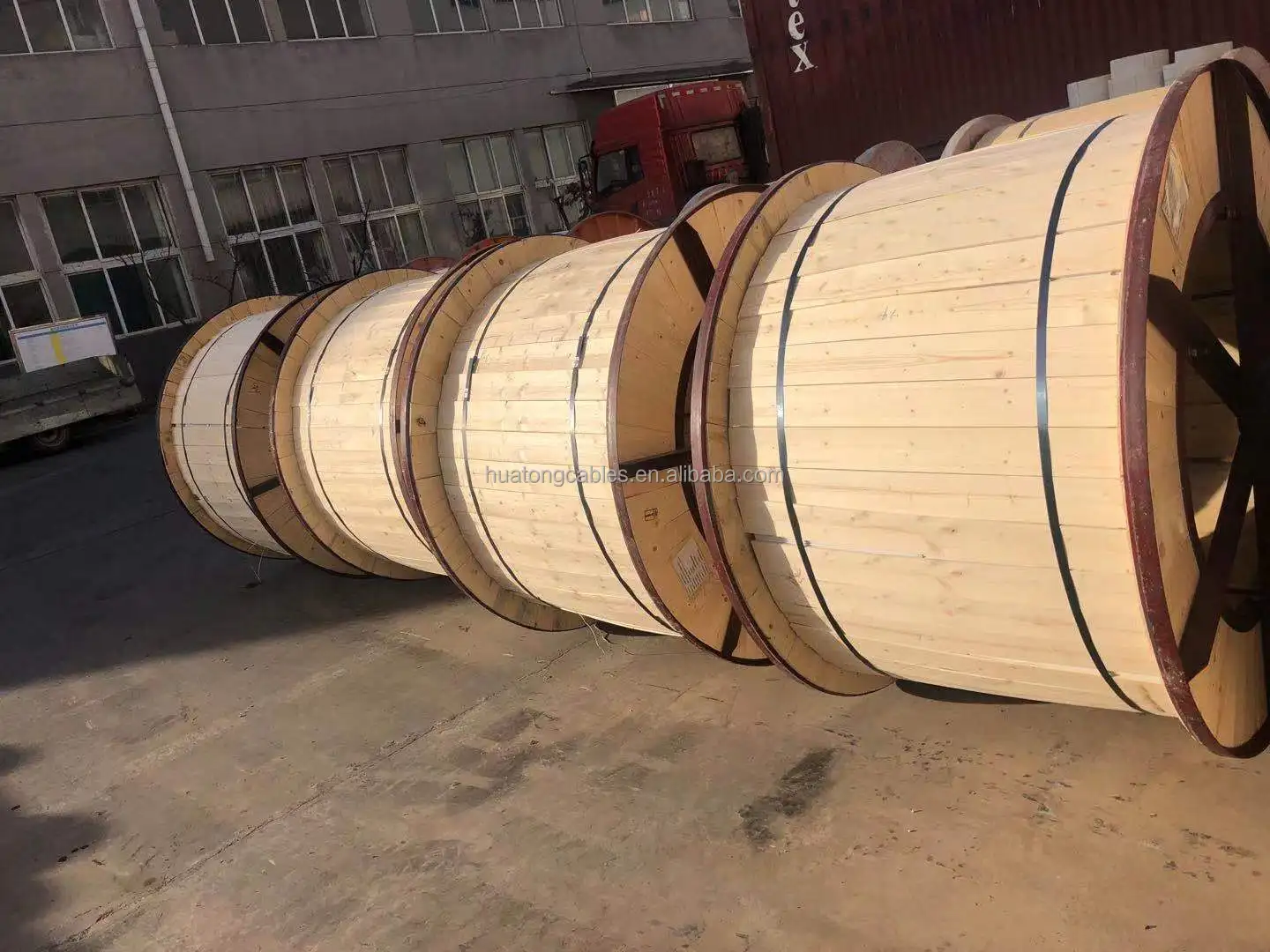

Our cables are packed in standard package that fit for long distance road transportation

and shipping. We ensure our customers can receive the undamaged cables in good condition.

1.30 years production experience and 22 years export experience .

2.Products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL etc

3. OEM service available based on official & legal authorization.

4.Strict quality control system.

5.Rapid delivery and feedback  Faster lead time than our competitors.

6.Excellent quality with reasonable price.

7. Strong technical support (technical data, drawing, etc.)

8.Professional teamwork service for you actively.

9.Stock available, Free sample is available.

(1).When can I get the price?

We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price,please call us ortell us in your e-mail so that we will regard your inquiry priority.

(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.

(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express  account or prepay us if you do not have an account.

(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.

Welcome to contact me for more information!
