Product Overview
Description
Product Description

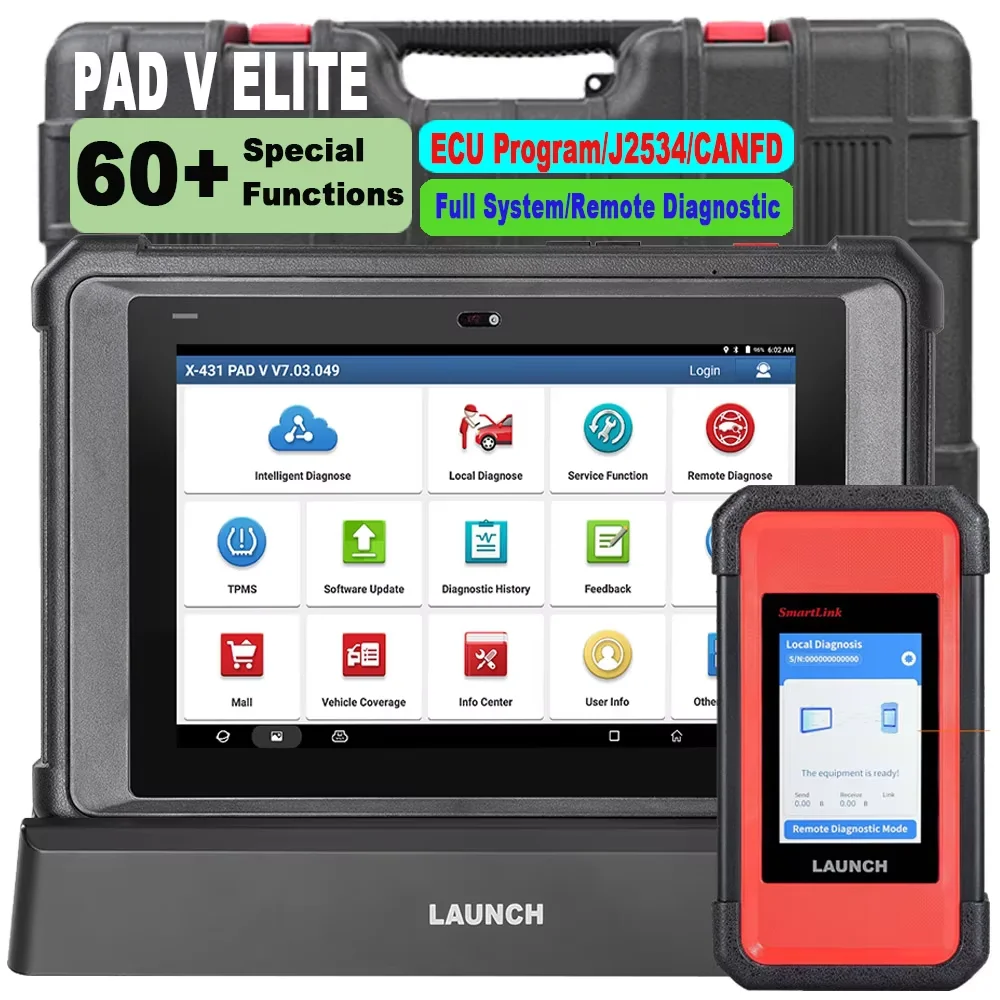

X-431 PAD V is a high-end comprehensive diagnostic scanner with charging base newly developed on the basis of Android 7.1. It supports dual 2.4GHz & 5GHz Wi-Fi communications, with features such as wide vehicle model coverage, powerful diagnostic functions, and accurate test data. Its IP65 case has exceptional damages resistance for water and dust, which will make workshop work easier and more comfortable. All these unique features will offer you a luxury experience of vehicle diagnosis.
Product Parameters | ||||||||
X-431 PAD V | SmartLink C | |||||||
CPU | 2.0 GHz 8-core | OS | Linux | |||||
OS | Android 7.1 | CPU | Cortex-A7+Cortex-M7 | |||||
Memory | 4GB | Screen | 3.5’touch screen 320*480 | |||||
Storage | 128GB | Memory | 256M | |||||
Screen | 10.1 inch Gorilla Glass | Storage | 8GB | |||||
Resolution | 1920*1200 | WiFi | Dual Band 2.4&5GHz | |||||
Camera | Front 8 Megapixels Rear 13 Megapixels | Diagnostic communication | WiFi&BT &USB | |||||
WI-FI | Dual Band 2.4GHz&5GHz | Working Temperature | 0℃~50℃ | |||||
Diagnostic communication | Wi-Fi/BT/USB | Dimension | 204*110*45 mm | |||||
Dimension | 320x211x46(mm) | |||||||
Features
1. Full vehicle system coverage for over 110 brands in the world, which is continually updated；
2. Full-function scan tool for both cars and trucks；
3. Support J2534, DolP, CAN FD and other protocols with Smartlink VCI；
4. Automatically identify VIN upon connection to the vehicle for intelligent diagnosis；
5. Remote diagnosis allowing you to work on a vehicle from your tool without being on-site；
6. Read all DTC types for full system, view, graph and record data PIDs, support bi-directional controls, actuation test and all other diagnostic functions；
7. Guided function for Volkswagen and Audi；
8. Advanced coding and programming function；
9. 39 special functions available；
10. ADAS calibration function is optional；
11. Compatible with 5 extended module: Oscilloscope, sensor, battery test, endoscope, WiFi printer；
12. One-Click Upgrade and silent install for software；
13. Diagnostic records and reports can be stored in the cloud without any concern of data missing；
14. Integrated database with comprehensive vehicle services and repair information；
15. The latest 2.4 & 5GHz Dual Wi-Fi with high transfer speed, strong anti-interference and long-distant diagnosis ability；
16. IP65 case with exceptional damage resistance to the water and dust for workshop use；
17. Docking & charging station included with QC3.0 Quick Charge technology；
18. Support USB Type C & Type A.
AMAZING ! PAD V ELITE Features
2024 LAUNCH X431 PAD V ELITE: Highest Configuration
X-431 PAD V is a high-end comprehensive diagnostic scanner with charging base newly developed on the basis of Android 7.1. It supports dual 2.4GHz & 5GHz Wi-Fi communications, with features such as wide vehicle model coverage, powerful diagnostic functions, and accurate test data. Its IP65 case has exceptional damages resistance for water and dust, which will make workshop work easier and more comfortable. All these unique features will offer you a luxury experience of vehicle diagnosis.
Top Diagnostic Scanner for 2024
The LAUNCH X431 PAD V ELITE is the latest comprehensive scan tool, an upgrade from the LAUNCH X431
PRO5/PADIII/V+ 4.0 and a competitor to OEM car scanners. It features advanced ECU programming and backup/restore capabilities for over 30 car brands, ECU/SCN coding, J2534/RP1210/D-PDU/Do-IP/CANFD support, topology mapping, 60+ service functions, guided functions, and the highest hardware configuration, covering 99.99% of cars worldwide. It is a valuable investment for repair shops and mechanics.
PRO5/PADIII/V+ 4.0 and a competitor to OEM car scanners. It features advanced ECU programming and backup/restore capabilities for over 30 car brands, ECU/SCN coding, J2534/RP1210/D-PDU/Do-IP/CANFD support, topology mapping, 60+ service functions, guided functions, and the highest hardware configuration, covering 99.99% of cars worldwide. It is a valuable investment for repair shops and mechanics.
Extensive ECU Programming and Coding Capabilities
The LAUNCH X431 PAD V ELITE surpasses most competitors with its ECU Programming for over 30 car brands. It can backup/restore data from original ECUs, a unique feature, and supports both offline and online programming, manual or automatic. It also allows for retrofits, such as replacing halogen lamps, and ECU upgrades, like fuel quality defect firmware. Coding capabilities include recoding ECU data, personalization, and more.
60+ Services and Topology
Mapping This bidirectional scan tool offers over 60 service functions, such as Oil Reset, ABS Bleeding,and Injector Coding, to help increase business. Topology mapping visually checks DTCs and all-system communication status, while the actuation test diagnoses problems five times faster than traditional methods. It supports multiple protocols, including J2534,RP1210/D-PDU (for heavy-duty cars), Do-IP (for BMWs E/F, Land Rover/Jaguar), and CANFD (for new GM models).
Intelligent Diagnose and Guided Functions
The LAUNCH X431 PAD V ELITE features Intelligent Diagnose to simplify tasks, allowing easy access to VIN data, guiding users to vehicle information pages without menu selection, and displaying all diagnostic records.The Guided Function (for V.A.G) provides on-screen prompts for accurate diagnostics, making it simple and convenient. Pin Detection checks DLC pins voltage and accesses protocol types for troubleshooting the DLC port.
All-in-One Tool for Diagnoses and Inspections
The LAUNCH X431 PAD V ELITE supports additional modules (sold separately) for more in-depth inspections and calibrations, such as oscillograph, sensor, battery test, endoscope, Wi-Fi printer, TSGUN, etc. It offers over 60 advanced functions, including guided functions, component matching, power balance, online parameterization, and online calibration, turning you into a professional auto mechanic.
Buy with Confidence
The LAUNCH X431 PAD V ELITE includes diagnostic feedback, allowing you to upload problems to LAUNCH for
analysis. It provides various repair guidance, including operation tips and relevant cases. As the largest reliable and authorized LAUNCH seller, we offer you the original LAUNCH X431 PAD VII ELITE.
analysis. It provides various repair guidance, including operation tips and relevant cases. As the largest reliable and authorized LAUNCH seller, we offer you the original LAUNCH X431 PAD VII ELITE.
LAUNCH X431 PAD V ELITE (PAD 5) Highlights
1. Full system vehicle coverage for U.S., Asian and European markets over 110 brands, which is constantly updated； 2. Upgrade and expand the X-431 PAD V with more software and services via the new module 'MALL' as demanded ；
3. Real-time voltage display helps technician to monitor the voltage condition of vehicle during the diagnosis；
4. Topology mapping gives a visual checking on DTCs and all systems communication status ；
5. Support automotive communication protocols CAN/CANFD/DoIP and automotive communication standards J2534/D-PDU/RP1210 ；
6. Auto-detects the communications protocol of the vehicle and assist to check automotive OBDII port pin damaged or not；
7. Intelligent diagnostic enable identify VIN automatically and access system quickly ；
8. Guided function for VW and AUDI；
9. Optional ADAS calibration function；
10. Advanced coding and programming function；
11. An extended solution to support TPMS service ；
12. 2.4GHz & 5GHz dual band communication ensures quick and stable connection ；
13. Enable technician to diagnose light, medium & heavy duty vehicles with Smarlink C；
14. The basic functions include read & clear DTC, remote diagnosis,Bi-directional control, live data graph, wireless software update etc.；
15. Build-in repair information and training video modules help to track and fix issue fast.
Full System ！60+ Service Functions
Guided Functions: Skip the Security Access Code & Channel Number to perform matching, calibration, and basic settings for VW /Audi / Skoda / Seat; **NO extra costs.
Component Matching: Rematch ECU (control module unit) after the replacement for VW / Audi / Skoda / Seat / BMW / Chrysler / GM /Ford / Opel / Mazda / Fiat / Honda / Nissan / Hyundai / Kia / Subaru etc.
Online Parameterization: Reset all adaptive data in target systems after ECU module replacement; compatible with VW / Audi / Skoda/ Seat.
Online Calibration: For some car systems’ calibration; compatible with VW / Audi / Skoda / Seat.
Online Account Login Service: Access to the login codes for coding, matching, and basic settings of all available systems.
Programmable Module Installation (PMI): Ensure the correct software/calibration and configuration data are loaded onto the new module after replacement for Ford / Mazda.
Power Balance: Identify the less productive cylinder for Chrysler / GM / Ford.
Personalization: Compatible with BMW / Porsche / Toyota / Subaru.
Other Services: Includes SUS Reset, ETS Reset, Sunroof, EGR Adaptation, A/F Reset, Coolant Bleed, NOX Sensor, Seat Calibration,Transport Mode, Tire Reset, Window Calibration, AdBlue Reset, A/C Relearn, Intelligent Cruise, Engine Power Balance,High Voltage Battery, GPF Regeneration, Language Change, and more.
You’ll continually receive new models and reset options through online updates.
Cover the majority of makes and models worldwide up to 2024 for These include fuel-trim reset, zero-point calibration, VIN relearn, HVAC calibration, seat calibration, rain sensor initialization, idle relearn, VGT relearn, gearbox matching, fuel composition reset, suspension calibration, transport mode,transmission quick learn, ABS initialization, turbocharging matching, cylinder power balance test, and more.
This feature is particularly beneficial for dealers, helping them attract more business..
This feature is particularly beneficial for dealers, helping them attract more business..
Top Ranking Solution ! ECU Programming & Coding
-Reliable ECU Data Backup, Faster Recovery & Less Downtime-
Have you ever spent countless hours, days, or even weeks trying to troubleshoot a challenging problem, only to discover that a simple ECM recalibration / reflash / programming could solve it within minutes? This remarkable diagnostic scanner offers ECU Programming & Coding services, giving you the power to quickly address such issues.
1.And the "Programming Backup/Restoration" function is an evolutionary smart solution designed to help you safeguard and restore the original programming data:;
2024 Newly Upgrades for ECU Programming/Coding
Cloud-based Data (Online ECU Programming/Coding): the LAUNCH online service will automatically send manufacturer data values for your effortless and accurate operation.
Repair Complex ECU Issues: synchronize modules operations and solve issues related to miscommunication or conflicting commands.
Program Blank ECUs: match OE configurations with the necessary software & settings in a specific vehicle, to ensure proper operation.
Renew ECU Software: address software glitches, bugs, or outdated data issues within the ECU.
EX-CLUSIVE! Data Backup/Restoration: create a backup of the coding/programming data stored in the control modules of a vehicle, and restore the original data if needed to prevent the car system’s breakdown.
Online ECU Programming: For Ben.z & BM.W All Chassis/Series
LAUNCH PAD VII stores the extensive programming data of Ben.z and B.M.W in the cloud server, in case of interrupted access if your hard drive has issues.
Unlike any regular scan tools on the market, this car diagnostic tool intelligently guides you through each necessary ECU programming procedure to find the solution patch, avoiding unnecessary steps, and all are presented in a user-friendly interface that is easy to learn and navigate.
1.And the "Programming Backup/Restoration" function is an evolutionary smart solution designed to help you safeguard and restore the original programming data:;
2.It reverts the ECU data changes back to the previous state, in case of human error, system failure, or data loss that could brick the vehicle computer;
3.It allows you to create a backup of your current Values,Adaptations, and other information (such as Advanced ID and Live Data) for a specific control module, and save them into your scan tool as a backup;
4.Simply select the saved historical backup record, and you’ll effortlessly get reverted back to the old programming values in a control module;
5.Currently this function is compatible with all series of Ben.z vehicles & B.M.W F/G/Ichassis models.;
6.Reminder: Message us to get the “How to Open Online ECU Programming” guidance documents.
J2534 ECU Programming: For More J2534-Compliant Cars
With the SmartLink C VCI Box serving as J2534-1 & -2 pass-thru device (valued at over 2000 bucks), you can easily expand your ECU programming abilities for over 30 car brands (compatible with For.d, V-W,Aud.i, Skoda, Sitter, Land Rover, Jaguar, Porsche, Renault etc.). You don’t need to buy separate OE scan tools for each brand.Reminder: message us to get the “J2534 Operating Manual” for more information.
Highlights of LAUNCH PAD VII’s ECU Coding
What separates the LAUNCH PAD V as a high-end diagnostic scanner from most standard OBD2
scan tools is its advanced ECU Coding. It allows you to connect to the car’s ECU system, set up new car modules, and adjust the original car settings.
scan tools is its advanced ECU Coding. It allows you to connect to the car’s ECU system, set up new car modules, and adjust the original car settings.
Recode elements of a car’s CPU. This is particularly useful if you need to setup new actuators and wants to make sure that they work in harmony with the rest of the subsystem.
Personalized Car Settings. Open the hidden car features that are not available in ordinary settings. For example: seat belt alarm, automatic sta.rt/st.op, hidden menu, daytime running lights, cruise control,comfortable windscreen washer, welcome light, and others. Reminder: Available coding operations vary by the test vehicle. ONLY the
available operations display in the menu.
available operations display in the menu.
2024 Newly Upgrades for ECU Programming/Coding
For BM.W: expand ECU programming/coding, open hidden functions, modifications …
options, up to 202.3.
options, up to 202.3.
For Ben.z: expand offline coding features (open hidden functions) up to 2021; supports manual programming/coding operating options to handle more repair scenarios.
For VW/Au.di: more comprehensive online calibration coding data; support subsystem mode. For Nissan/Infiniti: more detailed annotations for coding, e.g. the BCM of the 2018 Nissan Sentra.
And more. Reach us to get the complete list.Faster Troubleshooting and More Advanced Functions Help
And more. Reach us to get the complete list.Faster Troubleshooting and More Advanced Functions Help
EXCELLENT ! BI-DIRECTIONAL Active Test
The LAUNCH X431 PAD V ELITE car diagnostic tool features with full Bi-directional control is newly released which is advantageous among basic code readers. This can drive solenoids and actuators for active testing, sending commands to the system/component to test its operating status without using the vehicle controls, let you quickly understand whether a specific system, component, or subsystem is operating normally, it enables to accurately and pinpoint issues and greatly improve diagnostic efficiency.
Commonly-Used Active Tests including:
- EVAP Vent / Purge Solenoid;
- Fuel Injector Test;
- Cycling A/C Clutch Relay;
- Cycling ABS Motor Pump;
- Cooling Fan Test;
- Window/Light/Door Lock Actuators/Headlamp Test/Sunroof/Operate mirrors/Turn on sound horn;
And also can perform other actuation test functions including Modulate the throttle,Turn Off ACC Lane Keeping Assist System(LKAS); Turn ON/OFF Front and Rear side ACM Solenoid, Left clutch electromagnetic coil test,Acceleration Device Test,Oil Pressure Control Test DYNAMIC camera aiming,Brake Vacuum Pump, Inlet and Outlet Valve tests, Open Brakes tests, Parking Brake Motors,WheelSpeed Sensor Supply, PARKING BRAKE tests, etc.
Note: *Please “Upgrade Software” to get “active test”. *Actuation test functions vary by the vehicle system.

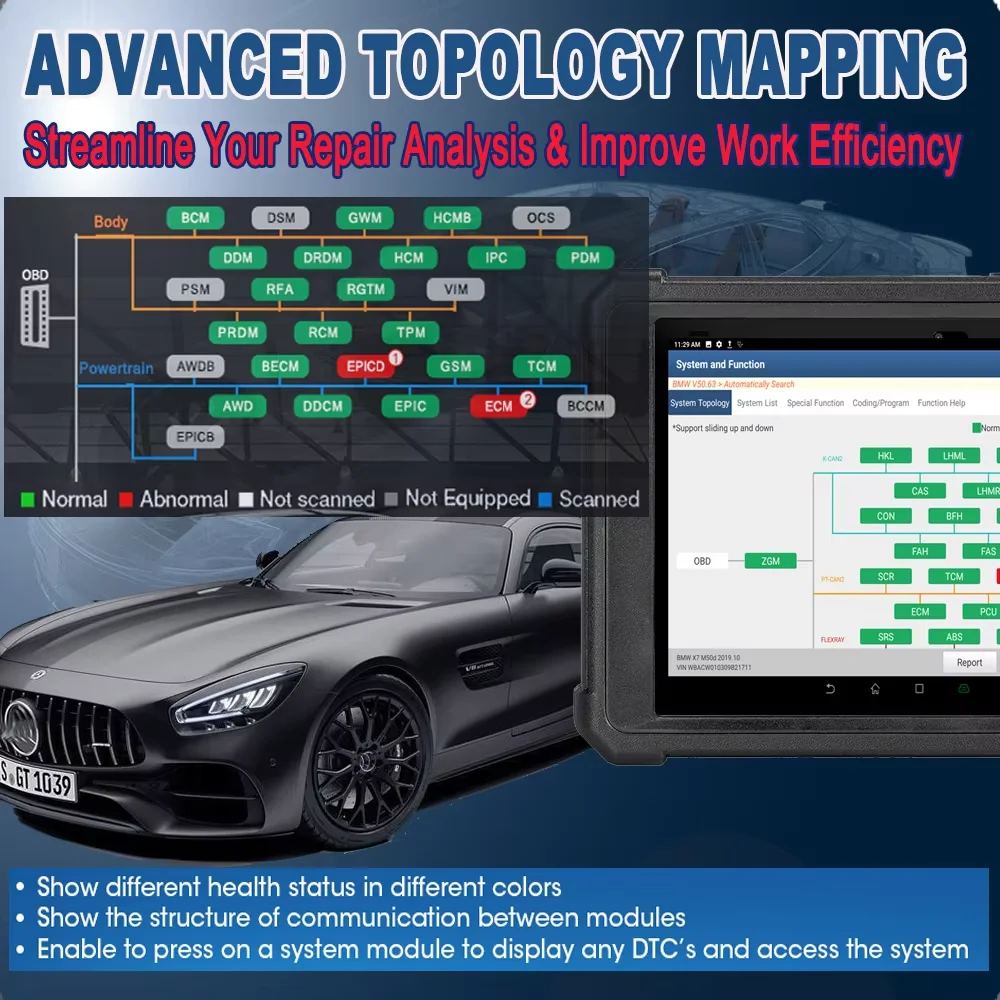

ADVANCED TOPOLOGY MAPPING
The Smart Topology Module Mapping in this diagnostic tool allows you to directly view the color-coded topology display for all communication structures between vehicle modules, and click to check the fault code, saving the hassle of toggling menus back and forth to find what you want.It is the first application of topology module mapping in the field of automotive diagnostics. In terms of visual aspect, LAUNCH X431 PAD V ELITE shows different health statuses in different colors and shows the structure of communication between modules. In the aspect of ease of use, it enables you to press the system module to access the system and display the relevant DTCs.
Supports Extended Function Modules
Meanwhile, the X-431 PAD VII Elite also supports 8 extended modules such as videoscope, oscilloscope, sensor box, TPMS tools, key immobilizer and battery tester. With these extended modules, technicians are available to solve high level faults with ease, to make thouse extended modules, you need to pay and buy the following extended adapters, please notice.
1. X431 ADAS Moblie/ ADAS PRO, ADAS Activation Card: Calibrate a wide range of camera-based & radar-based driver assistance systems (please contact seller) ;

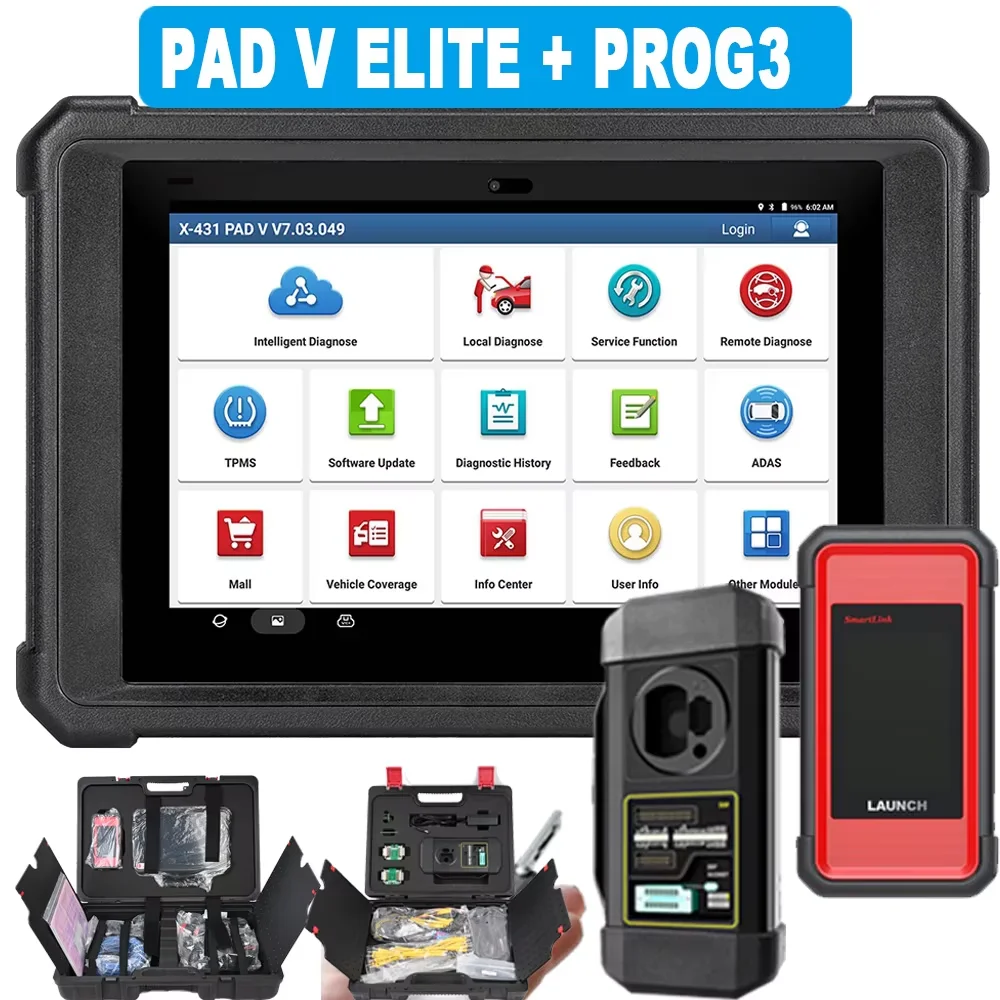

2. X431 PROG-3 Key Matching: IMMO For VAG Group Above 3.5, Vehicles that require cloning are not compatible with this accessory;
3. X431 Printer (Print out diagnostic data/ reports.;) ;
4. Launch VSP-600 Video Scope: Check unseen parts and give you a direct image of the engine, gears, compressors, headers and valves, and body components.;
5. Launch X431 i-TPMS (Not only can you use it to activate the sensor's ID, tire pressure, sensor frequency, tire temperature, and battery status; you can also program sensor data to a blank LAUNCH brand sensor in three ways: Auto, Manual, and Activation Copy; at the same time, you It can be used to write the newly programmed sensor ID to the vehicle ECU.) ;
6. LAUNCH X431 O2-2 Oscilloscope Scopebox and Launch X-431 Sensorbox S2-2;
7. BST360 battery tester: For Battery Cranking system Test, Battery Charging system Test, Battery Health Test.
At the same time, we have made a variety of expansion functions for vehicle models:

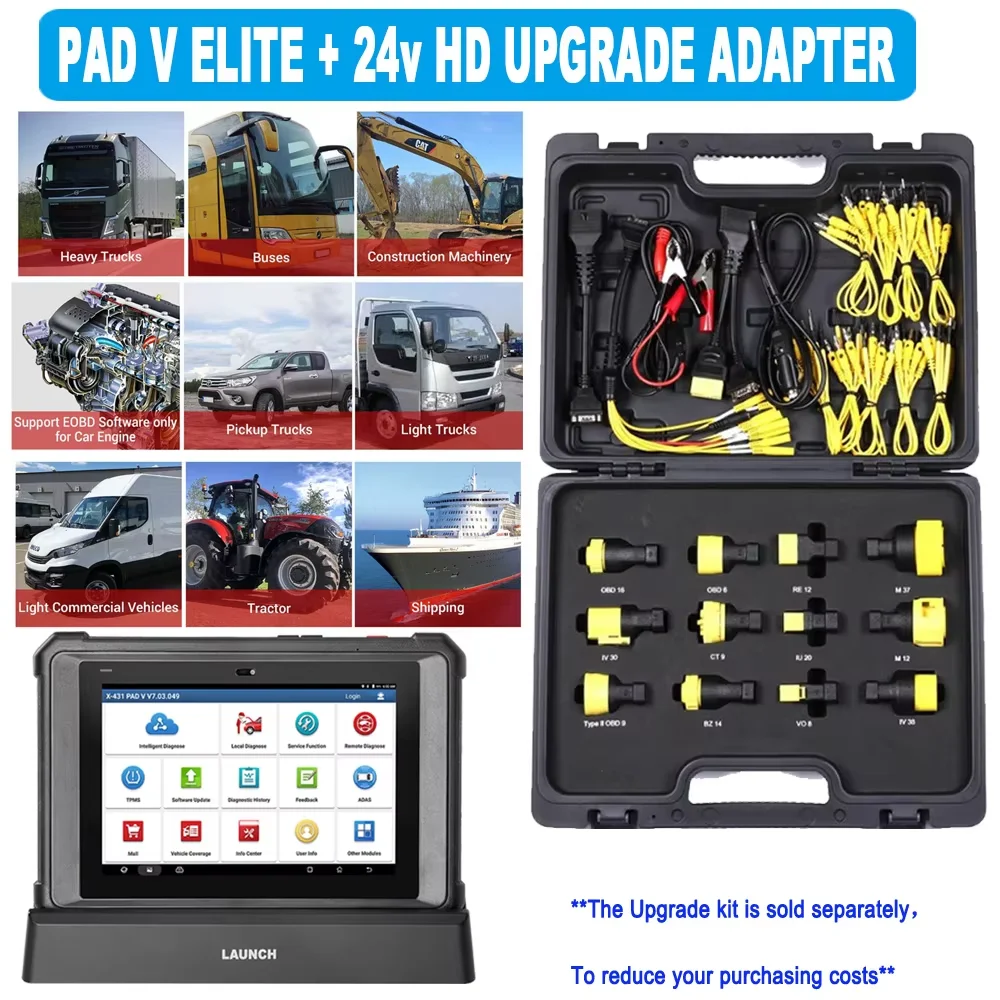

1.24v Truck: Add a heavy truck connector module and software upgrade to diagnose 24v models, including diesel vehicles, heavy trucks, construction machinery, buses and other 24v models.

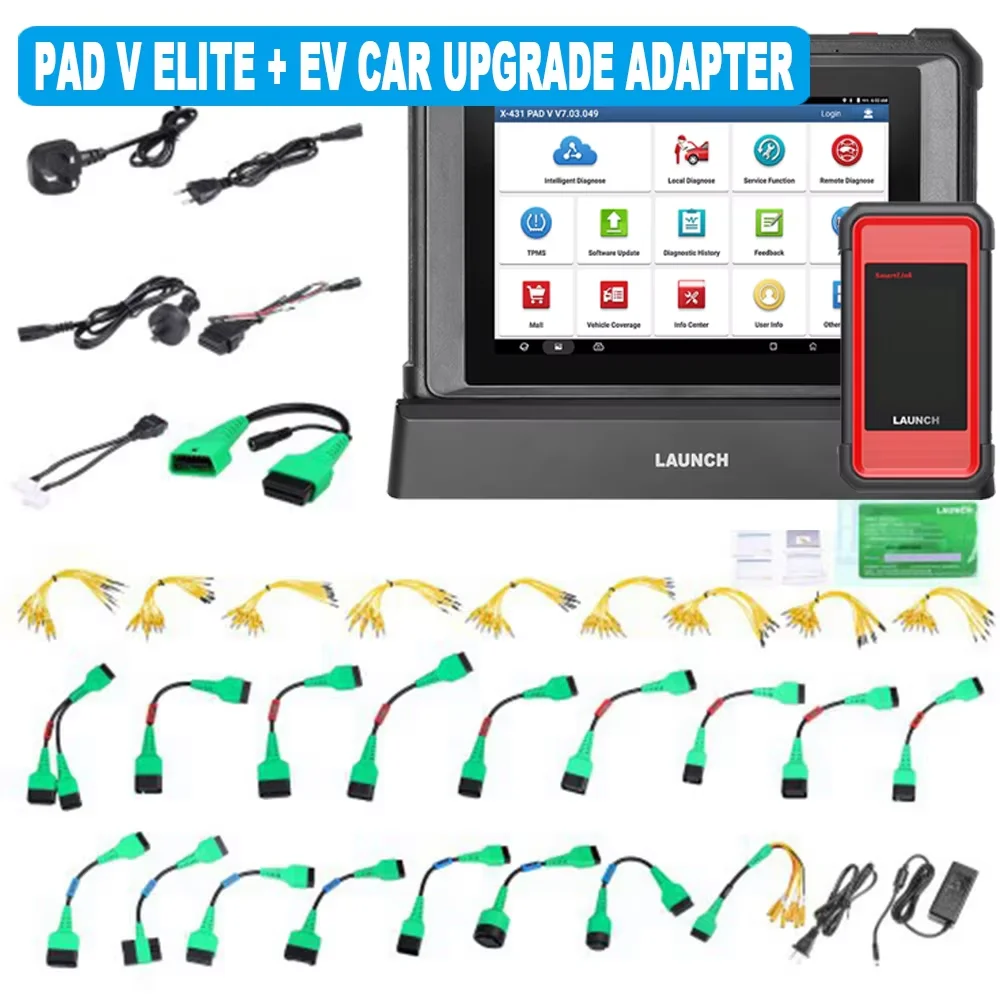

2.EV New Energy Car: Add a new energy connector module and software upgrade to diagnose new energy models.
PROWFUL!Support 99% Car 150+ brands
The newly upgraded LAUNCH X431 PAD VII ELITE has also been improved in terms of vehicle coverage. The vehicle coverage upgrade is not limited to a particular country but refers to globally broad compatibility for commercial and passenger vehicles. (If you need to diagnose commercial vehicles/trucks, you need to purchase HD software separately which comes with truck adapter accessories, and then activate the heavy-duty module on the pad vii elite tablet.)
No IP restrictions
It is compatible with ABARTH, ACURA, AUDI, ASTON MARTIN, BAIC, BENZ, BINGLEY, BMW, BRILLIANCE, BUGATTI, BUICK,BYD, CADILLAC, CHANG'AN, CHANGCHENG, CHANGHE, CHERY, CHEVROLET, CHRYSLER, CITROEN, CMC, DACIA, DAEWOO, DAIHATSU, DODGE, FAW,FERRARI, FIAT, FIAT (BRAZIL), FUKANG, FORD, FORD (AUSTRALIA / EUROPEAN), FOTON, GAZ, GM, GM (BRAZIL), GMSA, GONOW, HAFEI, HAIMA,HONDA, HORTON, HYUNDAI, INFINITI, INDIA FORCE, ISUZU, ISUZU(TL), IVECO, IZH, JAC, JAGUAR, JEEP, JIANGLING, KIA, KOWLOON, LANCIA,LAND ROVER, LEXUS, LIFAN, LINCOLN, LUXGEN, MAYBACH, MAHINDRA, MARTHA, MARUTI, MAZDA, MINI, MITSUBISHI, MVM, NISSAN, OPEL, PAZ,PERODUA, PEUGEOT, PORSCHE, PROTON, RENAULT, ROLLS-ROYCE, ROMEO, SAAB, SAIC, SAIC AND MG, SAIPA, SAMSUNG, SEAT, SEAZ, SGM, SGMW,SKODA, SMART, SSANGYONG, SUBARU, SUZUKI, TATA, TIANJIN, TOYOTA, TRANSPORTER&V-CLASS, UAZ, VAUXHALL, VAZ, VINFAST, VISUAL, VOLVO,VW, WEILI, XIAMEN, XIAOKANG, XINKAI, ZAZ, ZHONGSHUN, ZHONGXING, ZOTYE
