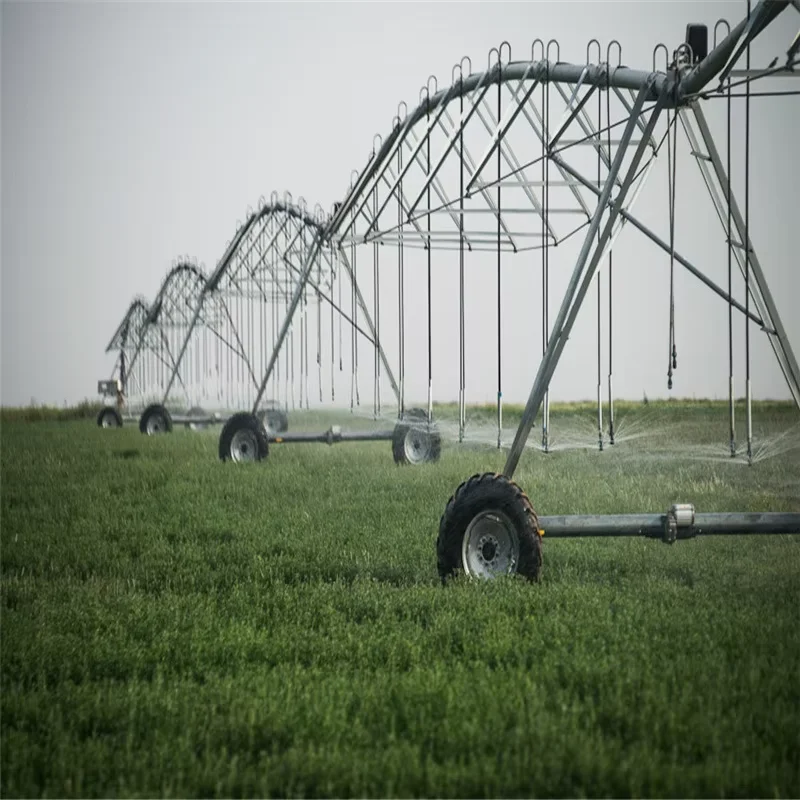

Factory Best Agricultural Metal Center Pivot irrigation system for sale
- Category: >>>
- Supplier: Tianjin Rainbow Material Technology Co. Ltd.Tianjin Ltd.
Share on (1601293934065):
Product Overview
Description
Product descriptions
Product Overview

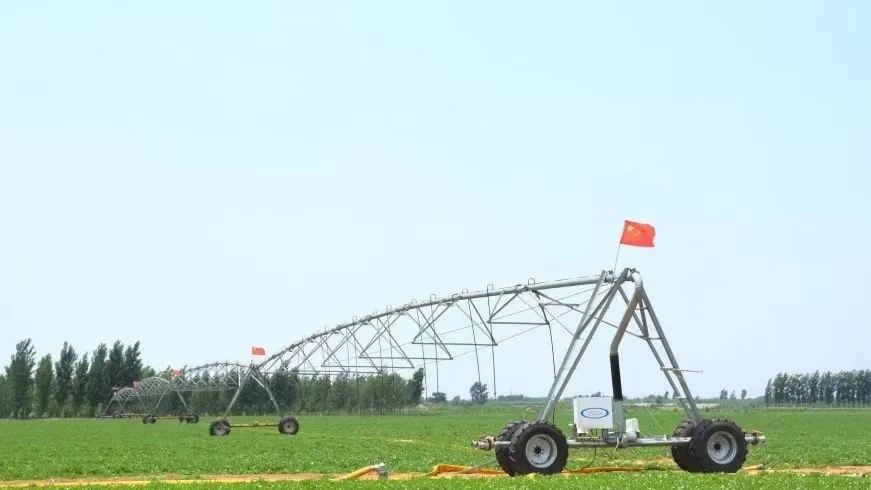

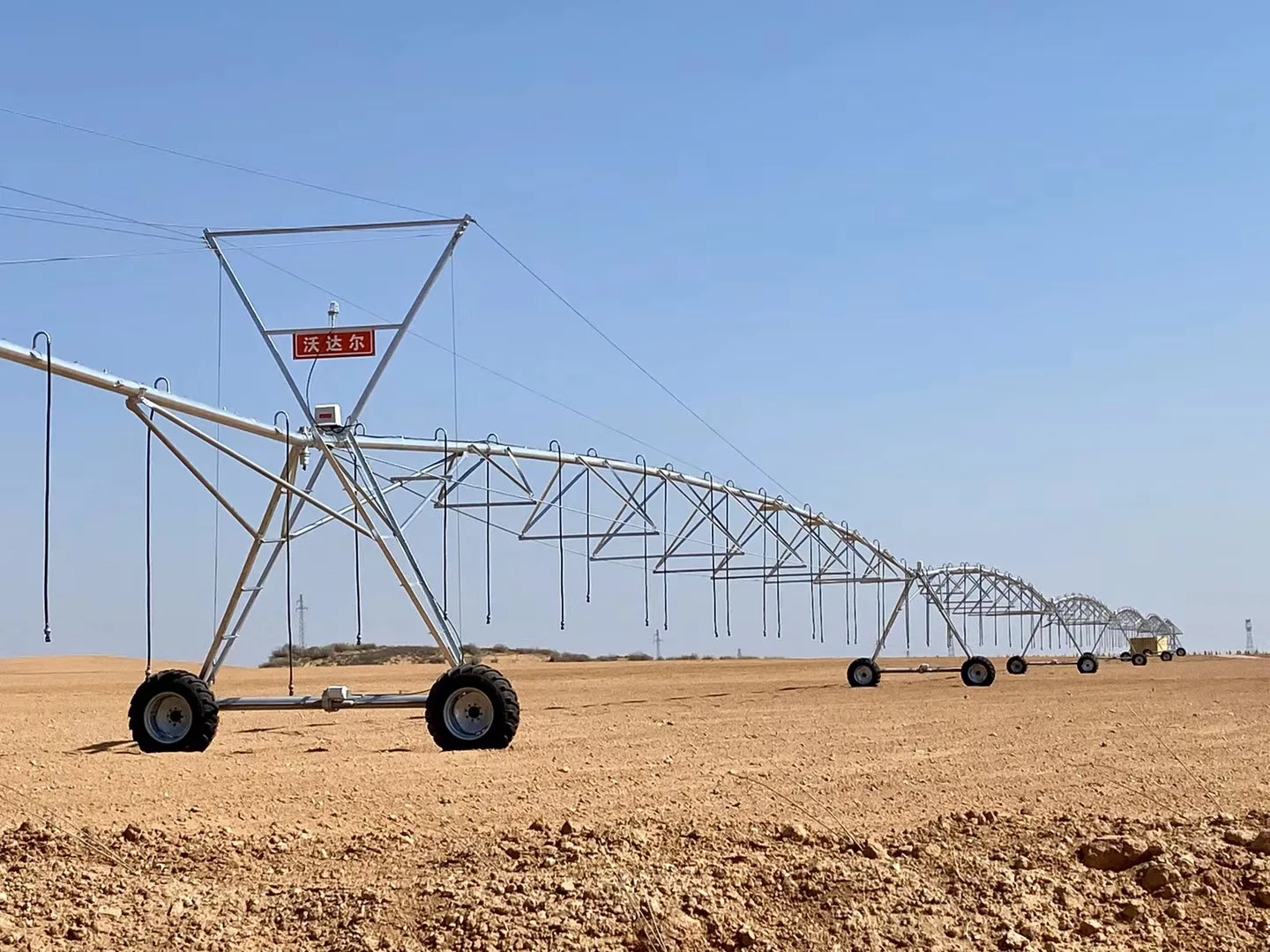

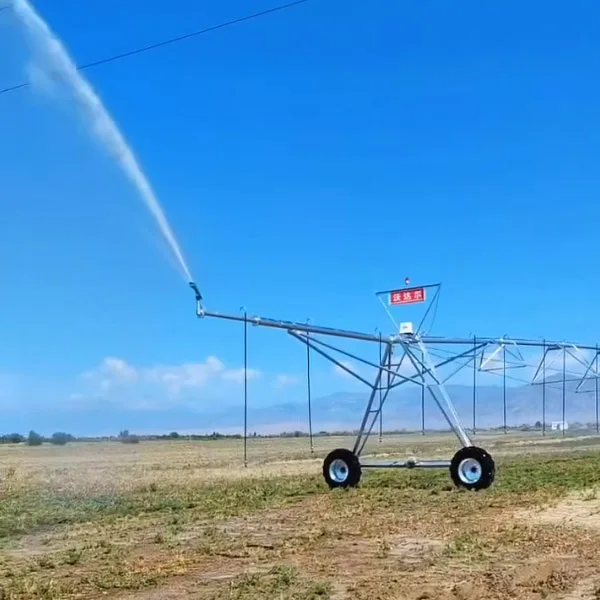

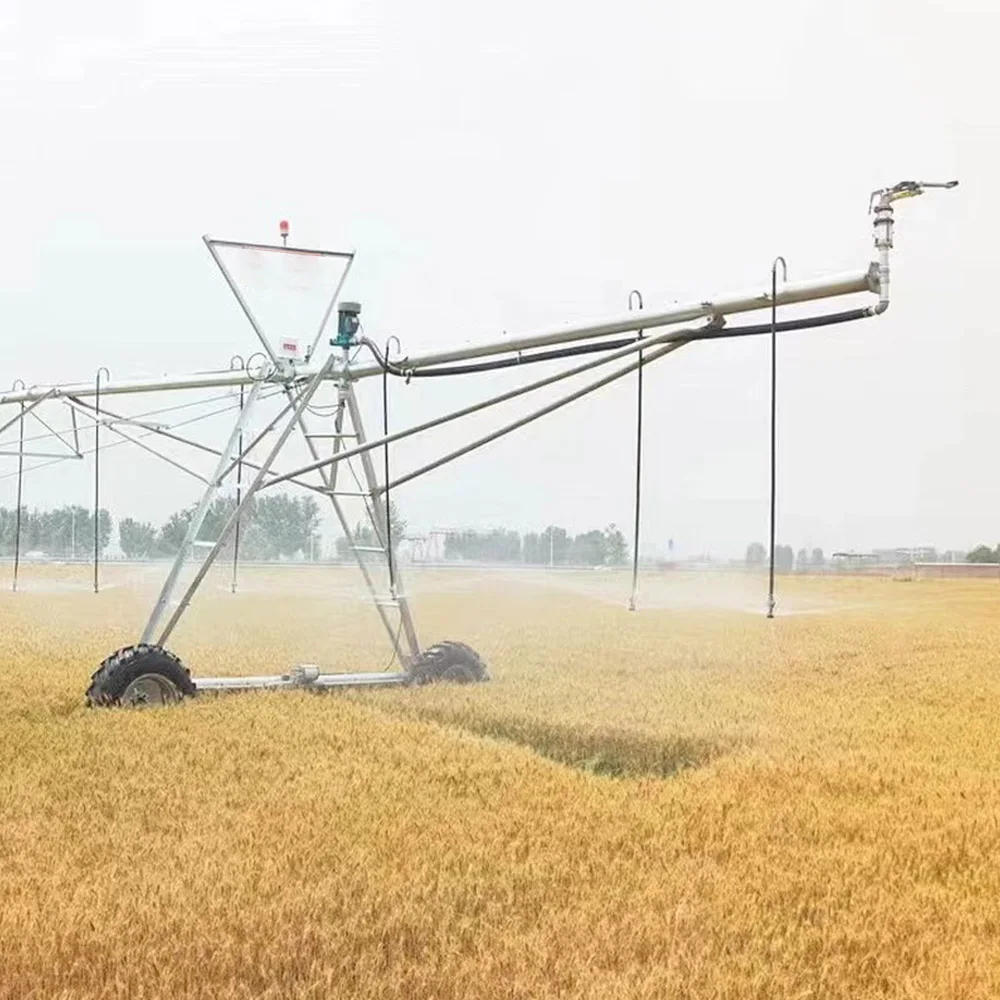

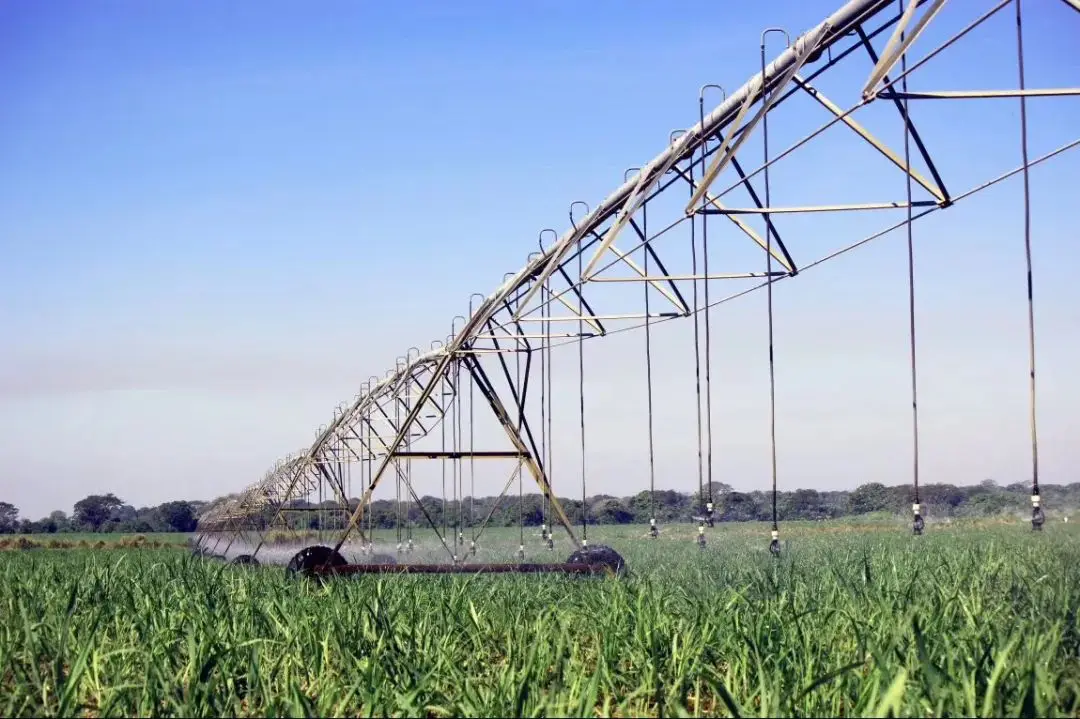

Center pivot irrigation system

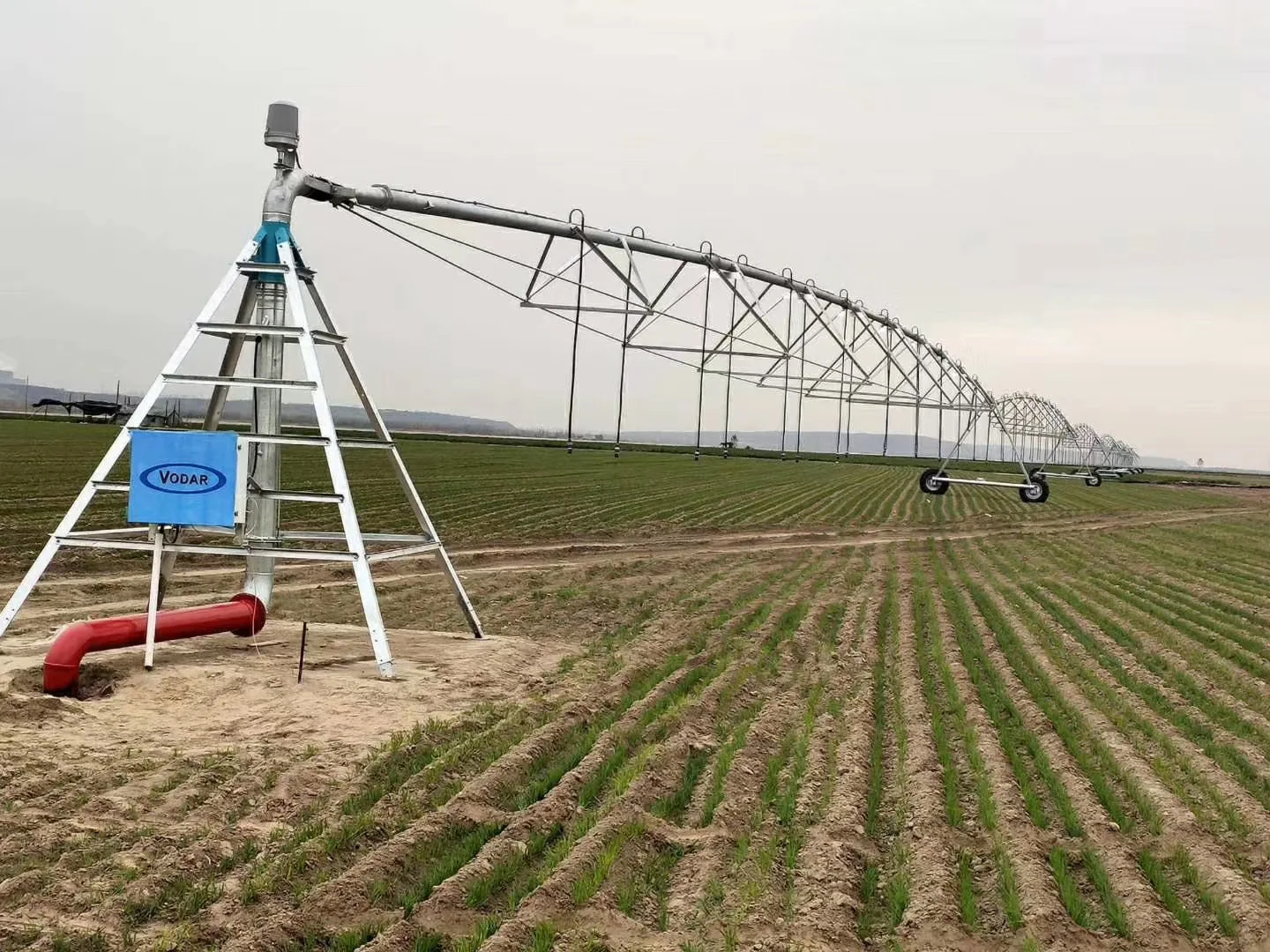

One end of the machine is fixed and other spans are clock cycling moved by motor driven tires,river water or bore well water is supplied from the fixed point, transfered through main pipes and sprinklers, applied to the field, this system is called center pivot system.
This system is driven by water. The irrigated areas could reach 1-3 hectares, which provides an ideal plan for the power-limited areas.This system could be pulled by tractors to different areas. Other than linear system, the revolving operating system maks it could irrigate twice as much as a regular center pivot does.It revolves through changing the points where different drive wheels strike ground. It is normally used in extreme conditions. Based on different requirements, Vodar Tractive Center Pivot allows users to irrigate any size of land, which makes irrigation convenient, relaxed and flexible.
Features
* Rugged, simple management, uniform irrigation, saving a lot of energy and labor.
* The land utilization rate is 78%, the investment and management cost is low, the supporting facilities are simple, the irrigation cycle time is short.
* The sprinkler irrigation equipment can apply pesticides, fertilizers and herbicides, reduce the application amount (about 50%),improve its effectiveness, reduce the amount of work, and have a significant effect on precision agriculture irrigation.
Details Images
Main pipe size | 168mm,219mm | Nozzle spacing | 1.49m,2.9m |
Span length | 50m,56m,62m | Thickness | 3.2mm |
Passing height | 2.9m,4.6m | Water inletp ressure | 025-0.35MPa |
Cantilever length | 6m,12m,18m,24m | Power of gear motor | 0.75HP |
Benefits
Electric control box using American Eagle percentage meter, Schneider and Siemens and other core components

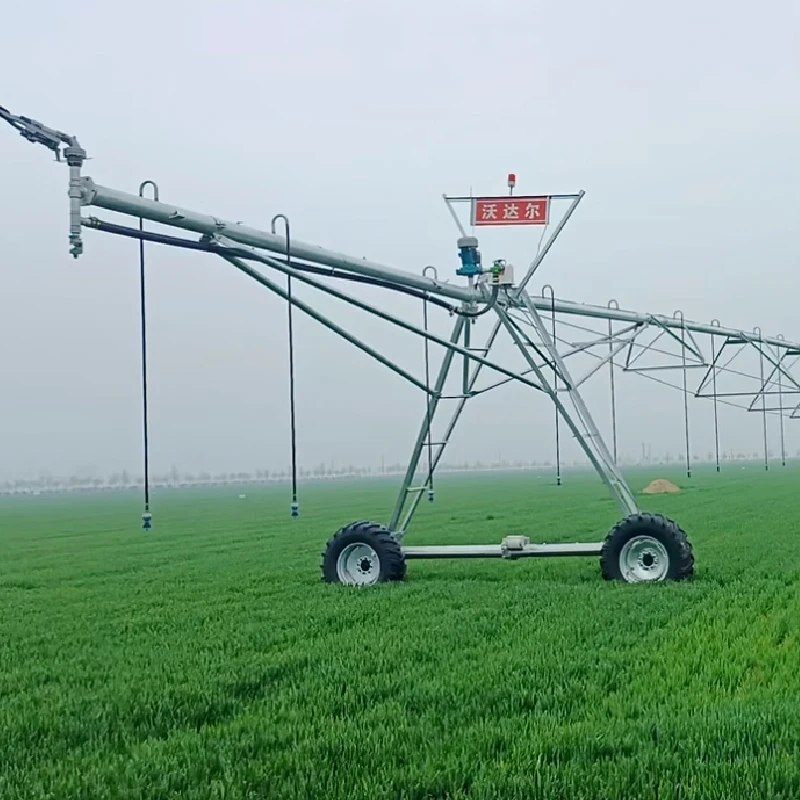

The walking system adopts high performance motor and reducer
The spray system adopts Nielson D3000 and R3000 series or Italian ComET Komet KPT series sprinkler
The cable uses 11 core armored cable
The wide Angle of the truss increases the resistance to wind
The lower chord of the span body is longer than the upper chord, the center of gravity is low, and the ability to resist lodging
and climbing is strong
and climbing is strong
The cross-body ball-hole flexible connection allows flexible movement on complex terrain without stress

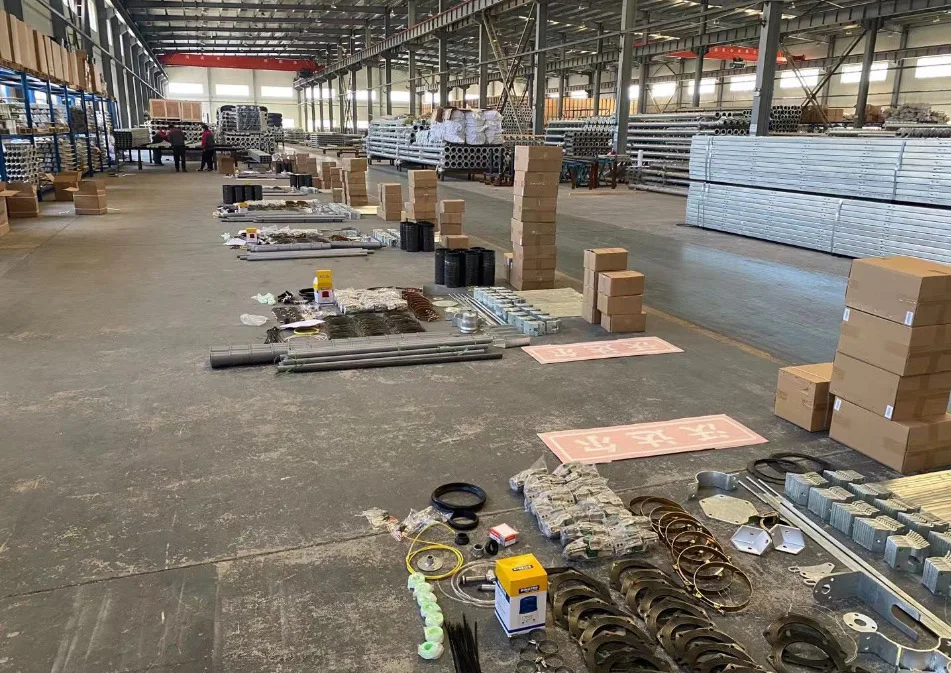

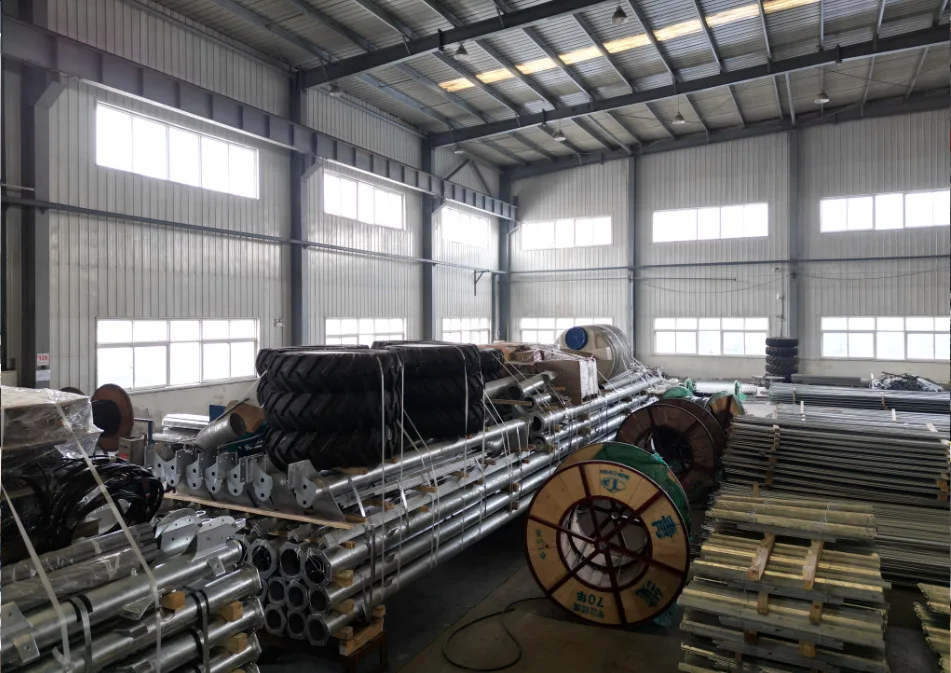

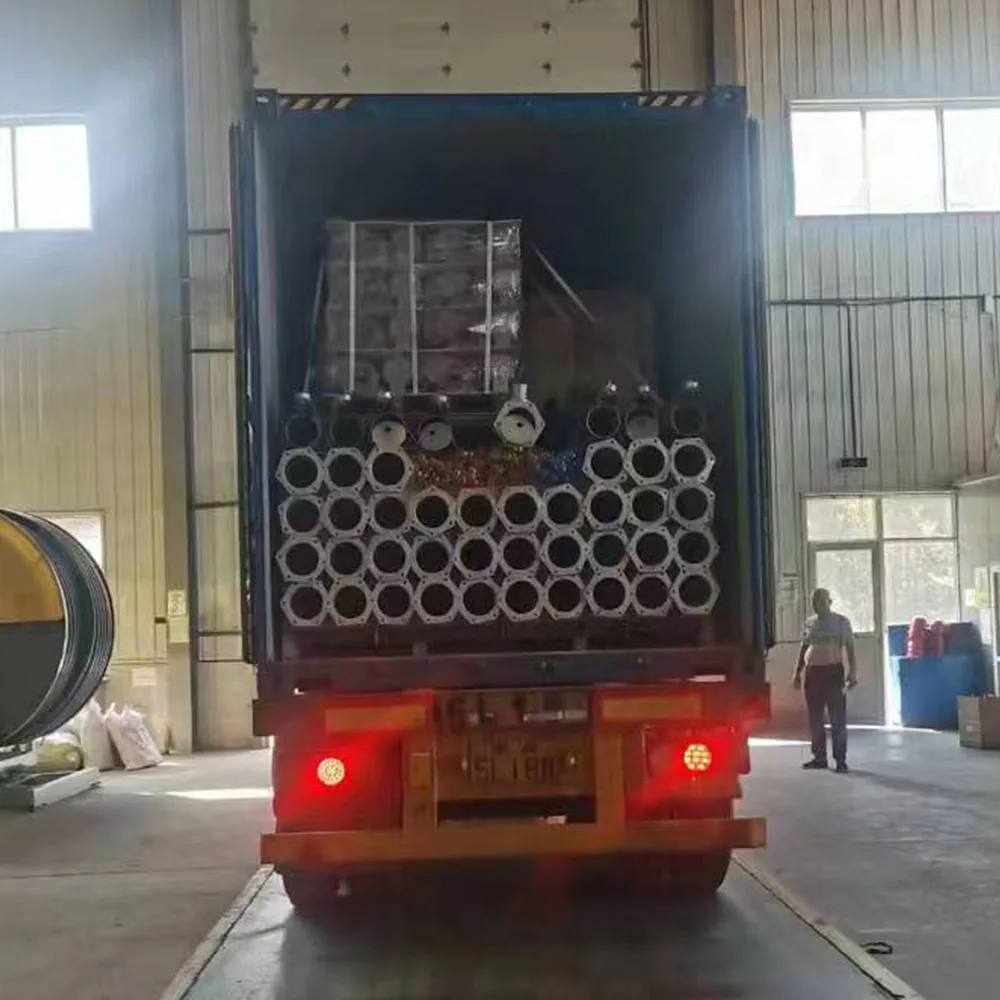

Packing
Application
Company Profile
Tianjin Rainbow Material Technology Co., Ltd. belong to Tianjin Vodar Engineering Co., Ltd.Tianjin Vodar Engineering Co., Ltd. is the largest irrigation system manufacturer and irrigation technology provider in China. We provide center pivot irrigation system, linear/lateral move irrigation system and hose reel irrigation system that use high-quality materials and expert construction for strong and long-lasting reliability. Every product is designed to be a part of a flexible solution that best supports our customers and customers' field. Our mission is saving water resources and increasing crop yields. VODAR irrigation systems have been exported to Russia, Ukraine, Kazakhstan, Israel, Sudan, Australia, the United States and South America Countries. Contact Tianjin Vodar Engineering Co., Ltd. for excellent irrigation systems.
