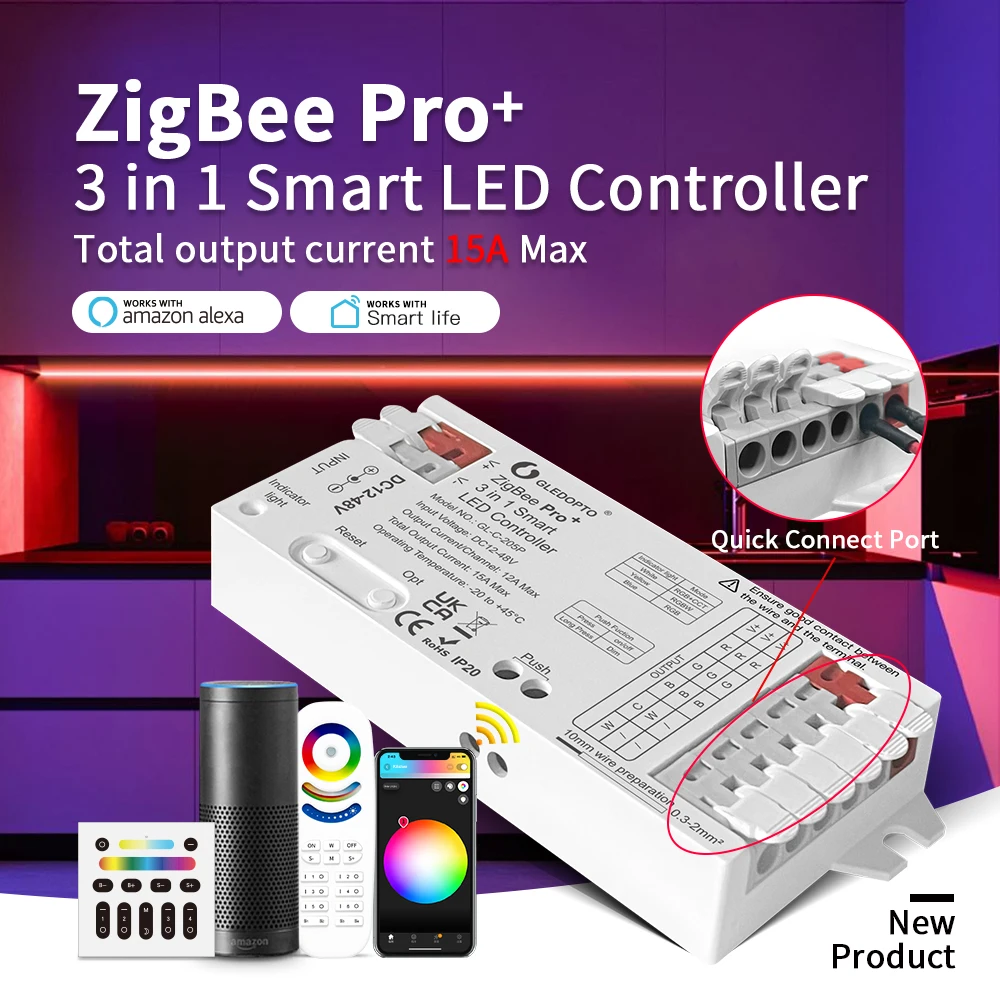

2024 New Zigbee Pro led Controller 3 in 1 RGBCCT RGB RGBW for Magic Home DC12V 48V
- Category: >>>
- Supplier: Gledopto Co. Ltd.Gledopto Ltd.
Share on (1601296011581):
Product Overview
Description
Product Description

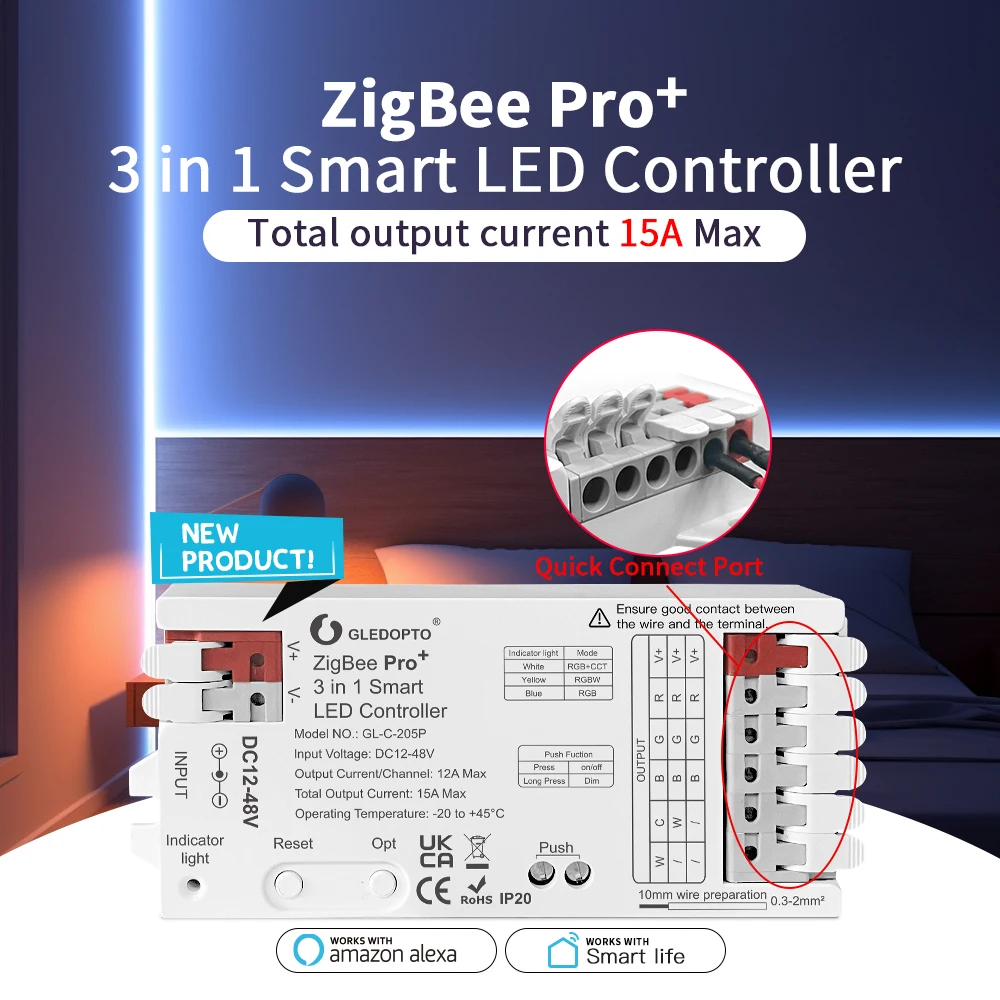

Model No. | GL-C-205P |
Input Voltage | DC12V-48V |
Output Current/Channel | 12A Max |

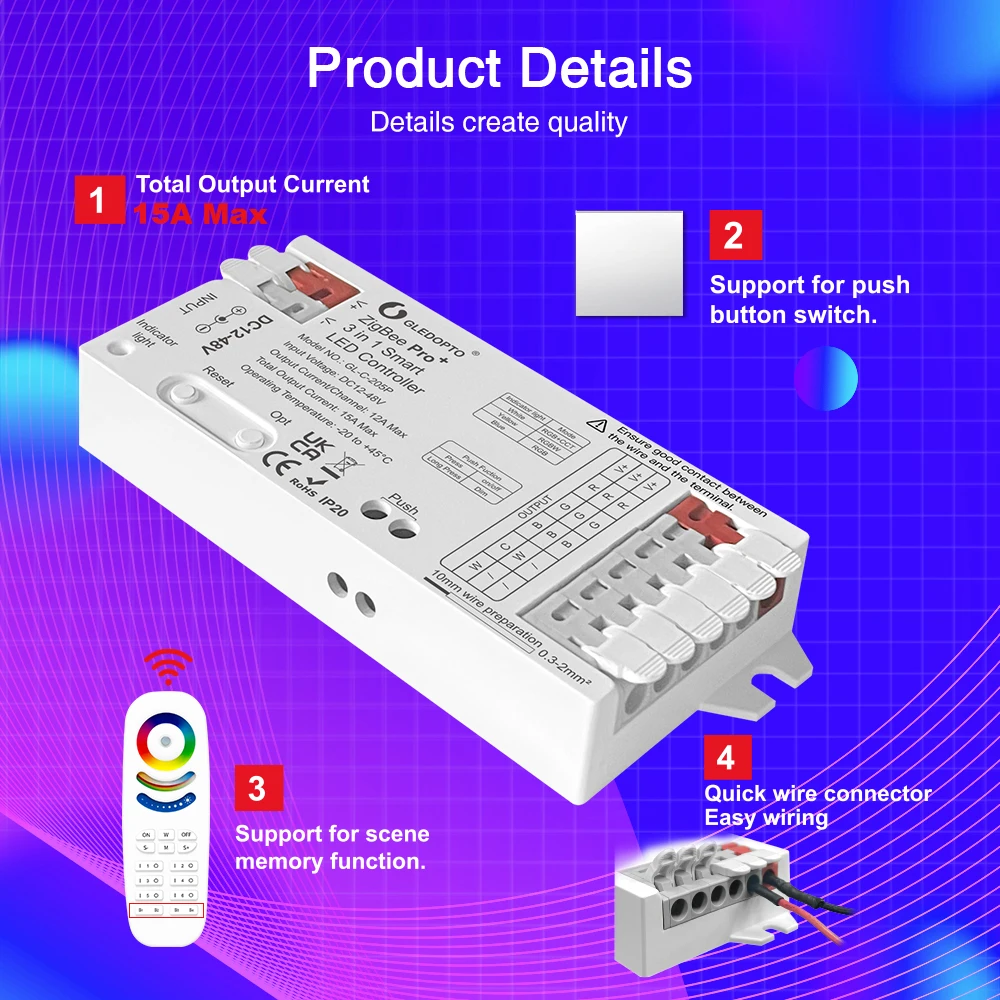

Total Output Current | 15A Max |
Communication protocol | Zigbee pro+ 2.4G RF |
Stripping Length | 10mm |
Suggested Wire Type | 0.3-2mm²（22-14AWG) |
Operating Temp. | -20-45℃ |
The product works with many ZiaBee 3.0 Gatewayslike Philips Hue, Amazon ECho Plus or SmartThings etc.

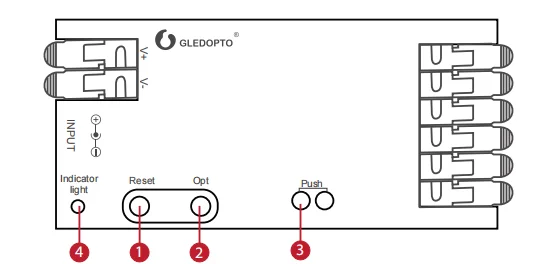

①Reset

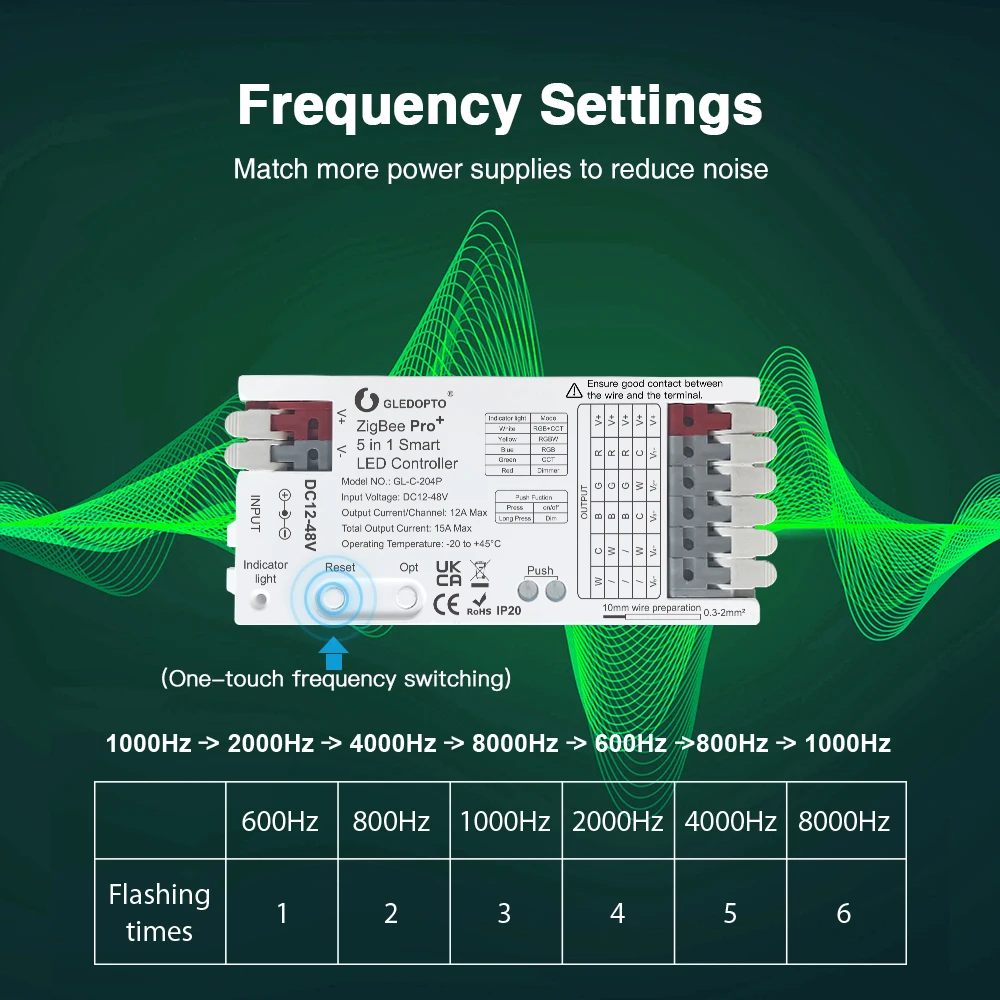

Short press: Switch the frequency.
Long press for 5 seconds: Reset the controller.
(After reset, it defaults back to RGBCCT).
② OPT

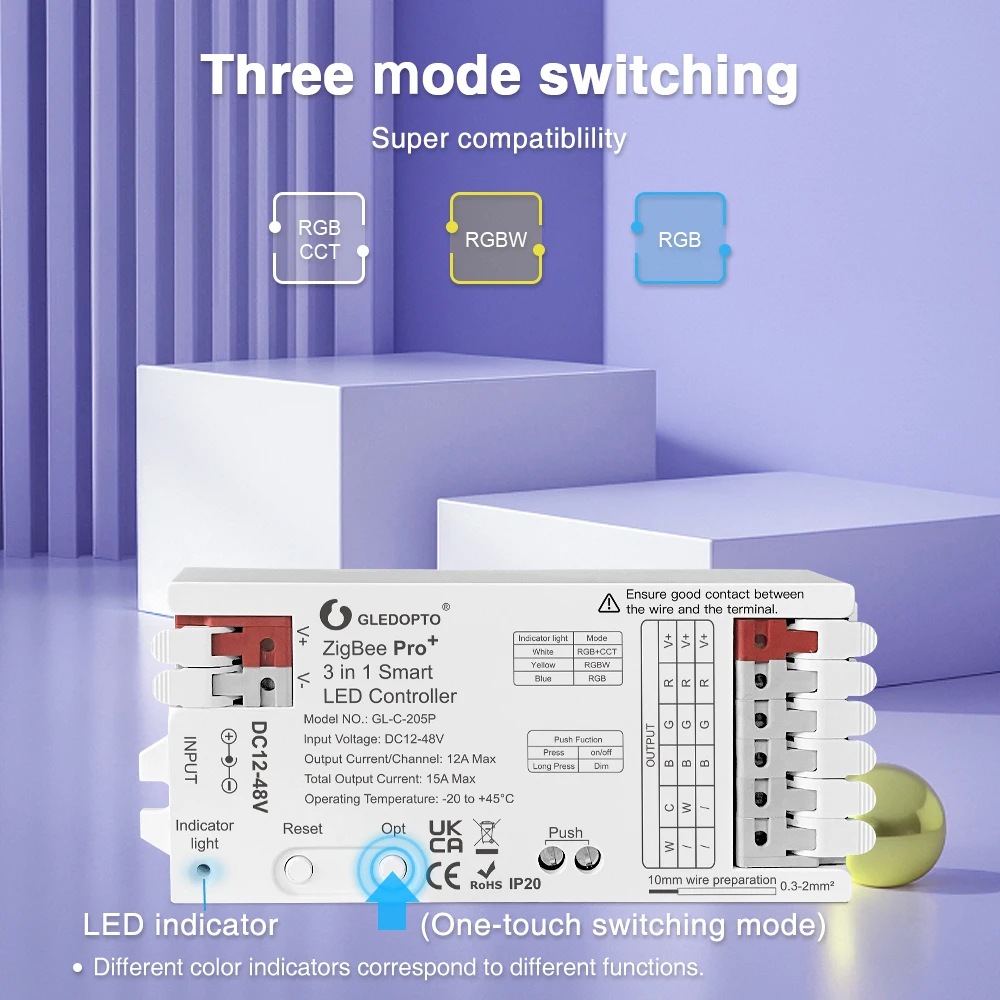

Short press: Switch the current device function.

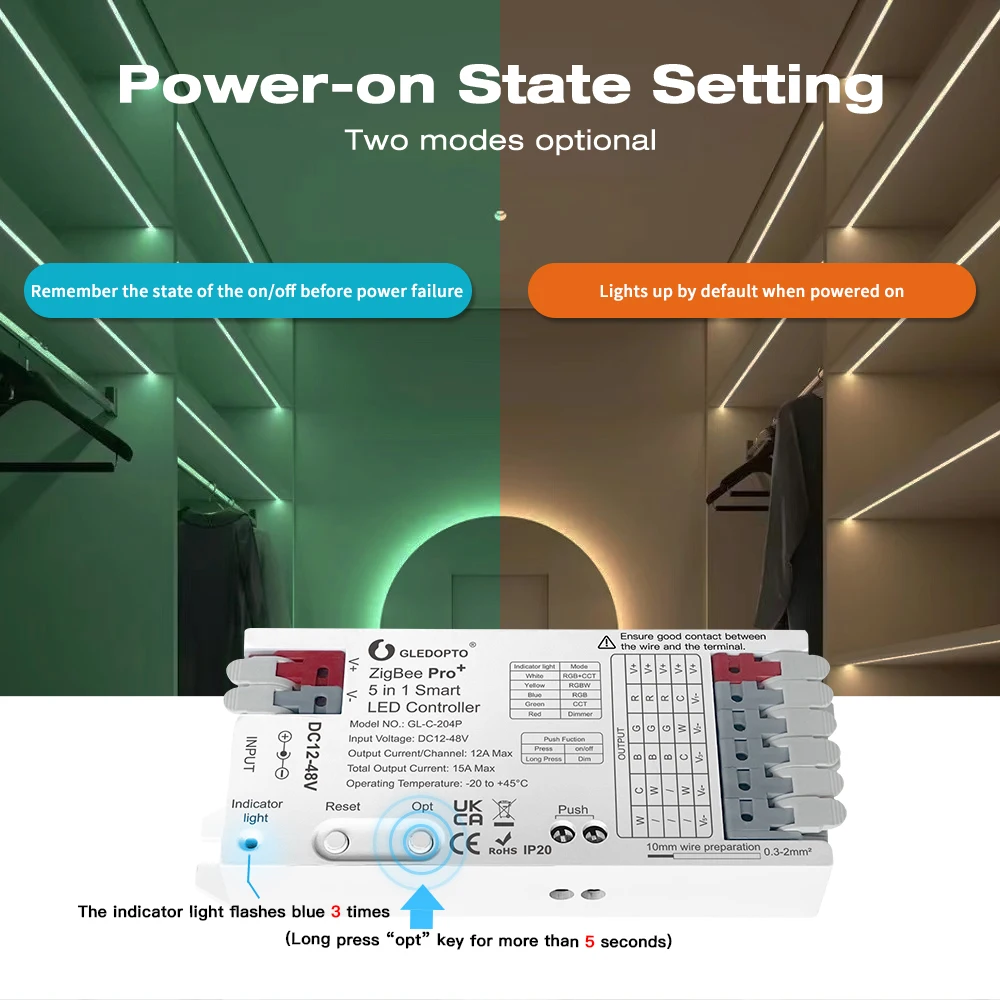

Long press for 5 seconds: Power-on status settings
(power-on status settings is disabled by default.)
4.Indicator light
Short press: Switch the frequency.
Long press for 5 seconds: Reset the controller.
(After reset, it defaults back to RGBCCT).
② OPT
Short press: Switch the current device function.
Long press for 5 seconds: Power-on status settings
(power-on status settings is disabled by default.)
③Push
Short press: Power On/Off
Long press: Adjust brightness (Assuming: Long press increases brightness,
release and long press again decreases brightness).
Long press: Adjust brightness (Assuming: Long press increases brightness,
release and long press again decreases brightness).
4.Indicator light
Different color indicators correspond to different functions
Connecting with the Gateway
Network connection:
1.Connect the controller to the power source correctly
2. Use the gateway's app to initiate device search and wait for a certain period of time (refer to the instructions of each gateway). lf the gateway doesn't find the controller, try powering off and on the controller again, or reset the controller.
3. Once the gateway finds the controller, add the controller to the specified room or group.
4. After successful network connection, you can start using the controller
1.Connect the controller to the power source correctly
2. Use the gateway's app to initiate device search and wait for a certain period of time (refer to the instructions of each gateway). lf the gateway doesn't find the controller, try powering off and on the controller again, or reset the controller.
3. Once the gateway finds the controller, add the controller to the specified room or group.
4. After successful network connection, you can start using the controller

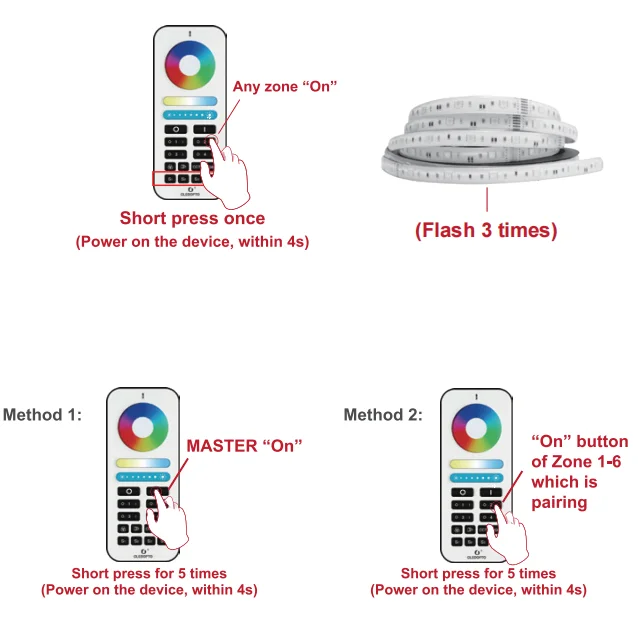

Pairing with 2.4GHz RF Remote Control
①The pairing will be timeout after 4 seconds when the device powered on.
@The pairing will be done successfully by pressing any zone “On" key of the
2.4G RF Remote or touch panel.
③The indications from the device will blink 3 times.
@The pairing will be done successfully by pressing any zone “On" key of the
2.4G RF Remote or touch panel.
③The indications from the device will blink 3 times.

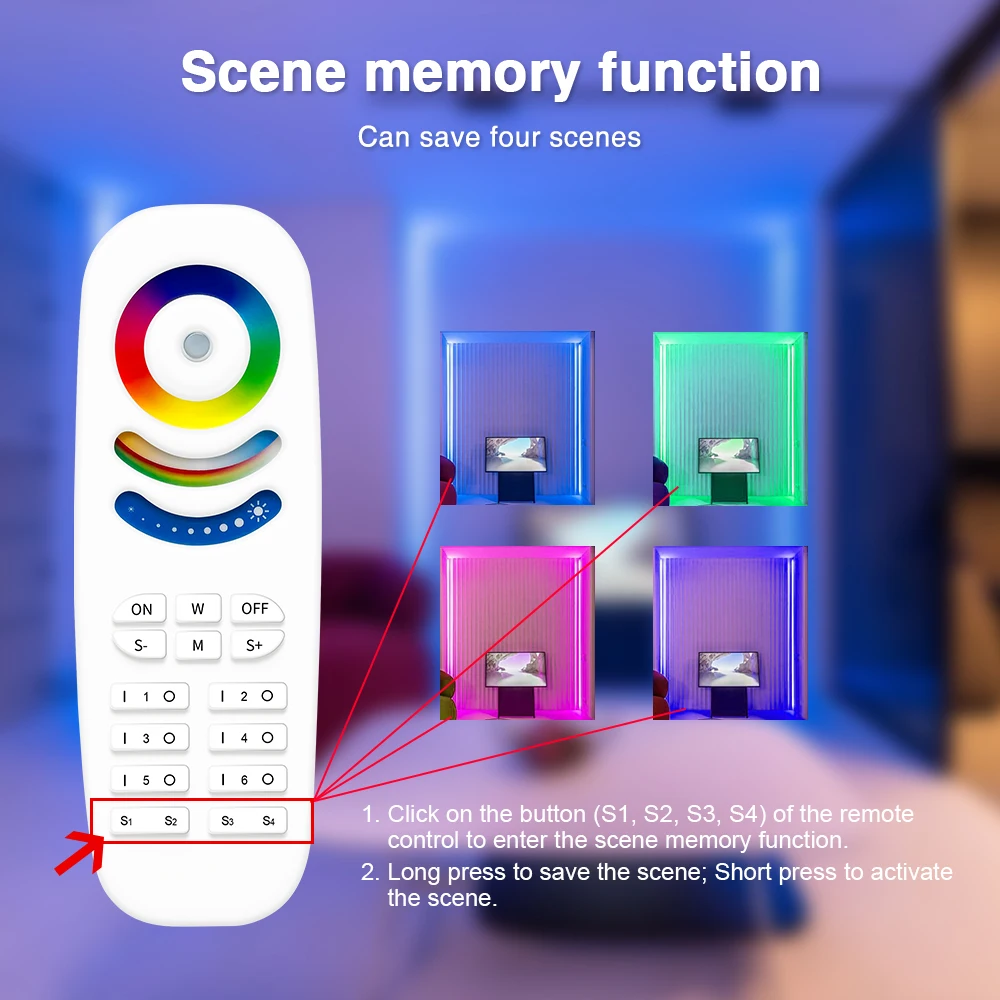

2.4GHz Remote Control Scene Memory Function
①Click on the button (S1, S2, S3, S4) of the remote control to enter the scene
memory function.
② Long press to save the scene, Short press to activate the scene.
①Click on the button (S1, S2, S3, S4) of the remote control to enter the scene
memory function.
② Long press to save the scene, Short press to activate the scene.
RESET the 2.4GHz RF Network
①Method 1: Short press the Master “On” Key 5 times within 4 seconds after the device powered on, the device will blink 3 times.
①Method 1: Short press the Master “On” Key 5 times within 4 seconds after the device powered on, the device will blink 3 times.
①Method 2: Short press continuously 5 times the Zone “On” key the device being paired within 4 seconds after the device powered on. the device will blinks 3 times
Certifications
Specification
item | value |
Place of Origin | China |
Guangdong | |
Warranty(Year) | 2-Year |
Type | PWM |
Max. Load Power | 720 |
Connection Mode | Zigbee pro+ 2.4G RF |
Feature | Durable, Sustainable, Wireless Control, easy installation |
Lighting solutions service | Lighting and circuitry design |
Product Weight（kg） | 0.0542 |
Brand Name | Gledopto |

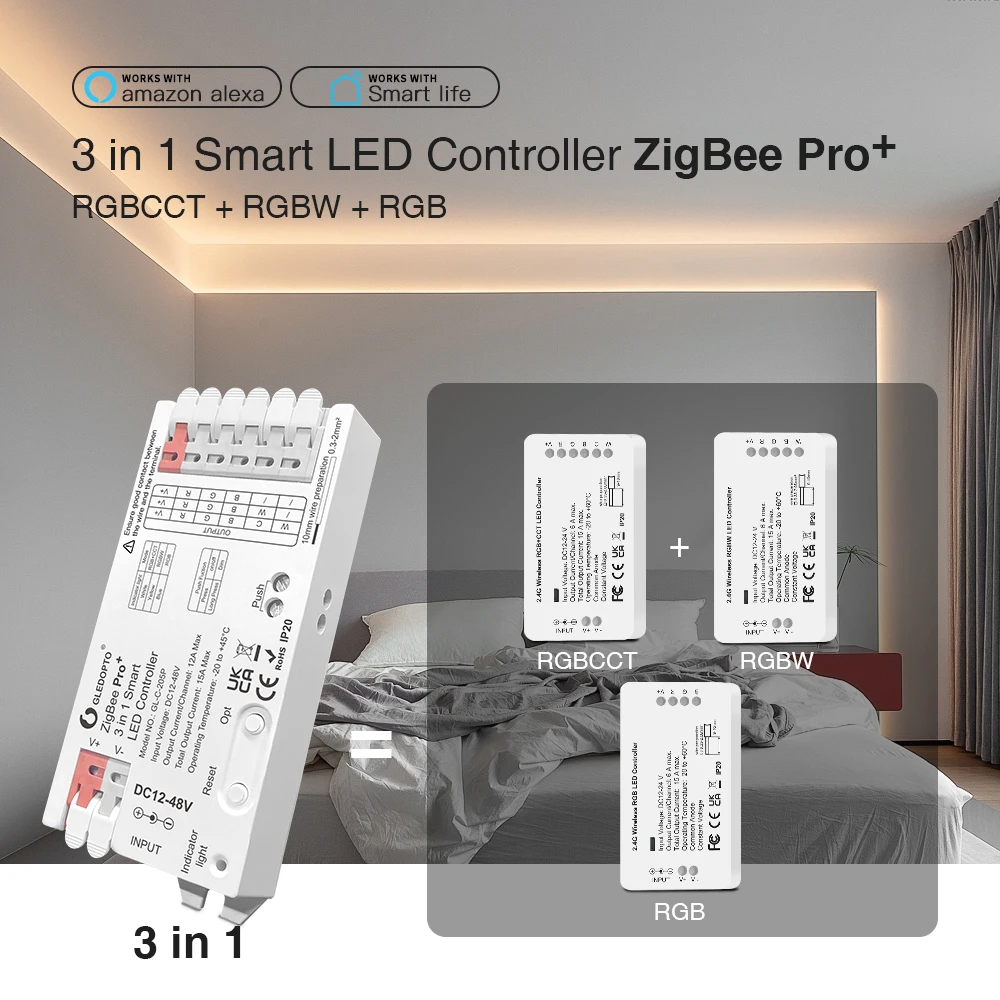

Product name | Zigbee pro+ Smart 3 in 1 led controller |
Application | Smart Lighting Control |
Communication protocol | Zigbee pro+ + 2.4G RF |
Keyword | LED Strip Light Controller |
Voltage | DC12V-48V |
Certificates | CE FCC ROHS |
Type | Zigbee pro+ led controller |
Total Output Current | 15A Max |
Working temperature | -20-45 |
Material | Fireproof PC |
