220 480V Winch Electric 1Ton Winch Hydraulic Electric Anchor Cable Pulling Winch Double Drum
- Category: >>>
- Supplier: Zhengzhou Yuandong Machinery Manufacturing Co. Ltd.Zhengzhou Ltd.
Share on (1601297582800):
Product Overview
Description

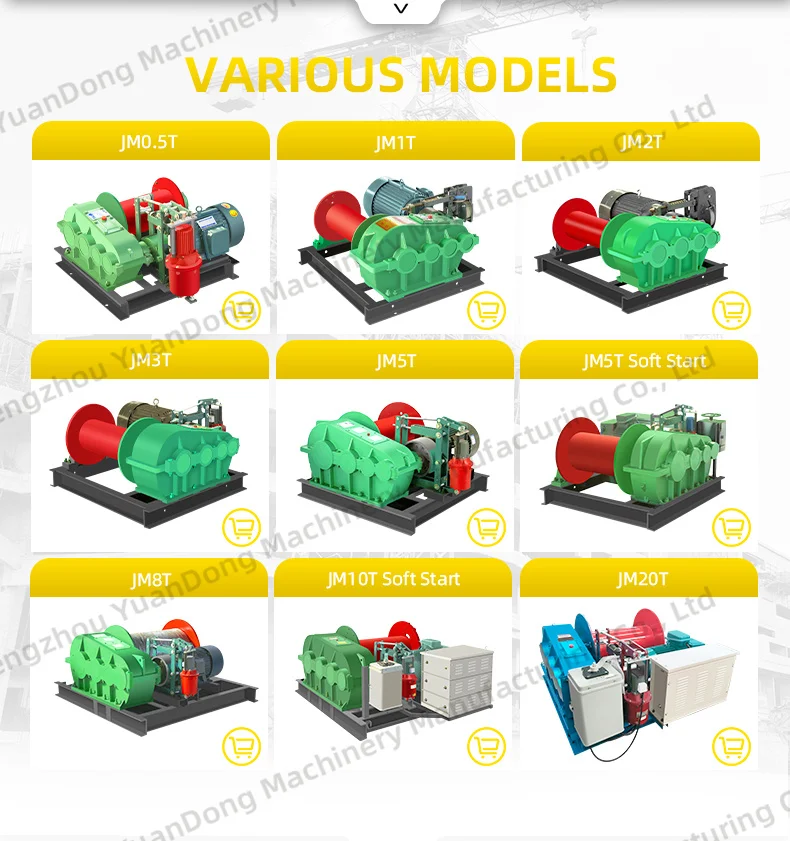

Various Models

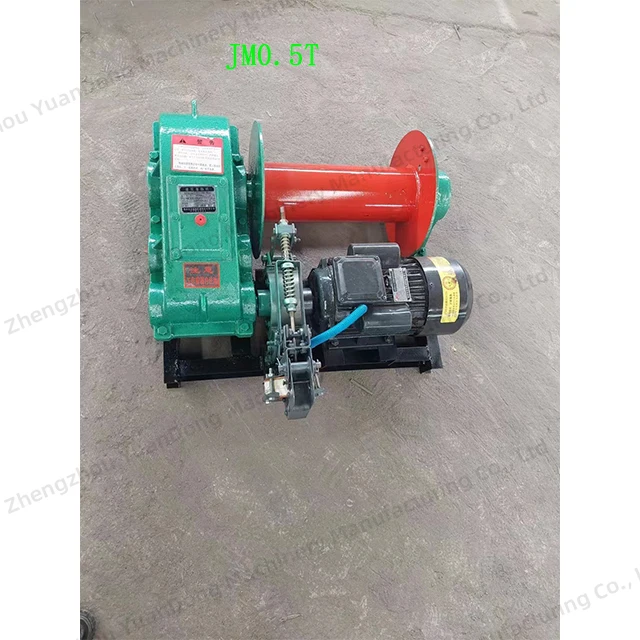

| Model | JM0.5T | JM1T | JM2T | JM3T | JM5T | |
| Speed | 20 | 12 | 12 | 12 | 12 | |
| Power | 3 | 5.5 | 11 | 15 | 18.5 | |
| Rope capacity | 120 | 200 | 200 | 200 | 200 | |
| Roller size | 159*300-55 | 140*380-65 | 180*500-85 | 219*540-110 | 325*590-125 | |
| Weight | 105 | 160 | 320 | 420 | 770 | |
| Reducer | 300 | 330 | 435 | 485 | 620 |
Product Description
JM series electric winch is gears reducer driving .Mainly used for hoisting pull drag the weight drop.Be widely used in boat,port, workshop, warehouse, construction and many kinds producing-line, so is necessary equipment for lifting goods, raising labor efficiency, improving working conditions.
Ø The capacity: 1t, 1.6t, 2t, 3.2t, 5t, 6t, 8t, 10t, 12.5t, 13.5t, 16t, 20t, 25t, 32t, 50t, 65t
Ø The rated load: 10, 16, 20, 32, 50, 60, 80, 100, 125, 135, 160, 200, 250, 320, 500, 650KN
Ø Working grade: M5
Ø Lifting unit: Wire rope
Ø Rated speed: 0~20m/min or as your demand
Ø Working temperature: -25~+40 centigrade
Product Structure
Product display
Company Information
Packaging & Shipping
