DN 63 160mm semi automatic butt fusion welding machine for Easy Control Operation Low Frequency Resistance Butt Welder
- Category: >>>
- Supplier: Hangzhou Deruibao Piping Technology Co. Ltd.Hangzhou Ltd.
Share on (1601298762838):
Product Overview
Description
Model | WP160B | ||
Suitable materials | PE, PP, PVDF | ||
Range | 63-75-90-110-125-140-160mm | ||
Power supply | 220V | ||
Frequency | 50 Hz | ||
Total power | 3.65KW | ||
Heating plate | 1.5KW | ||
Planing tool | 1.4KW | ||
Hydraulic station | 0.75KW | ||
Max.Temperature of heating plate | 270ºC | ||
Pressure gauge | 8Mpa | ||
Pressure range | 0-8Mpa | ||
Temp.Deviation in Surface | ±5ºC | ||
Total Weight | 111kg | ||
Net weight | 91kg | ||
Basic Frame | plywood case | 760*460*560MM 0.196CBM | |
Hydraulic Unit&Planing tool & heating plate | plywood case | 700*500*500MM 0.175CBM | |

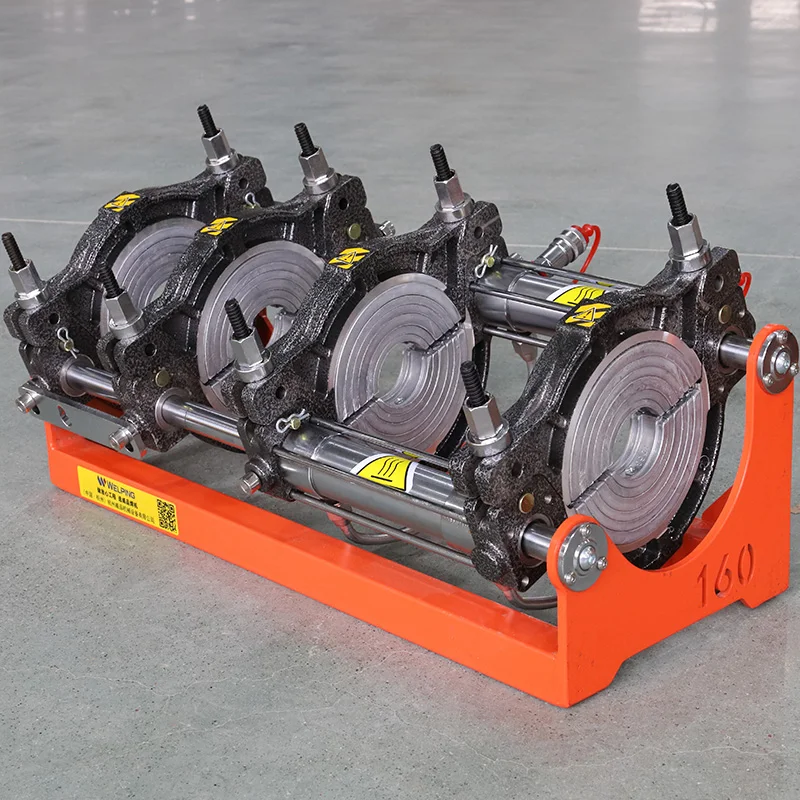

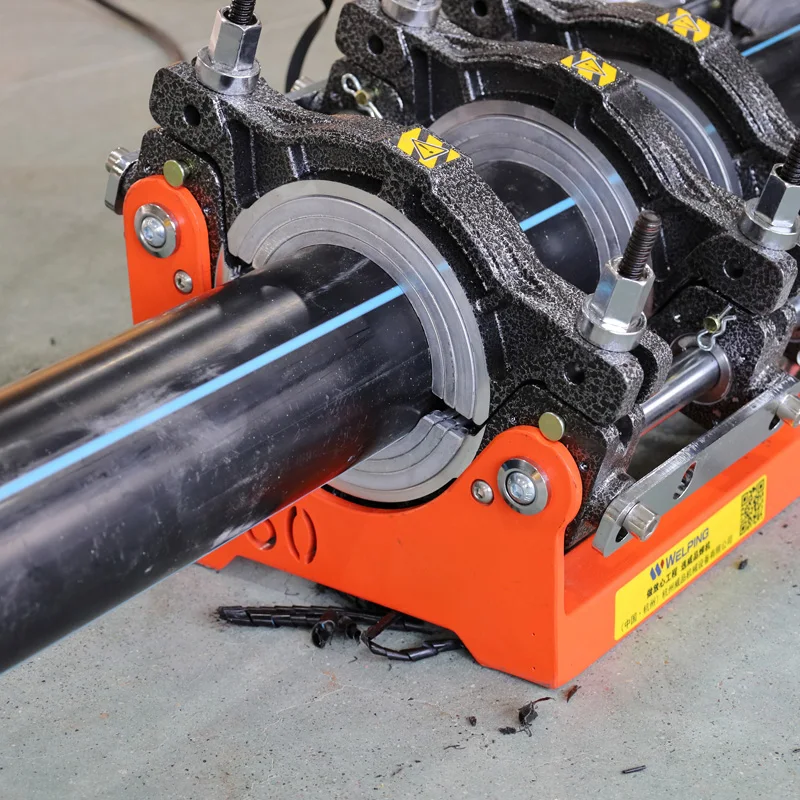

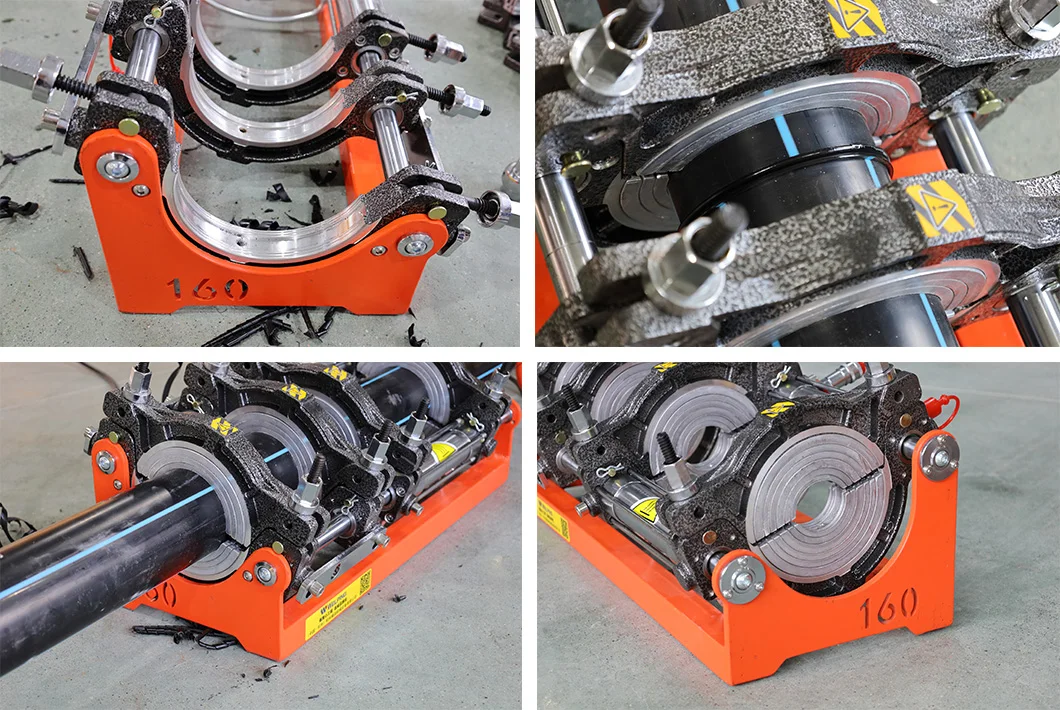

Machine Frame
◊Robust steel plate welded frame,strong&Light-weight

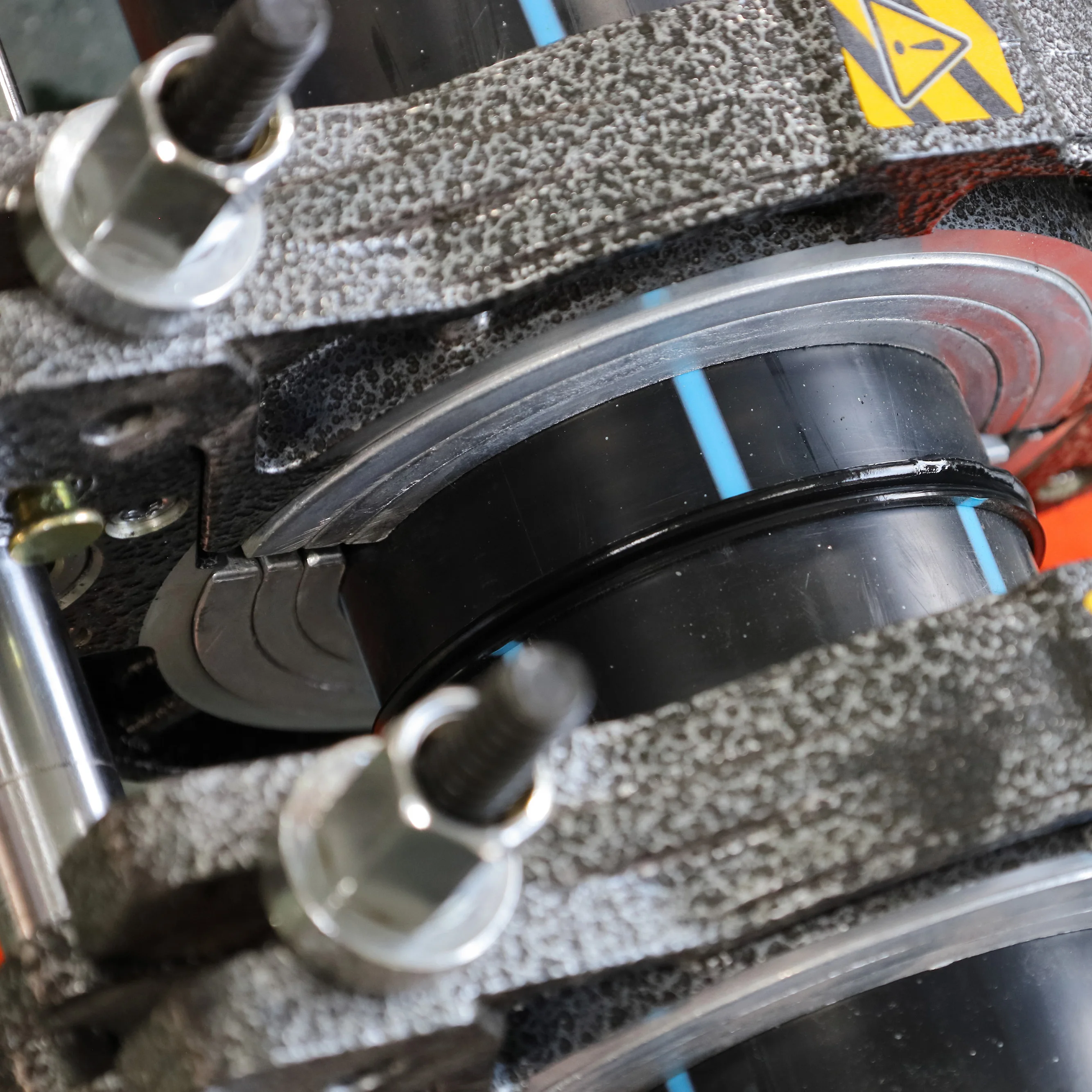

◊Reinforced upper and lower cast Aluminum clamping pieces
◊Standard equipping carrying handle for easy transportation
◊Built-in hydraulic cylinder with qualified quick connecting joints
◊Reinforced upper and lower cast Aluminum clamping pieces
◊Standard equipping carrying handle for easy transportation
◊Built-in hydraulic cylinder with qualified quick connecting joints

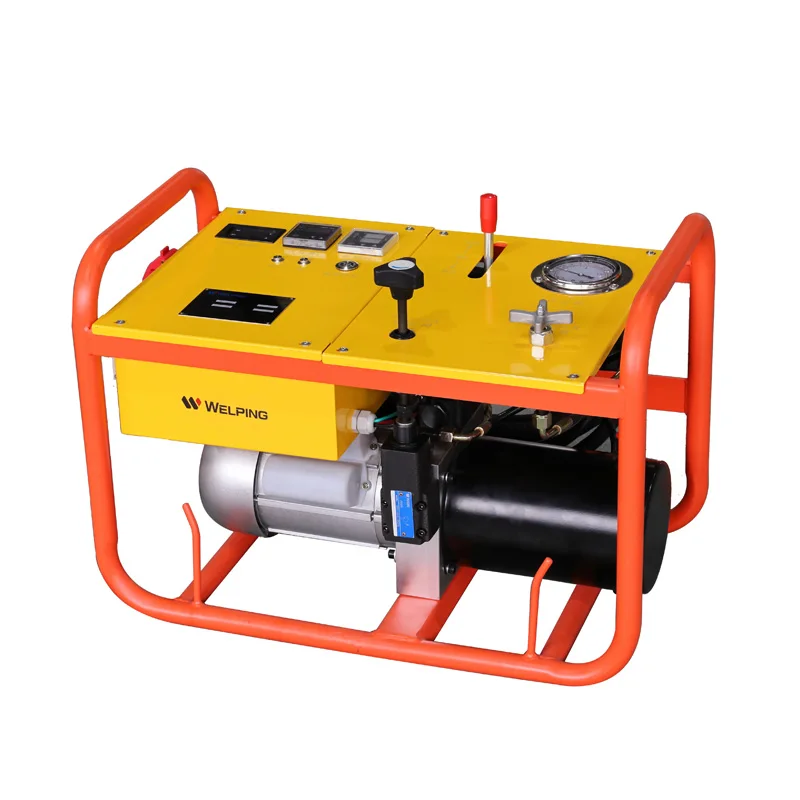

Hydraulic station
◊Consolidate hydraulic system and electrical system together for easy operation
◊Color LCD screen for time and temperature setting and display
◊Enclosing design shielding splash and dirt
◊Data logging device optional
◊Color LCD screen for time and temperature setting and display
◊Enclosing design shielding splash and dirt
◊Data logging device optional

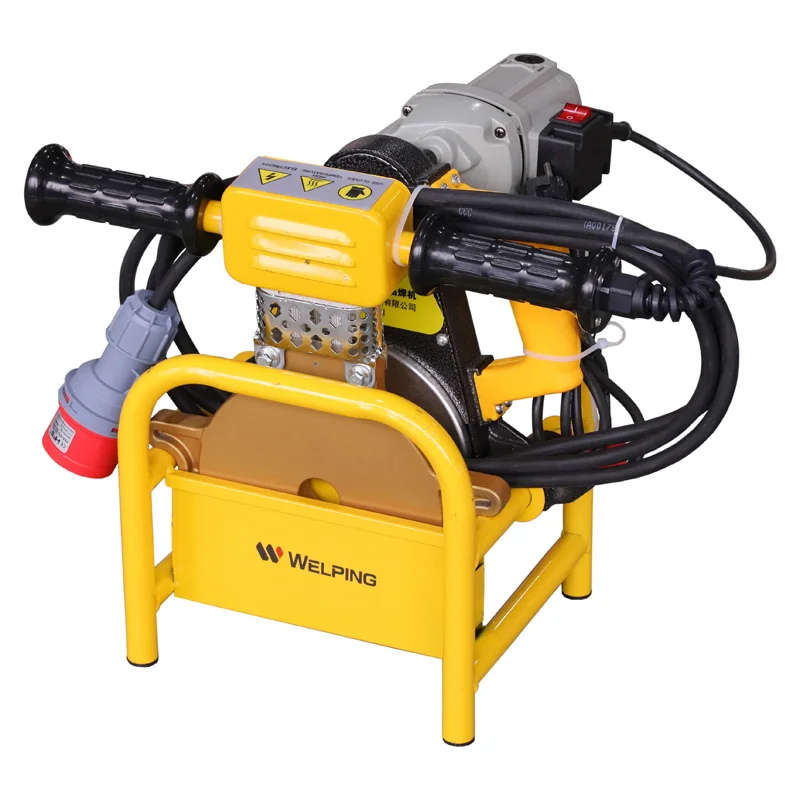

Planing tool(trimmer,facer)
◊Full size,strong universal motor with steady performance
◊Gear transmission,efficient,reliable and maintenance-free
◊HSS blade with double edges
◊Carrying handle,separate switch preventing mis-operation
Heating plate
◊Bakelite handle with high insulating property and thermal insulation
◊Built-in qualifier heating element
◊Reliable aviation plug,link to hydraulic station
◊Non-stick PTFE coating
◊Built-in qualifier heating element
◊Reliable aviation plug,link to hydraulic station
◊Non-stick PTFE coating
Company introduction
Since 2005, Hangzhou Welping Machinery Equipment Co., Ltd. has been focusing on the development, manufacturing and sales of pipe tool equipment. Our goal is to combine industrial-level design, performance and quality to create a machine that will become your first choice.

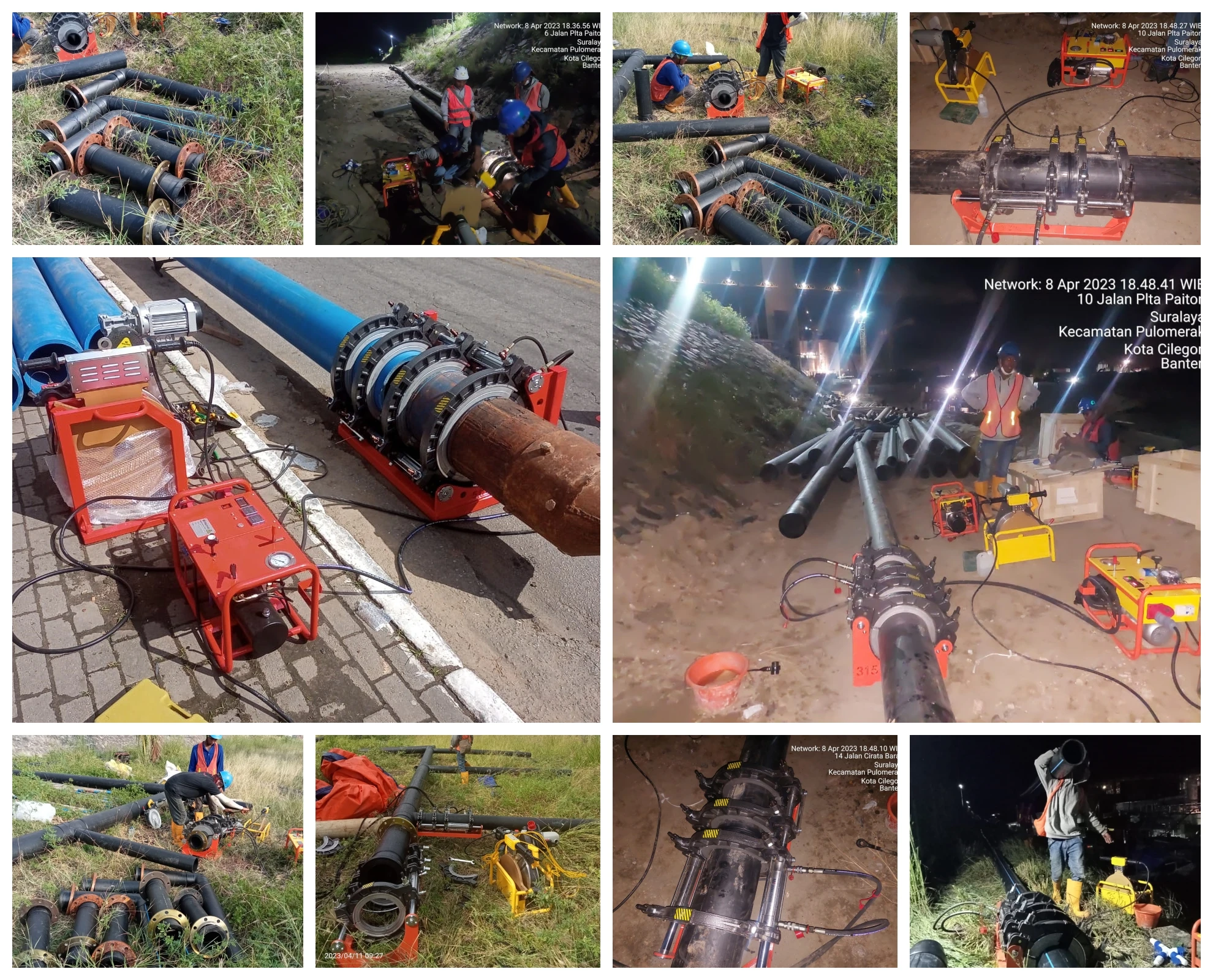

Our products can be used in municipal drainage, natural gas, sewage, chemical, agricultural irrigation and so on.Our products sell well at home and abroad by virtue of high quality and competitive price.They are mainly distributed in India, South Africa, Sri Lanka, Russia, Germany and so on.
To suit different pipe applications and market requirements, we are offering different level tools represented by brand WELPING, YOVIDA, Doweld ,Volkir, ENERFLEX Brand WELPING enjoys a high reputation in the market of China and Russia, benefiting from the steady quality and performance. Thanks to our experienced engineers, WELPING can help you to quickly decide OEM and DM requirements. At the same time, we are improving and updating products line to better suit field requirements.
Our products can be used in municipal drainage, natural gas, sewage, chemical, agricultural irrigation and so on.Our products sell well at home and abroad by virtue of high quality and competitive price.They are mainly distributed in India, South Africa, Sri Lanka, Russia, Germany and so on.
To suit different pipe applications and market requirements, we are offering different level tools represented by brand WELPING, YOVIDA, Doweld ,Volkir, ENERFLEX Brand WELPING enjoys a high reputation in the market of China and Russia, benefiting from the steady quality and performance. Thanks to our experienced engineers, WELPING can help you to quickly decide OEM and DM requirements. At the same time, we are improving and updating products line to better suit field requirements.
