112KW 12.5 Ton Hydraulic Motor Grader STG140C 10 Road Construction Machinery with High Efficiency Road Machinery
- Category: >>>
- Supplier: Acntruck Vehicle & Machinery (Shanghai) Co. Ltd.Acntruck Ltd.
Share on (1601300271058):
Product Overview
Description
Exhibition
Products Description

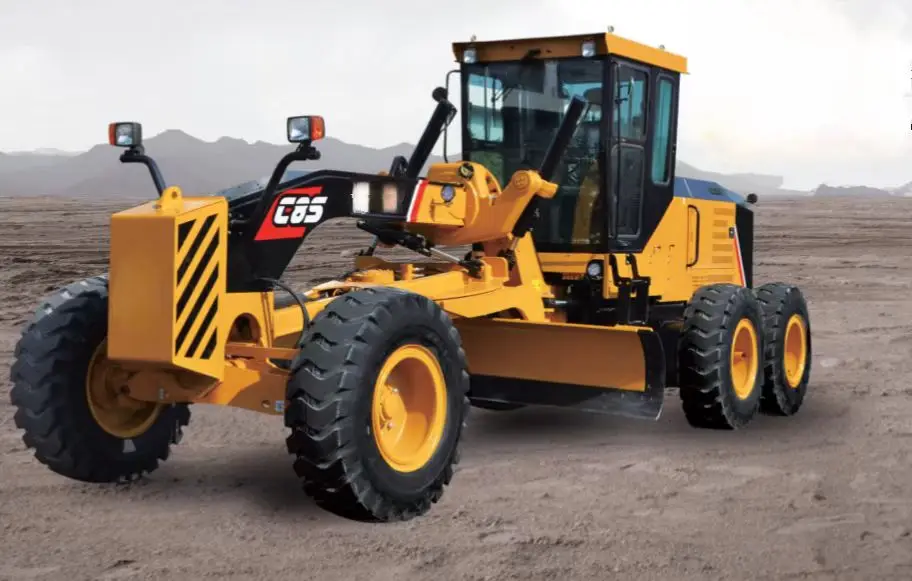

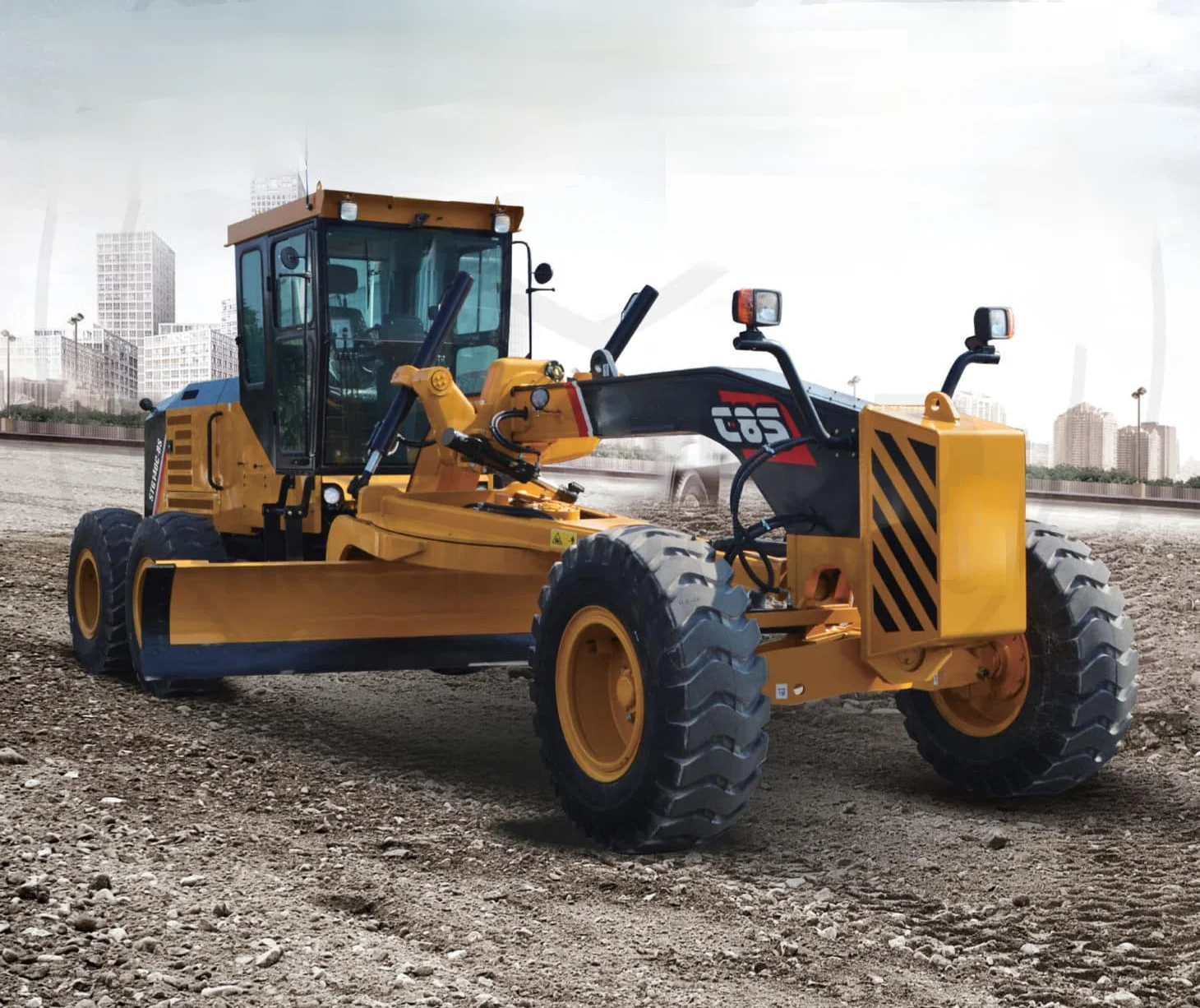

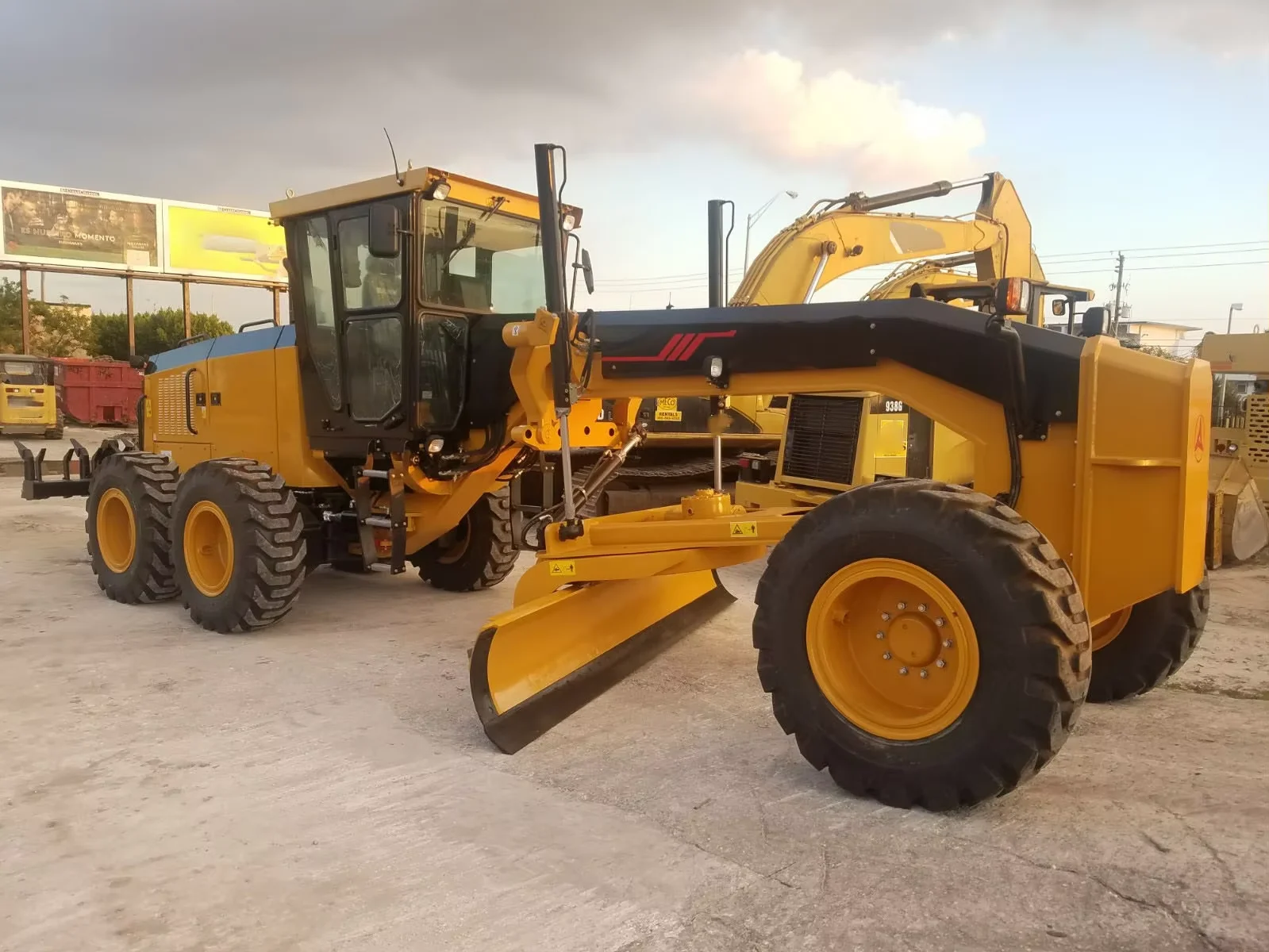

STG140C-8S Hydraulic motor graderPowerful Engine with High Efficiency
· High-power and heavy-load engine is strong and powerful.· VHP technology can adapt to different work conditions, such as light load, middle load and heavy load, with different power curves, so that the machine can always work within the minimum fuel consumption range.
Reliable Rear Axle & Work Implements of Rotary Bearing Structure
· Work implements adopt a fully-sealed rotary bearing structure, which provides easy maintenance, high operation accuracy, low cost, and service life longer than 10000h.
· The rear axle adopts a rotary bearing structure instead of a conventional copper sleeve structure, which provides easy
maintenance, high operation accuracy and service life longer than 10000h.
· 4-front and 2-rear disc-type brake is safer than drum brake with less braking distance and maintenance cost.
Easy and Convenient Maintenance
· SYCD color LCD display show multi-parameter in multi-language .
· Visual display of fault information, troubleshooting guide, and automatic prompts for regular maintenance.
· Wide-opening door of the engine compartment, centralized arrangement of common electrical components, fuel tank located at the rear of frame all make the daily maintenance a convenient and quick thing.
Safe and Comfortable Ride & Operation Experience
· ROPS/FOPS safe cab is equipped with a high-grade interior, air conditioner with cooling and heating functions, fan, radio, sound system, cup holder, and cigar lighter (the same as USB interface in the car).
· It also has a horizontal sliding window, sun visors, curtains, radio, double rearview mirrors, and a mechanical suspension seat with headrest.
· With LED lamps arranged at multiple positions, the operator has better vision at night.
Product Paramenters
Supplier | DONGFENG CUMMINS |
Emission | CHINA II |
Model | 6BTA5.9-C150-II |
Rated power (kW) | 112 |
Rated rotation speed (rpm) | 2200 |
Peak torque (Nm) | 655 |
Standard (with counterweight) (LxWxH) (mm) | 8765x2460x3310 |
Front and rear axle base (mm) | 6154 |
Middle and rear wheel base (mm) | 1538 |
Clearance (from rear axle to ground) (mm) | 395 |
Standard (with counterweight) (kg) | 13000 |
Length of blade (mm) | 3660 (12ft) (standard) |
Height of blade (mm) | 620 |
Tilt angle | ±90° |
Turning angle | 360° |
Max. lift above ground (mm) | 420 |
Max. depth of cut (mm) | 630 |
Blade tip range | 25°-75° |
Gears | 6 forward and 3 reverse |
Forward speed (km/h) | 5/8/12/19/28/41 |
Reverse speed (km/h) | 5/12/28 |
Steering angle of front wheel | ±45° |
Tilt angle of front wheel | ±17° |
Articulated steering angle | ±25° |
Oscillation angle of front axle | ±16° |
Model of tire | 13.00-24(16PR) (standard) |
Max. capacity of hydraulic oil tank (L) | 140 |
Max. capacity of fuel tank (L) | 350 |
