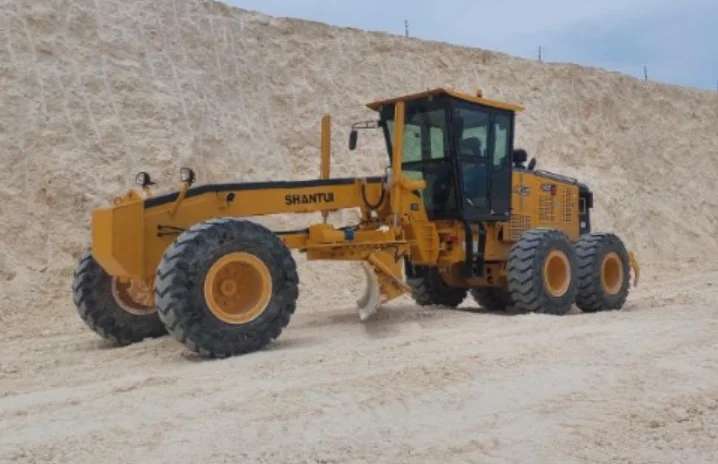

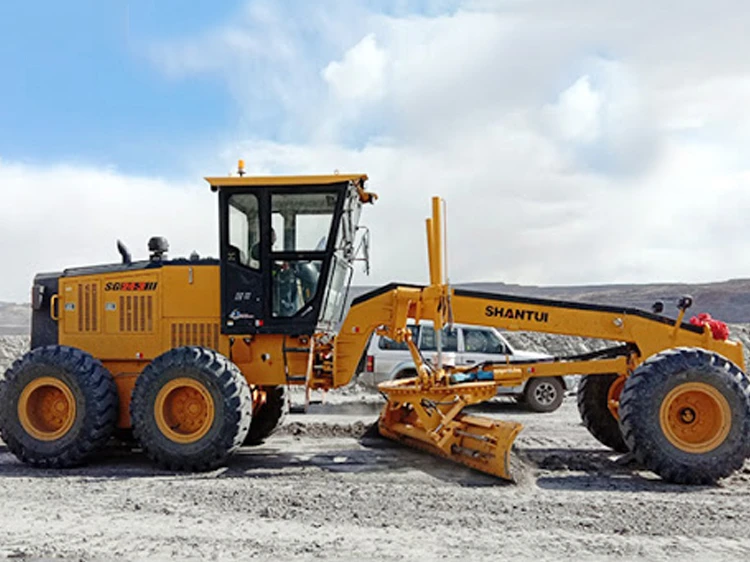

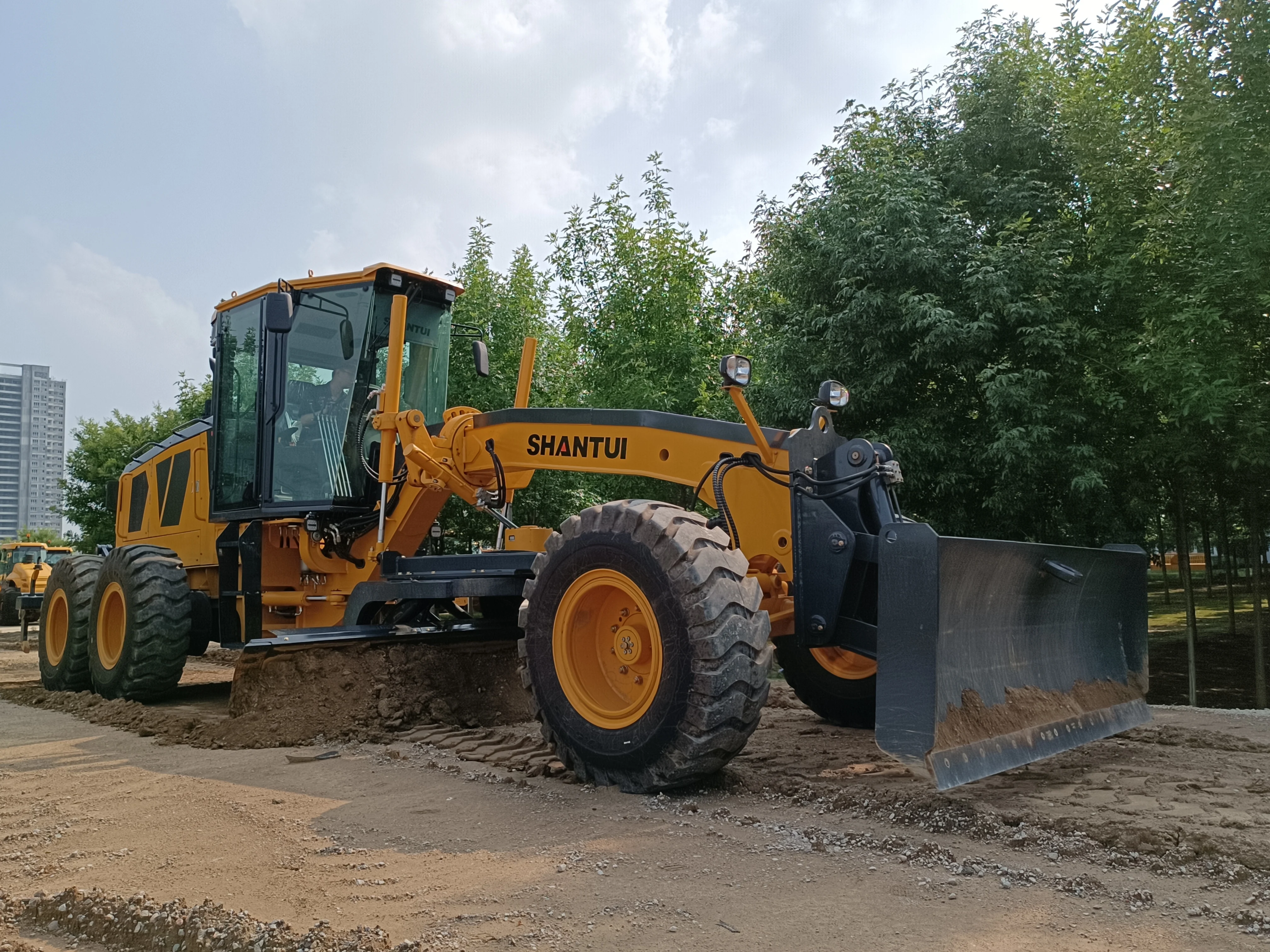

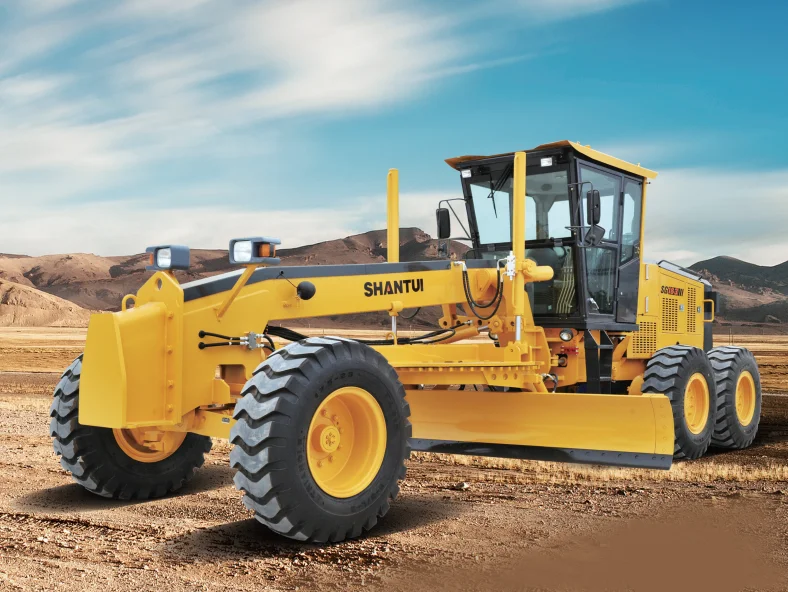

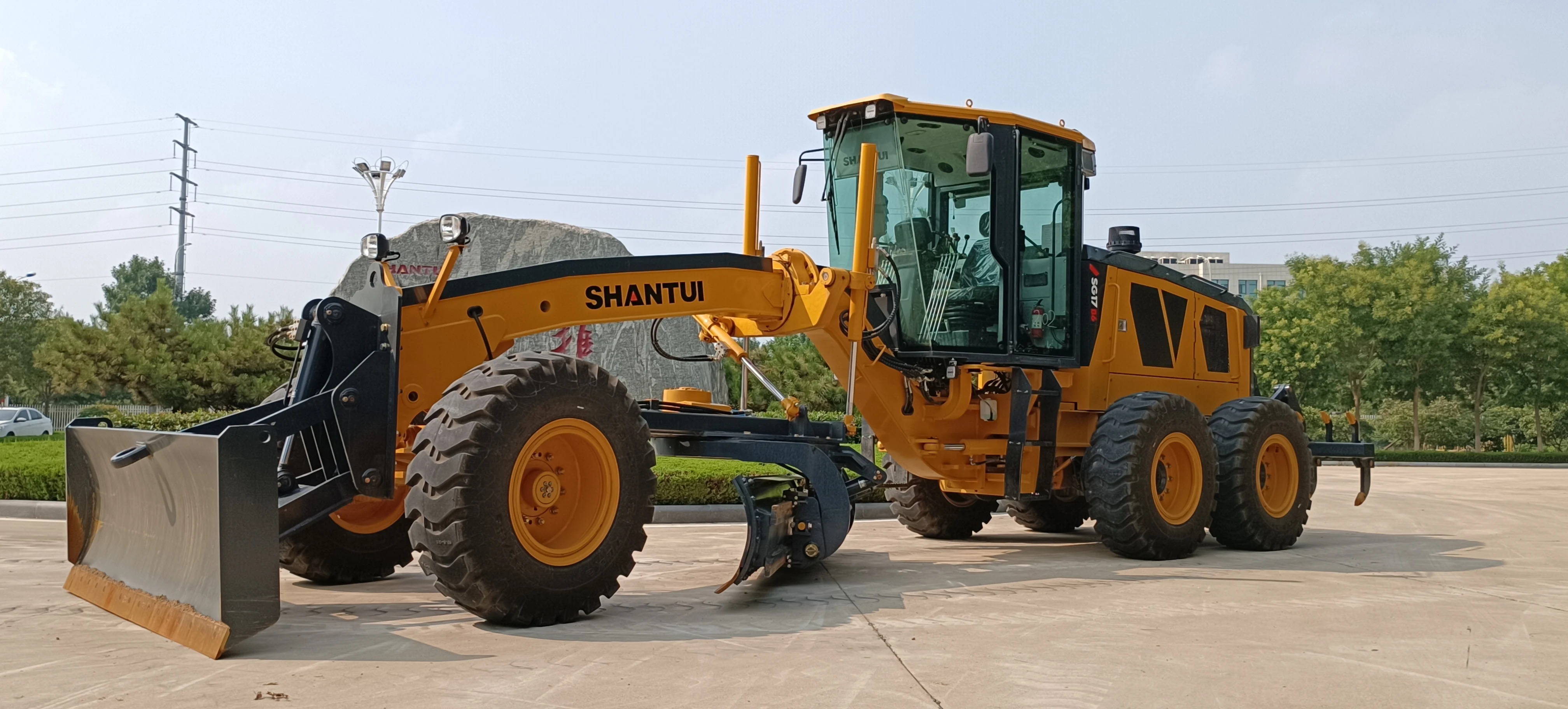

China famous Brand SG17 B6 Motor Grader Machine with with Ripper and Blade for Sale
- Category: >>>
- Supplier: Oriemac Machinery & Equipment (Shanghai) Co. Ltd.Oriemac Ltd.
Share on (1601312782936):
Product Overview
Description
Shantui Vedio
Product Description
This machine, featuring its mainstream engine and drive system, delivers the utmost traction available in the industry and remarkable operational efficiency. It comes equipped with a heavy-duty slewing bearing working device and cutting edges specially
developed by Shantui, ensuring smooth rotation, superior resistance against wear, and exceptional resilience against impacts.
developed by Shantui, ensuring smooth rotation, superior resistance against wear, and exceptional resilience against impacts.
The machine is designed with externally accessible lubrication points for ground lubrication and is equipped with a centralized
pressure testing system. Every oil filler is designed to be externally accessible. The cab design of this machine eliminates the
A-pillar and presents an expansive 320° wide field of vision. It is furnished with a mechanical suspension seat and an electronic
control handle, ensuring a more comfortable and convenient operating experience.
pressure testing system. Every oil filler is designed to be externally accessible. The cab design of this machine eliminates the
A-pillar and presents an expansive 320° wide field of vision. It is furnished with a mechanical suspension seat and an electronic
control handle, ensuring a more comfortable and convenient operating experience.

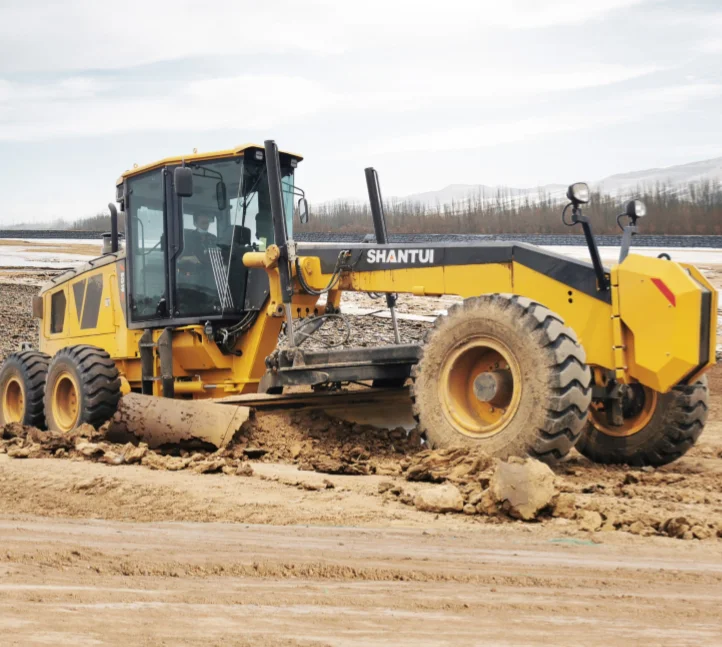

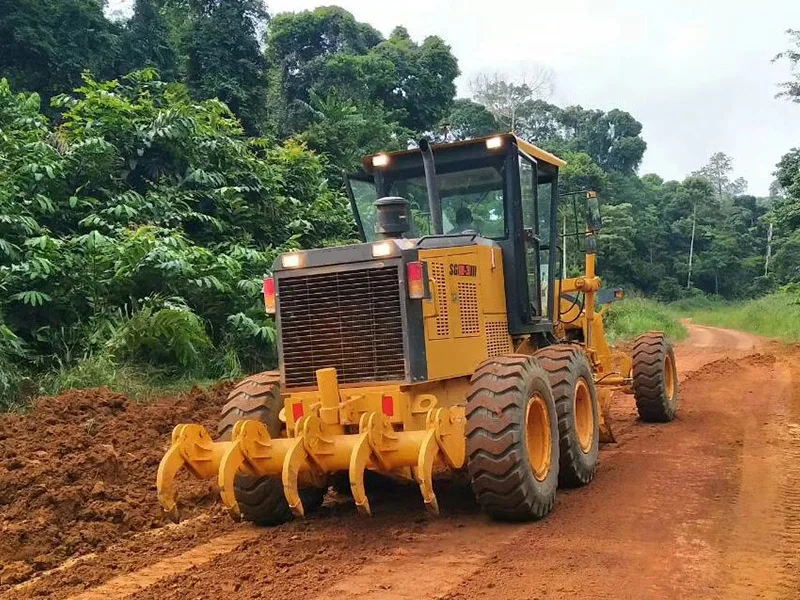

The machine offers the flexibility to be fitted with a range of attachments, including the front moldboard and rear ripper, to meet the fine leveling, scraping, snow removal, and loosening needs of both general roads and mining roads.
Specification
Parameter | SG17-B6 |
Engine power(kW) | 132 |
Overall weight(T) | 14.8 |
Blade width(mm) | 3660 |
External dimensions(mm) | 8953×2600×3358 |
Engine model | 6BTAA5.9-C180 |
Fuel tank capacity(L) | 270 |
Hydraulic oil tank capacity(L) | 85 |
Maximum traction(kN) | 81.3 |
Maximum forward speed(km/h) | 43.6 |
Maximum reverse speed(km/h) | 33.2 |
Blade cutting angle(°) | 22~73 |
Emissions(Indicated as per international standards) | CN stage II |
