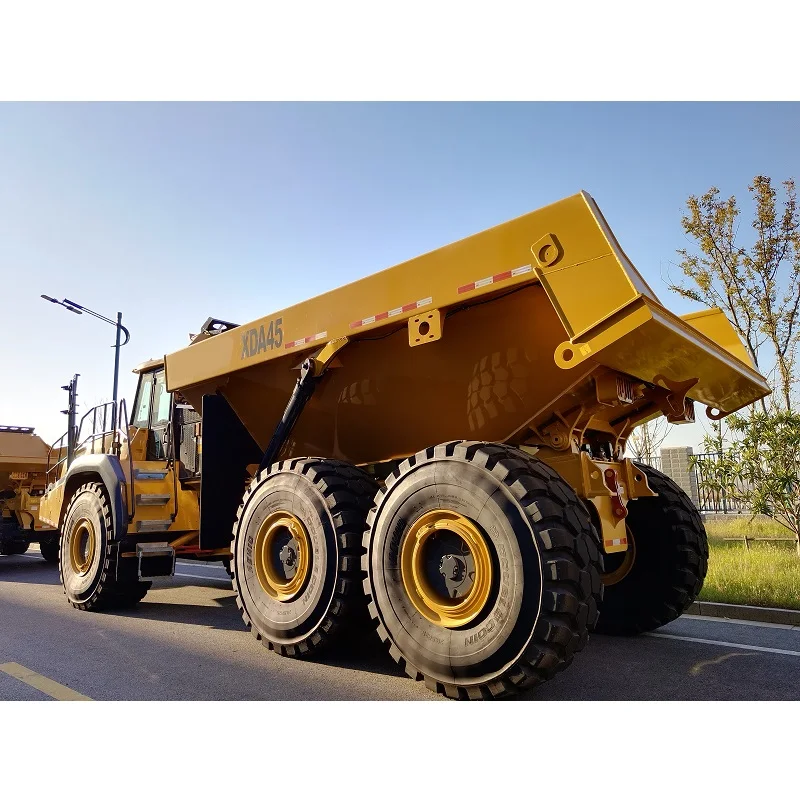

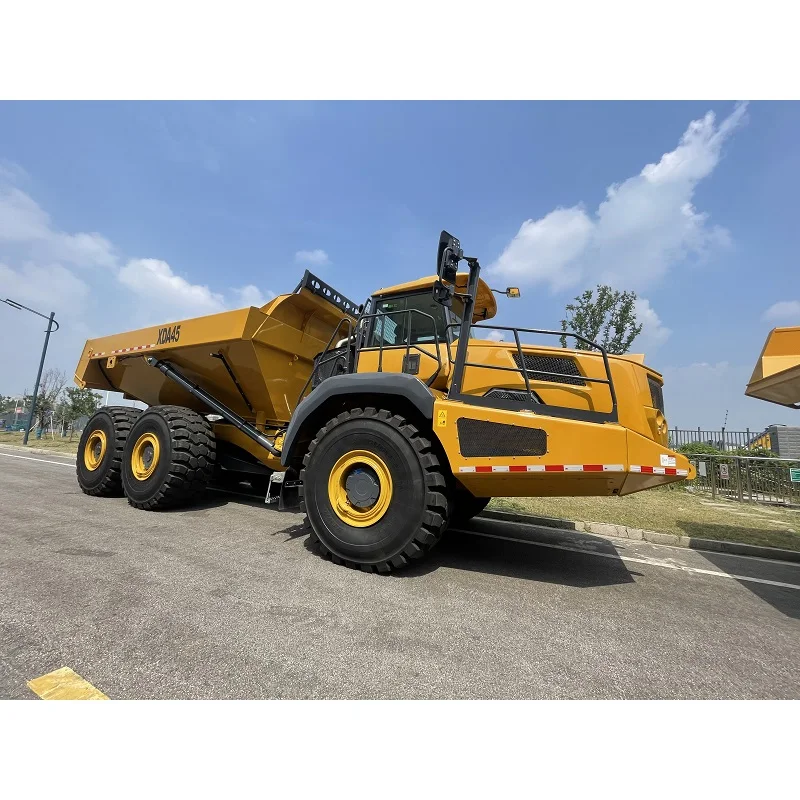

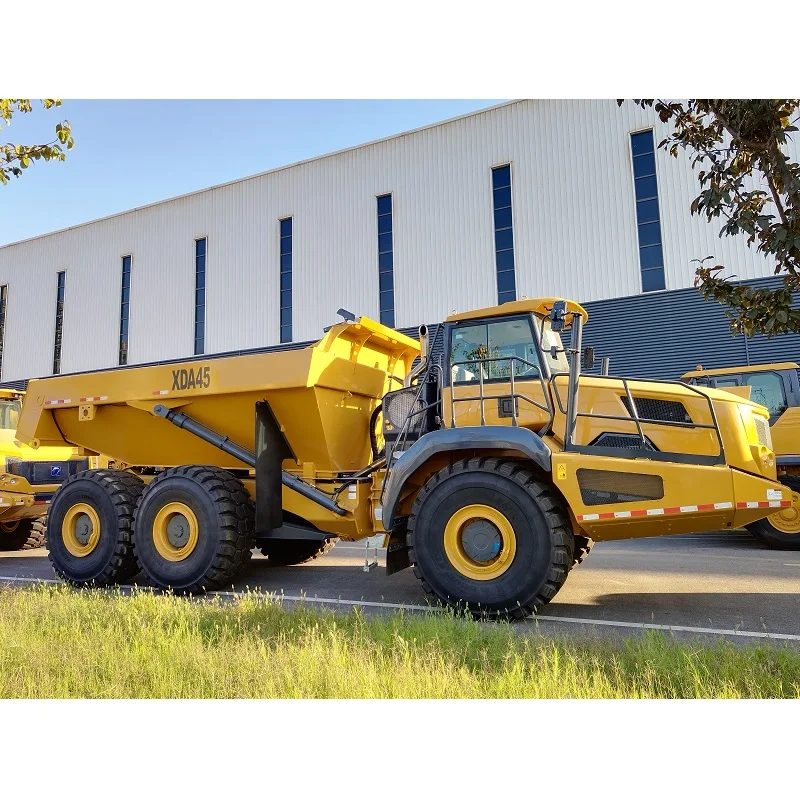

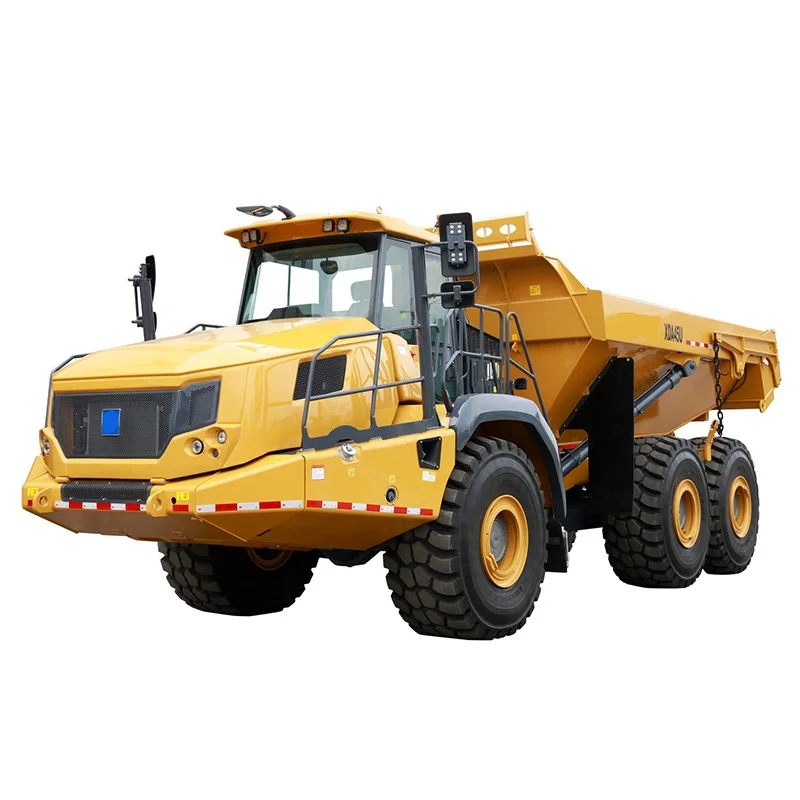

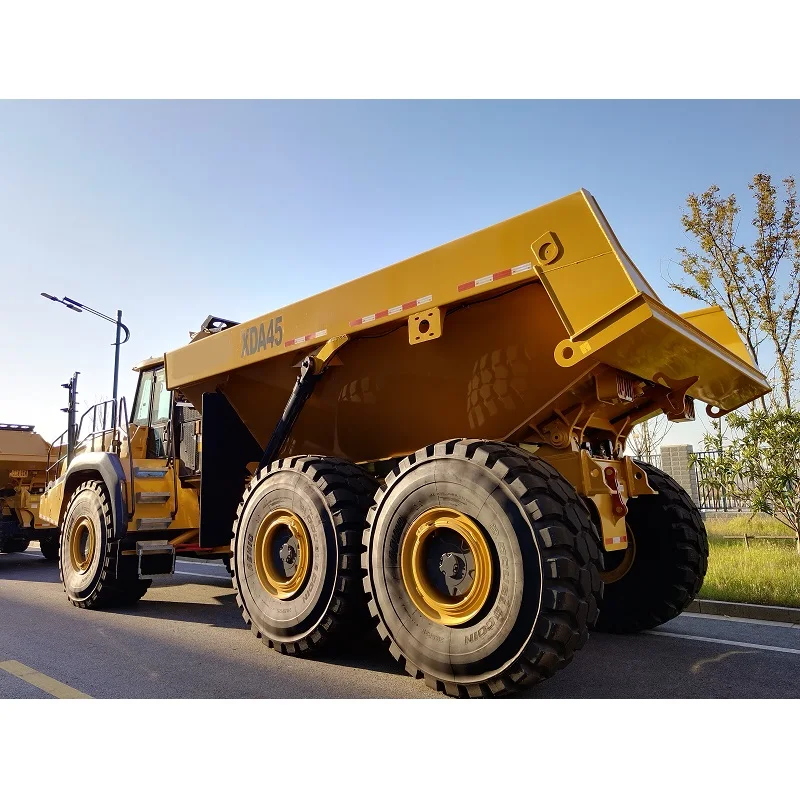

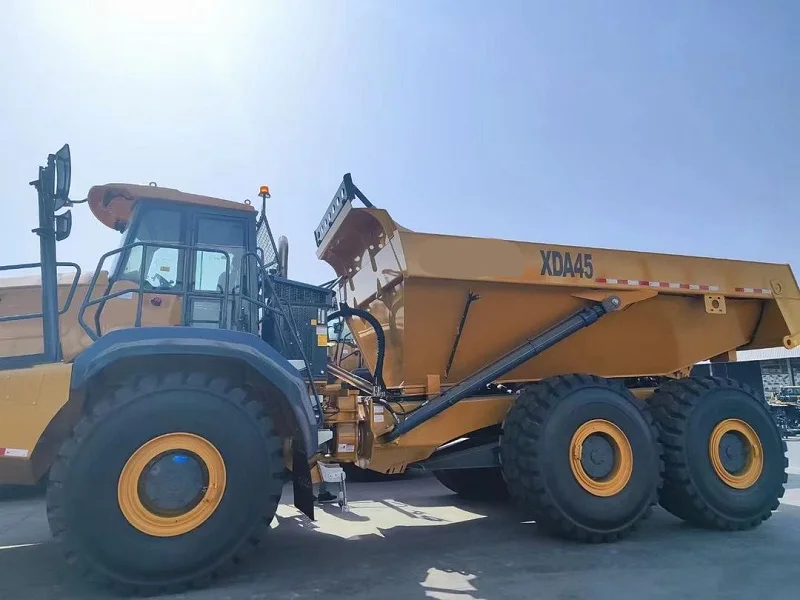

Top Brand XDA45 Articulated Dump Truck 41ton Big Dump Truck
Dump truck XDA45 adopts mine-specific heavy-duty working device and chassis system; the power system is highly energy-saving and meets the emission regulations of different regions such as China Phase IV, North America Tier4F, European StageV, etc., suitable for the global market; newly designed comfortable positive pressure cab, advanced control system and behavior Monitoring system, more comfortable driving and smarter operation
1. High efficiency: The original imported engine has strong power, meets the requirements of efficient operation and low fuel consumption.
2. High efficiency and energy saving: the use of pump-controlled hydraulic system and load-sensitive steering system improves the stability of the system and the convenience of troubleshooting, making it more efficient and energy-saving.
3. Intelligence: Apply XCMG's unique driving control strategy, develop unique shift control programs and fault diagnosis system, and make the whole vehicle more intelligent.
4. High reliability: 6×6 drive and friction plate type inter-wheel and inter-axle differential lock, which makes the vehicle
passability, reliability and driving stability reach a higher level.

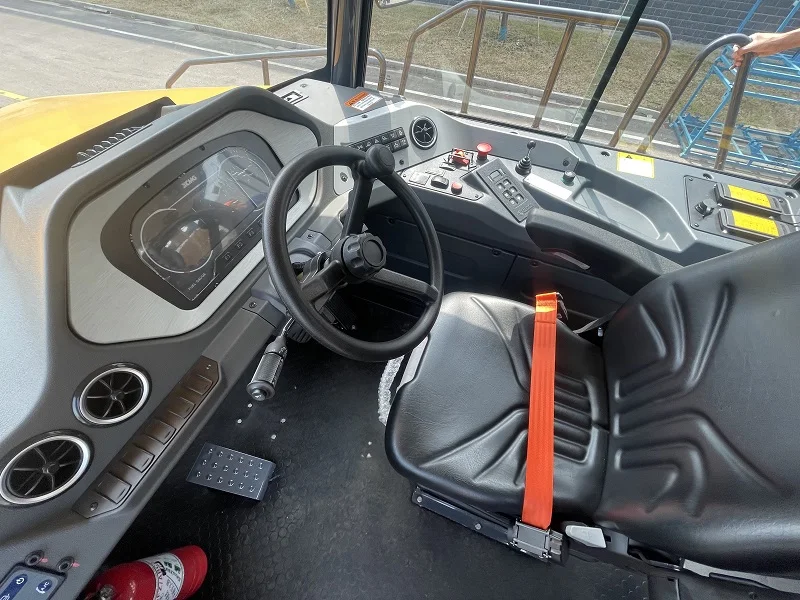

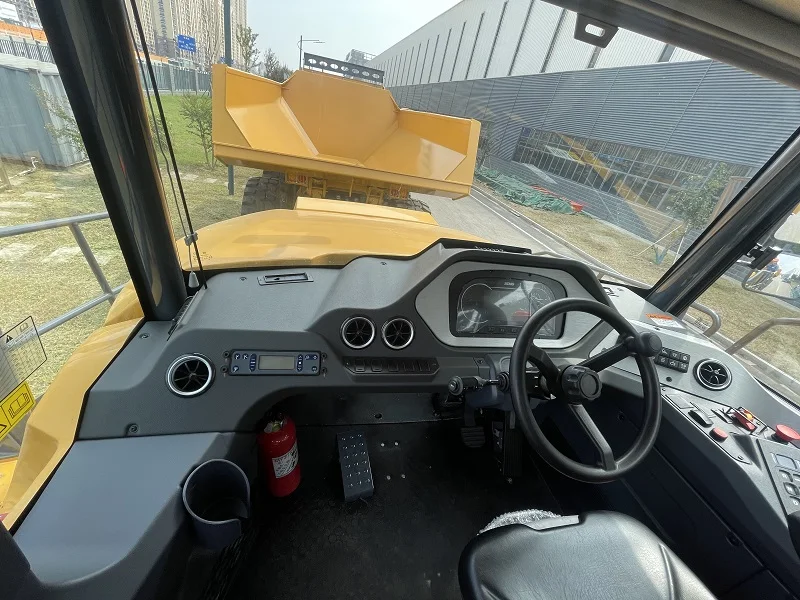

5. Comfort and safety: ROPS&FOPS cab equipped with ISO anti-tip/anti-falling object standards is equipped with spacious space, wide vision, and a more comfortable and safe driving environment.
6. High maintainability: Both the cab and the hood are designed to be reversible. The whole vehicle is equipped with centralized lubrication system, centralized filling, centralized sampling and other systems, which are convenient and efficient for maintenance.
1. High efficiency: The original imported engine has strong power, meets the requirements of efficient operation and low fuel consumption.
2. High efficiency and energy saving: the use of pump-controlled hydraulic system and load-sensitive steering system improves the stability of the system and the convenience of troubleshooting, making it more efficient and energy-saving.
3. Intelligence: Apply XCMG's unique driving control strategy, develop unique shift control programs and fault diagnosis system, and make the whole vehicle more intelligent.
4. High reliability: 6×6 drive and friction plate type inter-wheel and inter-axle differential lock, which makes the vehicle
passability, reliability and driving stability reach a higher level.
5. Comfort and safety: ROPS&FOPS cab equipped with ISO anti-tip/anti-falling object standards is equipped with spacious space, wide vision, and a more comfortable and safe driving environment.
6. High maintainability: Both the cab and the hood are designed to be reversible. The whole vehicle is equipped with centralized lubrication system, centralized filling, centralized sampling and other systems, which are convenient and efficient for maintenance.
Product Paramenters
Item | Unit | Parameter | ||
Dimension | Overall Length | mm | 10690 | |
Overall Width | mm | 3370 | ||
Overall Height | mm | 3793 | ||
Wheelbase front-mid | mm | 4450 | ||
Wheelbase mid-rear | mm | 1940 | ||
Front | mm | 2600 | ||
Mid & Rear | mm | 2600 | ||
Weight | Total Weight | kg | 73000 | |
Payload | kg | 39000 | ||
Curb Weight | kg | 34000 | ||
Weight Distribution | Front | kg | 17000 (50%) | |
Mid & Rear | kg | 17000 (50%) | ||
Front | kg | 21600 (29.6 %) | ||
Mid & Rear | kg | 51400 (70.4%) | ||
Power Train | Engine | / | OM502 | |
Rated Power | kW/HP/rpm | 350/1800 | ||
Max Torque | Nm/rpm | 2300/1300 | ||
Drive | / | 6×6 | ||
Tires | / | 29.5R25 | ||
Driving Performance | Max speed | km/h | 60 | |
Min Turning Clearance | mm | 8865 | ||
Max Grade ability | % | 45 | ||
Max Steering Angle | ° | ±45 | ||
Minimum Ground Clearance | mm | 565 | ||
Working Parameter | Loading Height | mm | 3180 | |
