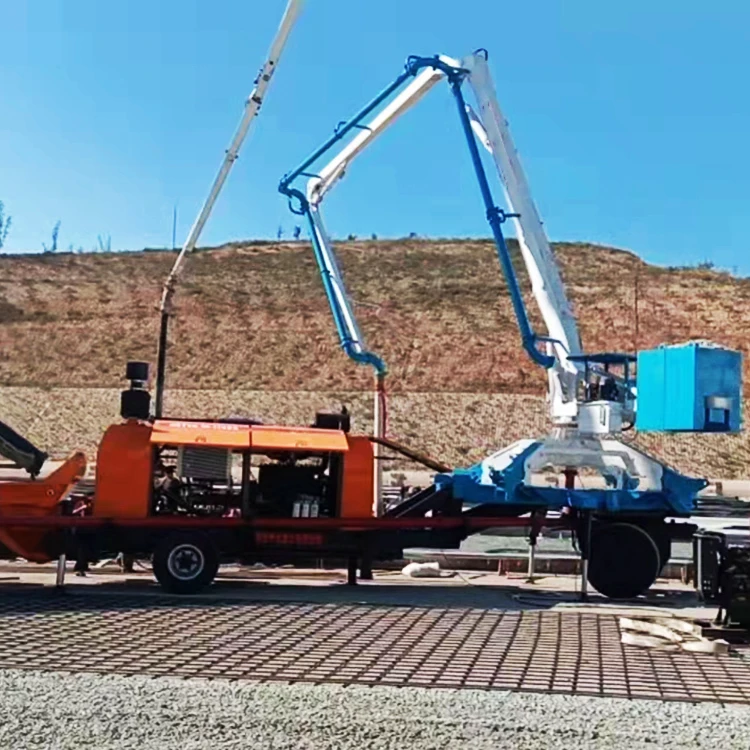

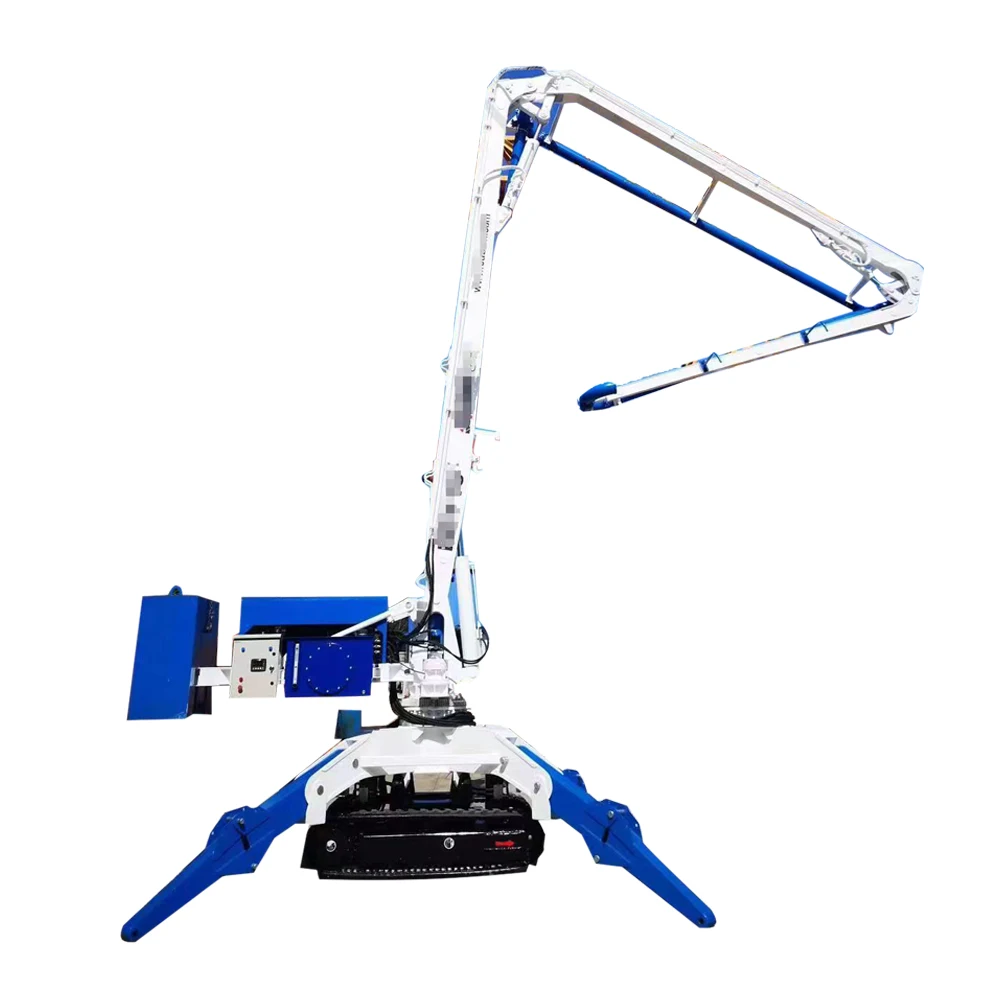

HGY 17 Mobile Hydraulic Concrete Placing Machine Spider Concrete Placing Machine 17m Factory Price
- Category: >>>
- Supplier: Yimei Machinery Equipment Manufacturing Co. Ltd.Yimei Ltd.
Share on (1601331884228):
Product Overview
Description
Welcome To Yimei Machinery Equipment Manufacturing Co.Ltd
This price is the deposit price for product production
If you don't find the product you need, you can tell us, we will provide diverse styles for you to choose, please feel free to buy! Thanks again.
Company Profile
Products Description
Hydraulic placing machine is an extension of the traditional placing machine, an intelligent concrete placing machine, on the basis of the traditional placing machine to improve the operation of the inconvenience and personnel costs and pouring efficiency of a new type of placing machine.
Features:
1.Mobility: Mobile hydraulic placing machines are usually designed to be lightweight and easy to carry, suitable for multi-point placing on construction sites.
2.Hydraulic Operation: Driven by hydraulic system, it can efficiently and smoothly carry out placing operations and adapt to different working environments.
3.Quick setup: It can be quickly installed and disassembled, saving time and improving construction efficiency.
3.Wide range of application: It can be used for conveying and laying concrete, mortar and other materials, and is widely used in construction sites, bridge construction and other occasions.
4.Environmental adaptability: For places with large terrain undulations, it can easily cope with complex construction conditions by virtue of its flexibility. zmwm24
Features:
1.Mobility: Mobile hydraulic placing machines are usually designed to be lightweight and easy to carry, suitable for multi-point placing on construction sites.
2.Hydraulic Operation: Driven by hydraulic system, it can efficiently and smoothly carry out placing operations and adapt to different working environments.
3.Quick setup: It can be quickly installed and disassembled, saving time and improving construction efficiency.
3.Wide range of application: It can be used for conveying and laying concrete, mortar and other materials, and is widely used in construction sites, bridge construction and other occasions.
4.Environmental adaptability: For places with large terrain undulations, it can easily cope with complex construction conditions by virtue of its flexibility. zmwm24
Product Paramenters
Mobile Hydraulic Concrete Placing Boom | ||||||||||||||
Project name | HGY13 | HGY15 | HGY17 | HGY19 | HGY21 | HGY23 | ||||||||
Max. working radius | 13m | 15m | 17m | 19m | 21m | 23m | ||||||||
Tilt working range | 0°~84° | 0°~89° | 0°~84° | 0°~84° | 0°~84° | -4°~90° | ||||||||
Slewing working range | Full Rotary | |||||||||||||
Motor power of hydraulic washing system | 4kw | 4kw | 5.5kw | 7.5kw | 22kw | 22kw | ||||||||
Working pressure of hydraulic system | 20mpa | 16mpa | 20mpa | 20mpa | 32mpa | 32mpa | ||||||||
Slewing speed | 0.46r/min | 0.2-0.3/min | 0.2-0.3/min | 0.2-0.3/min | 0.2-0.3/min | 0.2-0.3/min | ||||||||
Concrete pipe specification | ∅125*4 | |||||||||||||
Length of hose at arm end | 3m | |||||||||||||
Outrigger span | 4000*4000mm | 4231*4231mm | 5167*5167mm | |||||||||||
Overall size of the machine | 8900*4000*2585 | 6000*5000*4000 | 6670*5730*4510 | 6500*4800*4600*5312 | 6839*5089 *5060*5800 | |||||||||
Slewing angle | 360° | 360° | 360° | 360° | 360° | 360° | ||||||||
Weight (self-weight/counterweight T) | 2.7/4.3 | 3.23/5.43 | 5/7.2 | 5.3/7.5 | 7.7/9.9 | 8/10.2 | ||||||||
We have a variety of Concrete Placing Boom models for you to choose, you can also send us your requirements, we will provide you with the right Concrete Placing Boom style, engine and other mechanical original parts, we can also provide you with customized service.
Details Images
Product Video
FAQ
Are you the manufacuturer or trade company ?
We are the manufacturer for producing tunnel grilled slag machine,rock mucking loader , mining transport car ,and verious attachments With mining equipment.
And we have owned trading company to do the International Business,
So that :
1)-We can supply good service with professional international trade experience.
2)-The price is much more competitive.
Can you do the ODM or OEM, what is MOQ?
Yes, it is possible as both discussed, MOQ: 1unit.
What about delivery time, how long can I get the machine since order.
The producing time fast to 15-20 workings if you will customerized machine.
The standard machine in stock, can delivery as soon as possible after ordering.
How to pay for you ?
30% down payment, then producing start, the balance 70% paid before
shipping.
If the machines in stock, pay 100% then delivery.
We are the manufacturer for producing tunnel grilled slag machine,rock mucking loader , mining transport car ,and verious attachments With mining equipment.
And we have owned trading company to do the International Business,
So that :
1)-We can supply good service with professional international trade experience.
2)-The price is much more competitive.
Can you do the ODM or OEM, what is MOQ?
Yes, it is possible as both discussed, MOQ: 1unit.
What about delivery time, how long can I get the machine since order.
The producing time fast to 15-20 workings if you will customerized machine.
The standard machine in stock, can delivery as soon as possible after ordering.
How to pay for you ?
30% down payment, then producing start, the balance 70% paid before
shipping.
If the machines in stock, pay 100% then delivery.
