Products Description
Top Brand Road Construction Machinery XL2503 soil stabilizer for civil engineering road renewing
Performance Characteristics:
* The machine adopts WP12 series electronic fuel injection engine, this engine has low emission and noise; the engine has some advanced functions like online display, diagnosis, and fault warning.
* Drive system adopts engine +transfer case, the transfer case connects the rotor pump, walking pump and auxiliary pump.
* Work rotor is driven by high speed motor and speed reducer, the rotor layout is independent designed, reasonable and ensures evenly mixing, etc.
* Travel system: front axle steering, rear axle, drive axle has two gears, high speed used for traveling, low speed used for
operation. The low pressure wide base deep tread tyres are installed in the drive axle, this tyre has big adhesive force and
strong anti slip ability.
* This cab uses wide structure, installs the heating and air conditioner equipped with fan device, Mp3 and radio, comfortable operating
* The machine adopts WP12 series electronic fuel injection engine, this engine has low emission and noise; the engine has some advanced functions like online display, diagnosis, and fault warning.
* Drive system adopts engine +transfer case, the transfer case connects the rotor pump, walking pump and auxiliary pump.
* Work rotor is driven by high speed motor and speed reducer, the rotor layout is independent designed, reasonable and ensures evenly mixing, etc.
* Travel system: front axle steering, rear axle, drive axle has two gears, high speed used for traveling, low speed used for
operation. The low pressure wide base deep tread tyres are installed in the drive axle, this tyre has big adhesive force and
strong anti slip ability.
* This cab uses wide structure, installs the heating and air conditioner equipped with fan device, Mp3 and radio, comfortable operating
Specifications
Item | Unit | XL2503 |
Mixing width | mm | 2100 |
Max. milling depth | mm | 0~400 |
Rotor diameter | mm | 1280 |
Min. turning radius | mm | 7100 |
Manufacturer | Weichai | |
Cooling mode | Water cooled+ air intercooling | |
Type | WP12.400N | |
Air cylinder number | 6 | |
Rated power | kw | 294 |
Rated speed | rpm | 1900 |
Max. fuel consumption rate | g/kW.h | 207.6 |
Electrical system | 24V | |
Working speed | km/h | 0~3 |
Travelling speed | km/h | 0~23 |
Theoretical gradeability (working gear) | % | 20 |
Ground clearance | mm | 450 |
Fuel tank | L | 450 |
Hydraulic oil tank | L | 450 |
Machine mass | kg | 15600 |
Front axle mass | kg | 3200 |
Rear axle mass | kg | 12300 |
Mechanical (length x width x height) | mm | 8740*2765*3450 |

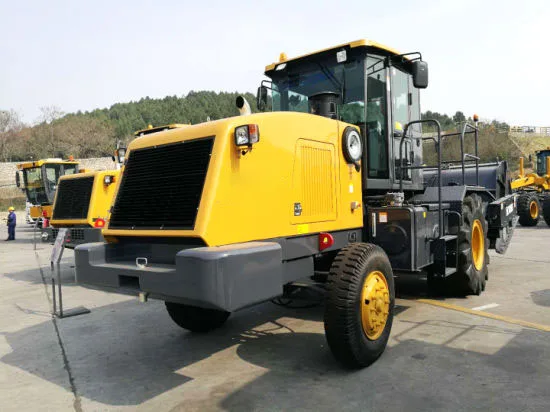

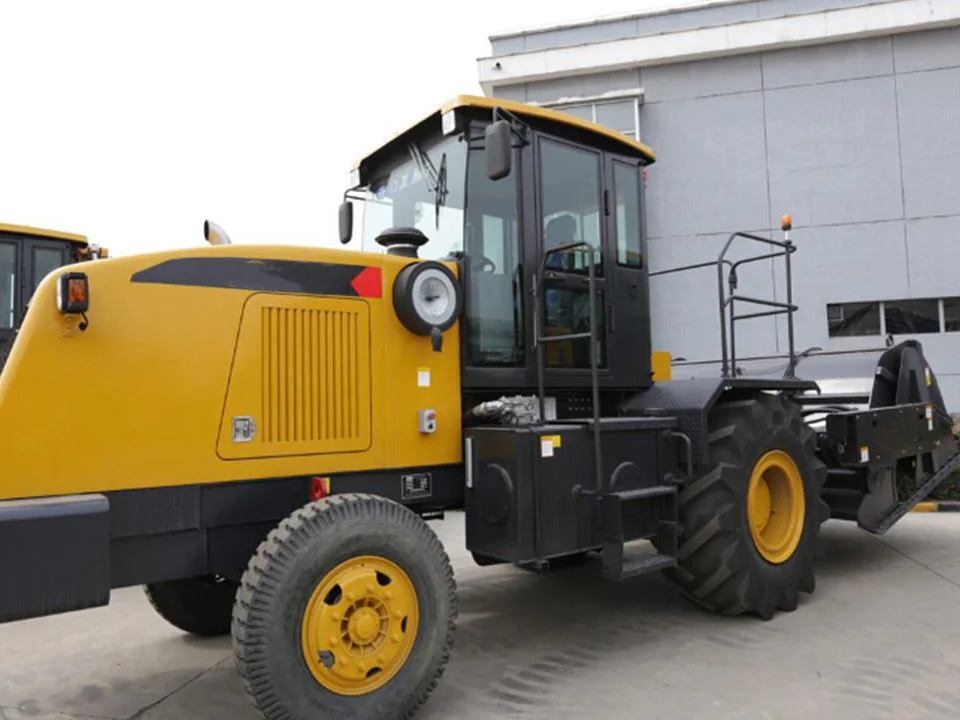

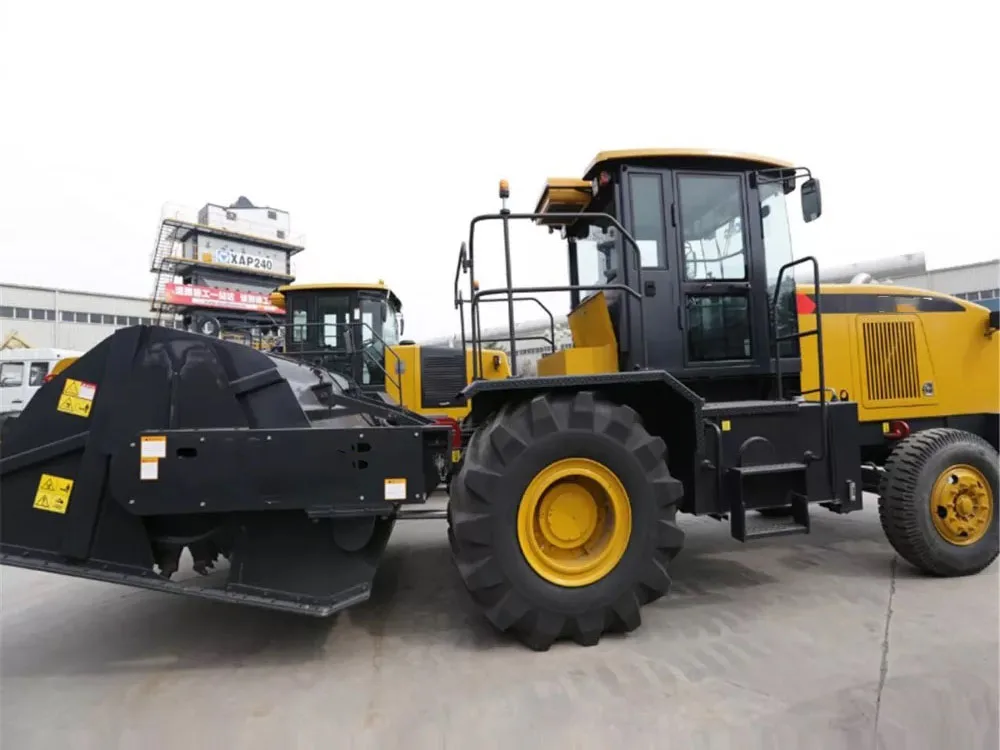

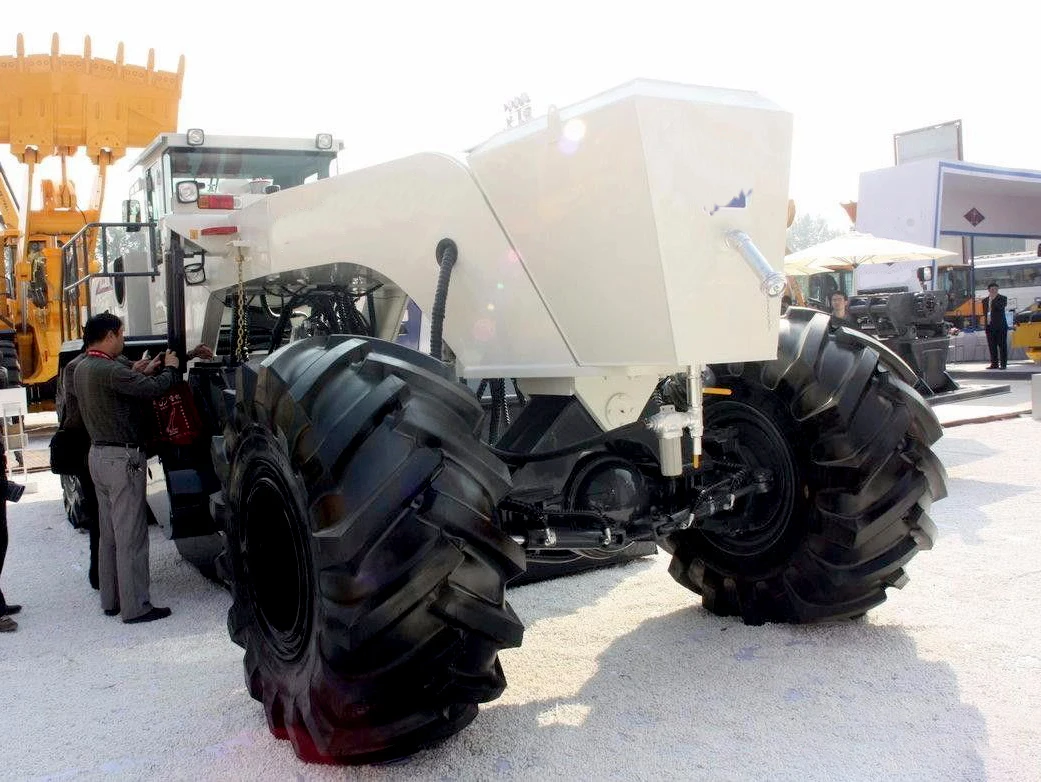

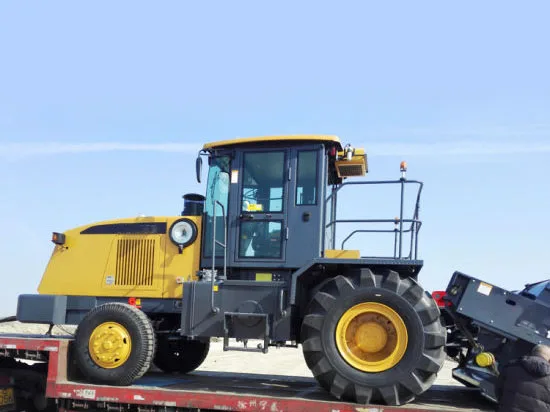

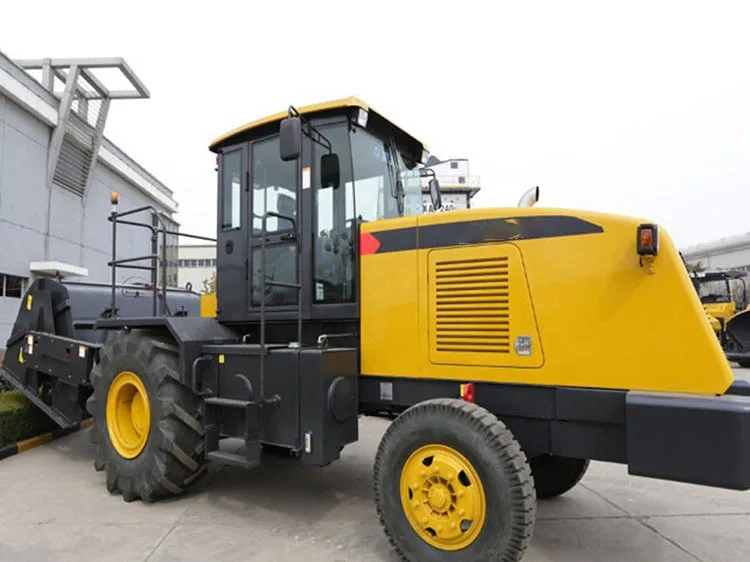

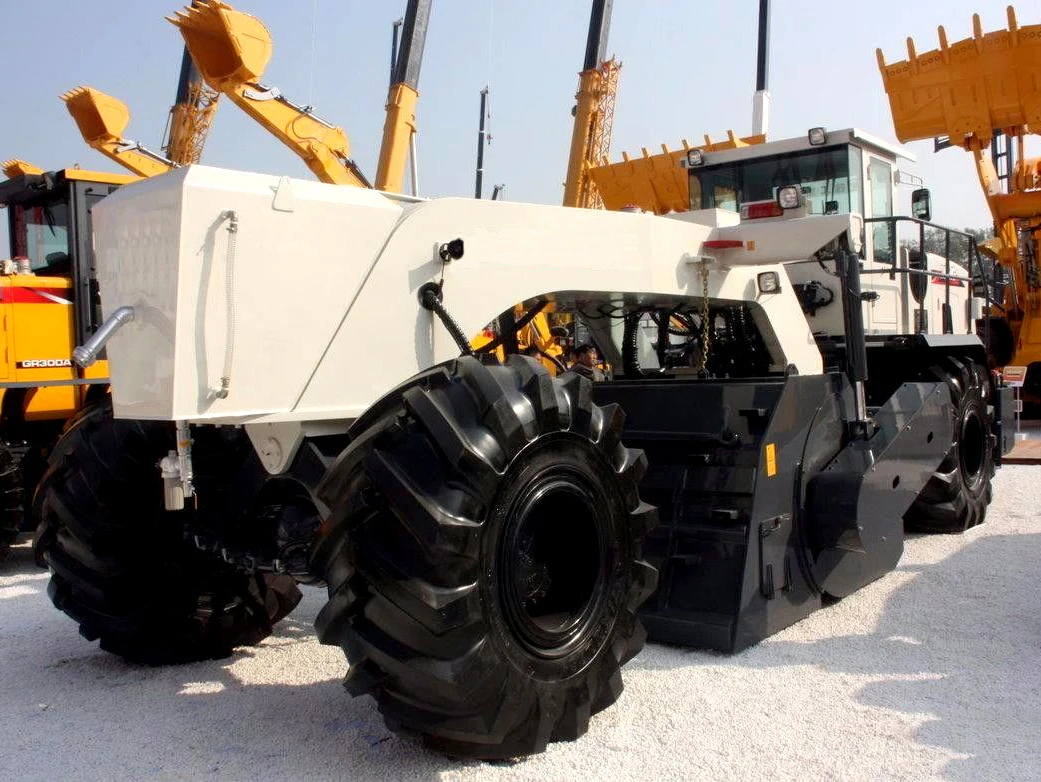

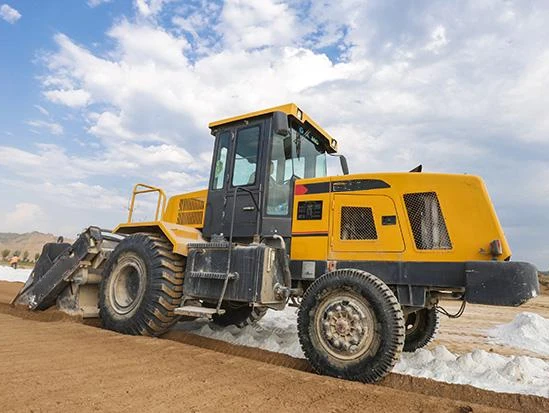

Details Images
