Product Overview
Description
Product Description
Specification
model | See 1.2 for details |
Input voltage | AC 10 0 ~240 V 50/60HZ |
Output voltage | See 1.2 for details |
Output Current | See 1.2 for details |
Lighting method | Steady on/off The DIP switch is always on when it is set to MANU, and always off when it is set to REMO |
Trigger method | High and low level trigger |
Brightness level | 0-255 Level brightness adjustment |
Overvoltage and overcurrent protection | have |
Connect light source type | 24V/48V light source The light source power cannot exceed the total power of the built-in switching power supply |
Trigger voltage | DC5~24V |
Trigger Delay | ＜80us |
Total Power | See 1.2 for details |
Communication | RS232 baud rate 9600 bps |
Number of channels | See 1.2 for details |
Cooling method | Forced air cooling ( built-in fan) |
Working environment temperature and humidity | Temperature: -5 ～ 50 ℃ Humidity: 25 ~ 85%RH (non-condensing) |
Storage environment temperature and humidity | Temperature: -20～ 50 ℃, Humidity: 25 ～ 85%RH (non-condensing) |
weight | About 2kg |

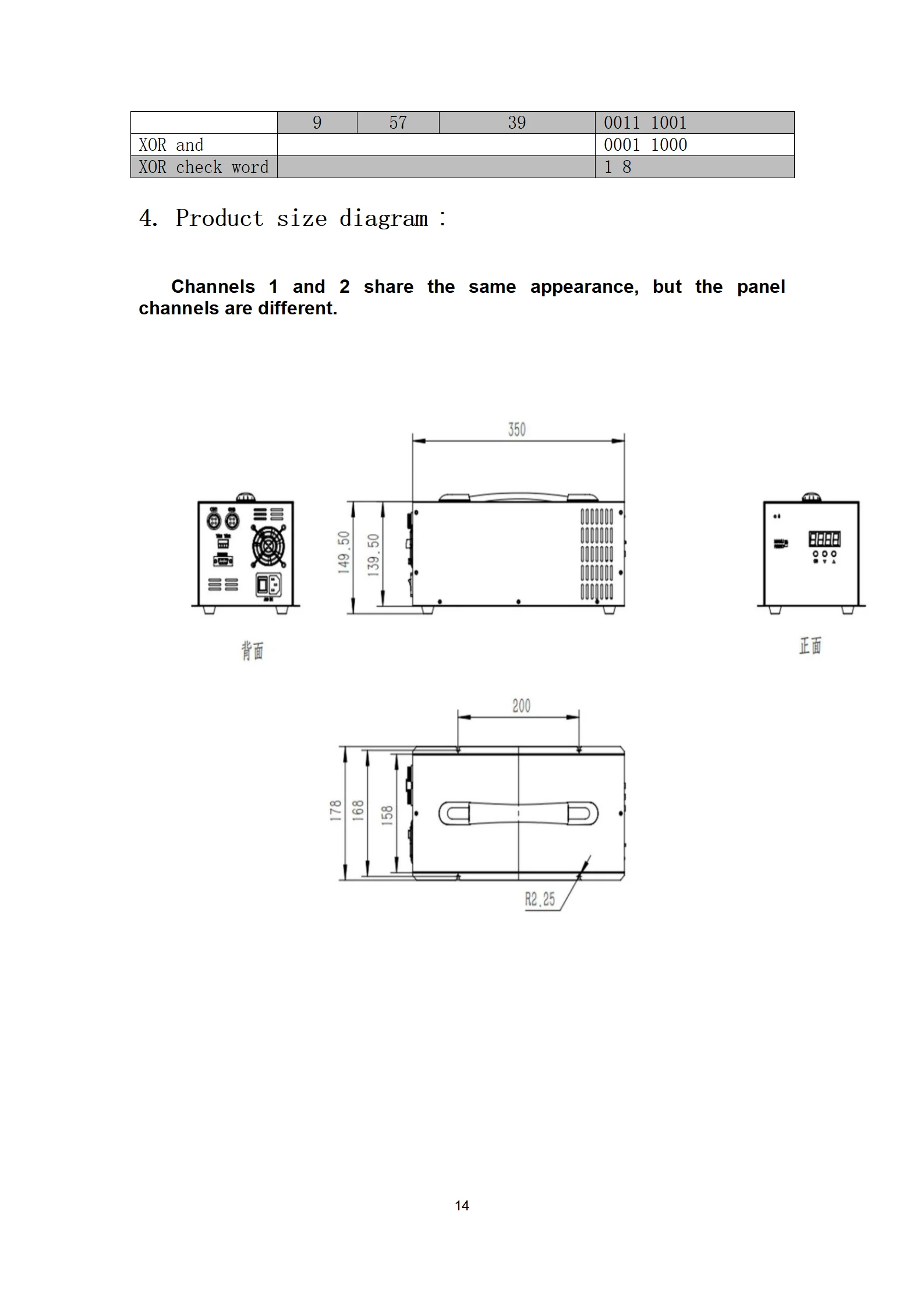

size | 178*350*129.5mm |
Certification | CE ROHS ISO9001 |
Certifications
Company Introduction
Shanghai Fugen Automation Technology Co., Limited
Shanghai Fugen Automation Technology Co., Limited was founded in 2009,and we are a professional machine vision light manufacturer.
Payment&Shipping
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. But you need pay for the the freight.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than 50 pieces.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS etc., usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 y ears warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
