Mini Grader Machine 20Ton 270HP STG265C 10 Blade Cutting Edge Motor Grader In Stock
- Category: >>>
- Supplier: Caterbe Construction Equipment (Wuhan) Co. Ltd.Caterbe Ltd.
Share on (1601335708811):
Product Overview
Description
Product Overview

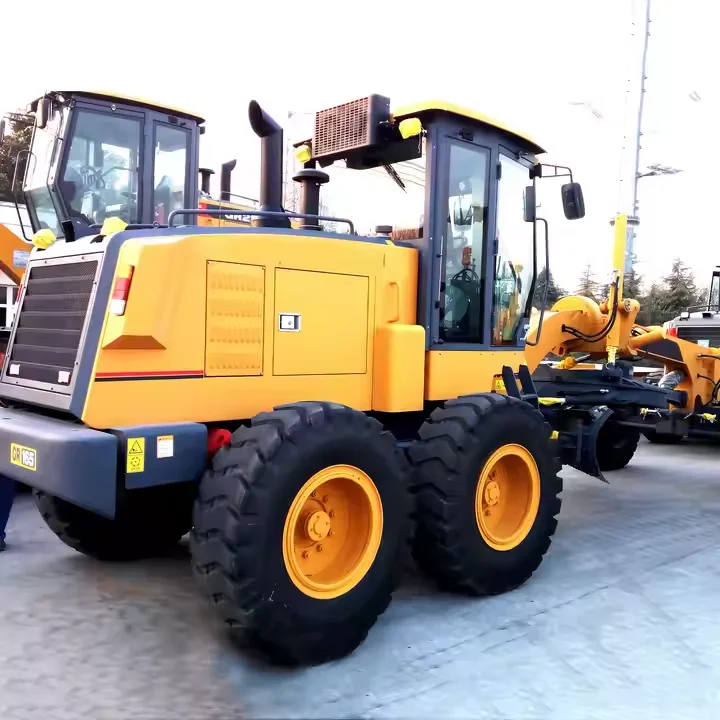

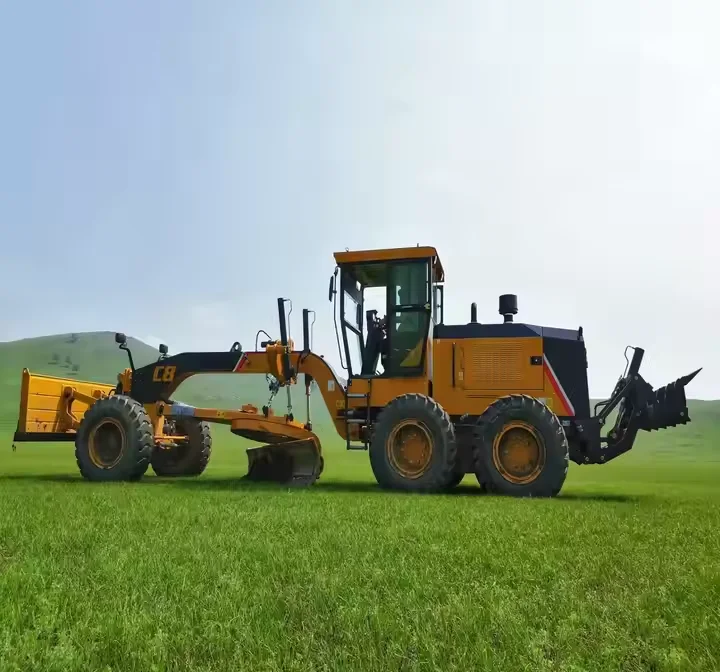

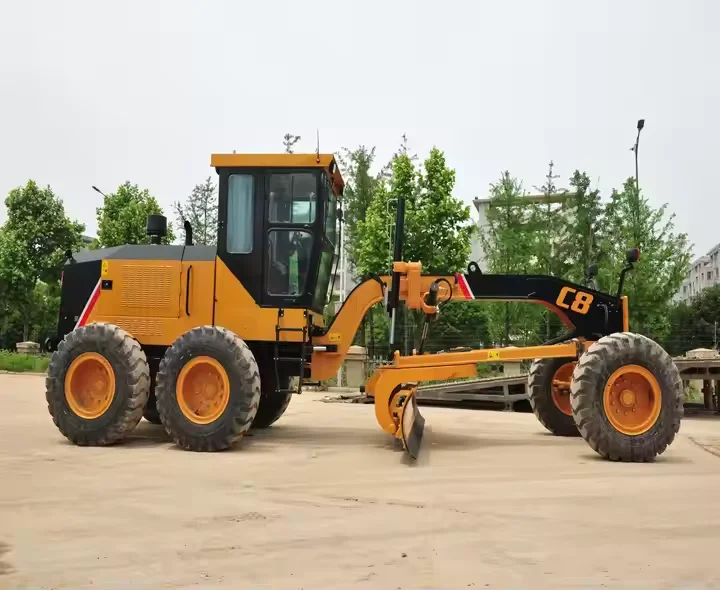

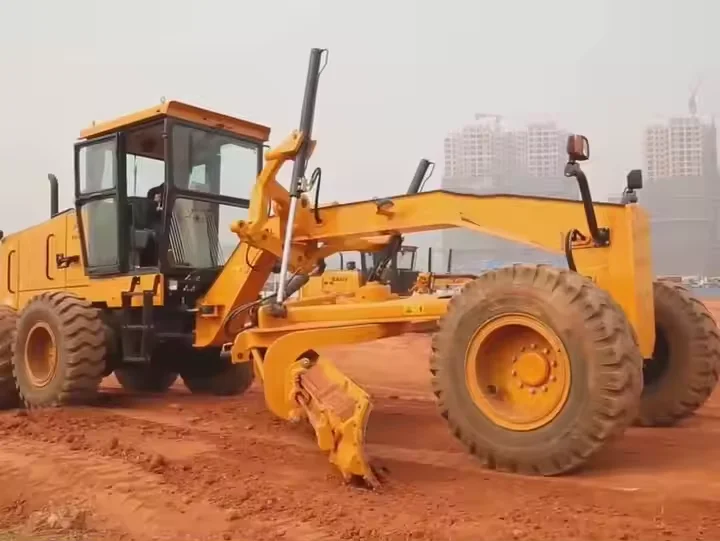

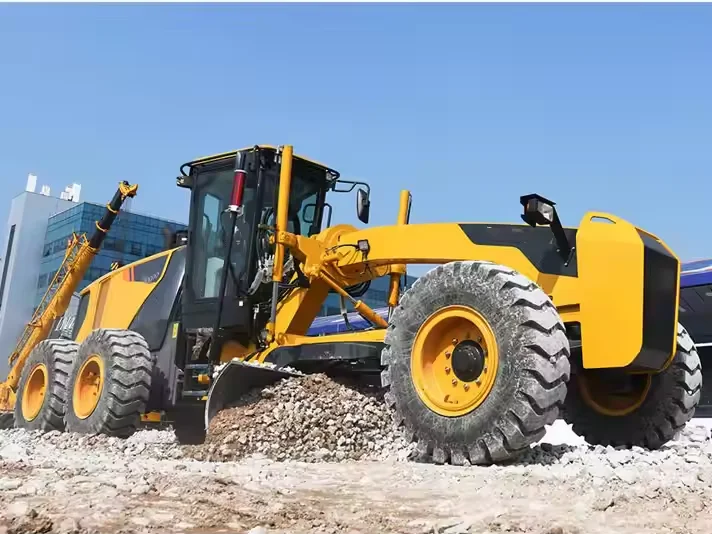

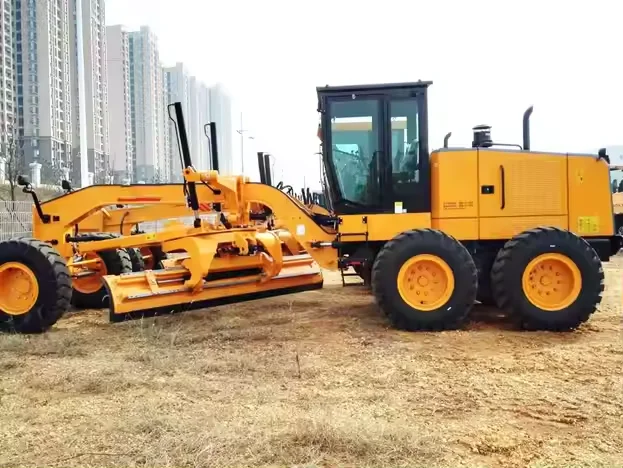

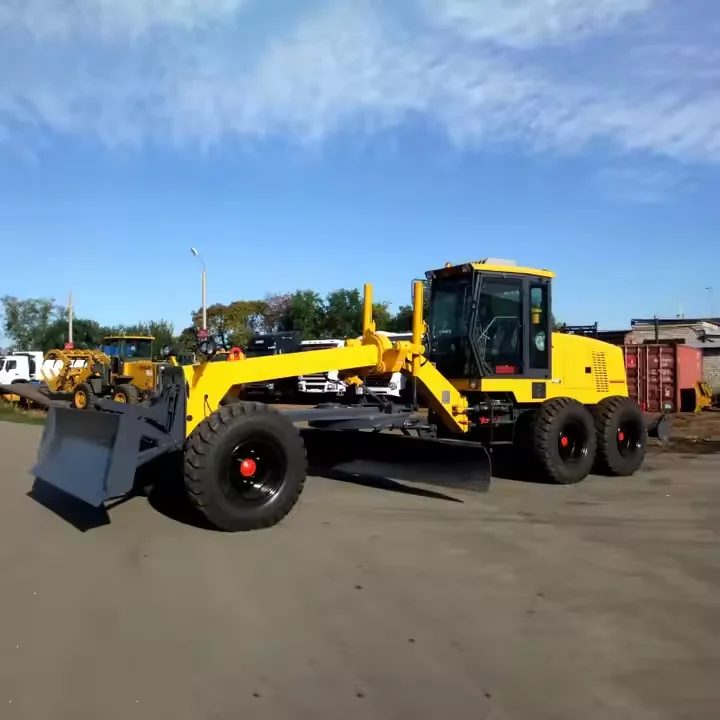

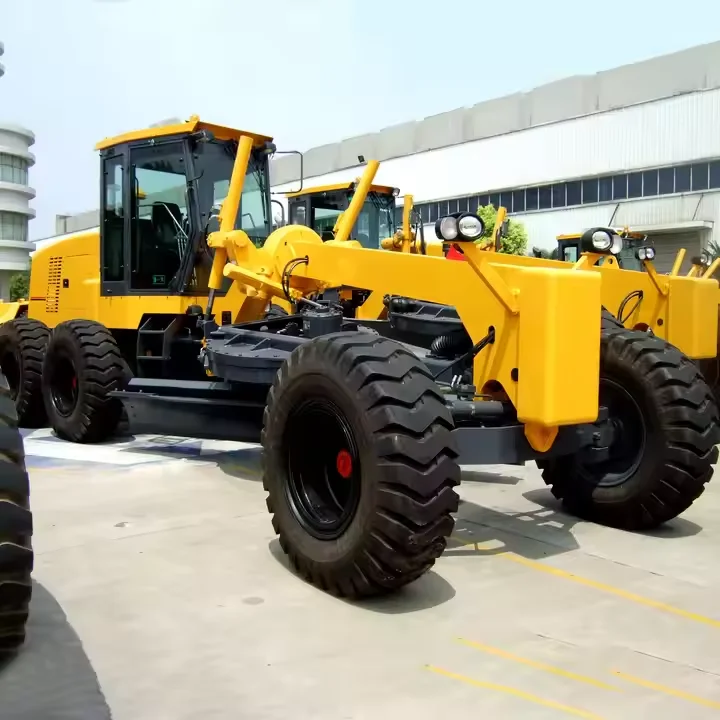

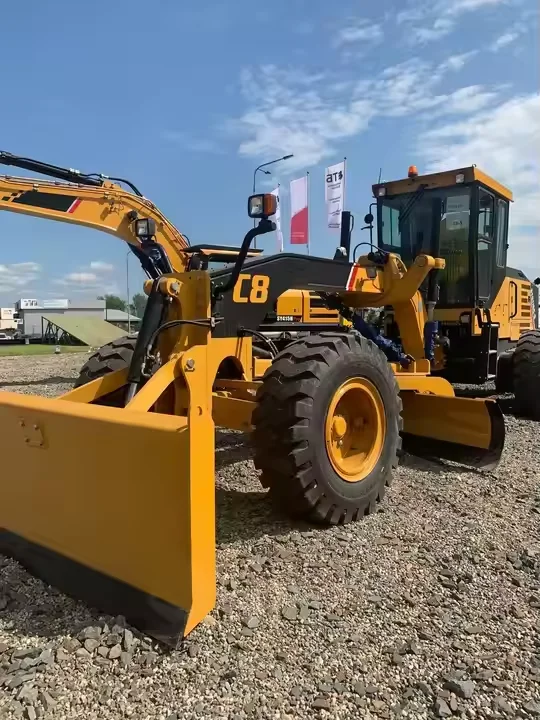

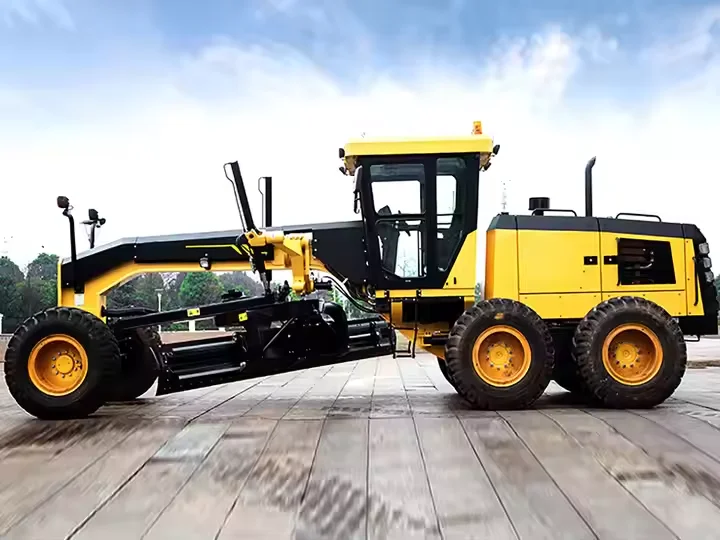

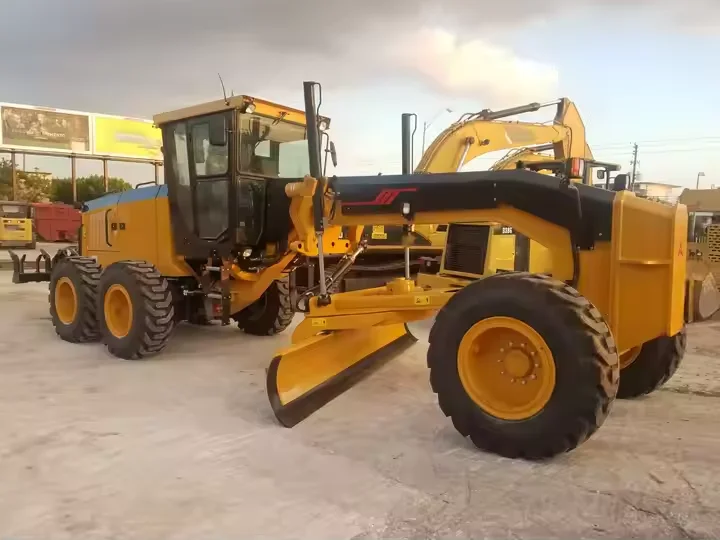

STG265C-10 Motor Grader

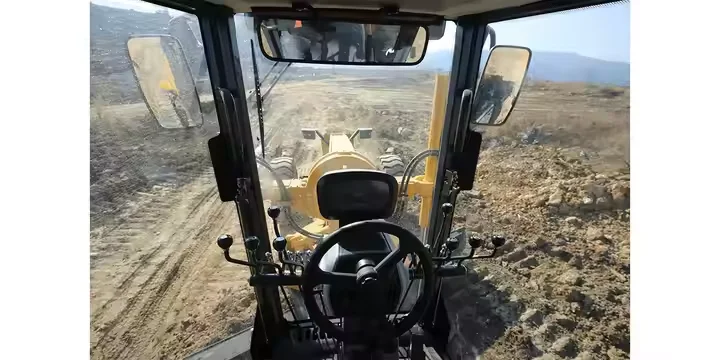

VHP technology can adapt to different work conditions, such as light load, middle load and heavy load, with different power curves, so that the machine can always work within the minimum fuel consumption range.The rear axle adopts a rotary bearing structure instead of a conventional copper sleeve structure, which provides easy maintenance, high operation accuracy and service life longer than 10000h.Wide-opening door of the engine compartment, centralized arrangement of common electrical components, fuel tank located at the rear of frame all make the daily maintenance a convenient and quick thing.It also has a horizontal sliding window, sun visors, curtains, radio, double rearview mirrors, and a mechanical suspension seat with headrest.
FEATURES AT A GLANCE
4-front and 2-rear disc-type brake is safer than drum brake with less braking distance and maintenance cost.
Visual display of fault information, troubleshooting guide, and automatic prompts for regular maintenance..
PRODUCT SPECIFICATIONS
Model | STG265C-10 |
Engine Model | D09S3T5A |
Forward Speed | 6/9/14/21/30/42km/h |
Height of Blade | 610mm |
Length of Blade | 4270mm |
Max. Depth of Cut | 630mm |
Max. Lift Above Ground | 515mm |
Min. Turning Radius | 7.8m |
Operating Weight (Standard) | 19.5ton |
Overall Dimensions | 9700*2860*3580 |
Peak Torque | 1170NM |
Rated Power | 200kW |
Reverse Speed | 6/15/34km/h |
