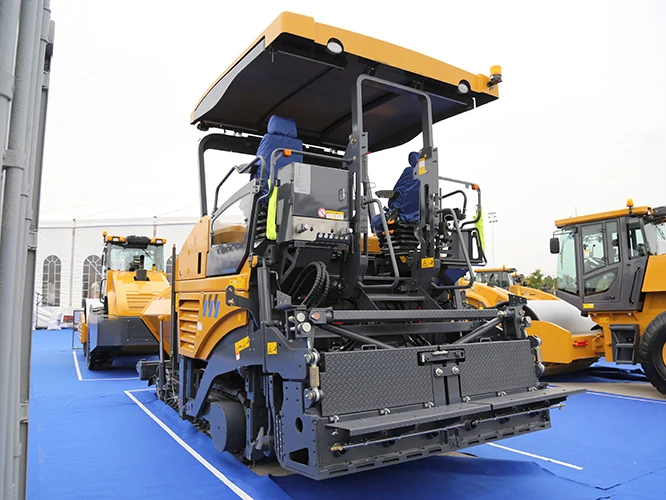

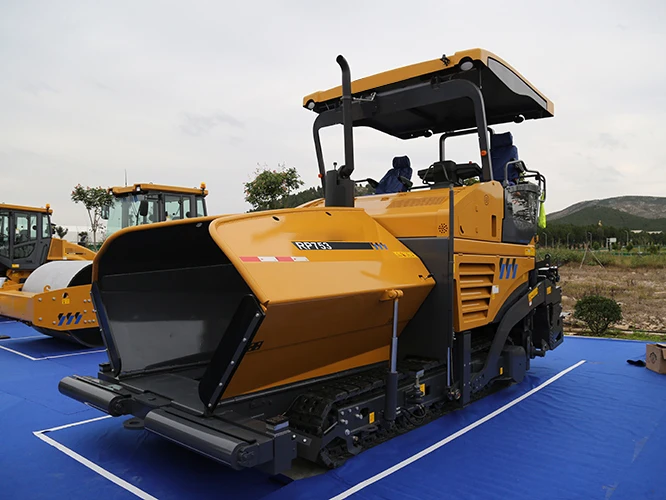

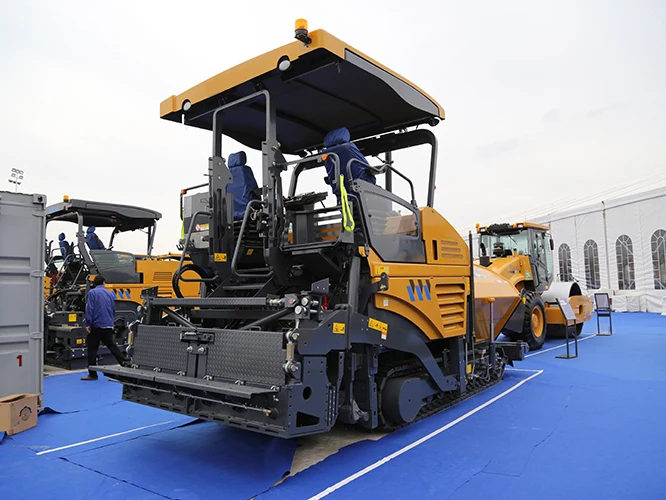

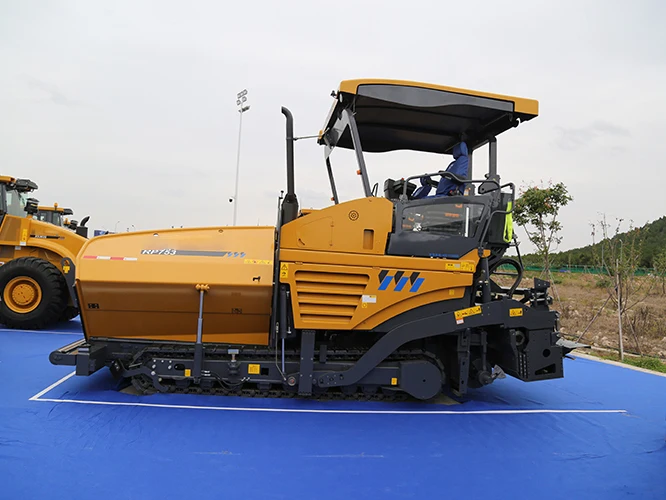

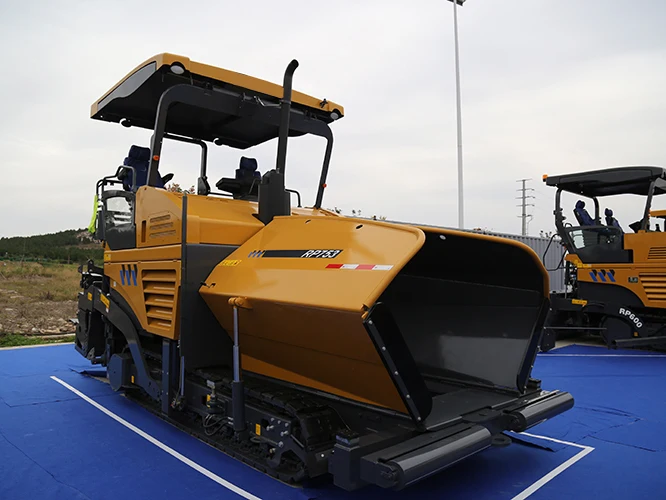

7.5M Asphalt Concrete Slip Form Asphalt Finisher Asphalt Concrete RP753
- Category: >>>
- Supplier: Tewrex Industrial Machinery (Suzhou) Co. Ltd.Tewrex Ltd.
Share on (1601342191279):
Product Overview
Description
Contact Way
Cindy
Sales Manager
Whatsapp/Wechat/Mobile: +86-15005296982
E-mail: cindy@tewrex.com
Add: Suite 602, Building 2, Tiandu Plaza, No.211 Changjiang Road, National Hi-Tech District, Suzhou, Jiangsu, China.
Sales Manager
Whatsapp/Wechat/Mobile: +86-15005296982
E-mail: cindy@tewrex.com
Add: Suite 602, Building 2, Tiandu Plaza, No.211 Changjiang Road, National Hi-Tech District, Suzhou, Jiangsu, China.
Product Description
RP753
Drive left and right independent drive, microcomputer control, constant speed automatic control technology for paving speed,SC7H190 water-cooled supercharged engine of Shangchai (optional Deutz engine BF6M2012).
Using a three in-one powerful composite radiator, left and right transmission, and material distribution four sets of independent
hydraulic system transmissions, high wear-resistant alloy material for the material-discharging blades, imported wear
resistantsteel plate for the feeding floor and the screed bottom plate, and the left and right material-dispensing devices can be easily moved up and down to accommodate different paving thicknesses. A horizontal automatic leveling system ensures the flatness of the paving.
Model | RP753 |
Basic paving width(m) | 3 |
Max. paving width(m) | 7.5 |
Max. paving thickness(mm) | 350 |
Paving speed(m/min) | 0~18 |
Travel speed(km/h) | 0~3.0 |
Theoretical Productivity(t/h) | 600 |
Hopper Capacity(t) | 14 |
Gradeability(%) | 20 |
Pavement evenness(mm/3m) | 3 |
Transverse levelling accuracy(%) | ±0.03 |
Centre crown ratio(%) | -1~3 |
Engine model | SC7H |
Engine power(kW) | 128/140 |
Engine speed(r/min) | 2300 |
Fuel tank capacity(L) | 270 |
Machine weight(t) | 19.9~24.6 |
Dimension(mm) | 6700×3000×3850 |
Vibration frequency (optional)(Hz) | 0~50 |
Screed heating | Gas heating |
Auger and conveyor control | Automatic Control by Ultrasonic Sensors |
Automatic levelling control | Simulation control |
Screed model | 575(RP802) |
Type | Double vibrator, gas heating |
Extension | Mechanical assembly |
Width | 0-1470r/min |
Vibrator speed | 3,5,7,9mm |
Auxiliary amplitude | 0,3,6,9,12mm |
