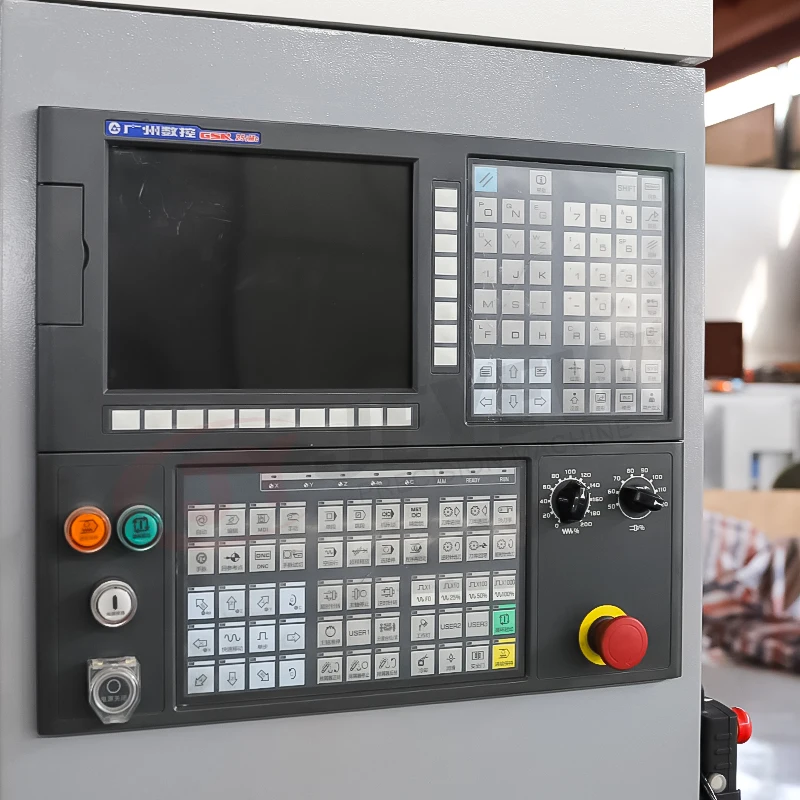

Single Spindle VMC 650 CNC Aluminium Milling Machine Center 3 Axis VMC GSK Fanuc Control System Automatic Motor Core Components
- Category: >>>
- Supplier: Jeyew Precision Machine (shandong) Co. Ltd.Jeyew Ltd.
Share on (1601342582017):
Product Overview
Description
Product Description
YEARS OF INDUSTRY EXPERIENCE
CASTING QUALITY MACHINE TOOL

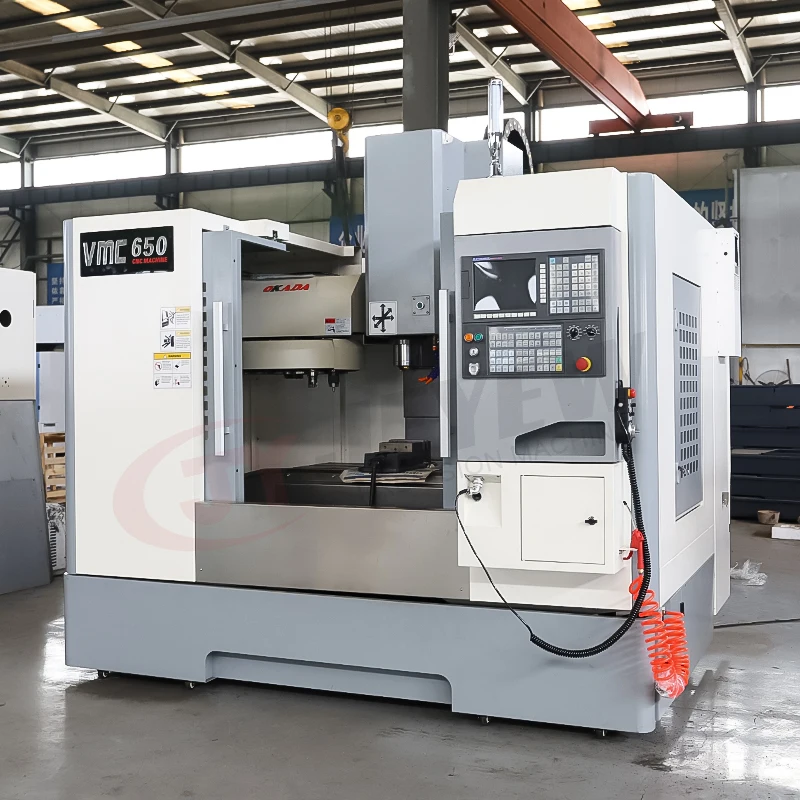

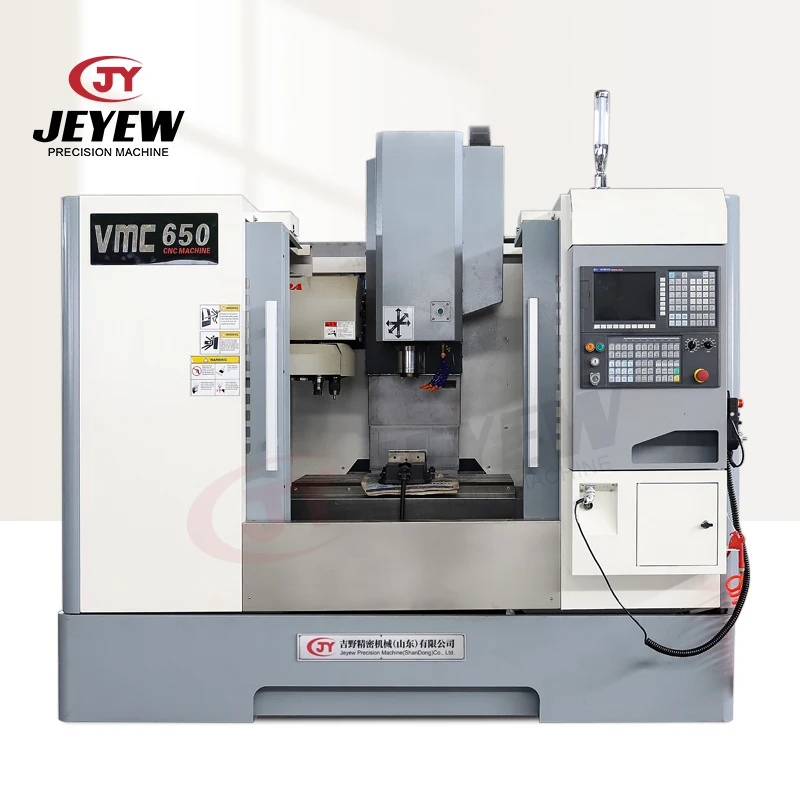

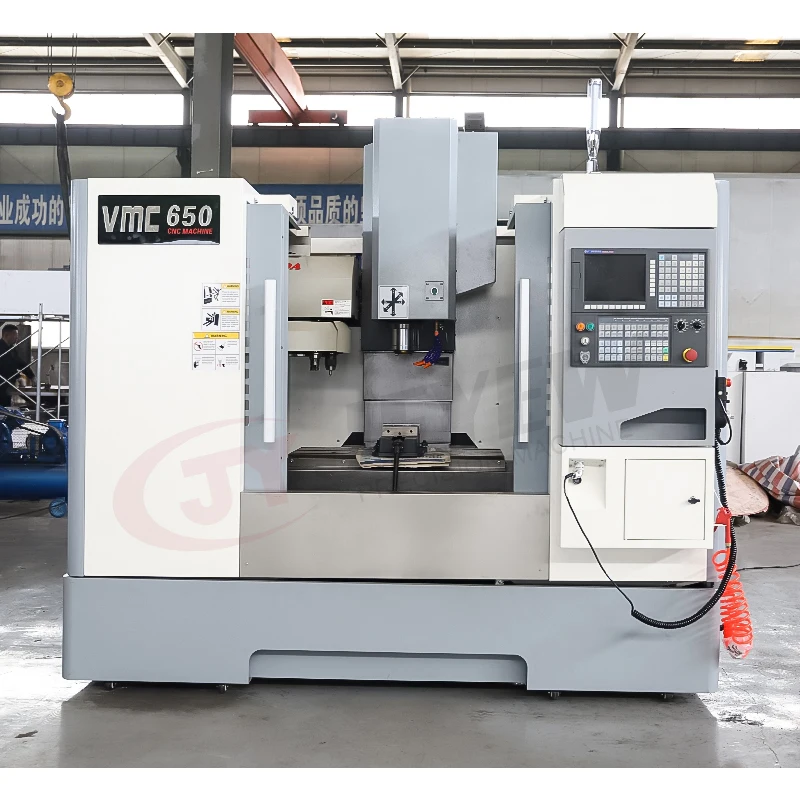

VMC 650
CNC VERTICAL MACHINING CENTER
The machine body, workbench, slide, column, spindle box and other large components are all made of high-strength cast iron
material. The main components are optimized using 3D computer software, and the heat treatment process ensures that the entire
machine has sufficient strength, rigidity, and high stability.
material. The main components are optimized using 3D computer software, and the heat treatment process ensures that the entire
machine has sufficient strength, rigidity, and high stability.
Features:
1.High quality resin sand
2.Taiwan spindle
3.Taiwan ball screw and locking nut
4.Taiwan pressure cylinder
5.Japan NSK bearing
6.Germany R+W coupling
6.Germany R+W coupling
7.Automatic lubrication system
8.Chip conveyor at optional
Specification
Specification | Units | VMC650 |
Table size | mm | 800*400mm |
Maximum worktable load | kg | 600kg |
T slot(number-width-pitch) | mm | 3-18*125mm |
X axis travel | mm | 700(optional 800) |
Y axis travel | mm | 400(optional 500) |
Z axis travel | mm | 500 |
Distance between spindle nose and worktable surface | mm | 120-620 |
Distance from spindle center to guide rail base | mm | 650 |
Spindle taper | / | BT40 |
Spindle speed range | r/min | 50-8000 |
Maximum output torque | N.m | 48 |
Main motor power | kw | 7.5/11 |
X/Y/Z servo motor power | kw | 1.0/1.0/1.5 |
Positioning accuracy | mm | 0.005mm |
Repositioning accuracy | mm | 0.003mm |
Total power capacity | KVA | 10 |
Machine weight | kgs | 4500kg |
Machine dimensions | mm | 2300*2200*2400mm |
Detail Display
Processing Case Display
Recommended Products
Company Profile
Shandong Jeyew Machine Tool Co., Ltd.
Shandong Jeyew Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprise integrating various businesses. It has passed ISO9001 Certification, CE Certification, and SGS Certificate.
Products and Market：
With strong technical strength, it manufactures a variety of machine tool products. It mainly serves the domestic high-end manufacturing industry and mid-to-high-end customer groups. Its CNC machine tools are also exported to countries and regions such as Europe, the United States, and Southeast Asia.
With strong technical strength, it manufactures a variety of machine tool products. It mainly serves the domestic high-end manufacturing industry and mid-to-high-end customer groups. Its CNC machine tools are also exported to countries and regions such as Europe, the United States, and Southeast Asia.
Business Philosophy：
Based on quality and service, it adheres to the business philosophy of "Quality Wins the Market, Integrity Builds the Brand". It provides customers with high-quality products and technical support with a perfect service system, aiming to develop together with customers and create a better future.
Based on quality and service, it adheres to the business philosophy of "Quality Wins the Market, Integrity Builds the Brand". It provides customers with high-quality products and technical support with a perfect service system, aiming to develop together with customers and create a better future.
Our Advantages
Certificate
Customer Visits
Product Packaging
Our machining center products are shipped with outstanding services.
Packaging: We utilize premium wooden cases along with top-quality shock-absorbing materials such as foam to carefully protect each precision part of the machining center. This meticulous packaging ensures that your products remain in excellent condition throughout the shipping process.
Shipping Service: Our experienced team takes care of every detail from loading to unloading. We'll select the most appropriate hipping mode according to your specific requirements, be it air freight for quick delivery or sea freight for more economical options. Moreover, we'll prepare all essential and accurate shipping documents promptly to ensure a smooth shipping process.
Packaging: We utilize premium wooden cases along with top-quality shock-absorbing materials such as foam to carefully protect each precision part of the machining center. This meticulous packaging ensures that your products remain in excellent condition throughout the shipping process.
Shipping Service: Our experienced team takes care of every detail from loading to unloading. We'll select the most appropriate hipping mode according to your specific requirements, be it air freight for quick delivery or sea freight for more economical options. Moreover, we'll prepare all essential and accurate shipping documents promptly to ensure a smooth shipping process.
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Machining Center ,Grinding
Machines，Milling Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: What about the quality of the machine?and after-sales service?
A : Our machine warranty period is 3 years，and we provide free technical service.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Machining Center ,Grinding
Machines，Milling Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: What about the quality of the machine?and after-sales service?
A : Our machine warranty period is 3 years，and we provide free technical service.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
