Hot sale motor grader GR2403 road machine 178kw grader for sale
- Category: >>>
- Supplier: Xuzhou Avatar Machinery Co. Ltd.Xuzhou Ltd.
Share on (1601342632473):
Product Overview
Description
Product Overview

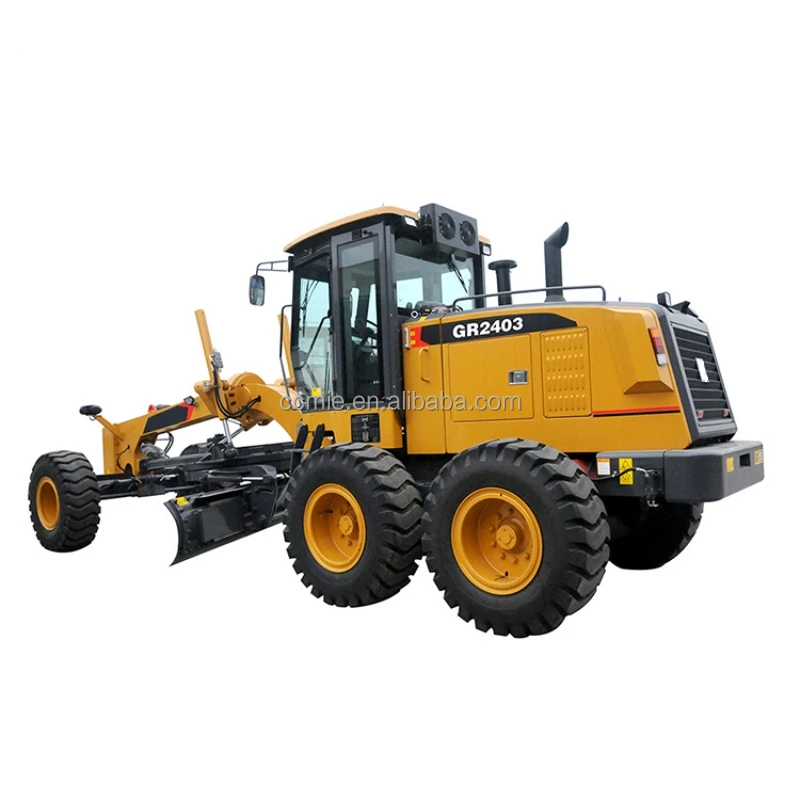

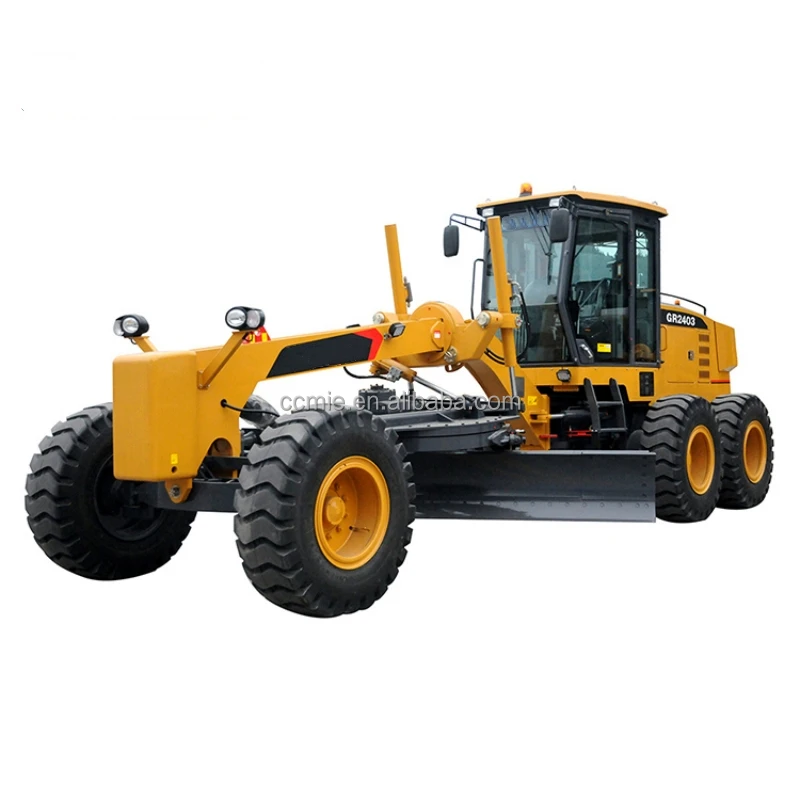

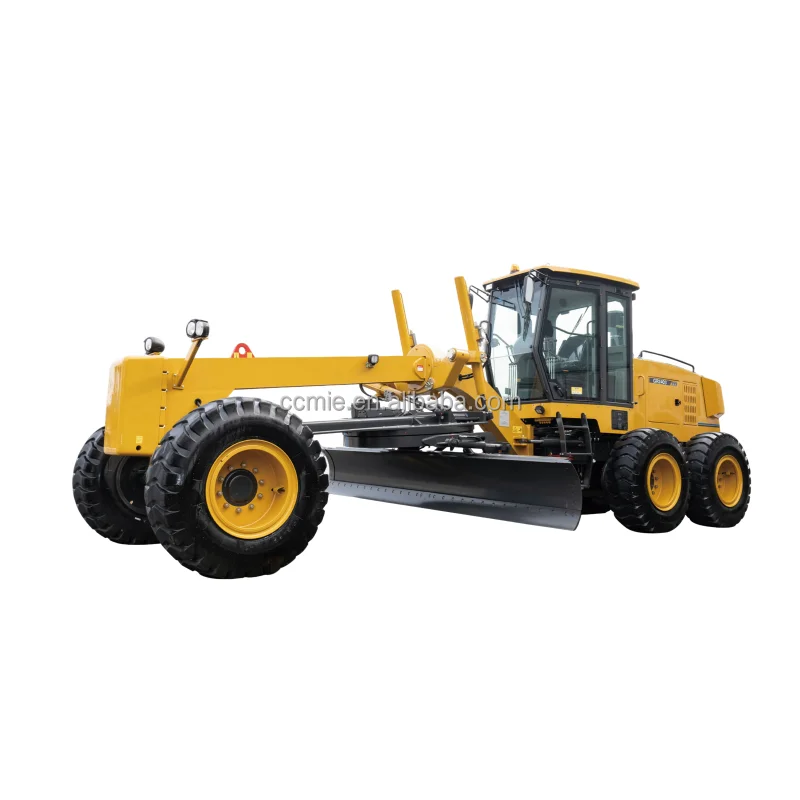

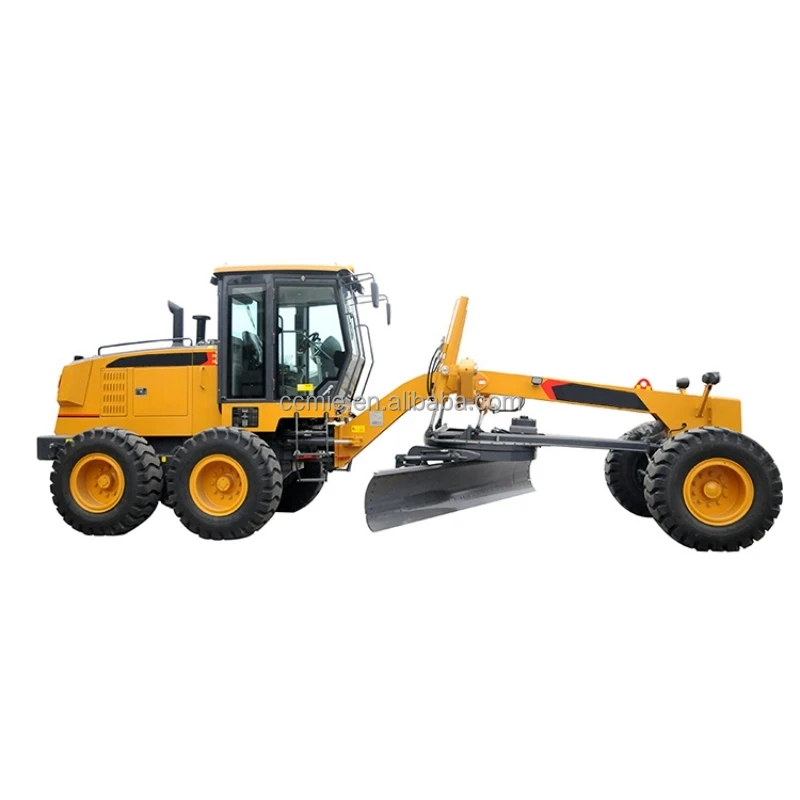

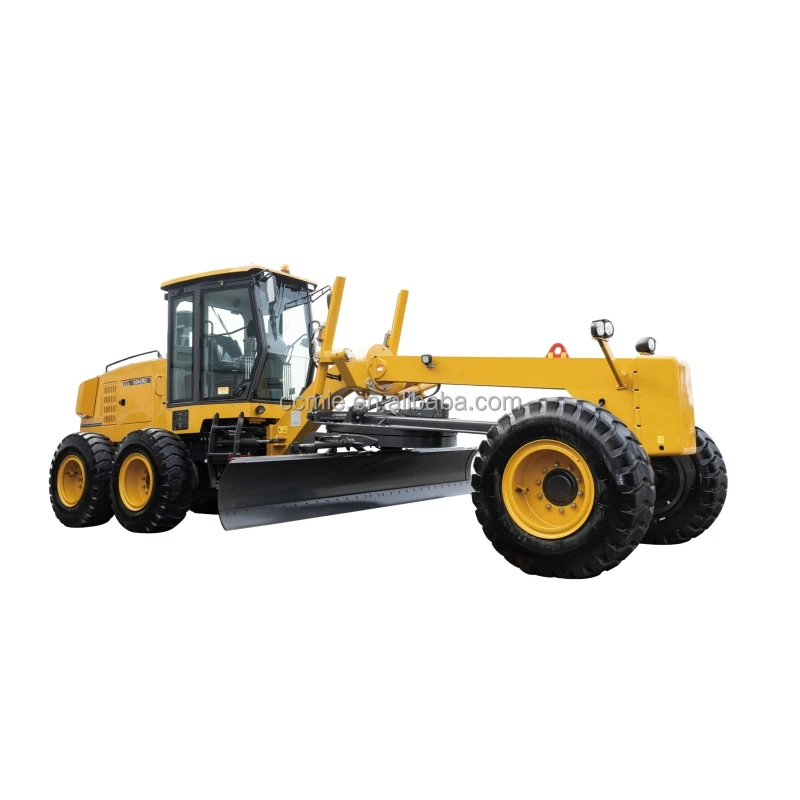

GR2403 motor grader
GR2403 grader is mainly used for leveling and trenching, scraping slopes, bulldozing, loosening soil, snow removal and other operations on large areas of roads, airports, farmlands, etc. It is an essential engineering machinery for national defense projects, mining construction, urban and rural roads, mining roads and other construction and water conservancy construction, farmland improvement, etc.
FEATURES AT A GLANCE
Performance and characteristics
1. Energy Saving and Noise Reduction: With variable power control technology for the engine, it has two working modes - power mode and economic mode, and is more fuel-saving; three-stage vibration damping of engine, cab and seat; the fan has a large diameter and low speed ratio, a sound-absorbing sponge is attached to the hood, and the cab is well sealed to reduce the noise of the whole machine.
2. Strong Power: Cummins Stage-Ill variable power engine is optimally matched with the torque converter with circulating circle diameter to reduce the starting and acceleration time for complete machine, and increase the torque output at low speed for ensuring strong power.
3. Slewing with Load: By increasing the pressure of the hydraulic system, it greatly improves the slewing force of shovel blade to implementing slewing actin with load.
4. High Work Efficiency: By improving the displacement of hydraulic pump and hydraulic motor, it increases cylinder speed by 20%, where the work efficiency is industry-leading and the arc of shovel blade is optimized to rip and dump quickly and efficiently for the purpose of achieving the best load distribution and the smallest material accumulation in the area of slewing table.
2. Strong Power: Cummins Stage-Ill variable power engine is optimally matched with the torque converter with circulating circle diameter to reduce the starting and acceleration time for complete machine, and increase the torque output at low speed for ensuring strong power.
3. Slewing with Load: By increasing the pressure of the hydraulic system, it greatly improves the slewing force of shovel blade to implementing slewing actin with load.
4. High Work Efficiency: By improving the displacement of hydraulic pump and hydraulic motor, it increases cylinder speed by 20%, where the work efficiency is industry-leading and the arc of shovel blade is optimized to rip and dump quickly and efficiently for the purpose of achieving the best load distribution and the smallest material accumulation in the area of slewing table.
PRODUCT SPECIFICATIONS
Item | Data | |
Engine | QSB6.7 | |
Rated power/speed | 178/2200 | kW/rpm |
Operating weight | 17000 | kg |
Machine dimension(standard) | 8970×2625×3420 | mm |
Traction force f=0.75 | ≥ 87 | kN |
Minimum turning radius | 7.3 | m |
Blade cutting angle | 28-70 | ° |
Blade length x height | 3965×610 | mm |
Fuel tank | 280 | L |
Drive speed. forward | 5/8/11/19/23/38 | km/h |
Drive speed. reverse | 5/11/23 | km/h |
