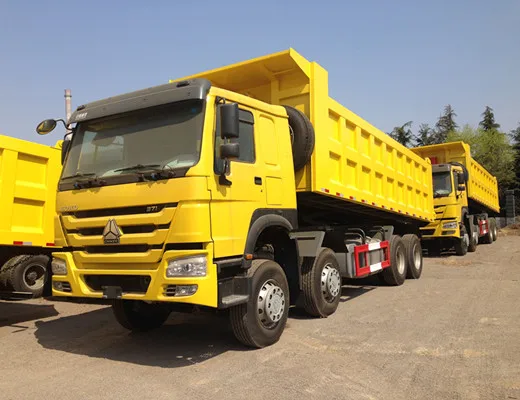

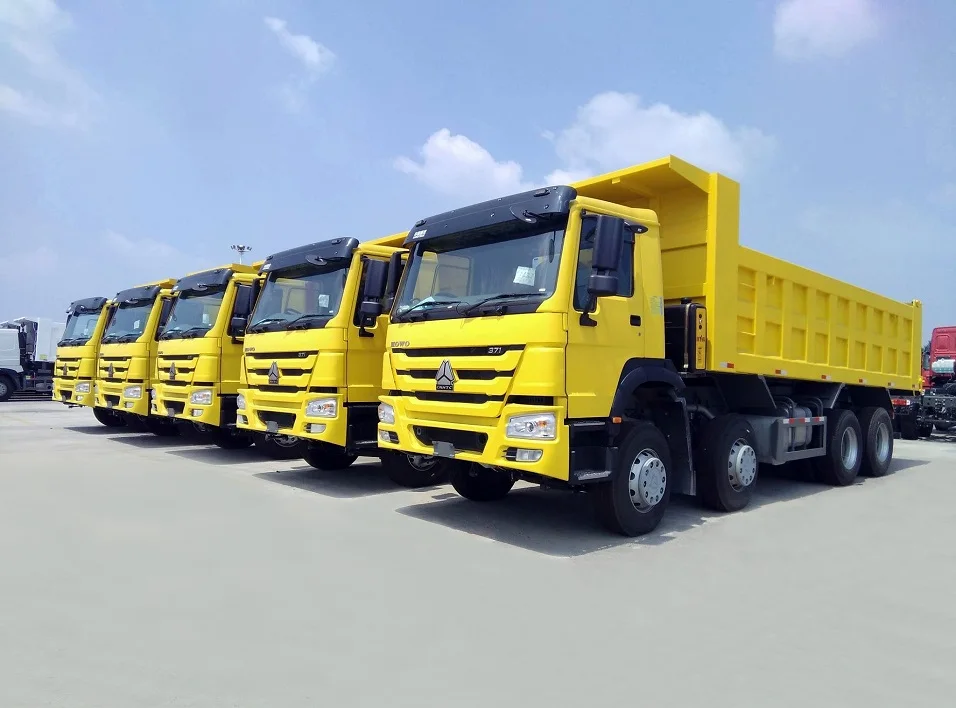

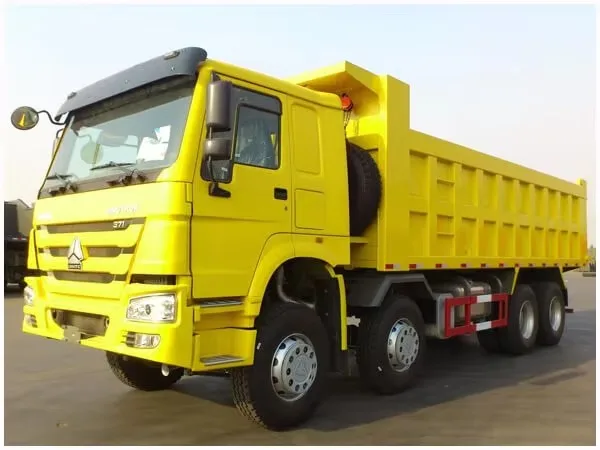

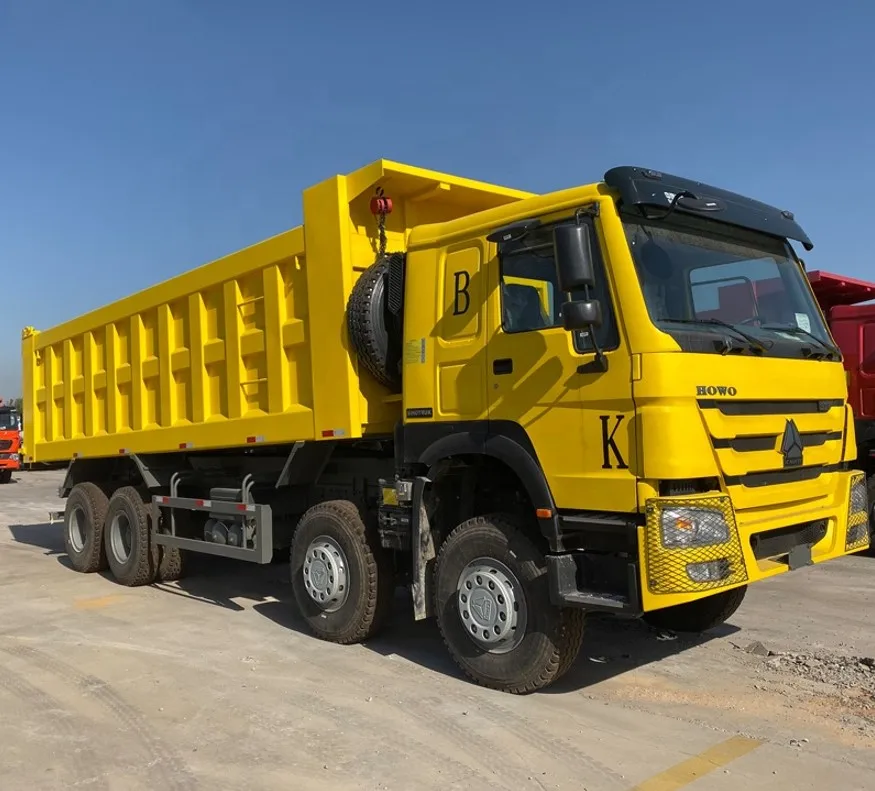

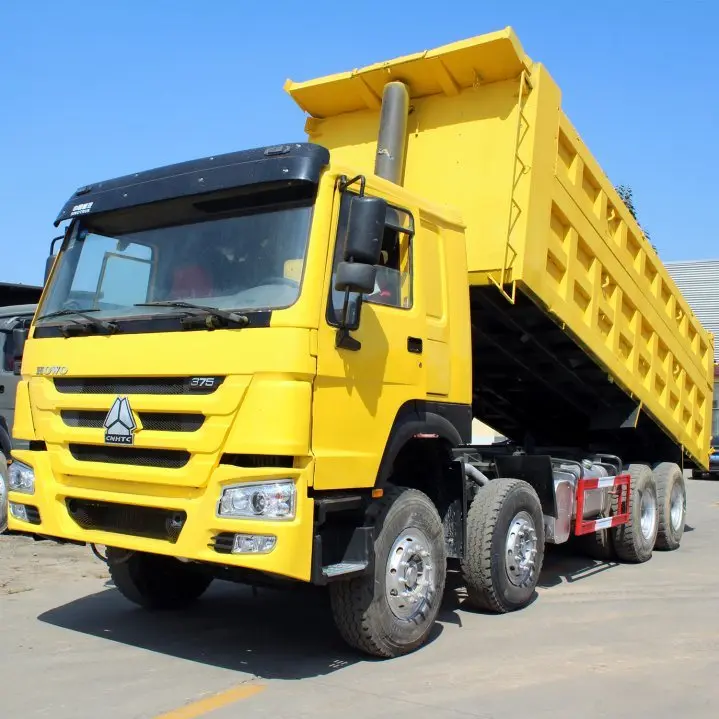

SINOTRUK BRAND NEW HOWO 7 SINO TRUCK 12 Wheeler 30 Cubic Meters HOWO 40tons 8x4 Dump Tipper Truck
- Category: >>>
- Supplier: Tangshan Yingdong International Trading Co. Ltd.Tangshan Ltd.
Share on (1601344543837):
Product Overview
Description
LEGENDS OF MILLIONS
GLOBALLY WITNESS
GLOBALLY WITNESS
HOWO-7, most popular model and top one market share in Africa,is grand , fortitude and fluency side by side， majestic and graceful, show his unique leadership temperament ,especially in the comfort, safety and convenience of human design to target the world - class heavy truck level.By the end of 2019, more than one million HOWO heavy truck had been sold.
Products Description
HOWO-7 8X4 DUMP TRUCK | ||||||||||||
Common Model | ZZ3317N2867W | ZZ3317N3067W | ZZ3317N3567W | ZZ3317N3867W | ZZ3317N4667A | |||||||
Model | HW76 | |||||||||||
Type | Long cabin, single sleeper, adjustable steering wheel, air conditioner, seat belts | |||||||||||
Engine | Model | WD615.69 | WD615.69 | WD615.69 | WD615.69 | WD615.47 | ||||||
Rated Power (kW/rpm) | 247/2200 | 247/2200 | 247/2200 | 247/2200 | 273/2200 | |||||||
Horse Power (hp) | 336 | 336 | 336 | 336 | 371 | |||||||
Max. Torque (Nm/rpm) | 1350/1300-1600 | 1350/1300-1600 | 1350/1300-1600 | 1350/1300-1600 | 1460/1300-1600 | |||||||
Displacement (L) | 9.726 | |||||||||||
Type | 6-cylinder in-line with water cooling, turbo-charqinq and intercoolinq, Styre Technology | |||||||||||
Clutch | Single-plate dry diaphraam spring clutch, diameter 430 mm, hydraulically operatina with air assistance | |||||||||||
Gearbox | SINOTRUK BRAND, manual operation, HW19710,10 forward and 2 reverse, with Power Take-Off (PTO) | |||||||||||
Front Axles | HF9, 2X9000kq with drum brake system | |||||||||||

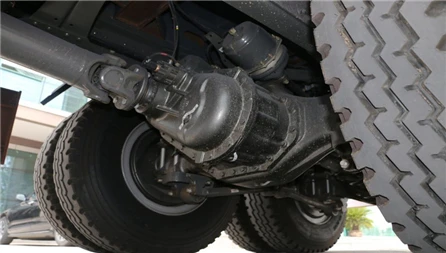

Rear Axles | HC16, 2X16000kq, double stage reduction (central* hub), cast axle housing, ratio: 5.73 | |||||||||||
Suspension | Front suspension: 11/11 pcs leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension: 12 pcs leaf springs with bogie spring and stabilizer | |||||||||||
Steeringjystem | ZF brand power steerinq, model ZF8118, hydraulic steerinq with power assistance | |||||||||||
Braking System | Front drum rear drum brake, four-circuit protection valve Service brake: dual circuit compressed air brake Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake (optional): engine exhaust brake(EVB), antilock brake system (ABS), automatic brake gap adjustment arms | |||||||||||
Tires | 12.00R20 (12.00-20, 315/80R22.5 optional), with one spare tyre | |||||||||||
Fuel Tank Volume (L) | 300 | |||||||||||
Dead Weiqht (kq) | 14610 | 14700 | 14860 | 15120 | 15200 | |||||||
Gross Vehicle Weight (kg) | 50000 | 50000 | 50000 | 50000 | 50000 | |||||||
Rated Loading Weight (kg) | 35390 | 35300 | 35140 | 34880 | 34800 | |||||||
Overall Dimension (LxWxH) (mm) | 9200x2550x3500 | 9500x2550x3500 | 10300x2550x3500 | 10800x2550x3500 | 11200x2550x3500 | |||||||
Wheelbase (mm) | 1800+2800+1350 | 1800+3000+1350 | 1800+3500+1350 | 1800+3800+1350 | 1800+4600+1350 | |||||||
Min. Ground Clearance (mm) | 314 | 314 | 314 | 314 | 314 | |||||||
Approach/Depart Angle (°) | 19/(27/60) | 19/(26/60) | [9/(18/49) | 19/(17/47) | 19/(24/46) | |||||||
Gradeability (%) | 52 | 52 | 52 | 52 | 52 | |||||||
Min. Turning Diameter (m) | 22.6 | 23.1 | 24 | 24 | 24 | |||||||
Cargo Body Size (LxWxH) (mm) | 6200x2300x1200 | 6500x2300x1200 | 7300x2300x1500 | 7800x2300x1500 | 8200x2300x1500 | |||||||
Cargo Body Volume (m3) | 17 | 18 | 25 | 27 | 28.3 | |||||||
Remark (Engine Power Option) | 371 hp | 371 hp | 371 hp | 371 hp | 336hp | |||||||
Hydraulic Lifting System | China brand or HYVA brand front position hoisting cylinder | |||||||||||
Detailed Images

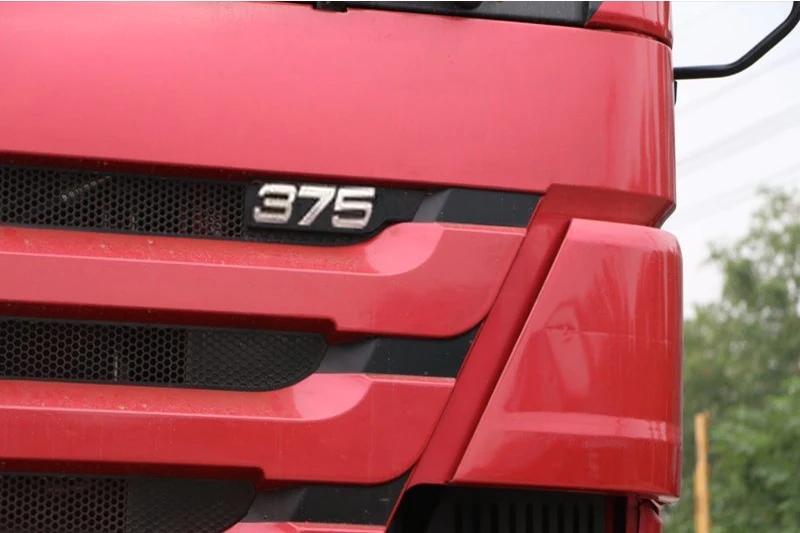

HOWO-7 dump truck tipper 375hp 8x4 Eur III
HOWO-7 dump truck tipper 375hp 8x4 Eur III
China National Heavy Duty Truck Engine，375Hp,Displacement10L
HOWO-7 dump truck tipper 375hp 8x4 Eur III
HOWO cargo used 8x4 truck 375hp eur III
HOWO-7 dump truck tipper 375hp 8x4 Eur III
2-arm windscreen wiper system with 3 speeds, laminate windscreen
HOWO-7 dump truck tipper 375hp 8x4 Eur III

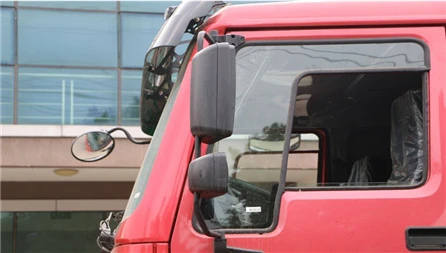

With A/C all steel forward control, 55°hydraulically tiltable to the front
HOWO-7 dump truck tipper 375hp 8x4 Eur III

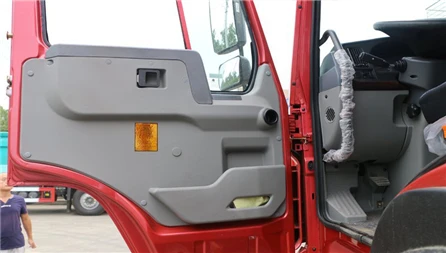

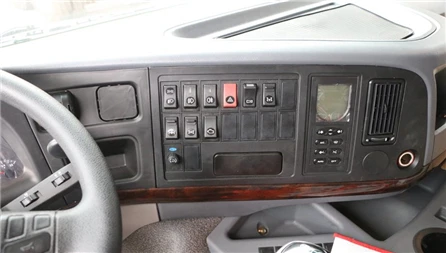

Casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, adjustable roof flap, with stereo radio/cassette recorder, sun visor
HOWO-7 dump truck tipper 375hp 8x4 Eur III

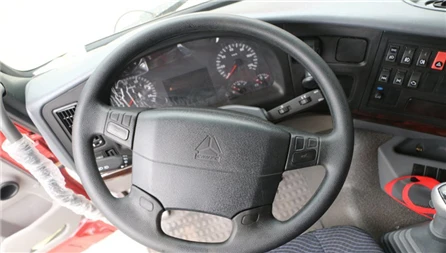

Adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt
HOWO-7 dump truck tipper 375hp 8x4 Eur III
U-profile parallel ladder type with section of 320×90×8 mm, all cold riveted cross members and reinforced subframe
HOWO-7 dump truck tipper 375hp 8x4 Eur III

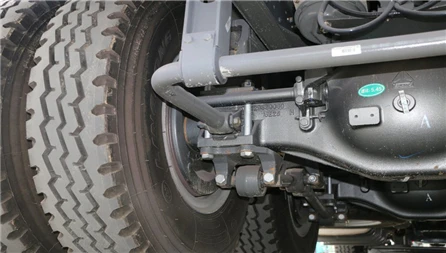

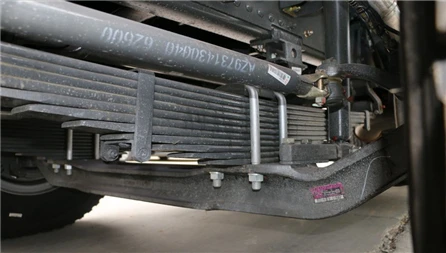

9 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
HOWO-7 dump truck tipper 375hp 8x4 Eur III

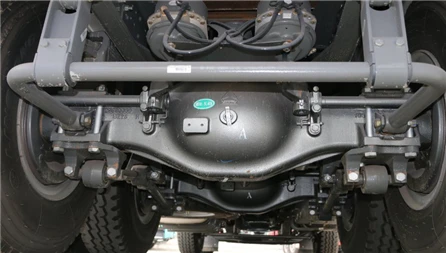

9+9 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
HOWO-7 dump truck tipper 375hp 8x4 Eur III
Single- plate dry diaphragm spring clutch, diameter 430(C) mm, hydraulically operating with air assistance
Related Products
Recommend view more >>
HOWO-7 drum truck tipper 371hp 6x4 Eur II
HOWO-7 drum truck tipper 371hp 8x4 Eur II
HOWO-7 drum truck tipper 375hp 6x4 Eur III
HOWO-7 drum truck tipper 375hp 8x4 Eur III

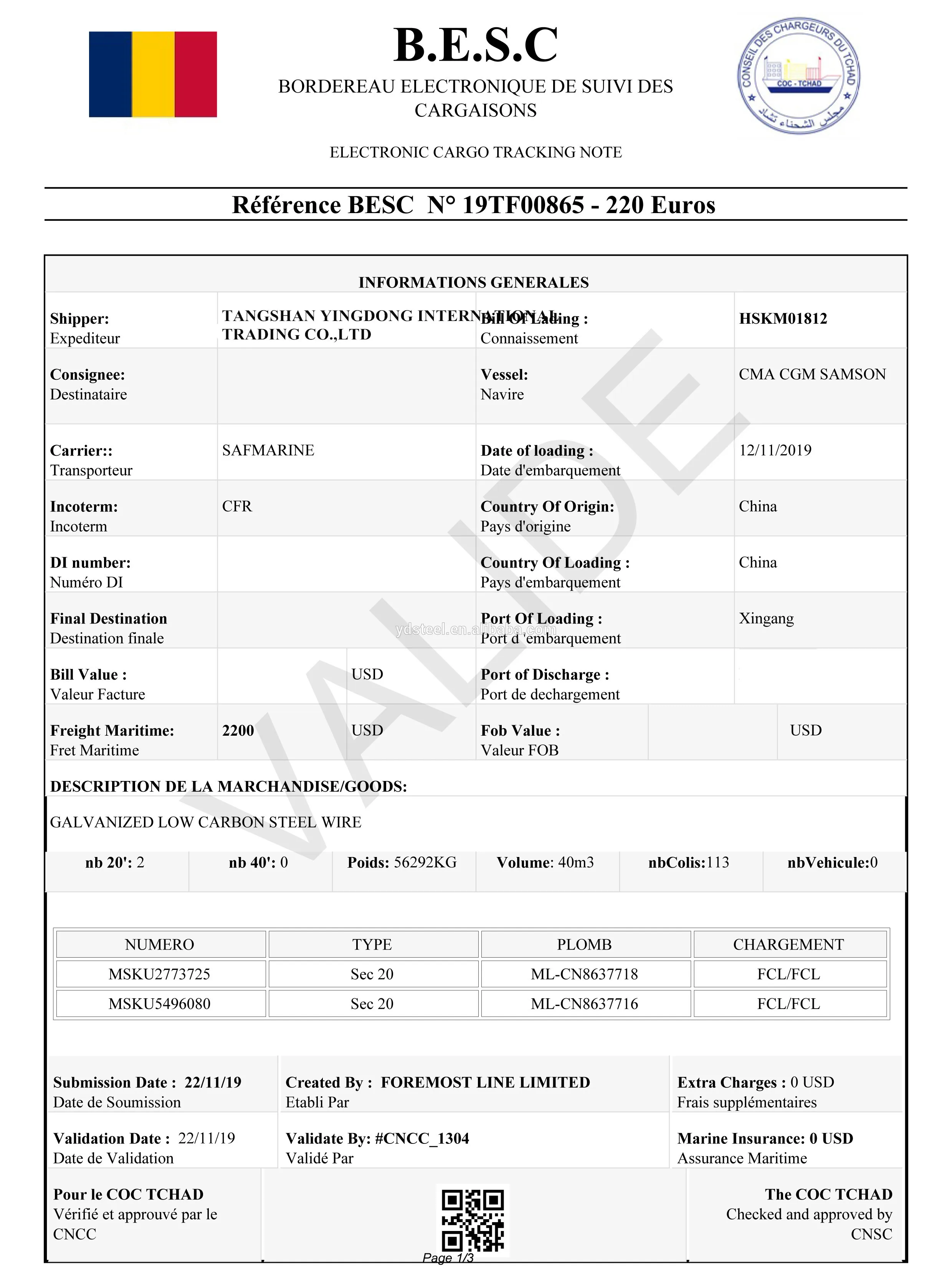

Certificate
Certificate Introduction
Certificate Introduction
Certificate Introduction
Company Introduction
Established in 2008, Tangshan YingDong is one of the biggest truck tipper exporter in china. Located in Bohai Economic Rim of China, near to the Jingtang Port and Tianjin Port, fast cargo loading and land freight saving.
One-stop shop of truck tipper, meet all of your requirements.
Indepent Logistic in Air, train and sea, offer best service with good quality.
YingDong is accredited with ISO9001-2000 quality system authentication, owning a professional and strict technical inspection team to ensure the quality by tracking whole course from production to shipment. This guarantee our customers could get the best quality products and best business relationship with us.

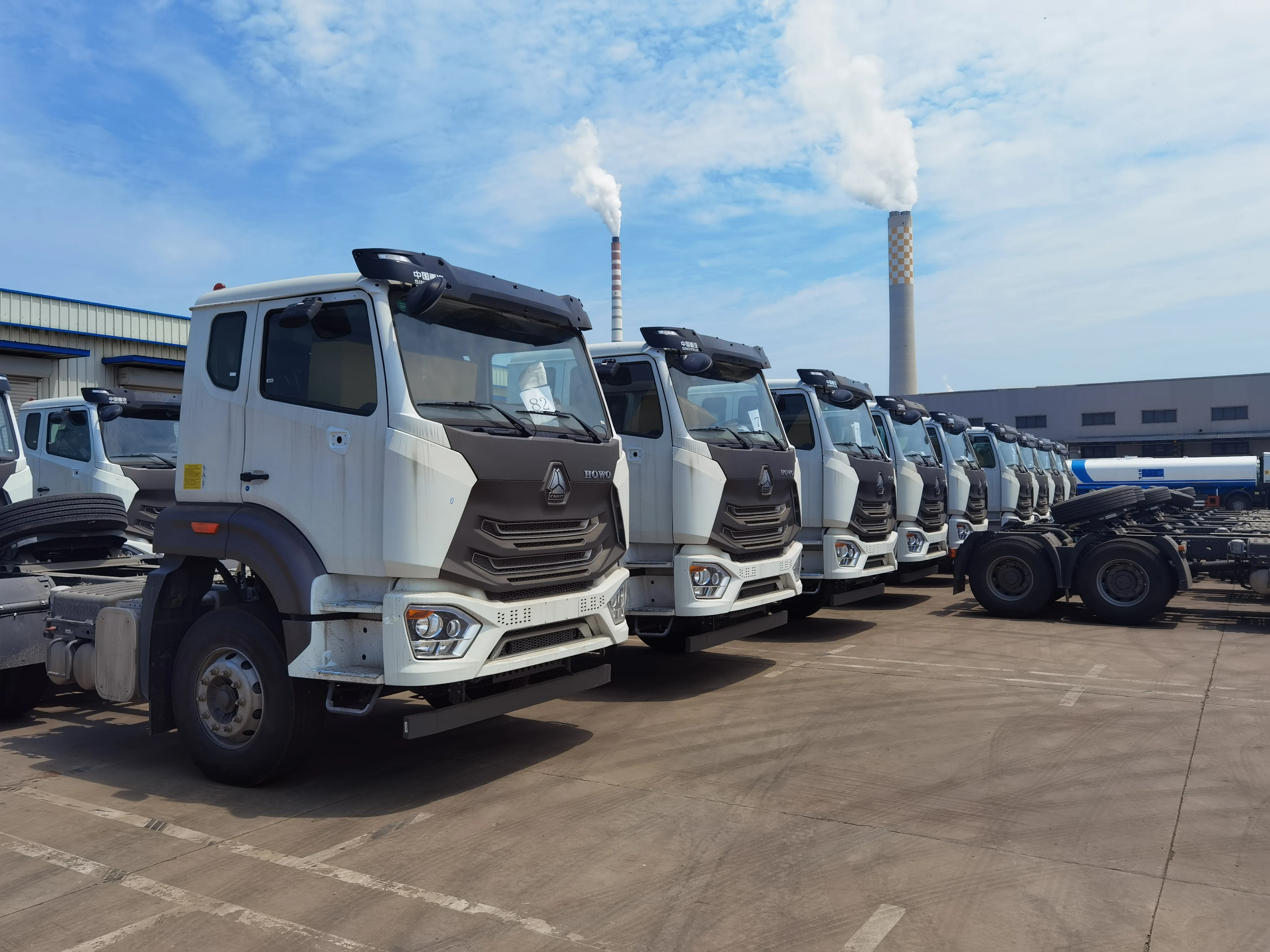

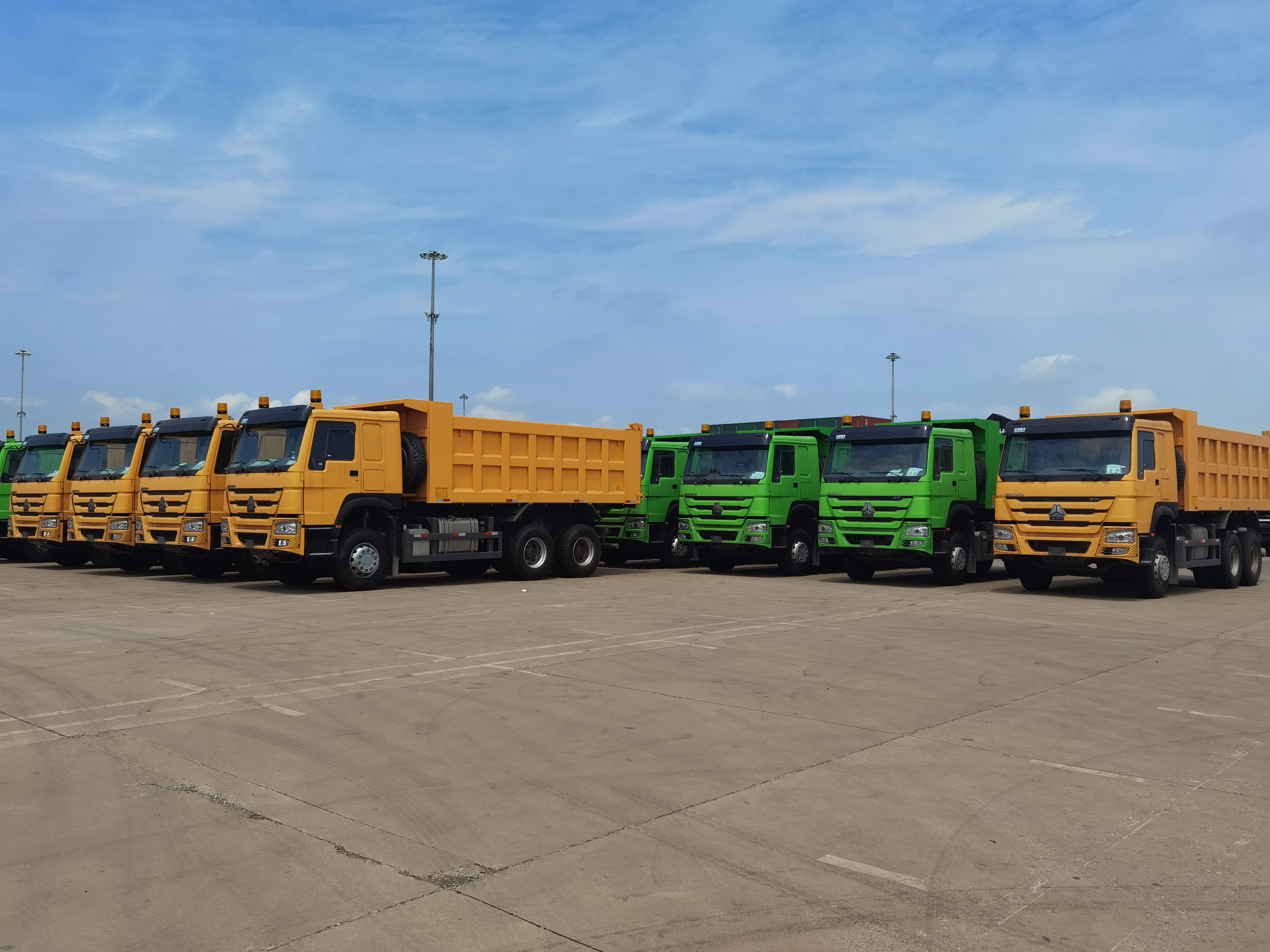

Inventory
