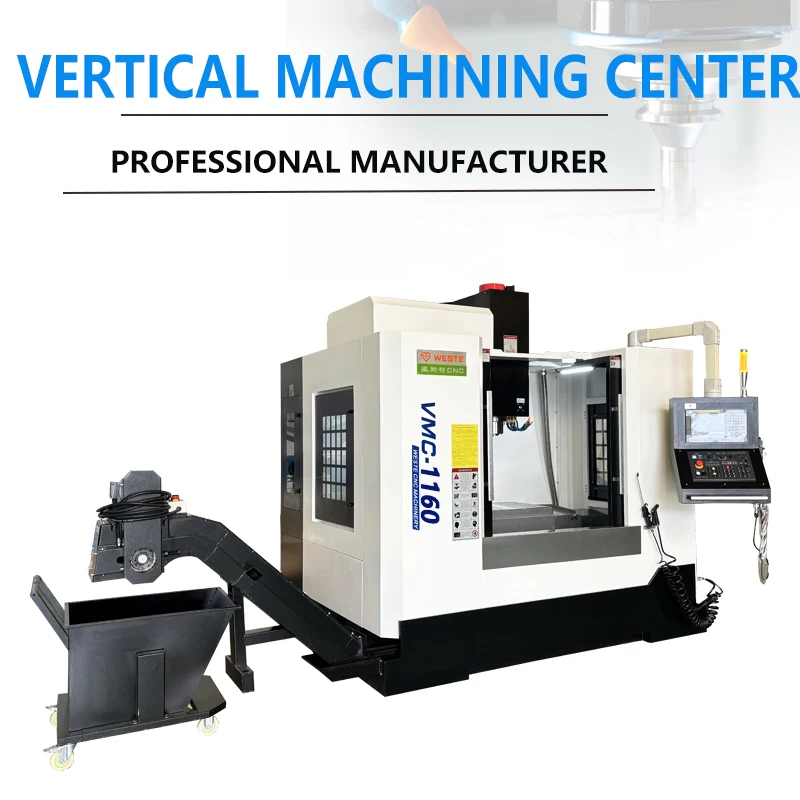

High Quality Vmc 1160 Cnc 5 Axis Metal Milling Machine Cnc Turning Machining Center With Servo Motor
- Category: >>>
- Supplier: Shandong Weste Cnc Machine Tool Co. Ltd.Shandong Ltd.
Share on (1601345274097):
Product Overview
Description
Specifications | unit | VMC850 | VMC855 | VMC1160 |
Table size | mm | 1000*500 | 1000*550 | 1200*600 |
Max. worktable load | kg | 500 | 500 | 800 |
T slot | mm | 5-16-75 | 5-18-90 | 5-18-100 |
X axis travel | mm | 800 | 800 | 1100 |
Y axis travel | mm | 500 | 550 | 600 |
Z axis travel | mm | 500 | 550 | 600 |
Distance between spindle center and column surface | mm | 620 | 630 | 650 |
Distance between spindle nose and table surface | mm | 120-630 | 120-670 | 120-720 |
Max. spindle speed | rpm | 12000 | 12000 | 12000 |
Spindle taper | mm | BT40 | BT40 | BT40 |
spindle motor power | KW | 5.5 | 7.5 | 11 |
X/Y/Z axis rapid traverse | m/min | 30/30/24 | 30/30/24 | 24/24/20 |
Position accuracy | mm | ±0.005 | ±0.005 | ±0.005 |
Repeat positioning accuracy | mm | ±0.003 | ±0.003 | ±0.003 |
Machine dimension | mm | 2600*2300*2500 | 2650*2400*2550 | 2850*2450*2550 |
Machine weight | kg | 5000 | 5500 | 6800 |
casting material
Using HT300 grade castings and undergoing tempering treatment, it is durable and will not deform for a long time.
Bearings
The use of imported Japanese bearings (no Japanese NSK made in China) ensures the best quality and reliability.
The use of imported Japanese bearings (no Japanese NSK made in China) ensures the best quality and reliability.
Instrument Inspection
After 48 hours of operation, a series of inspections, including laser interferometer, ball rod, spindle dynamic balance, etc., are conducted.
Taiwan BT40 Spindle:8K,
optional spindle units 10K,12k.

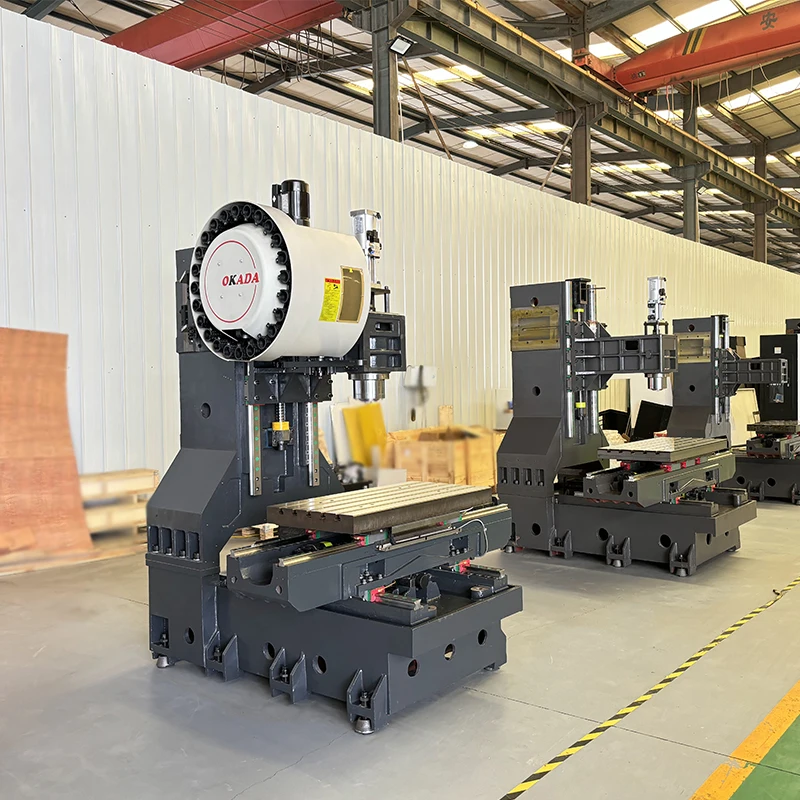

Taiwan OKADA umbrella/Arm type tool magazine.
Top reliable CNC controller: Fanuc ,Mitsubishi ,Siemens Syntech and GSK.
Original Fanuc system.
1 Standard with AirTAC Pneumatic Components.
2 Automatic centralized lubrication device .
2 Automatic centralized lubrication device .
1. with Schneider safety electrical components.
2. quick plug as standard.
2. quick plug as standard.
Taiwan HIWIN C3 ball screw, low noise, high accuracy, and wear-resistant.
1. Taiwan precision linear rails,positioningaccuracy can reach μm class.
2. Brand: HIWIN.
2. Brand: HIWIN.
Support optional 4 axis or 5 axis linkage turntable .
Oil Cooler-Cooling the main shaft,improving the processing precision.
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and soon .
3: Where is our factory located? How can I visit there?

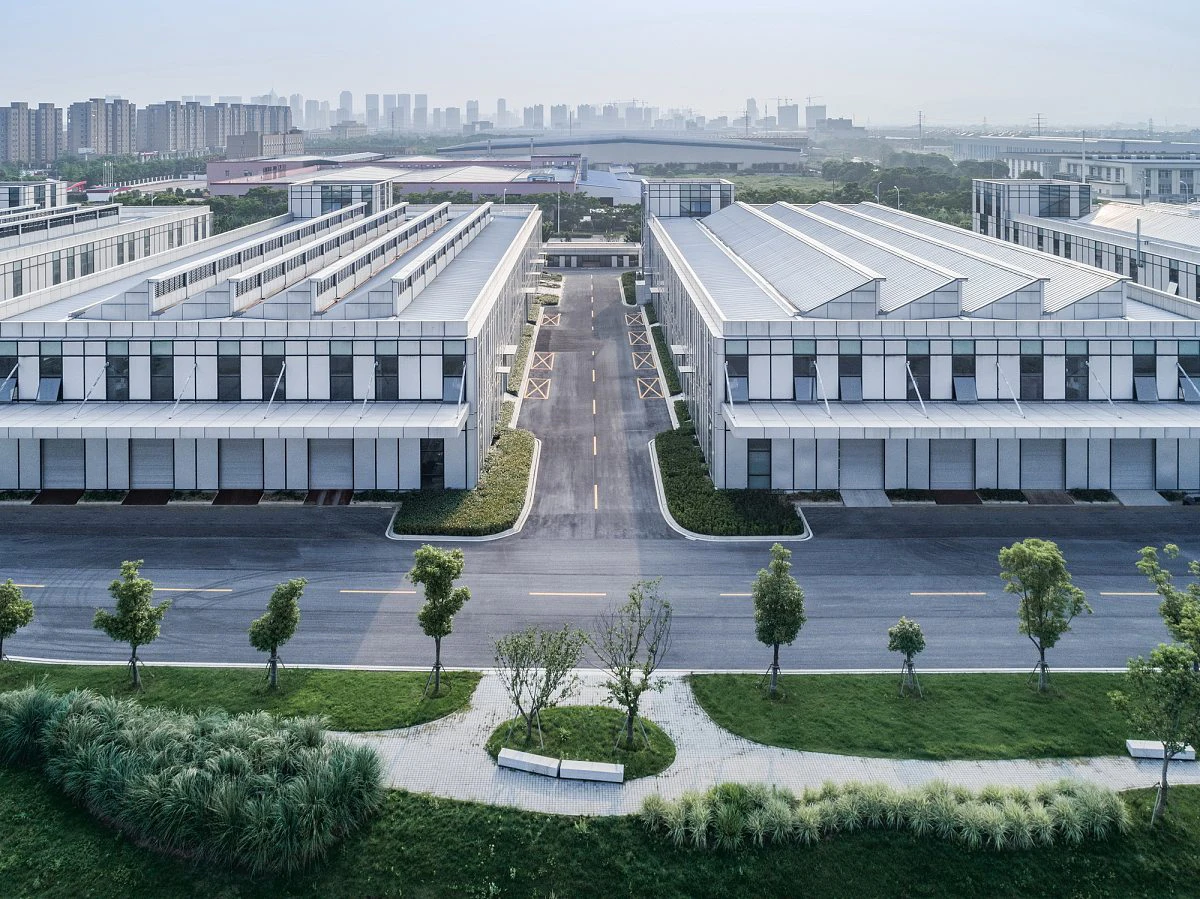

A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and soon .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
