GR165 New 165hp Small Road Motor Grader for Sale
- Category: >>>
- Supplier: Xuzhou Focus Industry Group Co. Ltd.Xuzhou Ltd.
Share on (1601345367238):
Product Overview
Description

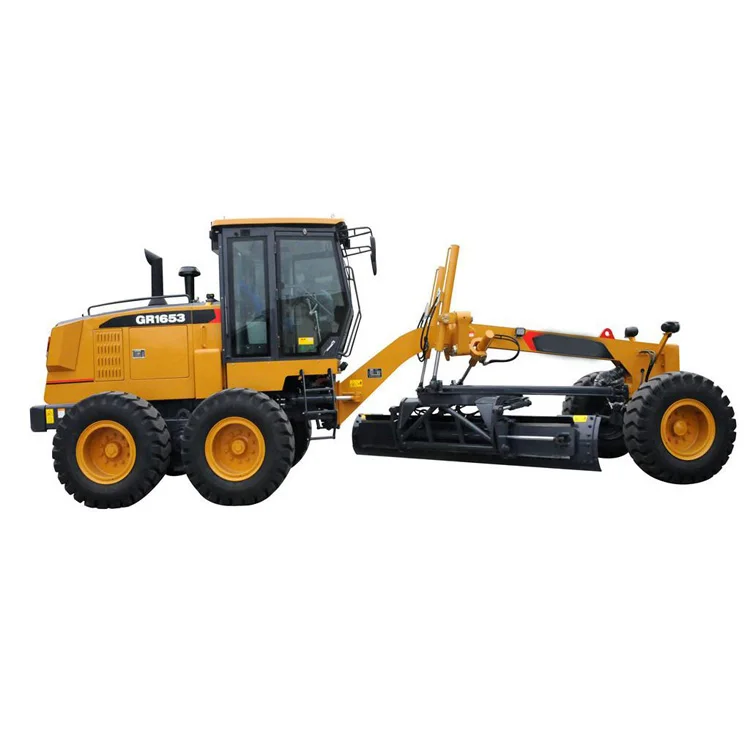

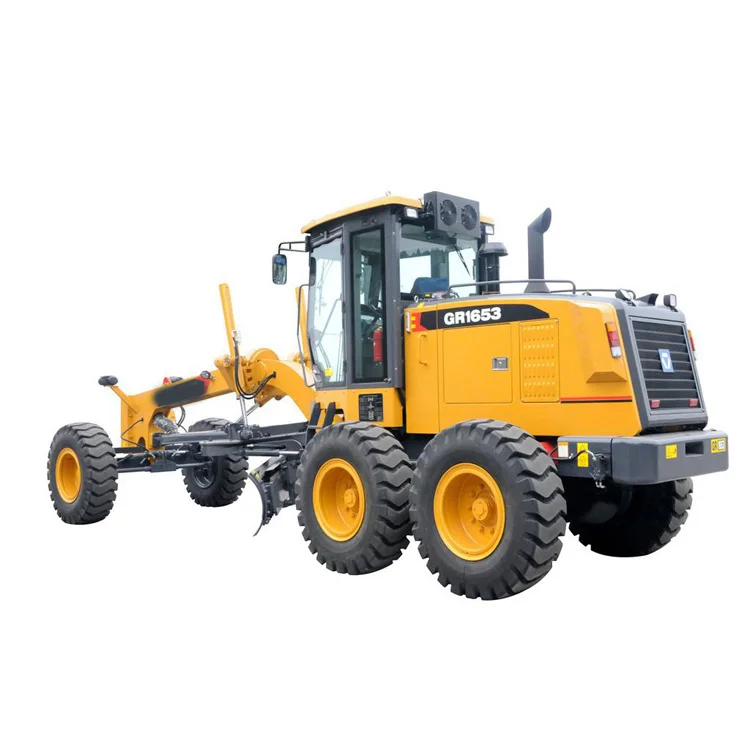

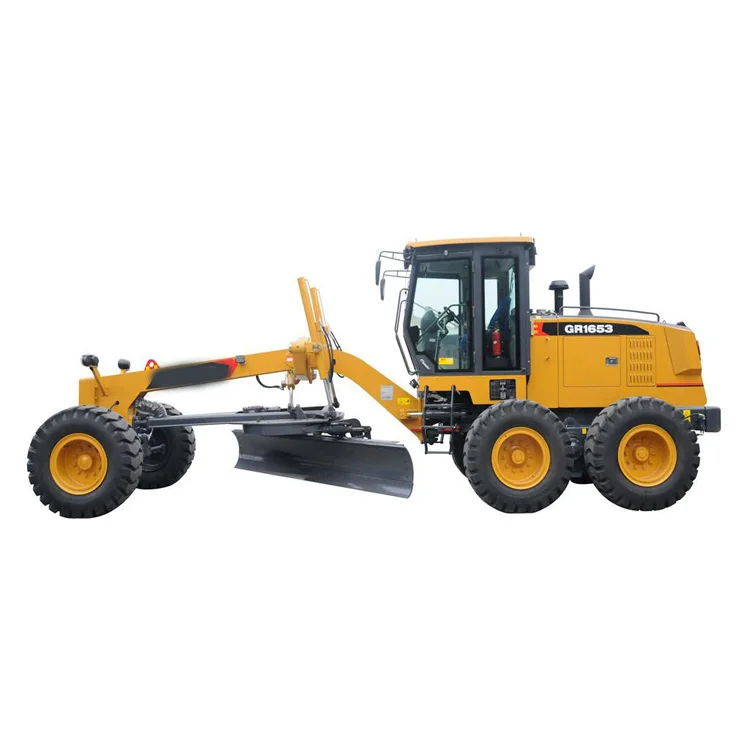

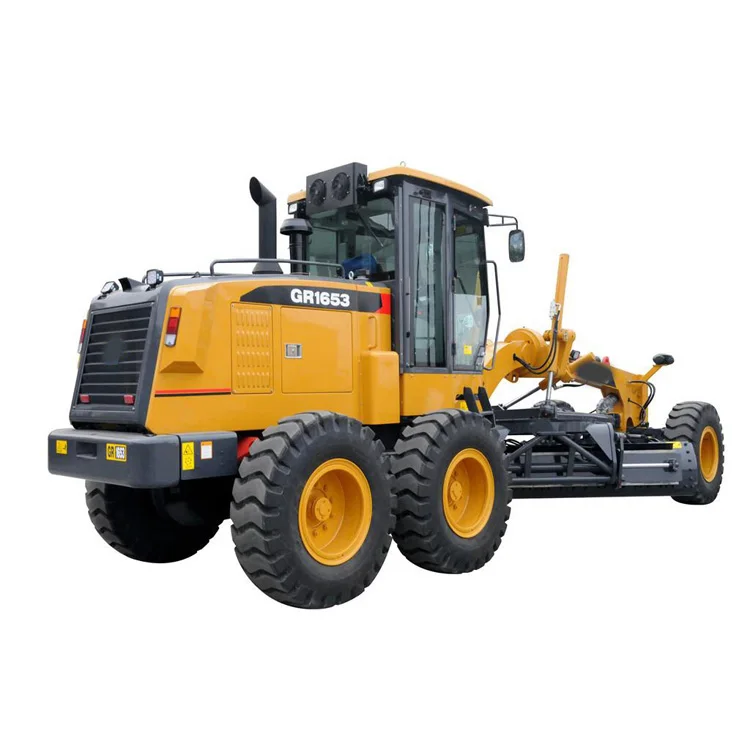

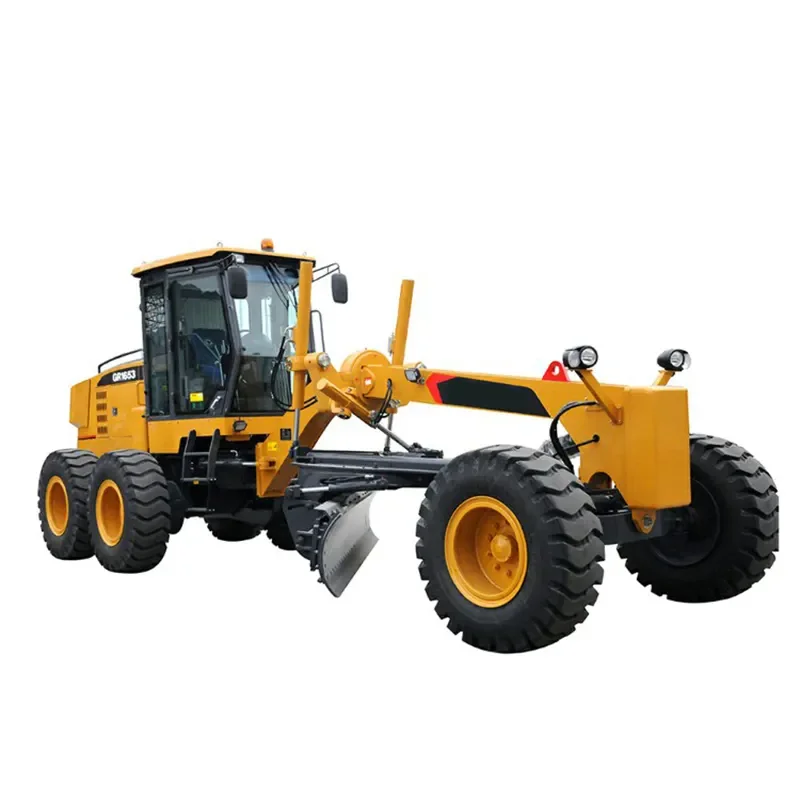

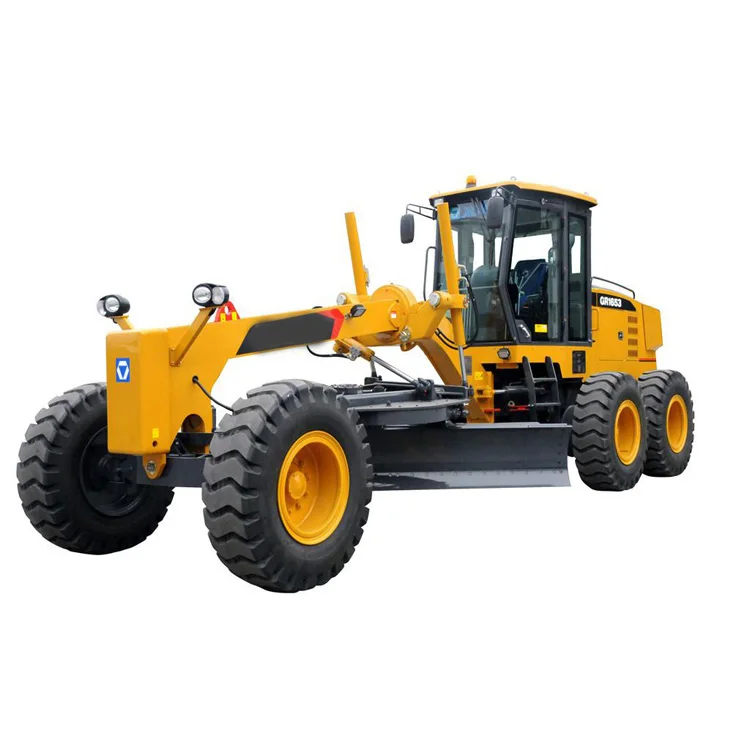

China High Quality Road Machinery GR165 Motor Grader
1. The GR165 adopts imported brand 6BTA5.9-C180-II turbocharged diesel engine, which has large output torque and power reserve coefficient and low fuel consumption.
2. The torque converter has a large torque coefficient, a high efficiency, a wide effective area, and a good joint operation characteristic with the engine.
Item | GR165 | ||
Basic parameters | Engine model | 6BTA5.9-C180-Ⅱ | |
Rated power/speed | 130kW/2200rpm | ||
Overall dimension (standard) | 8900x2625x3470 | ||
Total weight (standard) | 15000kg | ||
Tire specification | 17.5-25 | ||
Ground clearance (front axle) | 430mm | ||
Tread | 2156mm | ||
Space of front and rear axles | 6219 mm | ||
Performance parameters | Forward velocity | 5,8,11,19,23,38km/h | |
Reverse speed | 5,11,23km/h | ||
Tractive effort f=0.75 | 77kN | ||
Maximum gradeability | 25% | ||
Tire inflation pressure | 260kPa | ||
Working system pressure | 16MPa | ||
Transmission pressure | 1.3—1.8Mpa | ||
Working parameters | Maximum steering angle of front wheel | ±50° | |
Maximum slant angle of front wheel | ±17° | ||
Maximum oscillating angle of front axle | ±15° | ||
Maximum oscillating angle of equilibrium box | ±15° | ||
Maximum steering angle of frame | ±27° | ||
Minimum turning radius | 7.3m | ||
Scrape knife | Maximum lift height | 450mm | |
Maximum cutting depth | 500mm | ||
Maximum tilt angle | 90° | ||
Cutting angle | 28°—70° | ||
Angle of revolution | 360° | ||
Length & chord height | 3660x610mm | ||
Oil filling amount | Coolant | 50L | |
Fuel tank | 280L | ||
Engine | 24L | ||
Transmission | 38L | ||
Hydraulic oil | 110L | ||
Drive axle | 28L | ||
Balancing box | 46 L | ||
