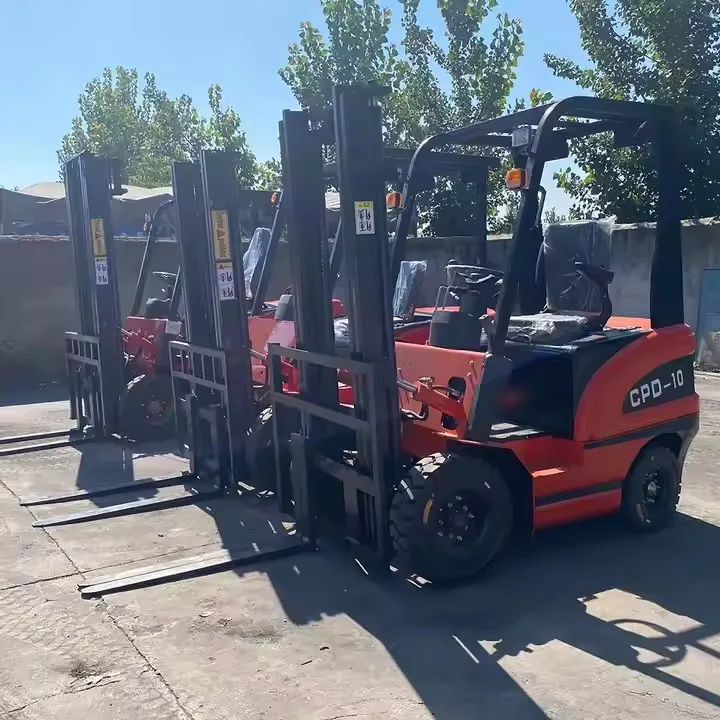

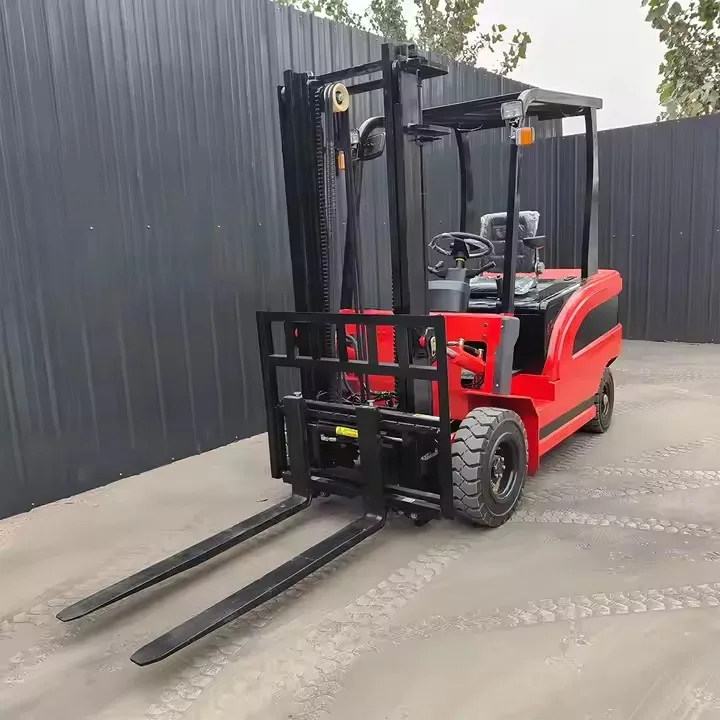

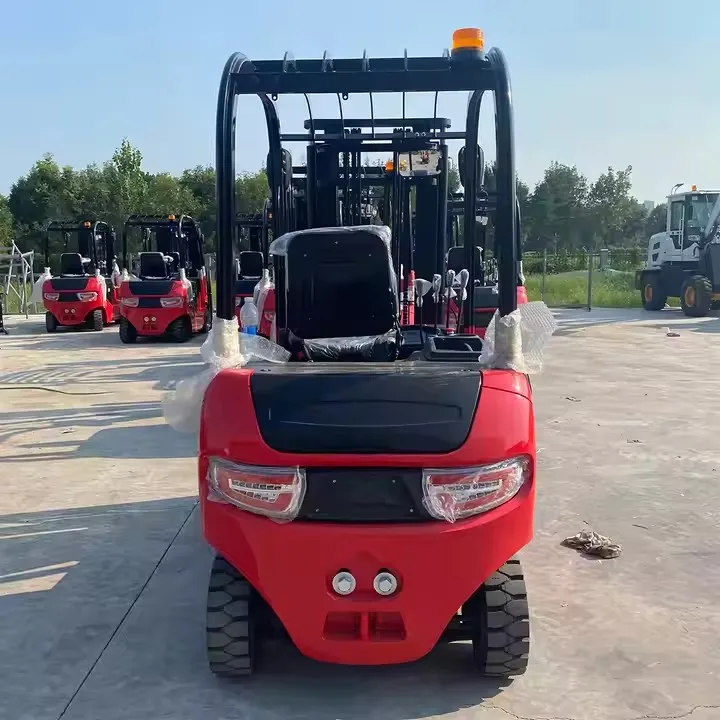

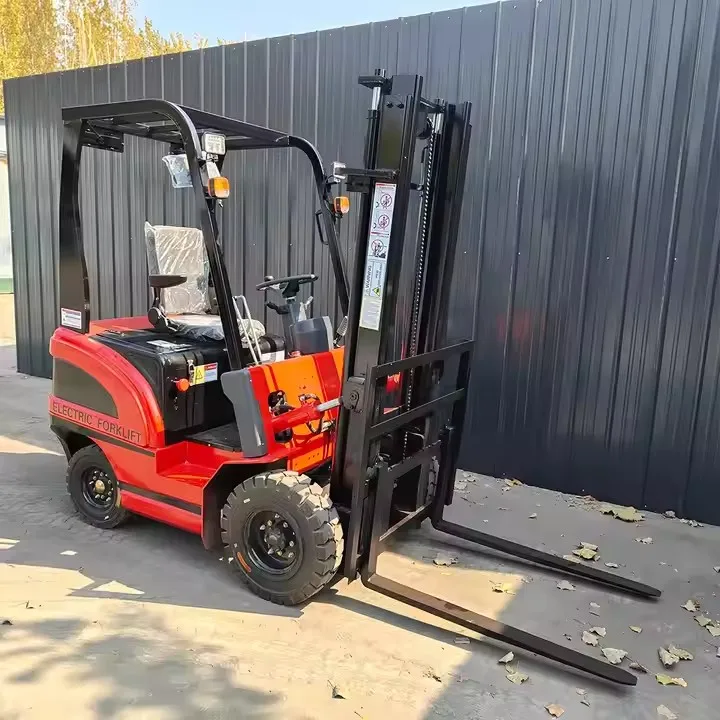

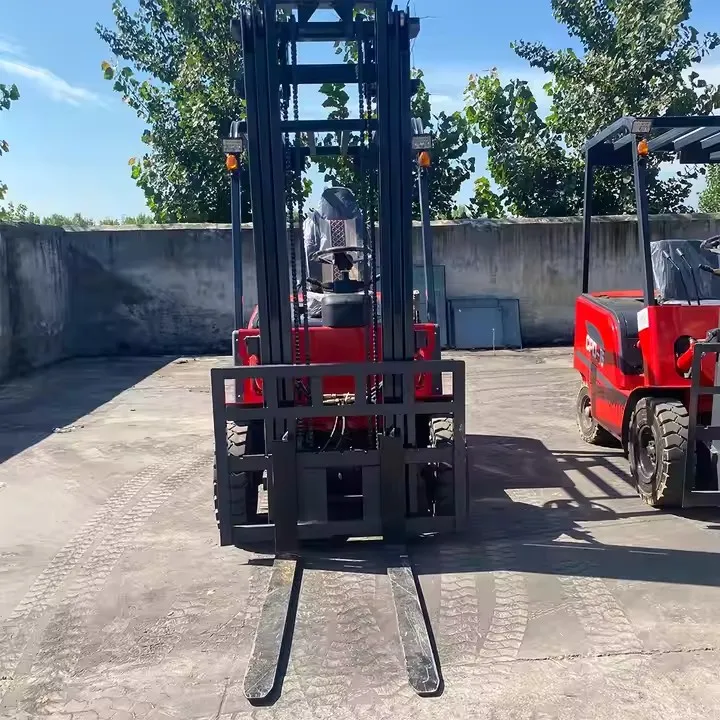

Free Shipping Montacargas Mini Electric Forklifts 40v 60v 1 Ton 1.5 Ton 2 Ton 3 Ton Construction Machinery Battery Powered
- Category: >>>
- Supplier: North Machinery (shandong) CorporationNorth Corporation
Share on (1601349958426):
Product Overview
Description
Specification
Rated lifting weight | 1 ton | 1.5 ton | 2 ton | 2.5 ton | 3 ton | ||||
Length (including fork) | 2800mm | 3420mm | 3720mm | 3940mm | 3940mm | ||||
Length (Without forks) | 1700mm | 2200mm | 2500mm | 2720mm | 2720mm | ||||
Width | 1150mm | 1200mm | |||||||
High | 2100mm | ||||||||
Fork | 1100mm | 1220mm | |||||||
Total Weight | 1500kg | 2200kg | 2700kg | 3200kg | 4000kg | ||||
Lifting height | 3000mm (can be customised) | ||||||||
Mast inclination angle | 6-12 degree | ||||||||
Wheelbase | 1380 mm | 1550 mm | 1700 mm | 1800 mm | 1960 mm | ||||
Front wheelbase | 885 | 890 mm | 895 mm | 895 mm | 900 mm | ||||
Rear wheelbase | 795 | 800 mm | 800 mm | 810 mm | 810 mm | ||||
Maximum lifting speed | 230mm/s | ||||||||
maximum walking speed | 15km/h | ||||||||
Lifting cylinder | 2 hydraulic cylinder | ||||||||
Body material | Thickened steel plate | ||||||||
Braking method | oil brake | ||||||||
Steering method | hydraulic | ||||||||
Maximum climbing angle | 15 degree | ||||||||
Minimum turning radius | 1750 mm | 2250 mm | 2550 mm | 2750 mm | 2750 mm | ||||
Lift motor | 2 kw | 3 kw | 4 kw | 5 kw | 7.5 kw | ||||
Travel motor | 2 kw | 3 kw | 4 kw | 5 kw | 7.5 kw | ||||
Front Solid Tire | 500-8 | 650-10 | 650-10 | 650-10 | 650-10 | ||||
Rear Solid Tire | 400-8 | 500-8 | 500-8 | 500-8 | 500-8 | ||||
Charger voltage | 220V | ||||||||
Voltage | 60V | ||||||||
Charging time | 6 h | ||||||||
Battery | 85 Ah | 100 Ah | 140 Ah | 200 Ah | 210 Ah | ||||
