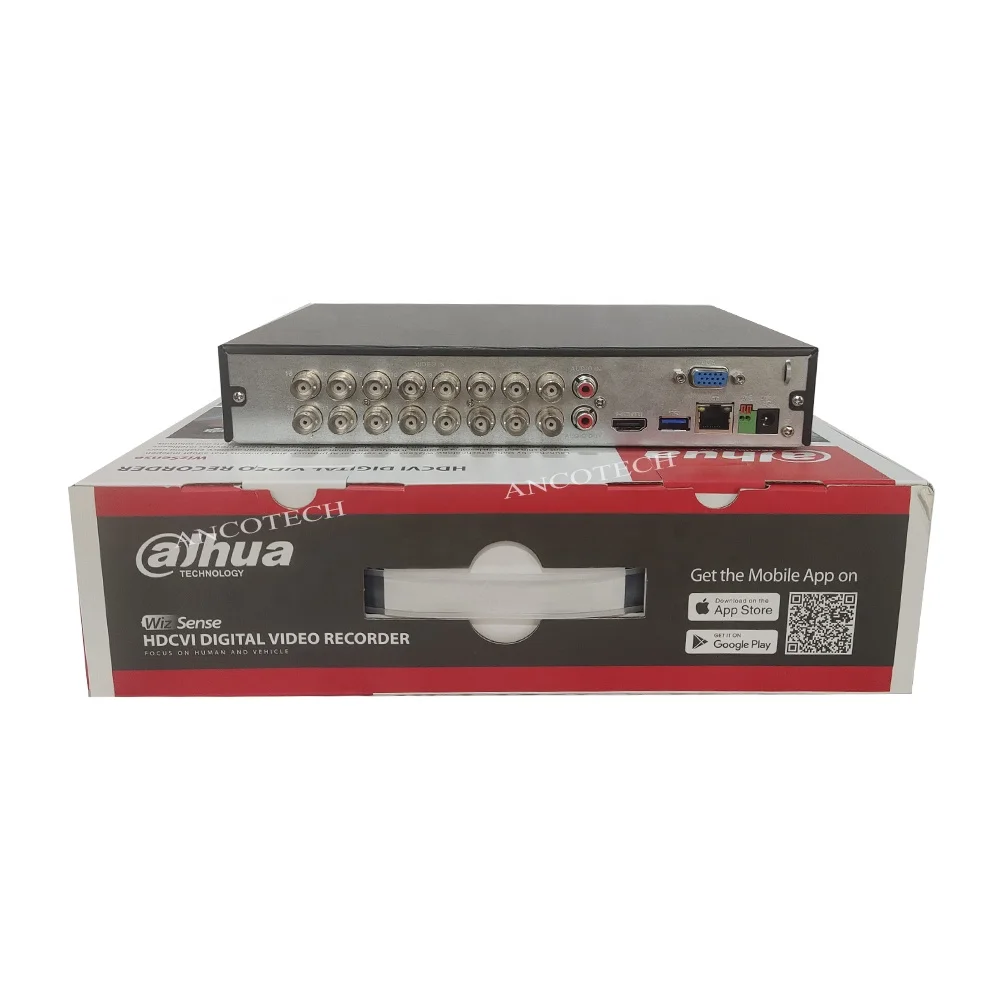

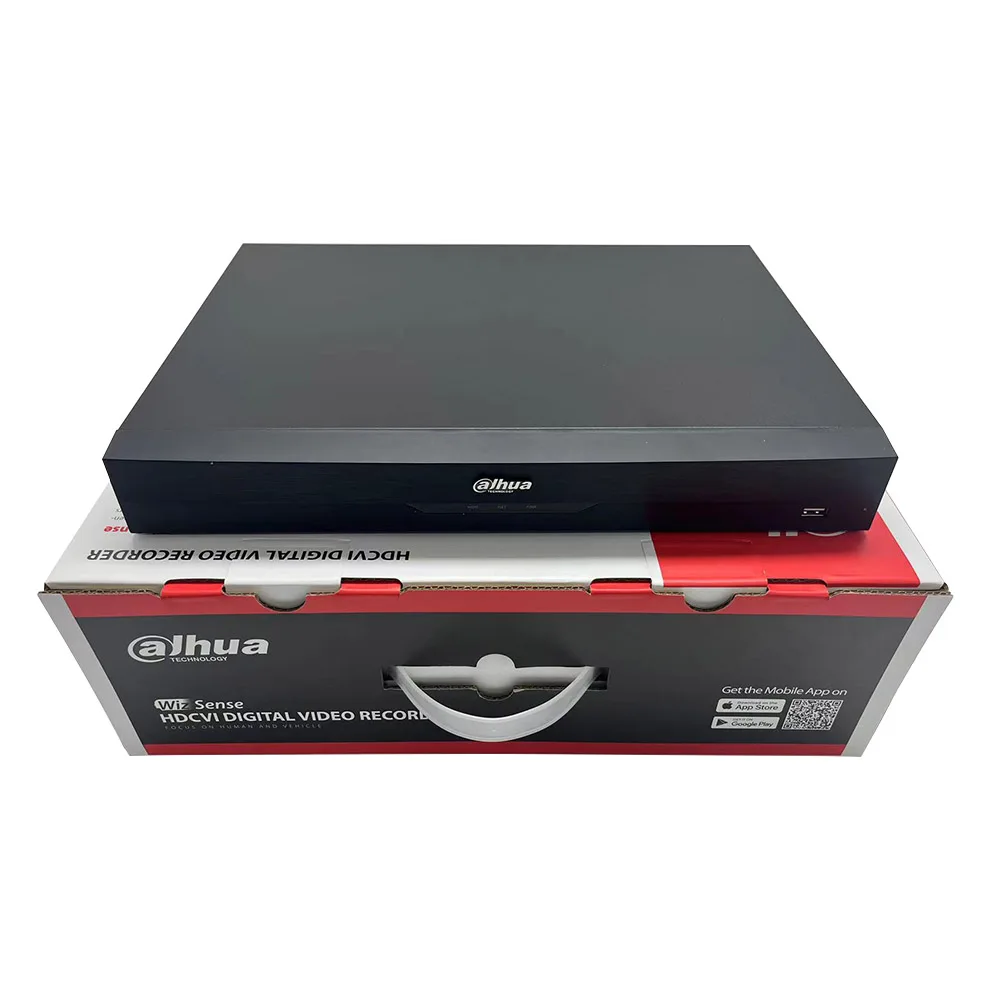

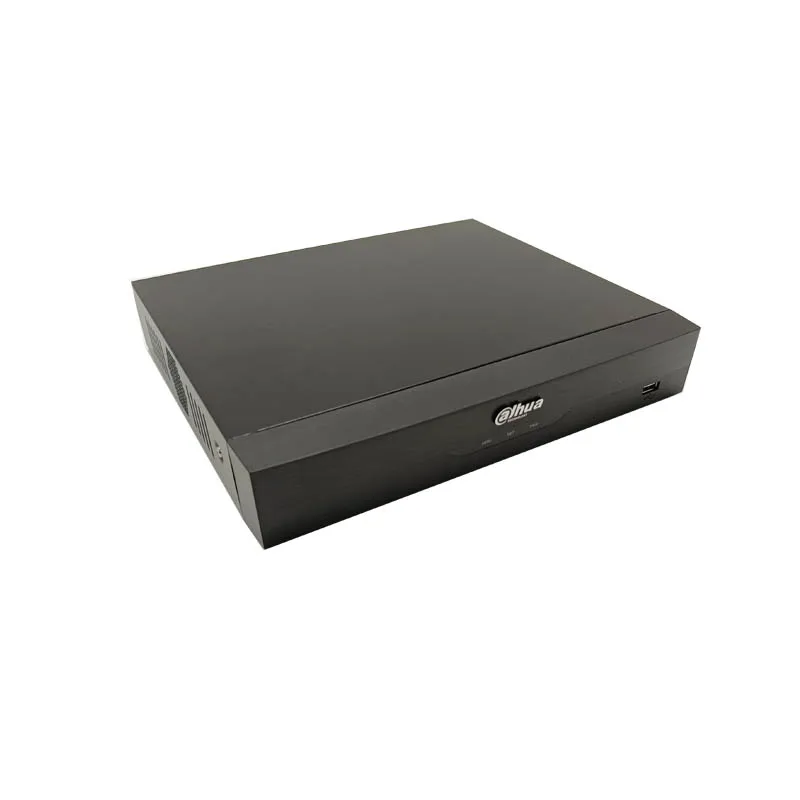

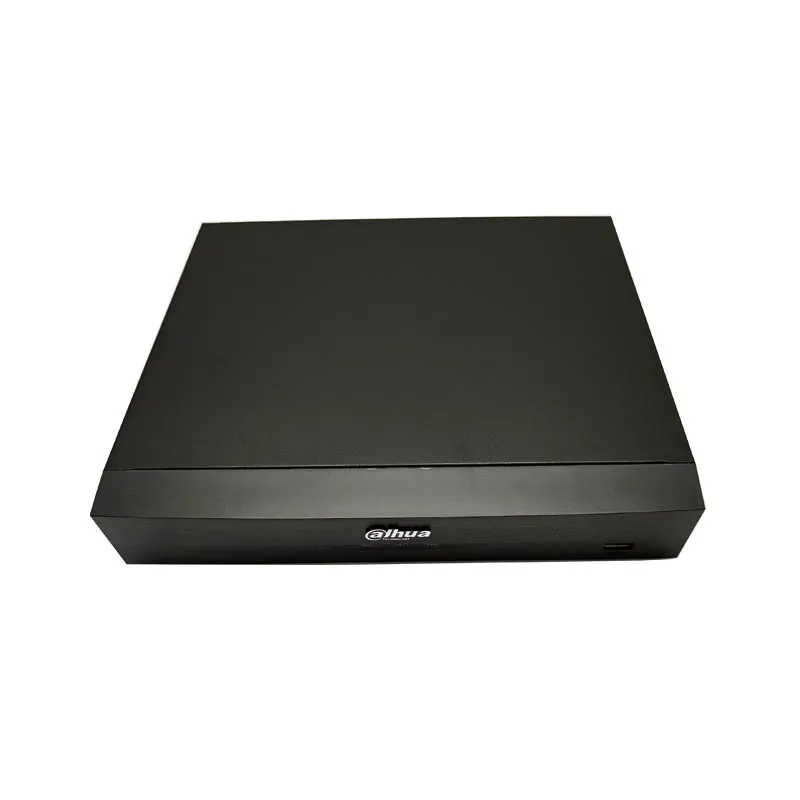

XVR5216A 4KL I3 H.265 /H.265 dual stream XVR HDCVI TVI IP AHD dvr 16 channel 4k 2HDD with human face recognition XVR dahua

System

Main Processor

Industrial-grade processor

Operating System

Embedded Linux

Operating Interface

Web; Local GUI

Perimeter Protection

Perimeter Performance AI by Recorder (Number of Channels)

Advanced Model: 2 channels, 10 IVS for each channel
General Model: 8 channels, 10 IVS for each channel

Face Detection

Face Attributes

Gender; age group; glasses; expressions; face mask; beard

Face Detection Performance of AI by Recorder (Number of Channels)

2 channels (up to 12 face images/s each channel) )

Face Recognition

Face Database Capacity

Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries & regions and state can be added to each face image

Face Recognition Performance of AI by Recorder (Number of Channels)

2 channels

SMD Plus

SMD Plus by Recorder

16 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change

SMD Plus by Camera

32 channels

AI Video Quality Analytics

AI Video Quality Analytics by Recorder

16 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white

Scene Changing

Scene Changing by Recorder

1 channel

Irregular Black Block Masking

Irregular Black Block Masking by Recorder

1 channel

EPTZ

EPTZ by Recorder

1 channel

Audio and Video

Analog Camera Input

16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect

Camera Input

1. CVI: 4K 25/30 fps; 4K 12.5/15 fps; 6 MP 20 fps; 5 MP 25 fps; 5 MP 20 fps; 4 MP 25/30 fps; 1080p 25/30 fps; 720p 25/30 fps; 720p 50/60 fps.

2. TVI: 4K 15 fps; 5 MP(2560 x 1944) 20 fps; 5 MP(2960 x 1665) 20 fps; 4 MP 25/30 fps; 3 MP 25/30 fps; 1080p 25/30 fps; 720p 25/30 fps.

3. AHD: 4K 15 fps; 5 MP 20 fps; 4 MP 25/30 fps; 3 MP 25/30 fps; 1080p 25/30 fps; 720p 25/30 fps.

IP Camera Input

Up to 32 channels of IPC access

16 IP channels by default + 16 channels (analog channels are converted to IP channels)

Incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps

*After IP extension is enabled, EPTZ, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, SMD, Perimeter Protection, QuickPick 2.0 and Privacy Protection cannot be used.

Encoding Capacity

Encode Enhancement disabled:

Main stream:

the 1st, 9th channel 4K (1 fps–15 fps), others 4K (1 fps–7 fps);

the 1st, 9th channel 6 MP (1 fps–20 fps), others 6 MP (1 fps–10 fps);

the 1st, 9th channel 5 MP (1 fps–25 fps), others 5 MP (1 fps–12 fps);

the 1st, 9th channel 4K-N/4 MP/3 MP (1 fps–25/30 fps), others 4K-N/4 MP/3 MP (1 fps–15 fps);

4K (1 fps–8 fps); 5 MP (1 fps-15 fps);4M-N/1080p/720p/960H/D1/CIF (1 fps–25/30 fps)

Sub stream:

960H (1 fps–15 fps); D1/CIF (1 fps–25/30 fps)

Encode Enhancement enabled:

Main stream:

the 1st, 5th, 9th, 13th channel 4K (1 fps–15 fps), others 4K (1 fps–7 fps);

the 1st, 5th, 9th, 13th channel 6 MP (1 fps–20 fps), others 6 MP (1 fps–10 fps);

the 1st, 5th, 9th, 13th channel 5 MP (1 fps–25 fps), others 5 MP (1 fps–12 fps);

the 1st, 5th, 9th, 13th channel 4K-N/4 MP/3 MP (1 fps–25/30 fps), others 4K-N/4 MP/3 MP (1 fps–15 fps);

4K/6 MP (1 fps–10 fps);5 MP (1 fps-15 fps); 4M-N/1080p/720p/960H/D1/CIF (1 fps–25/30 fps)

Sub stream:

960H (1 fps–15 fps); D1/CIF (1 fps–25/30 fps)

*When Encode Enhancement is enabled, EPTZ, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection, QuickPick 2.0 and Privacy Protection cannot be used.

Dual-stream

Yes

Video Bit Rate

32 kbps–6144 kbps

Audio Sampling

8 kHz, 16 bit

Audio Bit Rate

64 kbps

Video Output

1 h-dmi, 1 VGA

h-dmi: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720

VGA: 1920 × 1080, 1280 × 1024, 1280 × 720

*Simultaneous/heterogeneous video sources output for VGA and h-dmi is configurable.

Multi-screen Display

When IP extension mode not enabled: 1/4/8/9/16

When IP extension mode enabled: 1/4/8/9/16/25/36

Third-party Camera Access

Panasonic; Sony; Hanwha; Axis; Arecont; ON-VIF

Compression Standard

Video Compression

AI Coding; Smart H.265+; H.265; Smart H.264+; H.264

Audio Compression

G.711a; G.711u; PCM

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)

Mobile Phone Access

iOS; Android

Interoperability

ON-VIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK

Browser

Chrome; IE; Safari; Edge; Firefox

Recording Playback

Record Mode

General; alarm; motion detection; intelligent; POS

Recording Playback

1/4/9/16

Backup Method

USB device and network

Playback Mode

Instant playback; general playback; event playback; tag playback; smart playback

Storage

Disk Group

Yes

Alarm

General Alarm

Motion detection; alarm box; HDCVI alarm; camera external alarm; network alarm; PIR alarm

Anomaly Alarm

Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline

Intelligent Alarm

Face detection; face recognition; perimeter protection; SMD Plus

Alarm Linkage

Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email
