Smowo six mV channel input RW ST06D Modbus RS485 digital display load cell transducer
- Category: >>>
- Supplier: Shanghai Tianhe Automation Instrumentation Co. Ltd.Shanghai Ltd.
Share on (1601351511377):
Product Overview
Description
Product Description

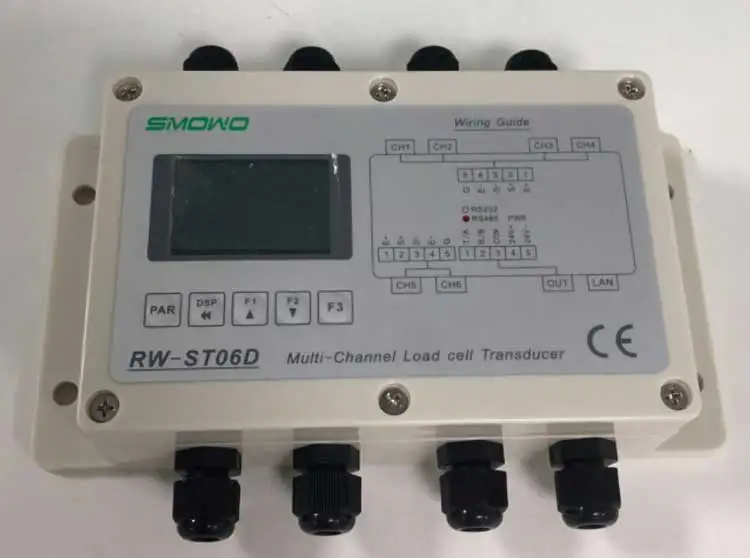

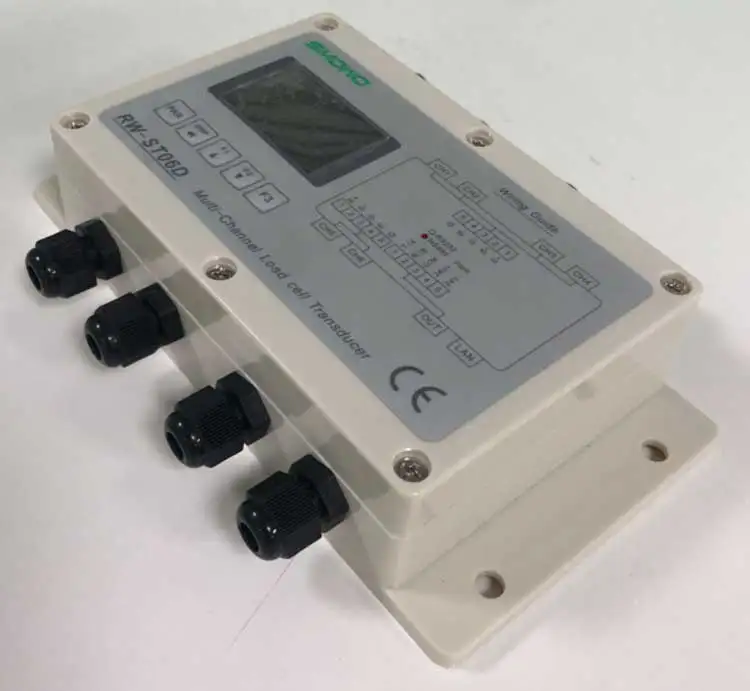

The RW-ST06D multi-channel digital load cell transducer is specially designed for multi-point measuring or force
measuring applications. Multi-functional high-performance product can input up to 6 resistive strain sensors at the same time, and can be identical independent processing and transmission.
It supports international standard MODBUS communication protocol, easy to communicate with PLC and other industrial equipment network. Individually readable the measurement of any channel or the sum measurement of all channels. The latter is particularly suitable for multichannel summation weighing applications. It has the characteristics of independent processing and field display of each channel, so it is convenient to be used in engineering to compose multiple sensors for balance adjustment on the weighing platform.
When multi-point weighing fast response is required, the MODBUS communication protocol can support reading all channels at once. The polling time of multiple transducer is effectively shortened.
In some applications, it may be necessary to output the control signal directly from the transducer or to reproduce the analog signal from the transducer, which is only need to order matching expansion card to acheive.
Specification
display | 12864 dot-matrix LCD, with backlight |
display range | -9999999~9999999 |
decimal point | 0 to 0.000000 |
power supply | DC 9V-32V，1.5W |
input signal | 0.8 mV/V-3.9mV/V |
EXC voltage | 5 V-12V DC |
working termperature | -10℃ to 85℃ |
storage temperature | -30~85℃ |
net weight | 400g |

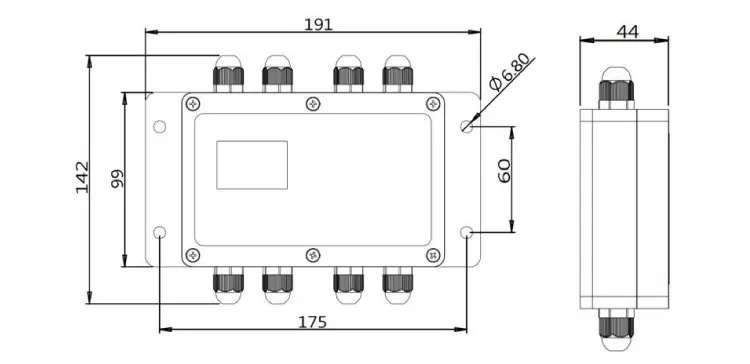

Demision (mm)

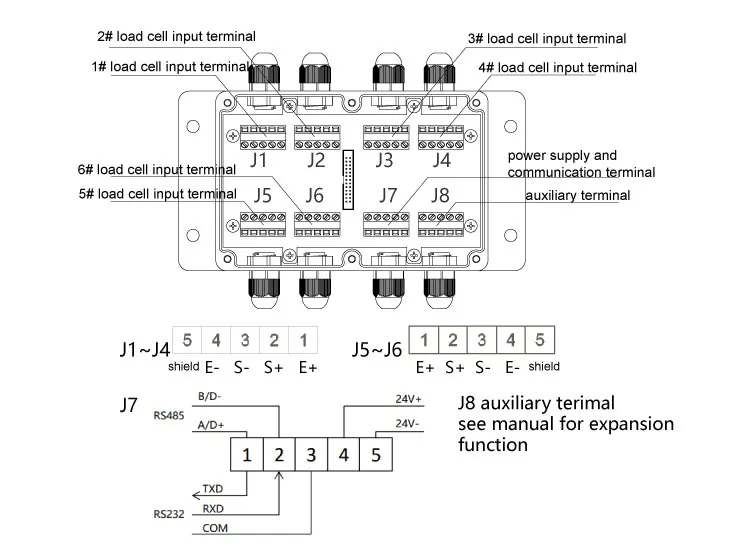

Connection

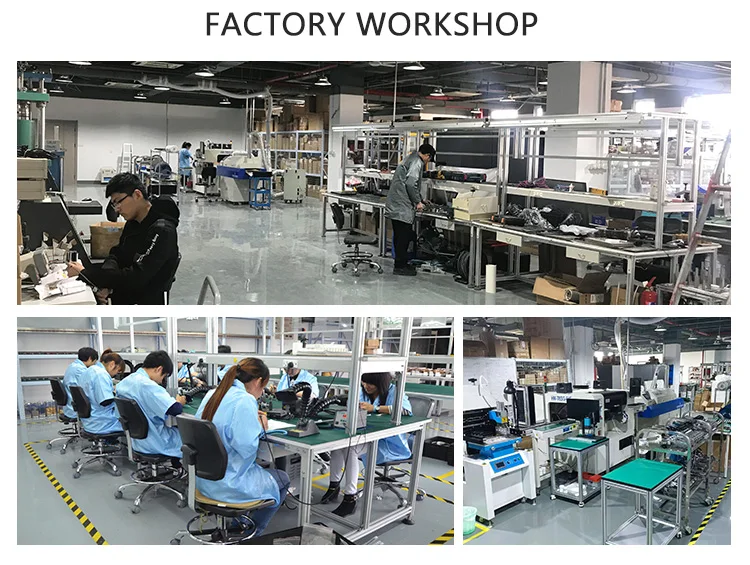

Established 2009, Shanghai Tianhe Automation Instrumentation Co., Ltd. is a professional manufacturer that is concerned with the design, development and production of load cell amplifier, load cell transducer, digital display meter, etc.. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. We have around 50 employees, an annual sales figure USD 5,000,000. We have our owndevelopment and research group to guarantee customer after-sales technical support and customized products development. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
Package and Delivery
Package:
We have box for each product and pack with carton.We suggest to use bubble wrap for product and then carton, because of big size and high express fee.
Delivery:
We can use fedex, ups, EMS, shunfeng ect for delivery
Delivery:
We can use fedex, ups, EMS, shunfeng ect for delivery
Q: If choose analog amplifier, which technical data is important for order?
Load cell sensitivity and output. Or tell us your sensitivity and output, and then we can set well before delivery.
Q：If choose display meter, do you order directly on line?
It is better not order directly on line, because user needs to choose control function.
Q: Do you any discount?
Yes. You may give us your qty, we will try to give you more discount.
Q: Could you add some function or make some parameters revise on present products?
If no problem to achieve, we will make these changes. You may tell us what you need and then we can check with our engineer.
Q: How about your maintenance service?
After you cooperate with us, you will find we do not have one exact time limit for maintenance service. Technical support is more important in your application, which is lifelong for user.
Q: Do you have any suggestion of package for express delivery?
Our regular cargo is box outside and then carton, but we do not suggest to use box for each one, because of size is much
bigger.Most of products are light, and small. We can use bubble pack and carton for low freight.
Load cell sensitivity and output. Or tell us your sensitivity and output, and then we can set well before delivery.
Q：If choose display meter, do you order directly on line?
It is better not order directly on line, because user needs to choose control function.
Q: Do you any discount?
Yes. You may give us your qty, we will try to give you more discount.
Q: Could you add some function or make some parameters revise on present products?
If no problem to achieve, we will make these changes. You may tell us what you need and then we can check with our engineer.
Q: How about your maintenance service?
After you cooperate with us, you will find we do not have one exact time limit for maintenance service. Technical support is more important in your application, which is lifelong for user.
Q: Do you have any suggestion of package for express delivery?
Our regular cargo is box outside and then carton, but we do not suggest to use box for each one, because of size is much
bigger.Most of products are light, and small. We can use bubble pack and carton for low freight.
