215HP Motor Grader with Front Blade and Back Ripper Clg4215D
World-class Dongfeng engine with high power and low fuel consumption.
Scraping knife has 360 degree rotation, 90 degree right/left lateral adjustment, and 40-70 degree penetration for
leveling,trenching, ditching, wall scraping and more.
Designed suction cooling system has better cooling, lower wind sensitivity and is less
impacted by dirt than normal systems.
Meeting EU stage II/EPA tier 2 emission standards.
2.Easy to Maintain:
Hydraulic pipes on both sides of frame for easy maintenance.
Easy engine access and access to main maintenance points
3.Reliability:
Power cuts off if hand brake not removed, this prevents accidental damage.
Parts, service and attachments you can count on.
World-class suppliers of key components.
4.Operator Comfort and Safety:
Dustproof, sound reducing, shock absorbing and anti-UV cabin.
Comfortable adjustable suspension seating.
Air Conditioning optional.
Full range of visibility.
Product Paramenters
Item | 4215D | ||||
Basic parameters | Engine model | 6BTA5.9-C180-Ⅱ | |||
Rated power/speed | 215HP/2200rpm | ||||
Overall dimension (standard) | 8900x2625x3470 | ||||
Total weight (standard) | 15000kg | ||||
Tire specification | 17.5-25 | ||||
Ground clearance (front axle) | 430mm | ||||
Tread | 2156mm | ||||
Space of front and rear axles | 6219 mm | ||||
Performance parameters | Forward velocity | 5,8,11,19,23,38km/h | |||
Reverse speed | 5,11,23km/h | ||||
Tractive effort f=0.75 | 77kN | ||||
Maximum gradeability | 25% | ||||
Tire inflation pressure | 260kPa | ||||
Working system pressure | 16MPa | ||||
Transmission pressure | 1.3—1.8Mpa | ||||
Working parameters | Maximum steering angle of front wheel | ±50° | |||
Maximum slant angle of front wheel | ±17° | ||||
Maximum oscillating angle of front axle | ±15° | ||||
Maximum oscillating angle of equilibrium box | ±15° | ||||
Maximum steering angle of frame | ±27° | ||||
Minimum turning radius | 7.3m | ||||
Scrape knife | Maximum lift height | 450mm | |||
Maximum cutting depth | 500mm | ||||
Maximum tilt angle | 90° | ||||
Cutting angle | 28°—70° | ||||
Angle of revolution | 360° | ||||
Length & chord height | 3660x610mm | ||||
Oil filling amount | Coolant | 50L | |||
Fuel tank | 280L | ||||
Engine | 24L | ||||
Transmission | 38L | ||||
Hydraulic oil | 110L | ||||
Drive axle | 28L | ||||

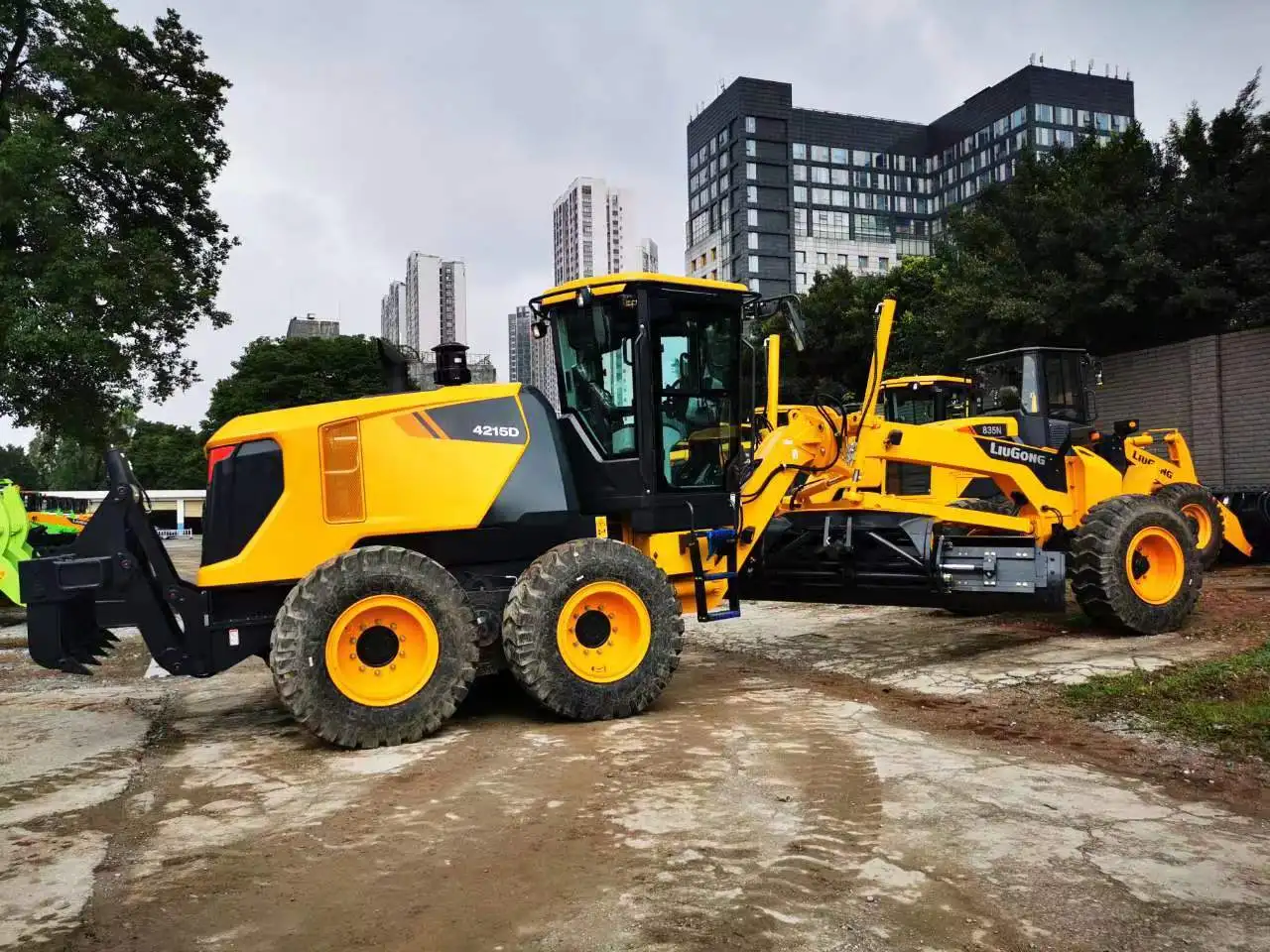

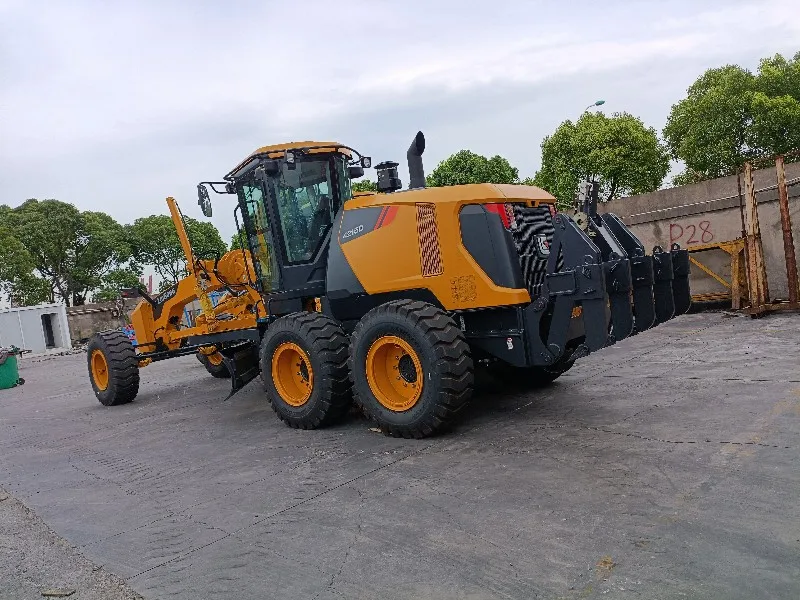

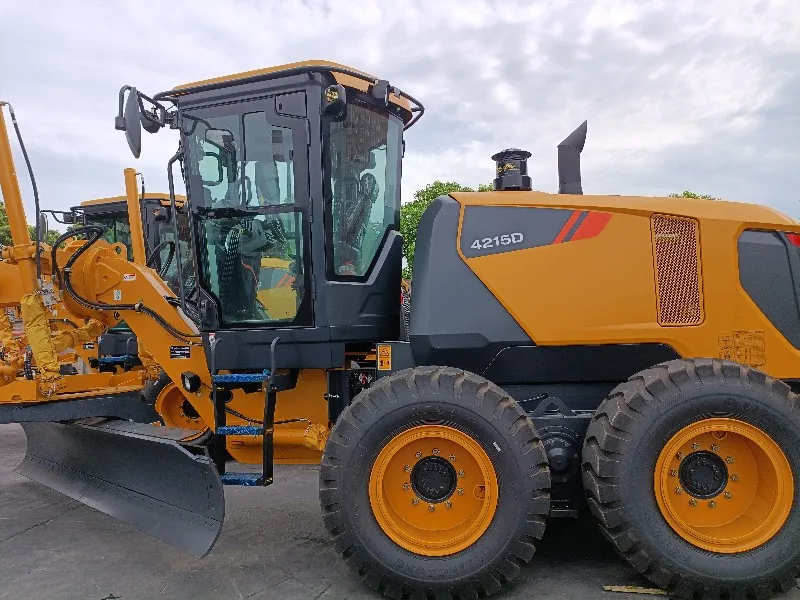

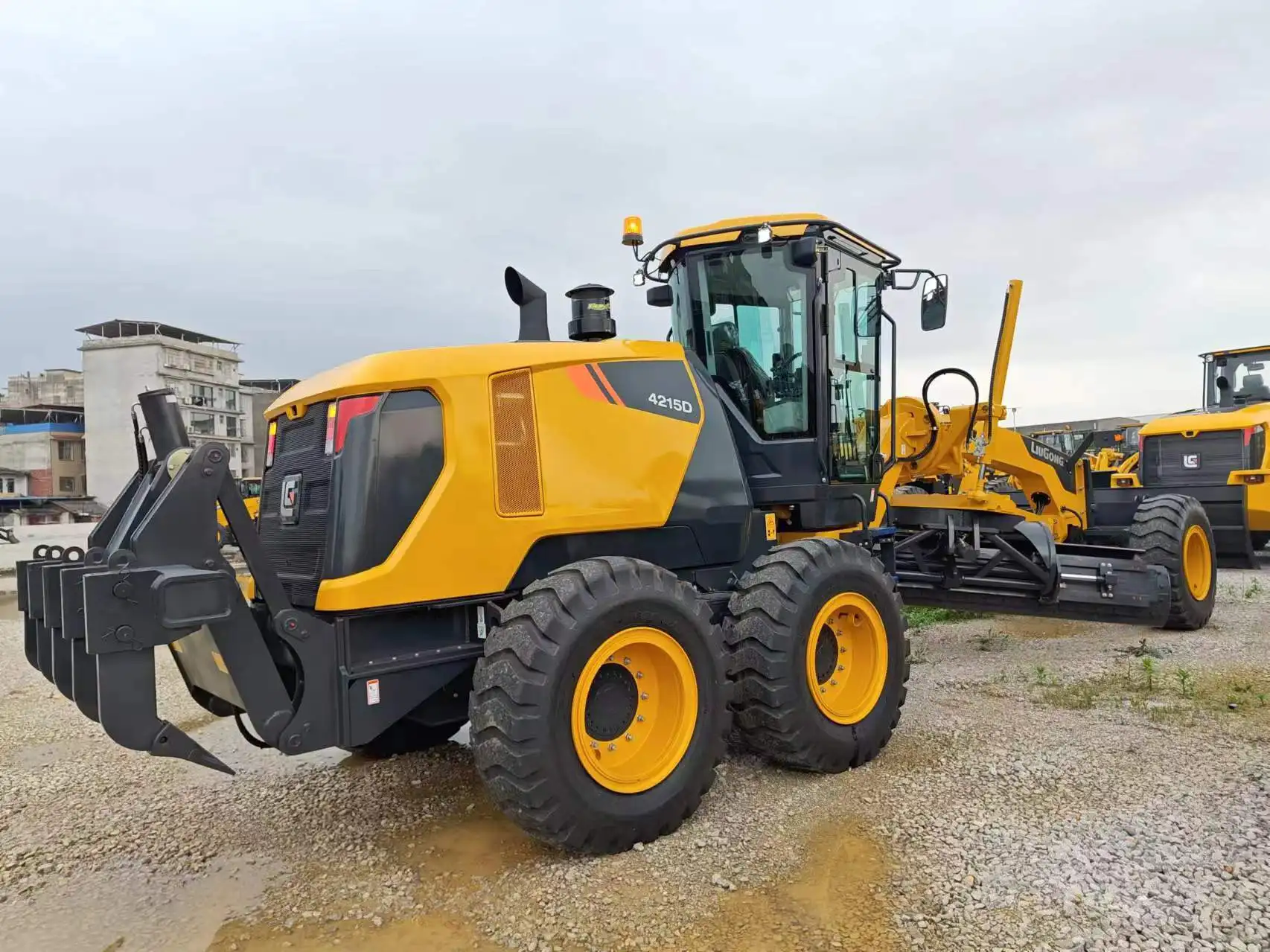

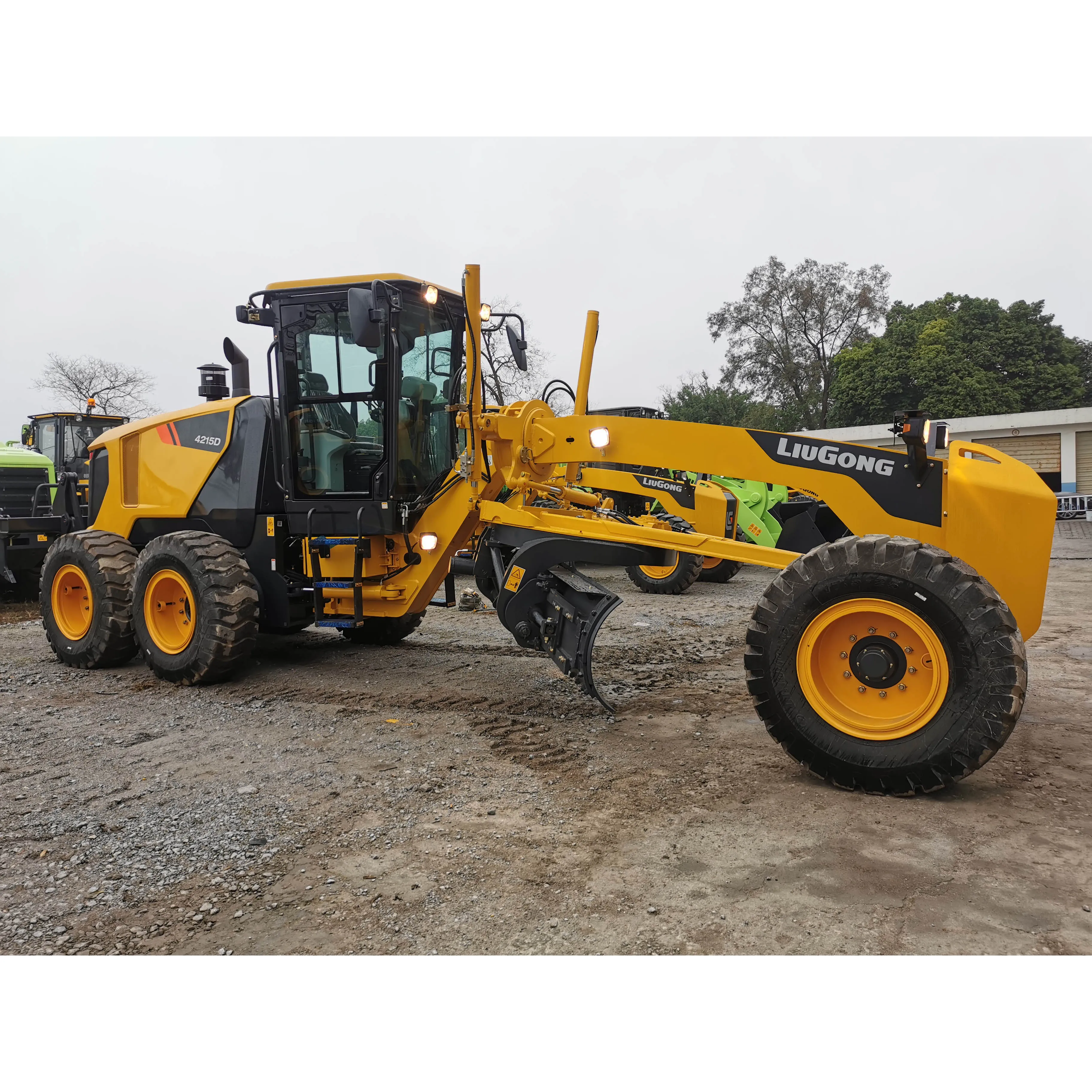

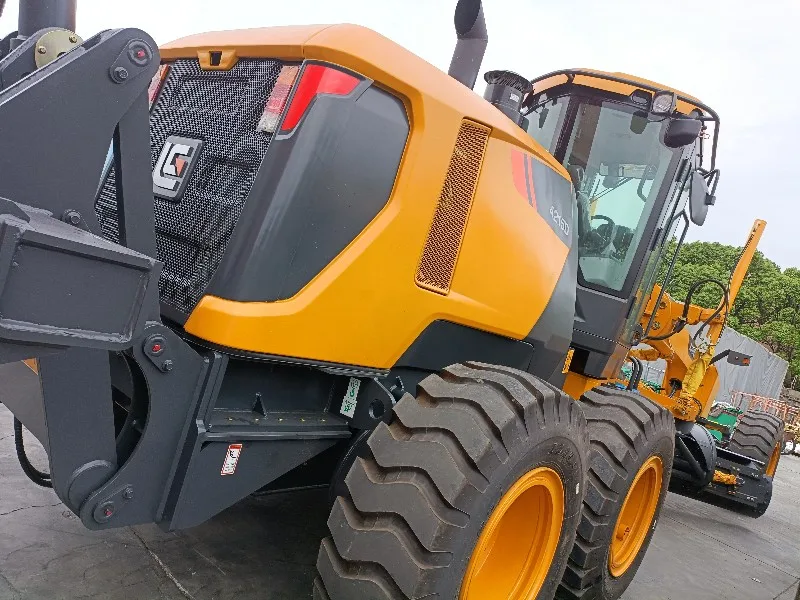

Product Image
