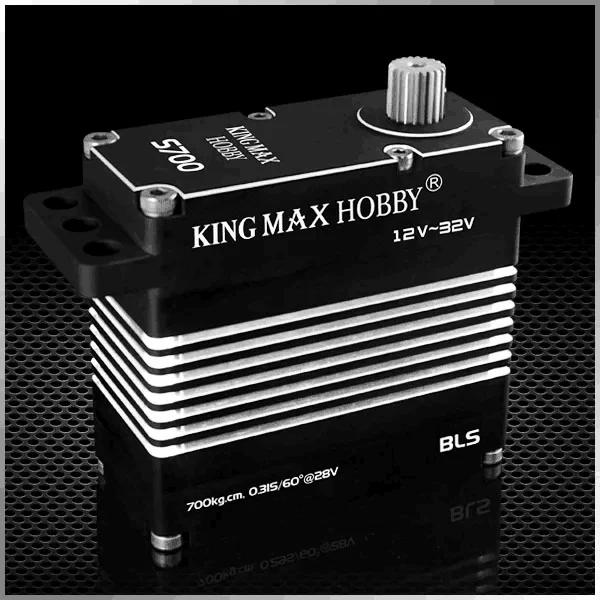

Kingmax S700 700KG High precision Steel Gears Digital High pressure High Torque Servo Industrial Grade RC Airplane Fixed Wing
Kingmax S700 700KG High-precision Steel Gears Digital High-pressure High Torque Servo Industrial Grade RC Airplane Fixed Wing
Kingmax S700 700KG High-precision Steel Gears Digital High-pressure High Torque Servo Industrial Grade RC Airplane Fixed Wing
Kingmax S700 700KG High-precision Steel Gears Digital High-pressure High Torque Servo Industrial Grade RC Airplane Fixed Wing
Kingmax S700 700KG High-precision Steel Gears Digital High-pressure High Torque Servo Industrial Grade RC Airplane Fixed Wing
Kingmax S700 700KG High-precision Steel Gears Digital High-pressure High Torque Servo Industrial Grade RC Airplane Fixed Wing
Kingmax S700 700KG High-precision Steel Gears Digital High-pressure High Torque Servo Industrial Grade RC Airplane Fixed Wing

Kingmax S700 700KG High precision Steel Gears Digital High pressure High Torque Servo Industrial Grade RC Airplane Fixed Wing

Share on (1601354282781):


Price:$655.00-760.00

Quantity:


Product Overview

Description



Product Description


-- High performance, digital multivoltage high torque servo
-- High-precision steel gears
-- Full CNC aluminium hulls and structure
-- High quality brushless motor
-- 10 ball bearings
-- Super long working life
Gear：Steel gear
Spline：20T
Motor：Brushless motor
Bearing：10BB
Dead band：2μs default
Waterproof：No
Operating Voltage：DC12~32V
Rated working voltage：DC28V
Working frequency：1520μs/330hz
Working angle：±63°@800us-2200us
Working temperature：-10℃~+50℃
Storage temperature：-20℃~+60℃
Operating Speed (24V): 0.36sec/60 degrees
Operating Speed (28V): 0.31sec/60 degrees
Max working torque(28V):700kg.cm(9723.00oz/in)
Rated torque(24V):340kg.cm(4722.60oz/in)
Rated torque(28V):400kg.cm(5556.00oz/in)

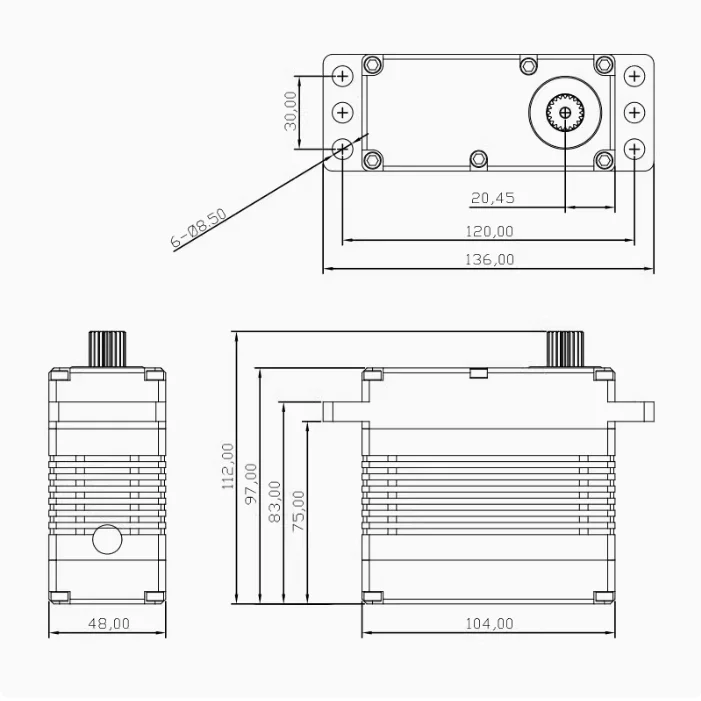

Dimensions: 104X48X97mm /4.05X1.87X3.78in
Weight:1450g (51.14oz)

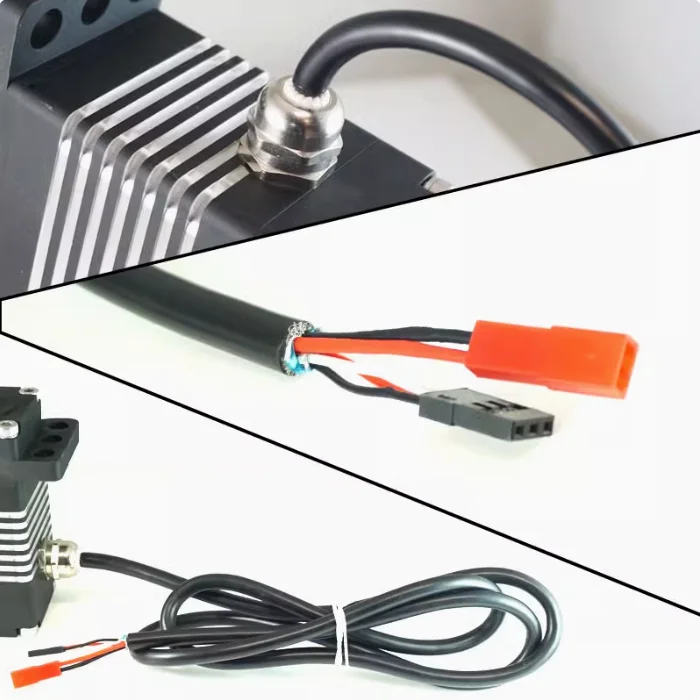

Connector Wire Length: Teflon1150mm (44.85in)




Kingmax S700 700KG Servo -1pcs
