China top brand factory directly selling 4230D Motor Graders 18ton CLG4230D Road Motor Grader In Stock
- Category: >>>
- Supplier: Evangel Industrial (Shanghai) Co. Ltd.Evangel Ltd.
Share on (1601354407120):
Product Overview
Description
CONTACT US
Products Description

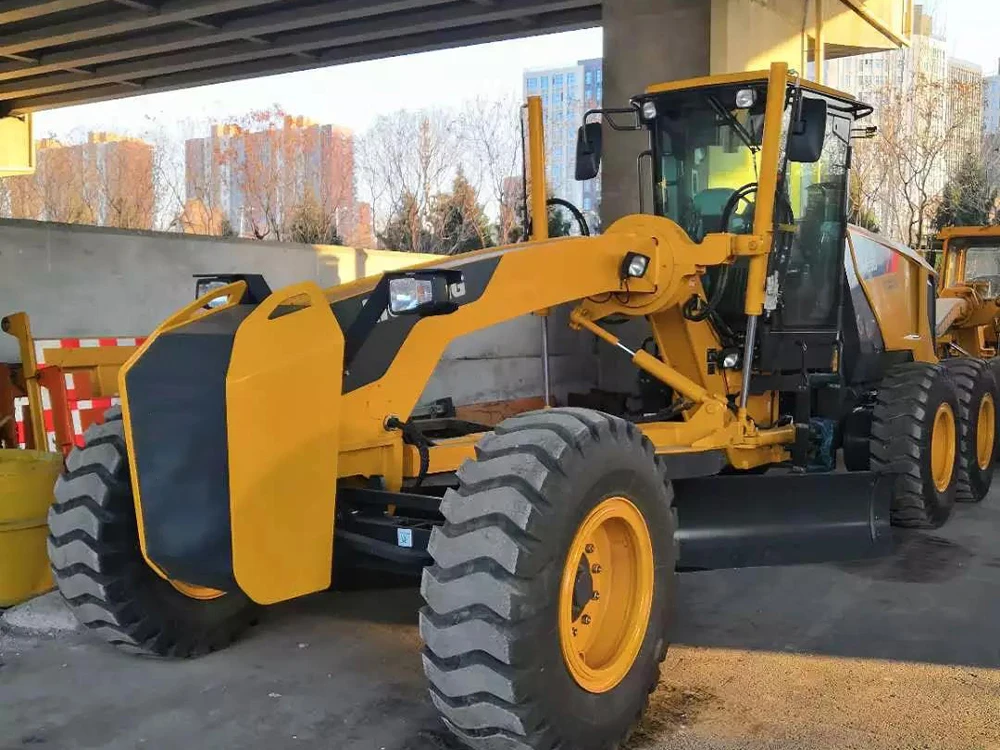

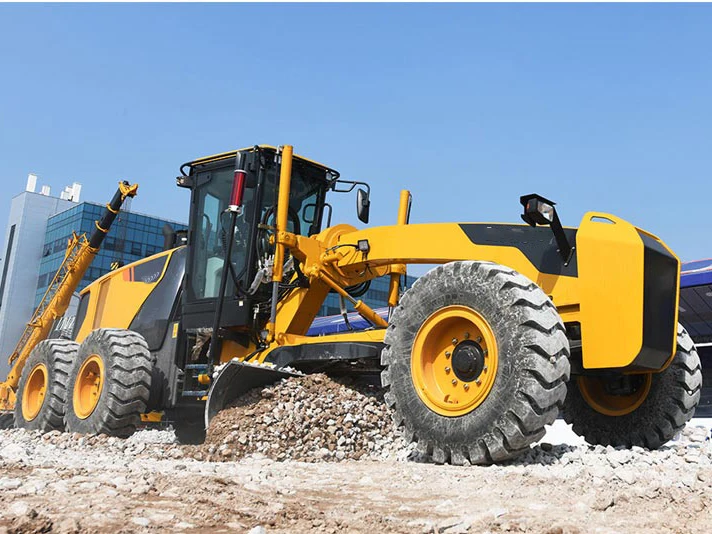

Road Construction Machinery 241HP 4230D Medium Road Grader
The excellent industrial design team has made great efforts to create an artistic and perfect shape, and the cab has obtained an invention patent. The panoramic view and control view are extremely shocking. The cab can be equipped with ROPS&FOPS functions.
Standard German high-quality transmission technology ZF gearbox, electronic shifting, efficient transmission, low fuel
consumption, low noise, and an average of 10,000 hours without unpacking.
The industry's superb working device design, standard roller working device and reinforced worm gear box, flexible rotation, high precision, dust prevention, no adjustment, high strength; lift the shovel directly onto the truck, no need to pull out the pin and side swing traction frame, high loading efficiency.

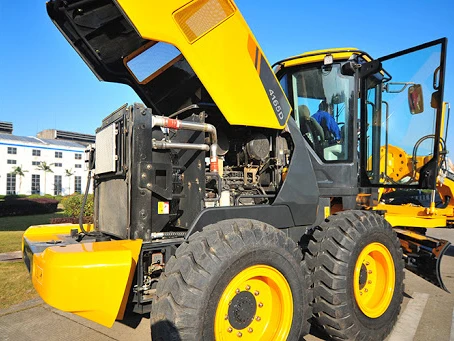

The engine hood adopts electronic control overall forward flip, and the front and rear frames are hinged with large upper and lower spans, making daily maintenance more convenient.
Standard German high-quality transmission technology ZF gearbox, electronic shifting, efficient transmission, low fuel
consumption, low noise, and an average of 10,000 hours without unpacking.
The industry's superb working device design, standard roller working device and reinforced worm gear box, flexible rotation, high precision, dust prevention, no adjustment, high strength; lift the shovel directly onto the truck, no need to pull out the pin and side swing traction frame, high loading efficiency.
The engine hood adopts electronic control overall forward flip, and the front and rear frames are hinged with large upper and lower spans, making daily maintenance more convenient.
Specification
Dimensions | Unit | Value |
Wheelbase | mm | 6230 |
Overall Length | mm | 9140 |
Overall Width | mm | 2675 |
Overall height with Cab | mm | 3380 |
Clearance under Front Axle | mm | 602 |
Moldboard Standard Length | mm | 3960 |
Moldboard Standard Thickness | mm | 25 |
Moldborad Standard Height | mm | 610 |
MODEL | 4230D |
Operating Weight | 17,868 kg |
Emission | Tier3 |
Model | QSL9.3 |
Rated Power | 180 kW (241 hp / 245 ps) @ 2,200 rpm |
Max. Torque | 1,187 N · m @ 1300 rpm |
Number of Cylinders | 6 |
Aspiration | Turbo & air - to - air intercooled |
Transmission Type | power shift |
Torque Converter | Single stage, three elements |
Max. Travel Speed, fwd | 42 km/h |
Max. Travel Speed, rev | 26.2 km/h |
Number of Speed, fwd | 6 |
Number of Speed, rev | 3 |
Axle Oscillation | ±16° |
Front Axle， Wheel Lean Angle | Left / right 18° |
Steering Angle | ±50° |
Frame Articulation Angle | ±27° |
Tire Size | 17.5-25 |
Max. Draw Pull | 99 kN |
Cutting Pressure | 8,750 kg |
