semi automatic curved and straight edge banding machine with trimmer touch screen for woodworking mdf plywood
- Category: >>>
- Supplier: Shandong Dongteng Machinery Co. Ltd.Shandong Ltd.
Share on (1601354464813):
Product Overview
Description

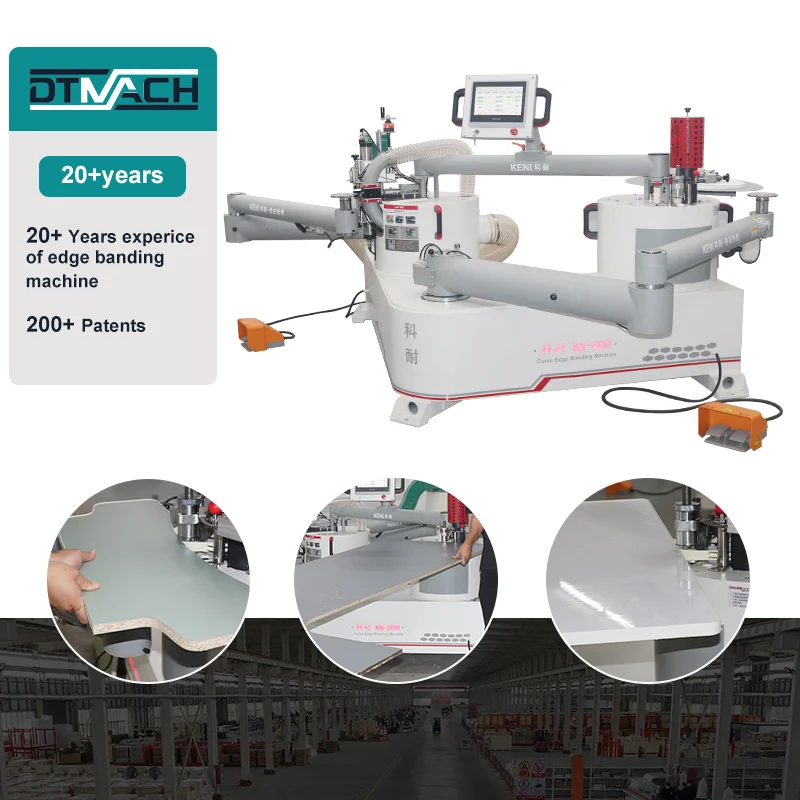

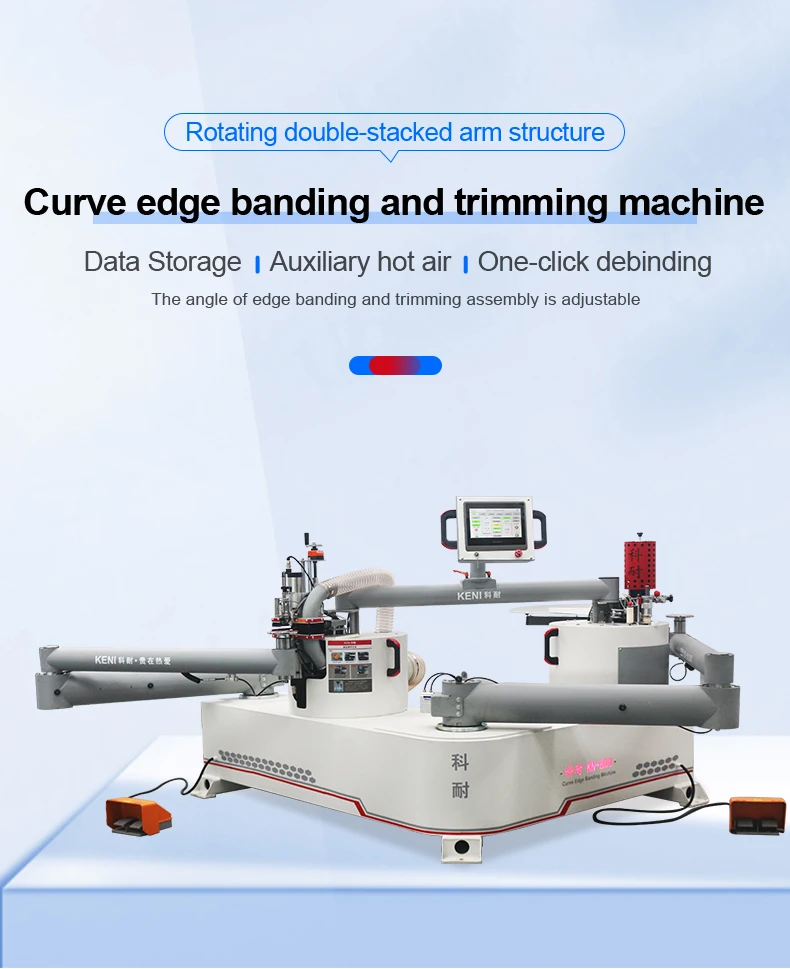

KN-800 curve edge banding trimming machine features:

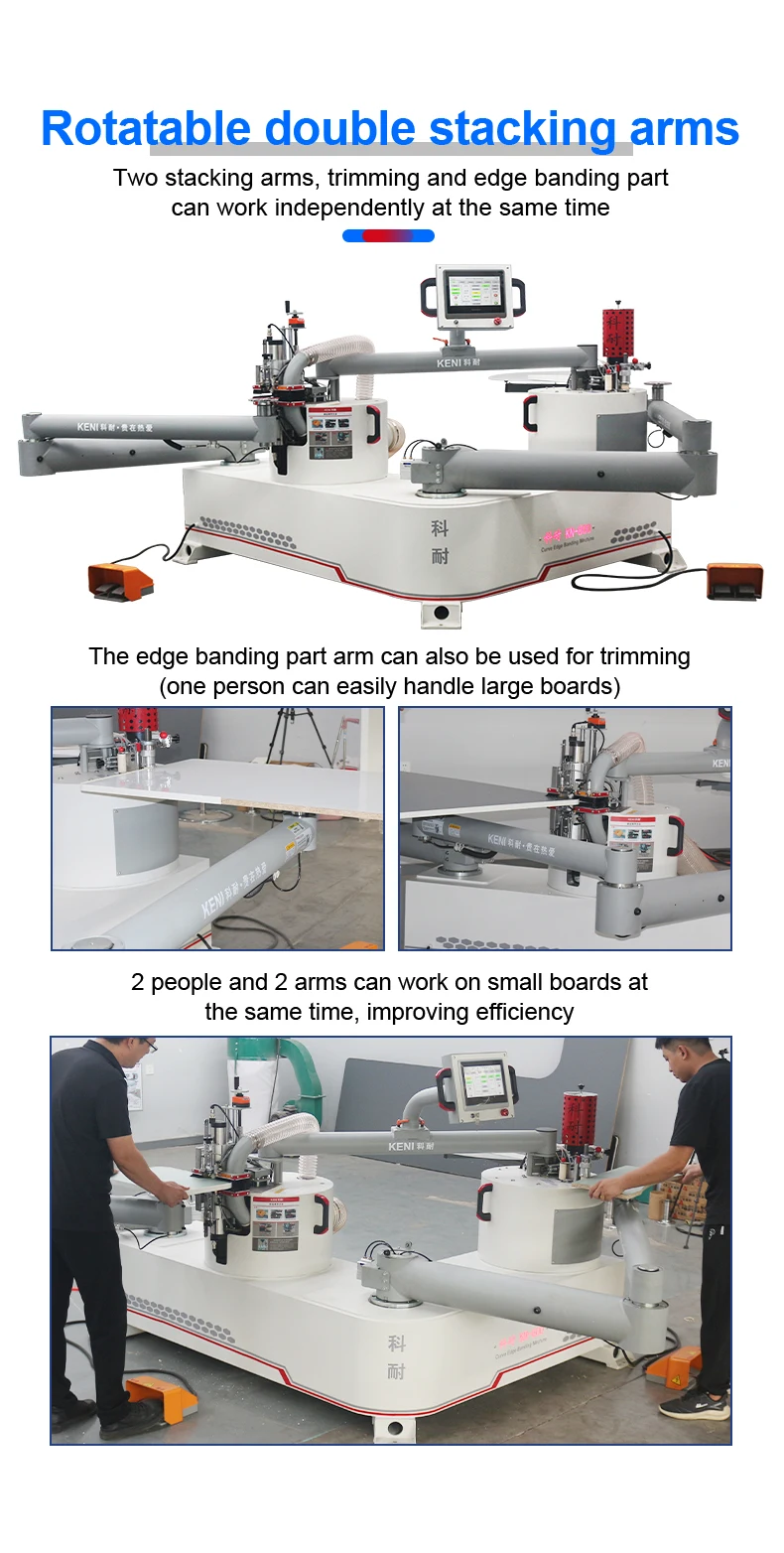

1. Rotatable double stacking arms, Two stacking arms,trimming and edge banding part can work independently at the same time, The edge banding part arm can also be used for trimming (one person can easily handle large boards, 2 people and 2 arms can work on small boards at the same time, improving efficiency.

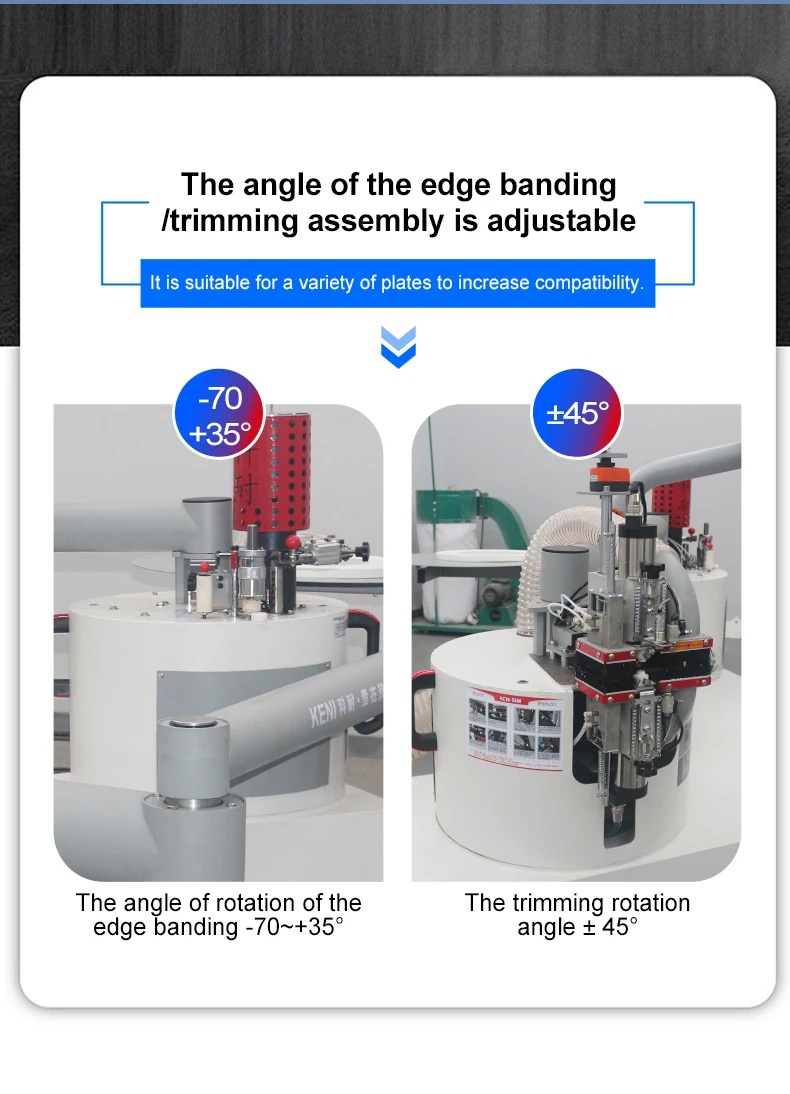

2. The angle of the edge banding/trimming assembly is adjustable, The angle of rotation of the edge banding －70°~+35°, The trimming rotation angle ±45°.

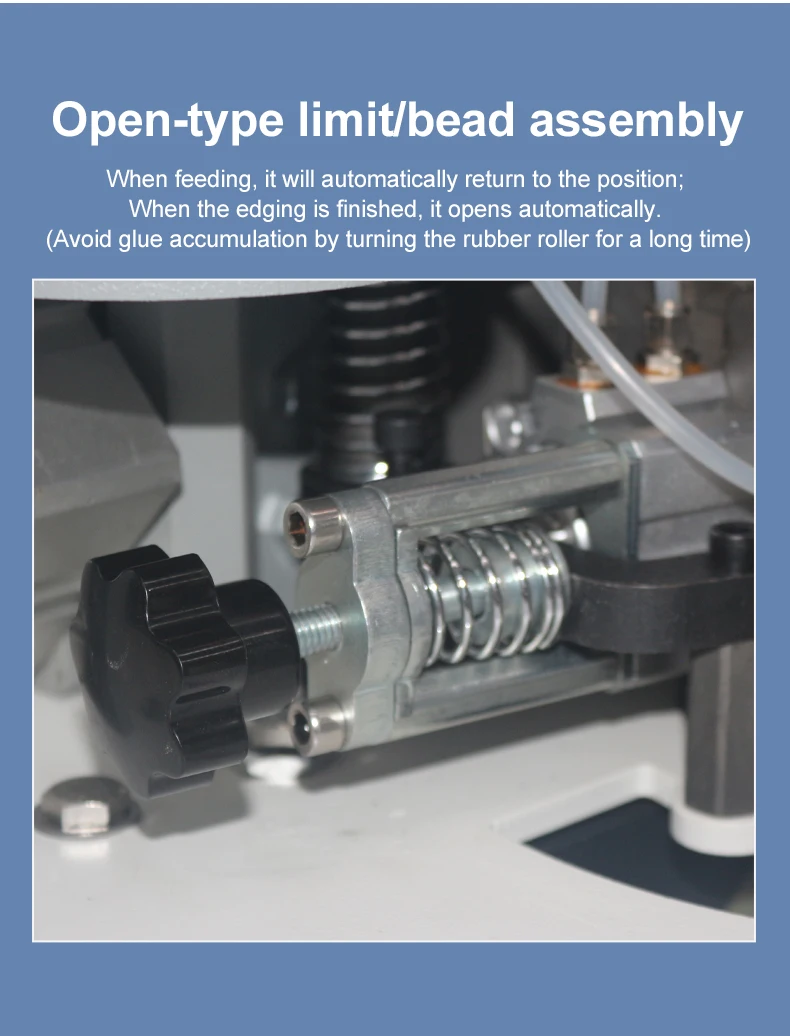

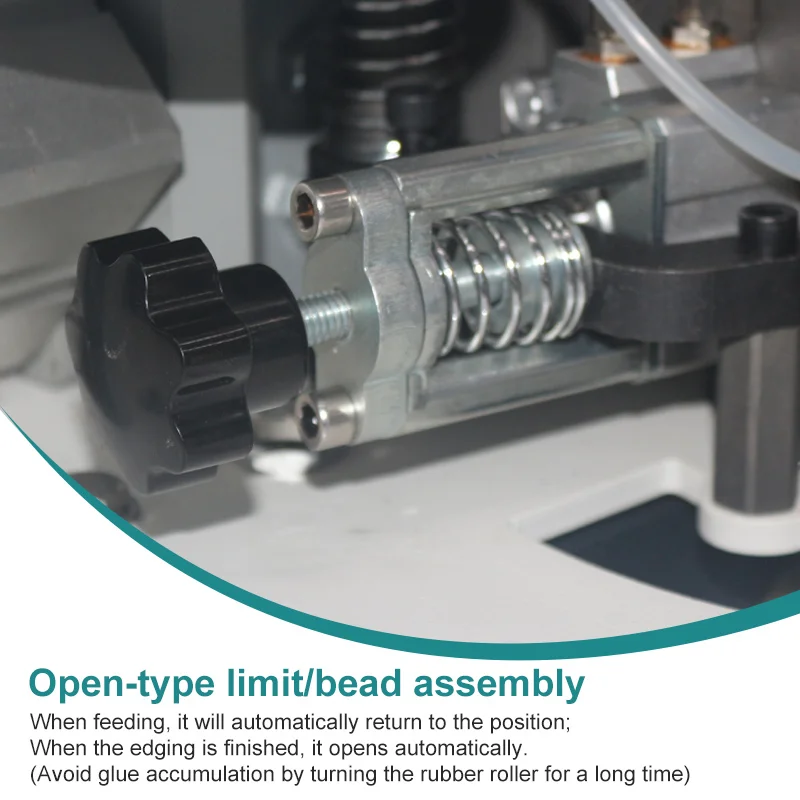

3. Open-type limit/bead assembly, When feeding, it wil automatically return to the position; When the edging is finished, it opens automaticaly. (Avoid glue accumulation by turning the rubber roler for a long time).

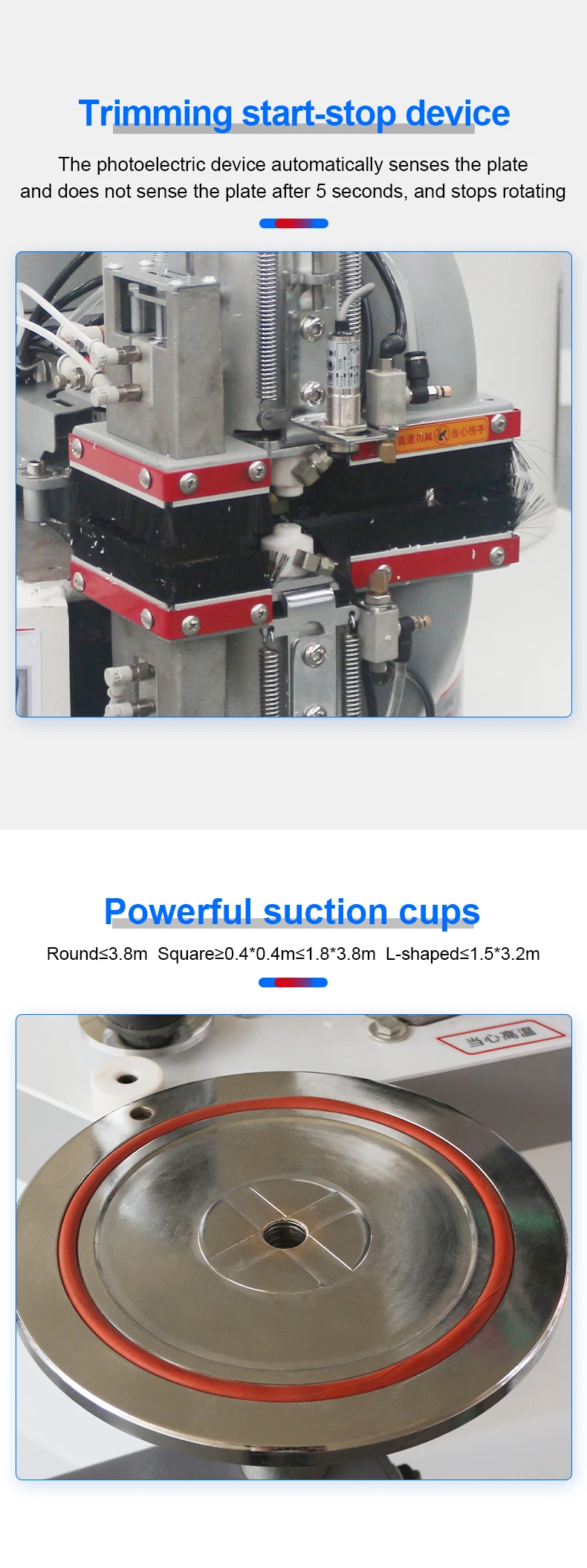

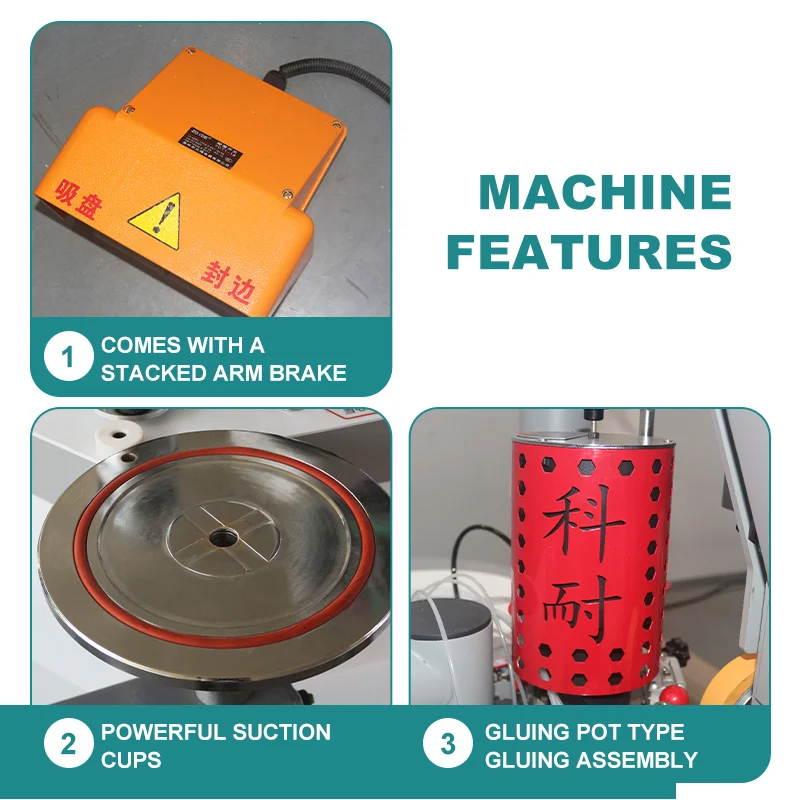

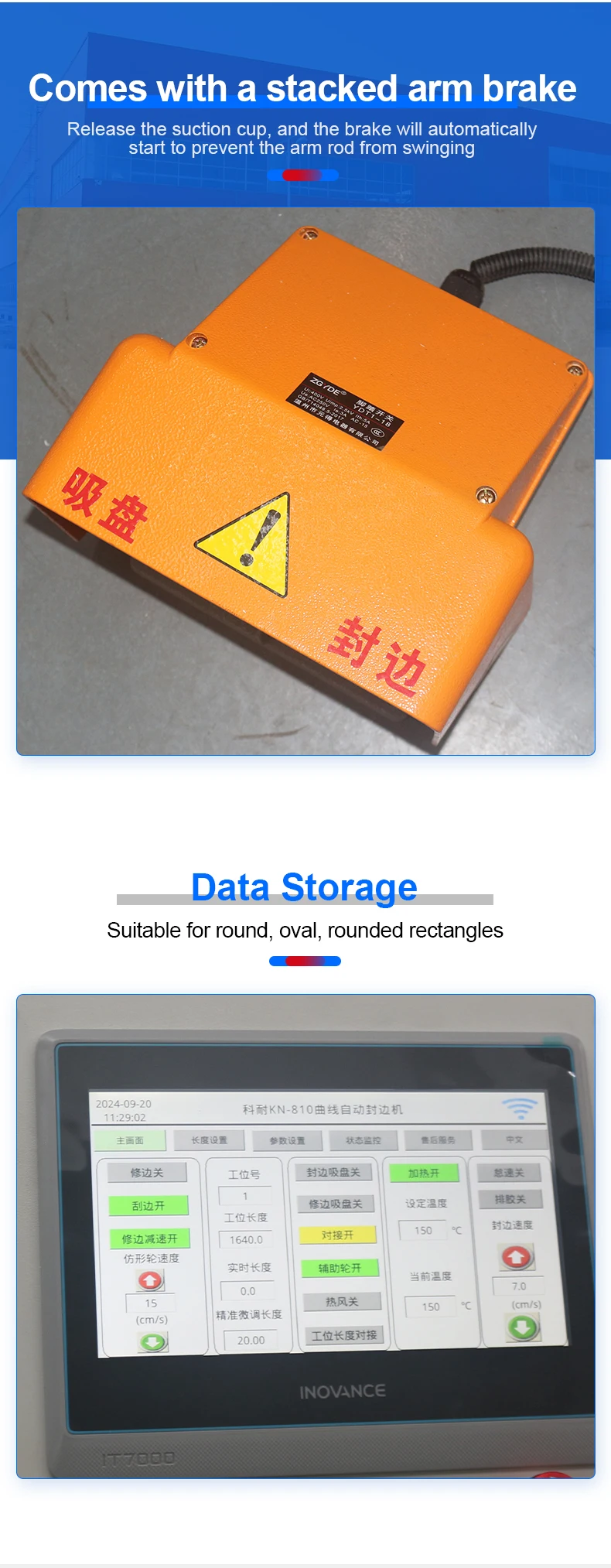

4. Comes with a stacked arm brake, Release the suction cup,and the brake will automatically start to prevent the arm rod from swinging.

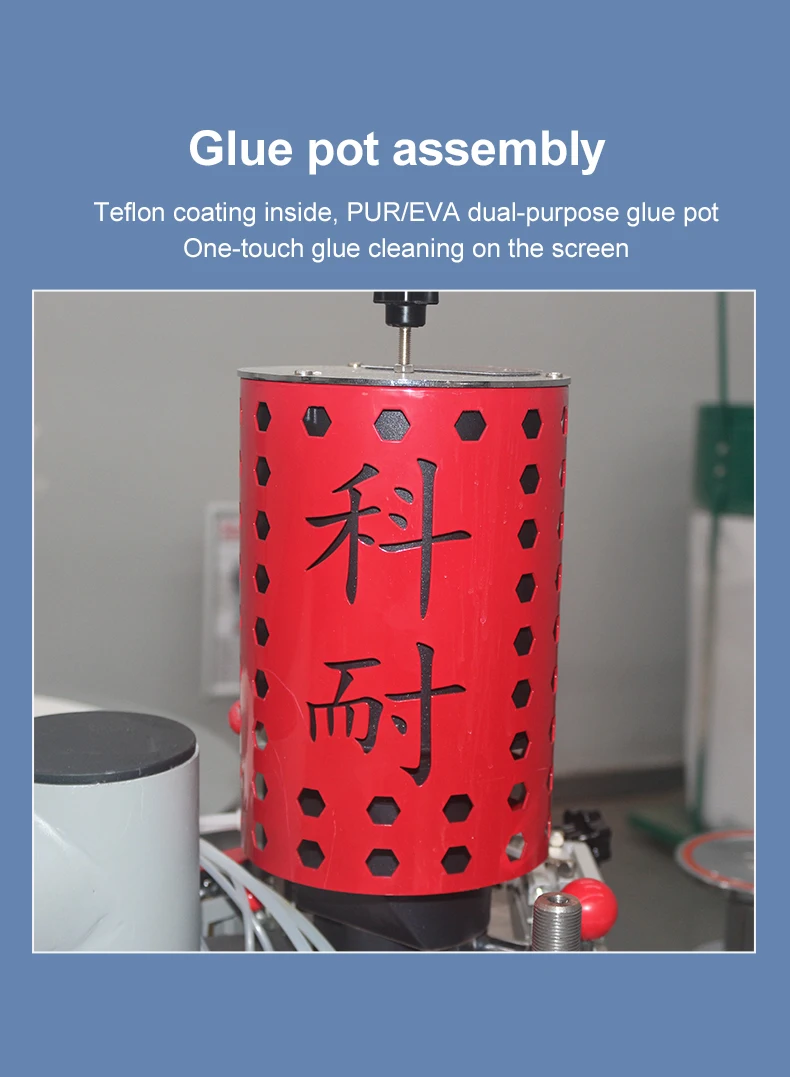

5. Glue pot: Teflon coating inside,PUR/EVA dual-purpose glue pot, one-touch glue cleaning on the screen.
Supply voltage | 380v/three-phase four-wire(3 live wires+1neutral wire)/50Hz |
Total power | 6kW |
Air pressure | 0.6-0.8Mpa |
Glue pot capacity | 2600ml |
Glue pot temperature | 110℃-210℃ |
Type of hot melt adhesive | PUR/EVA |
Edge banding rotation angle | ﹣70°~﹢35° |
Trimming rotation angle | ±45° |
Edge banding width | 14-70mm |
Thickness of the edging | 0.5-3mm (depending on the materal of the edge banding) |
Tank volume | 2L |
Trimming sheet thickness | ＜14mm single-sided trimming, 14-70mm upper and lower double trimming (related to trimming knives) |
Inner arc radius | ≥20mm (special operation seaing radius 4mm) |
Edge banding speed | 0-20cm/s |
External vacuuming | φ150mm Air flow:9800m³/h |
Profiling speed | 0-24cm/s |
Package size | 280X190X160cm (Half Wooden Case) |
Weight | 720kg(Half Wooden Case) |

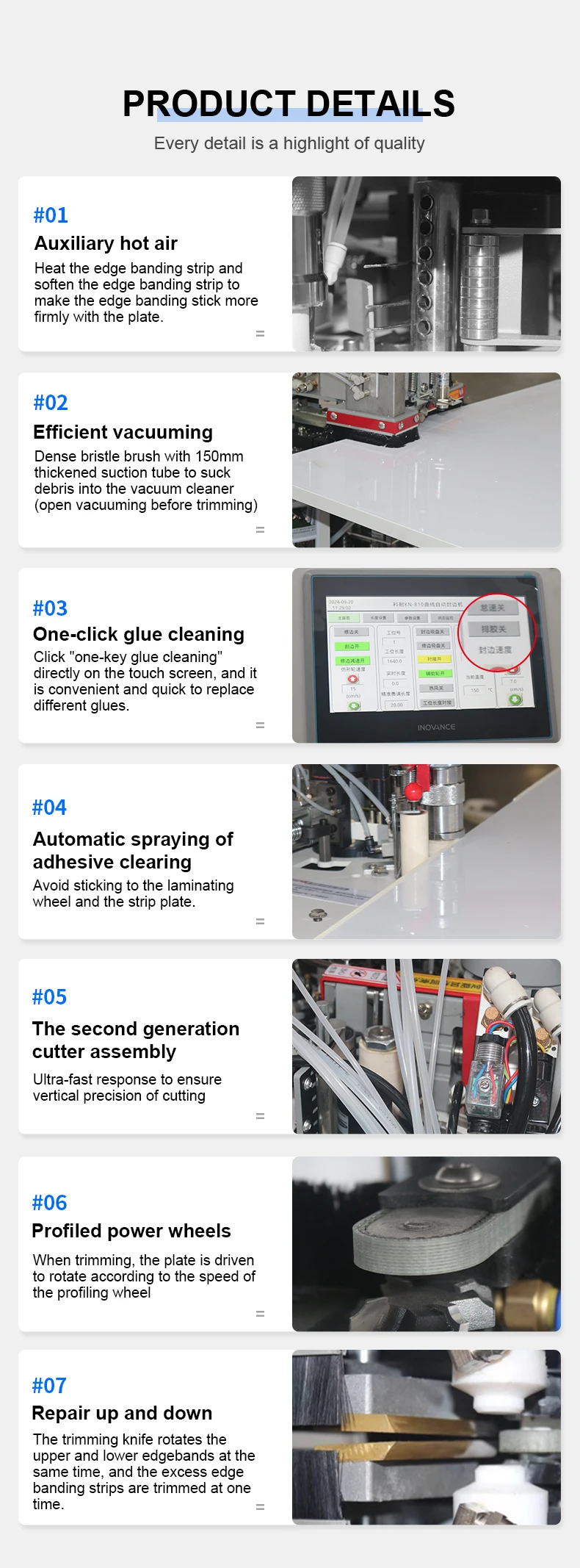

Details Images

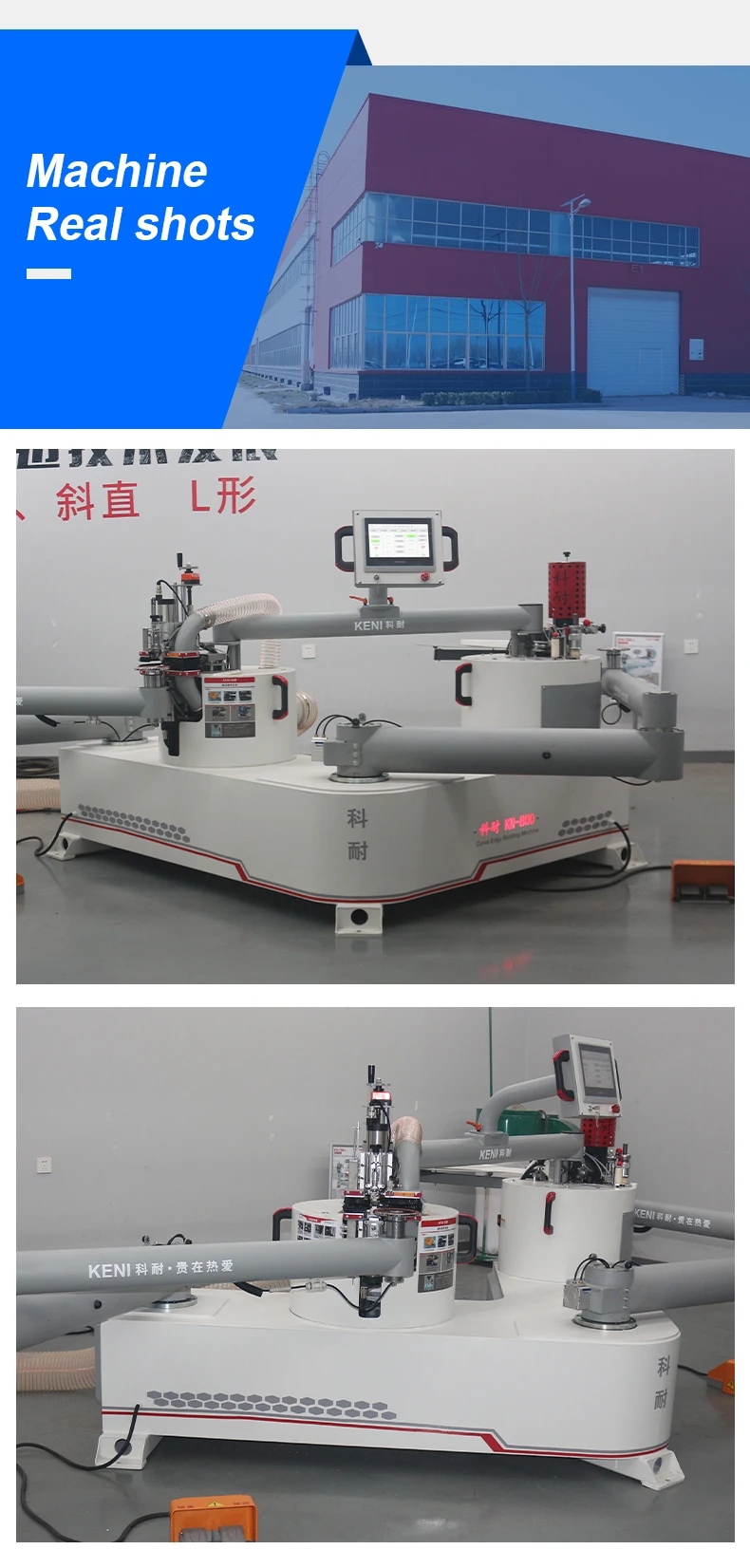

Product Display

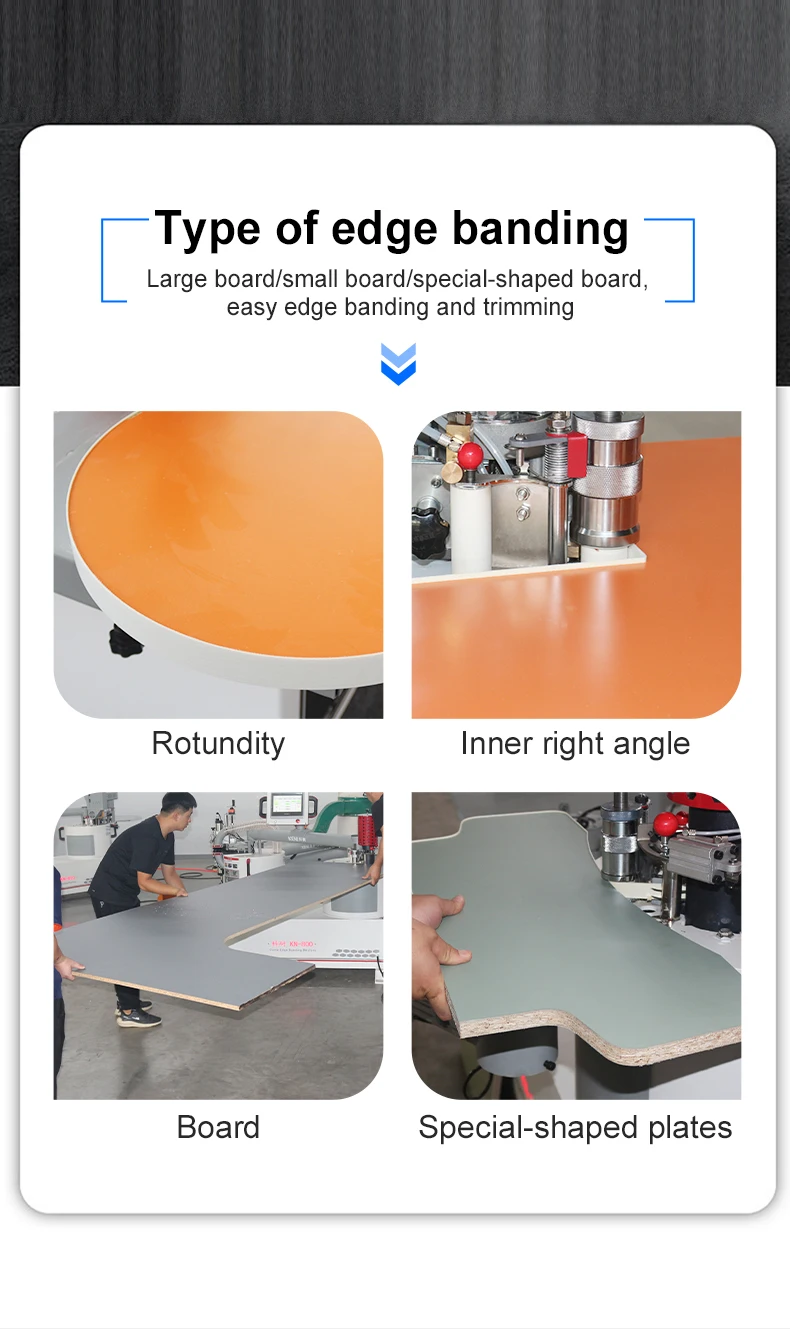

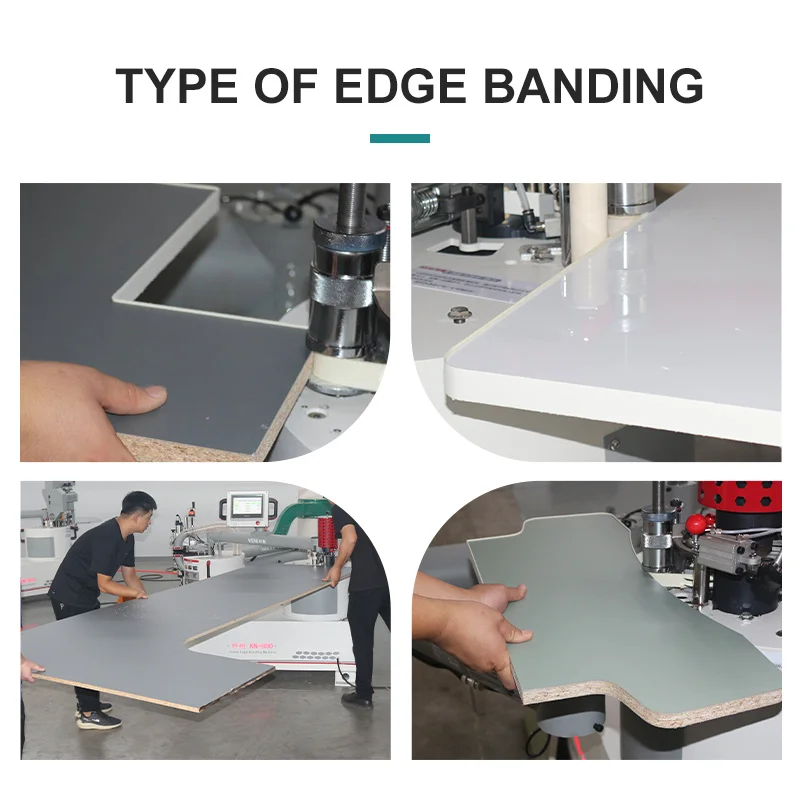

Application
About Us
Exhibition
Packing And Delivery
FAQ
Q1: I want a edge banding machine , can you give me some suggestions ?
A : Sure, we will give recommend of the most suitable machine. Before that, we need to know some information, such as board thickness, strips material, local voltage etc .
Q2: Which kind of materials can be processed on this machine?
A : PVC, melamine, plastic and other materials.
Q3: Are you a factory or trading company ?
A: We are the manufacturer for 20 years. You can fully trust the machines we produce . Most importantly, we will provide you with the most thoughtful and best after - sales service.
Q4: How should I pay for my order?
A: Pay 50% as prepayment as first, then we will start to make production. When the machine is completed, we will send pictures or videos to you, and then you need to pay the balance. We will ship the machine to you after we receive your full payment .
Q5: How long is the delivery time ?
A : For standard machines, it will be 12-15 days . For customization, it will be 15-30 days .
A : Sure, we will give recommend of the most suitable machine. Before that, we need to know some information, such as board thickness, strips material, local voltage etc .
Q2: Which kind of materials can be processed on this machine?
A : PVC, melamine, plastic and other materials.
Q3: Are you a factory or trading company ?
A: We are the manufacturer for 20 years. You can fully trust the machines we produce . Most importantly, we will provide you with the most thoughtful and best after - sales service.
Q4: How should I pay for my order?
A: Pay 50% as prepayment as first, then we will start to make production. When the machine is completed, we will send pictures or videos to you, and then you need to pay the balance. We will ship the machine to you after we receive your full payment .
Q5: How long is the delivery time ?
A : For standard machines, it will be 12-15 days . For customization, it will be 15-30 days .
