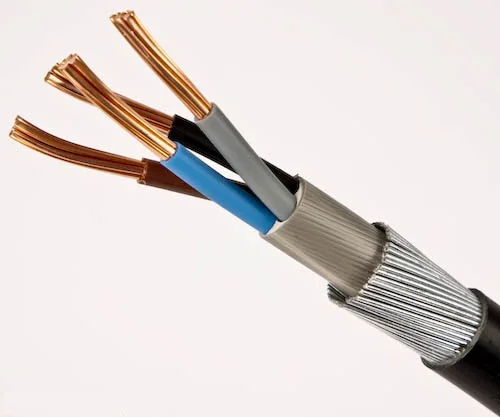

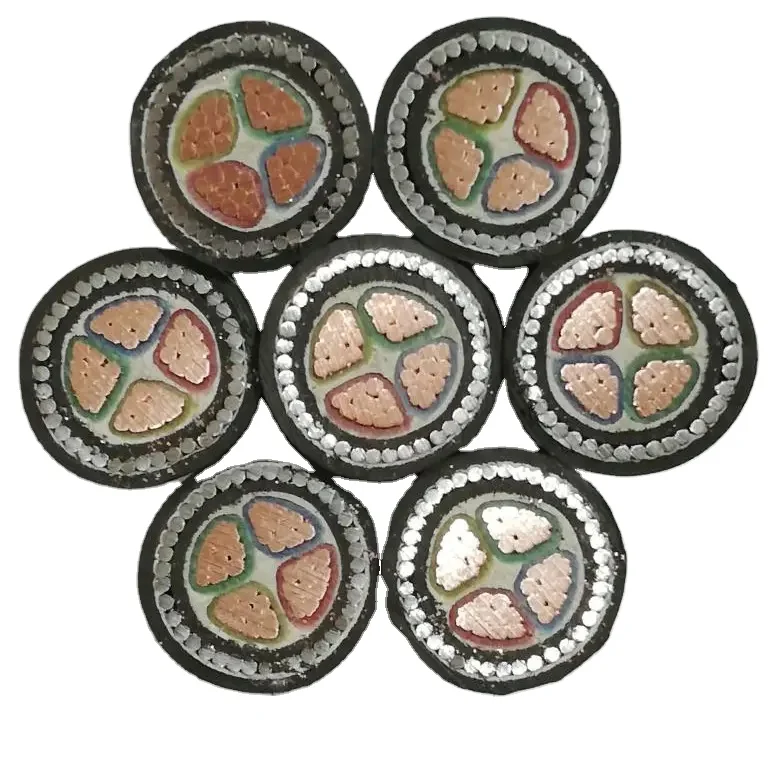

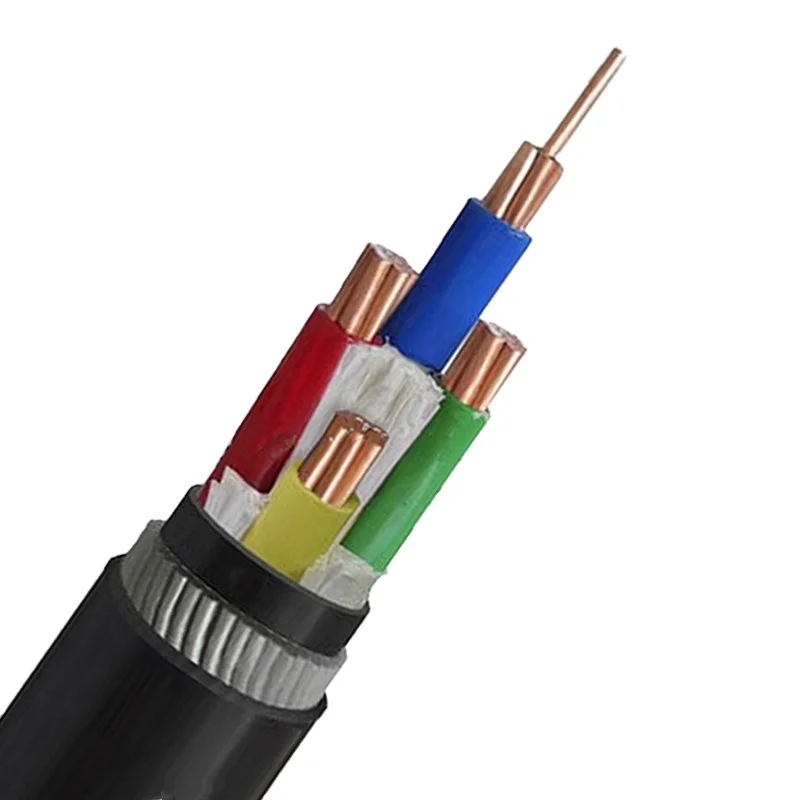

16mm 4 core underground cable PVC SWA armored copper power cable 4*16mm2

Product Overview

Description

Application and Description  ARVFV RVFV XAV XLPE insulated PVC jacket Cable 4*10 4*16 4*25

With a sheath and armor, U-1000 RVFV is an enhanced version of the cables and U-1000 R2V They are suitable for direct burial without extra mechanical protection, fixed to the walls, laid on cable trays or raceways. May also be suitable for use in premises which poses a risk of explosion (rank BE3 NF C 15-100) with mechanical protection is necessary and in this case the intensity must be reduced by 15%.

 Standard and Approval  ARVFV RVFV XAV XLPE insulated PVC jacket Cable 4*10 4*16 4*25

• NF C 32-322

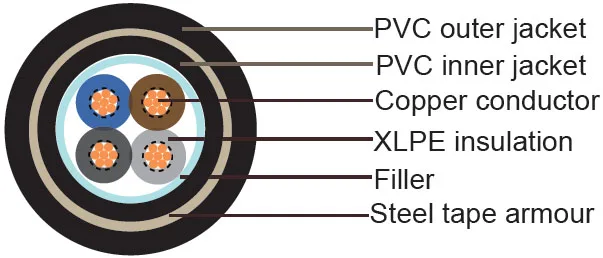

 Cable Construction

Flexible copper strands

Strands to IEC 60228, ≤4mm2,class 1, ≥6mm2,class 2

XLPE insulation according to NF C 32-321

Color codes to HD 308 S2(NF C32-321)

Not fibrous and not hygroscopic filler

PVC inner jacket

Two steel tapes helically wraped armour

Black PVC outer jacket

 Technical Characteristics ARVFV RVFV XAV XLPE insulated PVC jacket Cable 4*10 4*16 4*25

Working Voltage	600/1000 volts
Test voltage	1000 volts
Minimum bending radius	6 x O
Operation temperature rage	-10 °C to 60 °C
Short-circuit temperature	250 °C
Flame retardant	NF C 32-070 C2
Insulation resistance	20 MΩ x km
