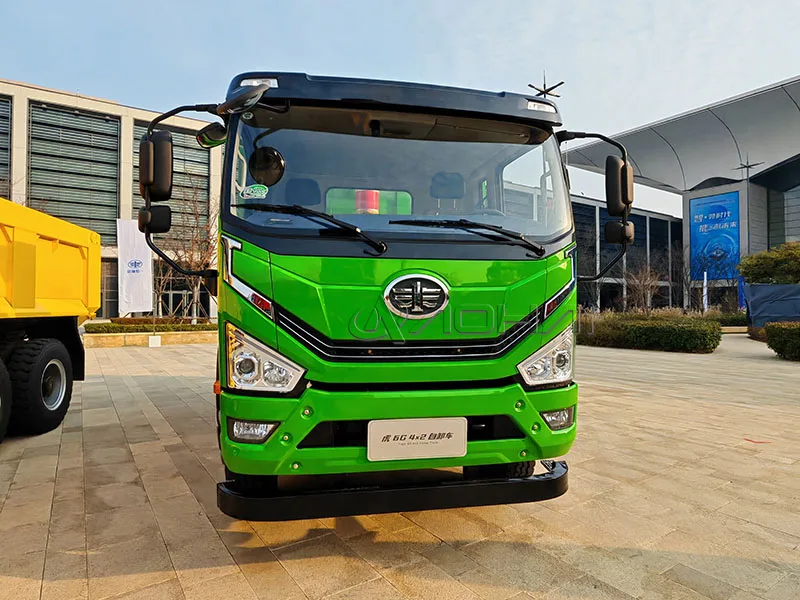

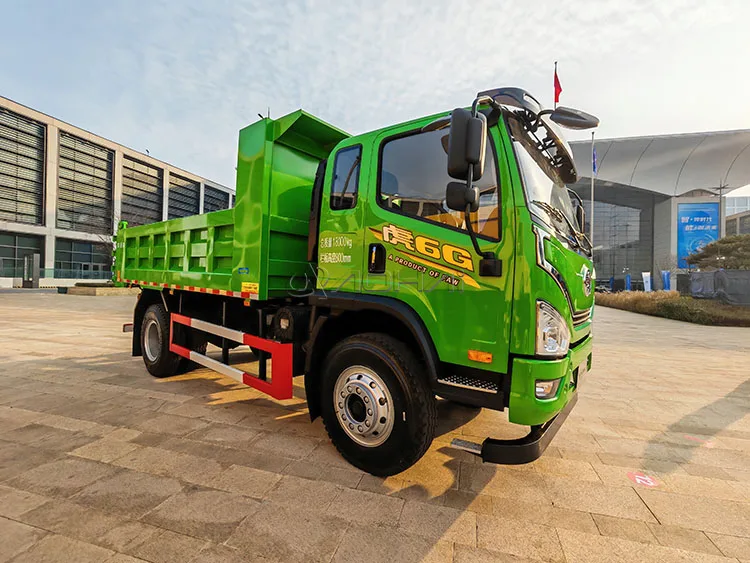

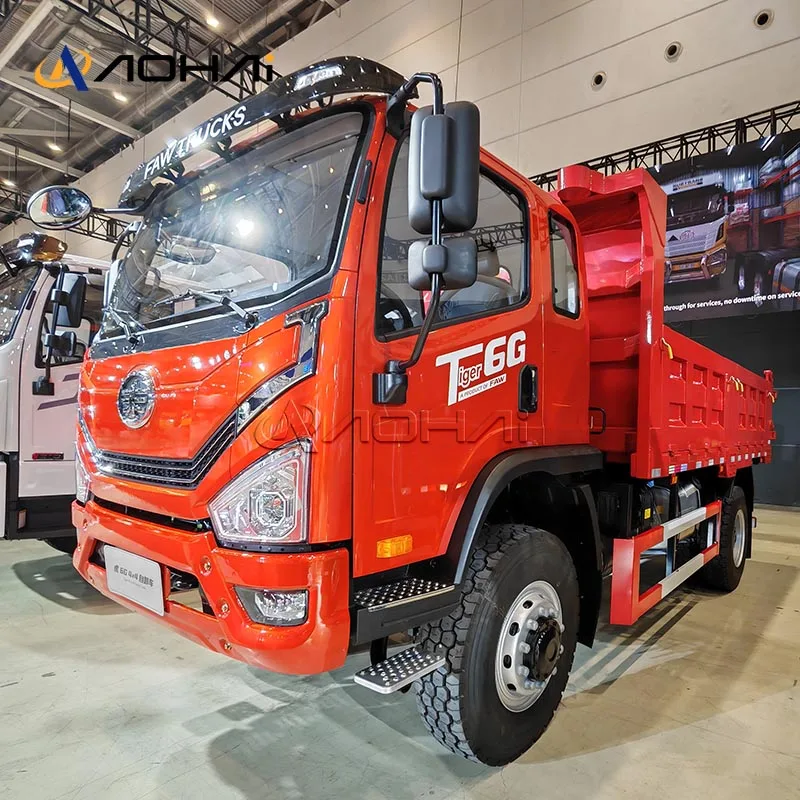

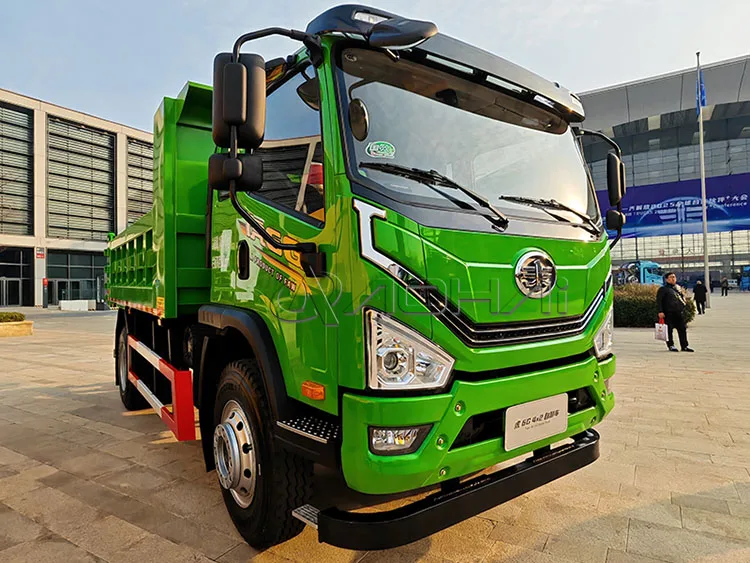

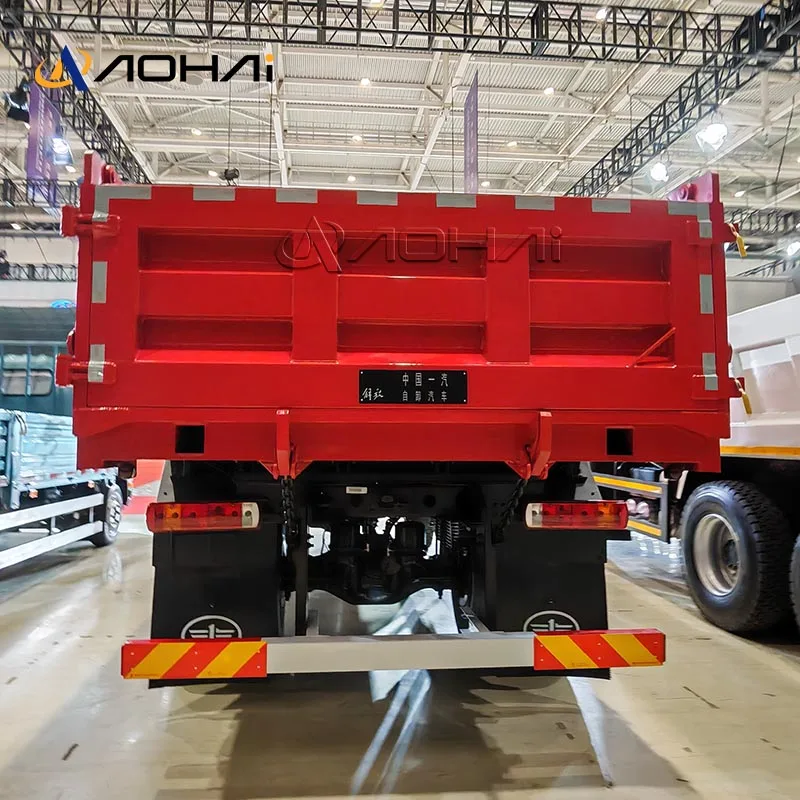

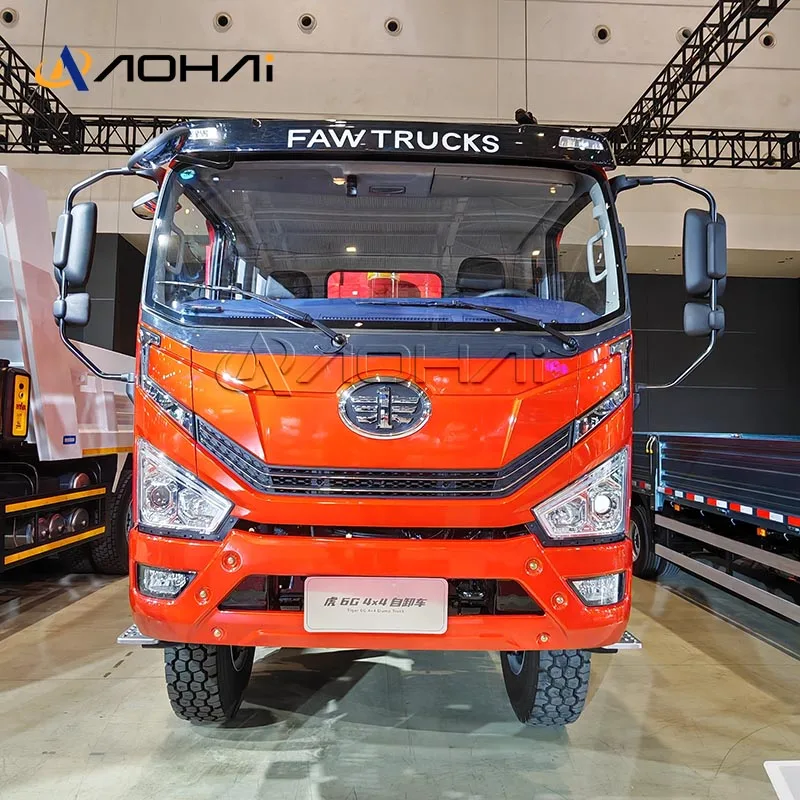

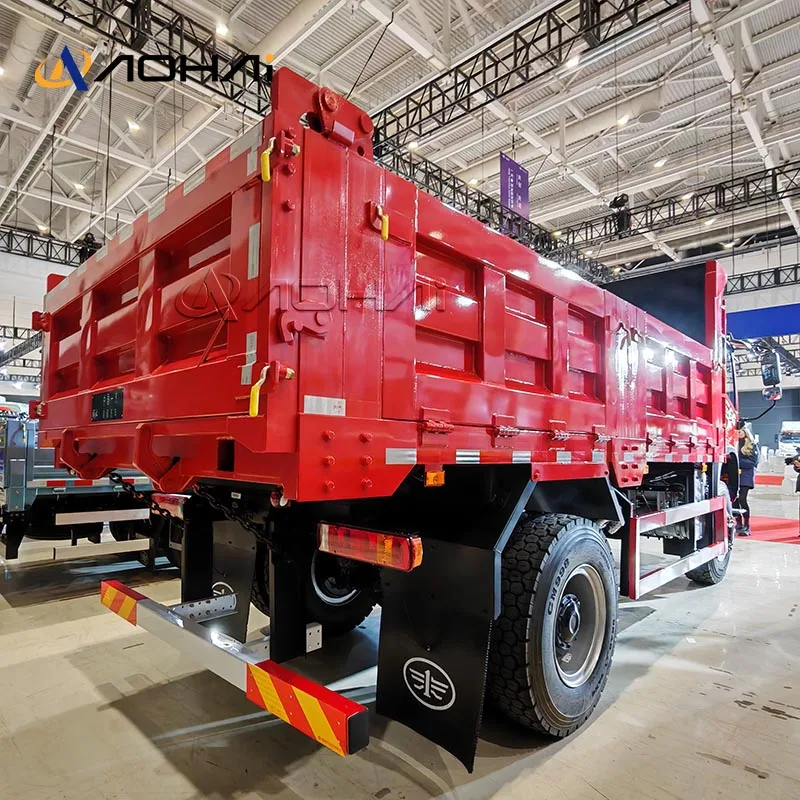

FAW 5 Ton Mini Dump Truck 6 Wheel Diesel 4x2 4x4 Manual 150 250hp Light Truck Euro 2 New Condition Light Dump Truck
- Category: >>>
- Supplier: Shandong Heavy Industry International Import And Export Co. Ltd.Shandong Ltd.
Share on (1601358544414):
Product Overview
Description
Product Name | FAW 4X2 Dump Truck |
Driving Type | LHD (RHD is optional) |

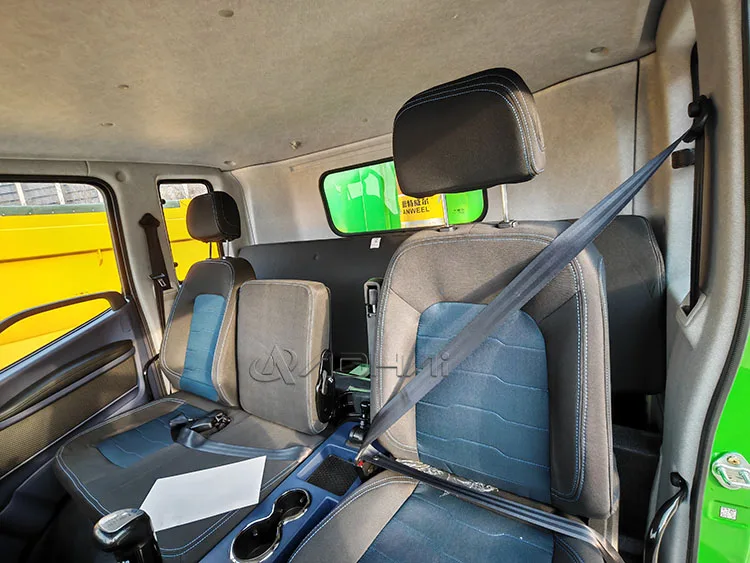

Cabin | Model JH6 all steel welded COE design, 1-bed flat roof sleeper, 4-point full floating, coil spring (front) / air spring (rear) |
with shock absorbers, 50 degree electrically-actuated hydraulic cab tilt system with manual back-up and safety latch, lift-up | |
front service panel, sound and heat insulated, aerodynamic tinted impact-resistant plastic exterior sun visor. | |
Engine | Make:XICHAI |
Diesel 4-stroke direct injection diesel engine | |
Engine model:CA6DM2-42, Euro 2, 150HP | |
6-cylinder in-line with water cooling, turbo-charging and intercooling | |
Displacement:11.05 L | |
Transmission | 12JSD200TA-B, 12F & 2R |

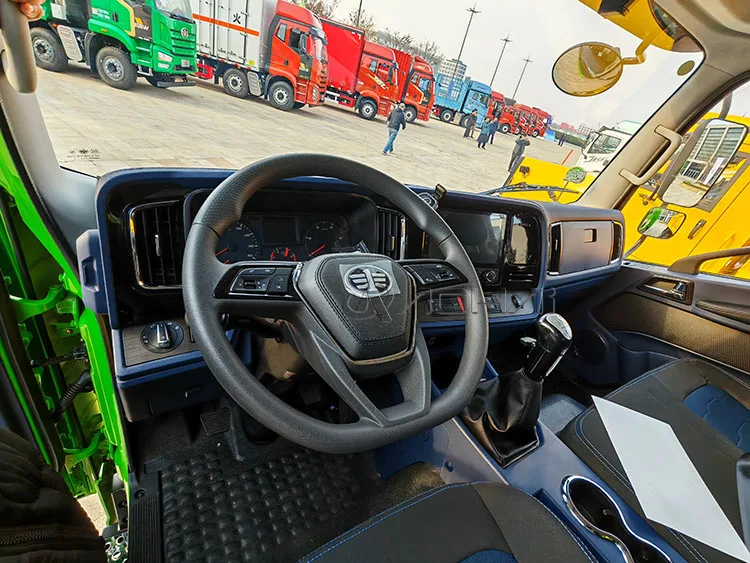

Steering | TRW TAS85 integral power steering, adjustable tilt and telescopic column. |
Rear Axle | FAW φ457 |
Ratio:4.875 | |
Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
Chassis | Frame: Ladder type, channel section side rails |
Front suspension:Parabolic springs with shock absorbers | |
Rear suspension:Parabolic springs, two "V" rods and four "I" rods | |
Brake | Service brake: dual circuit compressed air brake |
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels | |
Auxiliary brake: engine exhaust brake | |
Electrics | Operating voltage: 24 V, negative grounded |
Starter: 24 V, 5.4 Kw | |
Alternator: 3-phase, 28 V, 1500 W | |
Batteries: 2 x 12 V, 165 Ah | |
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light | |
Tyres | 12.00R20, radial tyres with one spare tyre |
Fuel Tank | 400L |

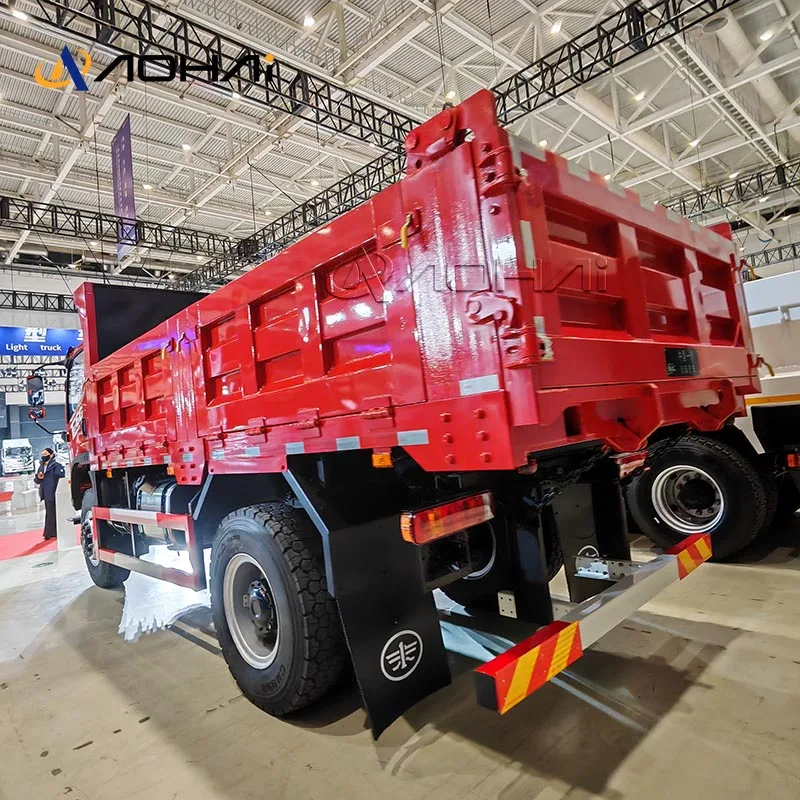

Body Dimension | 2600*1800*1500mm,bottom 8mm,side 6mm #180 front lifting cylinder |
Overall Dimension | 5500*1800*2500mm |
