CE certified Chinese Top Brand New motor grader STG210C 8 16 ton 210hp grader EPA Technical Video Support
- Category: >>>
- Supplier: Tewrex Industrial Machinery (Suzhou) Co. Ltd.Tewrex Ltd.
Share on (1601358838881):
Product Overview
Description
Product Description

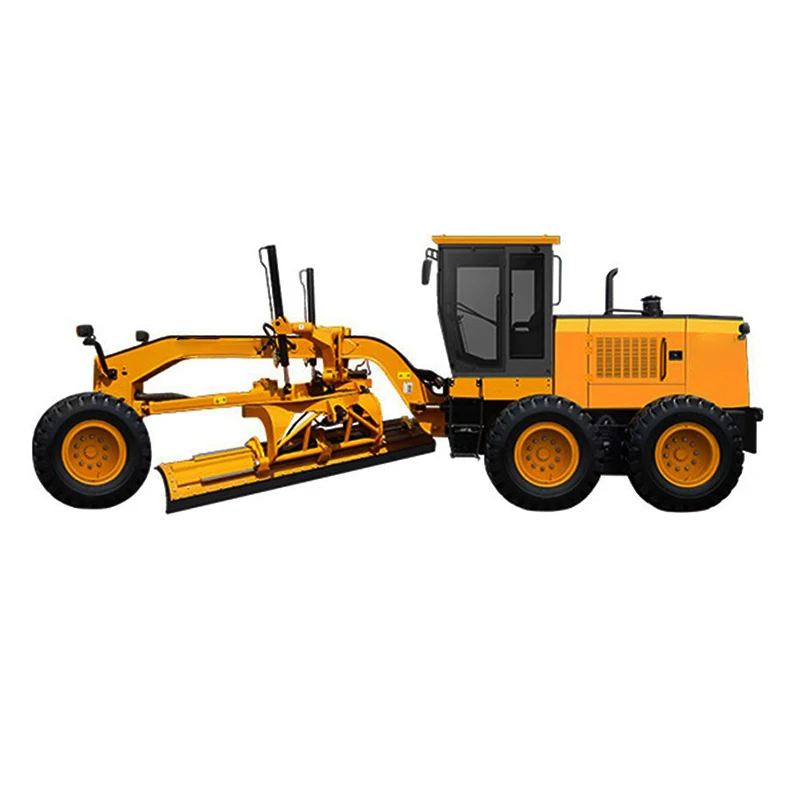

3965mm blade width 210HP Motor grader STG210C-8S
Powerful Engine with High Efficiency
* Famous brand high-power and heavy-load engine is strong and powerful.
* VHP technology can adapt to different work conditions, such as light load, middle load and heavy load, with different power
curves, so that the machine can always work within the minimum fuel consumption range.
Reliable Rear Axle & Work Implements of Rotary Bearing Structure
* Work implements adopt a fully-sealed rotary bearing structure, which provides easy maintenance, high operation accuracy, low
cost, and service life longer than 10000h.
* The rear axle adopts a rotary bearing structure instead of a conventional copper sleeve structure, which provides easy
maintenance, high operation accuracy and service life longer than 10000h.
* 4-front and 2-rear disc-type brake is safer than drum brake with less braking distance and maintenance cost.
* Famous brand high-power and heavy-load engine is strong and powerful.
* VHP technology can adapt to different work conditions, such as light load, middle load and heavy load, with different power
curves, so that the machine can always work within the minimum fuel consumption range.
Reliable Rear Axle & Work Implements of Rotary Bearing Structure
* Work implements adopt a fully-sealed rotary bearing structure, which provides easy maintenance, high operation accuracy, low
cost, and service life longer than 10000h.
* The rear axle adopts a rotary bearing structure instead of a conventional copper sleeve structure, which provides easy
maintenance, high operation accuracy and service life longer than 10000h.
* 4-front and 2-rear disc-type brake is safer than drum brake with less braking distance and maintenance cost.
Contact Way
Doris Tian--Sales Director
Tewrex Industrial Machinery (Suzhou) Co., Ltd.
TEWREX ENGINEERING LIMITED
Whatsapp/Wechat/Mobile:
TEWREX ENGINEERING LIMITED
Whatsapp/Wechat/Mobile:
+86-17279470806
E-mail: doris@ tewrex.com
Company Website: www.tewrex.com
Add:Suite 704.705, Building 2, Tiandu Plaza, No.211 Chang
jiang Road, National Hi-Tech District
Add:Suite 704.705, Building 2, Tiandu Plaza, No.211 Chang
jiang Road, National Hi-Tech District
Power system specification | Supplier | China Top Brand | 922AWD /922F |
Emission | China III | 18120KG | |
Model | WP6G210E330 | 10324*2728*3360mm | |
Rated power(kW) | 154 | ||
Rated rotation speed(rpm) | 2200 | ||
Peak torque(Nm) | 900 | ||
Dimensions | Standard (without counterweight) (L×W×H)(mm) | 9340×2740×3348 | Front≥26KN Rear Axle≥86KN |
Front and rear axle base(mm) | 6310 | ||
Middle and rear wheel base(mm) | 1538 | ||
Clearance(from rear axle to ground)(mm) | 410 | ||
Load specification | Standard(without counterweight)(kg) | 16200 | |
Operating device specification | Length of blade(mm) | 3965(12ft)(standard) | |
Height of blade(mm) | 620 | ||
Tilt angle | ±90° | ||
Turning angle | 360° | ||
Max. lift above ground(mm) | 480 | ||
Max. depth of cut(mm) | 630 | ||
Bla de tip range | 25°-75° | ||
Running specification | Gears | 6 forward and 3 reverse | |
Forward speed (km/h) | 6/10/13/21/27/42 | ||
Reverse speed(km/h) | 6/13/27 | ||
Steering angle of front wheel | ±45° | ||
Tilt angle of front wheel | ±17° | ||
Articulated steering angle | ±27° | ||
Oscillation angle of front axle | ±16° | ||
Model of tire | 17.5-25(12PR)(standard) | ||
Tank capacity | Max. capacity of hydraulic oil tank (L) | 140 | |
Max. capacity of fuel tank (L) | 350 |
