Woodworking CNC Melamine ABS MDF Board PVC Edge Banding Machine Automatic Edge Banding Machine with Fine Trimming
- Category: >>>
- Supplier: Jinan grandio CNC Equipment Co. ltdJinan ltd
Share on (1601361840263):
Product Overview
Description
Product Description

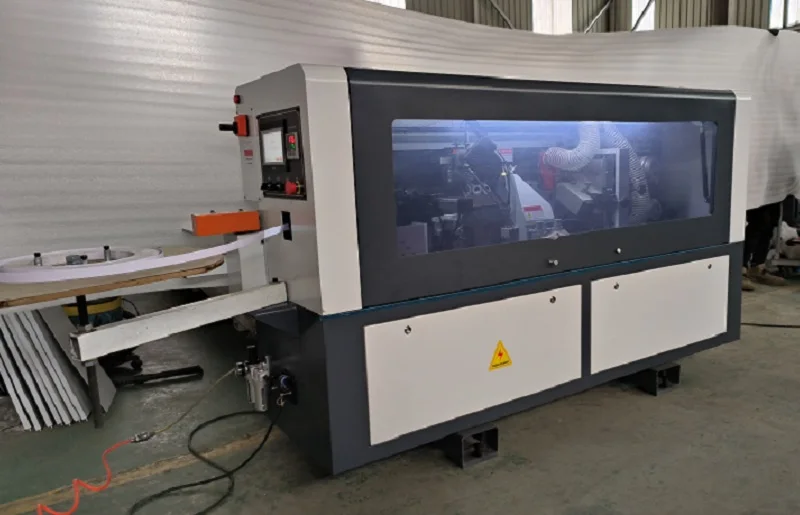

Features of GD-348 Automatic edge banding machine：
is suitable for the following boards: MDF, block board, solid wood board, particleboard, polymer door plates, plywood, pvc board,etc. Straight line edging and trimming.
It can be used for whole house customization, panel furniture, kitchen dining room, oddice cabinet table,etc.
1. The functions of the automatic edge banding machine include gluing, pressing, End cutting, fine trimming and polishing.
2. The machine is 2.3m long, compact layout, space saving, and has good dust collector and overload protection.
3. The main parts of the machine are laser cut steel plates, welded together at one time, and the body is firm without deformation.
4. The component structure can be increased or decreased according to the actual needs.
is suitable for the following boards: MDF, block board, solid wood board, particleboard, polymer door plates, plywood, pvc board,etc. Straight line edging and trimming.
It can be used for whole house customization, panel furniture, kitchen dining room, oddice cabinet table,etc.
1. The functions of the automatic edge banding machine include gluing, pressing, End cutting, fine trimming and polishing.
2. The machine is 2.3m long, compact layout, space saving, and has good dust collector and overload protection.
3. The main parts of the machine are laser cut steel plates, welded together at one time, and the body is firm without deformation.
4. The component structure can be increased or decreased according to the actual needs.
Product name | GD-348 Automatic edge banding machine |
Model | GD-348 |
Dimensions | 2300*750*1450 |
Weight | 580kg |
Total power | 6.8kw |
Edge band width | 12-60mm |
Edge band thickness | 0.4-3mm |
Sheet thickness | 8-50mm |
Minimum length of sheet | 70mm |
Minimum width of sheet | 60mm |
Plate conveying speed | 18-24m/min |
Air pressure | 0.6MPa-0.8Mpa |
Details Show

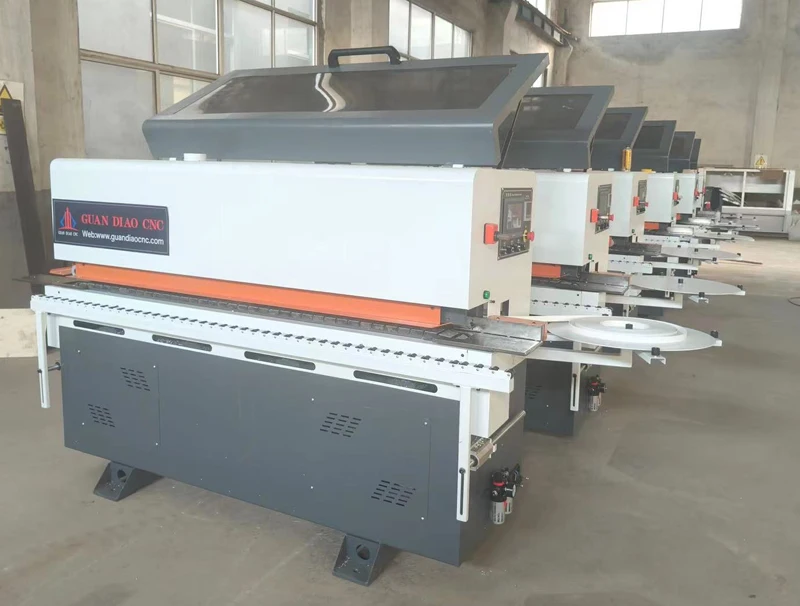

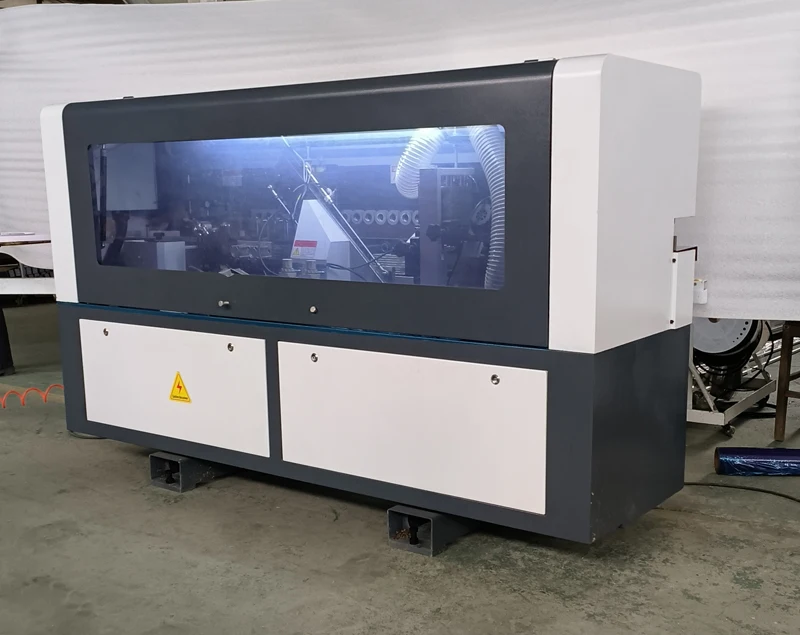

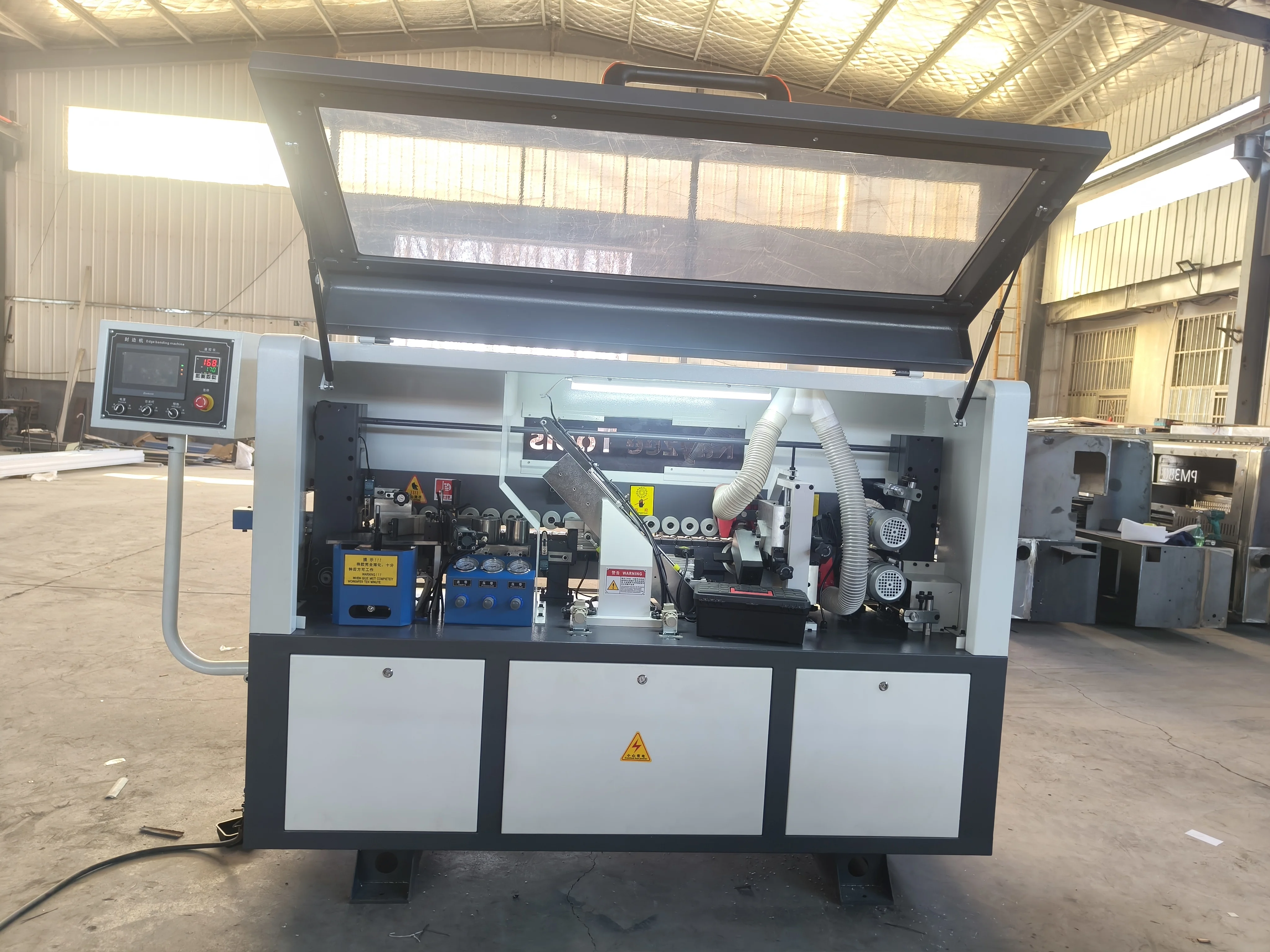

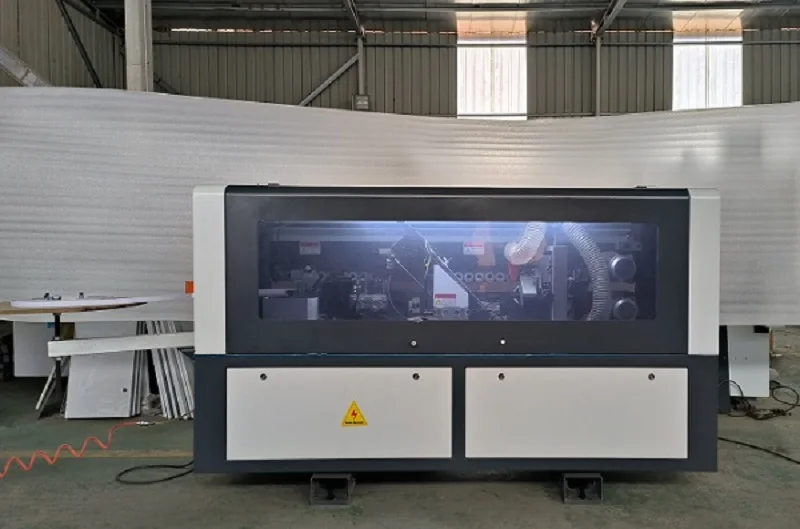

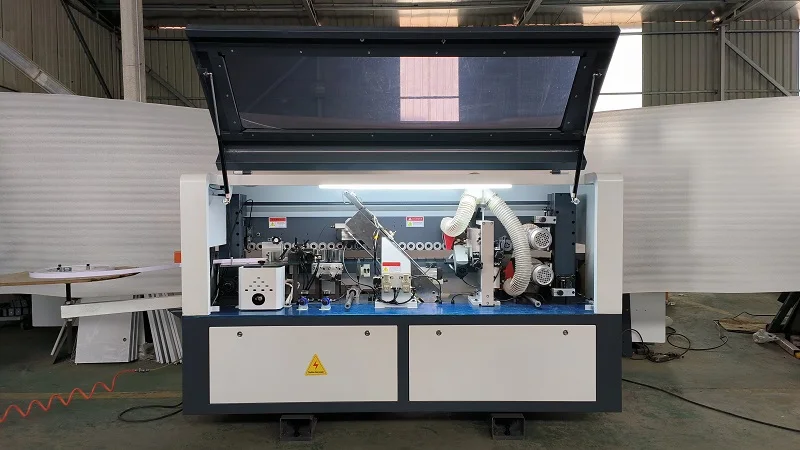

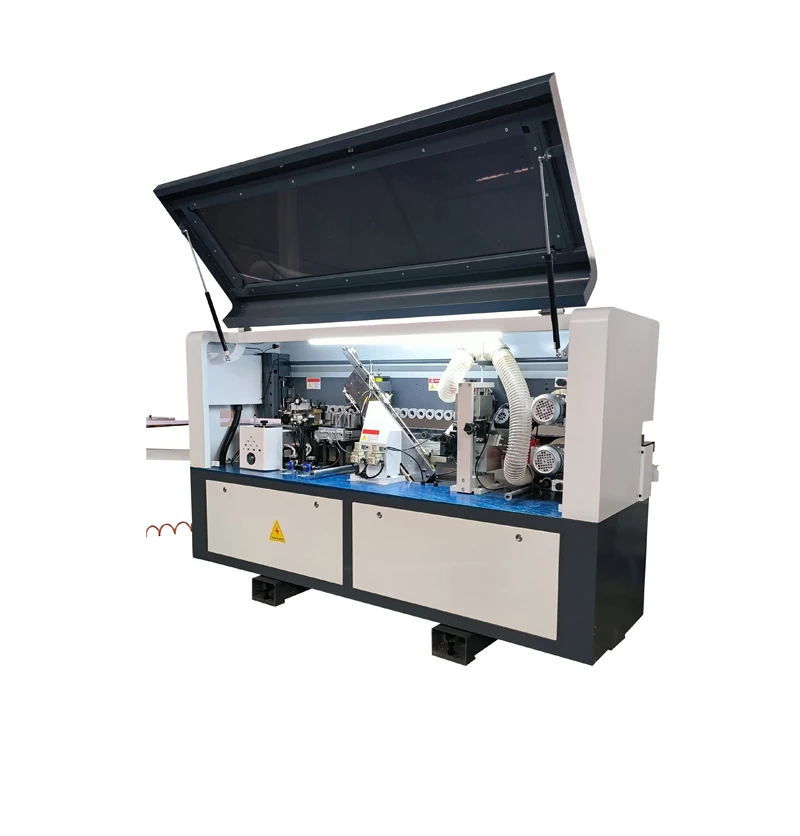

Details of automatic pvc edge banding machine:

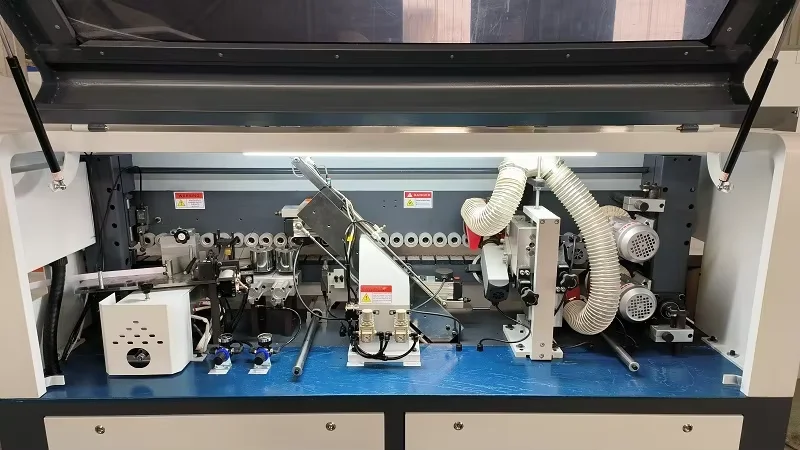

Automatic pvc edge banding machine with 5 functions (Gluing, pressing, end cutting,rfine trimming, polishing)

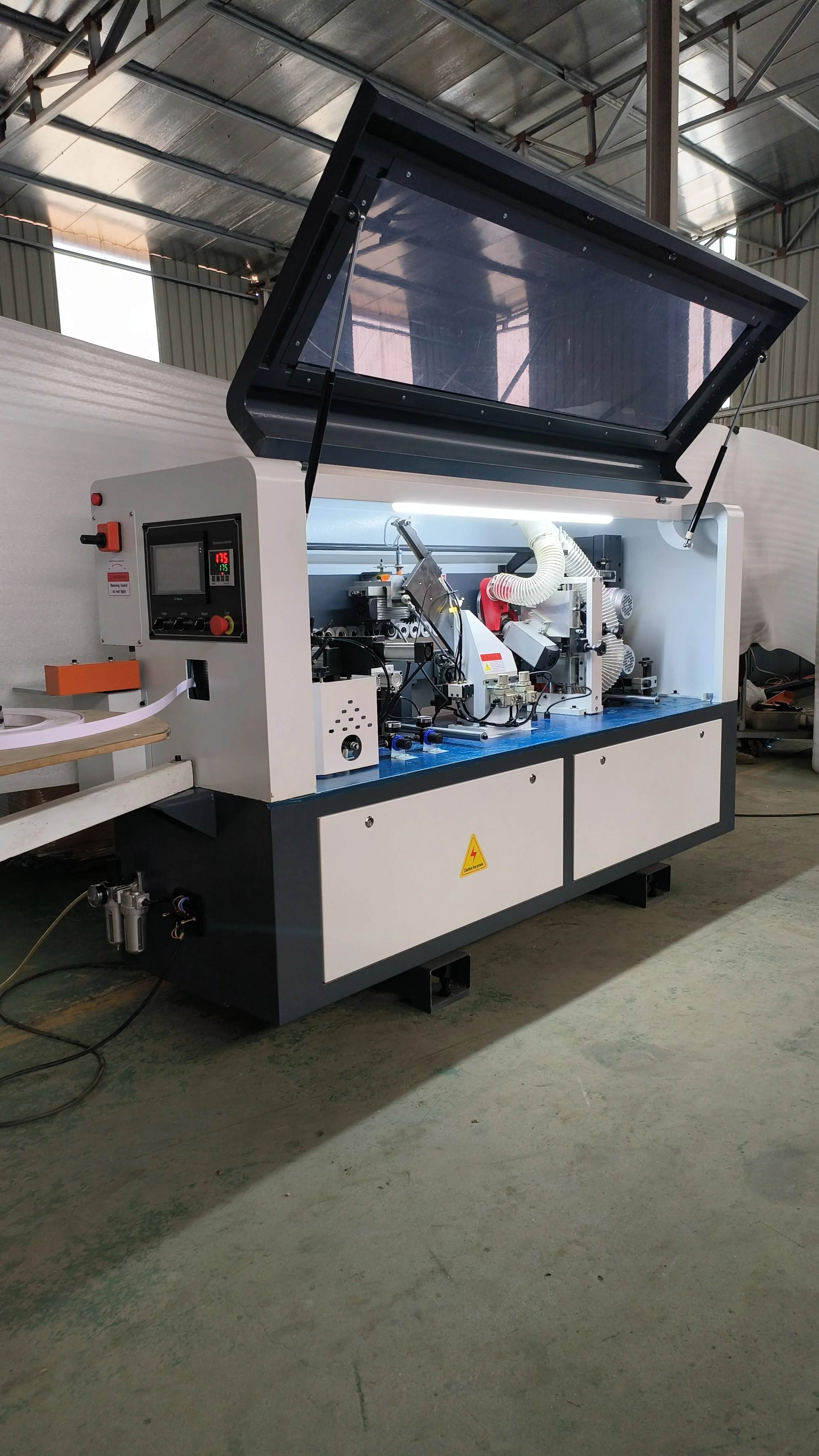

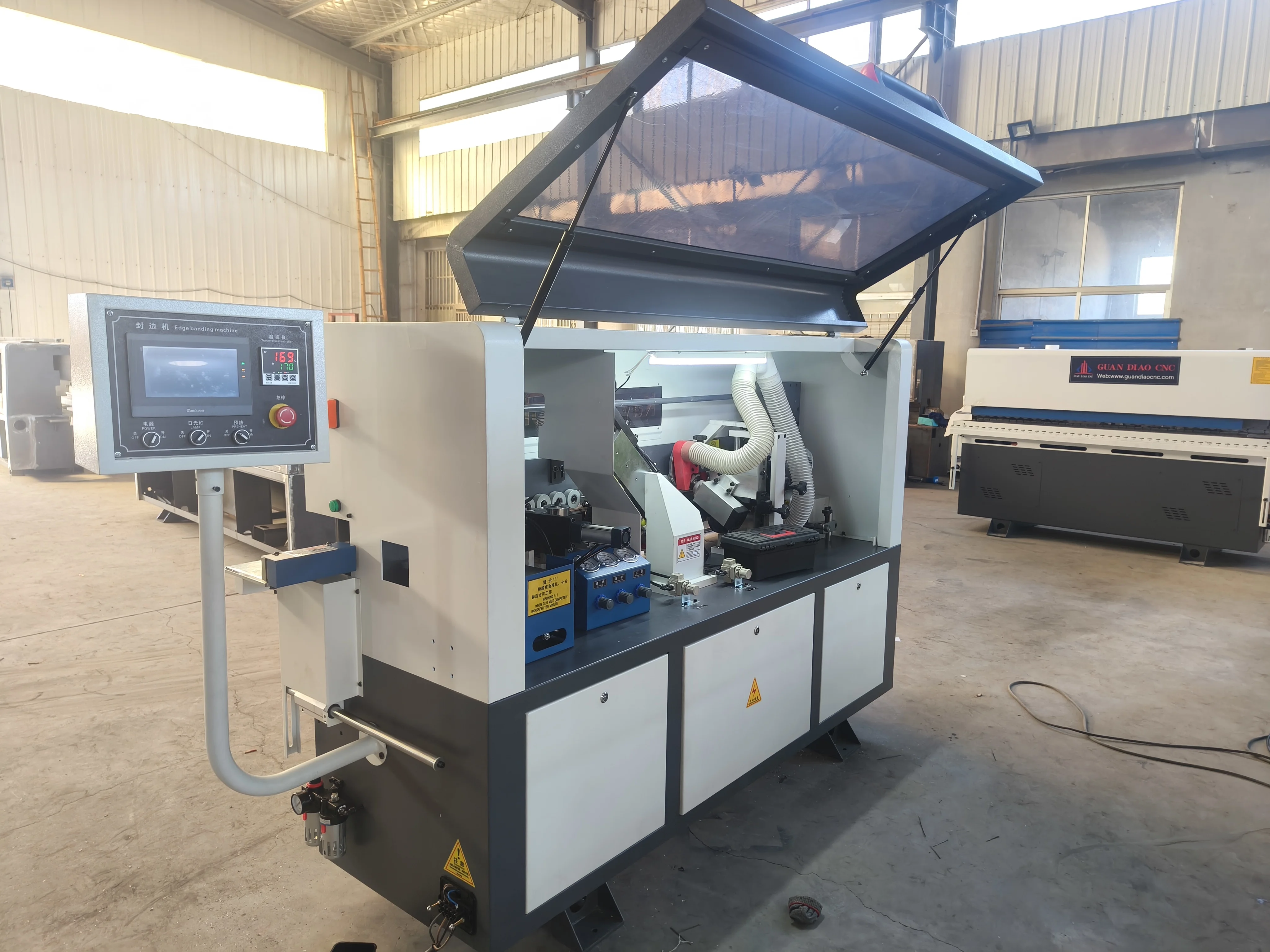

Control Panel
The control panel supports multiple languages, making it easier to use and operate
Gluing
Hot melt adhesive is added through the glue pot, and the spiral structure is adopted to feed the adhesive, so that the sheet
material and the sealing material can be coated evenly.
material and the sealing material can be coated evenly.
End cutting
Adopt normal high matching technology structure, through precise linear guide movement, adopt automatic tracking by mould and fast cutting structure of high frequency and high speed motor, ensure smooth cutting surface..

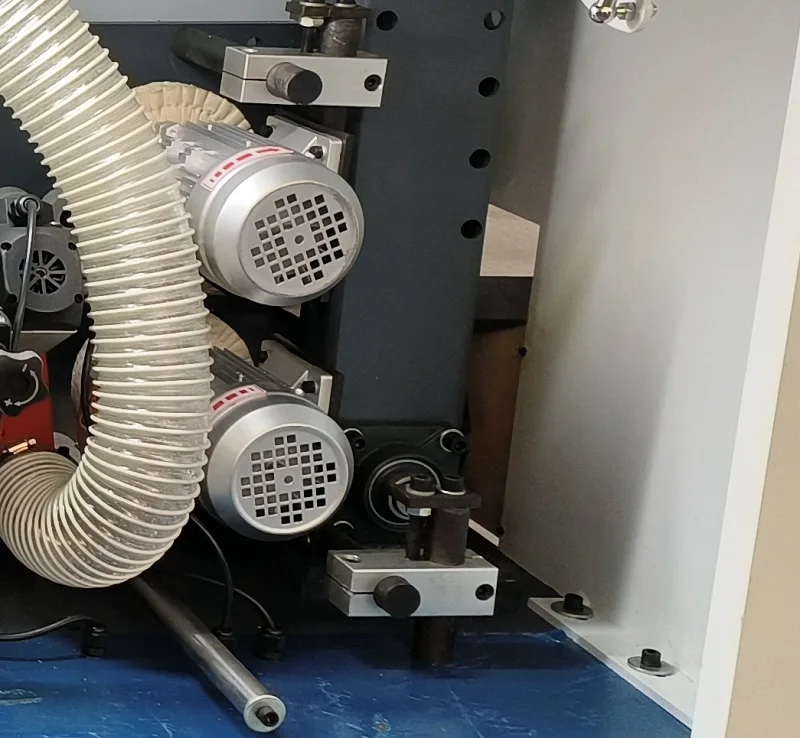

Fine Trimming
The finishing knife is R2 oblique trimming knife, leaving 5~6 wire margin for scraping, using mold automatic tracking and high
frequency high speed motor to achieve fast cutting, R2 oblique trimming knife trim radian.
frequency high speed motor to achieve fast cutting, R2 oblique trimming knife trim radian.

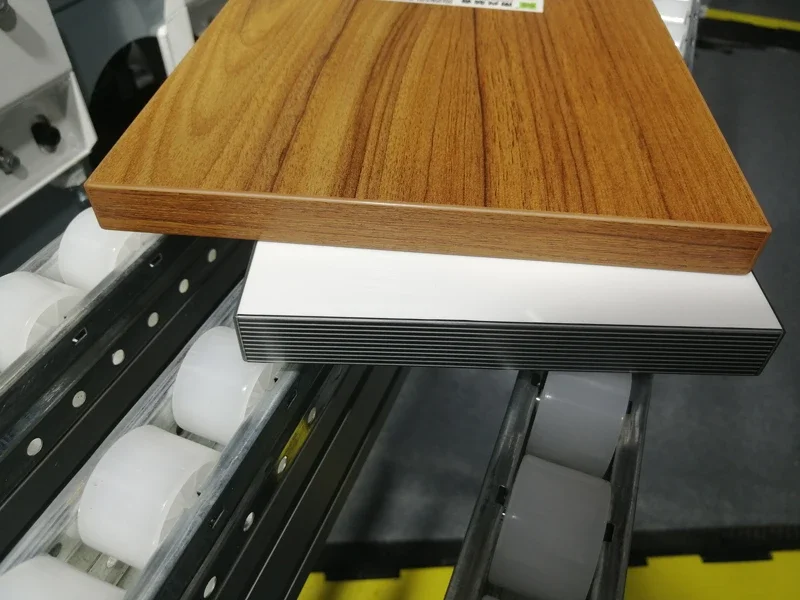

Clean the finished boards with a cotton polishing wheel.Remove excess glue and smooth the end face of sealing edge by polishing.

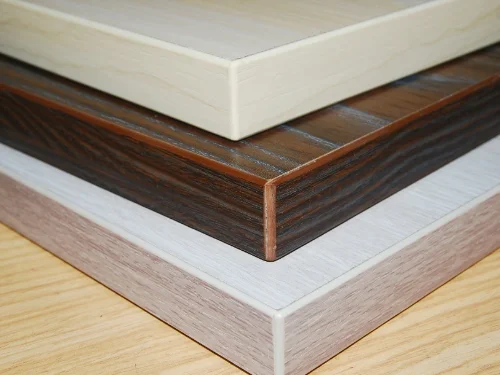

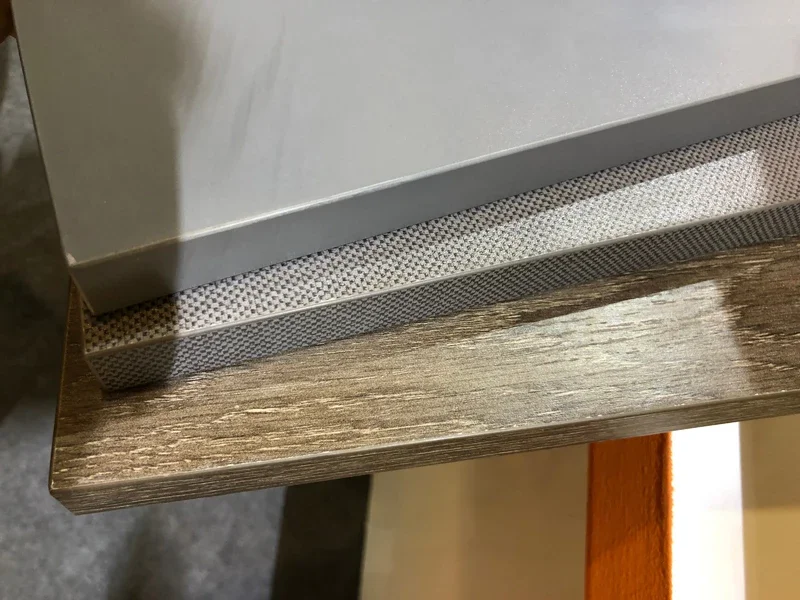

application
Automatic edge banding machine Applications:

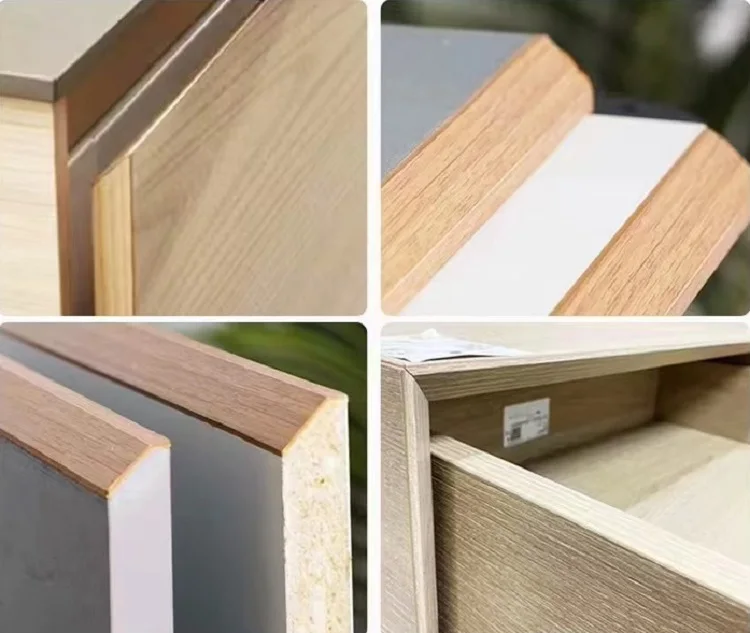

1. Suitable for straight line edge banding of panel workpieces, such as solid wood,
fiberboard,partical board, high gloss board etc.
2.Edge banding materials can be used solid wood strips,PVC, melamine,thin wood veneer,etc.
3.Suitable for various furniture and panel furniture manufactures.
3. Edge Banding Machine is mainly used for straight edge banding of solid wood, chipboard, laminated wood board, medium density fiberboard, etc. It can make the side of the work piece more smooth, durable and beautiful.
1. Suitable for straight line edge banding of panel workpieces, such as solid wood,
fiberboard,partical board, high gloss board etc.
2.Edge banding materials can be used solid wood strips,PVC, melamine,thin wood veneer,etc.
3.Suitable for various furniture and panel furniture manufactures.
3. Edge Banding Machine is mainly used for straight edge banding of solid wood, chipboard, laminated wood board, medium density fiberboard, etc. It can make the side of the work piece more smooth, durable and beautiful.
Packaging and Shipping

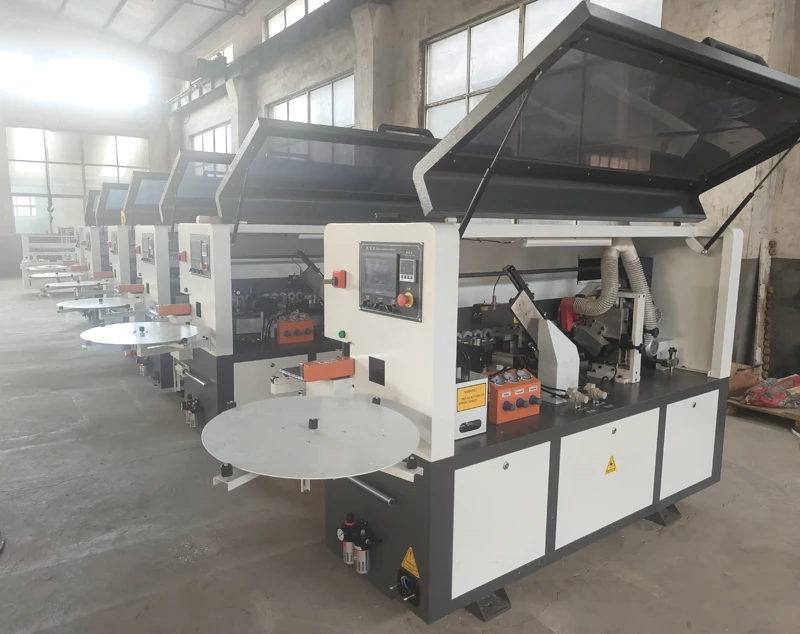

Company Introduction
Jinan Grandio CNC has16 years of production experience, 11 years of export experience, can provide hands-on technical support, has an independent research and development team, can provide continuous product and software upgrade and update
services.Qualified after-sales technical teams in many countries, which can help customers solve after-sales problems locally.
services.Qualified after-sales technical teams in many countries, which can help customers solve after-sales problems locally.
Even can help customers who with zero import experience to provide customs clearance to door service.Accept customized and OEM production, with 4 main production workshops, cnc router engraving machines, fiber laser cutting machines, other woodworking machinery, like sanding machine and pvc banding machine...Our new workshop is for 3d scanners,like laser scanner,3d Shining scanner, we provide the highest quality products, low prices and the best service, one-stop shopping, for all customers Free agent purchasing servicealways looking for powerful agent, work together, win-win. The company's main products include Panel board furniture production line and cabinet door production line: Standard CNC router(For wood,stone,metal..3axis,4axis and 5axis.support customized,OEM...) ATC CNC Nesting router,Multi-spindle cnc router machine ,3D scanner,Vacuum membrane press machine, Wood sanding machine ,Automatic edge banding machine,CNC side hole drilling machine ,Wood CNC lathe ,Fiber laser cutting machine,etc.
FAQ
Our Services
1. 1 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. We will provide the consumable parts at an cost price when you need replacement.
5. 24 hours on line service each day, free technical support.
6. Machine has been adjusted before delivery.
1. 1 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. We will provide the consumable parts at an cost price when you need replacement.
5. 24 hours on line service each day, free technical support.
6. Machine has been adjusted before delivery.
1. This is the first time I buy the machine, is it easy to operate?
A: We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team viewer" online, with telephone or Skype explain.
2. ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory.
3. Can I visit your factory?
A: Yes! We greatly welcome customers to visit our factory!
4. What is your MOQ?
A: Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
A: We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team viewer" online, with telephone or Skype explain.
2. ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory.
3. Can I visit your factory?
A: Yes! We greatly welcome customers to visit our factory!
4. What is your MOQ?
A: Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
