Product Overview
Description
Overview

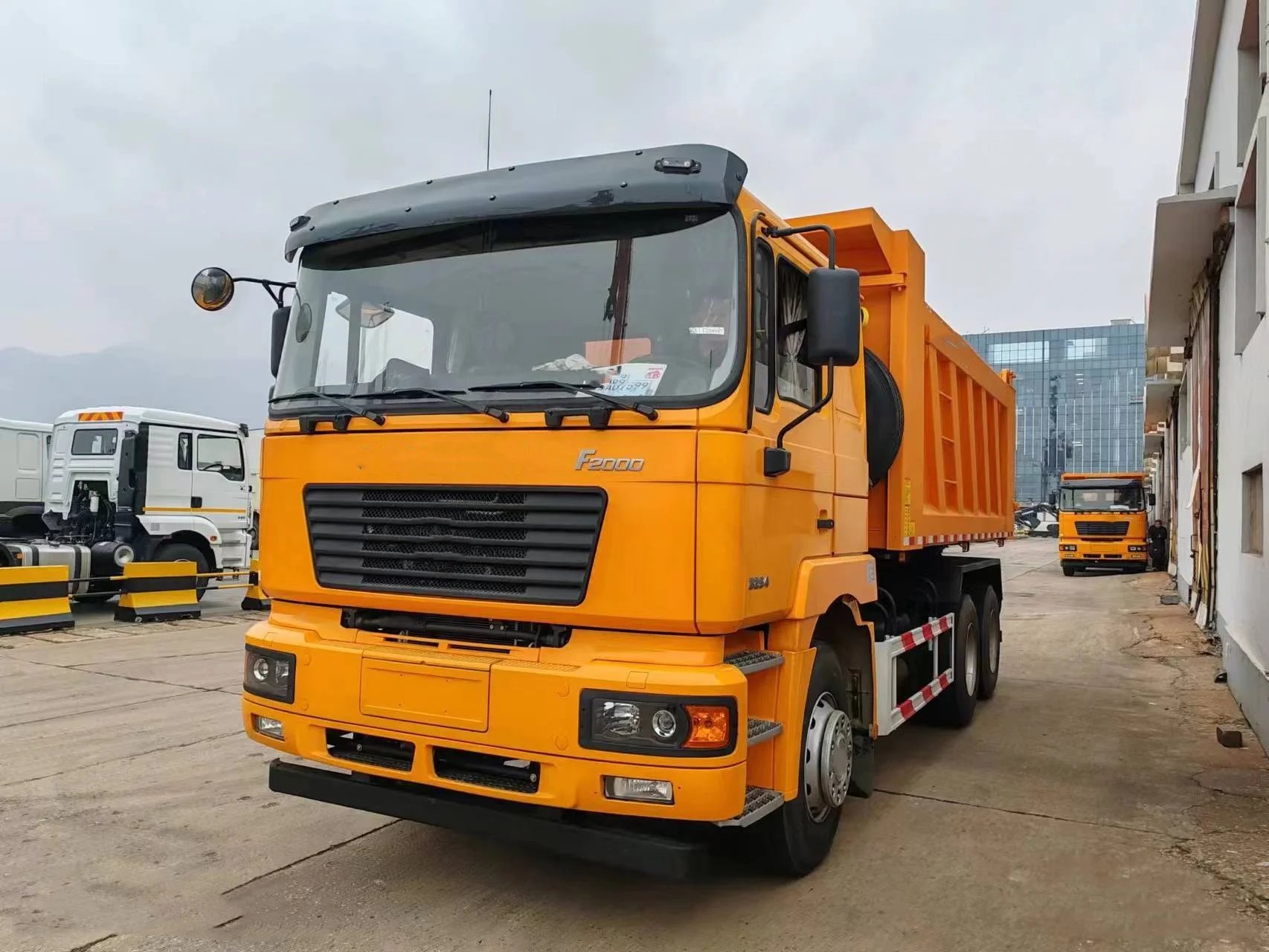

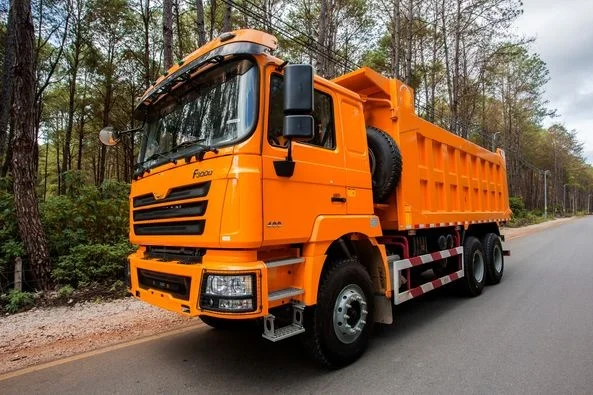

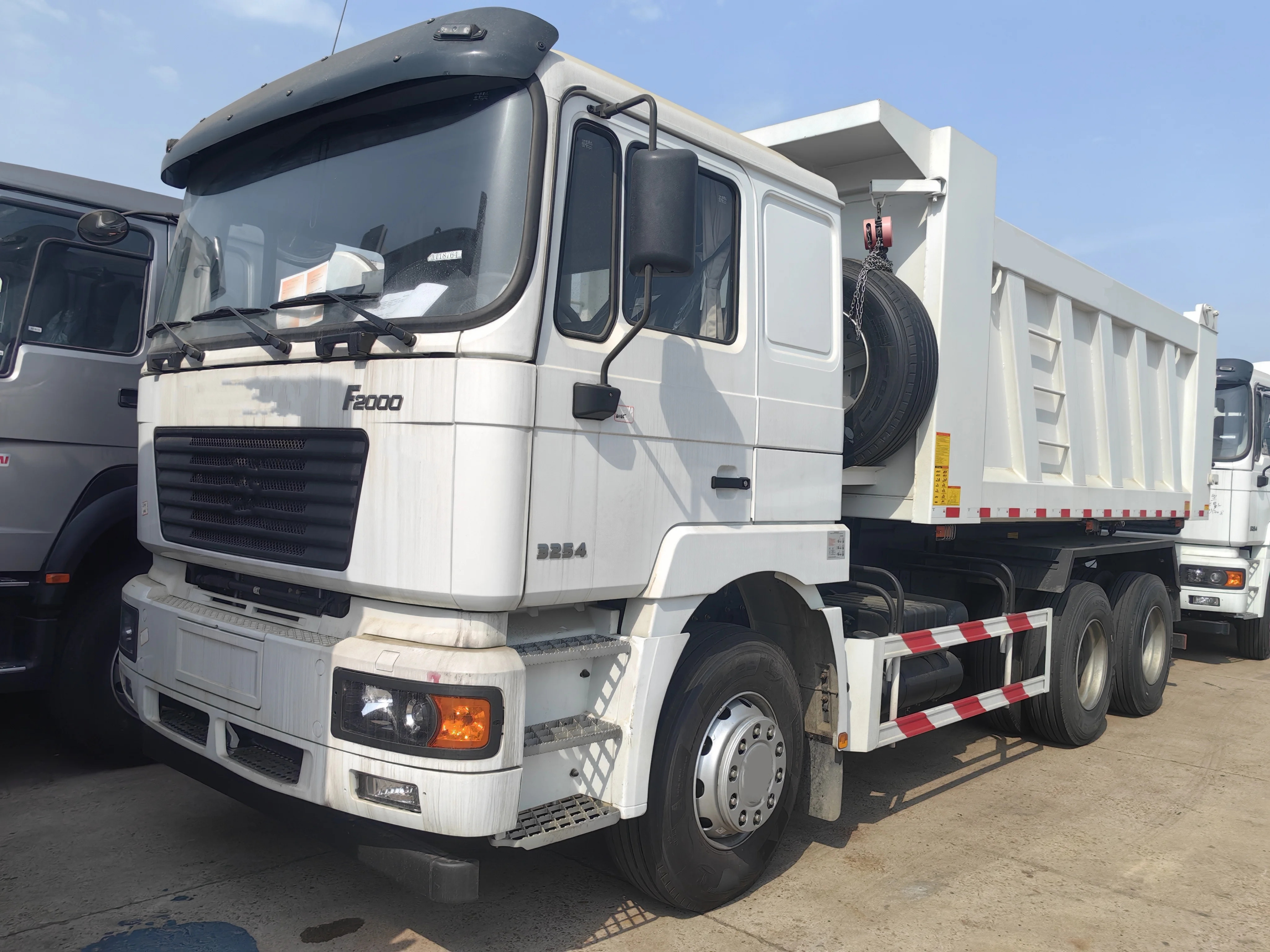

Cheaper Price Refurbished F2000 Tractor Truck Dump Truck for Engineering in Good Condition
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Product Description
Basic Configuration
Hydraulic main seat, four-point hydraulic suspension cab, hand window shaker, ordinary rearview mirror, manual flip, ordinary heater, ordinary air filter, F3000 cooling system, square muffler, 165Ah maintenance-free battery (Cummins models are standard with 180Ah maintenance-free battery), metal bumper, two-stage pedal, water tank protection grille, tail light protection grille, full English logo.
Superior Adaptability

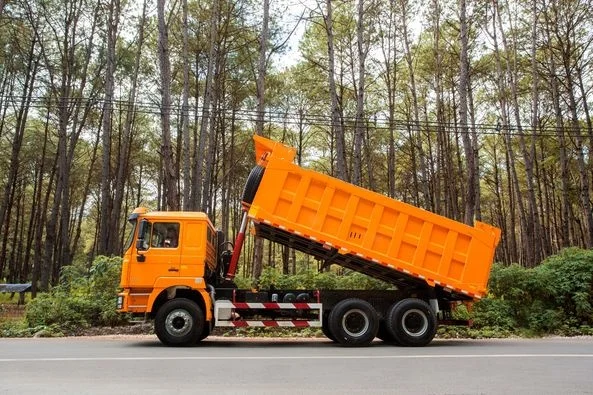

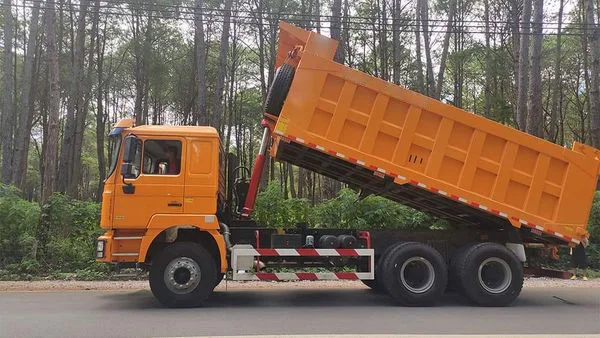

6x4 dump trucks are widely used for kinds of material transportation, including stones, sand, coal and so on. Simple structure in linear type ,easy in installation and maintation. Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.High pressure double crank to control the die opening and closing.
Specification
Name | F2000 Dump Truck | ||||
Model | SX3254JM384 | ||||
Drive type | 6×4 | ||||
Kerb mass (kg) | 11200 | ||||
Rated loading capacity(kg) | 13670 | ||||
Total mass(kg) | 25000 | ||||
Max. speed (km/h) | 77 | ||||
Min. turning diameter (m) | 18 | ||||
Approach/Departure(°) | 16/66 | ||||
Max. gradeability (%) | 30 | ||||
Appearance dimensions (mm) Length×Width ×Height | 8275×2490×3450 | ||||
Wheel base (mm) | 3800+1350 | ||||
Overhang(front/rear) | 1525/1600 | ||||
Track width (mm) (front/rear) | 1939/1800 | ||||
Engine | Steyr Engine, WD615.50,290HP E-II | ||||
Rated output power | 213kw | ||||
Torque(N.m r. p. m) | 1160/1100-1600 | ||||
Displacement(L) | 9.726 | ||||
Fuel tank capacity (L) | 380L iron tank | ||||
Tyre: | 11R22.5 Tubeless | ||||
Clutch | φ430 diaphragm spring | ||||
Gearbox | Transmission | 9JS135, 9F,1R | |||
Gear ratio | 12.11 8.08 5.93 4.42 3.36 2.41 1.76 1.32 1 R12.66 | ||||
Front axle | MAN 7.5T front axle | ||||
Drive axle | STR 13T×2 axle ratio 5.73 | ||||
Steering | technology(left-hand drive) | ||||
Brake | Service brake | With dual-circuit compressed air brake | |||
Park brake | Power spring brake acting on front & rear wheel | ||||
Cab | D’long F2000 lengthen-flat top cab, single bed with A/C, Manual window lifter | ||||
Body dimensions (mm) | 5600×2300×1400mm bottom 8mm,side6mm | ||||
Lifting style | Middle lift | ||||
