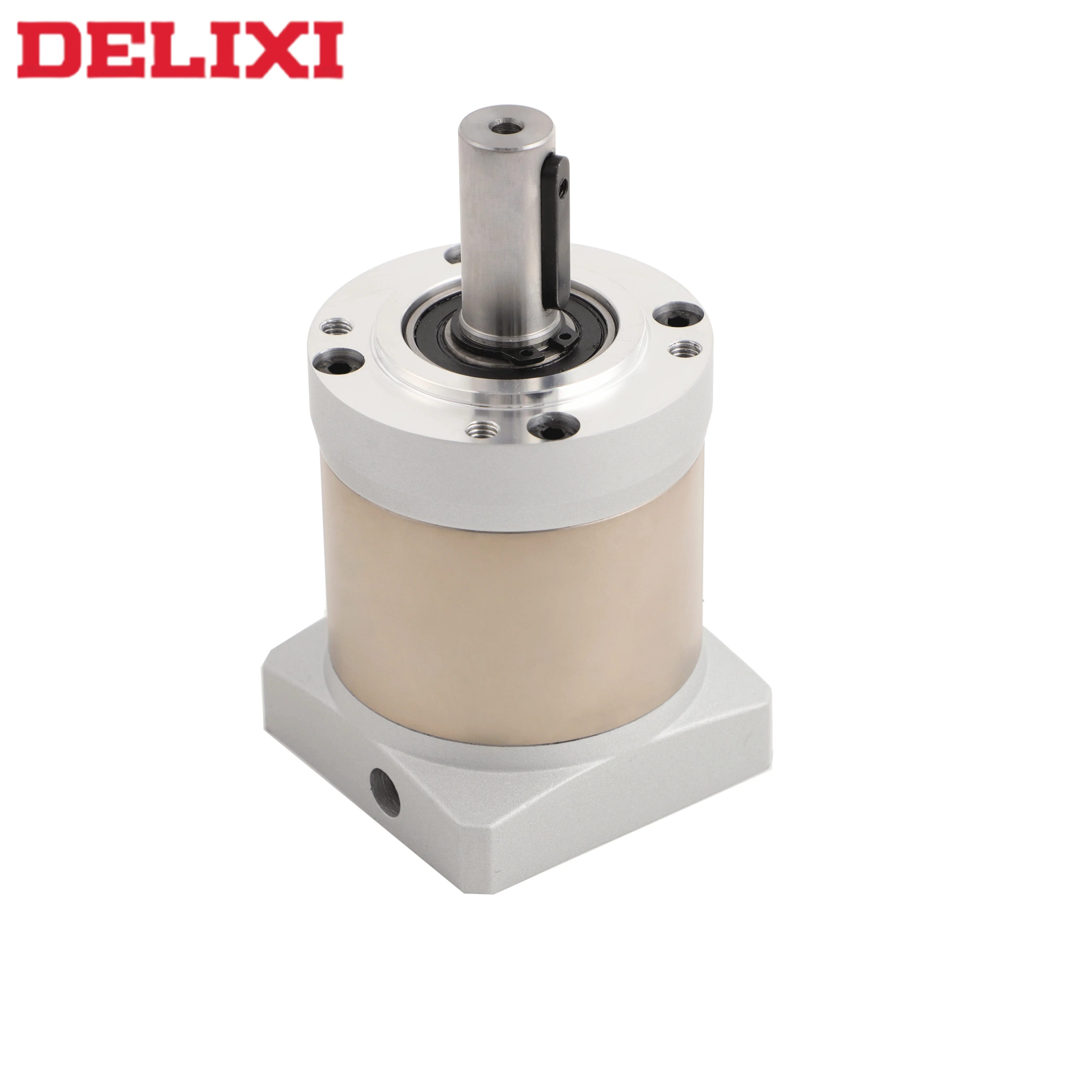

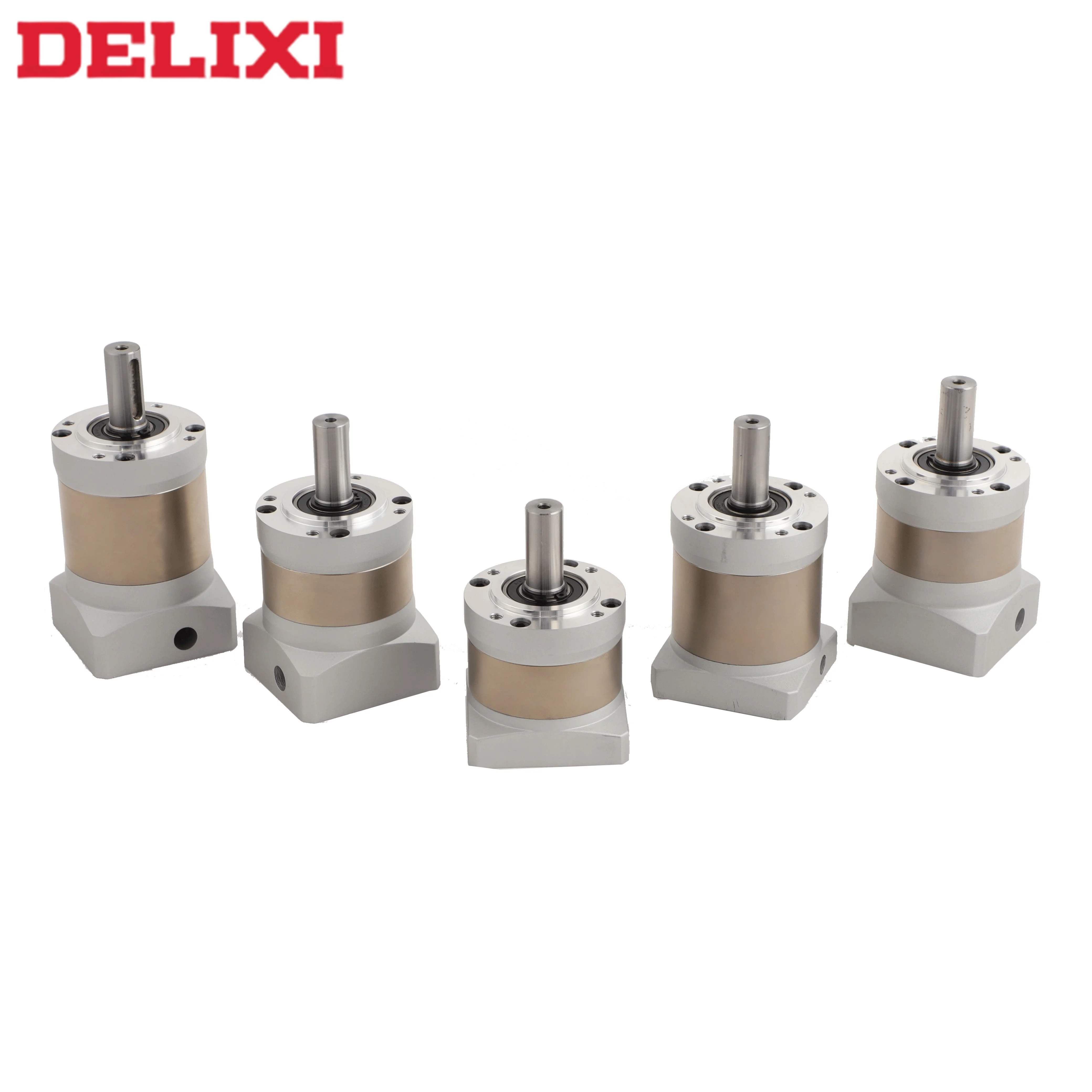

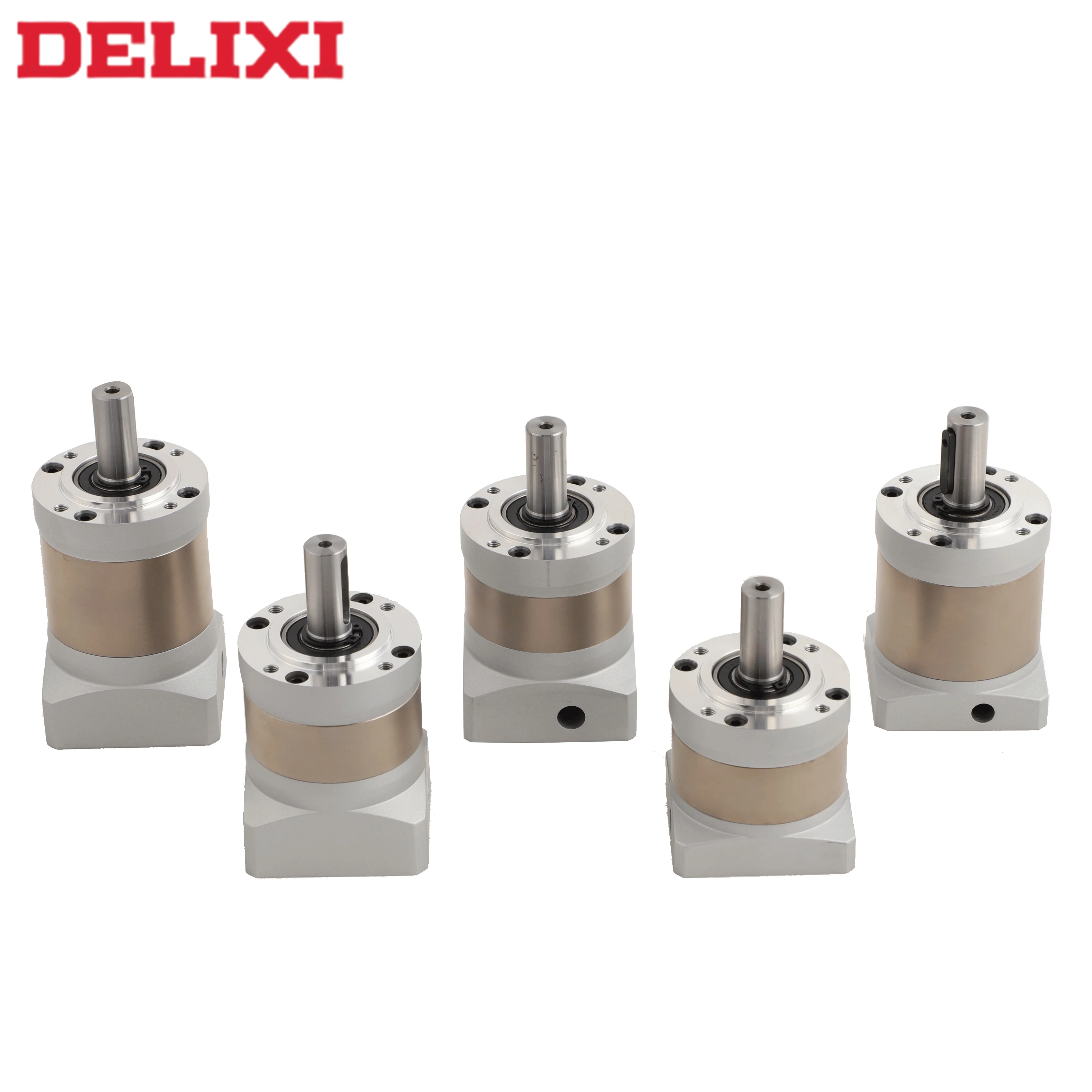

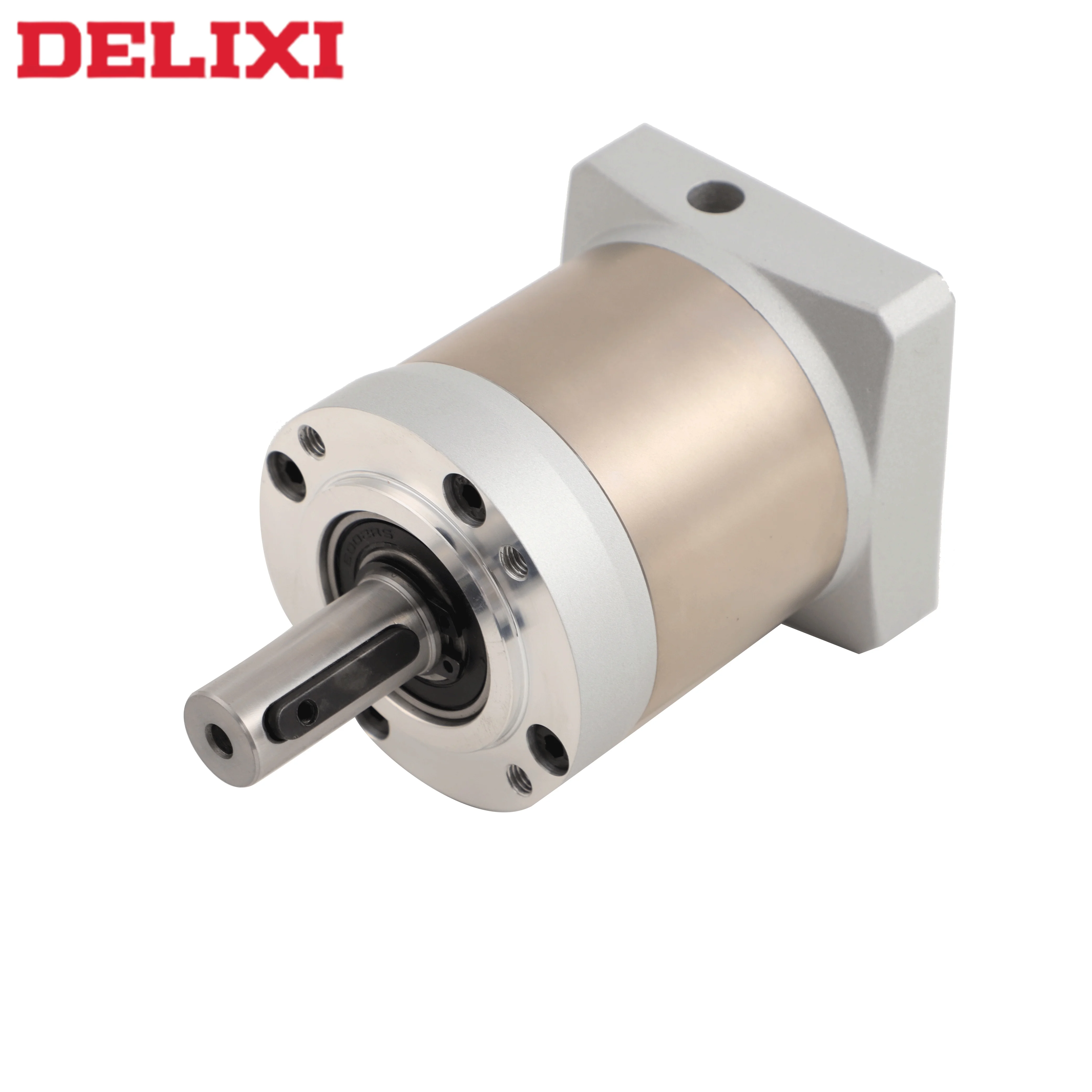

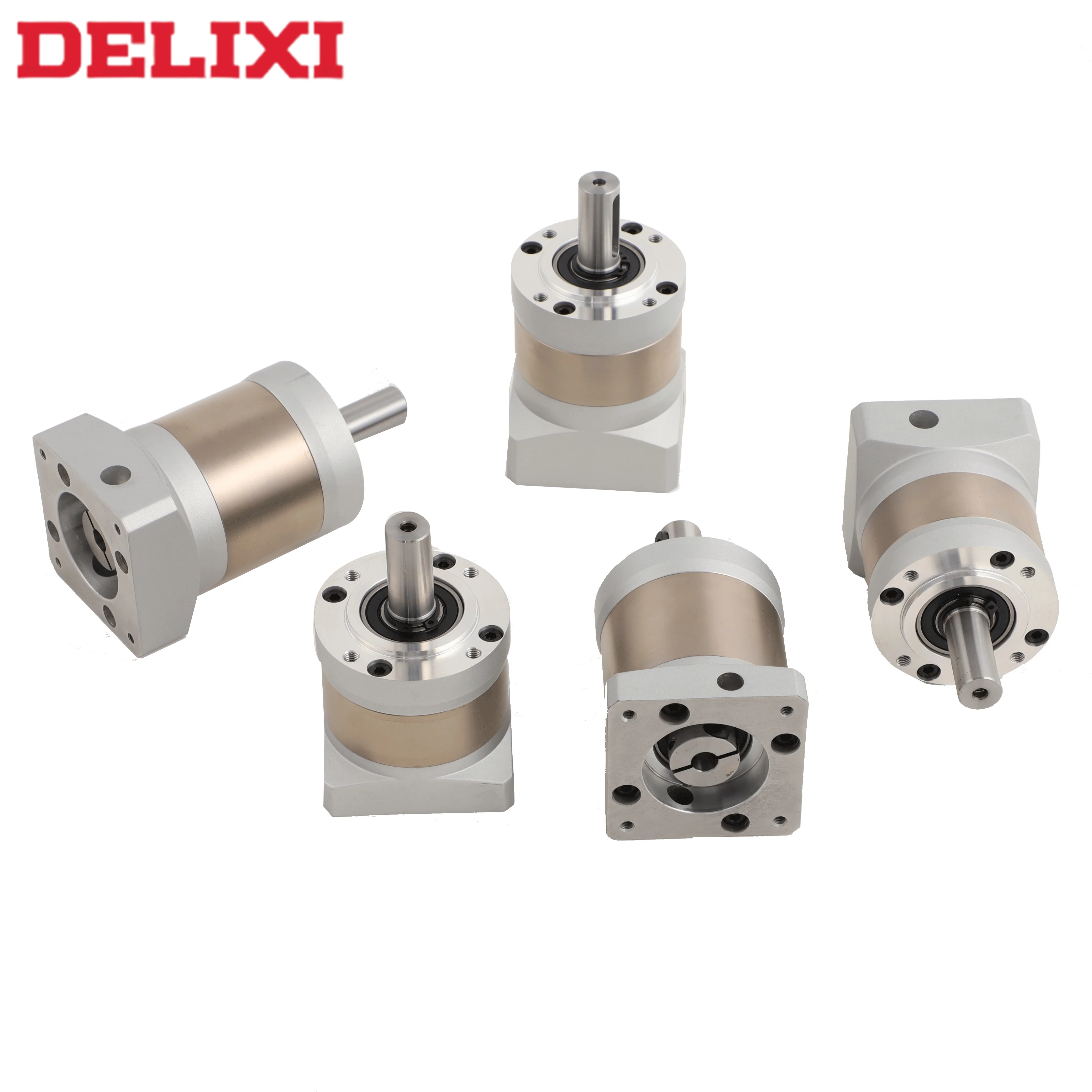

DELIXI ODM 60mm High Quality Powder Metallurgy Precision Planetary Gearbox Flange Spur Gear Stepper Motor Speed Machinery Farm
- Category: >>>
- Supplier: Delixi New Energy Technology (hangzhou) Co. Ltd.Delixi Ltd.
Share on (1601367804214):
Product Overview
Description
SPECIFICATIONS | STAGE | RATIO | RATED TORQUE (N.m) | ||
HPR60 Planetry Gearbox | L1 | 3 | 16 | ||
4 | 25 | ||||
5 | 28 | ||||
7 | 20 | ||||
10 | 10 | ||||
L2 | 16 | 30 | |||
20 | 30 | ||||
25 | 32 | ||||
28 | 30 | ||||
30 | 16 | ||||
35 | 30 | ||||
40 | 25 | ||||
50 | 25 | ||||
70 | 20 | ||||
100 | 10 | ||||
Rated Input Speed (rpm) | 3000 | ||||
Max Input Speed (rpm) | 6000 | ||||
Backlash | L1 | ≤ 15Arcmin | |||
L2 | ≤ 20Arcmin | ||||
Fault stop torque(N.m) | 2 times of rated torque | ||||
Efficiency | L1 | 96% | |||
L2 | 94% | ||||
Average life span | 20000h | ||||
Operating temperature | -20°~+150° | ||||
Nosie | ≤55 db | ||||
IP | 54 | ||||
Installation method | Any installation method | ||||

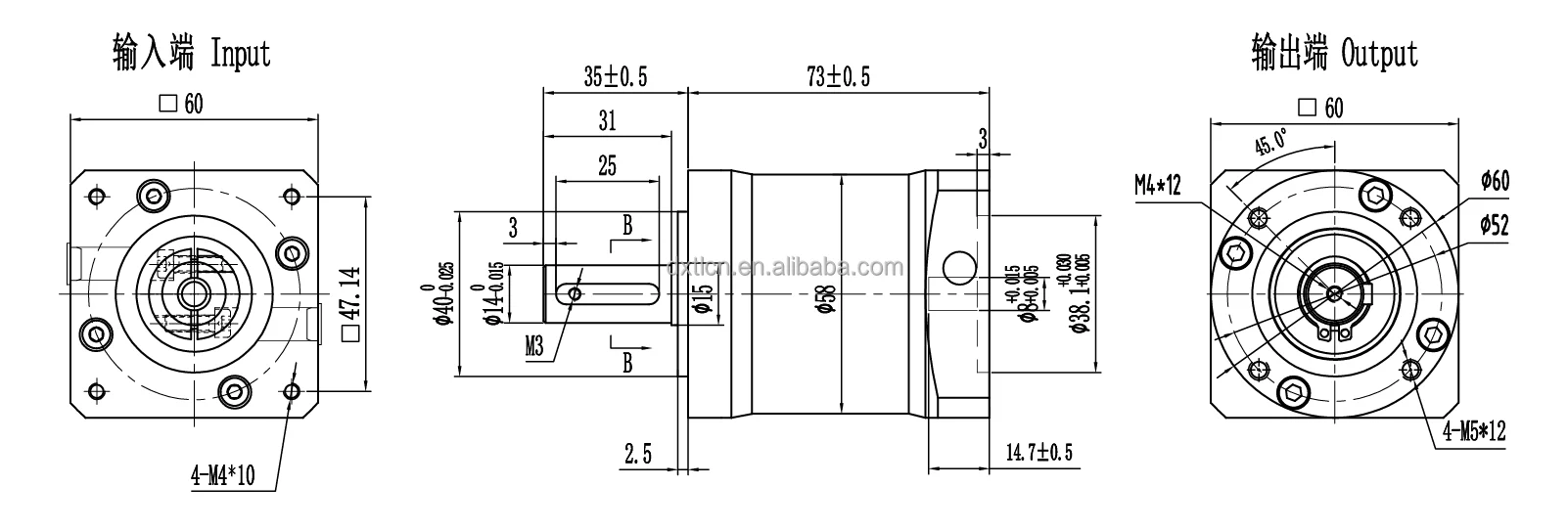

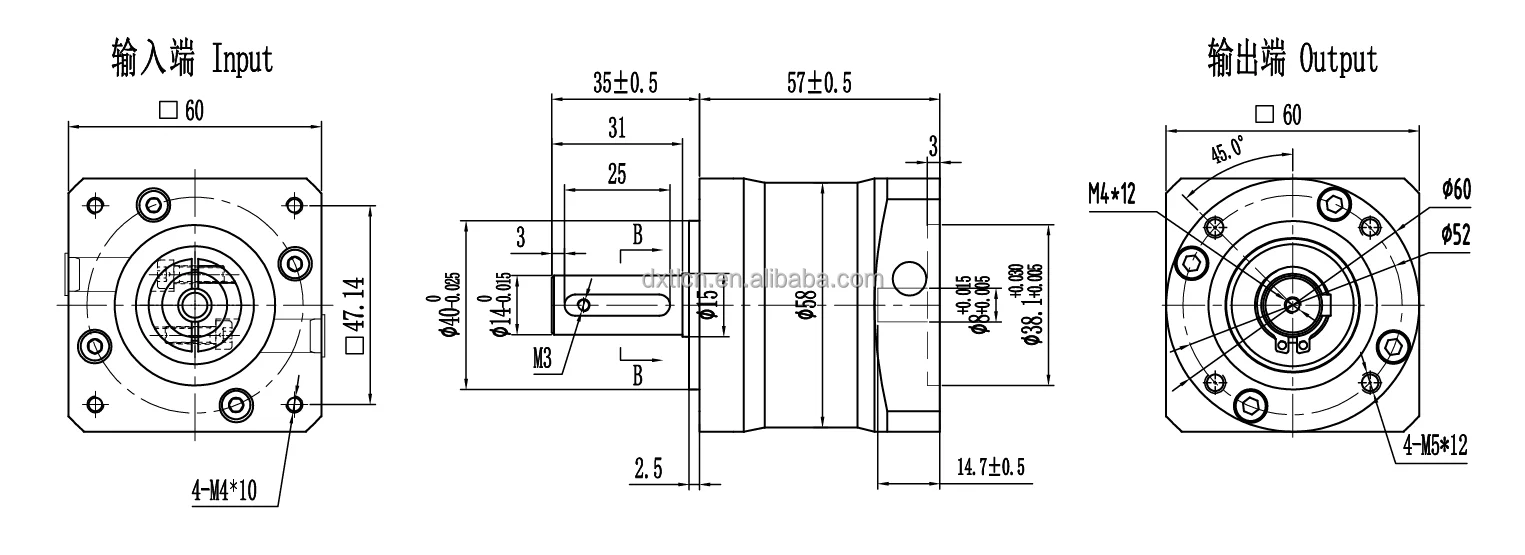

L1
L2
