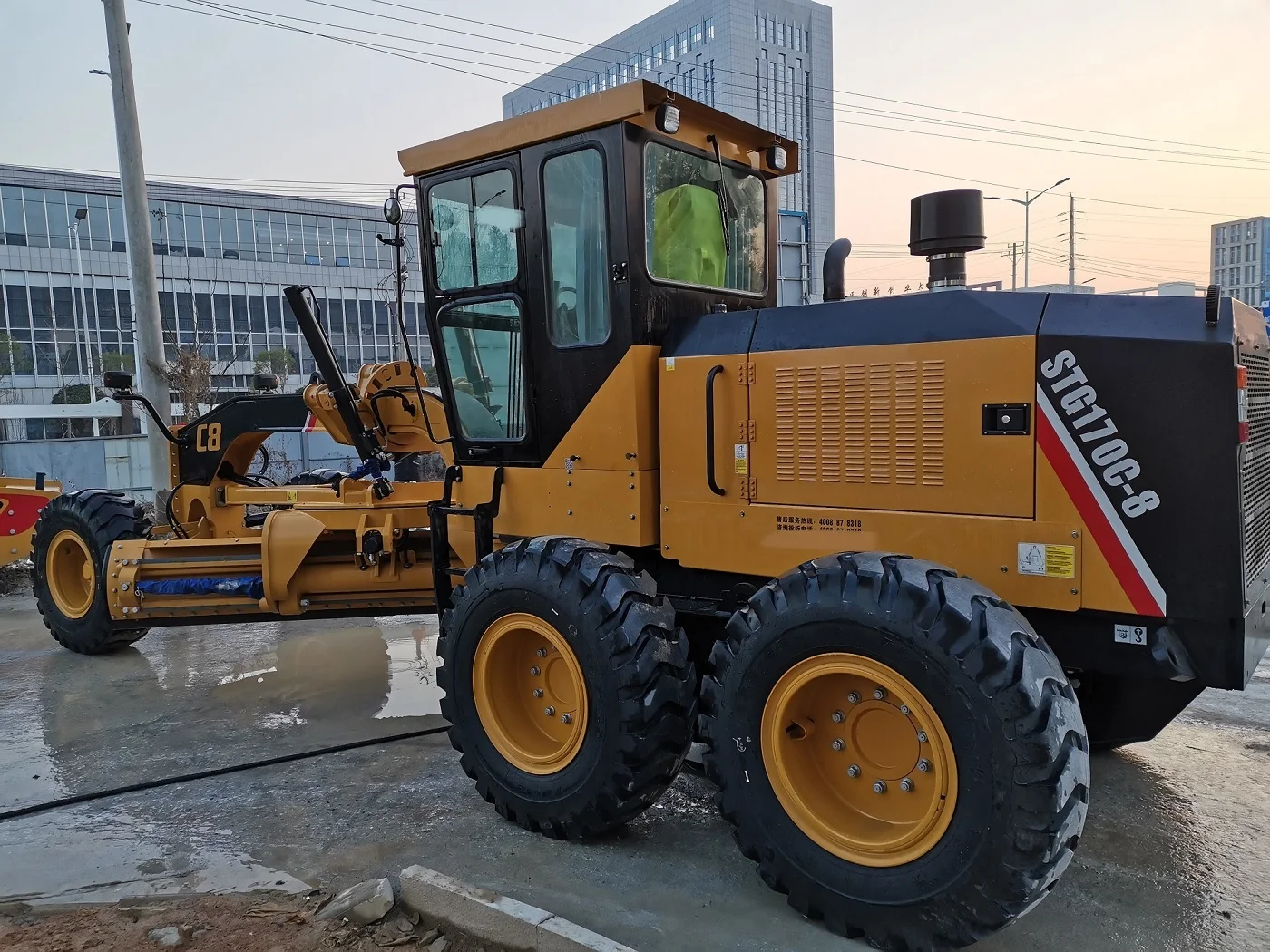

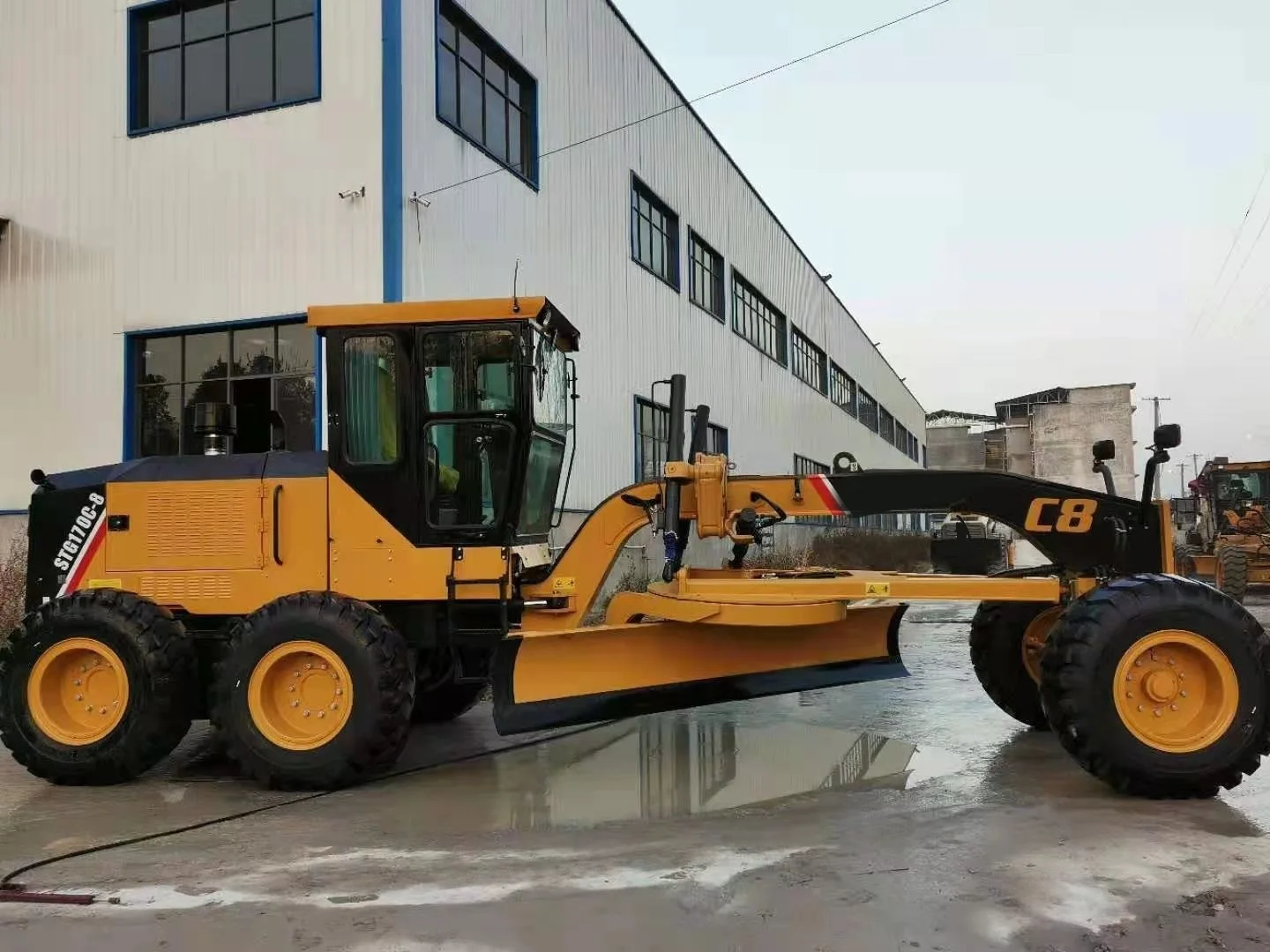

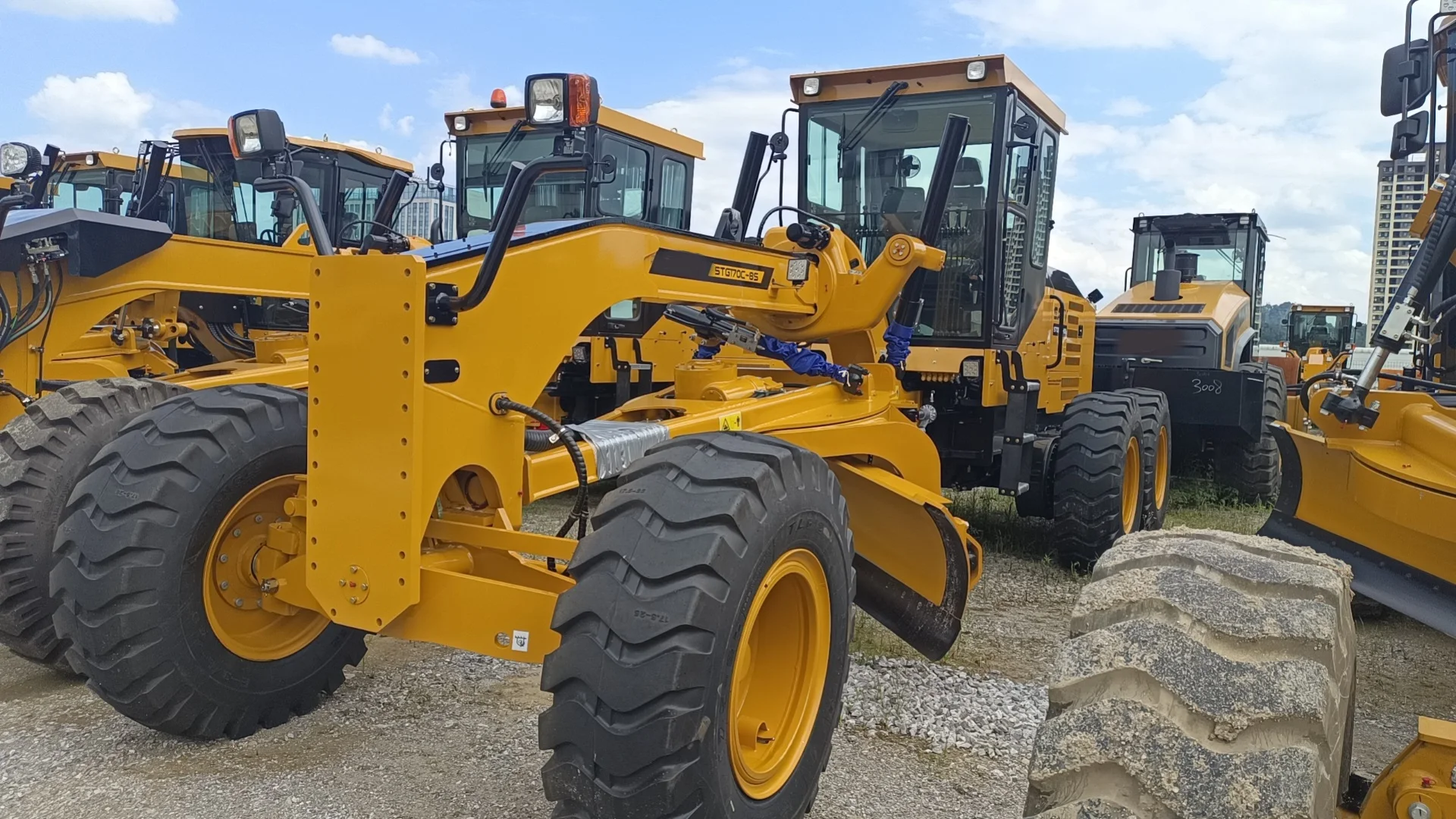

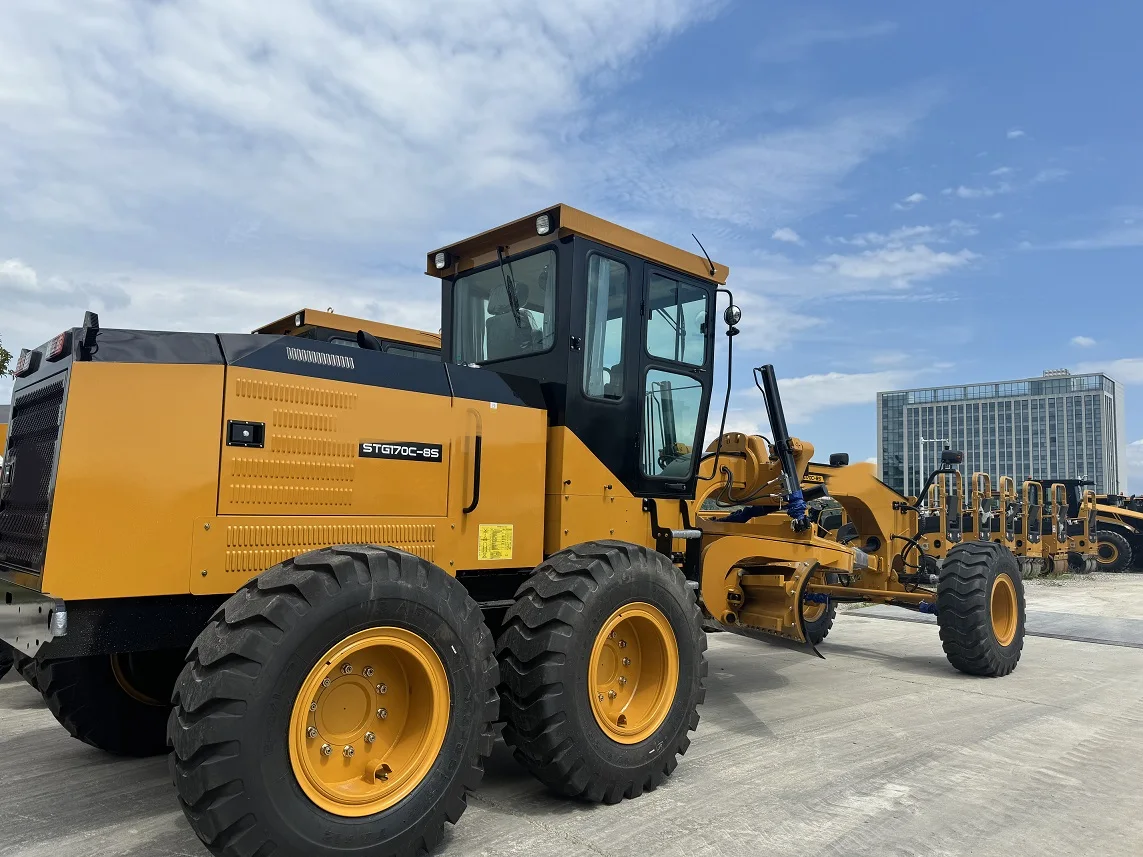

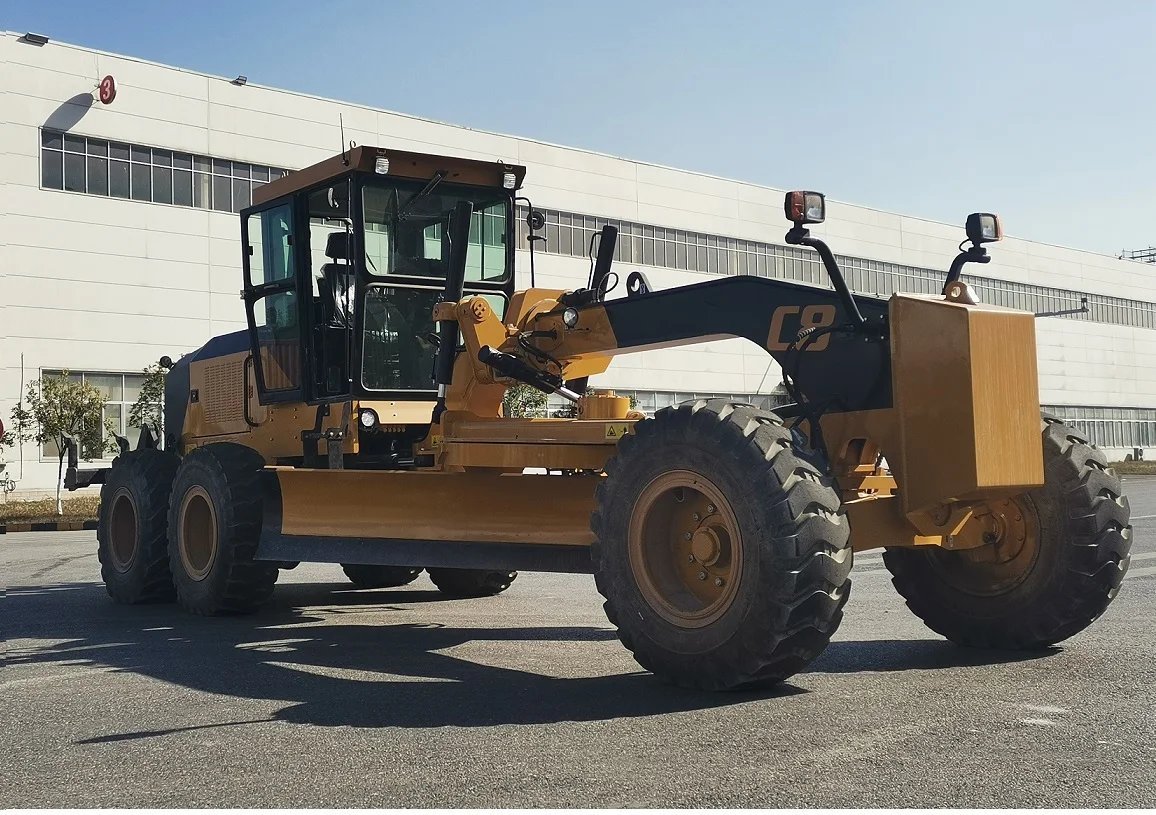

Brand new all wheel drive motor grader with front blade STG170C 8S motor grader made in china
- Category: >>>
- Supplier: Oriemac Machinery & Equipment (Shanghai) Co. Ltd.Oriemac Ltd.
Share on (1601369855871):
Product Overview
Description
Product Overview
Feature:
1. Large tractive force 180 HP high-power heavy-duty engine, through better bridge charge ratio, to ensure maximum tractive force.
2. High construction efficiency, better operating speed, cylinder speed, shovel force and speed, to ensure more efficient construction
3. Low use cost, direct flow air intake system, air filter maintenance cycle from 250H to more than 1000H, working device and rear axle with full seal slewing bearing structure, five wearing parts, reliability greater than 10000h
4. Easy maintenance, fault self-diagnosis fault information directly displayed, daily maintenance automatic prompt, built-in
troubleshooting guide and maintenance content.
2. High construction efficiency, better operating speed, cylinder speed, shovel force and speed, to ensure more efficient construction
3. Low use cost, direct flow air intake system, air filter maintenance cycle from 250H to more than 1000H, working device and rear axle with full seal slewing bearing structure, five wearing parts, reliability greater than 10000h
4. Easy maintenance, fault self-diagnosis fault information directly displayed, daily maintenance automatic prompt, built-in
troubleshooting guide and maintenance content.
Contact way
JANE YIN
SALES MANAGER
Email: jane@oriemac.com
Tel/WA/Wechat: +86 15242642683
Product Show
PRODUCT SPECIFICATIONS
Power system specification | Suppler | WEICHAI |
Emission | CHINA III | |
Model | WP6G180E330 | |
Rated power(kW) | 132.5 | |
Rated rotation speed(rpm) | 2200 | |
Peak torque(Nm) | 750 | |
Dimensions | Standard (without counterweight) (L×W×H)(mm) | 8775×2740×3348 |
Front and rear axle base(mm) | 6310 | |
Middle and rear wheel base(mm) | 1538 | |
Clearance(from rear axle to ground)(mm) | 410 | |
Load specification | Standard (without counterweight)(kg) | 14730 |
Operating device specification | Length of blade(mm) | 3660(12ft)(standard) |
Height of blade(mm) | 620 | |
Tilt angle | ±90° | |
Turning angle | 360° | |
Max. lift above ground(mm) | 480 | |
Max. depth of cut(mm) | 630 | |
Bla de tip range | 25°-75° | |
Running specification | Gears | 6 forward and 3 reverse |
Forward speed(km/h) | 5/8/10/18/26/40 | |
Reverse speed (km/h) | 5/10/26 | |
Steering angle of front wheel | ±45° | |
Tilt angle of front wheel | ±17° | |
Articulated steering angle | ±27° | |
Oscillation angle of front axle | ±16° | |
Model of tire | 17.5-25(12PR)(standard) | |
Tank capacity | Max. capacity of hydraulic oil tank (L) | 140 |
Max. capacity of fuel tank (L) | 350 |
