Product Overview

Description

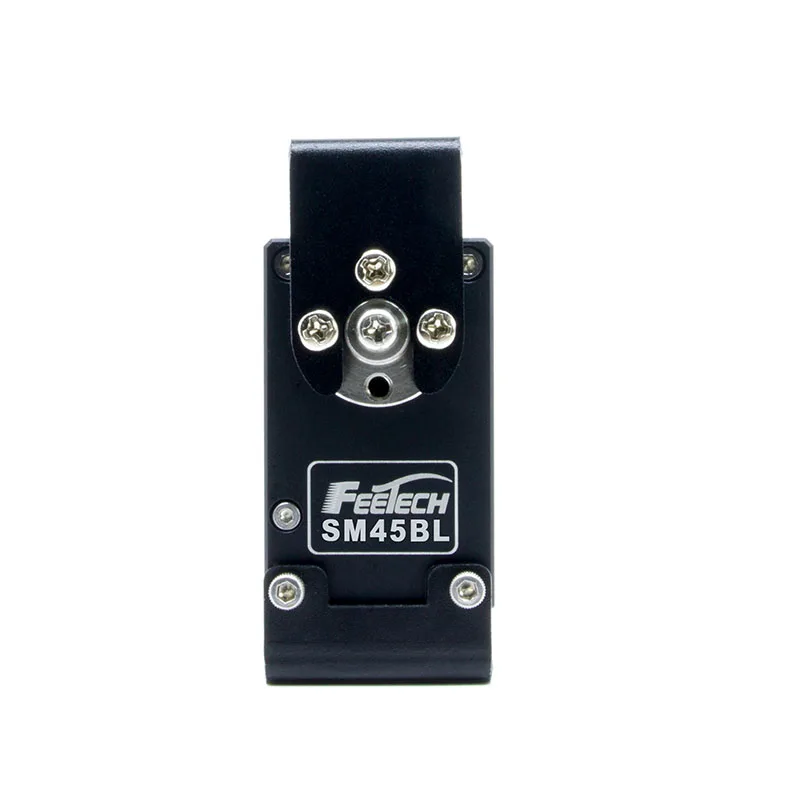

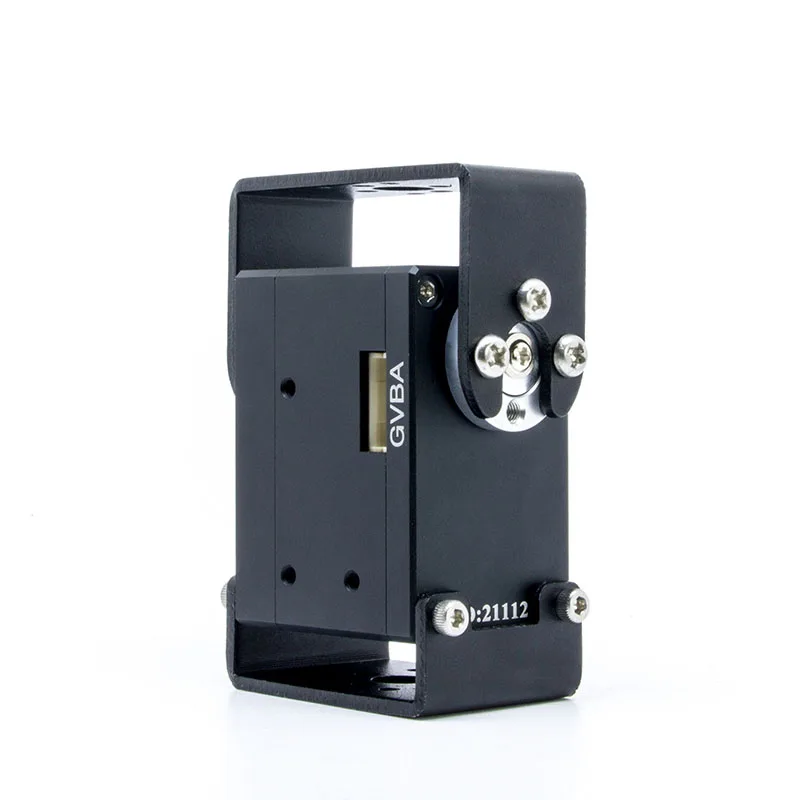

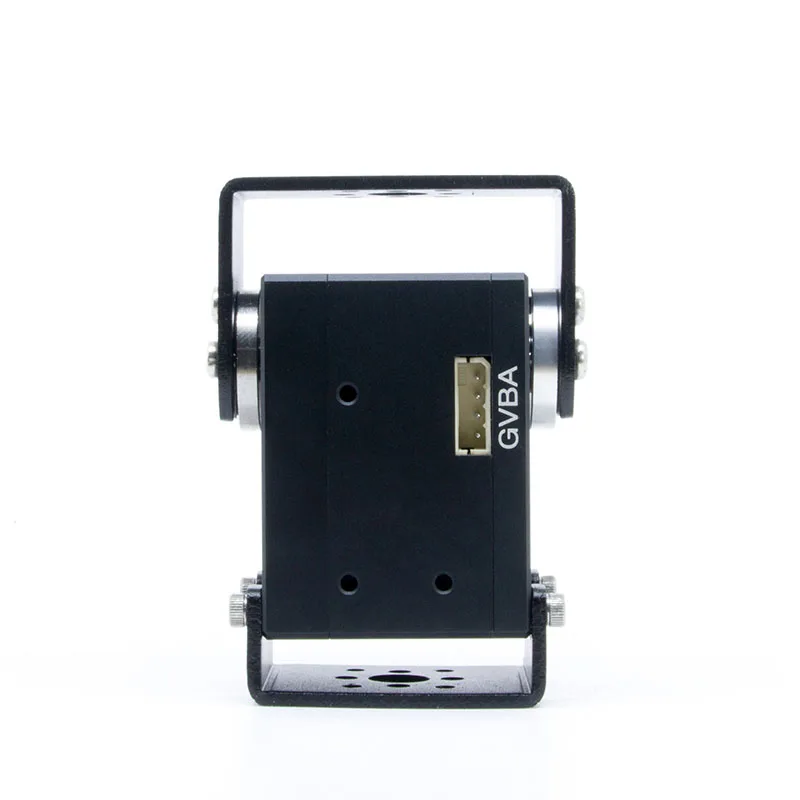

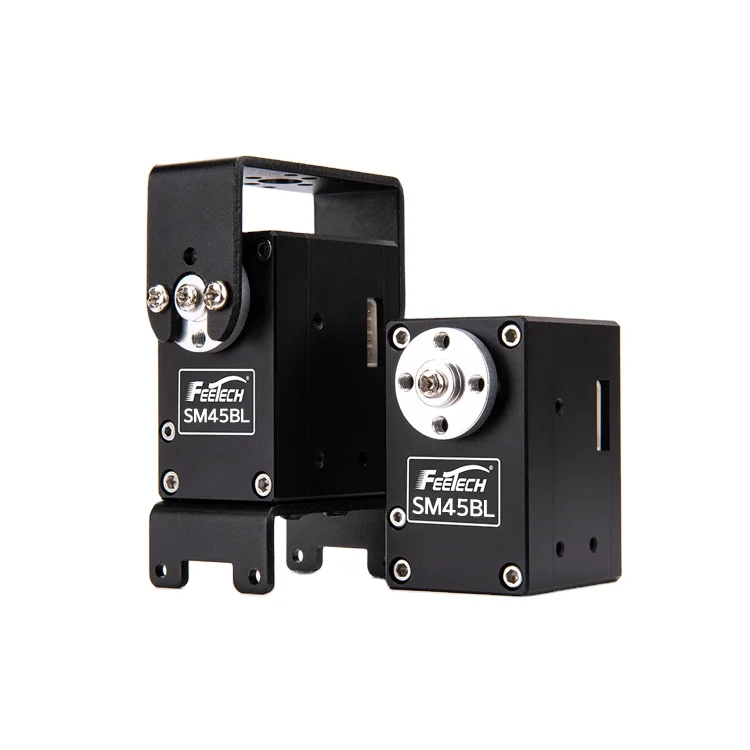

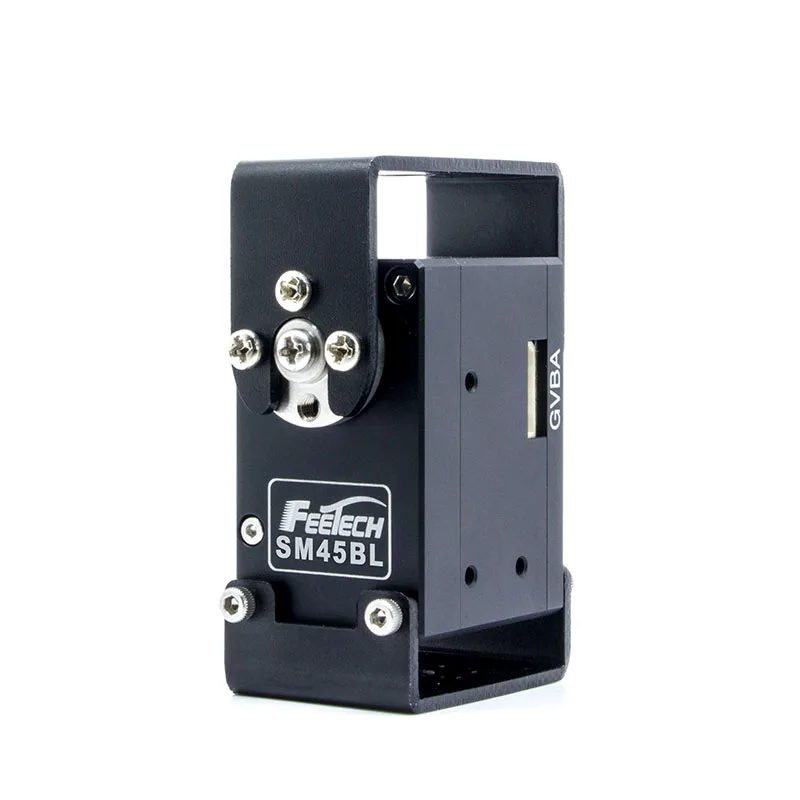

24V 45kg RS485 Modbus-RTU Smart servo Brushless 360 degree servo For Universal 4-6 Axis Educational Programmable Robotic Arm



Product Description


Feetech smart servo is specifically designed for applications that require a lot of strong and complex actuation,
such as humanoid robots, hexapod robots, and robotic arms.
these servos are capable of 360°continuous rotation while
still offering position control over an effective range of 360°.
RS485 4P interface that is used to configure and control the servo and get feedback about position, speed, and temperature.
Multiple servos can be daisy-chained on the same serial bus.




Specifications:

































Operating Voltage24V
Stall Torque45kg.cm
No Load Speed70 RPM
Weight100g
Operating Angle0° ~ 360°
Command signalRS485
ProtocolHalf duplex Asynchronous Serial Communication




SM45BL

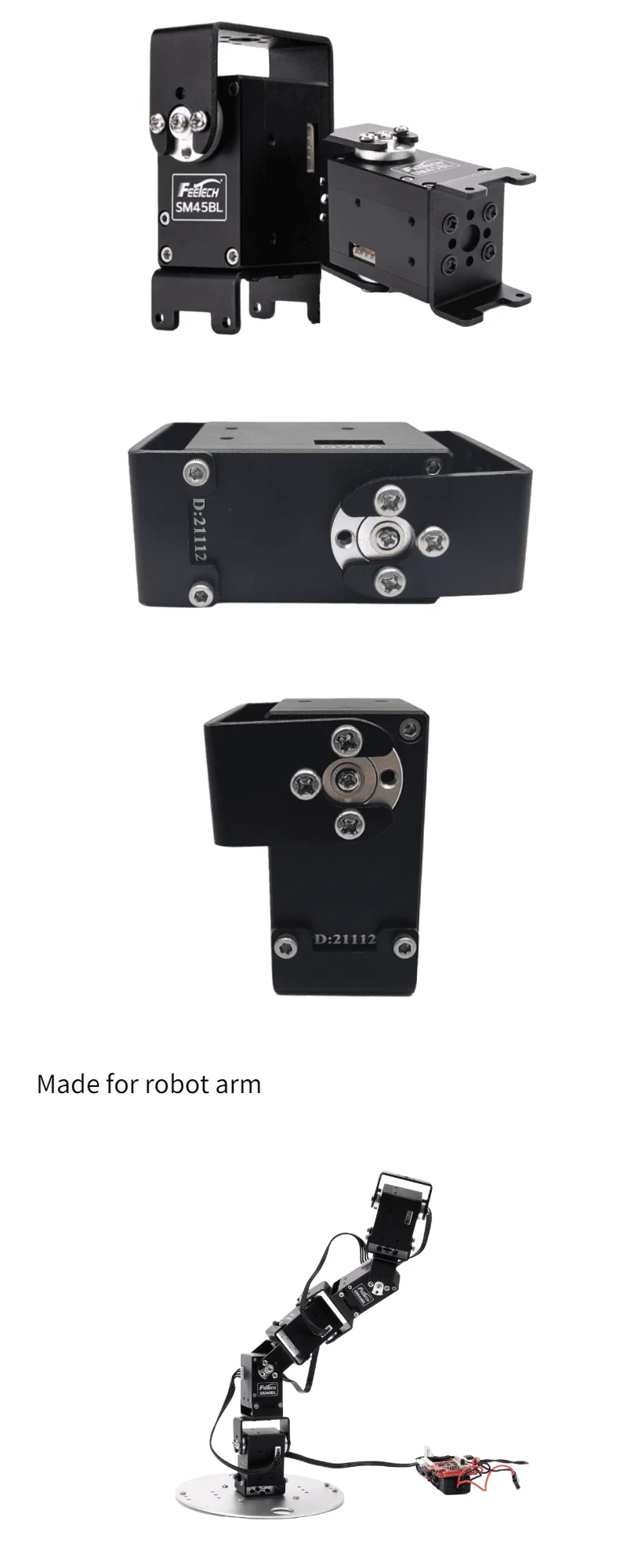

Product Details:


smart servo detail.jpg





Feetech Debug Software:


FD Software 640.png


Click Here >>>>> Contact Us To Get More Informations about FD Debug Sfotware,Arduino Library,Communication Protocol ,Control Table





Position Feedback Curve:










Packing:


1-PE bag (A servo + accessory)


2-Box (A servo + accessory)













 Related Products: SM servo-1.jpg

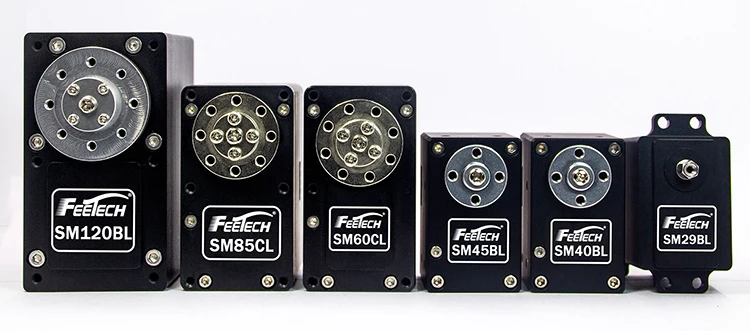

SM Series Servo






















Our Services:


Specialized in ODM and OEM and Custom Made


we can provide electronic design,


structure design and production of0 one-stop customized serive,


Please feel free to share with me your idea.







Customizable content:


1.Your Logo lable or print
2.Servo Wire:length,wire core,wire colour
3.Packing:PE Bag,Colur Box,plastic box wity your Logo
4.Cable connector:1-4 pin JR,JST,XH
5.Output Gear:
  The material:Plastic,Copper,steel
  Output teeth:25T Spline,hexagonal,and so on
6.CNC case:Case structure,colour
7.Electronic function More......
