Automatic spray machine for Multicolor spray paint
US $29500-$30000
CE!! Produce over 10years! Cement grout and mortar pump
- Category: Mortar Spray Machines >>>
- Supplier: Wenzhou Engineering Machinery Co. Ltd.
Share on (1602432183):
Product Overview
Description
Product Description

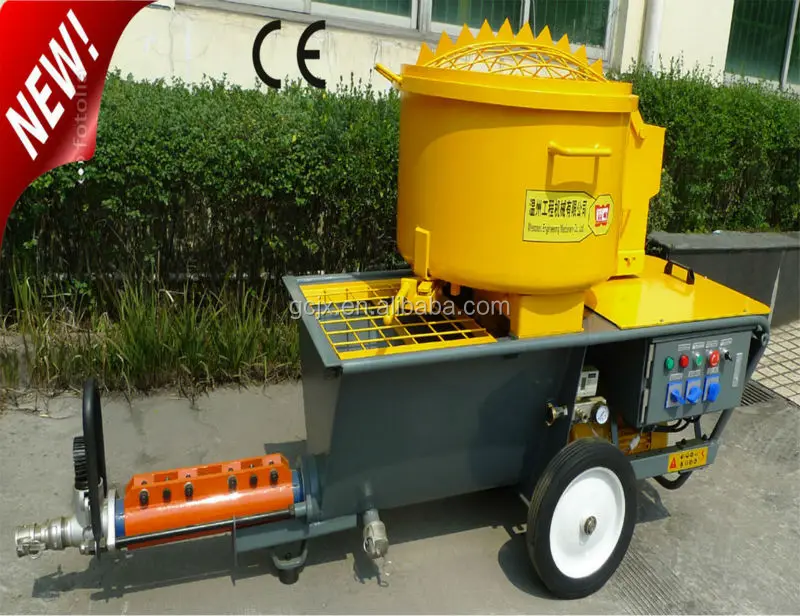

JP60-L Cement grout and mortar pump
1. JP60-L, JP60-P plastering machine is high cost-effective machine introduced German technology.
2. JP60-L is very suitable for large heavy duty plastering, it can plaster about 1000-1200m2 per 7hours. JP60-L is most suitable for longer distance pumping.
3.It provides with variable regulation for speed, pressure and output. It set the pressure control and protection mechanism to achieves the remote control.
4. The ture feedback from our customer is that use JP60-L plastering machine for spraying fireproofing, the stator and rotor service life as below:
Desnity: 450KG/m3
Stator life: 1500-3000 bags x 21.5 kg/bag
Rotor life: 3000-6000 bags x 21.5 kg/ bag
Technical parameters of JP60-L Mortar plastering machine
Model | — | JP60-L | JP60-P |
Supply power | — | 400V 50Hz | 400V 50Hz |
Motor power | kw | 4.0/7.5 | 4.0/7.5 |
Maximum grain size | mm | 6 | 6 |
Output | l/min | 40 | 40 |
Delivery pressure | bar | 30 | 30 |
Horizontal delivery distance | m | 60 | 60 |
Vertical delivery distance | m | 40 | 40 |
Mixer power | kw | 1.1 | — |
Mixer volume | l | 120 | — |
Hopper volume | L | 100 | 100 |
Net weight | kg | 400 | 280 |
Dimension (L×W×H) | mm | 2290×680×1220 | 2290×680×660 |

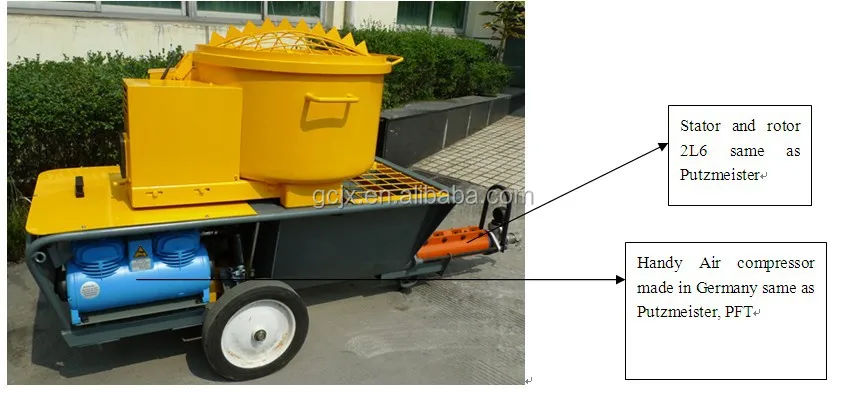

1. Main components of JP60-L are made in Germany:
Remark:There are two options for air comprssor and various speed of pumping motor including made in China or made in Germany. The above main compnents are same as PFT and Putzmeister! But the whole price is half of PFT and Putzmeister!

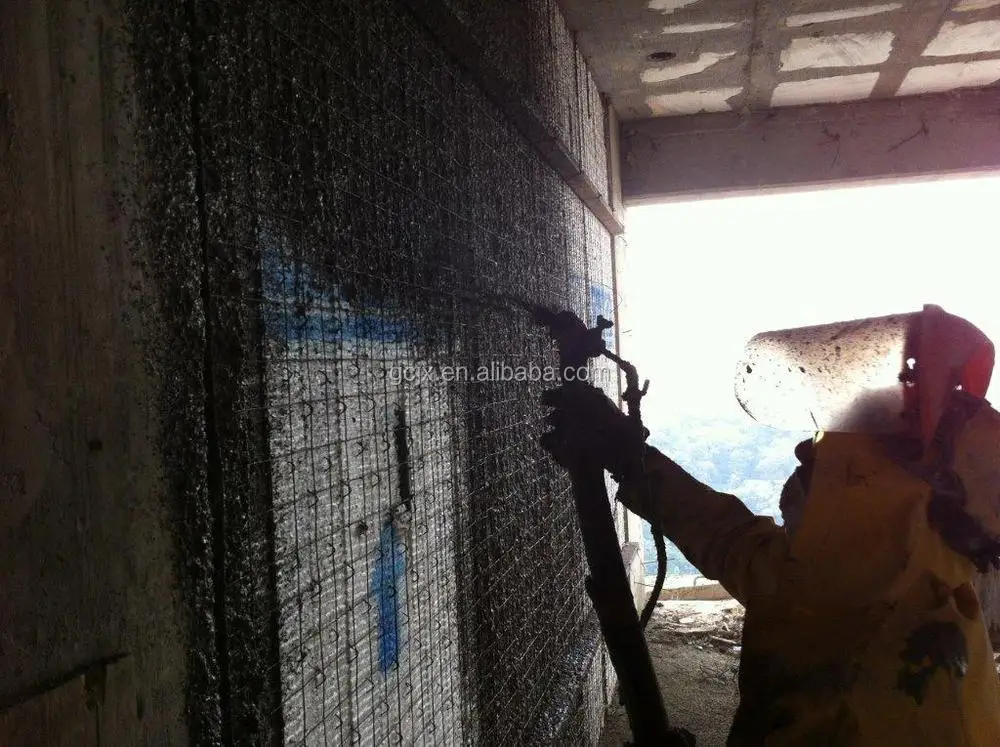

2. JP60-L is used for plastering fireproofing, mortar, insulation material etc.
![N7ZN`HVAVA9BTX]G~MT91C](http://g01.s.alicdn.com/kf/HTB1iWn9GpXXXXc5XVXXq6xXFXXXh/200332041/HTB1iWn9GpXXXXc5XVXXq6xXFXXXh.jpg)
3. Main spare parts of JP60-L

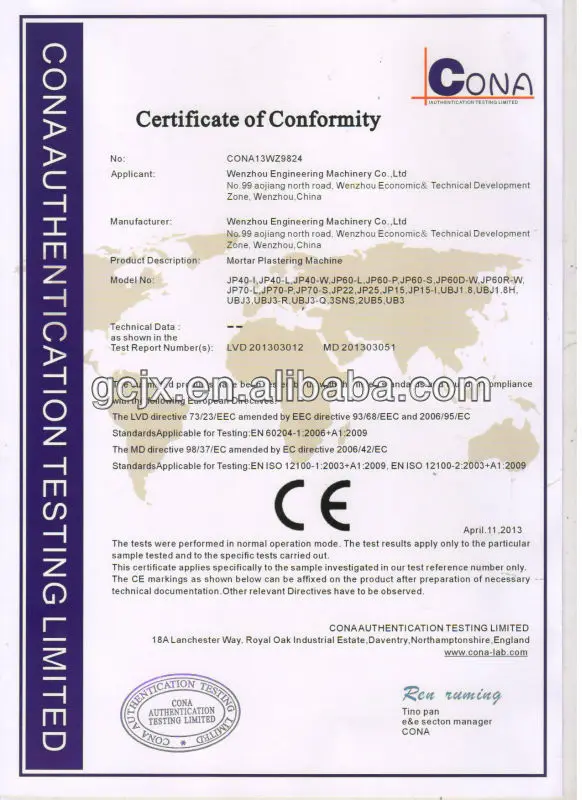

4. JP60-L CE Certificate
5. Training service for JP60-L in India
company information
Wenzhou Engineering Machinery Co., Ltd. is a member of China Construction Machinery Association, China Bulk Cement Association of Popularization & Development, is the first batch of key enterprises in Zhejiang Province. It is leader of China's mortar spraying technology, and recognized as one of the scale of strong enterprises for the manufacture of mortar spraying machine.
Wenzhou Engineering Machinery Co., Ltd. has been committed to the manufacture of concrete machinery for such a long time, based on the domestic leading technology, relying on international cooperation R & D advantages, together with Germany NORD, CELLMANN and other famous companies to import advanced management concepts and management models, improved product quality management system. Following the ISO9001 quality management system, and with full implementation and effective operation of it, we are able to ensure product’s quality and stability.
Our products are renowned because of high quality and a famous brand at home and abroad. In the 1970s, our company introduced the German plunger type, squeeze type, Screw concrete transportation, Mortar spraying technology into China. And nowadays the continuation of the current concrete pump, mortar spraying machine products from the Chinese market has expanded to Europe, South America, North America, Australia, the Middle East, Southeast Asia, Africa and other regions and countries. Our products with high quality and reliable performance services are popular with the trust of users around the world. Now we have been formed the ability that our annual output of various types of mortar spraying machine reaches 12000 sets.
Exhibition & Visitng
Welcome to our factory!!!
It would be our great honor to show & test our machine for you.
***Clients from AUE/Saudi Arabia/Franch/ Chile/ India visited our factory.
***Exhibition every year---Welcome to our fair
